SIR Identification Views
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

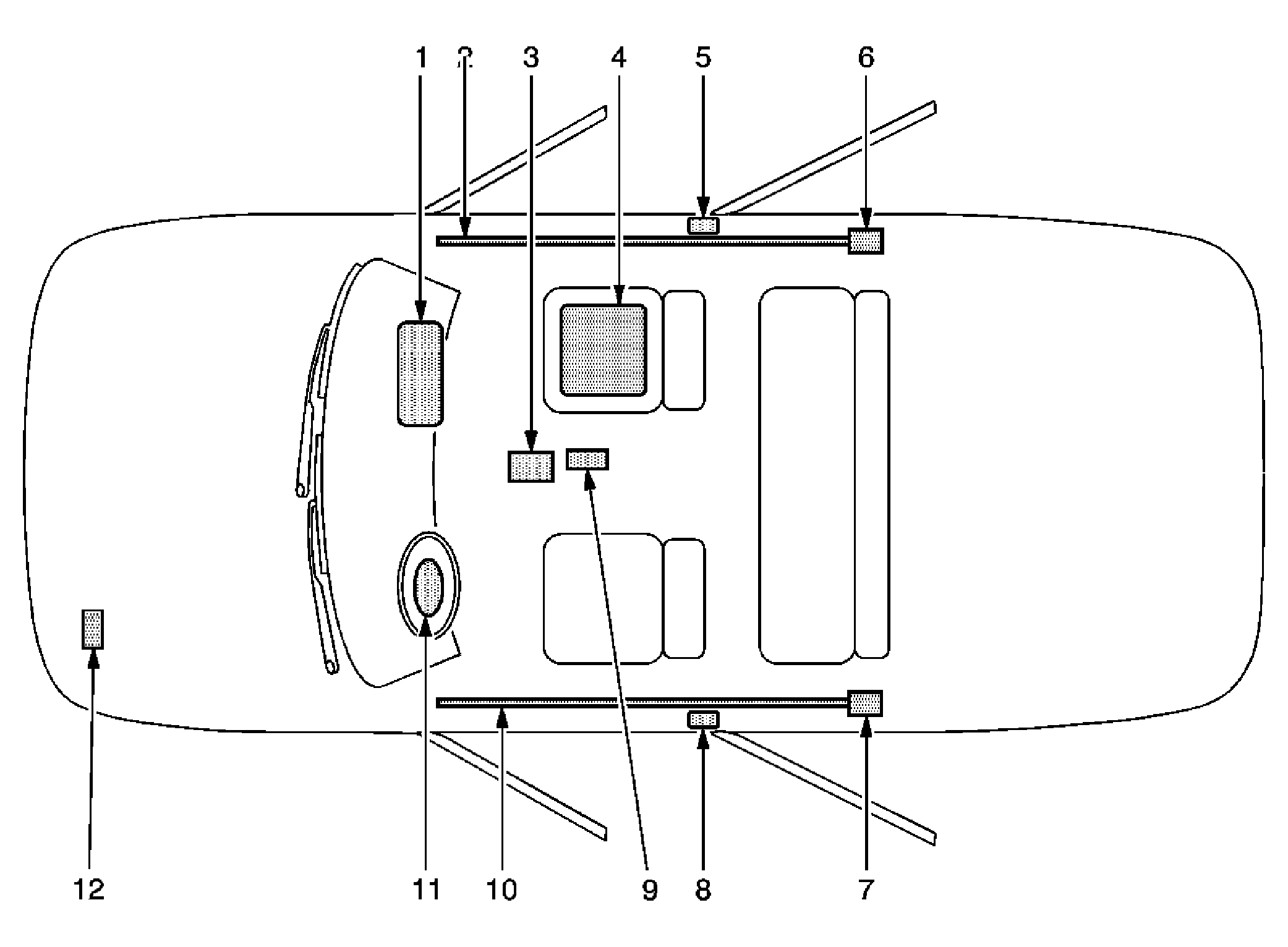

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | I/P Air Bag-Located at the top right under the instrument panel |
| 2 | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 3 | Sensing and Diagnostic Module (SDM)-Located underneath the vehicle carpet under the center console |
| 4 | Passenger Presence System (PPS)-Located in passenger seat |
| 5 | Passenger/Right Side Impact Sensor (SIS) and Seat Belt Pretensioner-Located under the trim near the bottom of the center pillar |
| 6 | Inflator Module for Right Roof Rail Module-Located behind the garnish molding on the upper rear pillar |
| 7 | Inflator Module for Left Roof Rail Module-Located behind garnish molding on the upper rear pillar |
| 8 | Driver/Left Side Impact Sensor (SIS) and Seat Belt Pretensioner-Located under the trim near the bottom of the center pillar |
| 9 | Vehicle Rollover Sensor-Located under center console |
| 10 | Left Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 11 | Steering Wheel Air Bag-Located on the steering wheel |
| 12 | Vehicle Battery-Located at the front left of the engine compartment. |
