Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

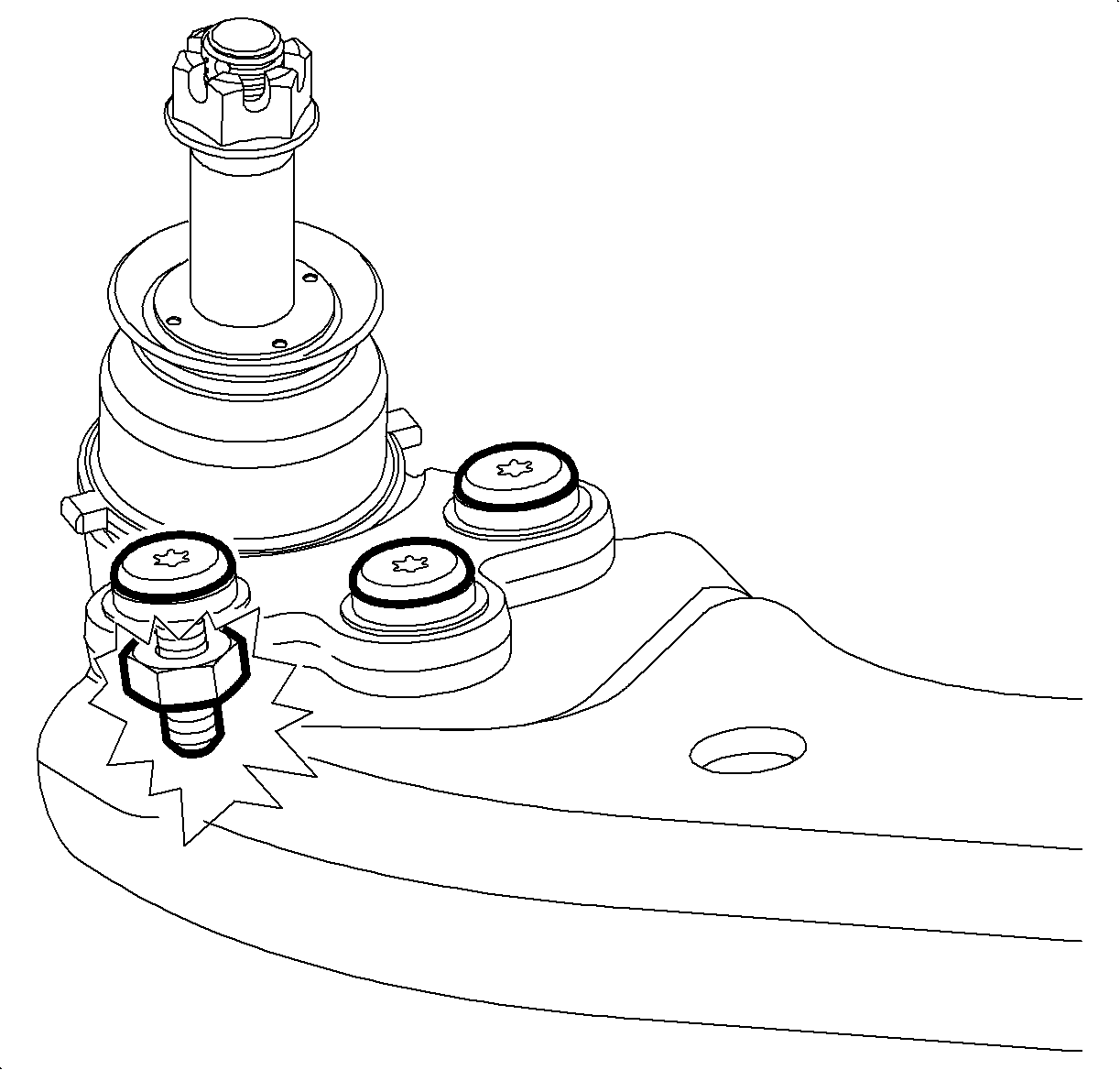

Fig 1: View Of Ball Joint & Control Arm

Courtesy of GENERAL MOTORS CORP.

NOTE: The control arm must be clean and free of debris.

Install the ball joint to the control arm as previously noted.

CAUTION: Refer to Fastener Caution .

NOTE:

Only use hardware provided with the new ball joint.
The bolts must be installed with the bolt head on top of the ball joint.

Install the ball joint to control arm bolts and tighten the bolts/nuts to 68 N.m (50 lb ft).
Install the lower control arm. Refer to Lower Control Arm Replacement .
