Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Spray silicon lubricant on the insulators to aid in installation.
Make sure that part number identification tape located on the coil spring is oriented outboard of the vehicle and at the top of the spring.
Make sure to fully seat the top and bottom coil spring insulators to the spring.

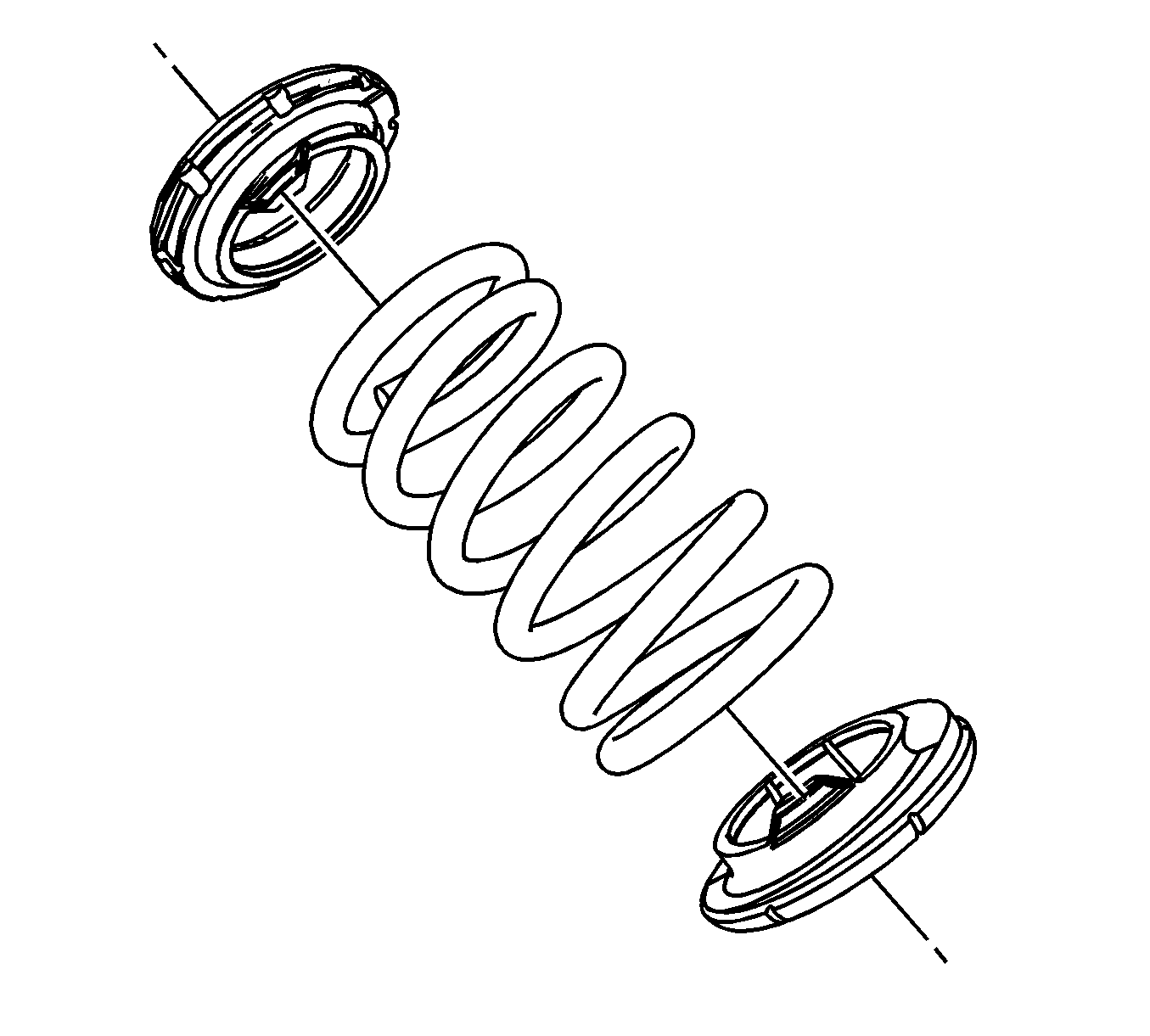

Fig 1: View Of Coil Spring Rubber Insulators

Courtesy of GENERAL MOTORS CORP.

Install the upper and lower rubber insulators to the coil spring.
Install the coil spring. Refer to Coil Spring Replacement .
