Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

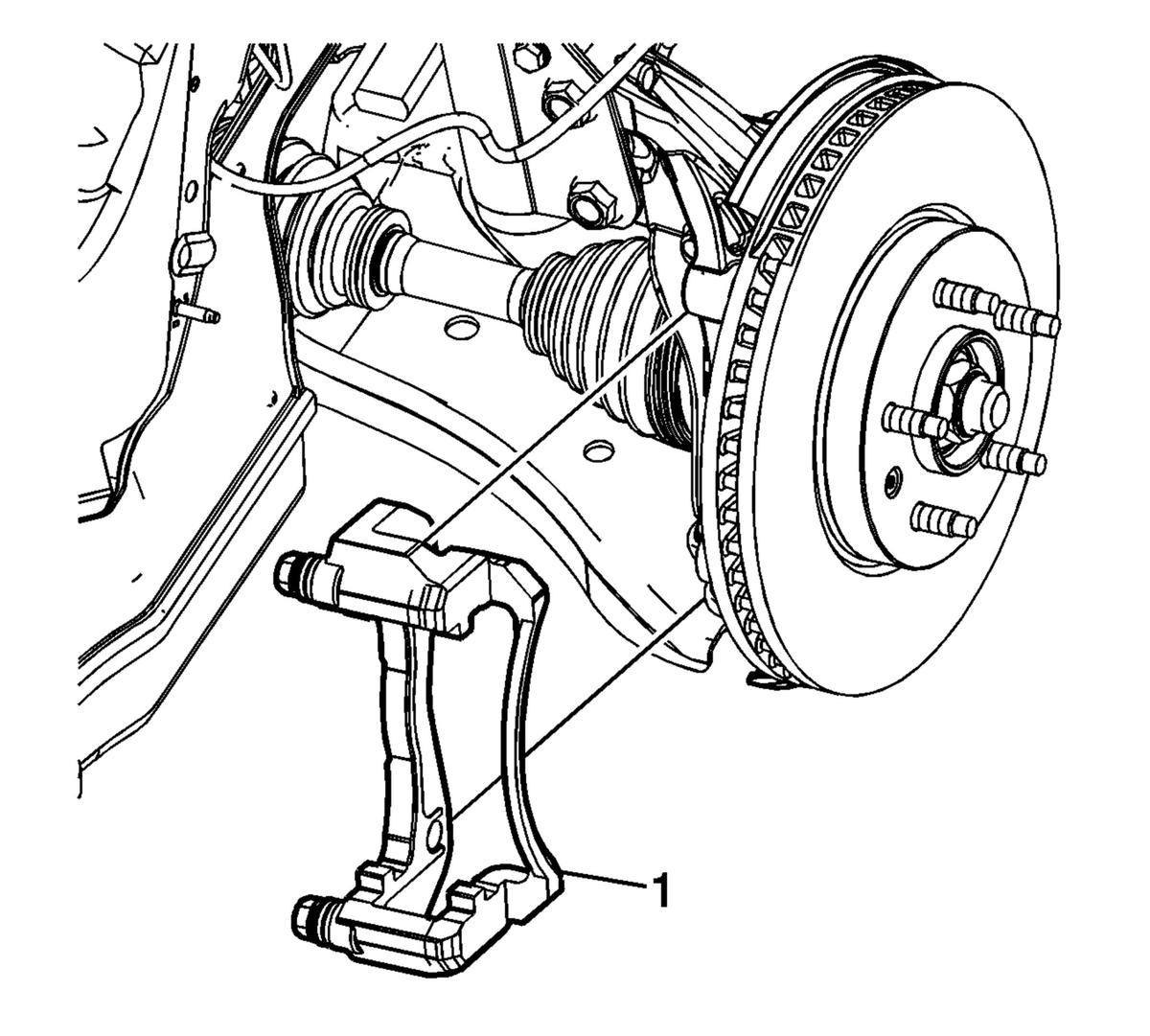

Fig 1: Brake Caliper Bracket

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper bracket (1).

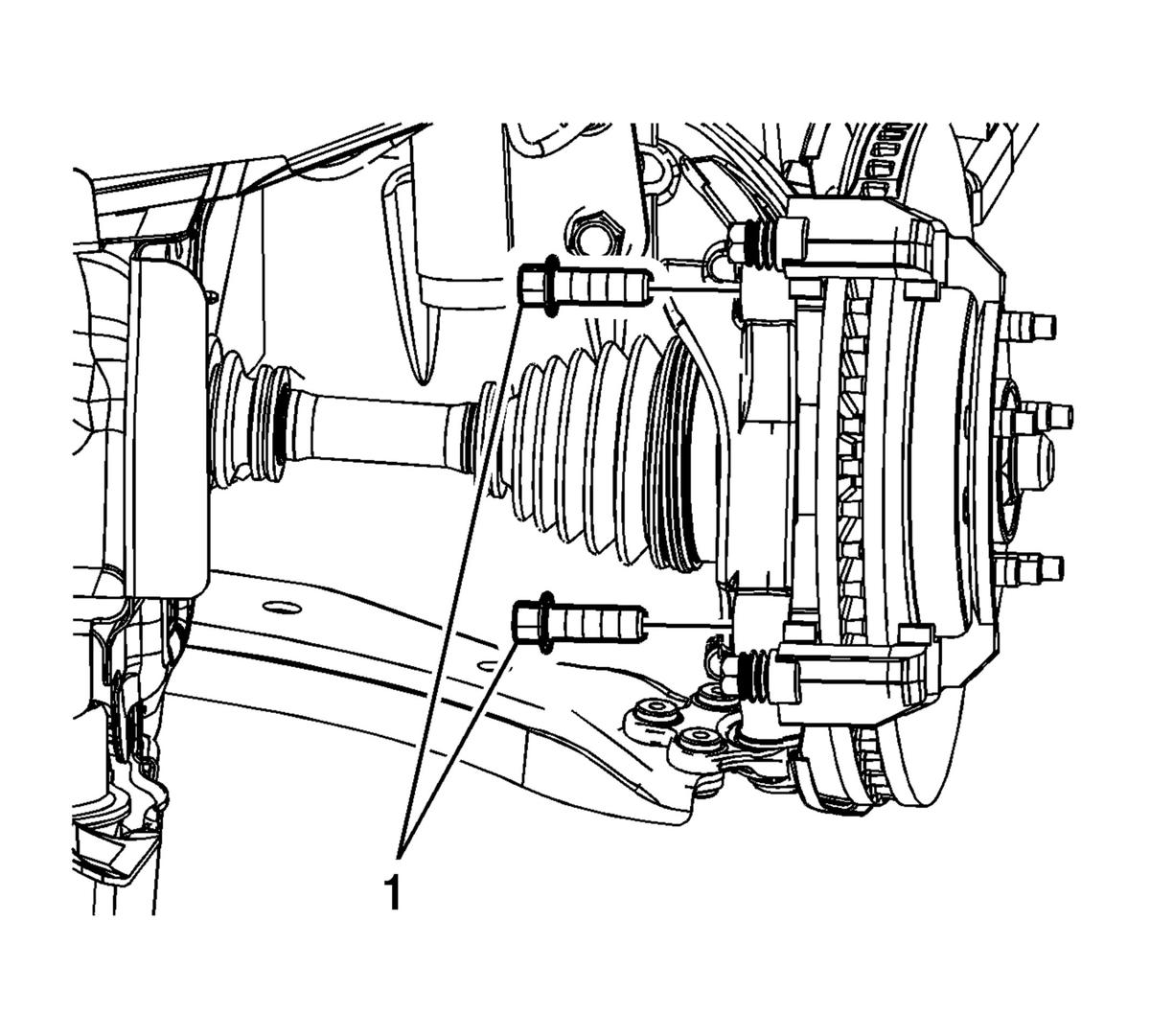

Fig 2: Brake Caliper Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the brake caliper bracket bolts (1).
Tighten: Tighten the bolts to 185 N.m (136 lb ft).

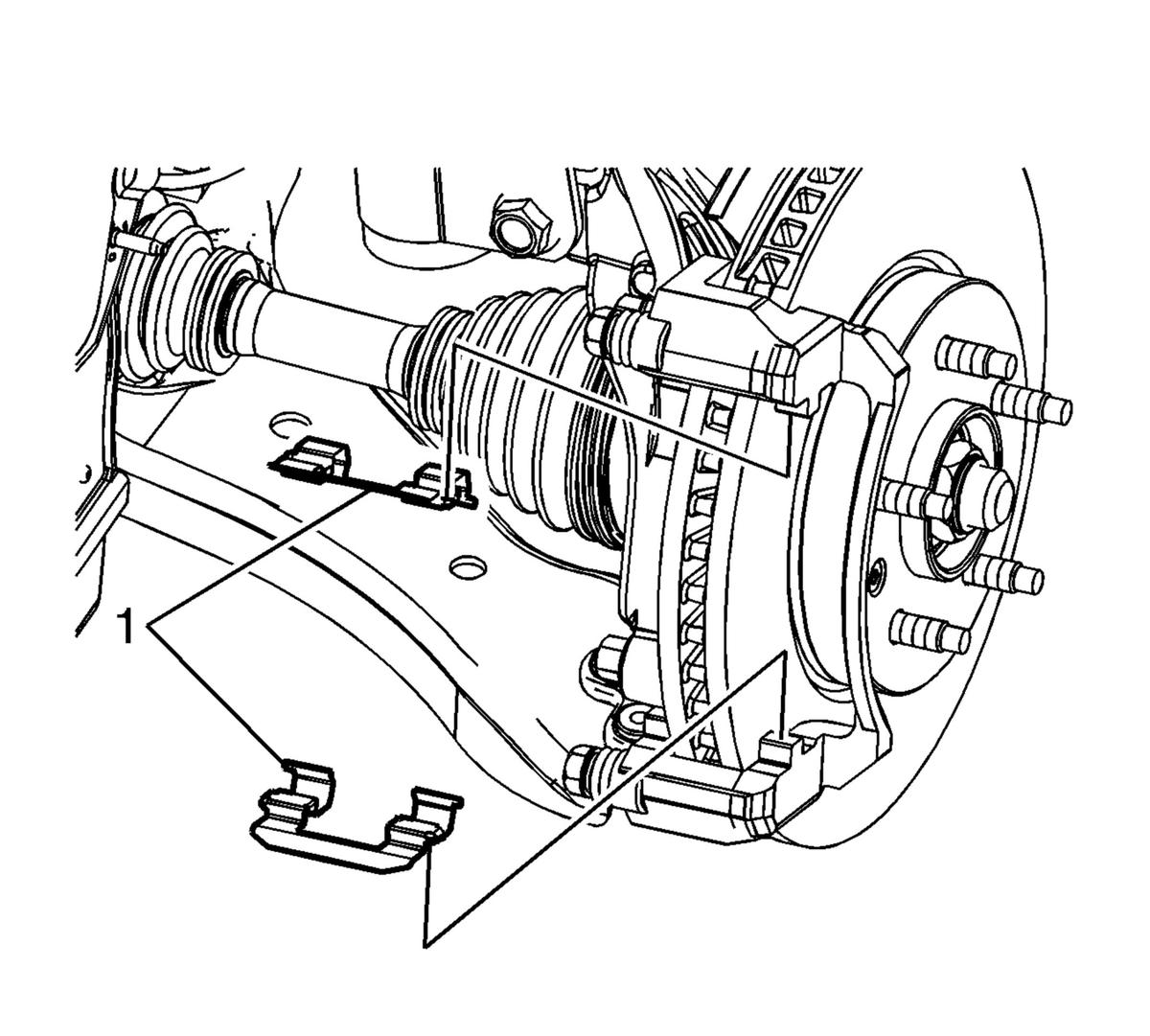

Fig 3: Brake Pad Shims

Courtesy of GENERAL MOTORS CORP.

Install the brake pad shims (1).

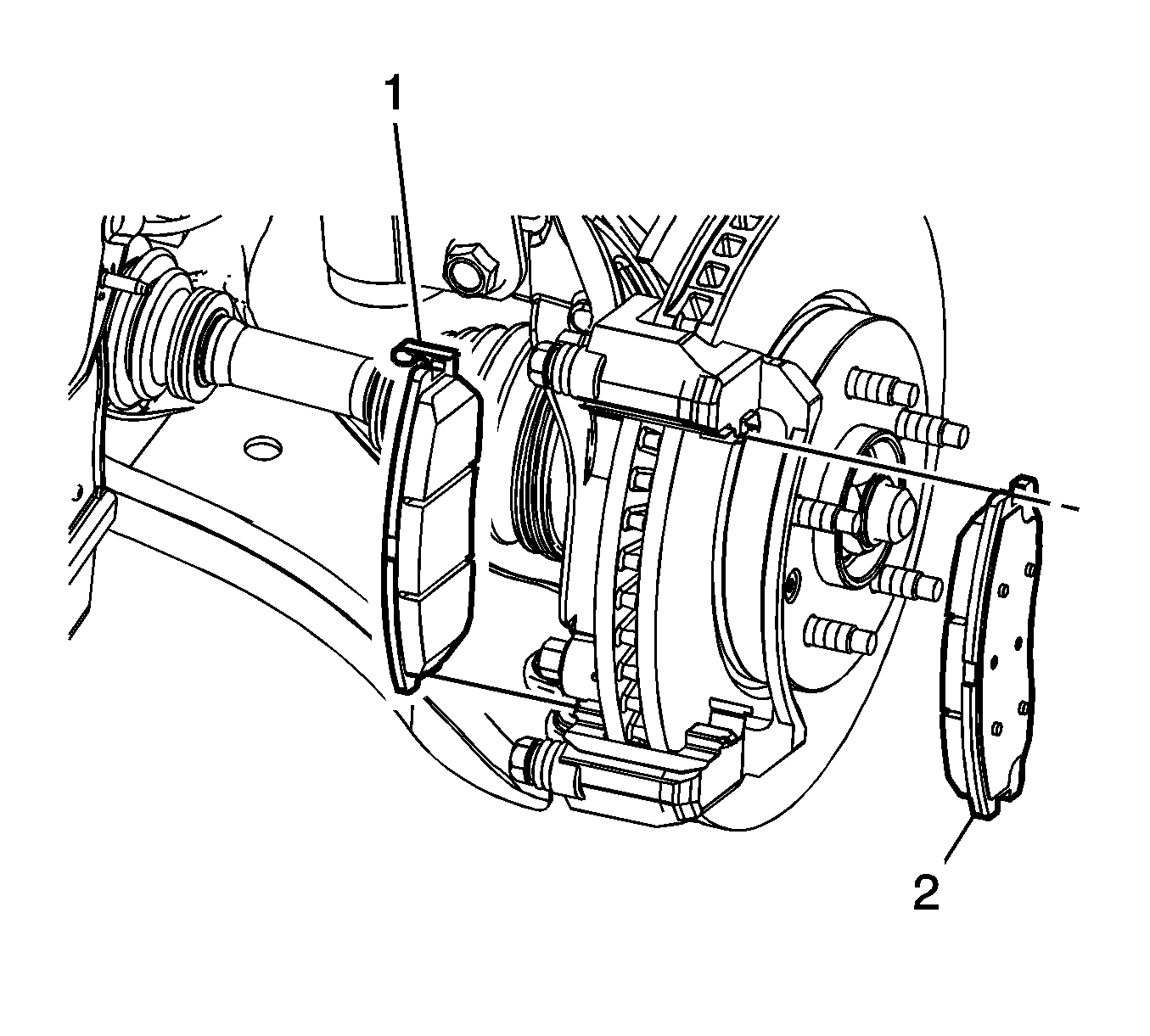

Fig 4: Inner Brake Pad

Courtesy of GENERAL MOTORS CORP.

Install the inner brake pad (1).
Note the location of the wear sensor for correct installation.
Install the outer brake pad (2).

Fig 5: Brake Caliper Guide Pin Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE:

DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
Install an open end wrench to hold the caliper guide pin in line with the brake caliper while removing or installing the caliper guide pin bolt. DO NOT allow the open end wrench to come in contact with the brake caliper. Allowing the open end wrench to come in contact with the brake caliper will cause a pulsation when the brakes are applied.

Position the brake caliper to the bracket.
Install the brake caliper guide pin bolts (1).
Hold the brake caliper guide pins stationary when installing the guide pin bolts.

Tighten: Tighten the bolts to 27 N.m (20 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
