Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing a new brake rotor, clean the friction surfaces of the brake rotor with denatured alcohol.
  2. Using the J 42450-A  , thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange. See Special Tools .
  3. Using the J 41013  , thoroughly clean any rust or corrosion from the mating surface of the rotor to the hub/axle flange. See Special Tools .

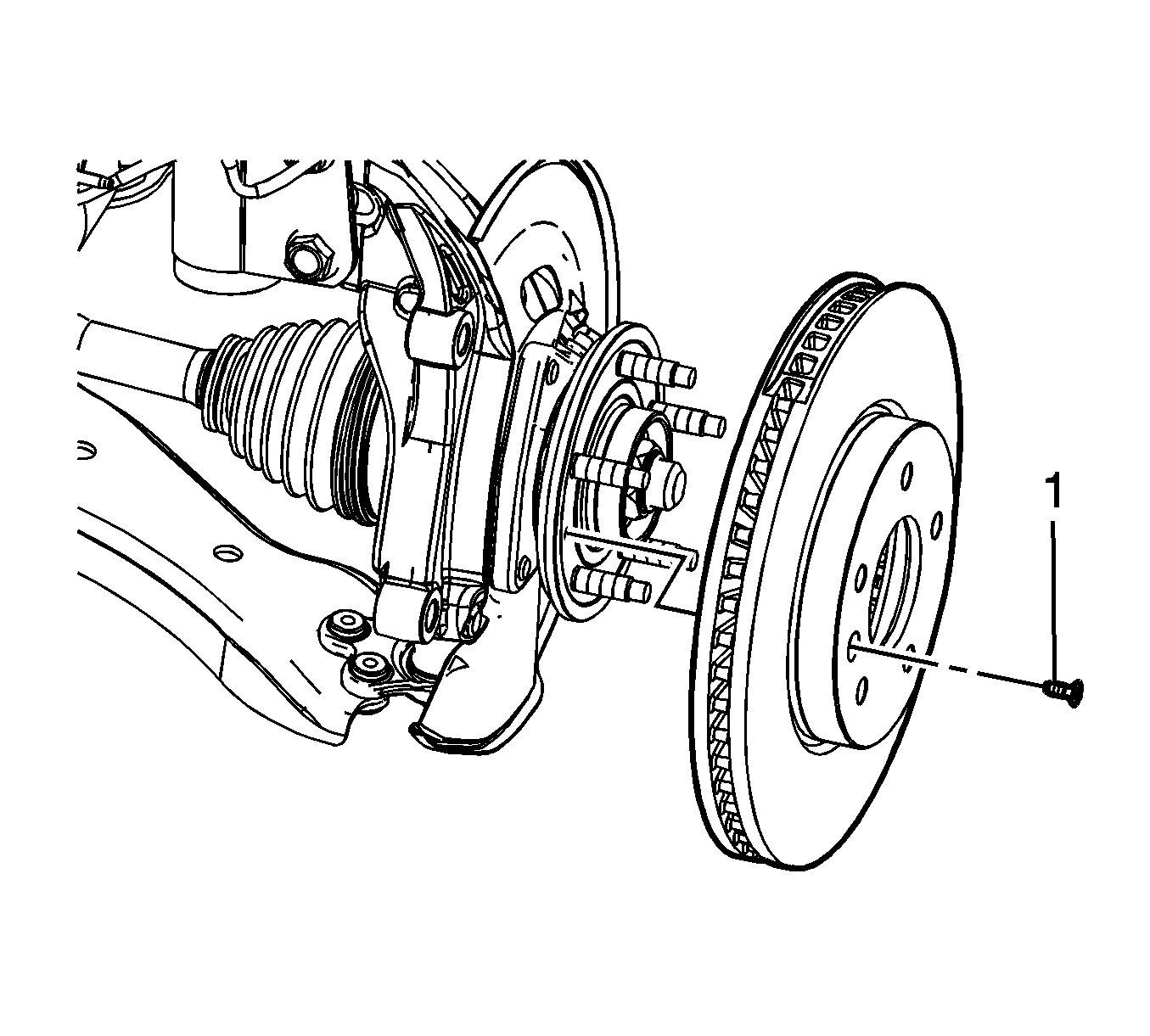

    4. Fig 1: Brake Rotor Screw
    GM1873960Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Install the brake rotor.

    If installing the original brake rotor, align the rotor to the wheel hub as noted during removal.

  5. Install the brake rotor screw (1).

    Tighten:  Tighten the screw to 10 N.m (89 lb in).

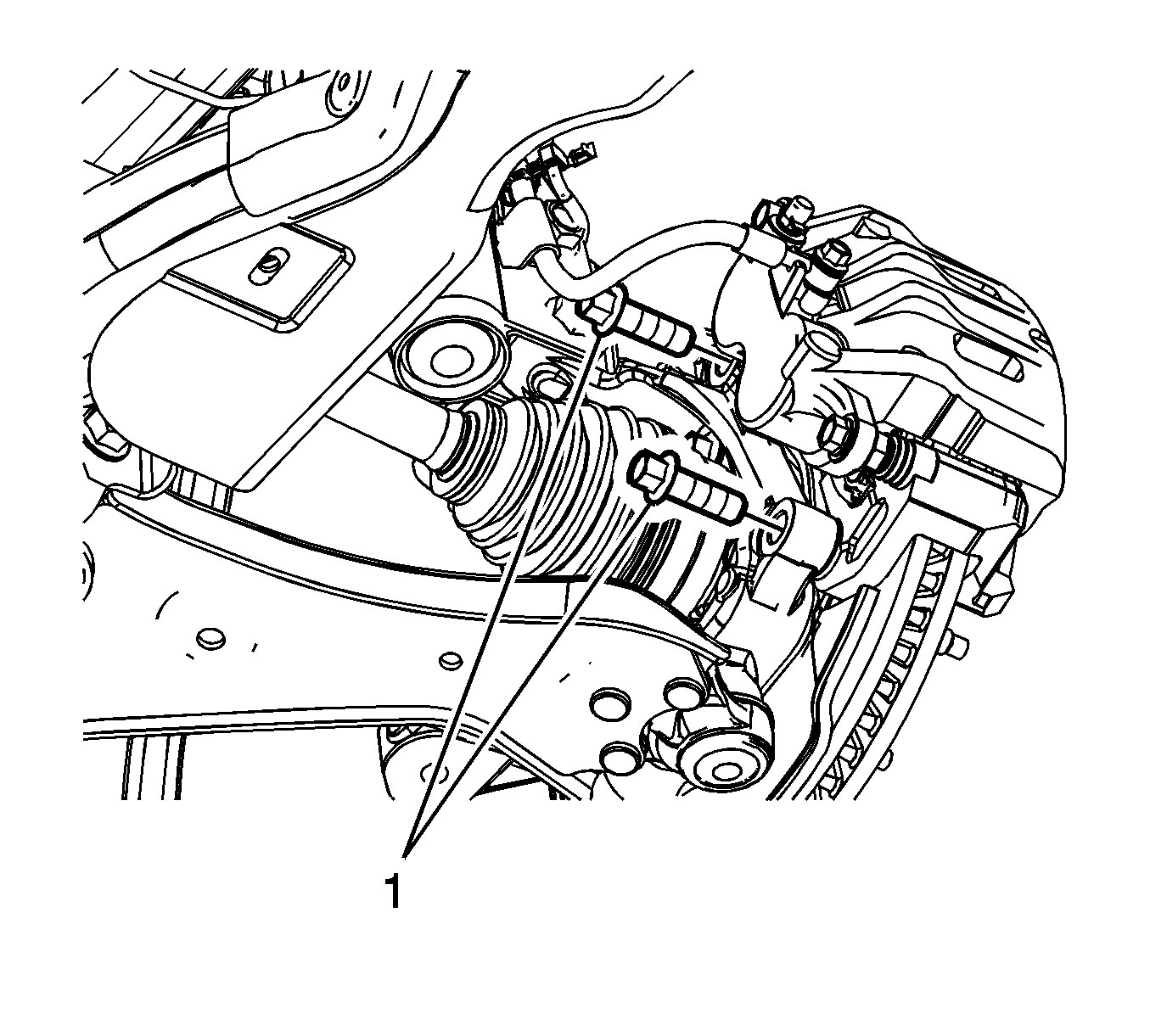

    6. Fig 2: Brake Caliper Bracket Bolts
    GM1873958Courtesy of GENERAL MOTORS CORP.
  6. Position the brake caliper and bracket assembly to the vehicle.
  7. Install the brake caliper bracket bolts (1).

    Tighten:  Tighten the bolts to 185 N.m (136 lb ft).

  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
