Front Brake Shield Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

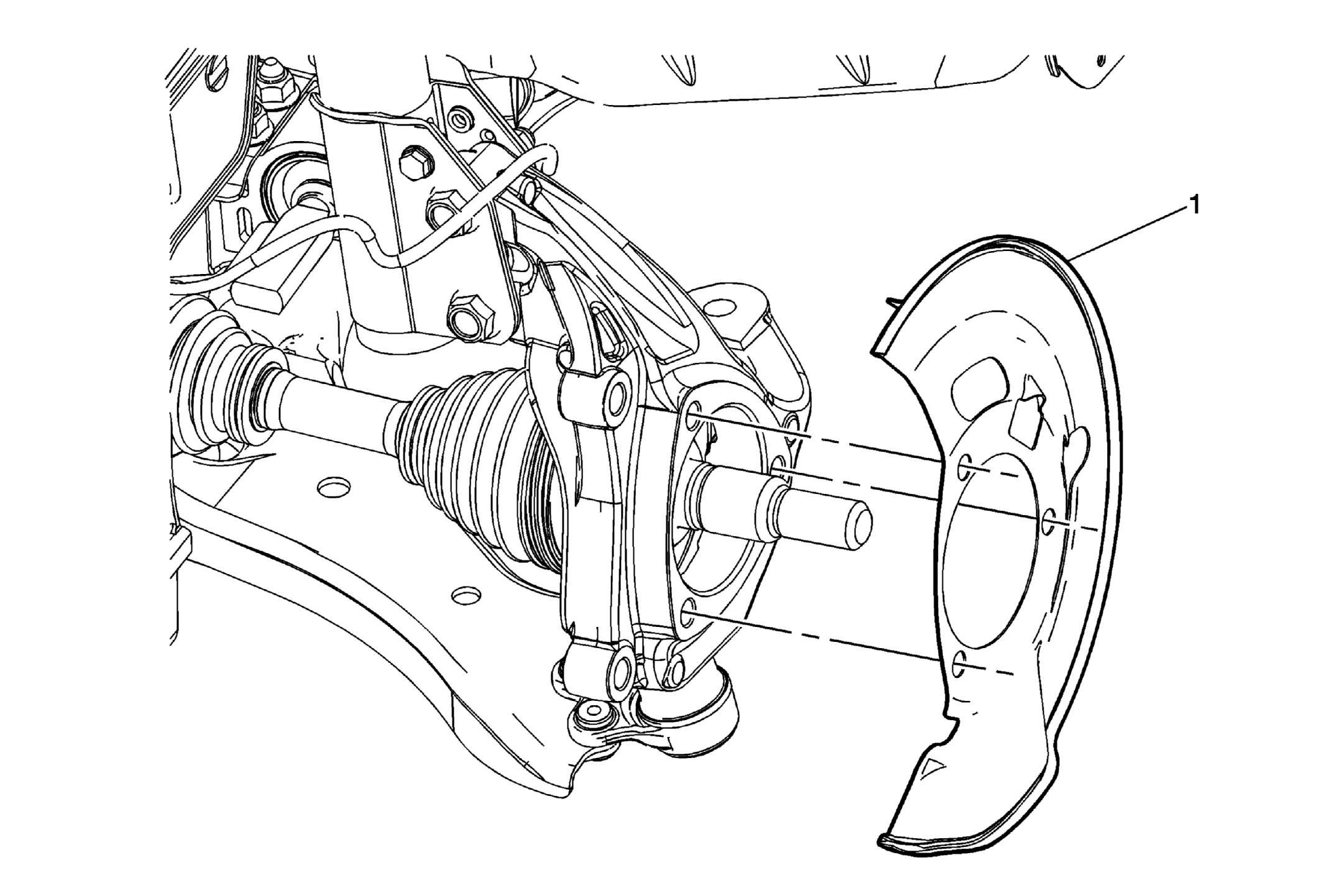

Fig 1: Front Brake Shield
GM1873961Courtesy of GENERAL MOTORS CORP.
Callout Component Name
WARNING: Refer to Brake Dust Warning .

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the brake rotor. Refer to Front Brake Rotor Replacement .
  4. Remove the wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement .
1 Front Brake Shield
