Section 19 (Analog Instrument Panels): Description: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2001 GMC Savana Special, 2001 GMC Savana Camper Special, 2001 GMC Savana, 2001 Chevrolet RV Cutaway, and 2001 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting ANY repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article.

The Instrument Panel Cluster (IPC) consists of Engine Coolant Temperature (ECT) gauge, engine oil pressure gauge, fuel gauge, message center, odometer, speedometer, tachometer, transmission fluid temperature gauge (if equipped) and voltmeter. Indicators include ABS warning, air bag warning, BRAKE warning, CRUISE, high beam, ABS, CHECK GAUGES, parking brake, PRND321, seat belt, SERVICE ENGINE SOON, turn signal, REDUCED ENGINE POWER and SECURITY. See Fig 1 . Certain instrument panel cluster (IPC) features are tested when ignition is turned on in order to verify the features are working properly. The following illuminate briefly or flash upon key up:

ABS Indicator.
AIR BAG Indicator.
BRAKE Indicator.
Charge Indicator.
CHECK gauges Indicator.
FASTEN SAFETY BELT indicator illuminates for 20 seconds followed by 55 seconds of flashing when driver's seatbelt is unfastened.

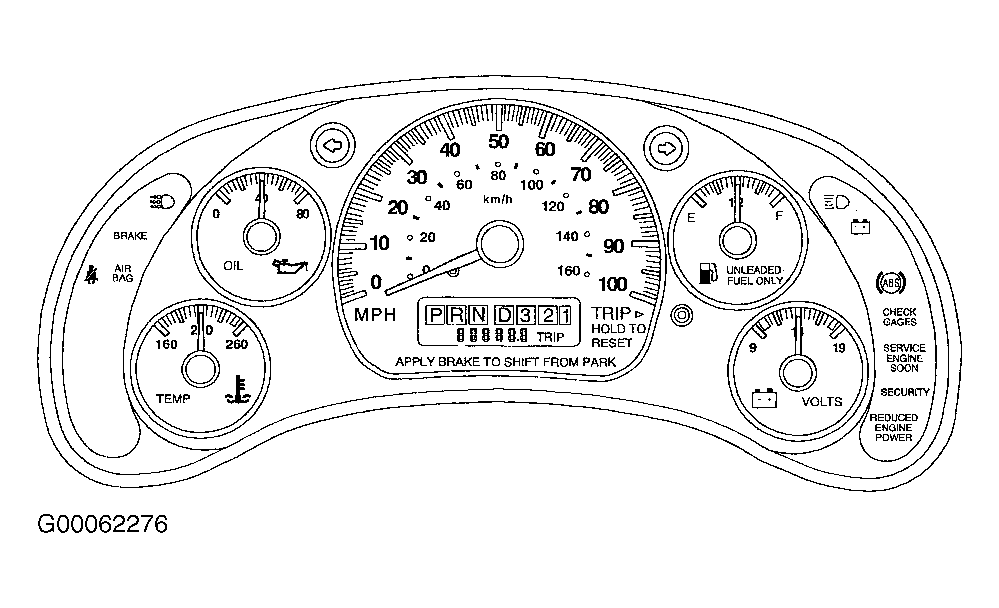

Fig 1: Identifying Instrument Panel Components (Savana Shown; Chevy Express Not Available From Manufacturer)
Courtesy of GENERAL MOTORS CORP.
SECURITY Indicator.
SERVICE ENGINE SOON Indicator Remains On Until The Engine Is Started.
