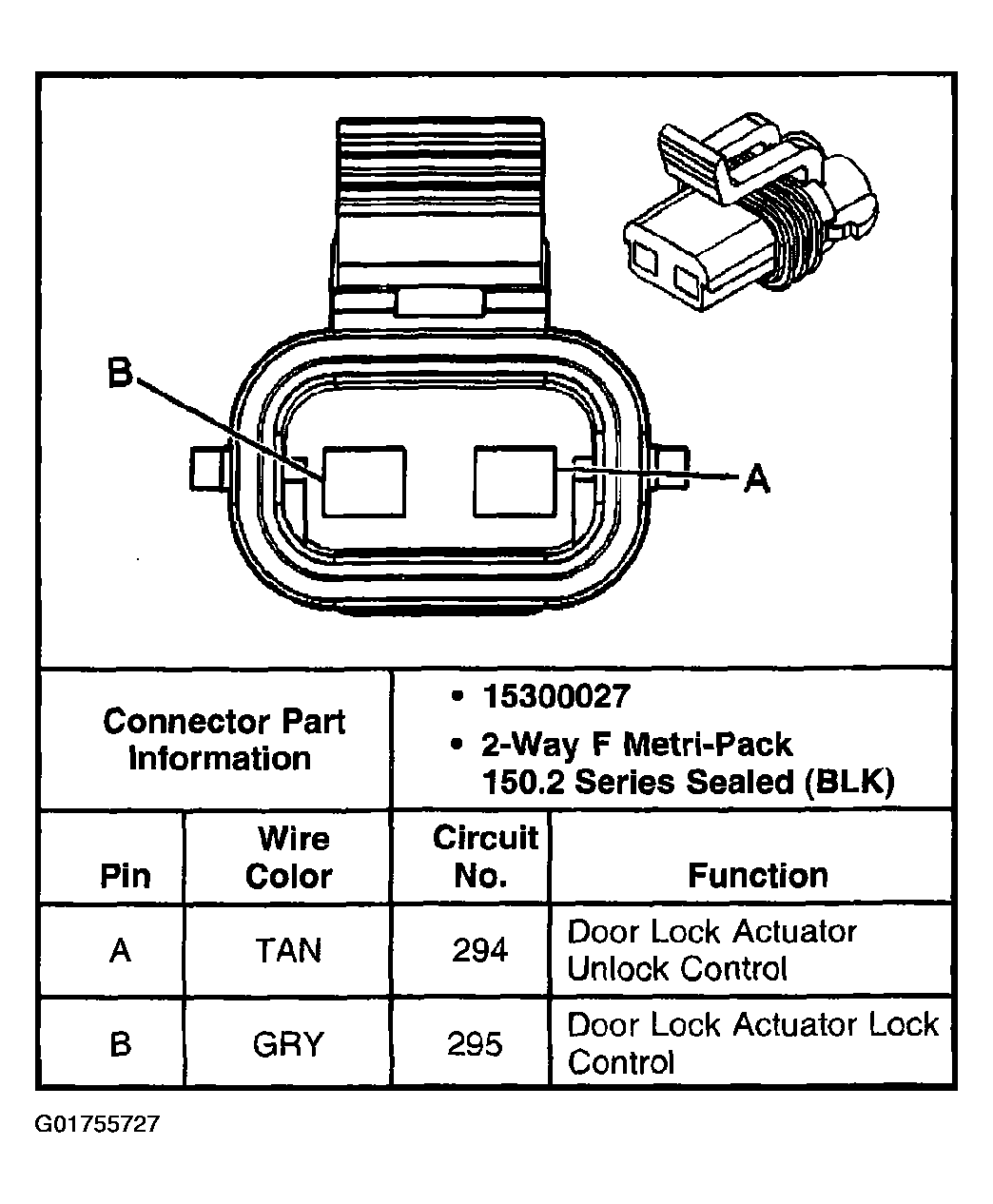

Fig 1: Identifying Door Lock-Driver C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Door Lock-Front Passenger C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Door Lock-LR C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Door Lock-RR C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

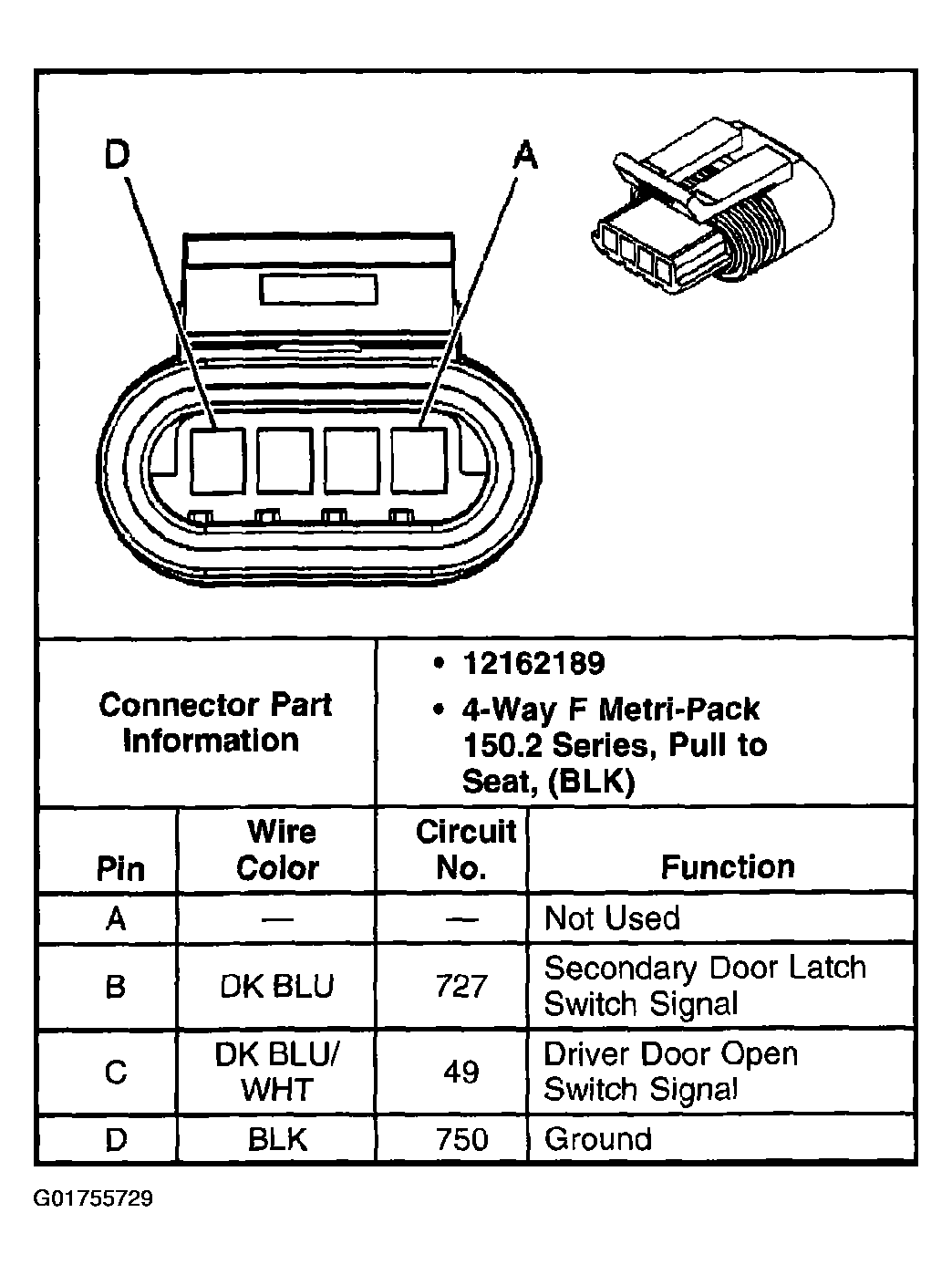

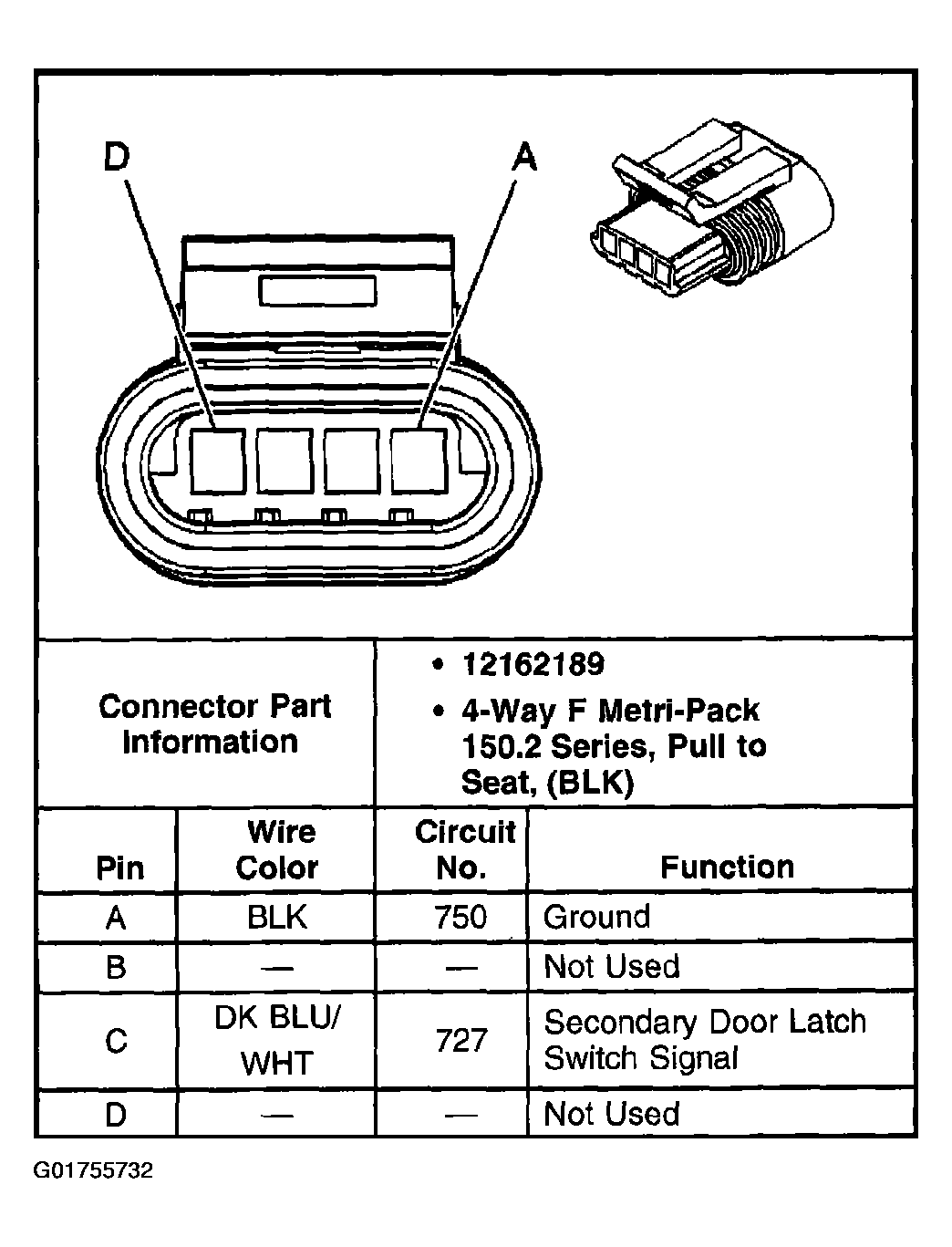

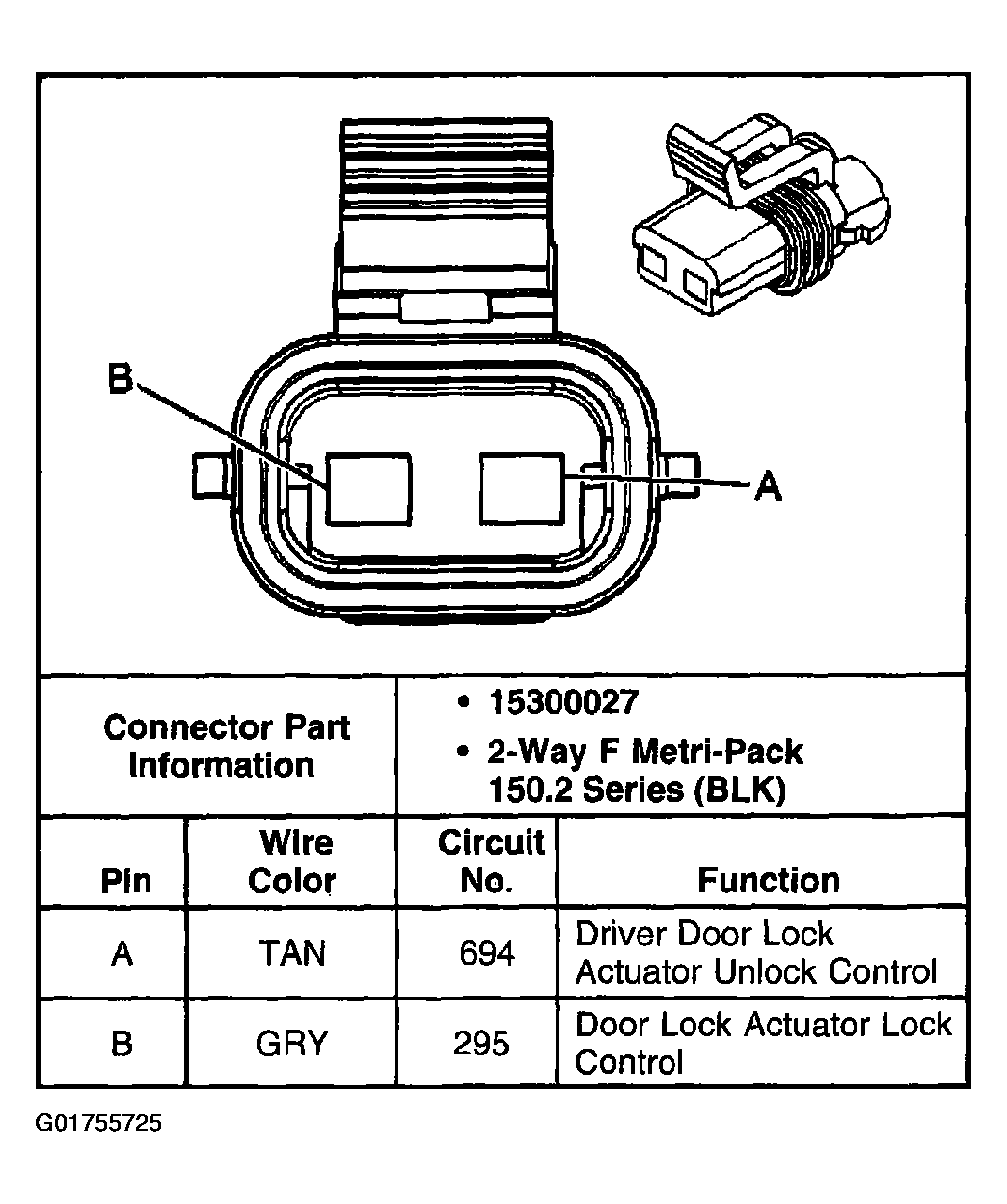

Fig 5: Identifying Door Lock-Driver C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Door Lock-Front Passenger, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying Door Lock-LR, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Door Lock-RR, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

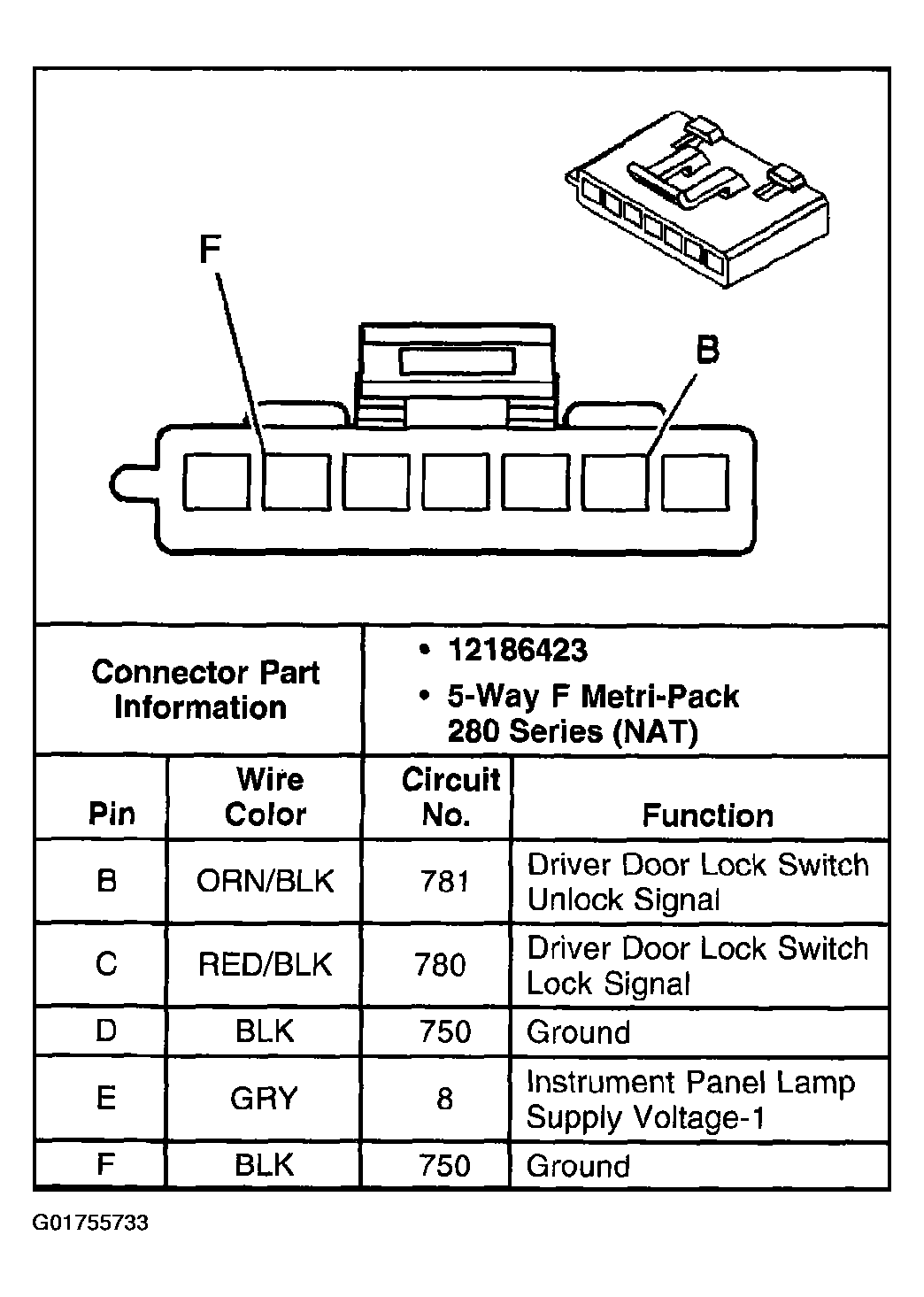

Fig 9: Identifying Door Lock Switch-Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

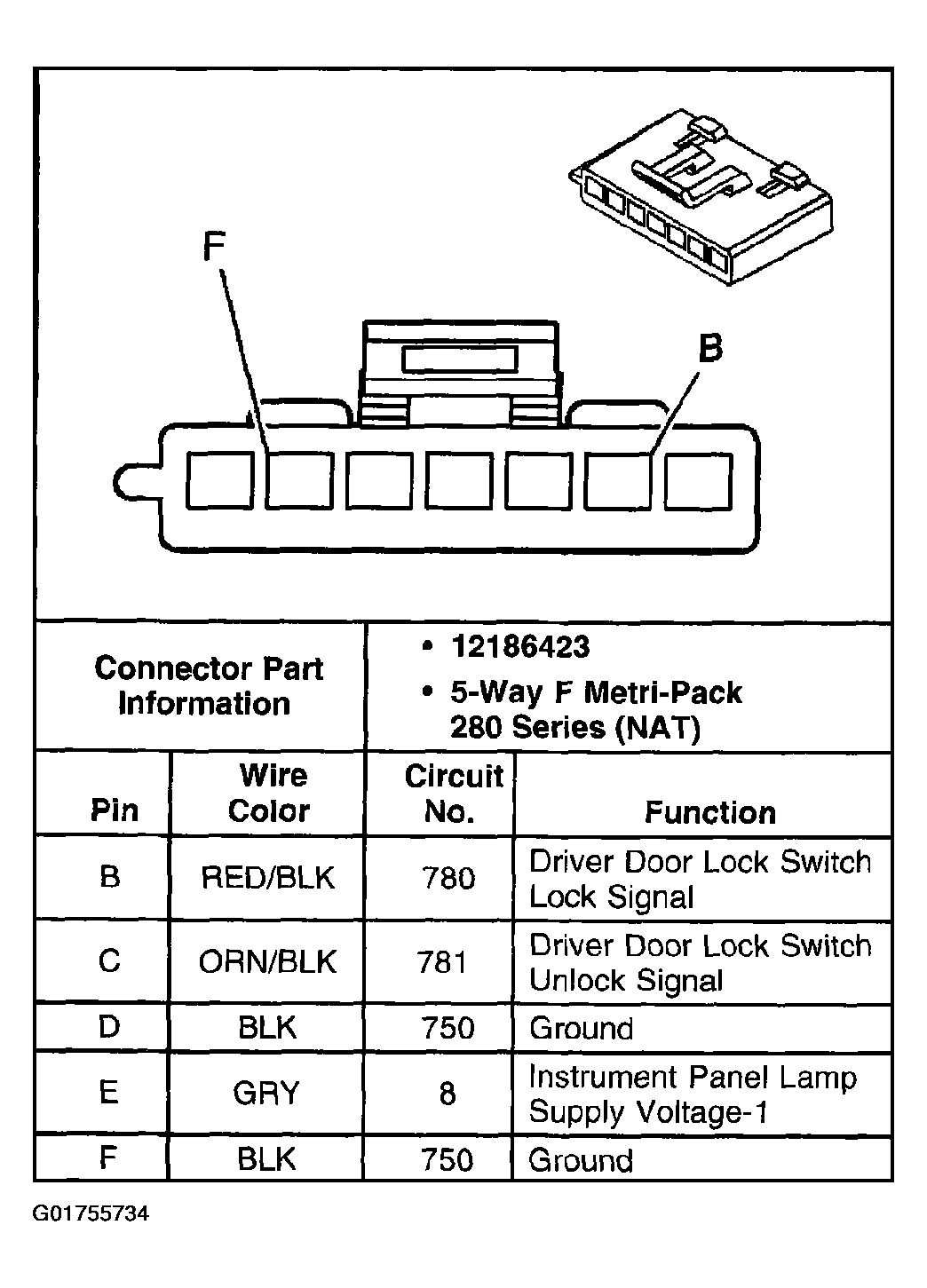

Fig 10: Identifying Door Lock Switch-Front Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.

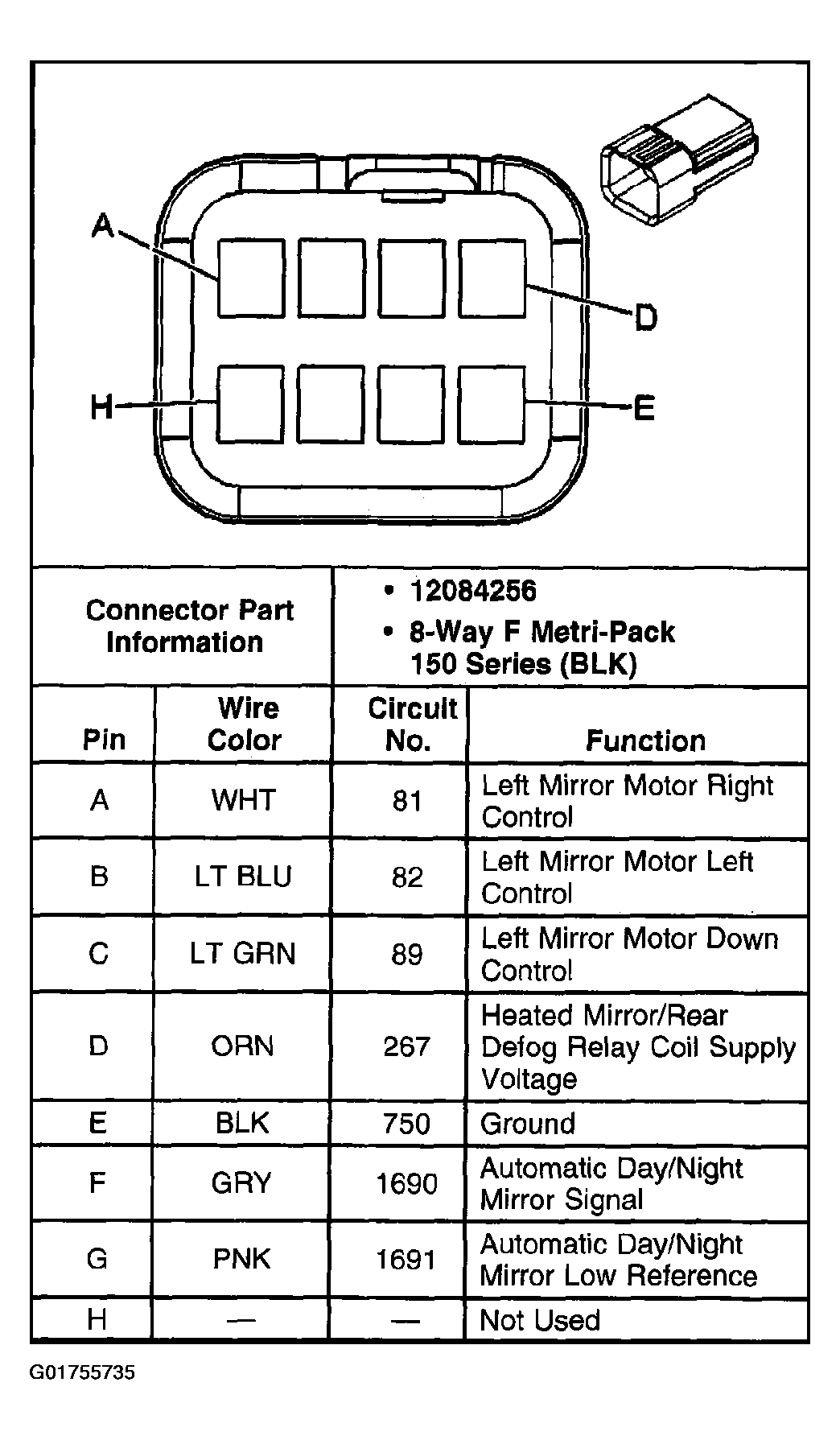

Fig 11: Identifying Outside Rearview Mirror-Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

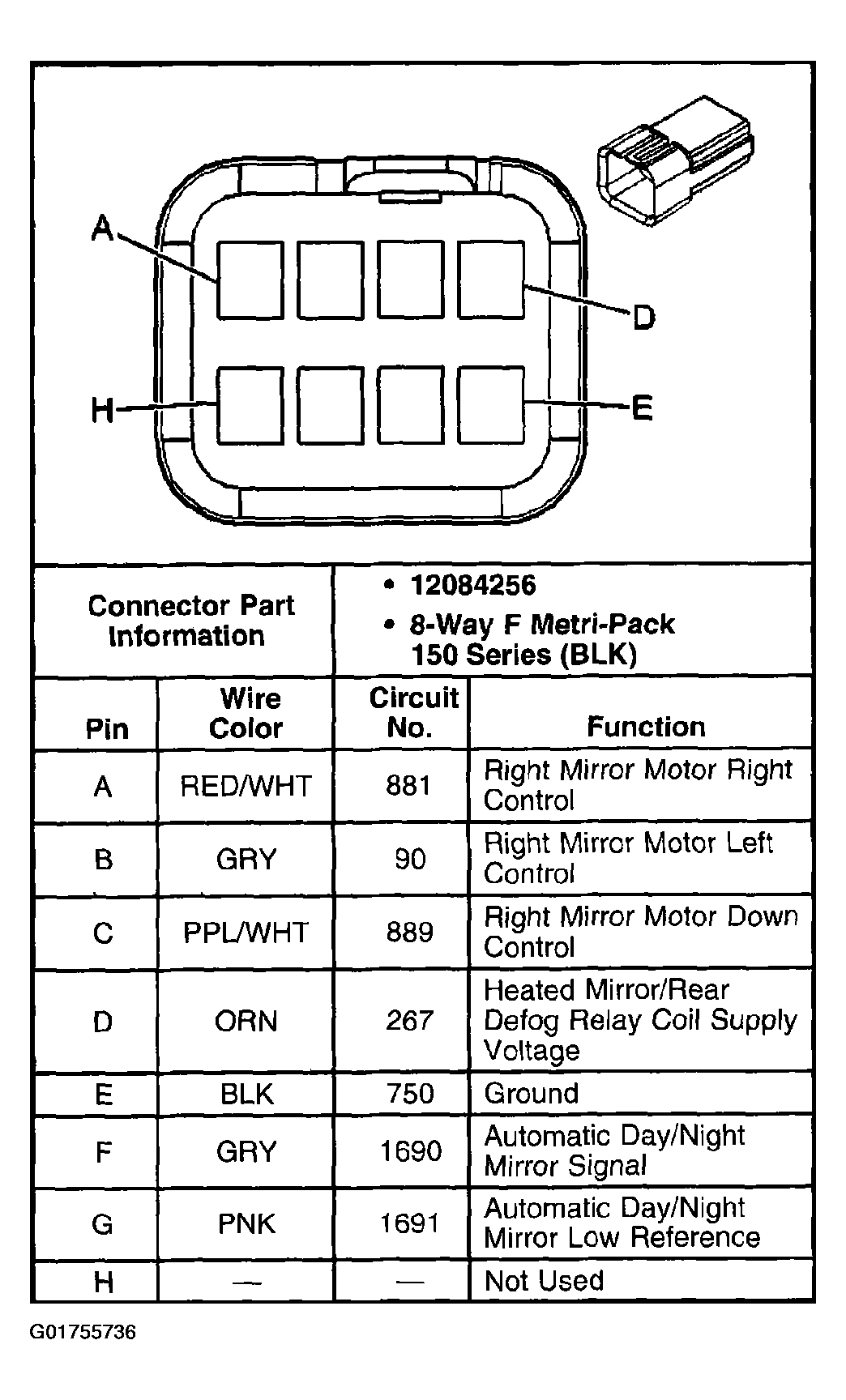

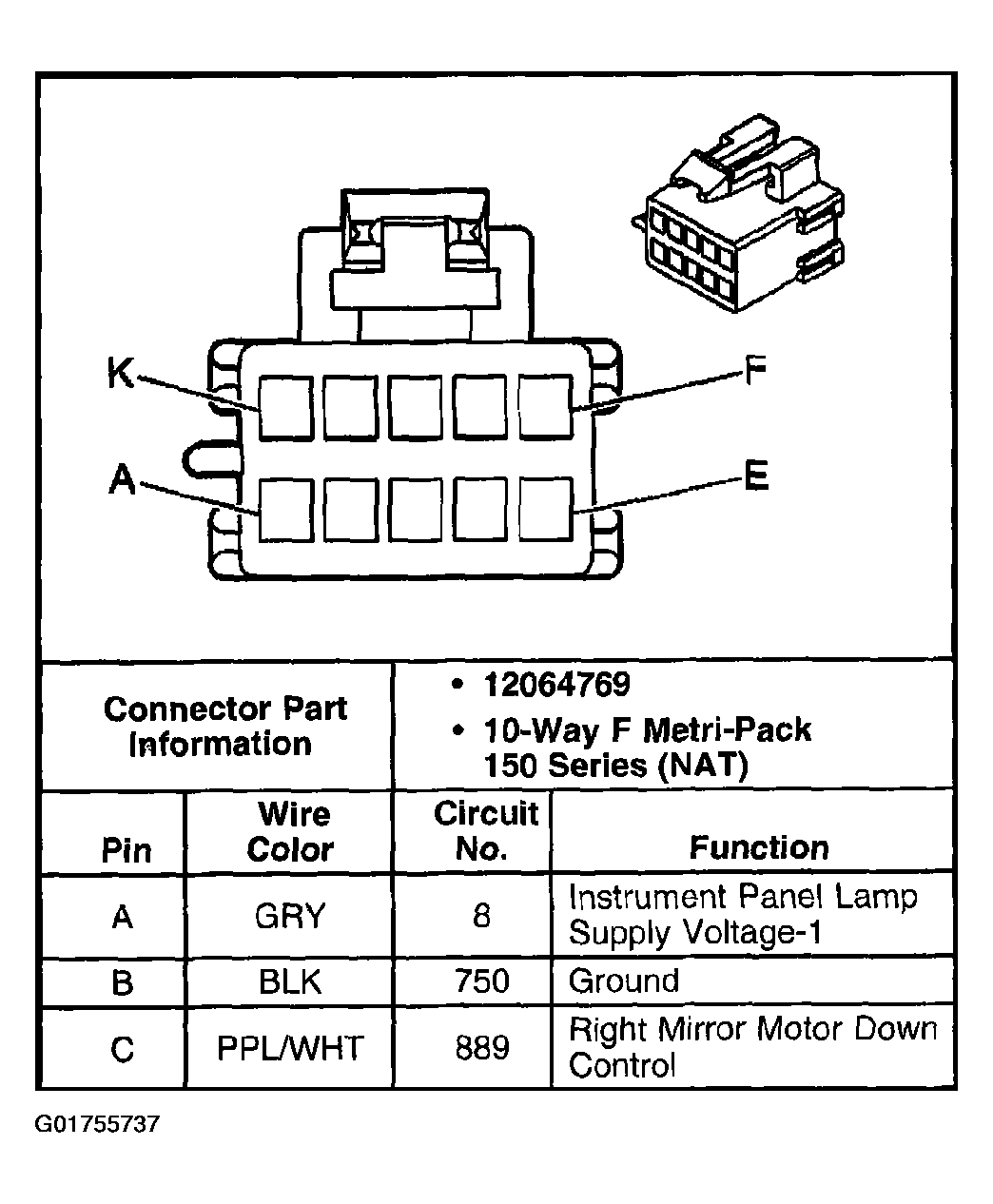

Fig 12: Identifying Outside Rearview Mirror-Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.

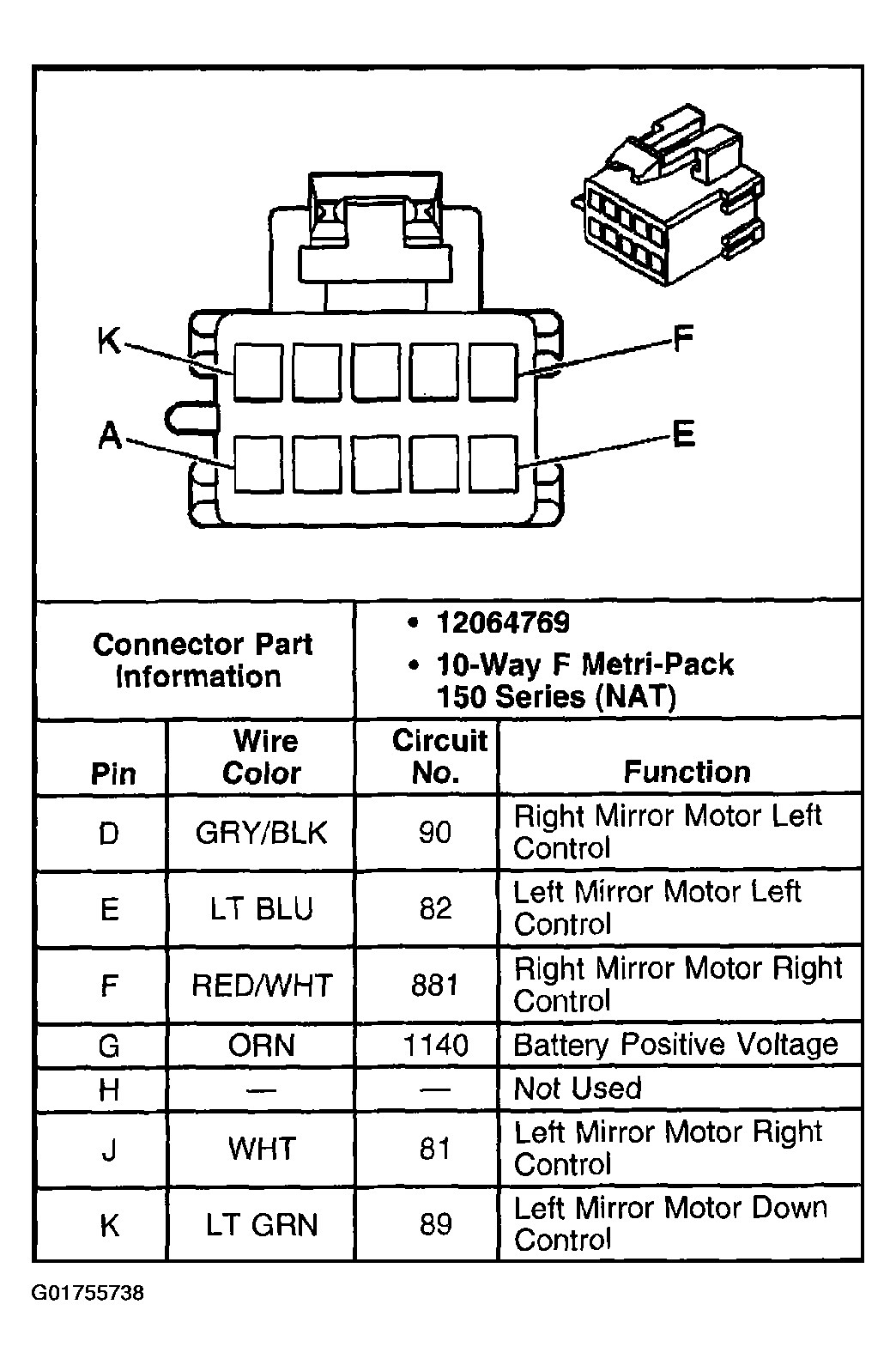

Fig 13: Identifying Outside Rearview Mirror Switch Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Outside Rearview Mirror Switch Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying Window Motor-Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

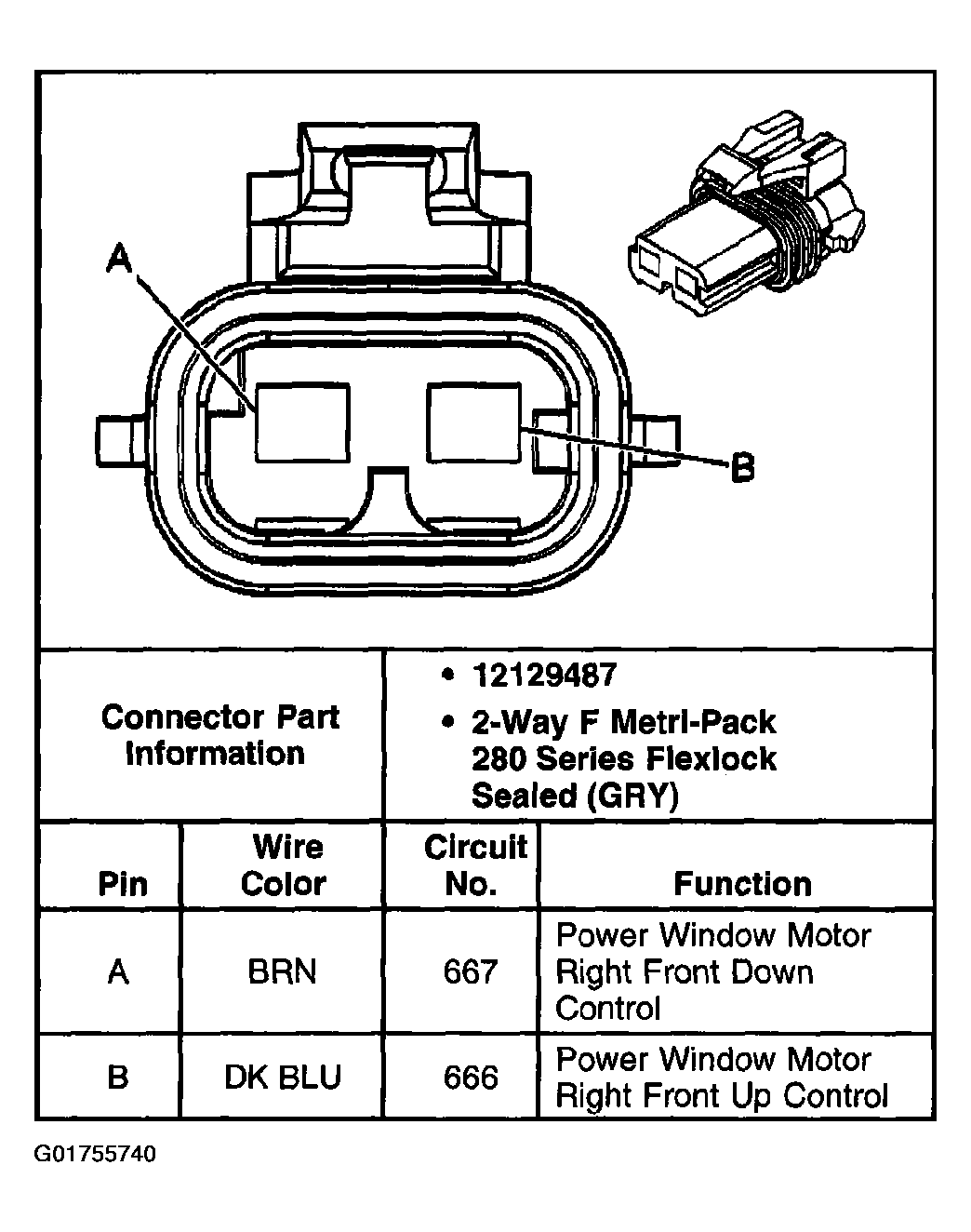

Fig 16: Identifying Window Motor-Front Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.

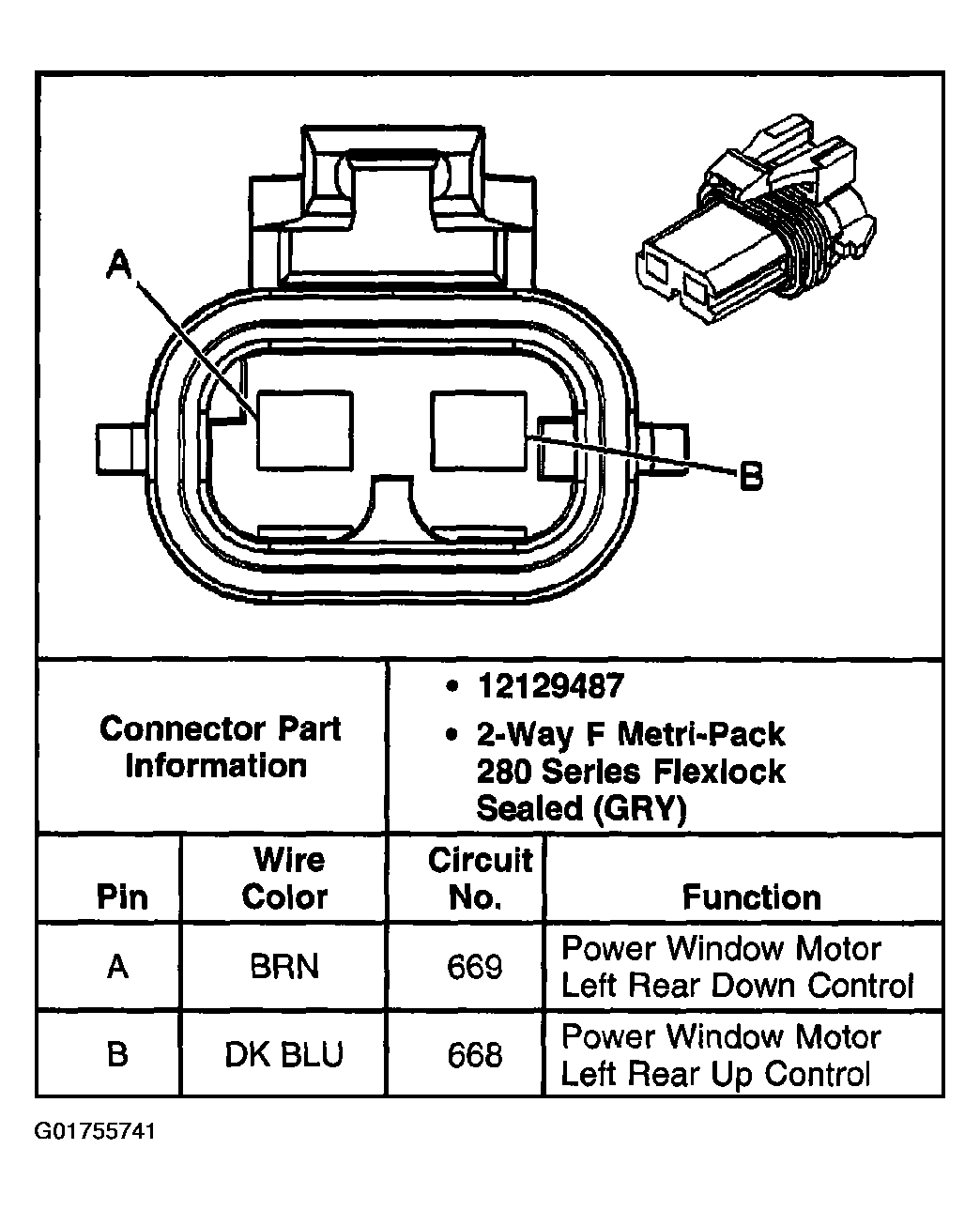

Fig 17: Identifying Window Motor-LR Connector End View
Courtesy of GENERAL MOTORS CORP.

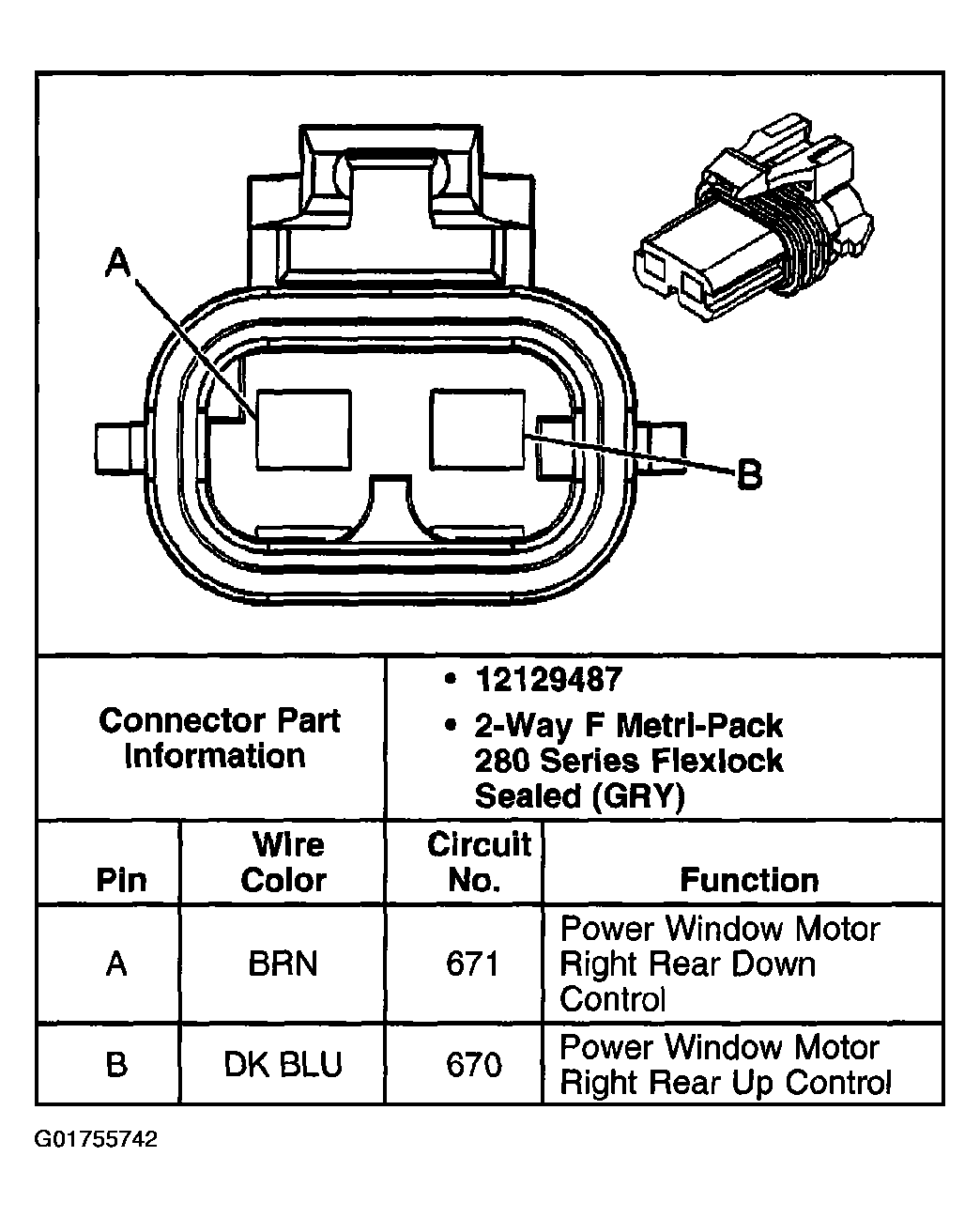

Fig 18: Identifying Window Motor-RR Connector End View
Courtesy of GENERAL MOTORS CORP.

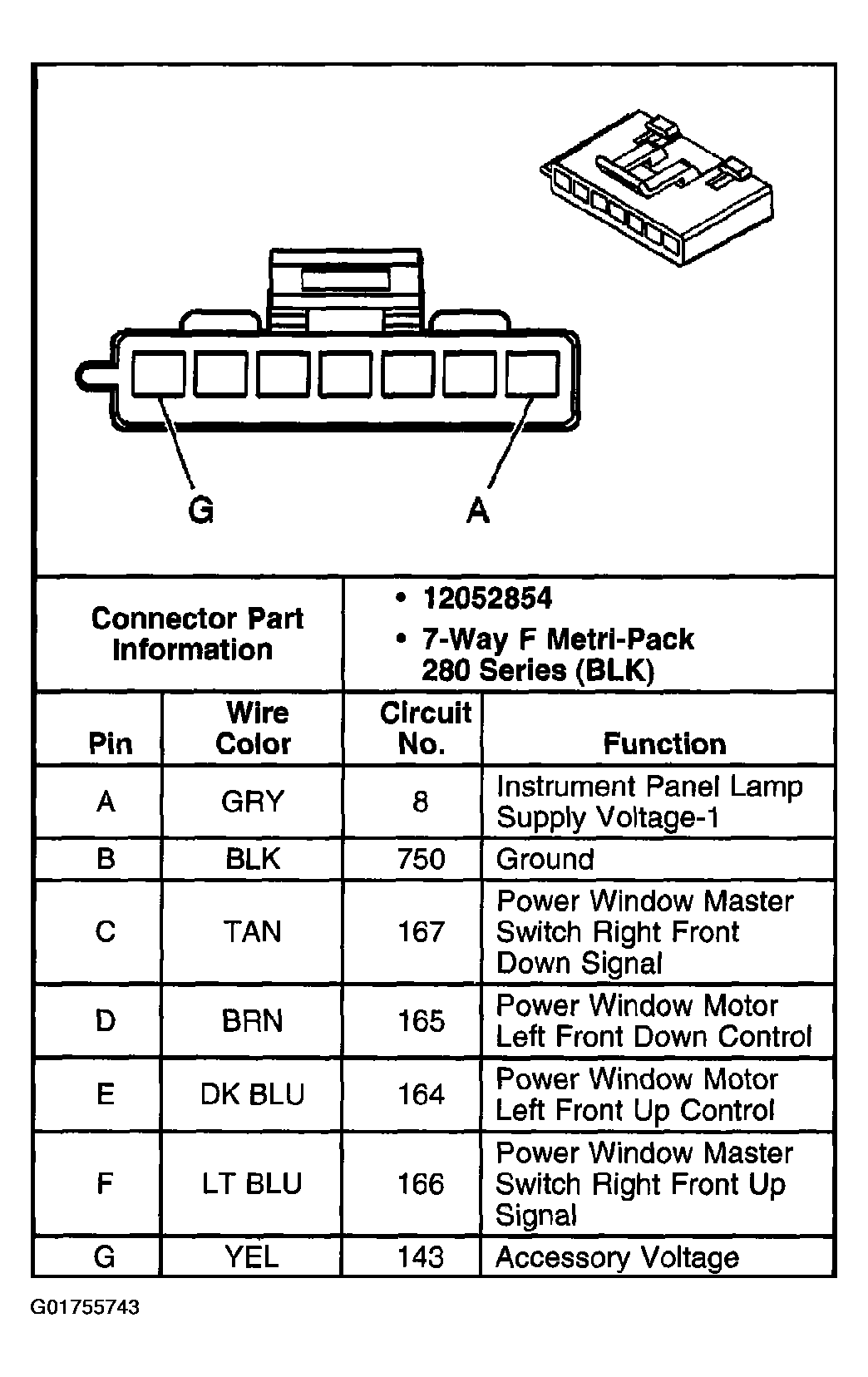

Fig 19: Identifying Window Master Switch-Driver, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Window Master Switch-Driver, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

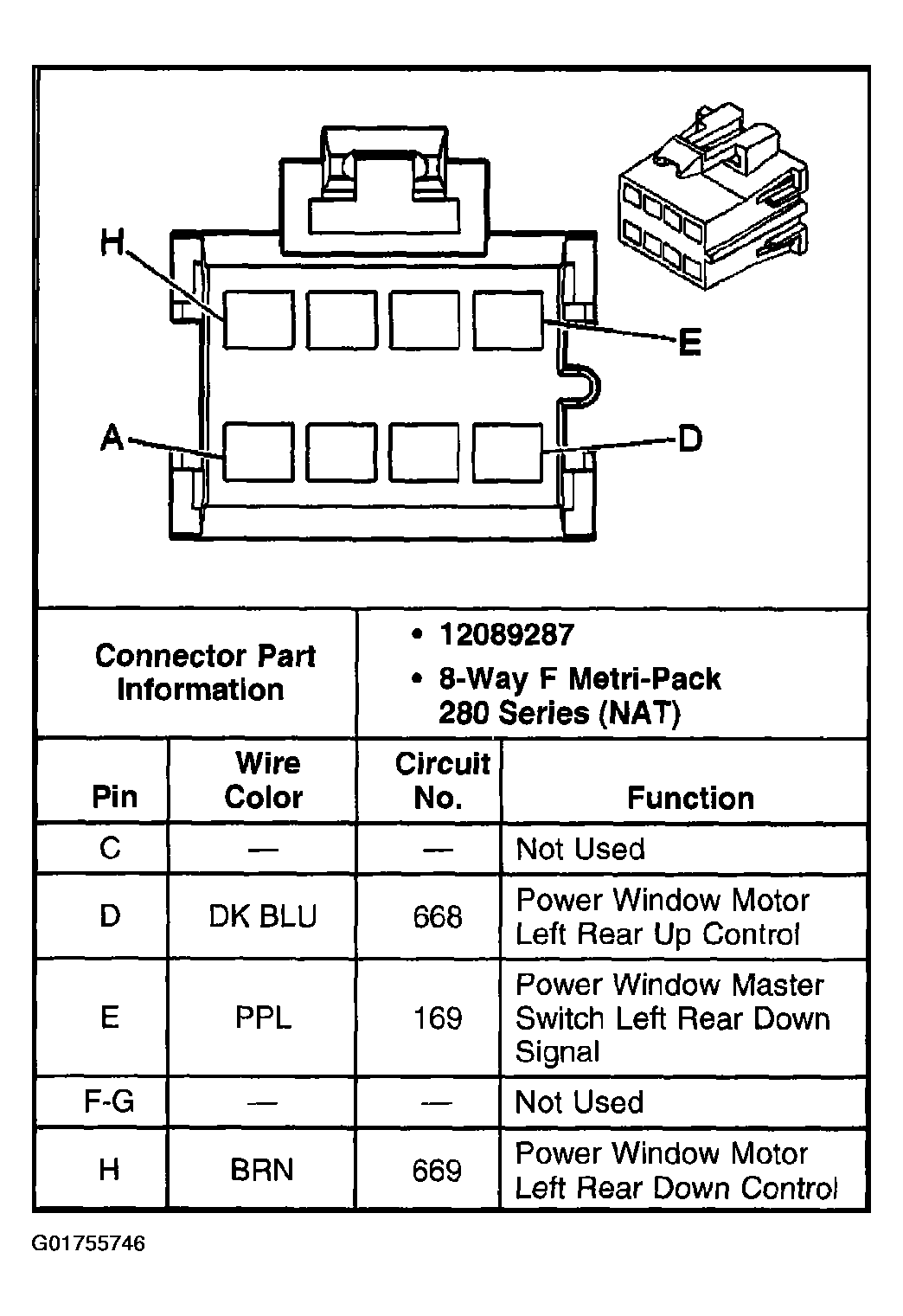

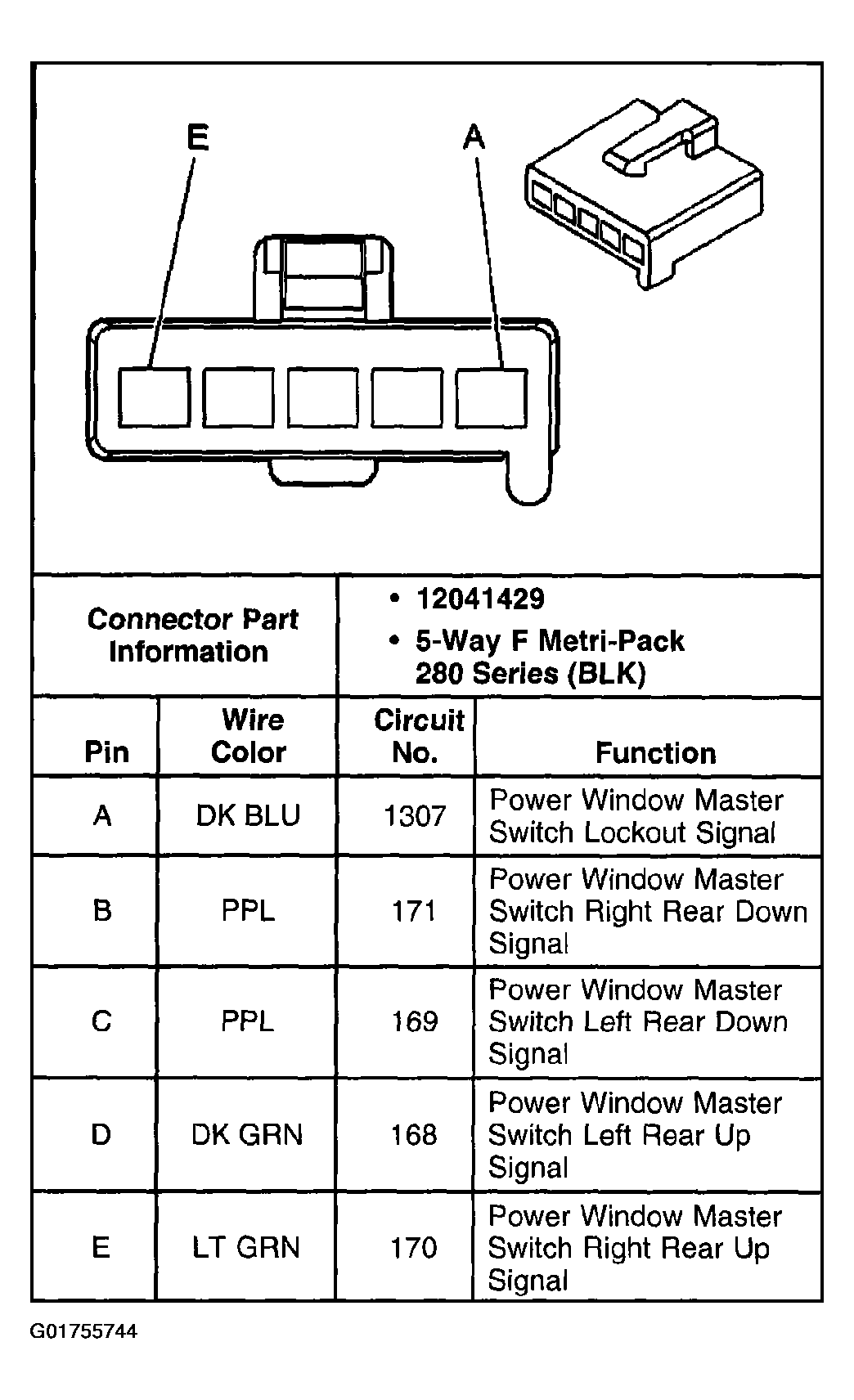

Fig 21: Identifying Window Switch-LR Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

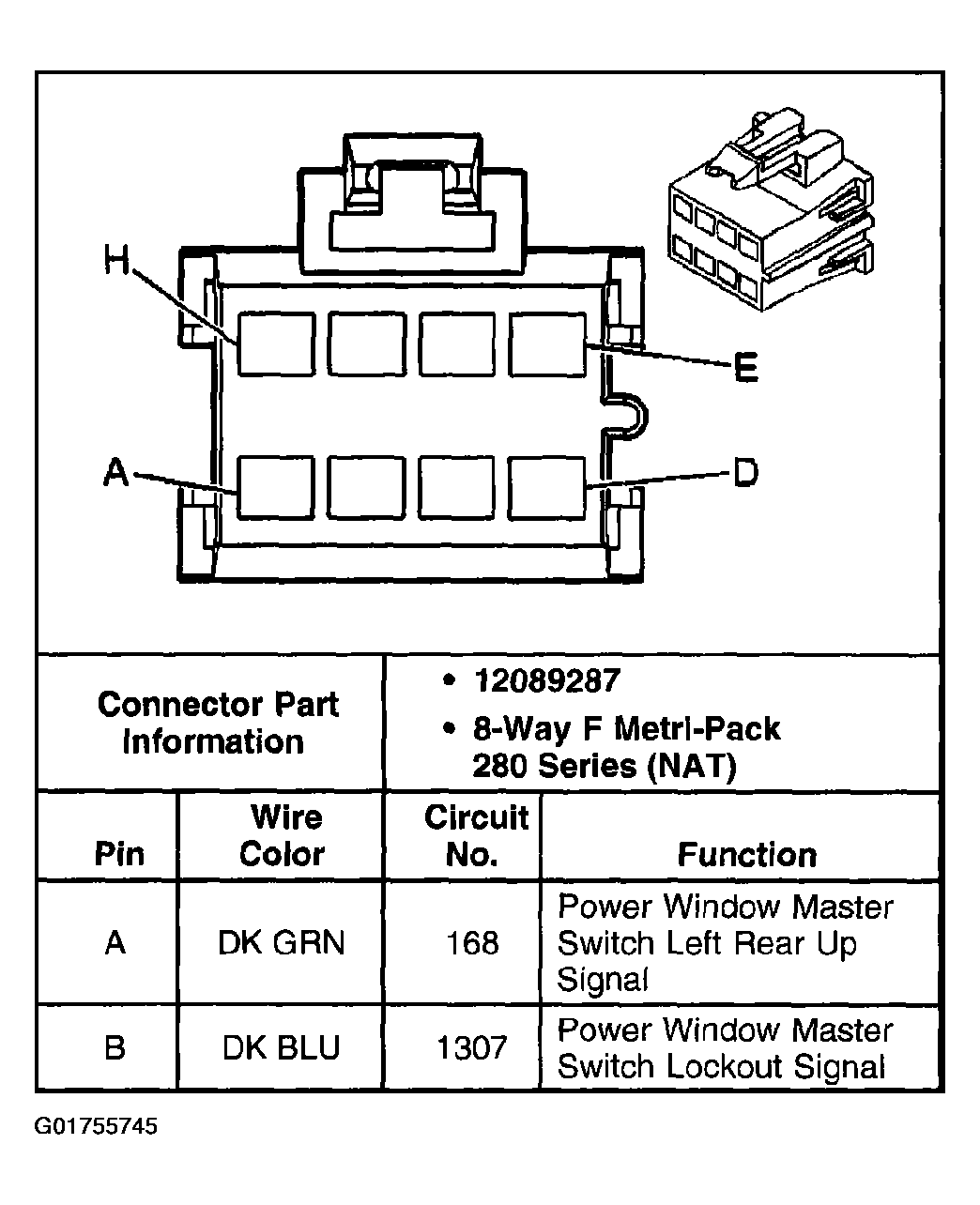

Fig 22: Identifying Window Switch-LR Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

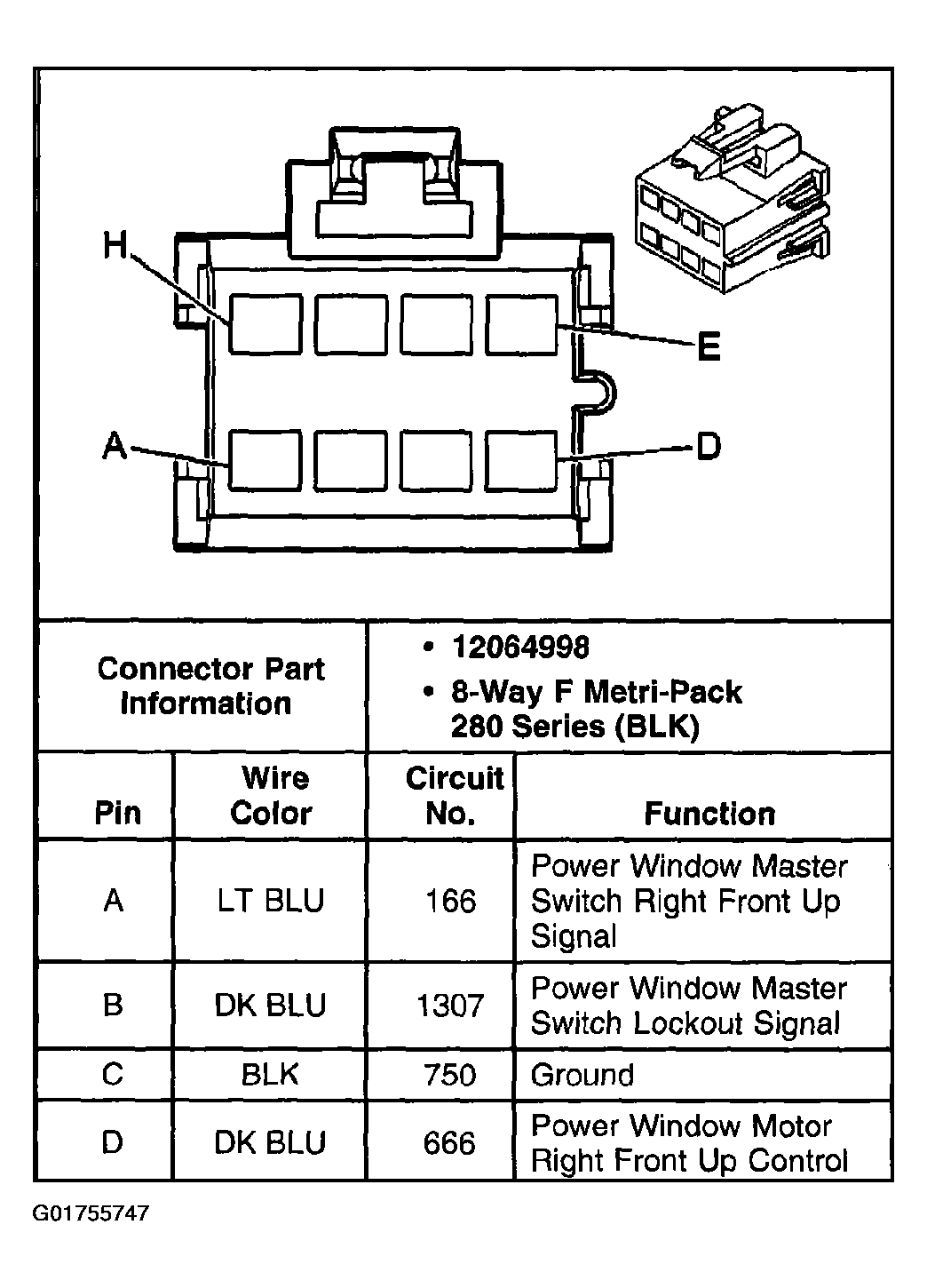

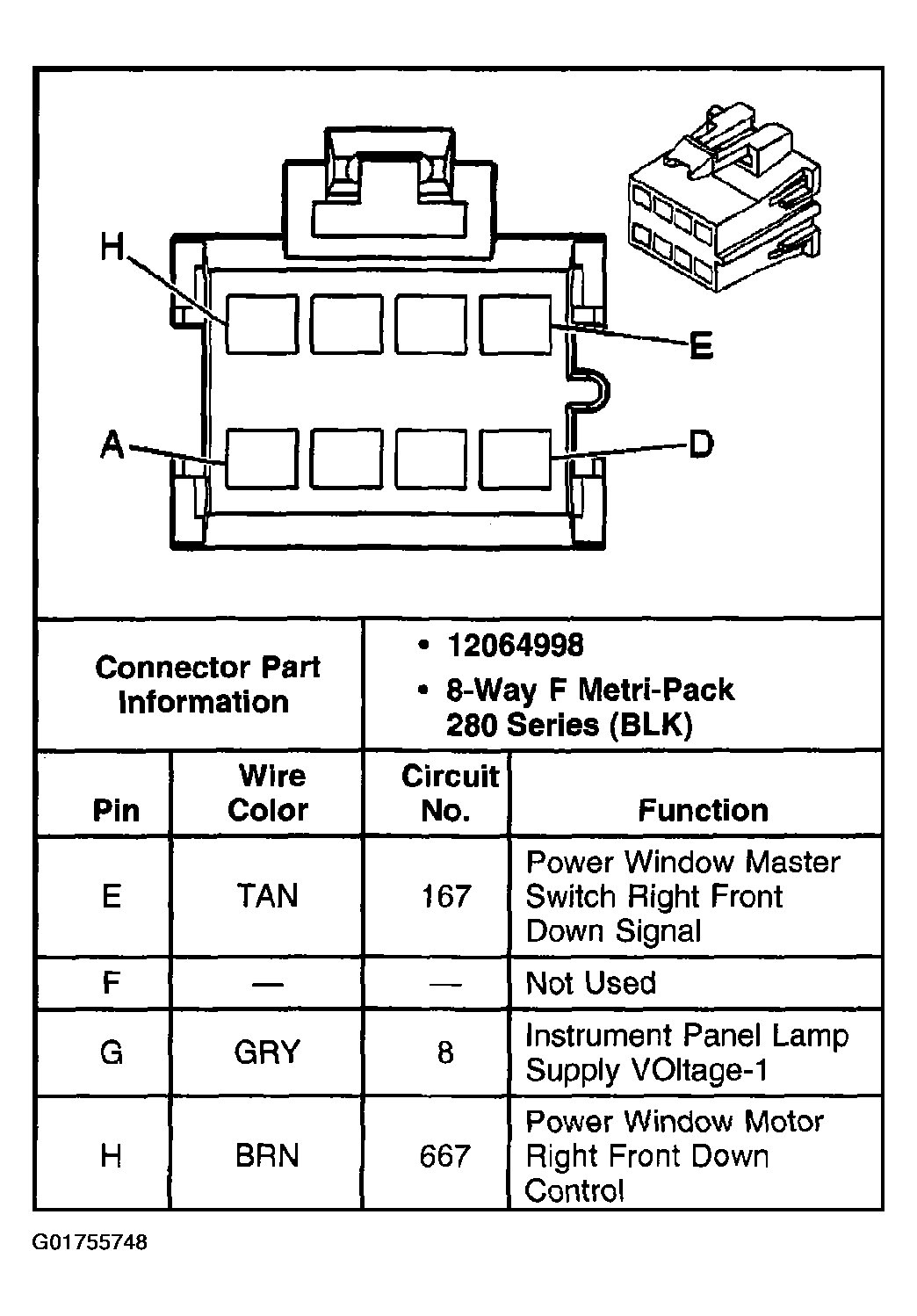

Fig 23: Identifying Window Switch-Front Passenger Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Window Switch-Front Passenger Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

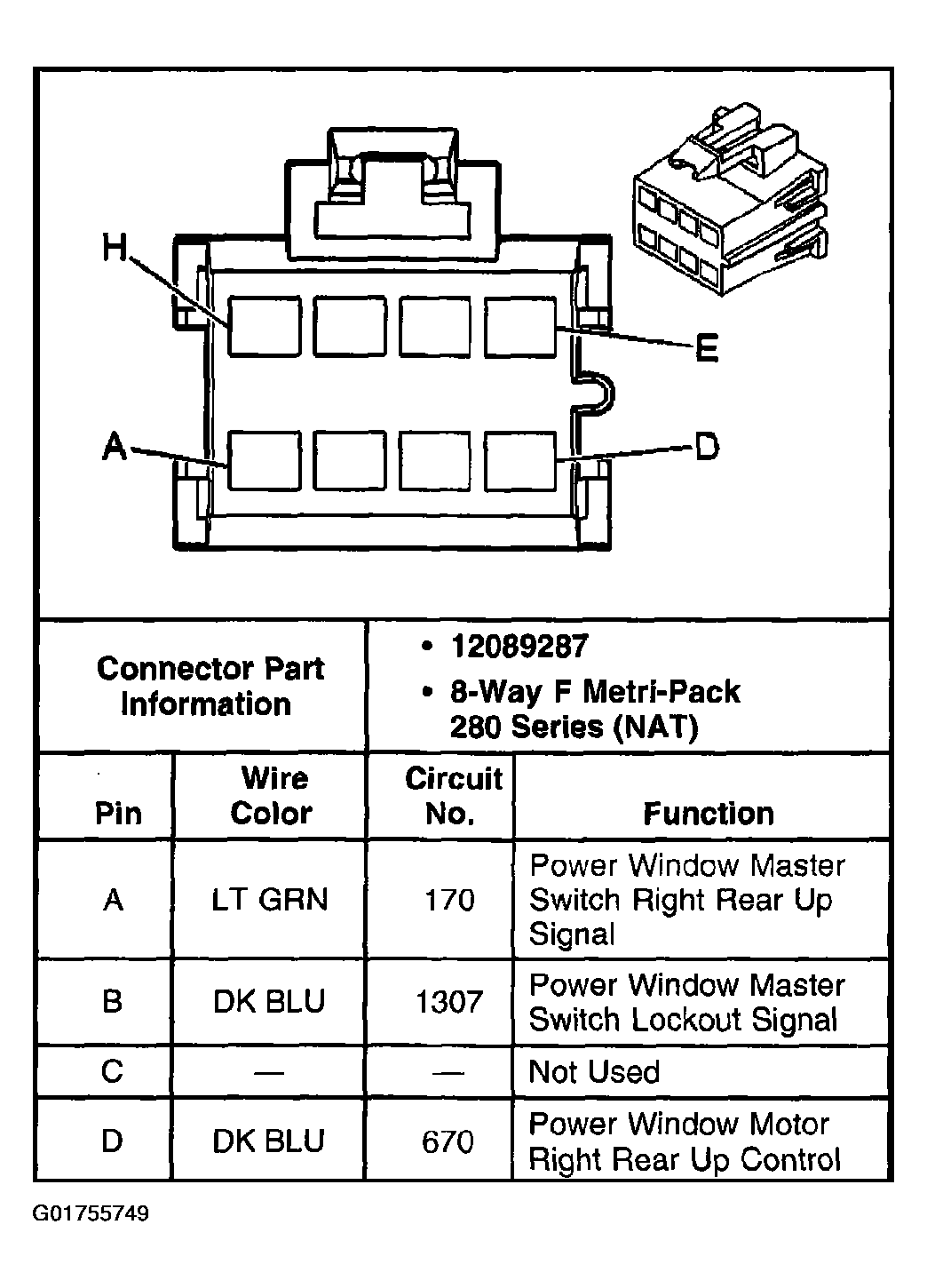

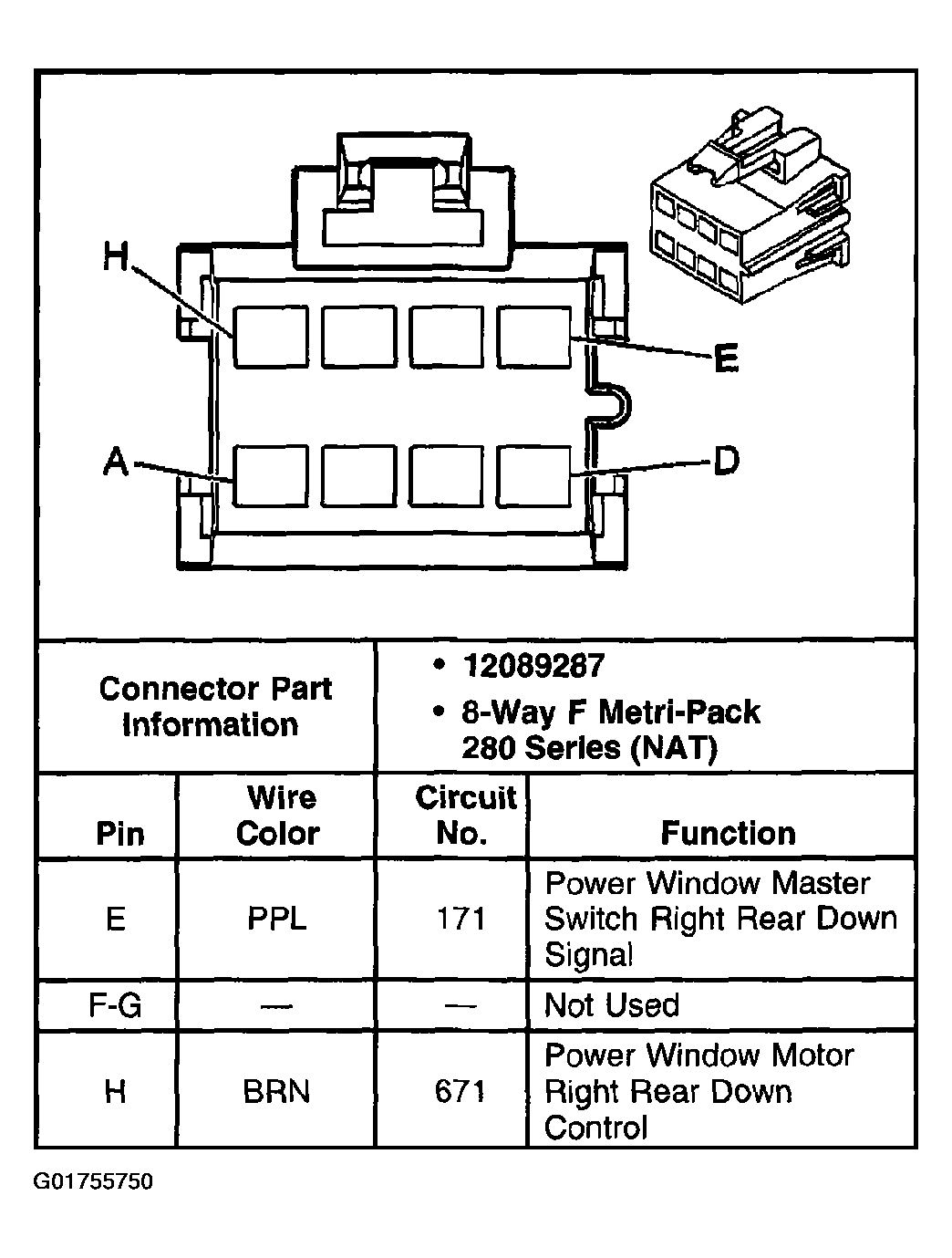

Fig 25: Identifying Window Switch-RR Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Window Switch-RR Connector End View (2 Of 2)
