Fuel Tank: Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
- Raise fuel tank while guiding fuel filler hose into position. Install fuel tank straps. Install fuel tank strap retaining bolts and alternately tighten to specification. See TORQUE SPECIFICATIONS .

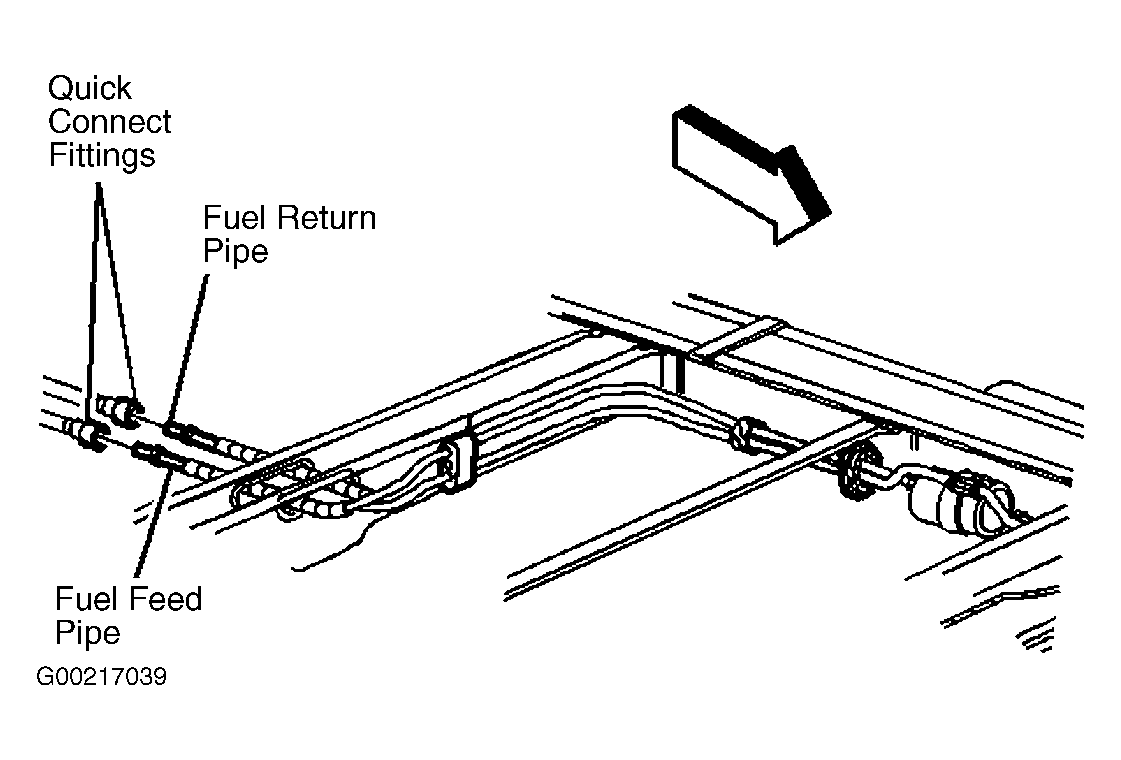

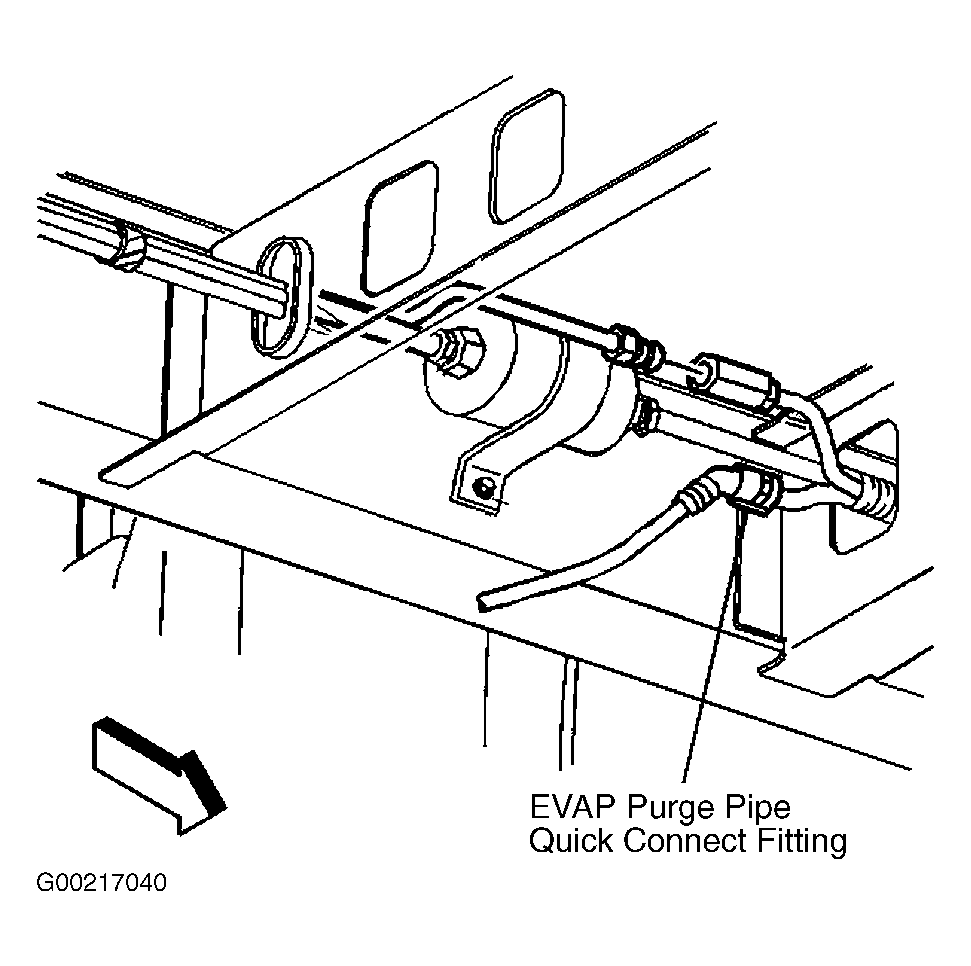

- Reconnect EVAP and fuel lines to fuel tank. Reconnect electrical connections to fuel tank. Reinstall fuel filler neck at fuel tank. Tighten fuel filler neck hose clamp at fuel tank. Lower vehicle.
- Reconnect negative battery cable. Tighten battery cable bolt to specification. Add fuel as necessary. Turn ignition switch to ON position for 2 seconds. Turn ignition switch to OFF position for 10 seconds. Turn ignition switch to ON position. Check for fuel leaks. Repair as necessary.
