Engine Cover: Installation
WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

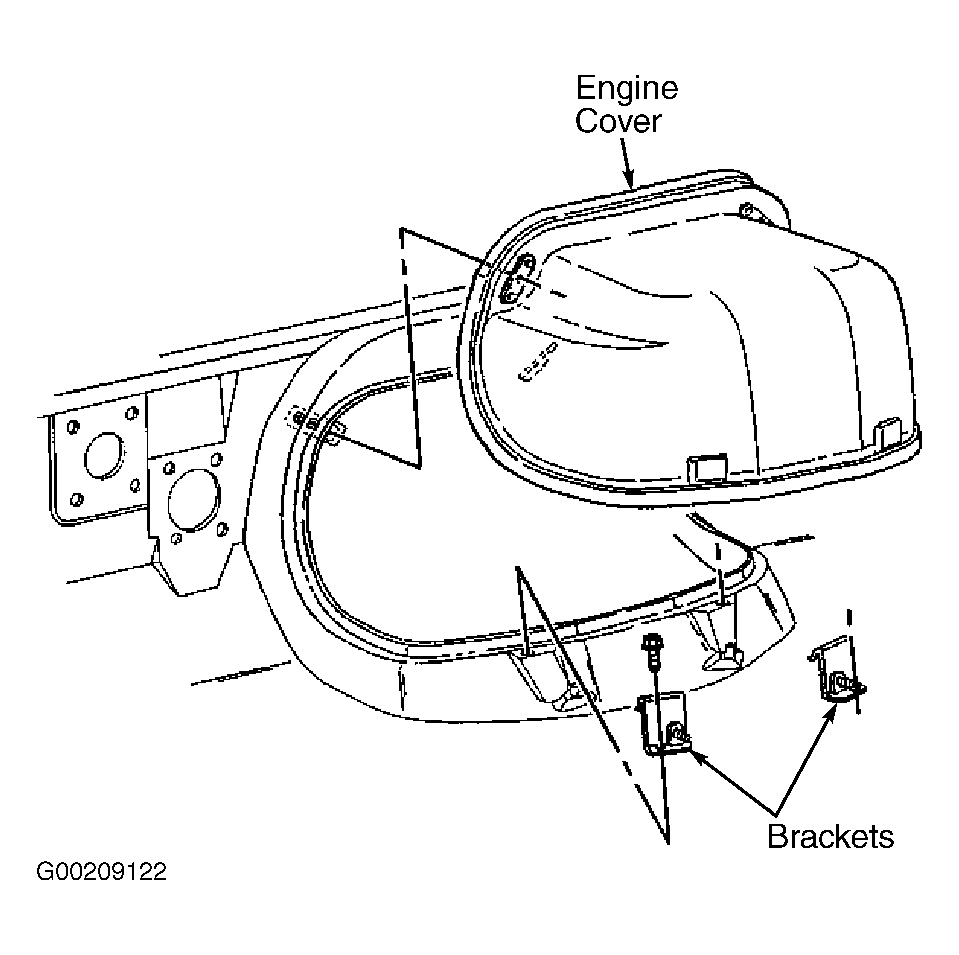

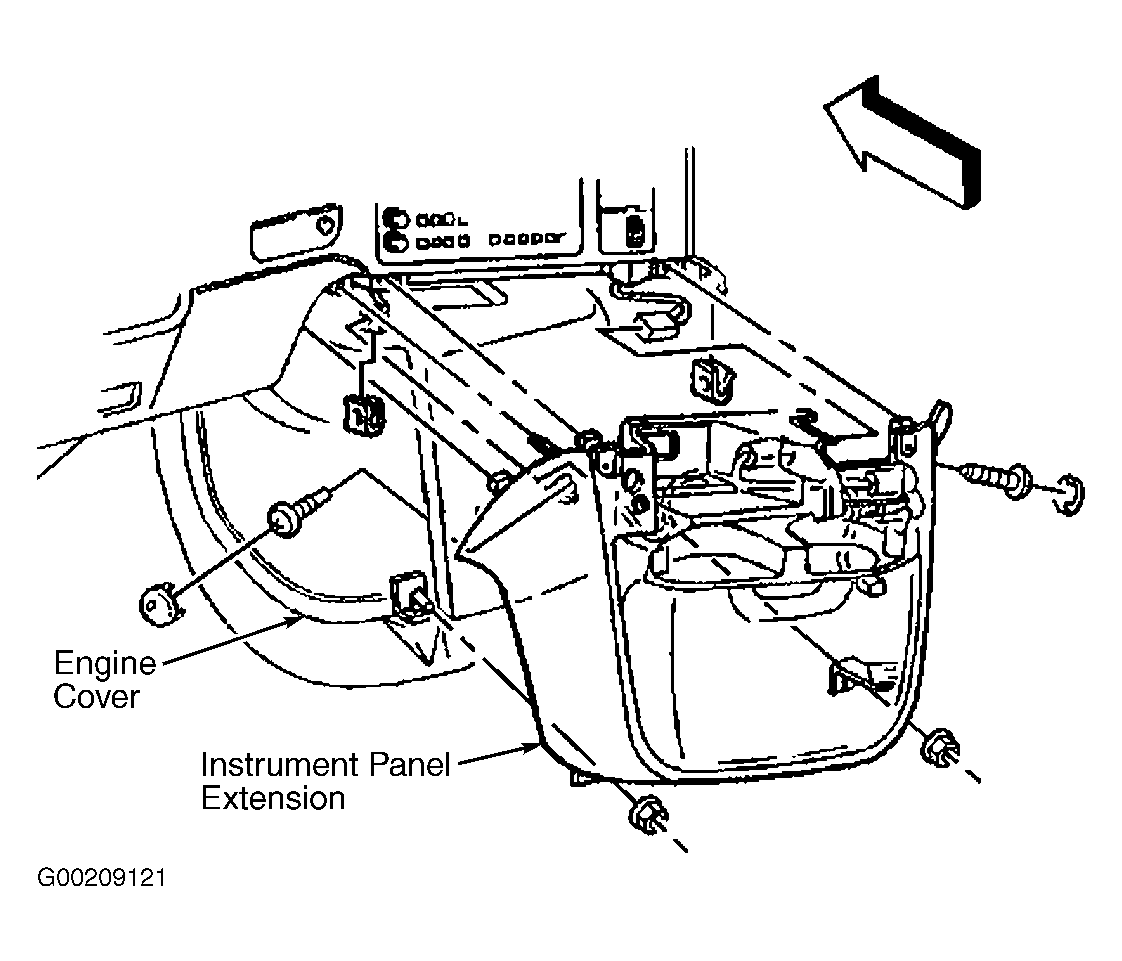

Install the engine cover. See Fig 2 . Install the engine cover to firewall screws and tighten screws to specification. See TORQUE SPECIFICATIONS . Install the engine cover bolts to the brackets. Tighten the engine cover bolts to specification. Insert the floor air outlet duct. Insert the instrument panel extension.
