Connector Identification

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

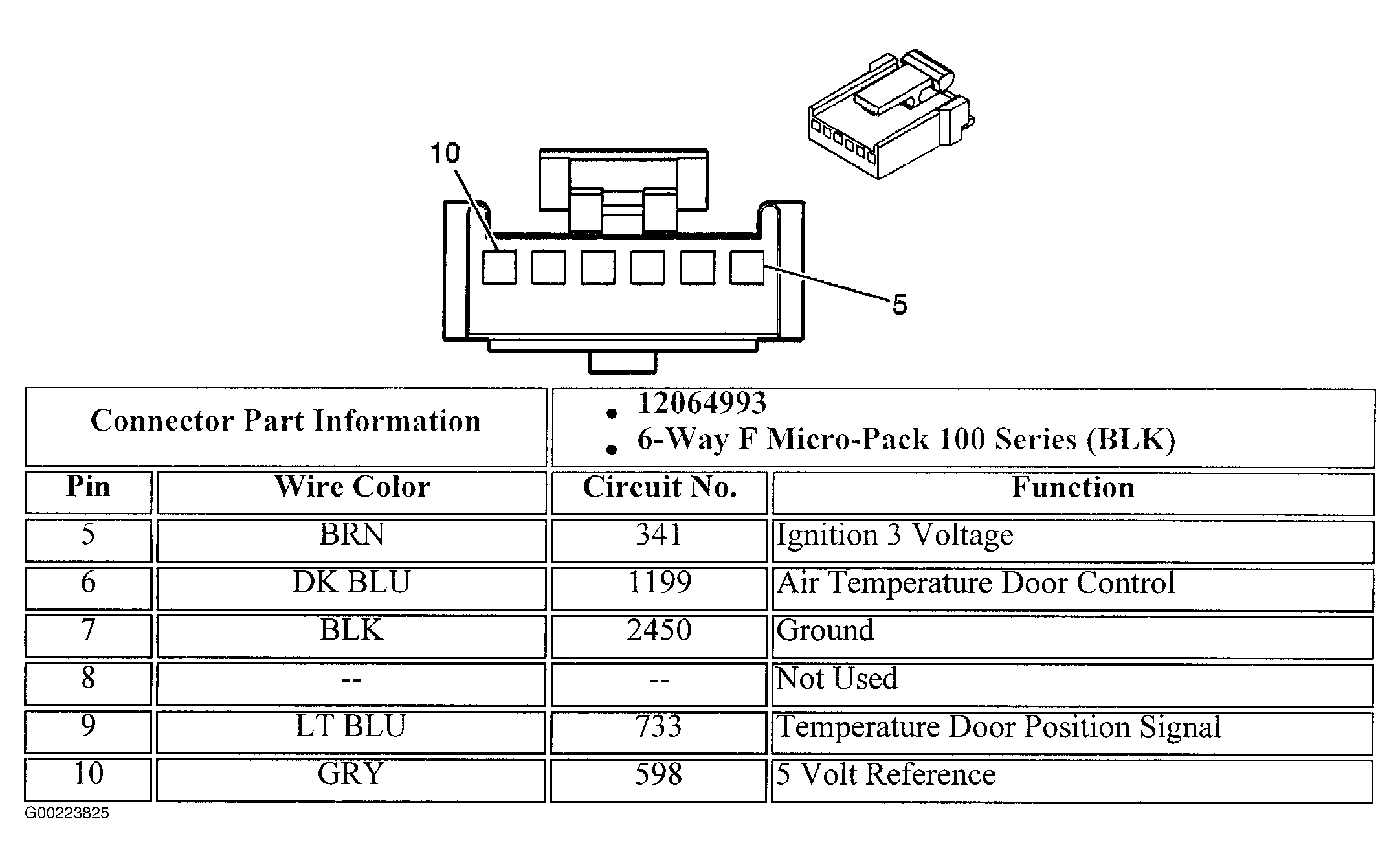

Fig 1: Identifying Air Temperature Actuator Harness Connector Terminals
G00223825Courtesy of GENERAL MOTORS CORP.

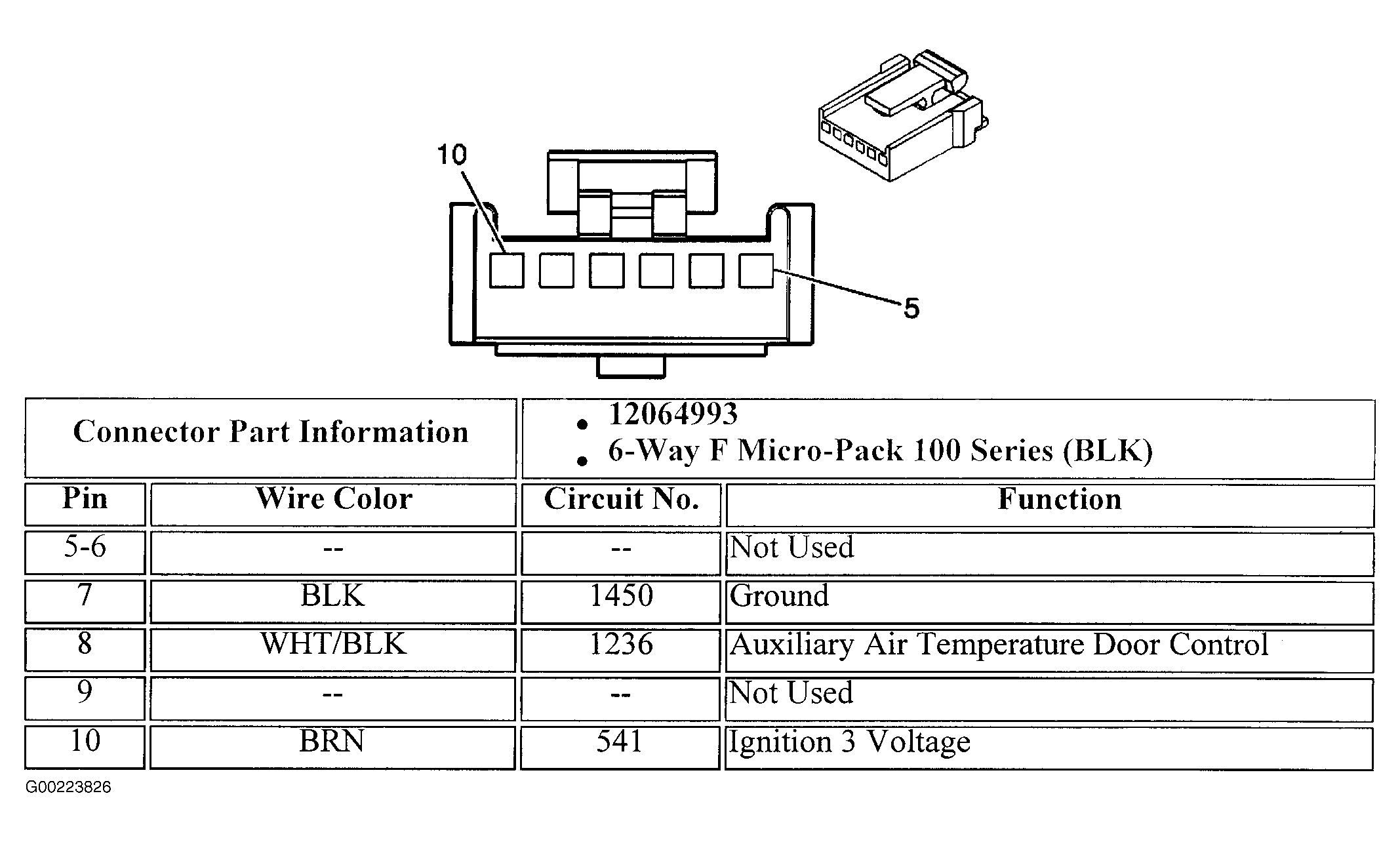

Fig 2: Identifying Auxiliary Air Temperature Actuator Harness Connector Terminals
G00223826Courtesy of GENERAL MOTORS CORP.

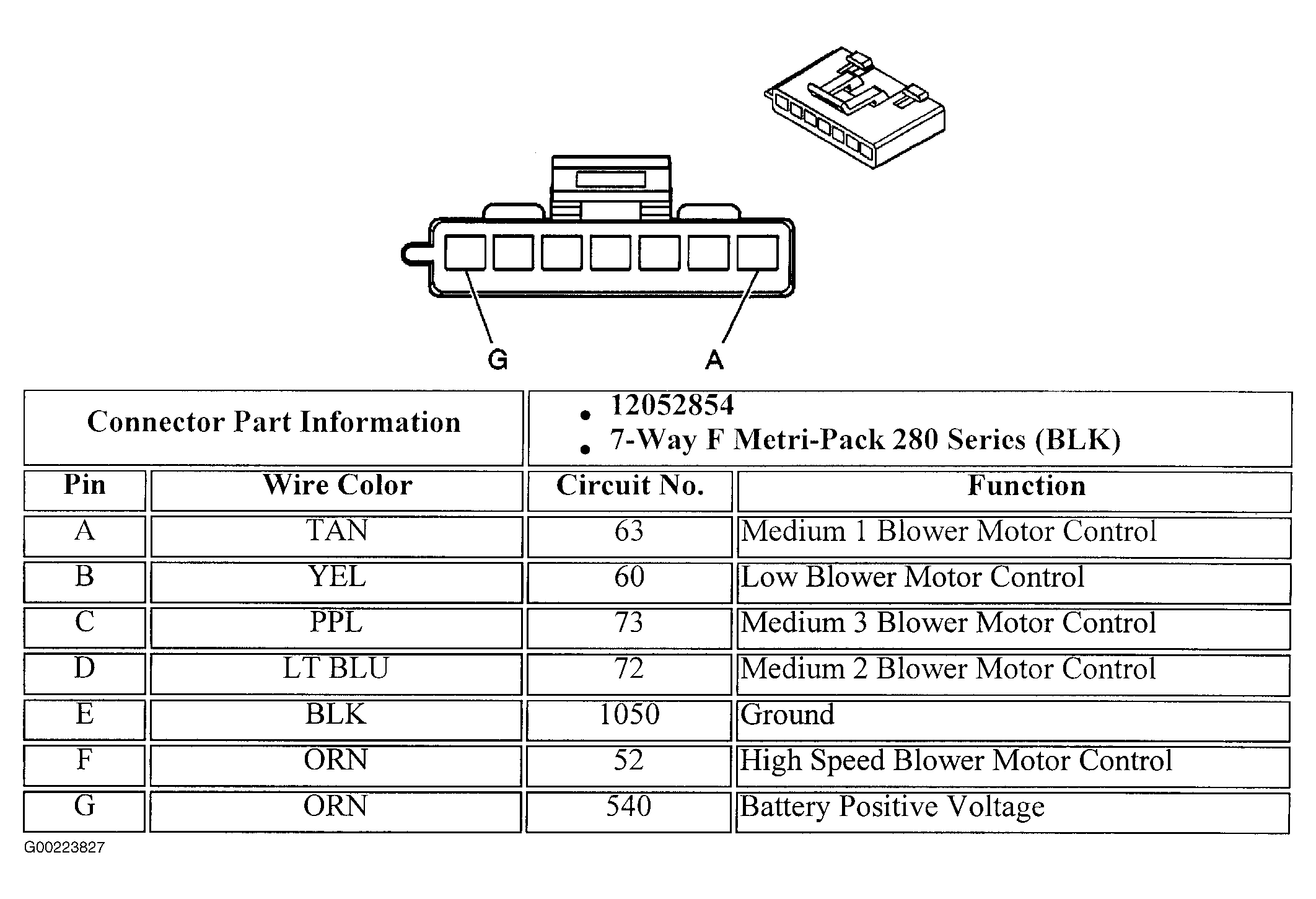

Fig 3: Identifying Blower Motor Resistor Assembly Harness Connector Terminals
G00223827Courtesy of GENERAL MOTORS CORP.

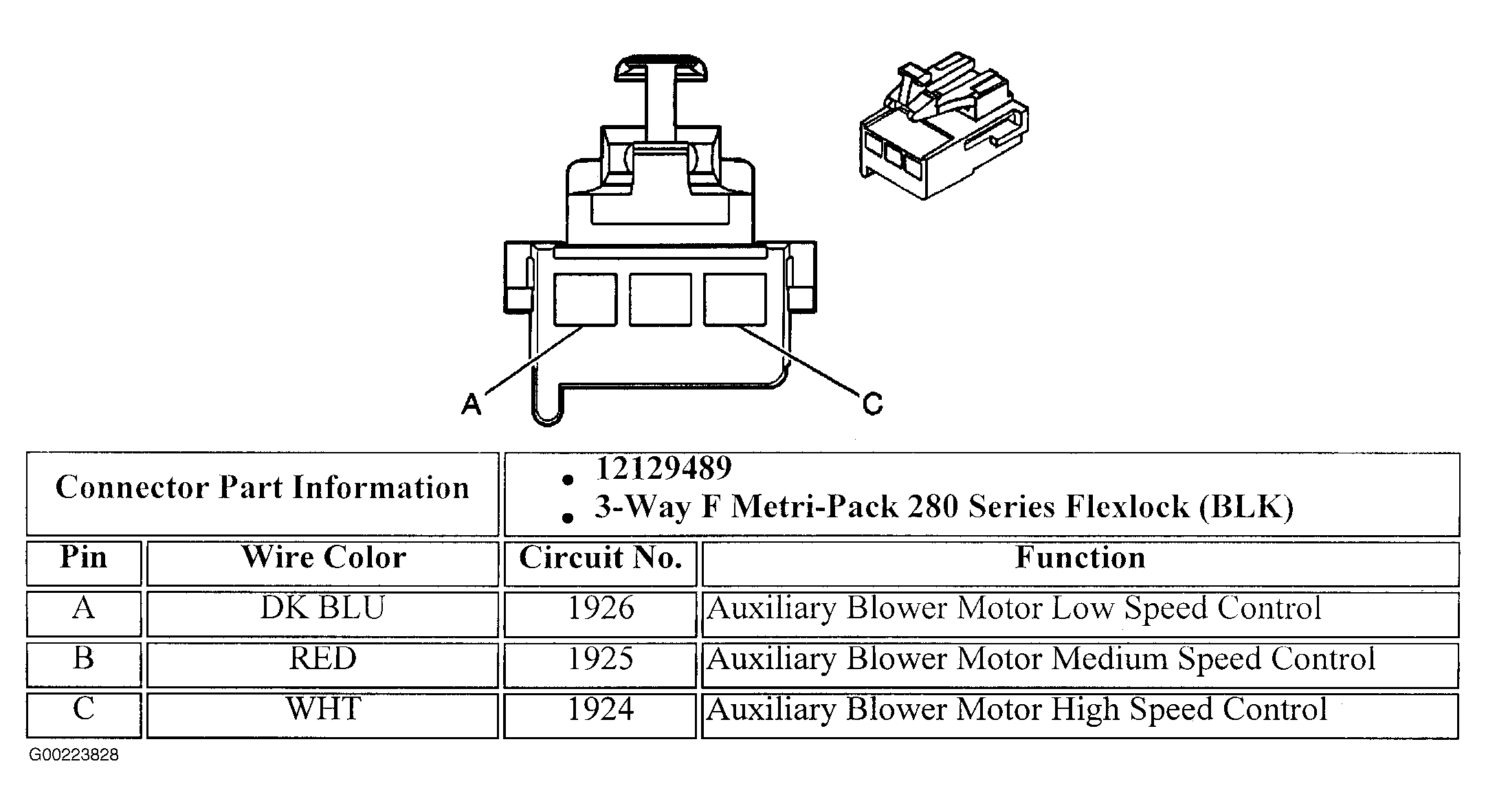

Fig 4: Identifying Auxiliary Blower Motor Resistor Assembly-C1 Harness Connector Terminals
G00223828Courtesy of GENERAL MOTORS CORP.

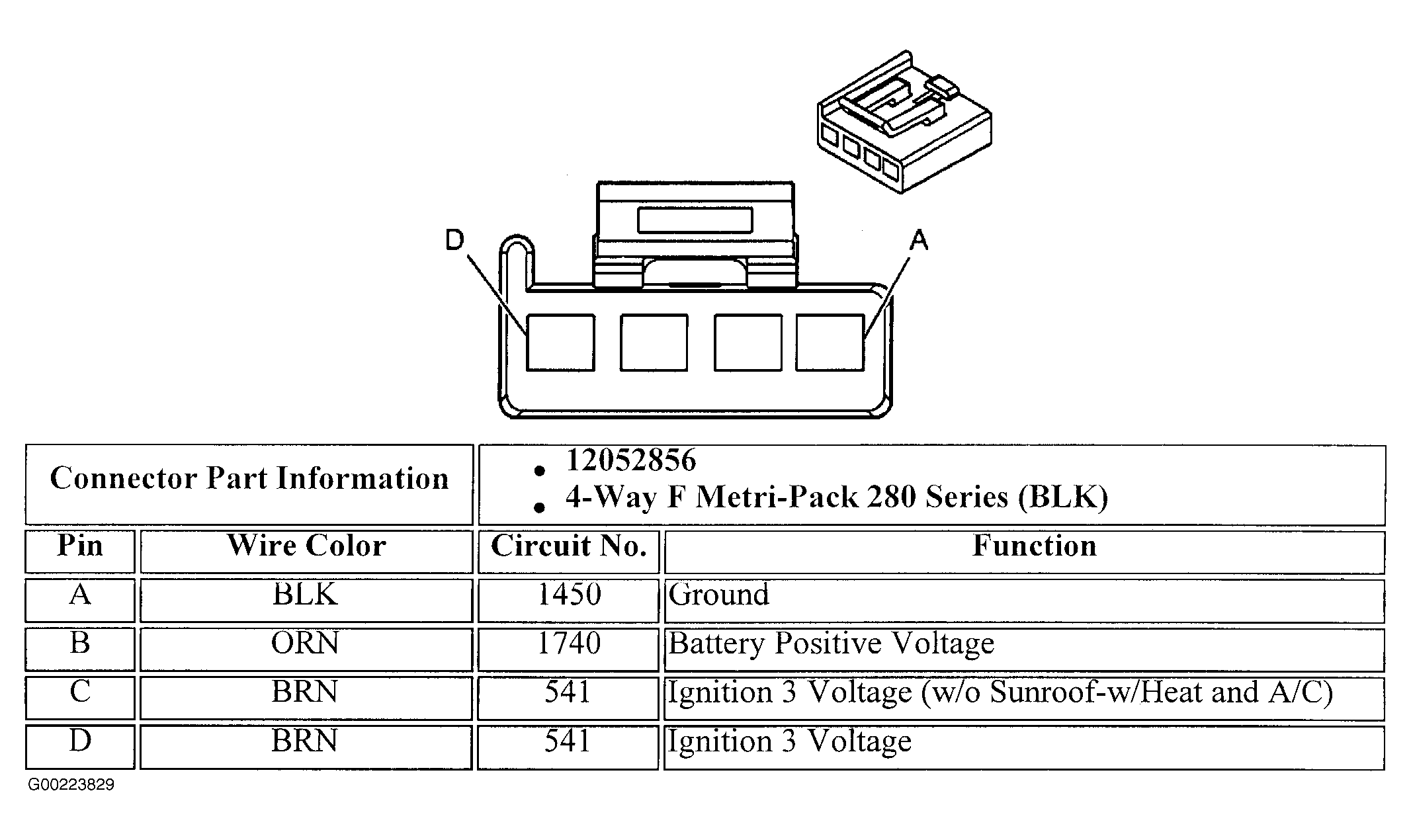

Fig 5: Identifying Auxiliary Blower Motor Resistor Assembly-C2 Harness Connector Terminals
G00223829Courtesy of GENERAL MOTORS CORP.

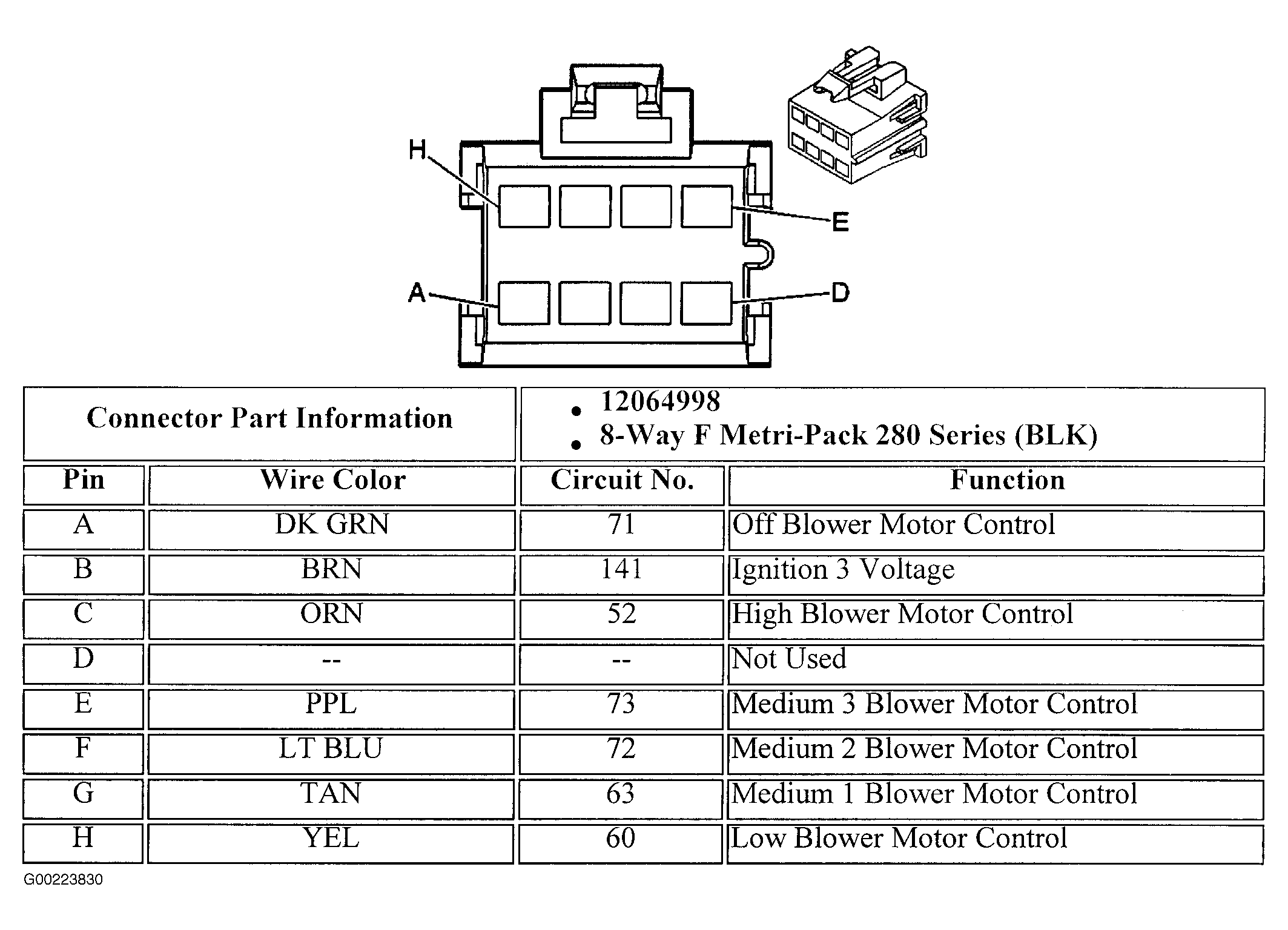

Fig 6: Identifying Blower Motor Switch-C2 Harness Connector Terminals
G00223830Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying HVAC Control Module-C1 Harness Connector Terminals
G00223831Courtesy of GENERAL MOTORS CORP.

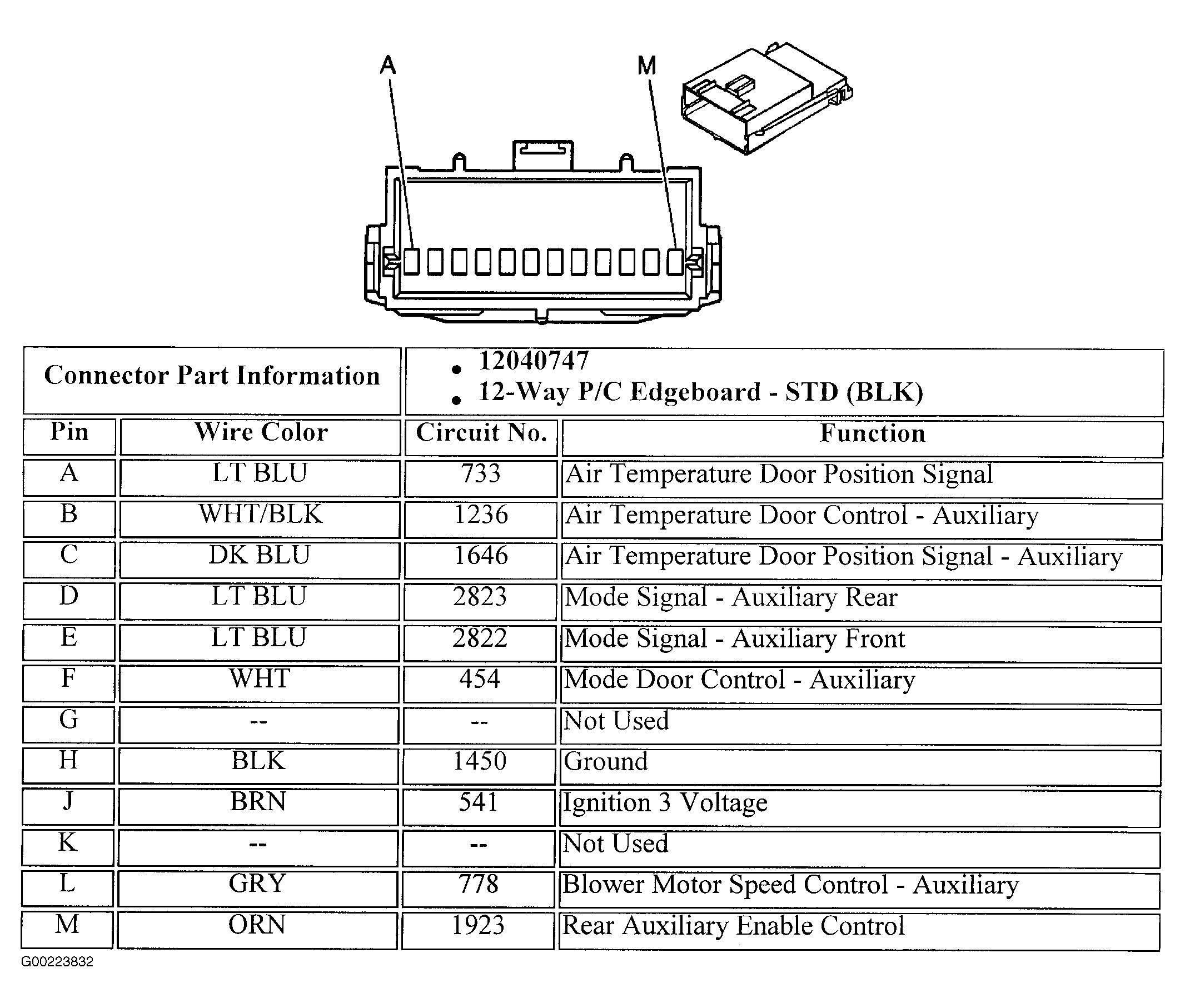

Fig 8: Identifying Auxiliary HVAC Control Processor (Suburban/Utility Without Sunroof) Harness Connector Terminals
G00223832Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Front Auxiliary HVAC Control Assembly (A/C Only) Harness Connector Terminals
G00223833Courtesy of GENERAL MOTORS CORP.

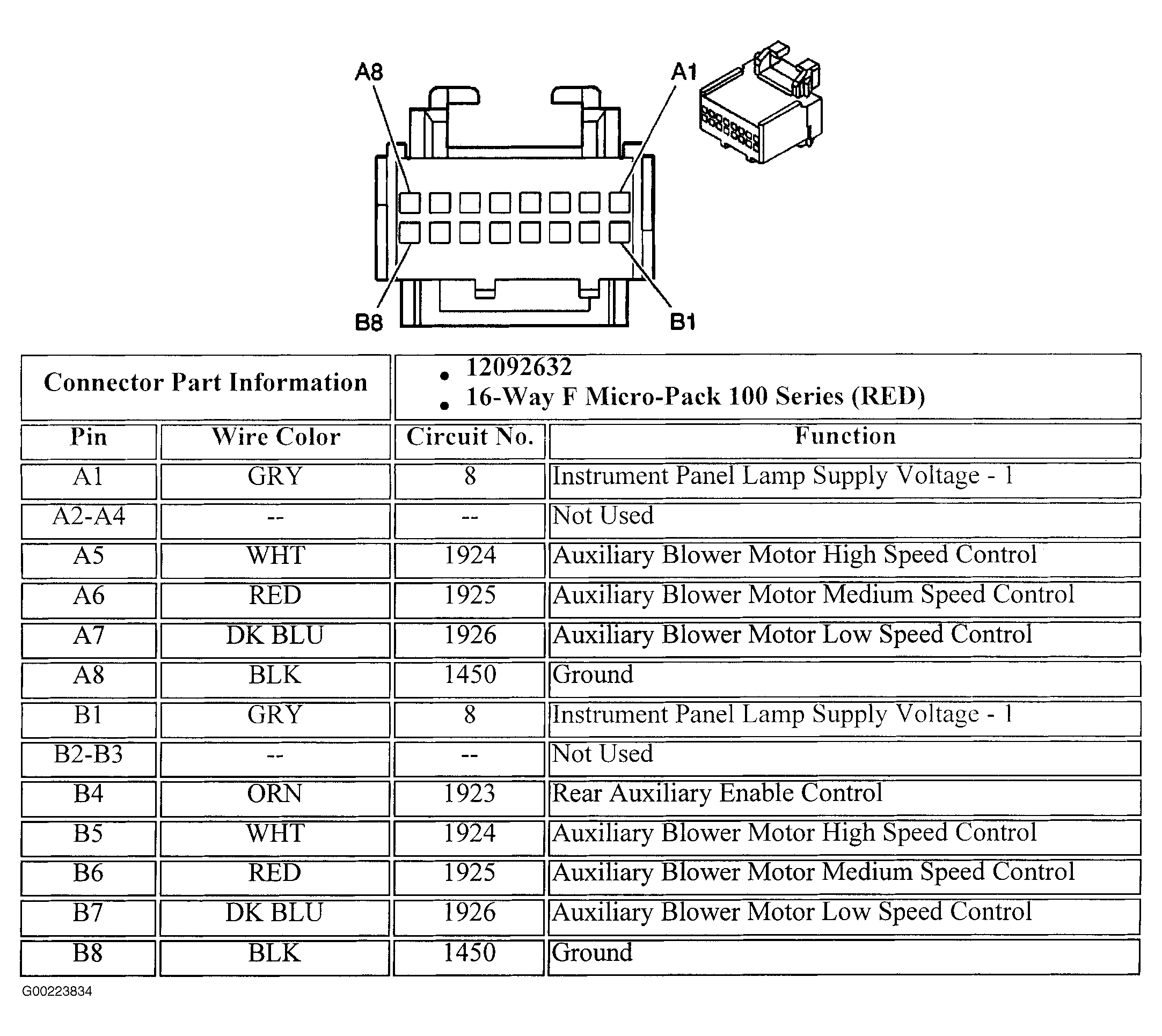

Fig 10: Identifying Rear Auxiliary HVAC Control Assembly (A/C Only) Harness Connector Terminals
G00223834Courtesy of GENERAL MOTORS CORP.

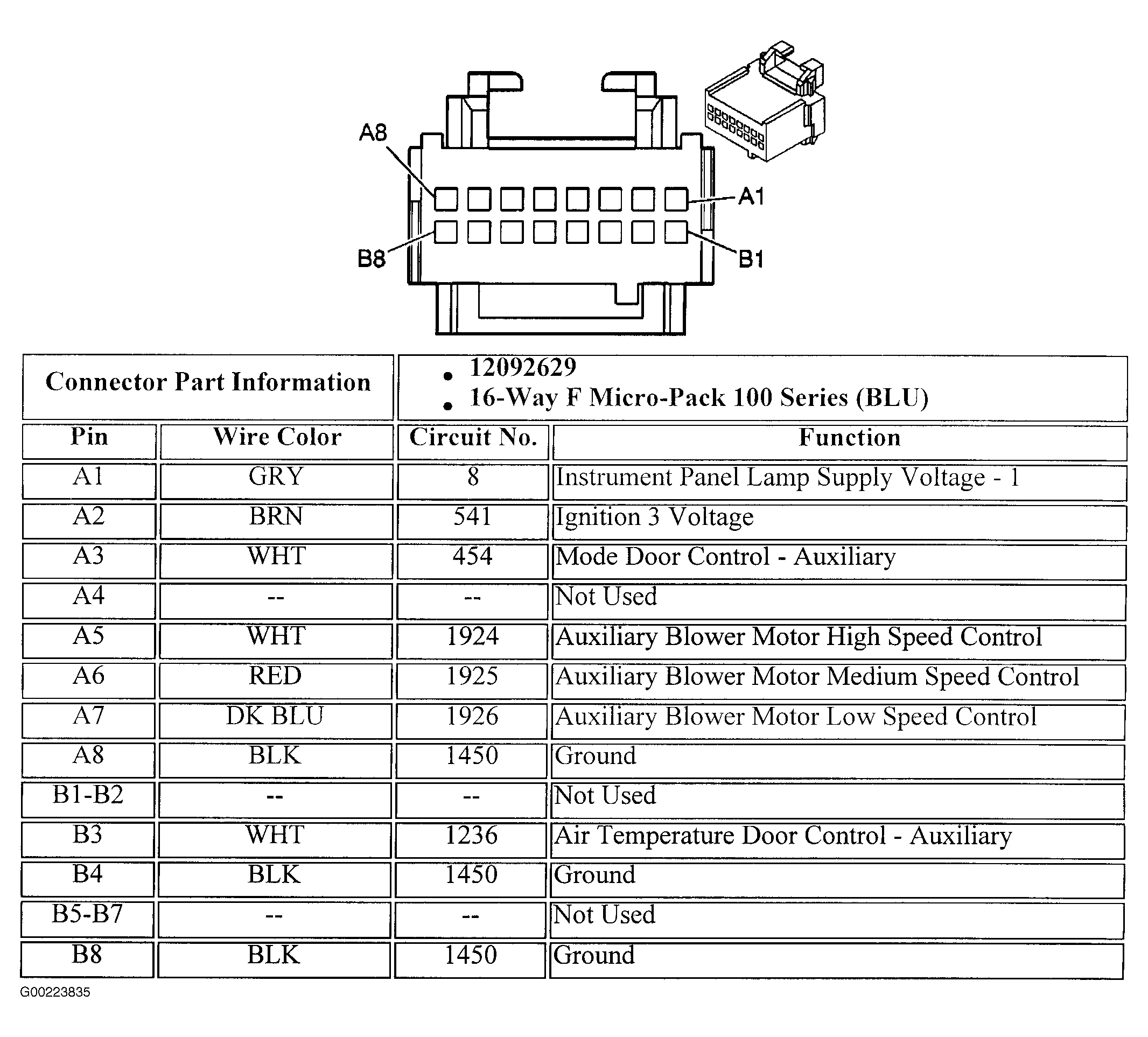

Fig 11: Identifying Front Auxiliary HVAC Control Assembly (With Sunroof/Suburban/Yukon XL) Harness Connector Terminals
G00223835Courtesy of GENERAL MOTORS CORP.

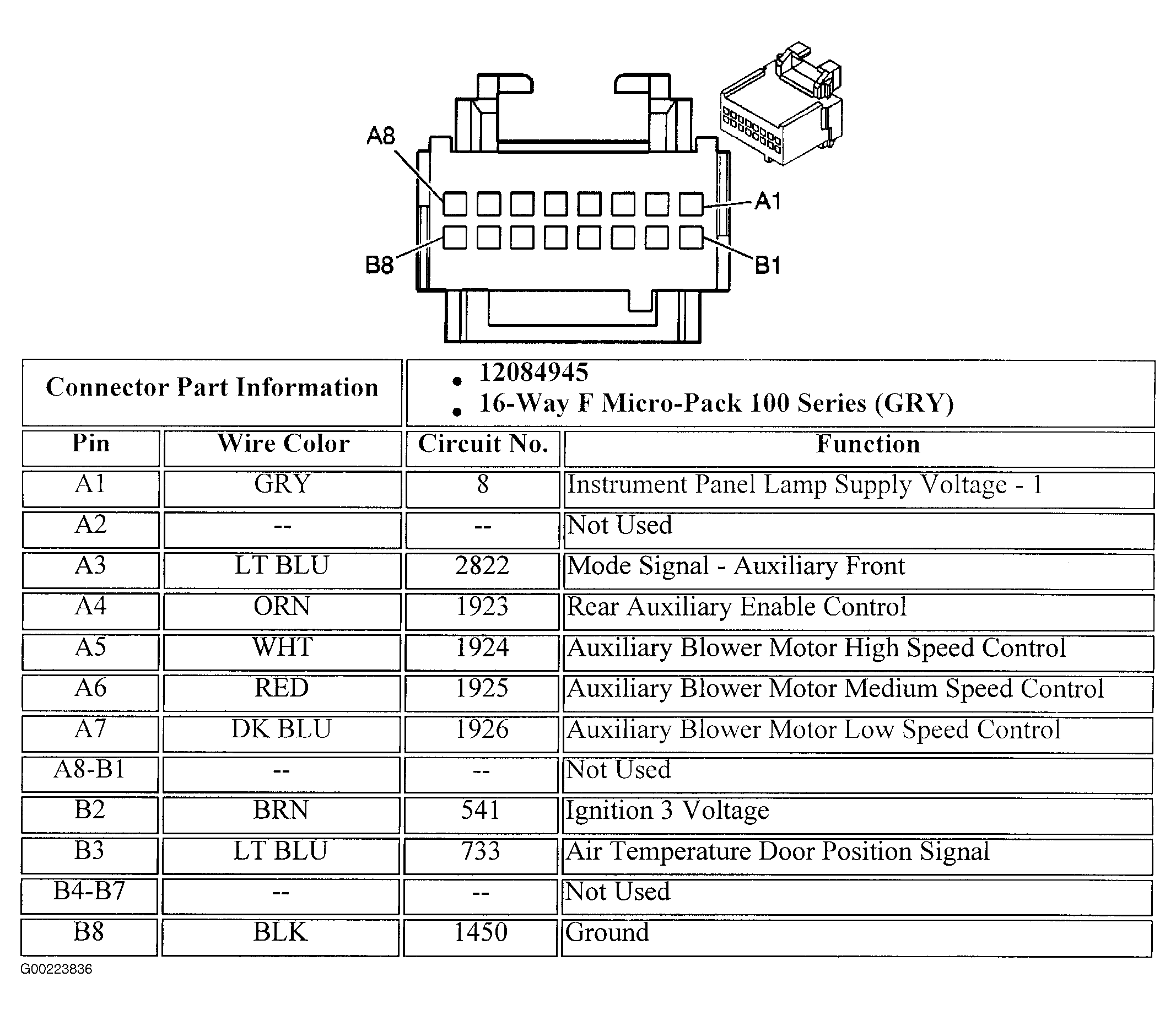

Fig 12: Identifying Front Auxiliary HVAC Control Assembly (Without Sunroof/With Heat & A/C) Harness Connector Terminals
G00223836Courtesy of GENERAL MOTORS CORP.

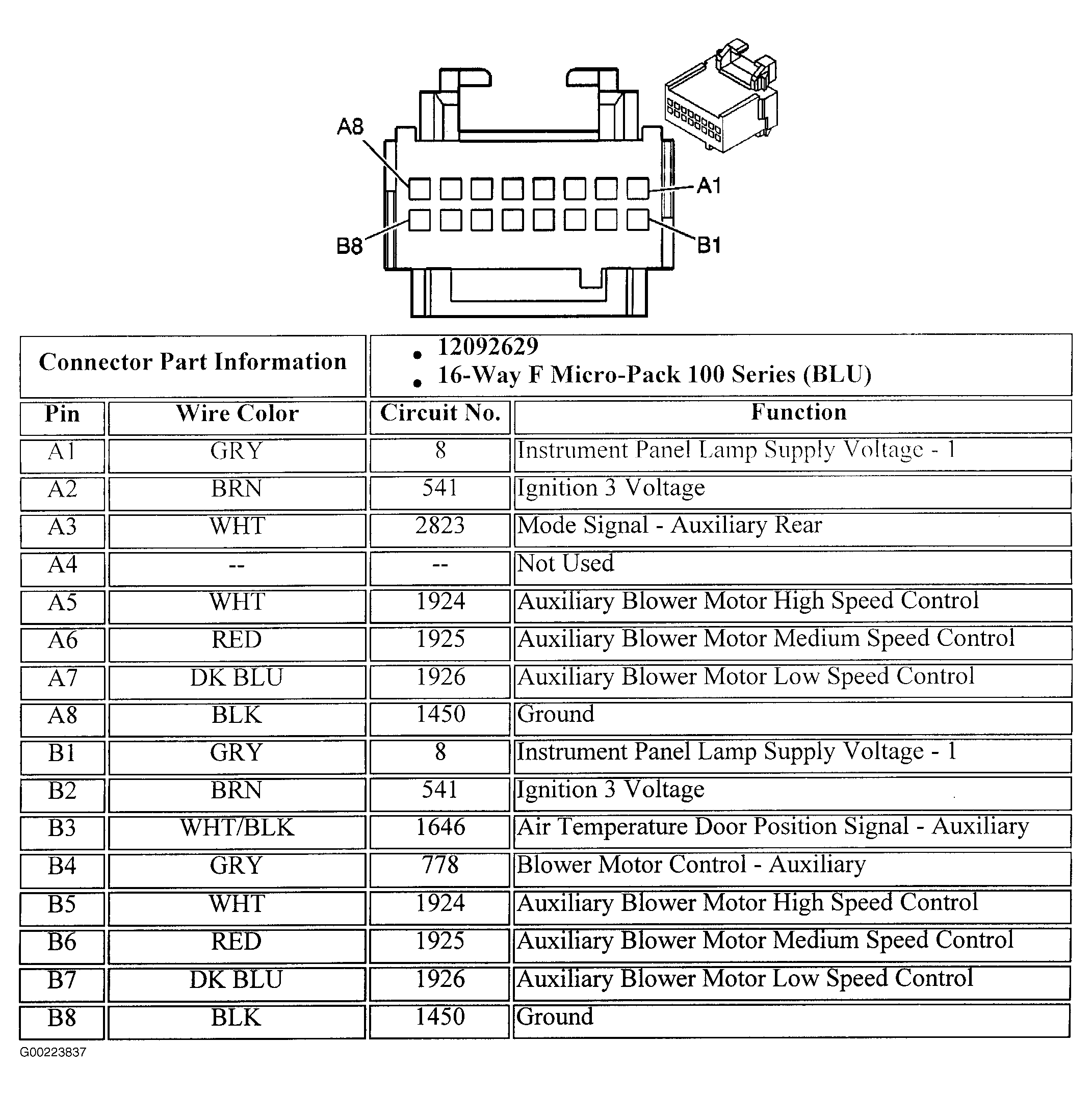

Fig 13: Identifying Rear Auxiliary HVAC Control Assembly (Without Sunroof/With Heat & A/C) Harness Connector Terminals
G00223837Courtesy of GENERAL MOTORS CORP.

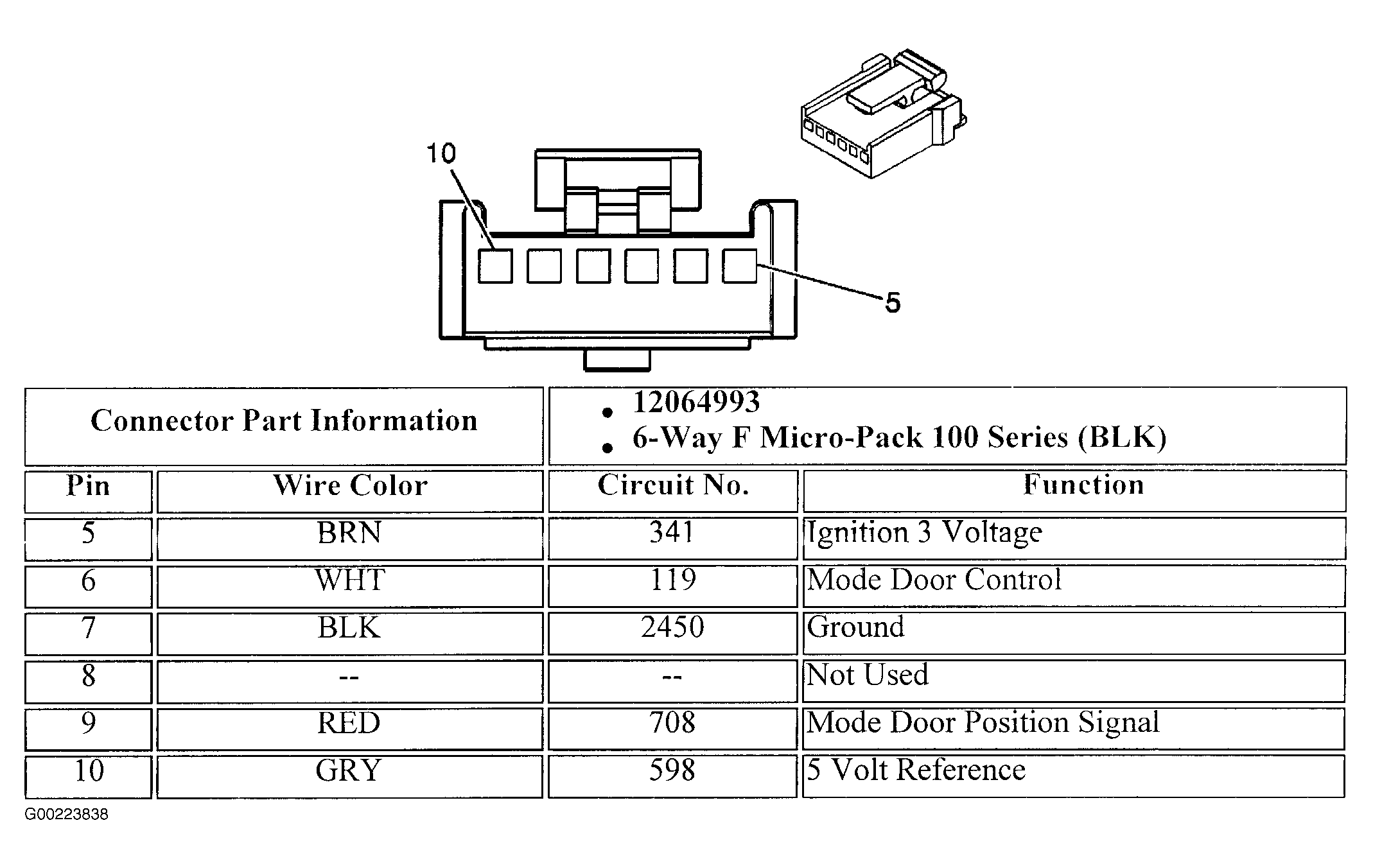

Fig 14: Identifying Mode Actuator Harness Connector Terminals
G00223838Courtesy of GENERAL MOTORS CORP.

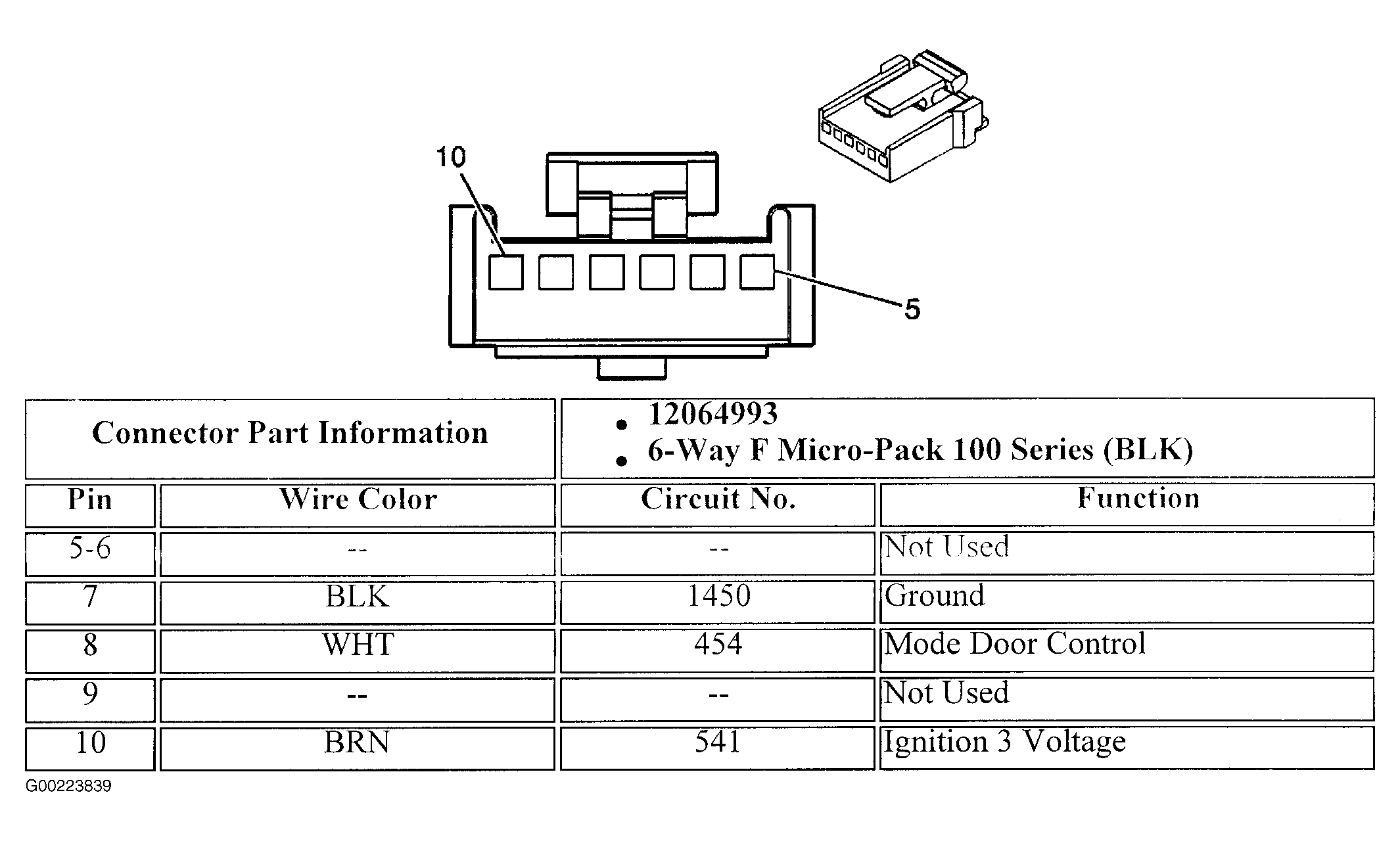

Fig 15: Identifying Auxiliary Mode Actuator Harness Connector Terminals
G00223839Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Recirculation Actuator Harness Connector Terminals
G00223840Courtesy of GENERAL MOTORS CORP.
