Installation (Front)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heater/vent module assembly to the vehicle. See Figure.
  2. Install the heater/vent module mounting nuts and tighten to specification.
  3. Install the heater/vent module mounting screws and tighten to specification.

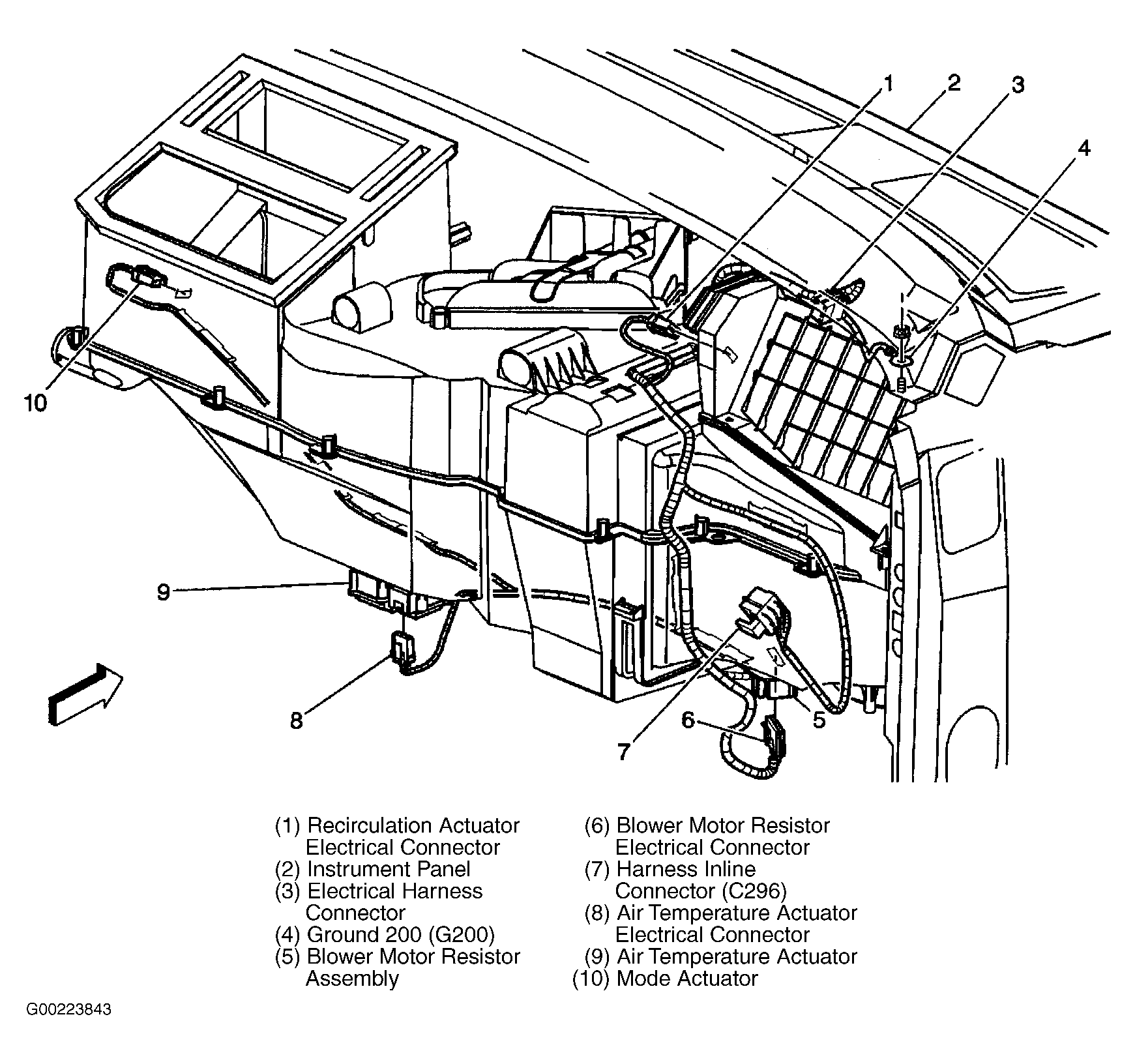

  4. Connect the electrical harnesses and the ground connections. See Figure.
  5. Install the heater/vent module drain hose.
  6. Install the I/P carrier. See IP CARRIER REPLACEMENT .
  7. Install the accumulator. See ACCUMULATOR .
  8. Install the outlet heater hose to the heater core.
  9. Reposition the outlet heater hose clamp to the heater core.
  10. Install the inlet heater hose to the heater core.
  11. Reposition the inlet heater hose clamp to the heater core.
  12. Fill the cooling system.
  13. Leak test the fitting of the repaired component.
