PID Values

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

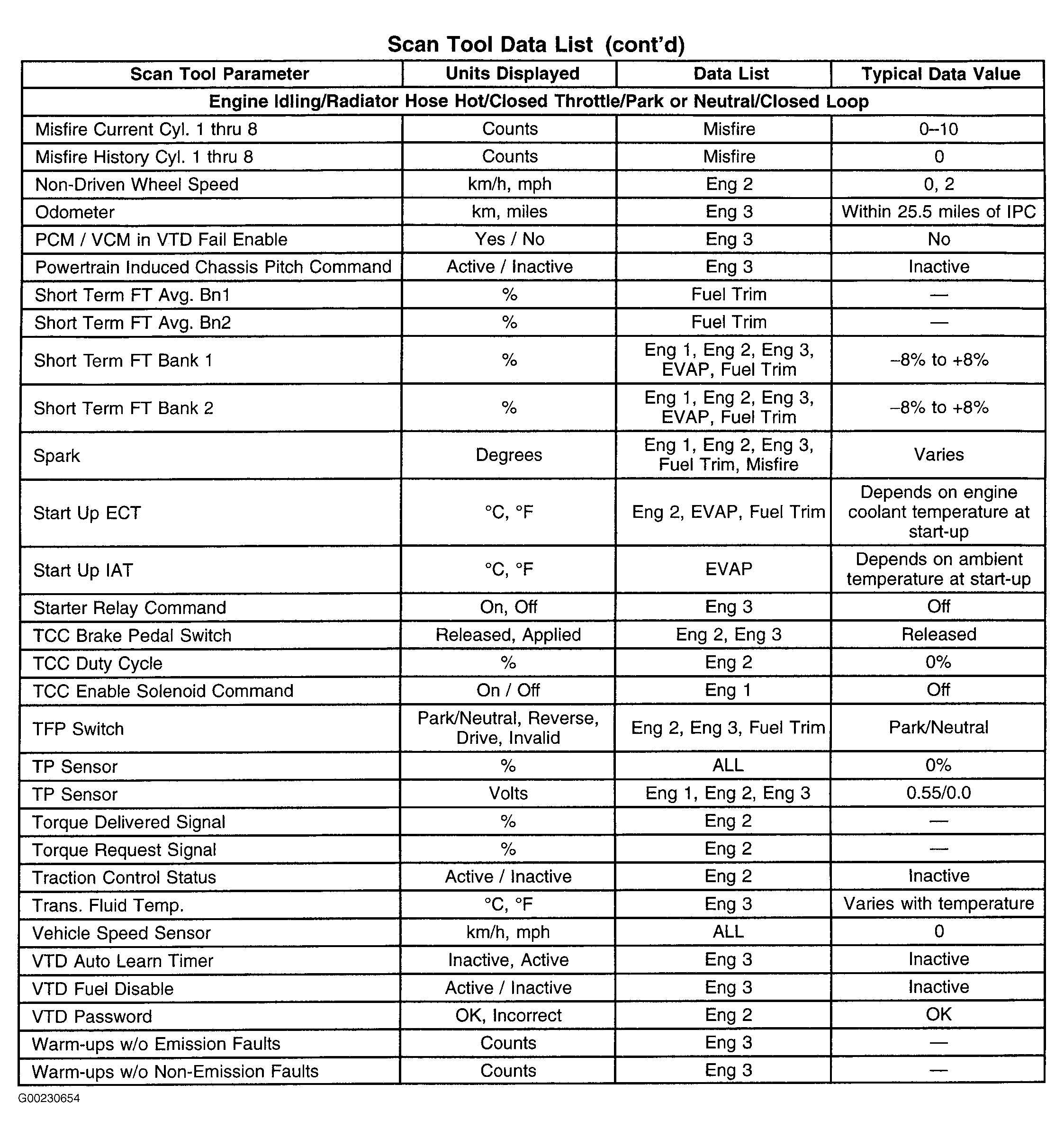

Fig 1: PID Values (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

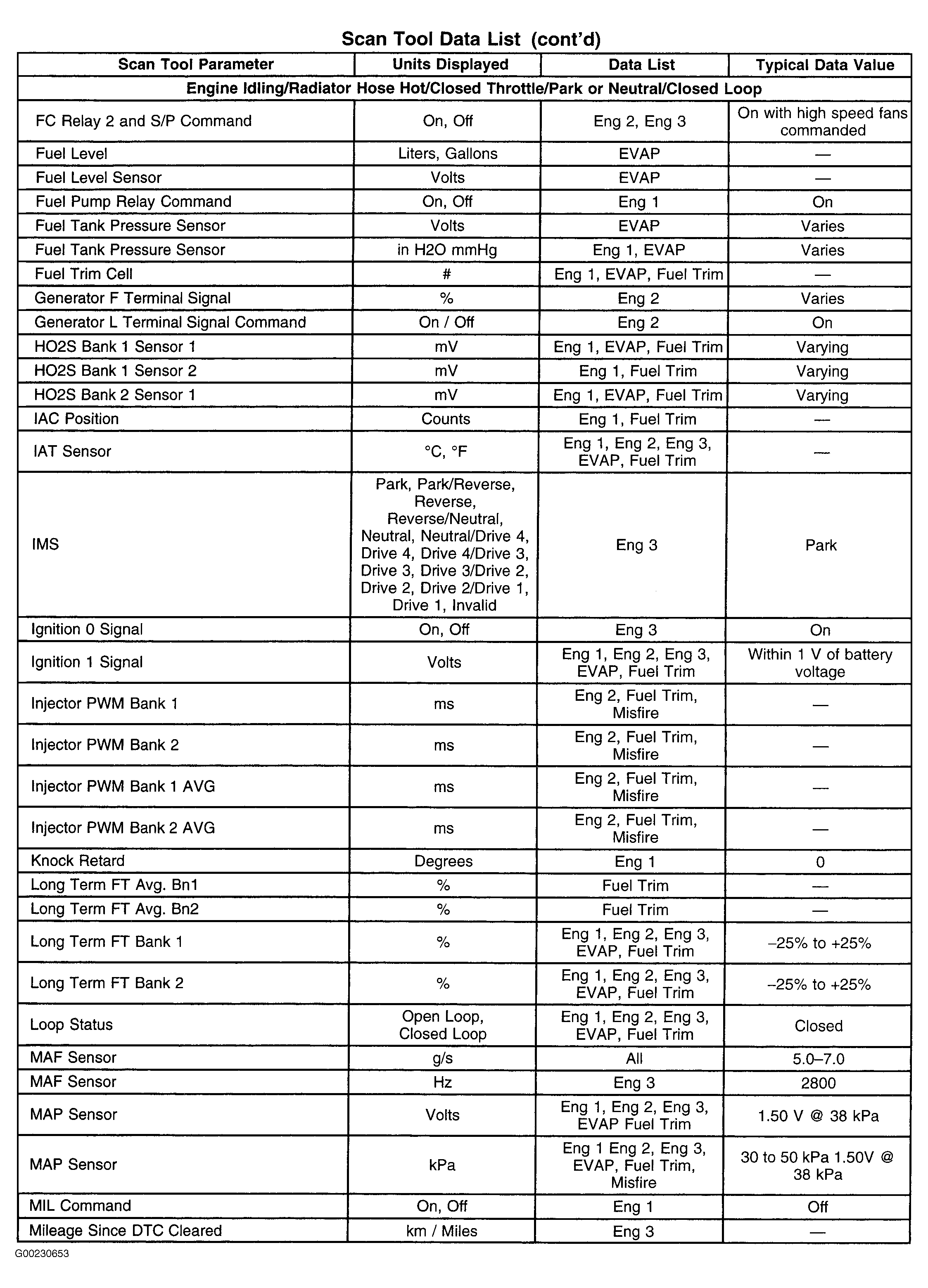

Fig 2: PID Values (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

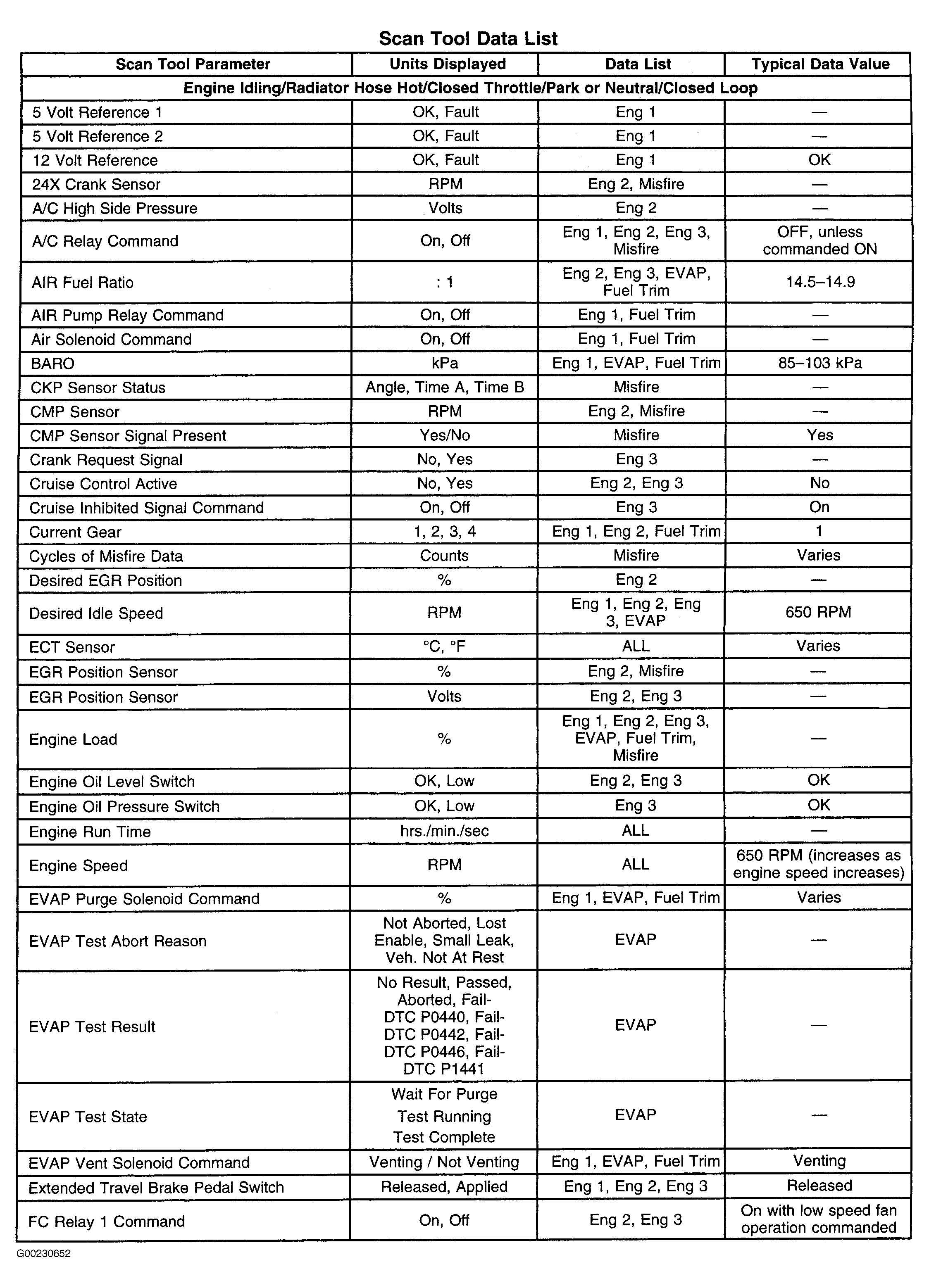

Fig 3: PID Values (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
