Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

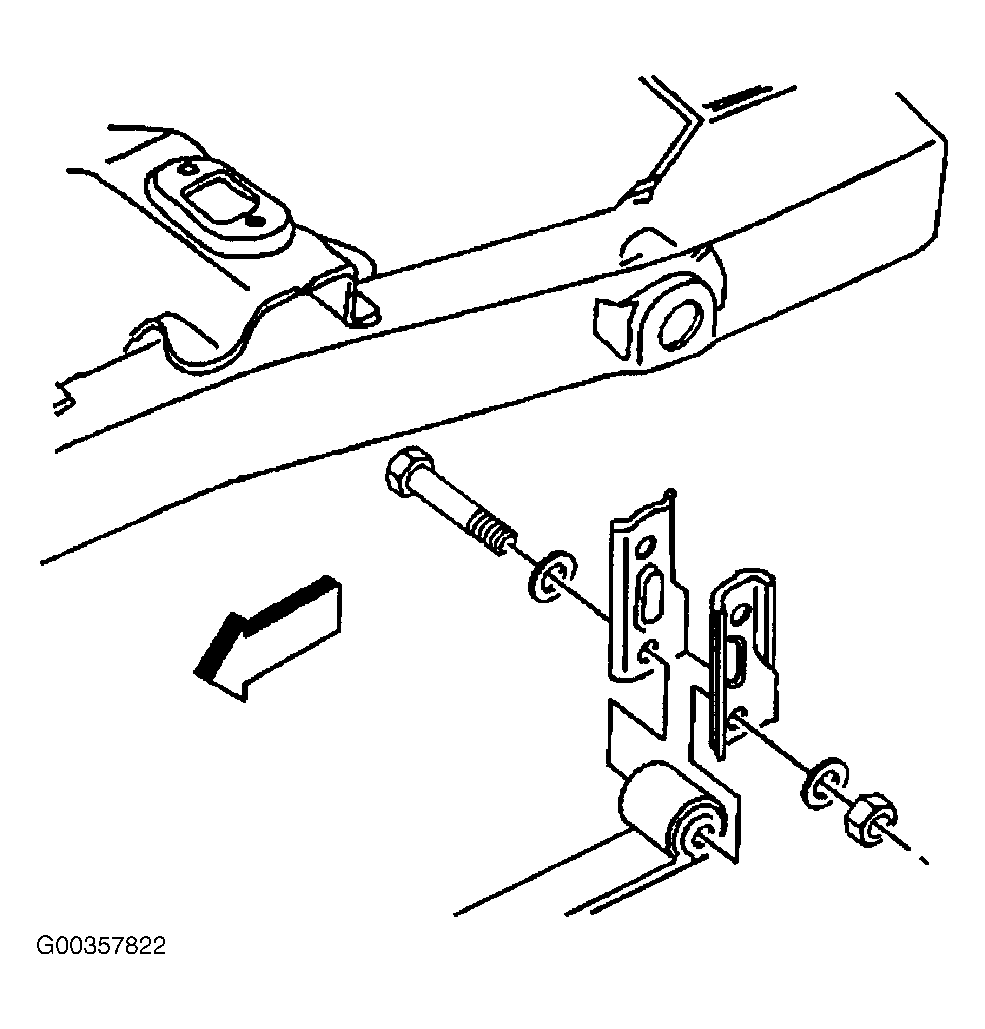

- Install the spring shackle to the vehicle. See Figure.
- Install the spring shackle to leaf spring mounting bolt and nut. Do not tighten the nut.
- Install the frame to the spring shackle mounting bolt and nut. Do not tighten the nut.
- Raise the axle support so that there is a distance of 164-176 mm (6.46-6.94 in) between the axle tube and the metal surface of the bumper bracket.
- Tighten the spring shackle mounting nuts. Tighten the spring shackle mounting nuts to 122 N.m (89 lb ft).
- Remove rear axle support.
- Raise exhaust system and connect rear exhaust hangers, if necessary.
- Install the spare tire, if necessary.
- Install the EVAP canister (2-door Utility models only), if necessary.
- Install the fuel tank (2-door Utility models only).
- Lower the vehicle.
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
