Section 555 (Engine Cooling System): General Description: Radiator

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

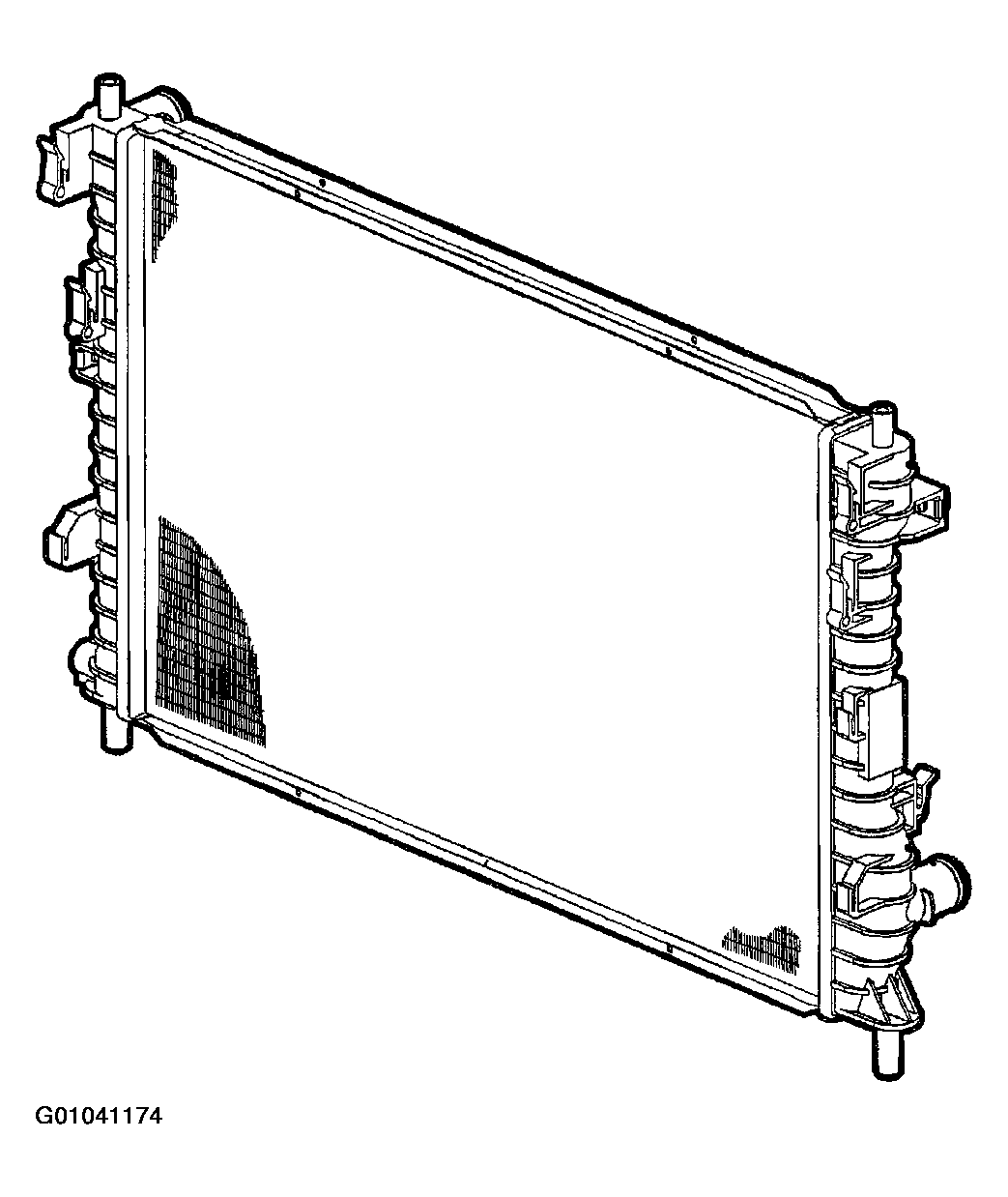

Fig 1: Identifying Radiator

Courtesy of GENERAL MOTORS CORP.

A cross-flow radiator is used. Tanks on this type radiator are located to the right and left of the core.
