Radiator Drain Plug: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Install drain plug into "end tank" drain hole by snapping into place. Tighten using a flat bladed screwdriver.

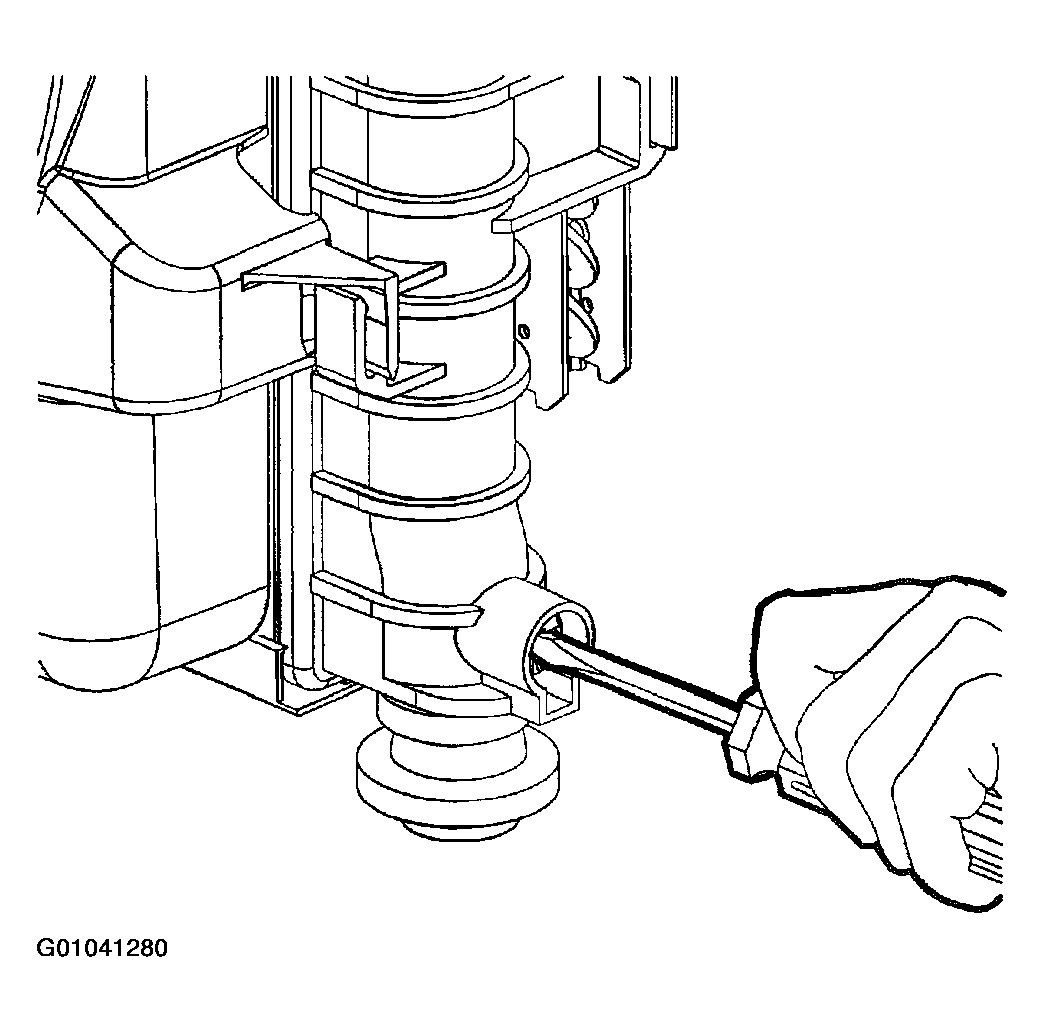

Fig 1: Installing Drain Plug
G01041280Courtesy of GENERAL MOTORS CORP.
