Removal And Installation: Radiator: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

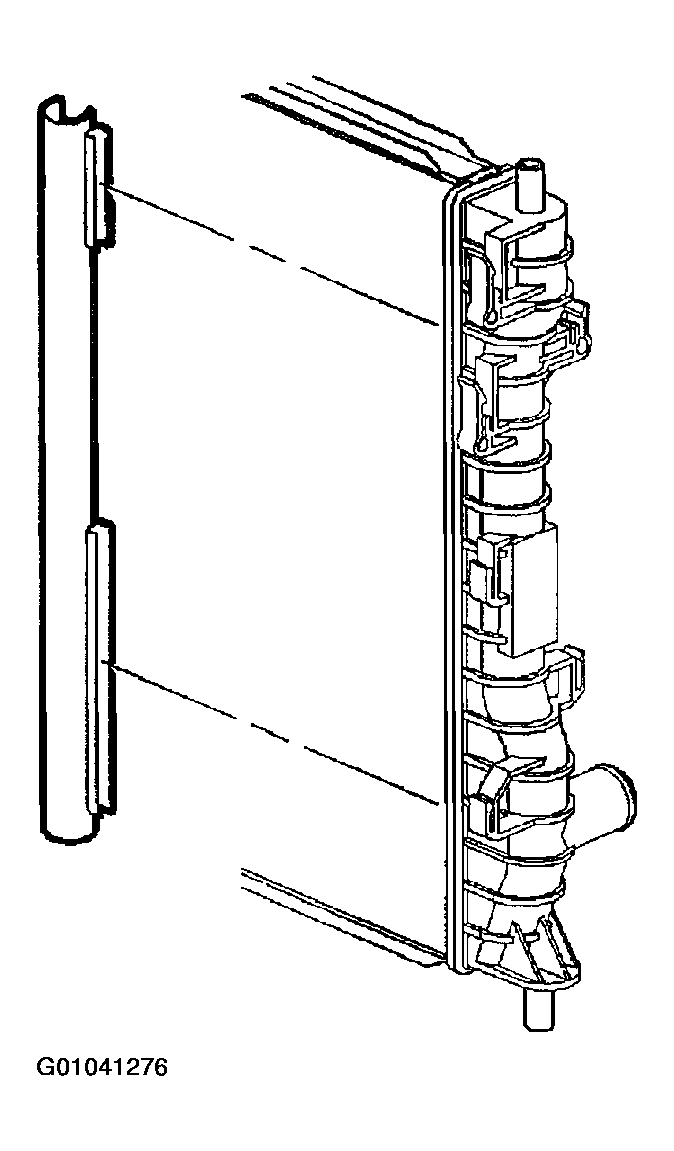

Install radiator seals.

Fig 1: Install radiator seals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

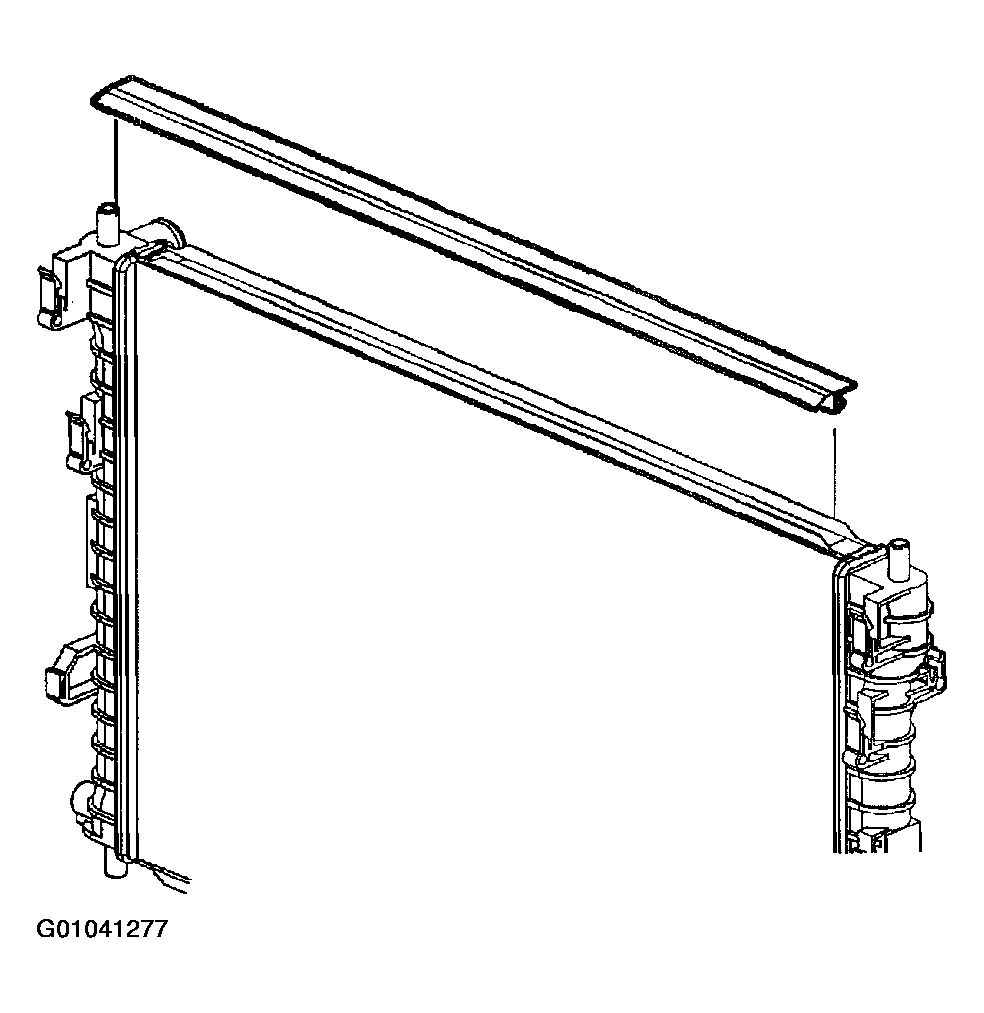

Fig 2: Install radiator seals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

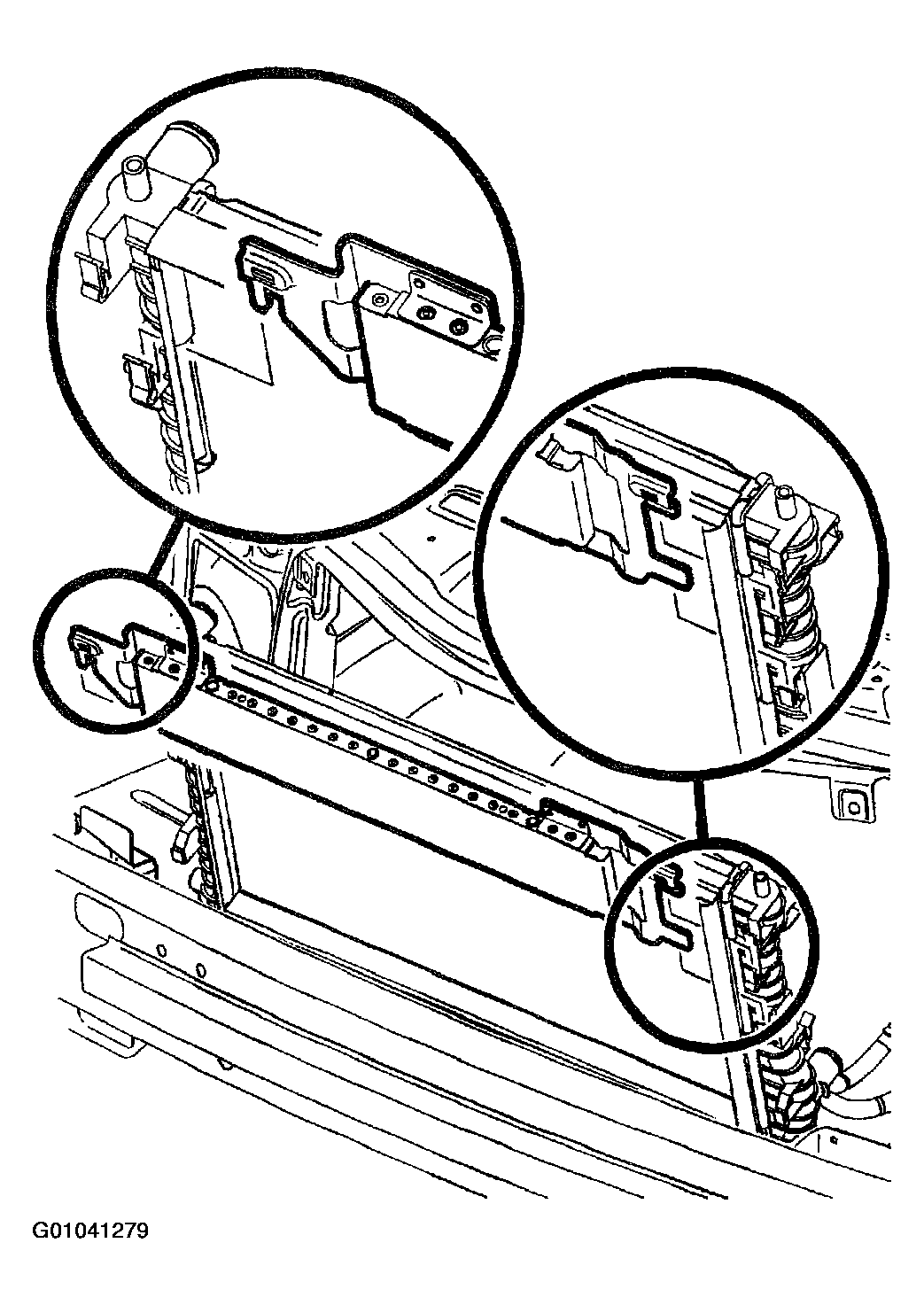

Install radiator.

Fig 3: Installing Radiator
Courtesy of GENERAL MOTORS CORP.
Clip transaxle oil cooler, if equipped, and condenser to radiator.
Install engine cooling fan assembly. See ENGINE COOLING FAN .
Fill cooling system.

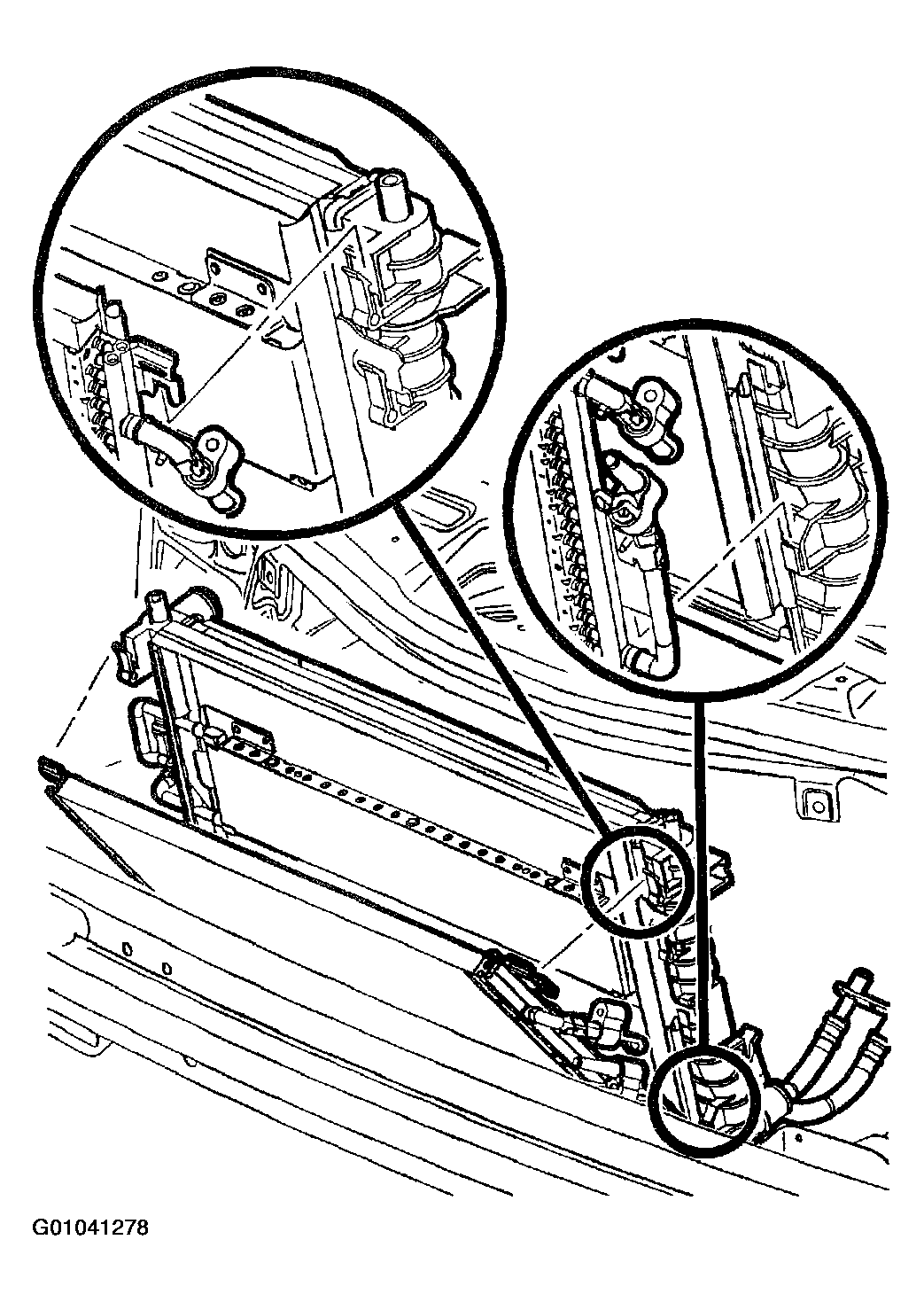

Fig 4: Clipping Transaxle Oil Cooler & Condenser To Radiator
Courtesy of GENERAL MOTORS CORP.
