Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply rubber lubricant to the bushing (1) and spring eye (2). See Fig 1.
  2. Install the bushing to the leaf spring.
    1. Place the leaf spring in a press.
    2. Press the bushing into the spring.
  3. Install the leaf spring assembly to the vehicle. Refer to Leaf Spring Replacement .
  4. Remove the safety stands.
  5. Lower the vehicle.

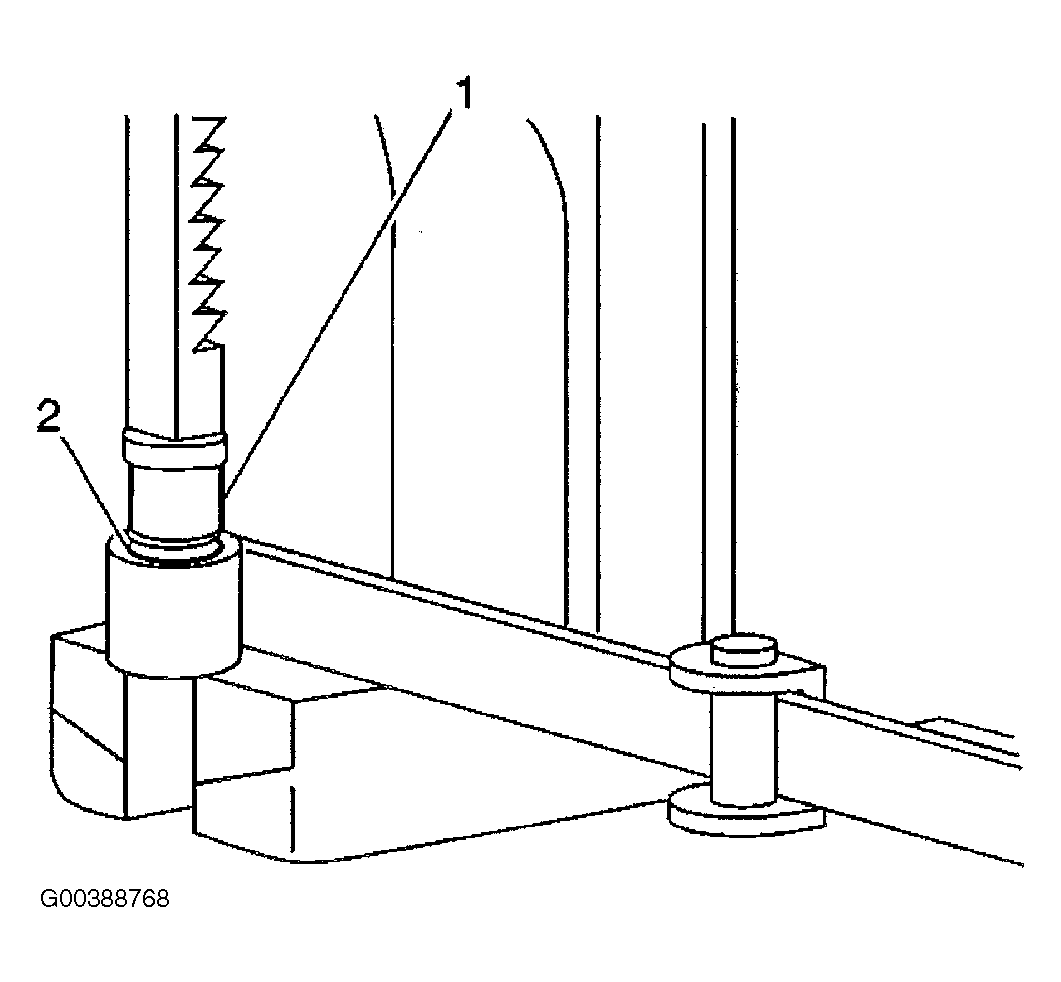

Fig 1: Installing Bushing To Leaf Spring
G00388768Courtesy of GENERAL MOTORS CORP.
