Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the leaf spring assembly from vehicle. Refer to Leaf Spring Replacement .
Remove the bushing from the leaf spring using the following procedure: See Fig 1.

Place the leaf spring in a press.
Press the bushing out.
Clean the spring bushing bore of any foreign or old bushing material.

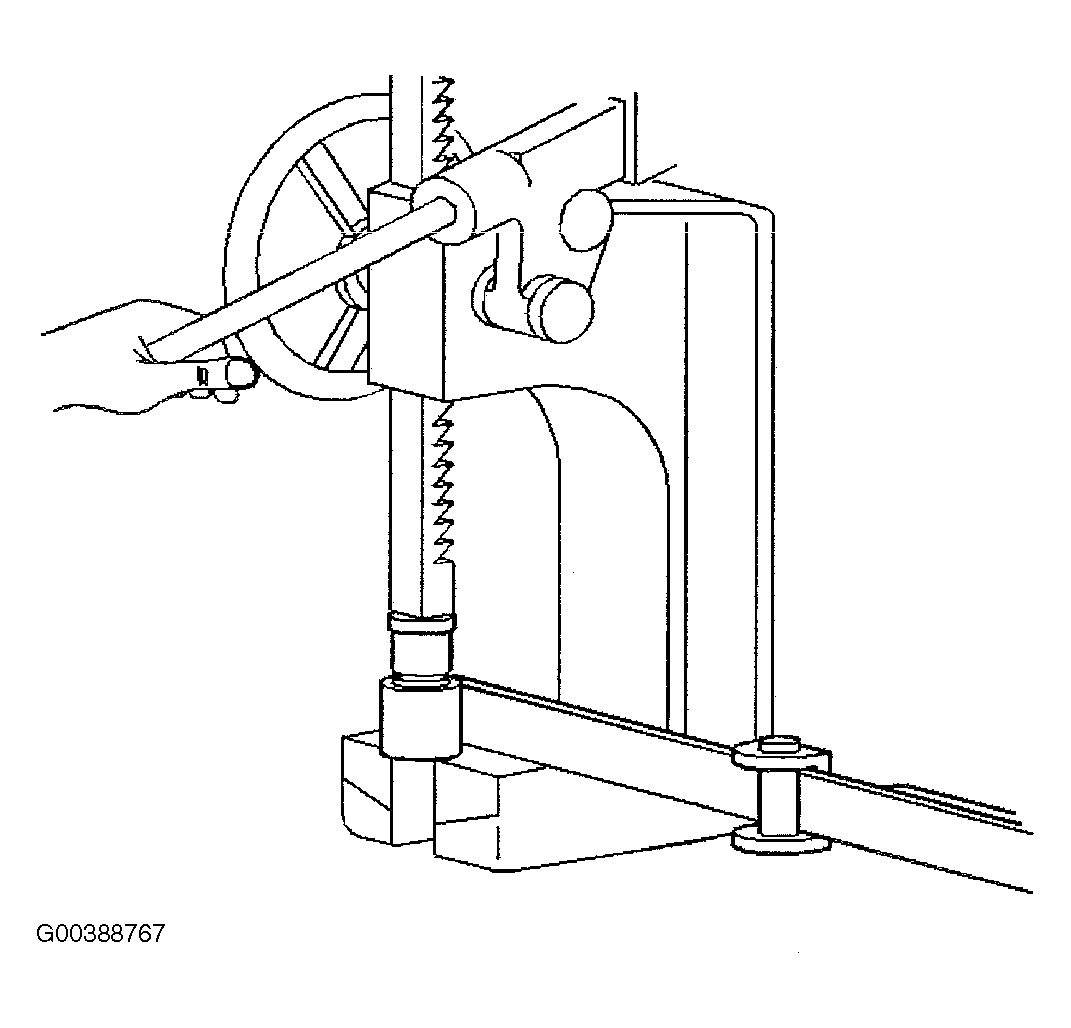

Fig 1: Removing Bushing From Leaf Spring

Courtesy of GENERAL MOTORS CORP.
