Disassembly Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut from the vehicle. Refer to Strut Assembly Replacement .
  2. Install the strut (1) in the J 34013-B  using adapters J 34013-971, J-34013-972  and the J 3289-20  .
  3. Turn the compressor forcing screw (3) until the spring compresses slightly.

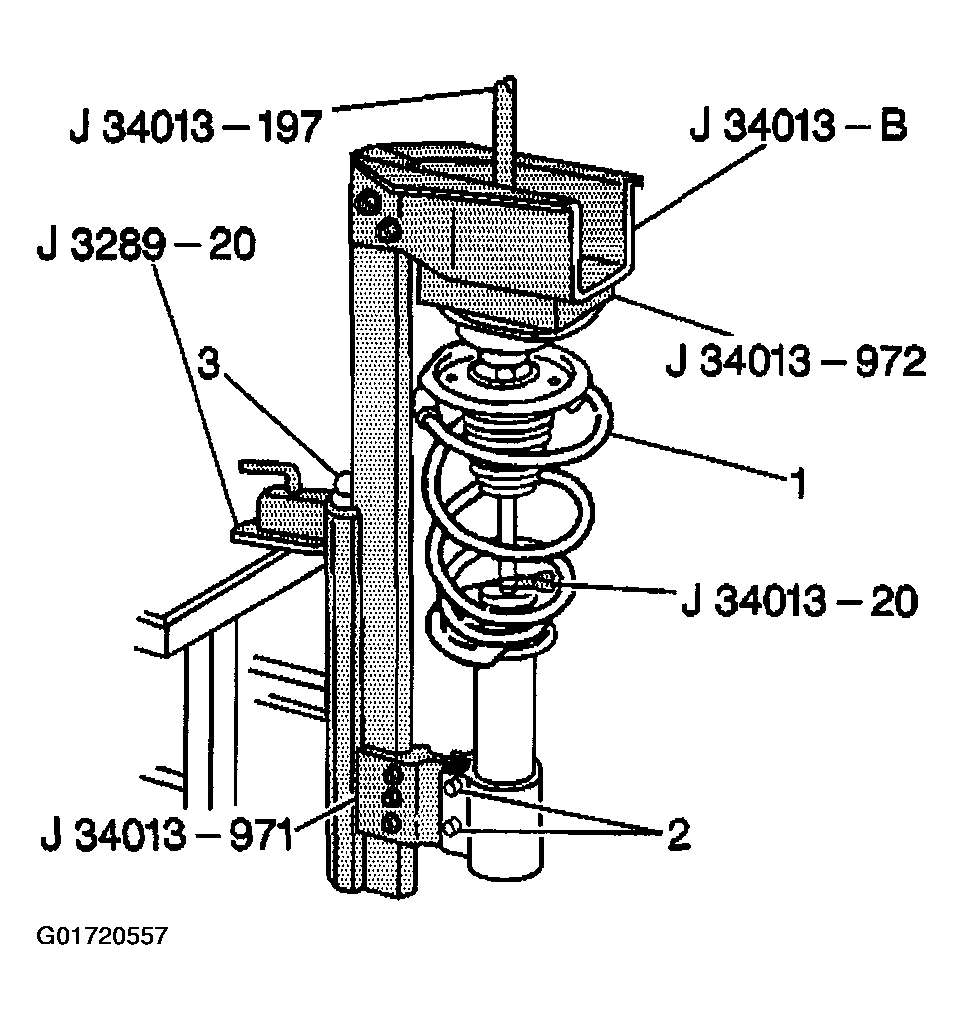

    4. Fig 1: Special Tools
    G01720557Courtesy of GENERAL MOTORS CORP.
  4. Use a 45 TORX® socket in order to hold the strut shaft. Remove the strut mount nut by turning with J 42991  .
  5. Install the J 34013-197  to help guide the strut shaft out of the strut upper mount.

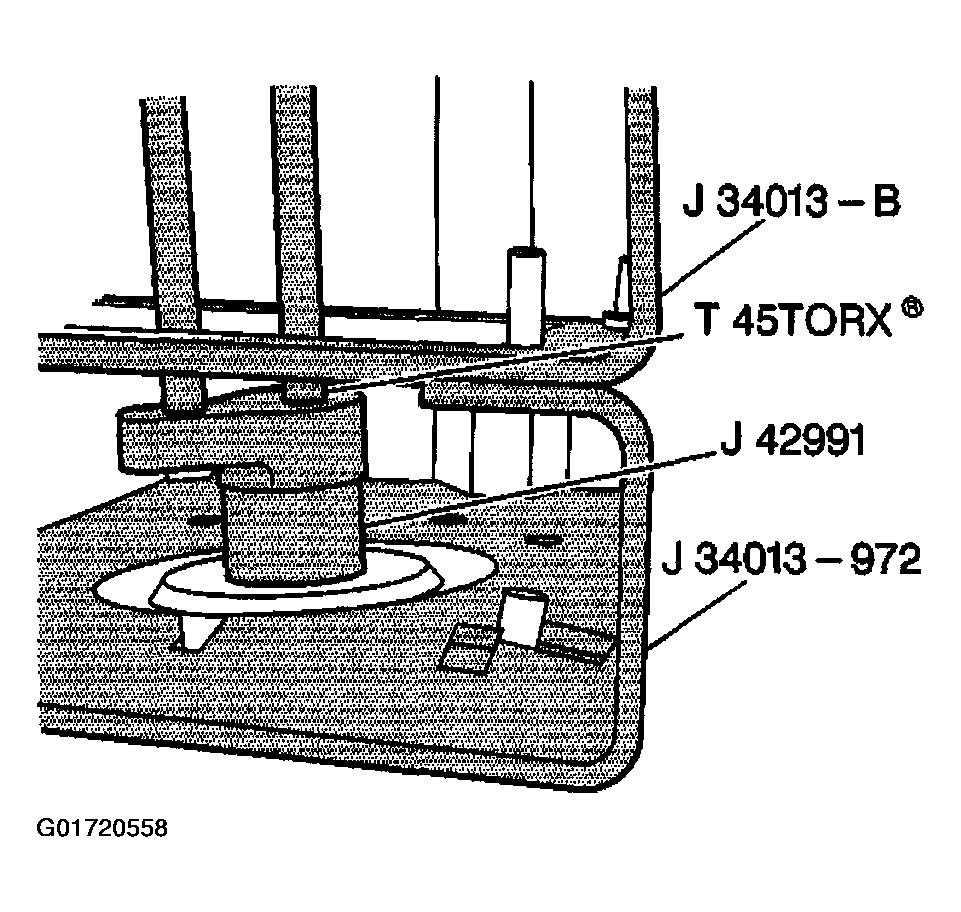

    6. Fig 2: Removing Strut And Spring
    G01720558Courtesy of GENERAL MOTORS CORP.
  6. Loosen the compressor screw while guiding the strut shaft out of the strut upper mount. Continue loosening the compressor forcing screw until you can remove the strut and the spring.
