Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

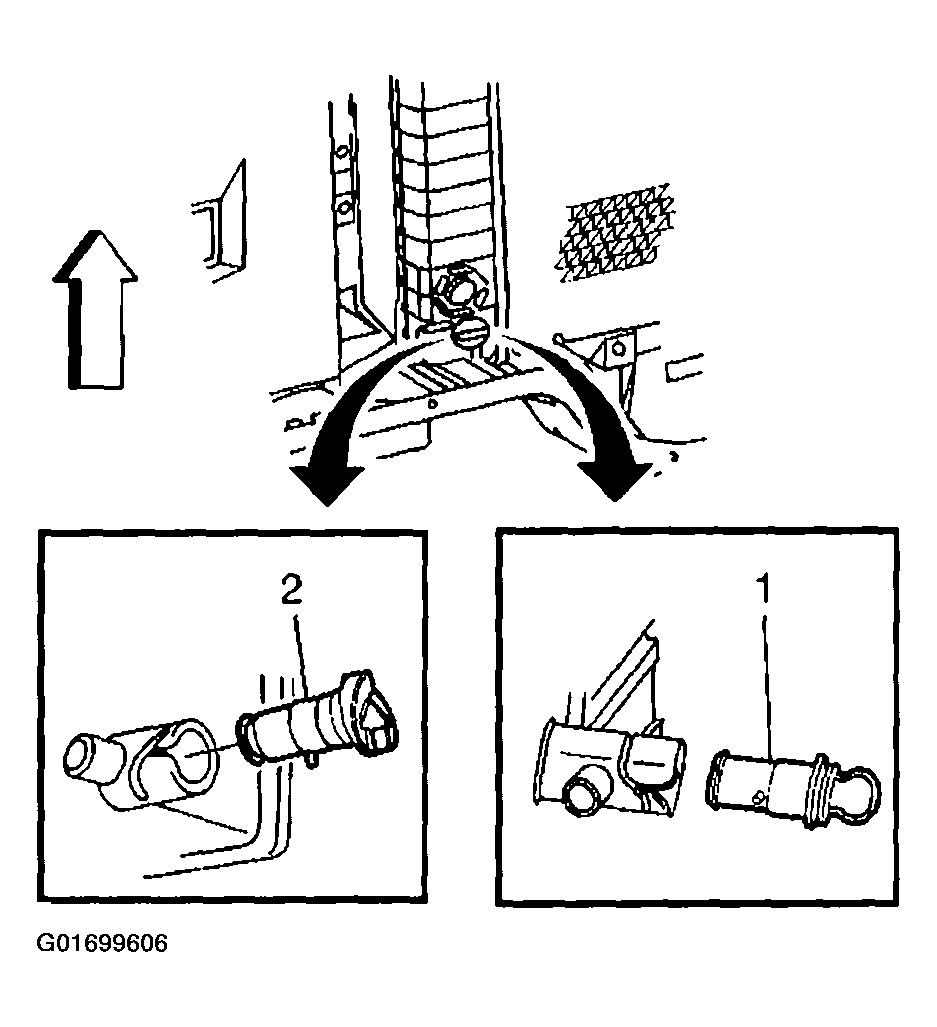

- If equipped with diesel engine, install the drain cock (2) using a flat-head screwdriver, close the drain cock.
- If equipped with gas engine, align the metal pin on the drain cock (1) with the opening slot on the radiator.
- Push the drain cock into the radiator slot and close the drain cock.
- Fill the cooling system. Refer to Draining and Filling Cooling System .
- Inspect the system for leaks.
