Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the coolant. Refer to Draining and Filling Cooling System .
  2. Remove the radiator inlet hose from the radiator.
  3. Remove the fan shroud. Refer to Fan Shroud Replacement .

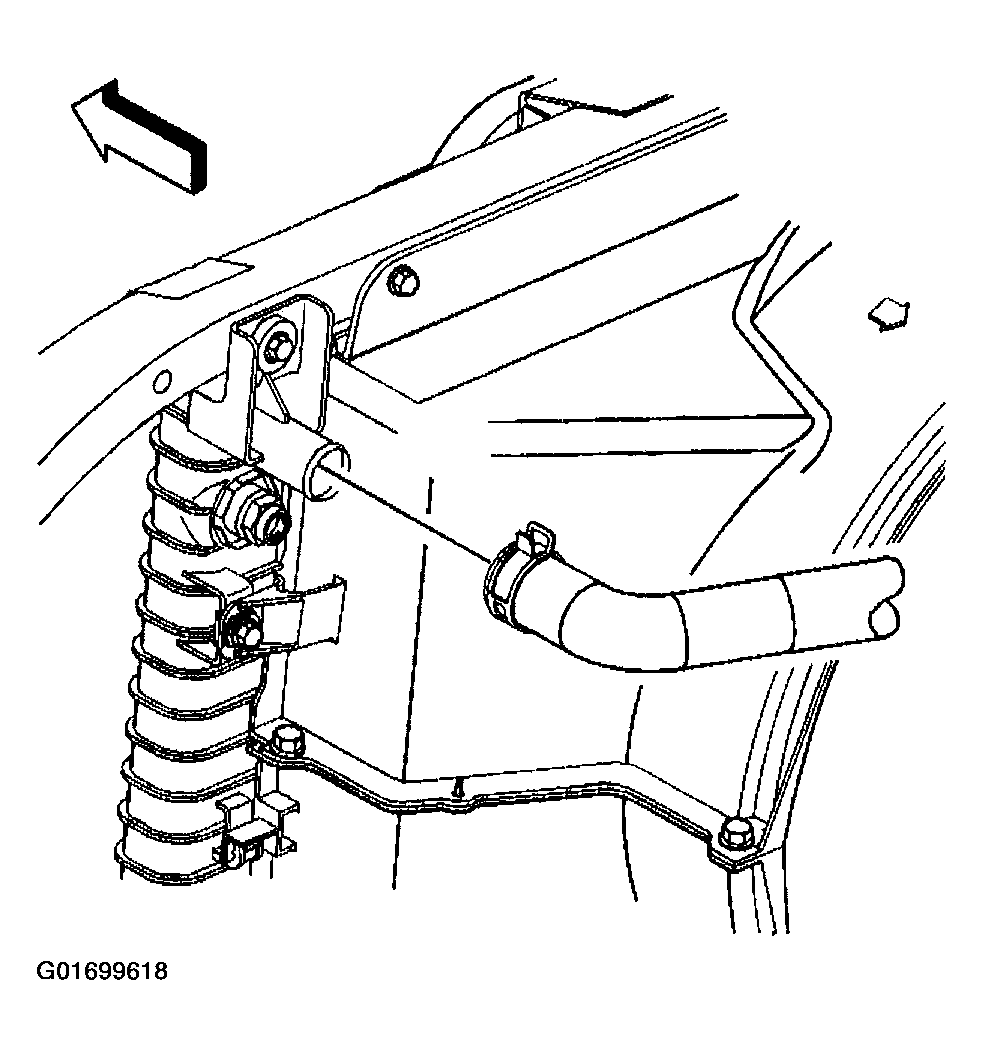

    Fig 1: Removing Radiator Inlet Hose
    G01699618Courtesy of GENERAL MOTORS CORP.
  4. Remove the radiator outlet hose from the radiator.
  5. Disconnect the transmission oil cooler lines from the radiator. Refer to AUXILIARY OIL COOLER .
  6. Disconnect the engine oil cooler lines from the radiator. Refer to Engine Oil Cooler Replacement - Auxiliary .
  7. Disconnect the following hoses if applicable:
    • Surge tank hose
    • Coolant recovery hose
    • Heater outlet hose

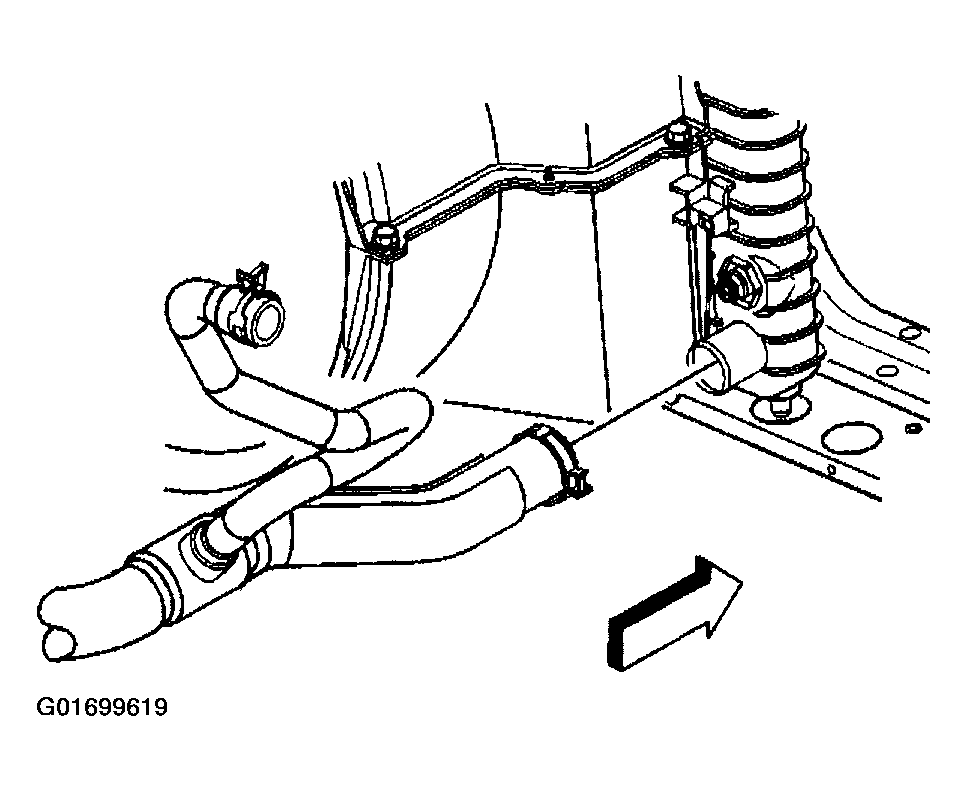

    Fig 2: Removing Radiator Outlet Hose
    G01699619Courtesy of GENERAL MOTORS CORP.
  8. Remove the radiator from the vehicle.

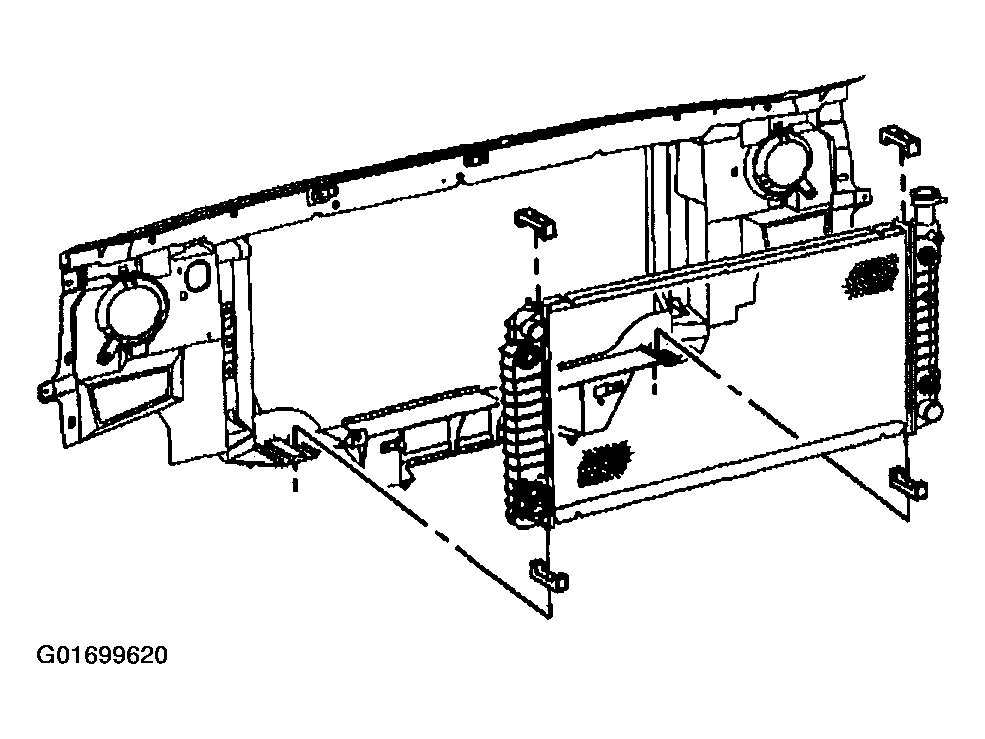

    Fig 3: Removing Radiator From Vehicle
    G01699620Courtesy of GENERAL MOTORS CORP.
