WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

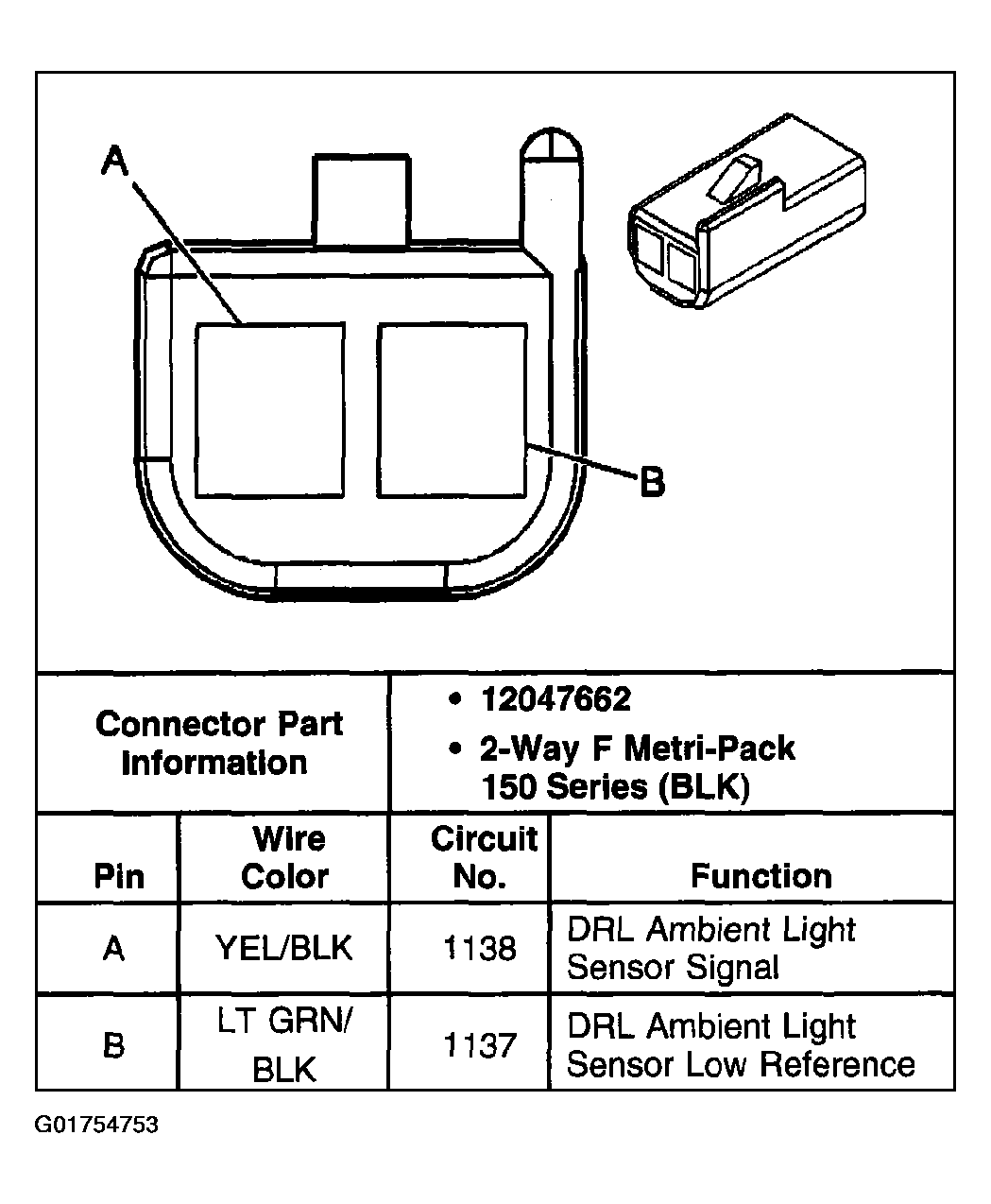

Fig 1: Identifying Ambient Light Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

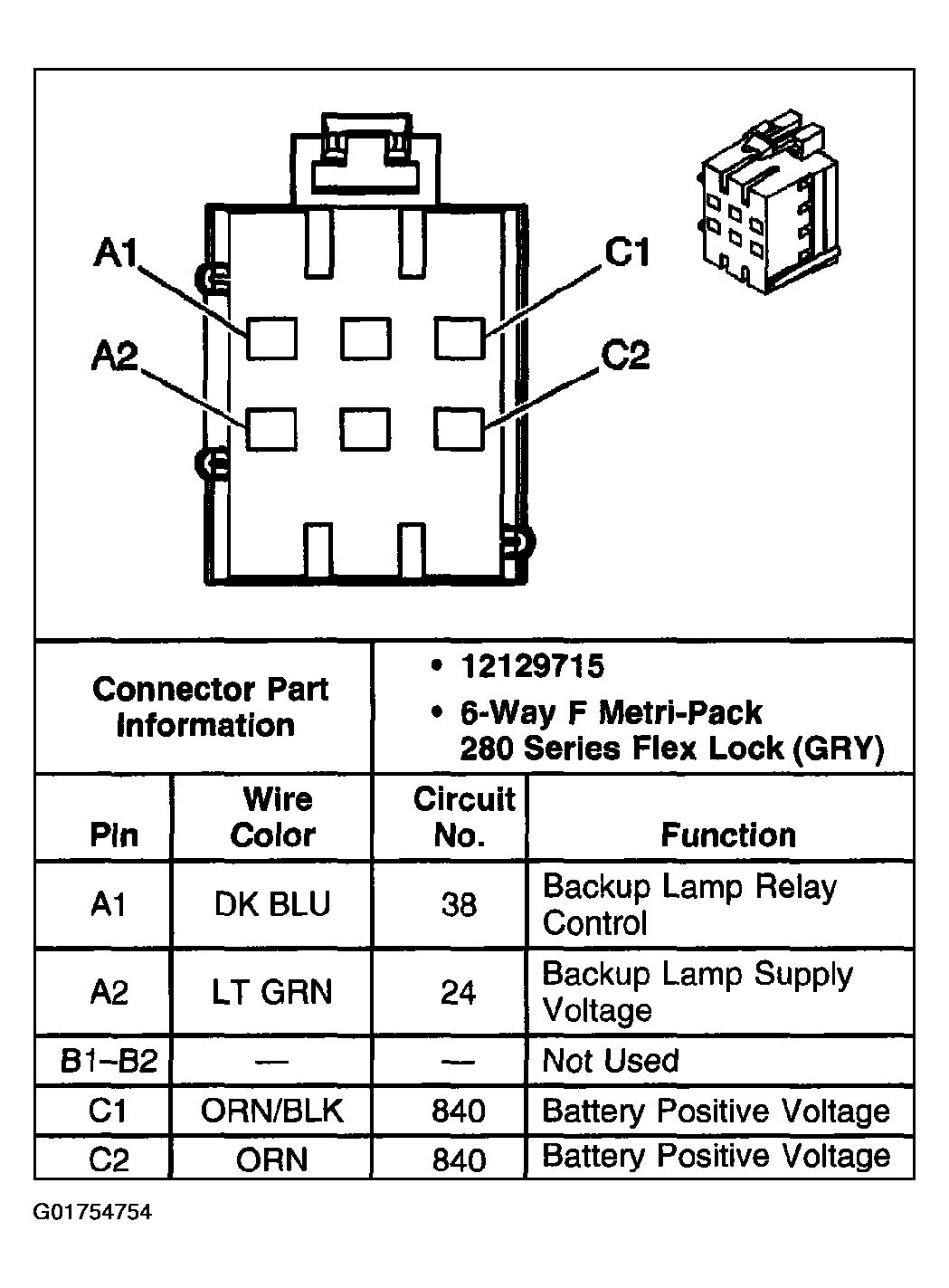

Fig 2: Identifying Backup Lamp Relay (Regal) Connector End View
Courtesy of GENERAL MOTORS CORP.

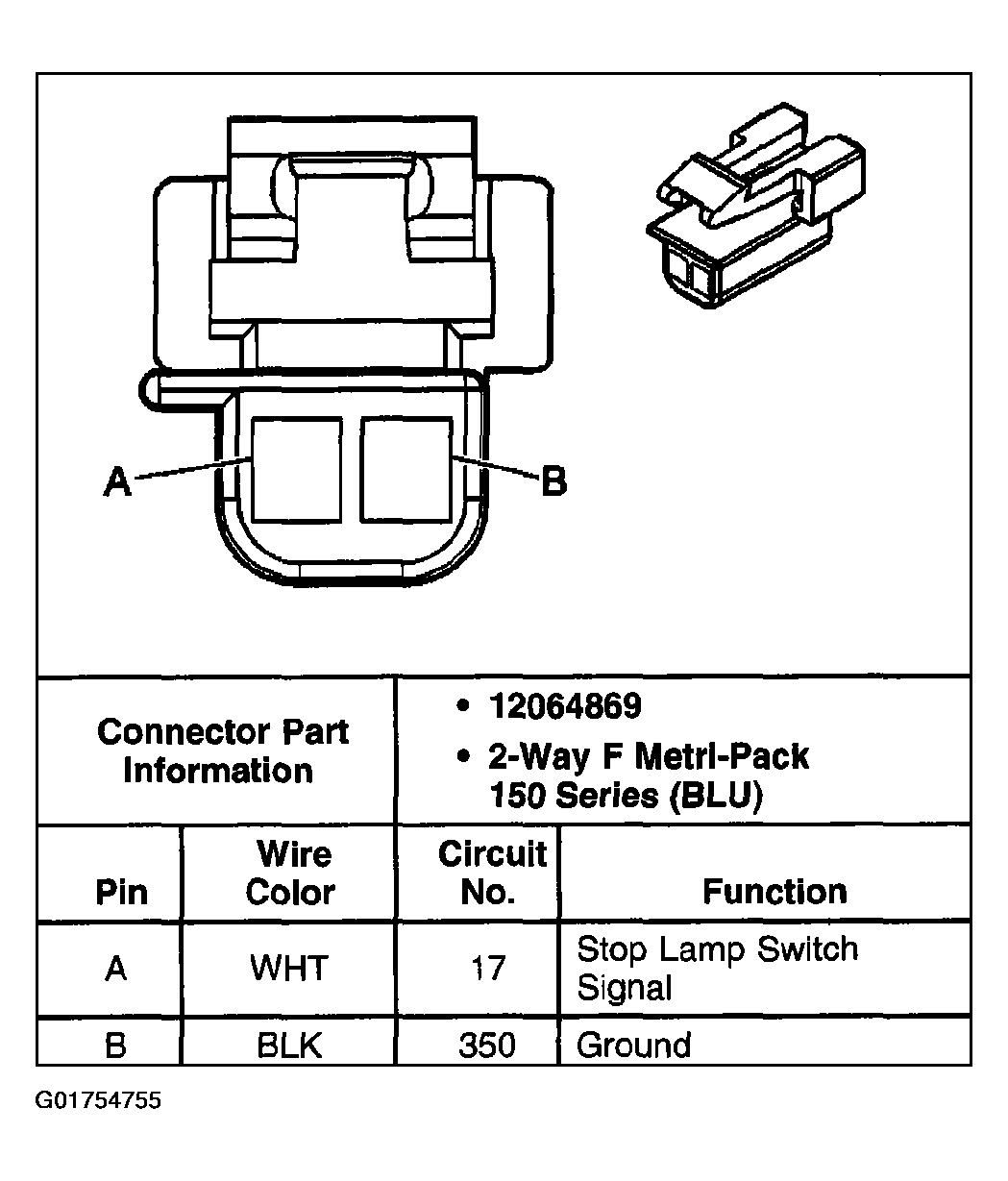

Fig 3: Identifying Center High Mounted Stop Lamp (CHMSL) Connector End View
Courtesy of GENERAL MOTORS CORP.

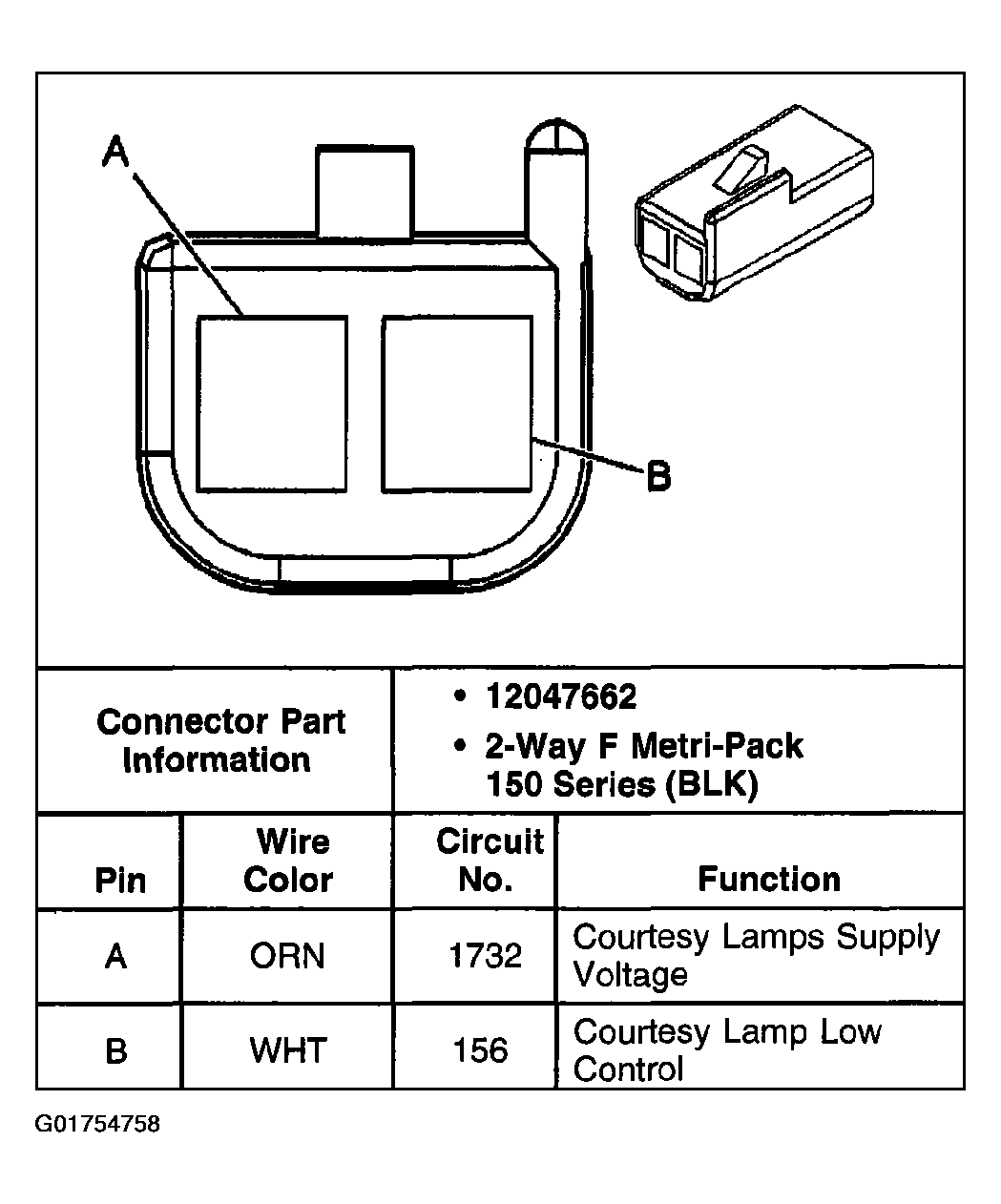

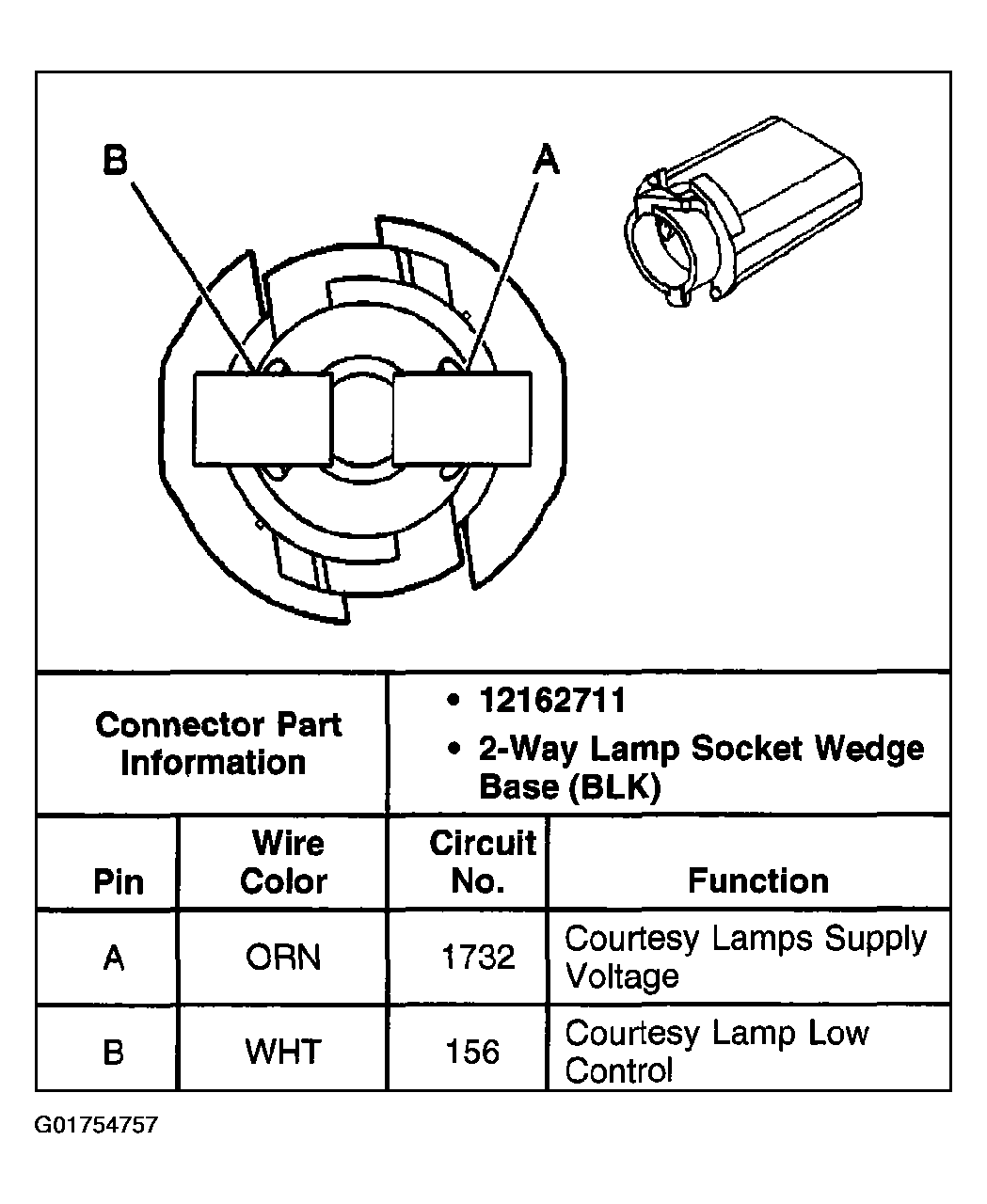

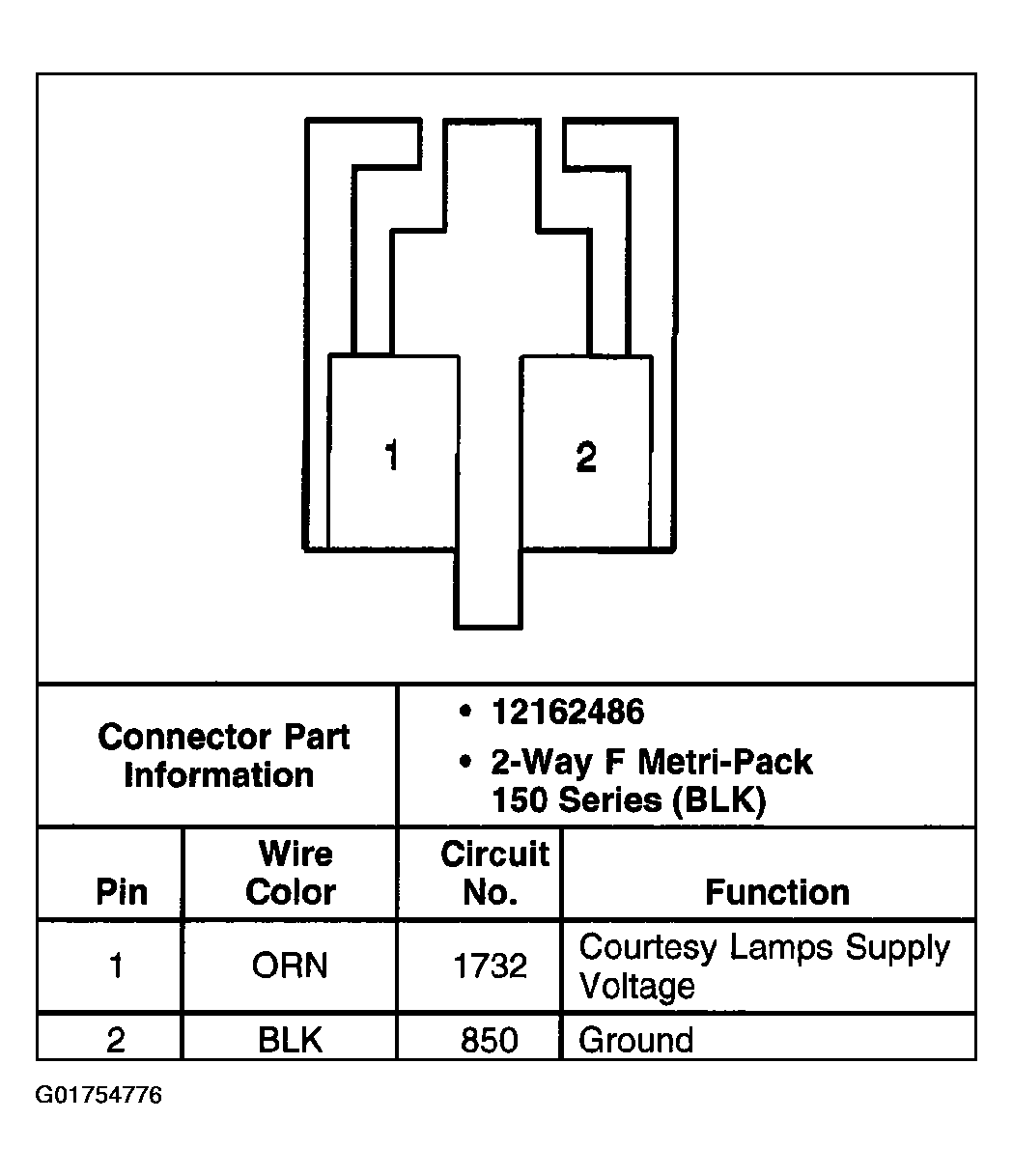

Fig 4: Identifying Courtesy Lamp (Left) Connector End View
Courtesy of GENERAL MOTORS CORP.

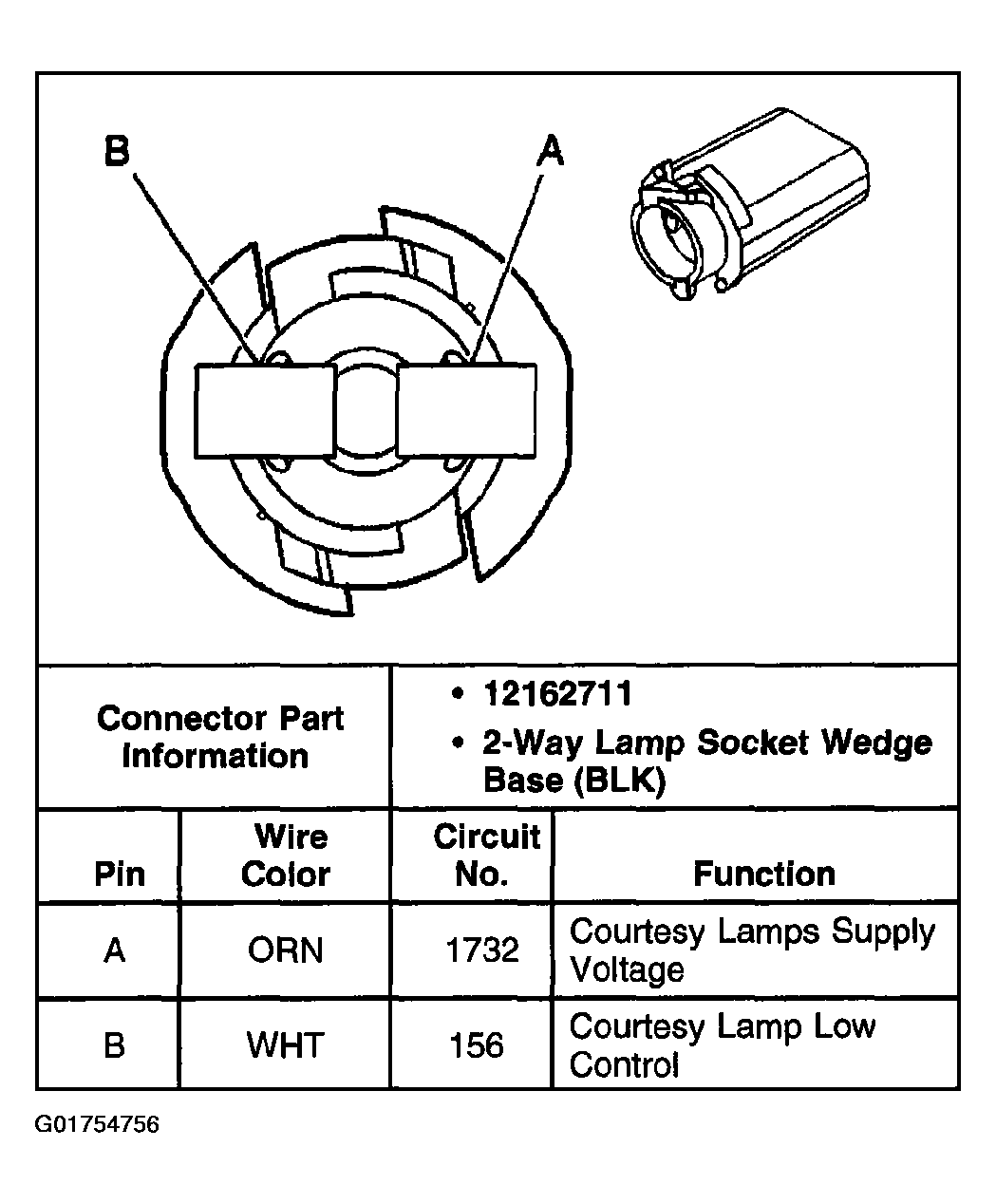

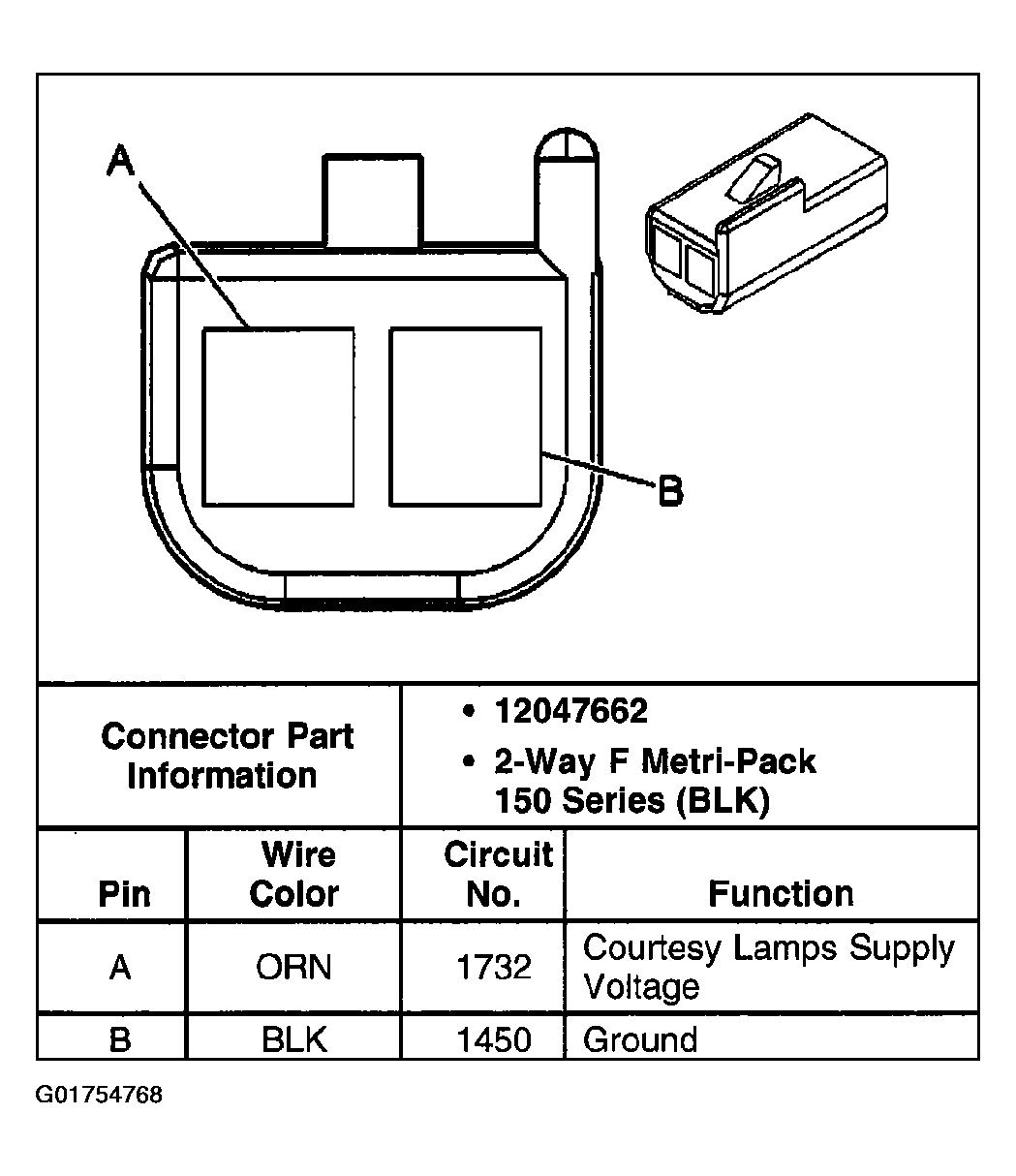

Fig 5: Identifying Courtesy Lamp (Right) Connector End View
Courtesy of GENERAL MOTORS CORP.

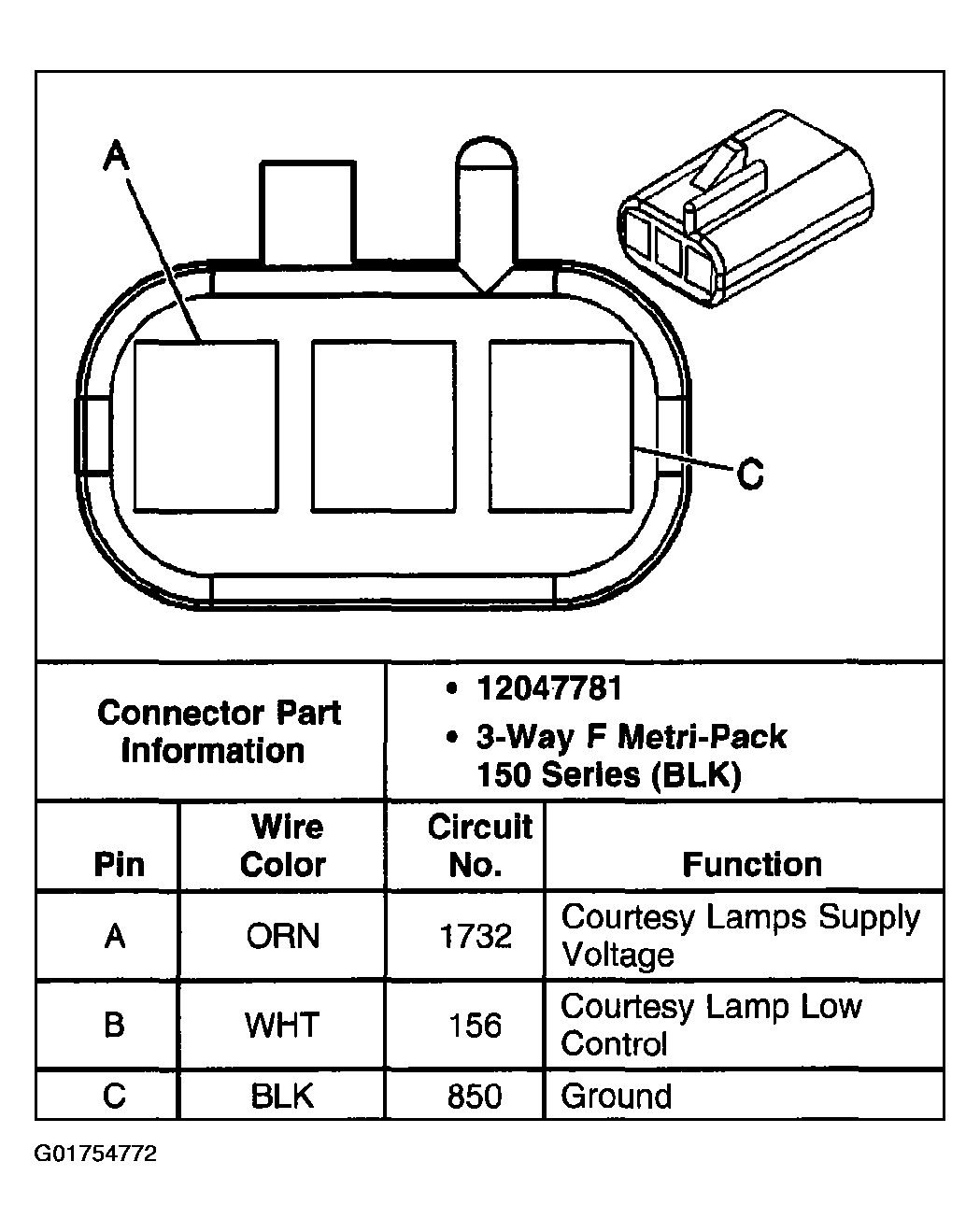

Fig 6: Identifying Dome Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

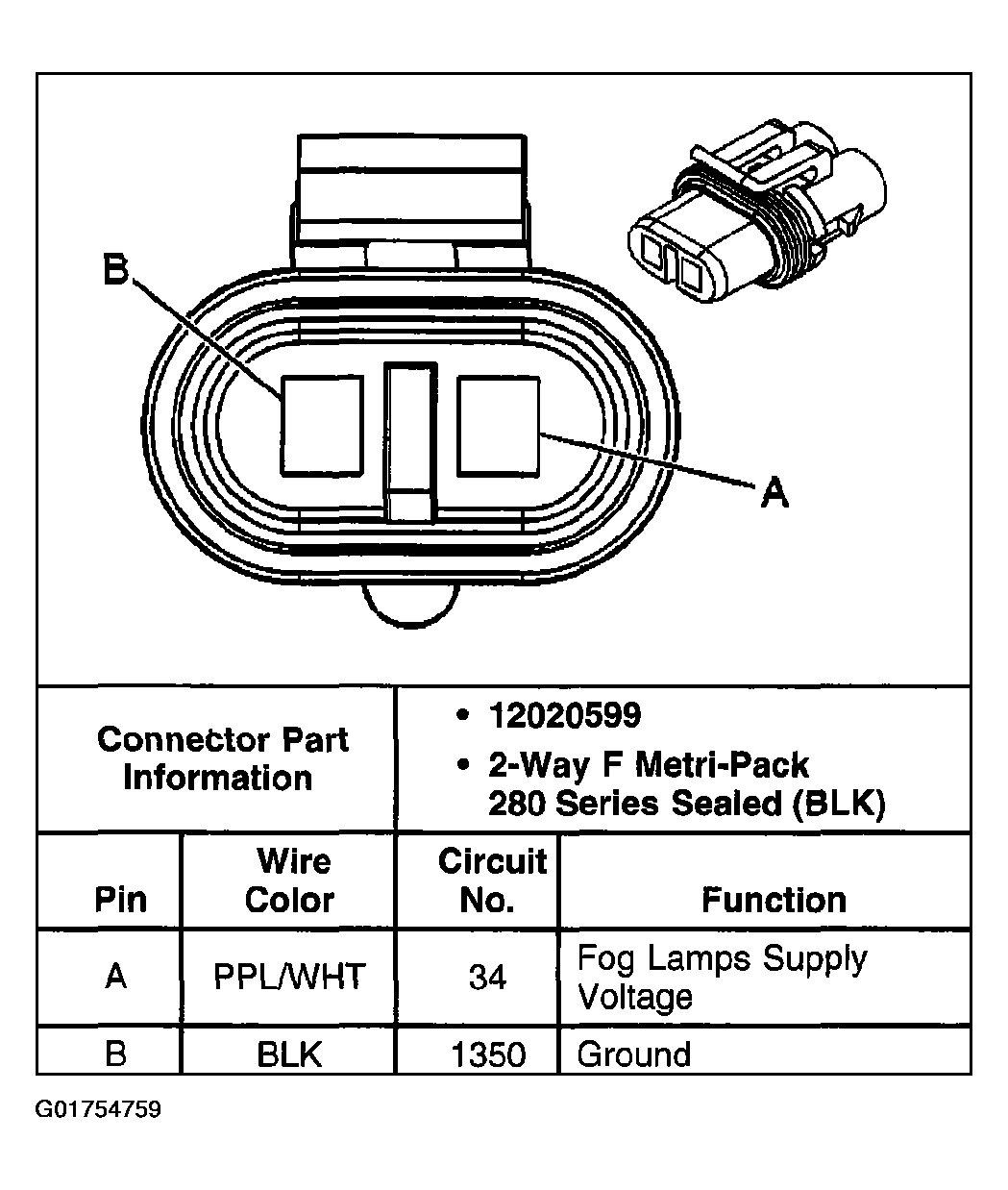

Fig 7: Identifying Fog Lamp (LF) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Fog Lamp (RF) Connector End View
Courtesy of GENERAL MOTORS CORP.

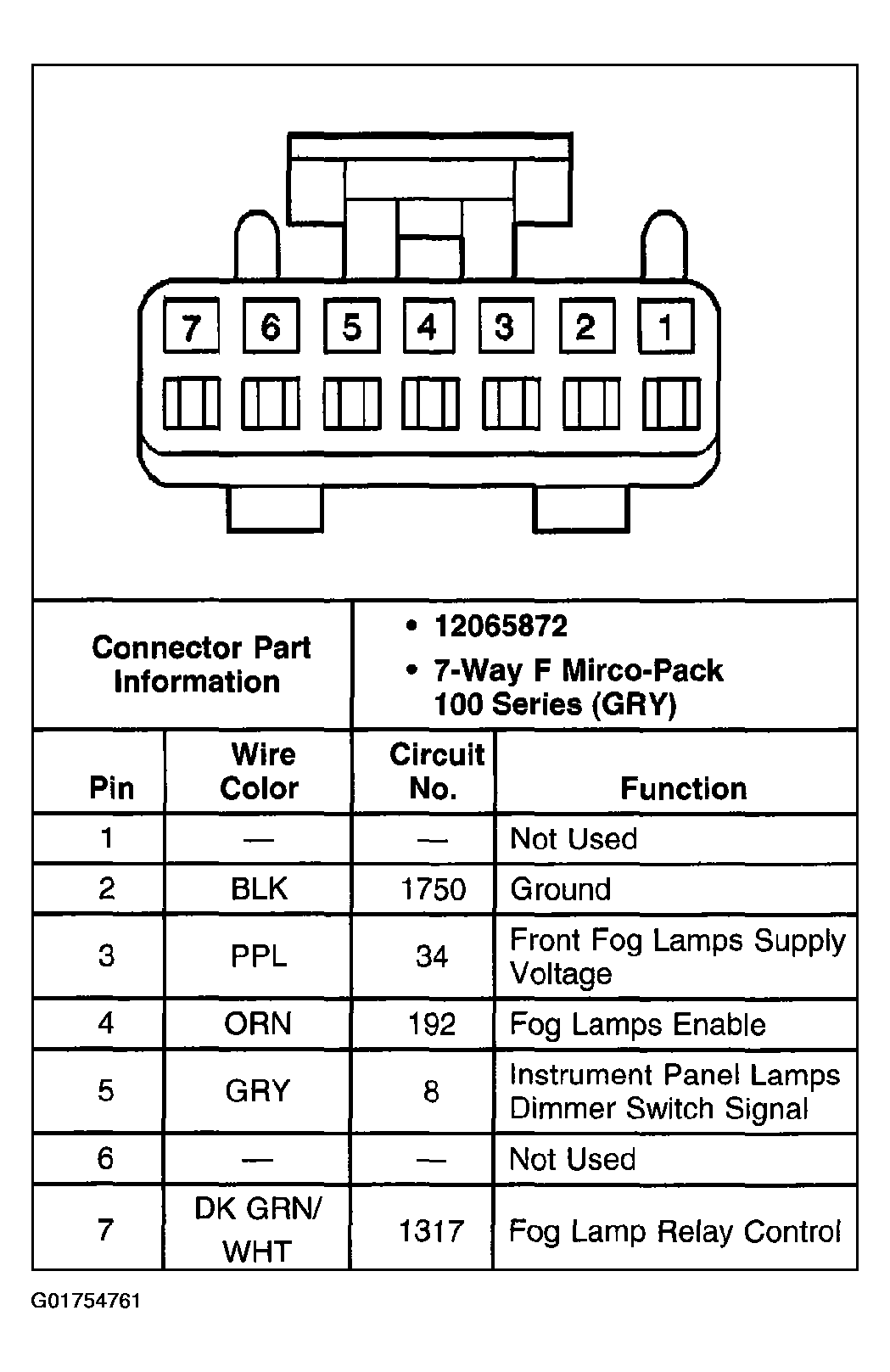

Fig 9: Identifying Fog Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

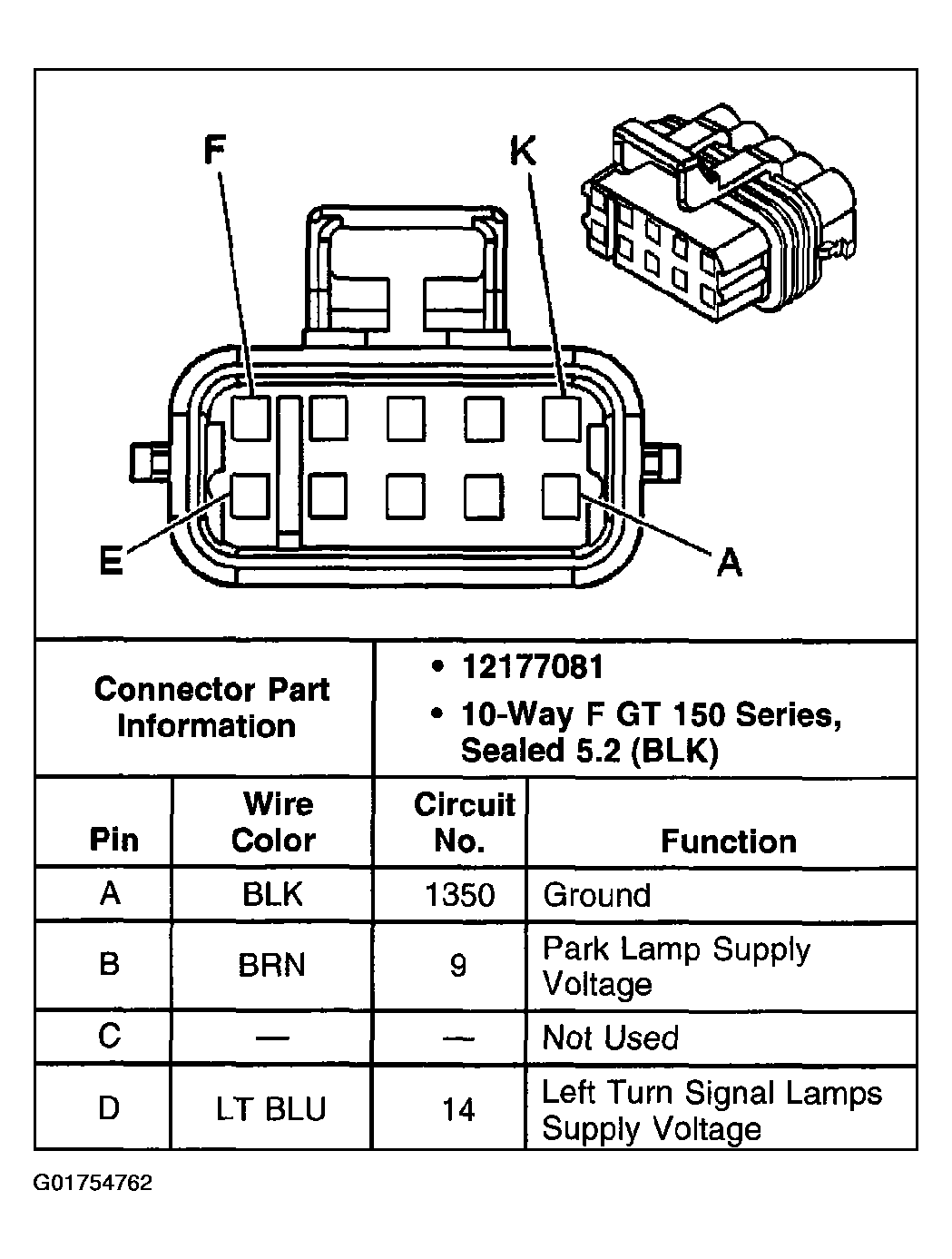

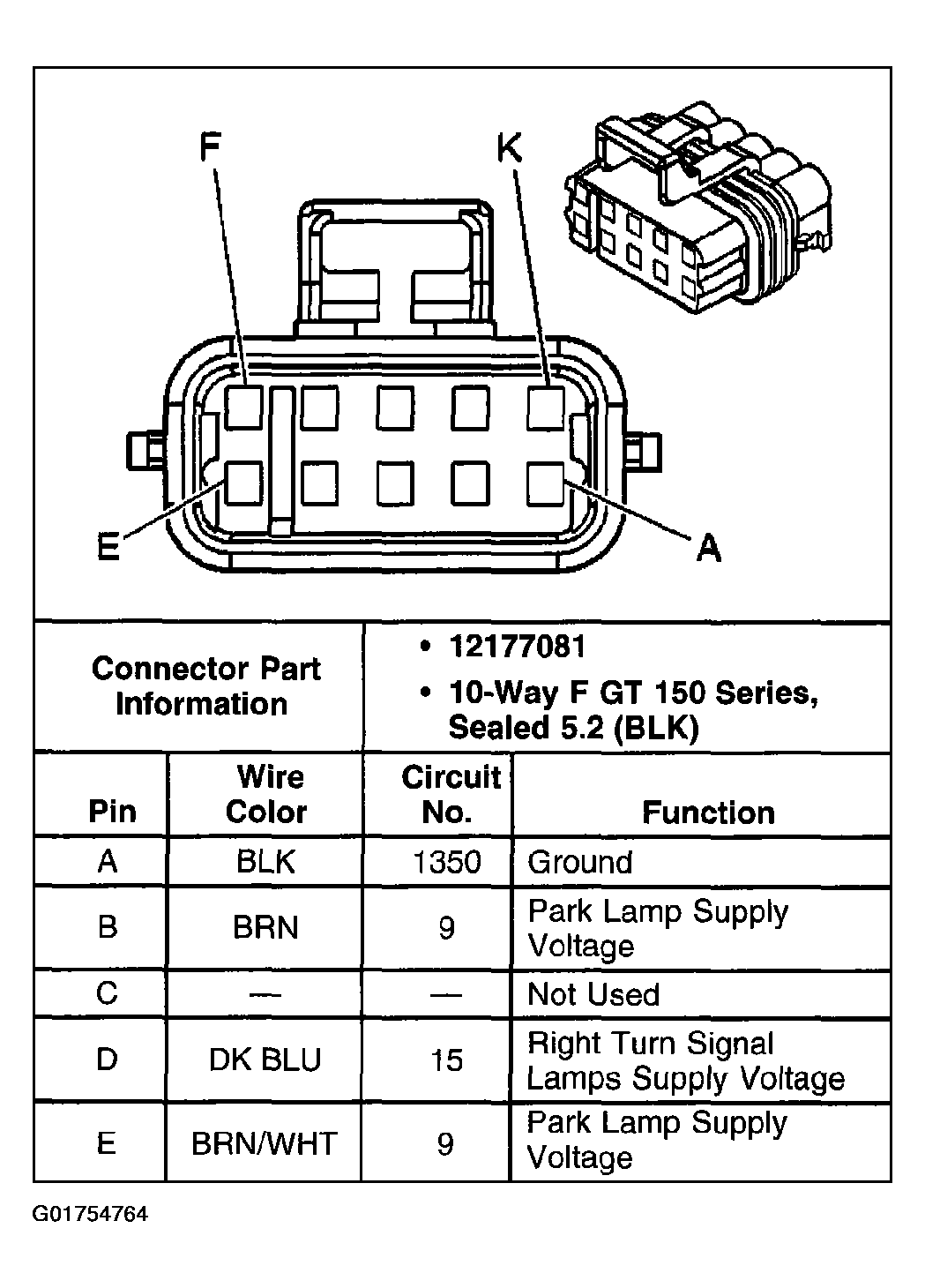

Fig 10: Identifying Headlamp Assembly (Left) Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

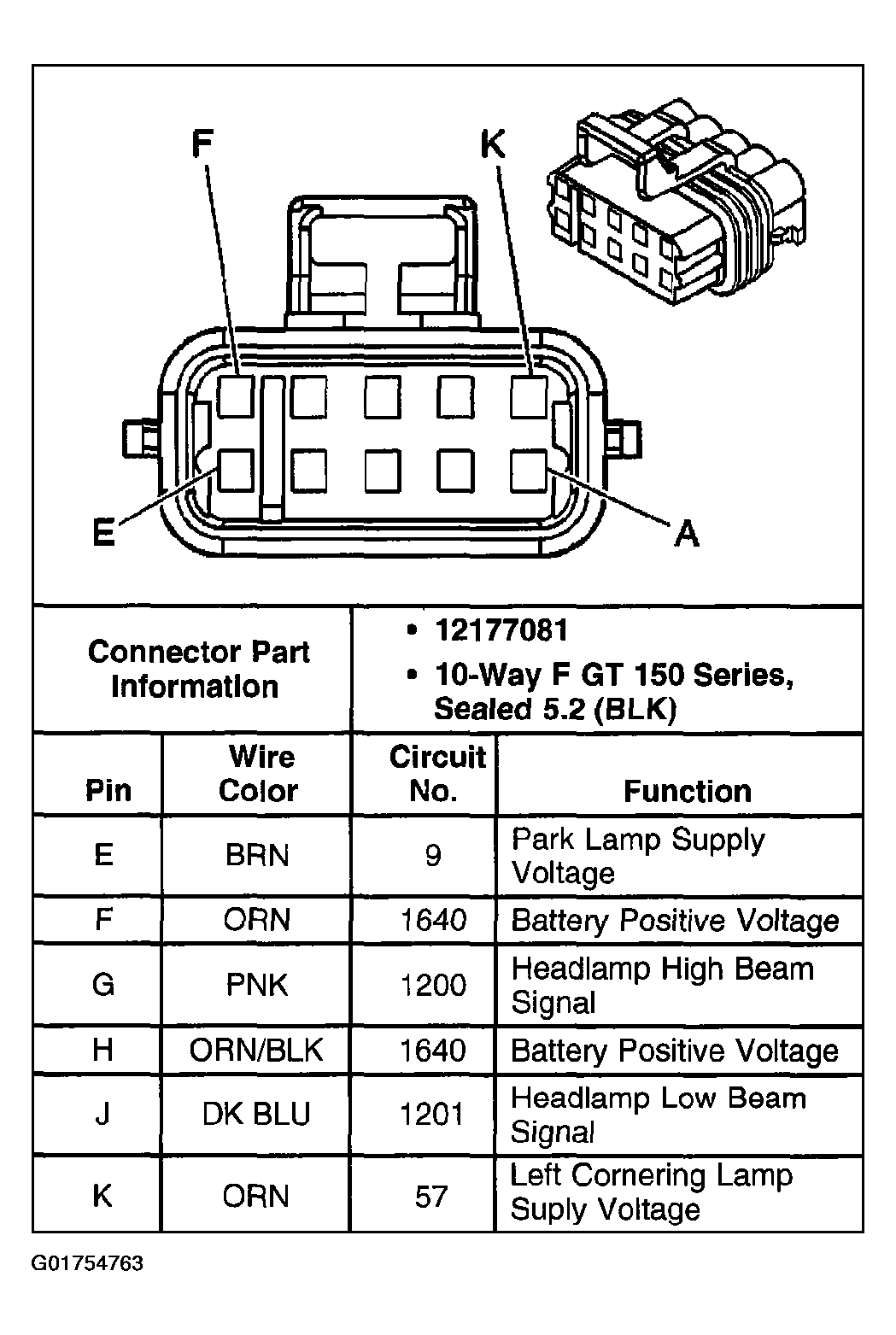

Fig 11: Identifying Headlamp Assembly (Left) Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Headlamp Assembly (Right) Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

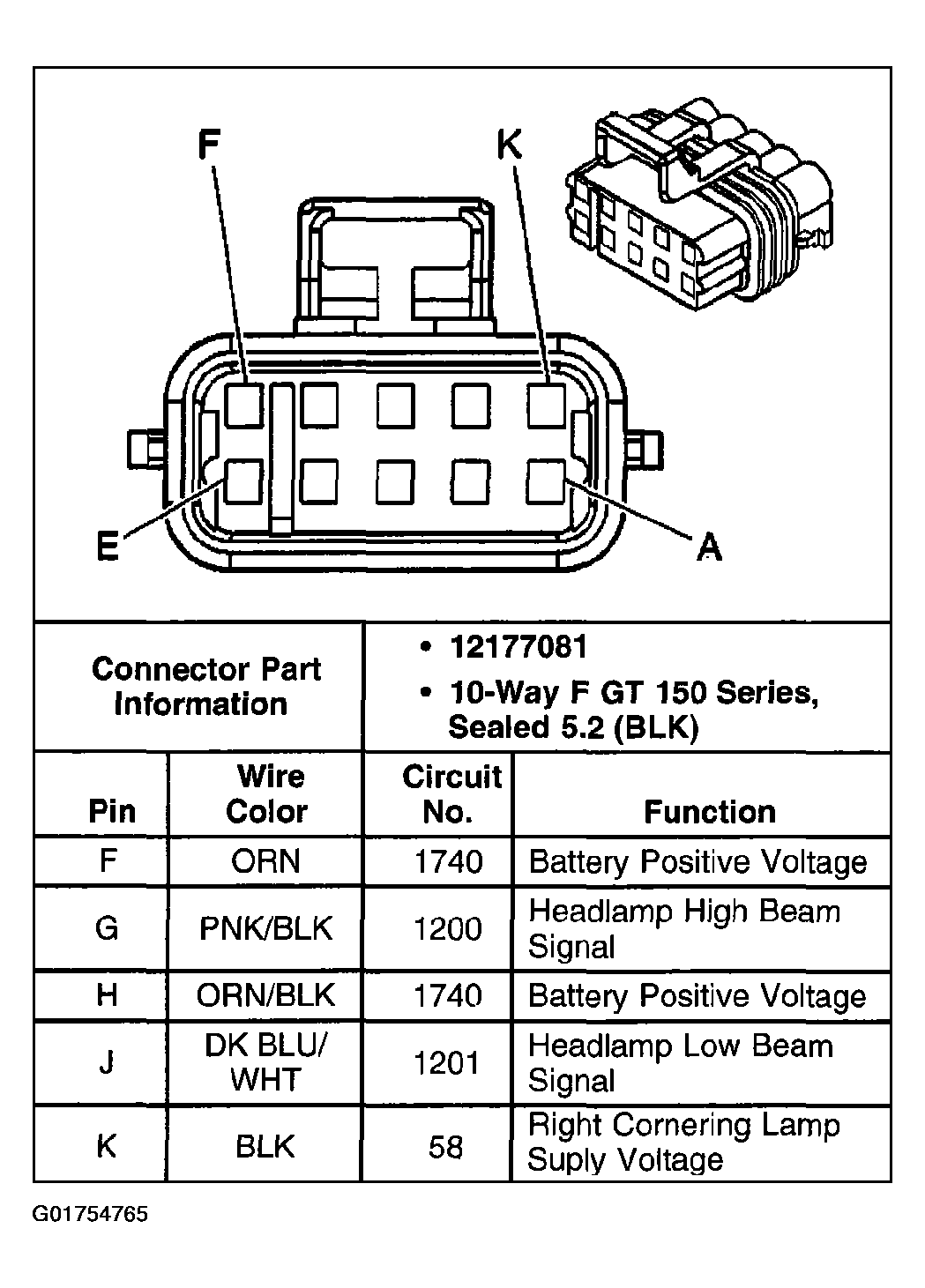

Fig 13: Identifying Headlamp Assembly (Right) Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Headlamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

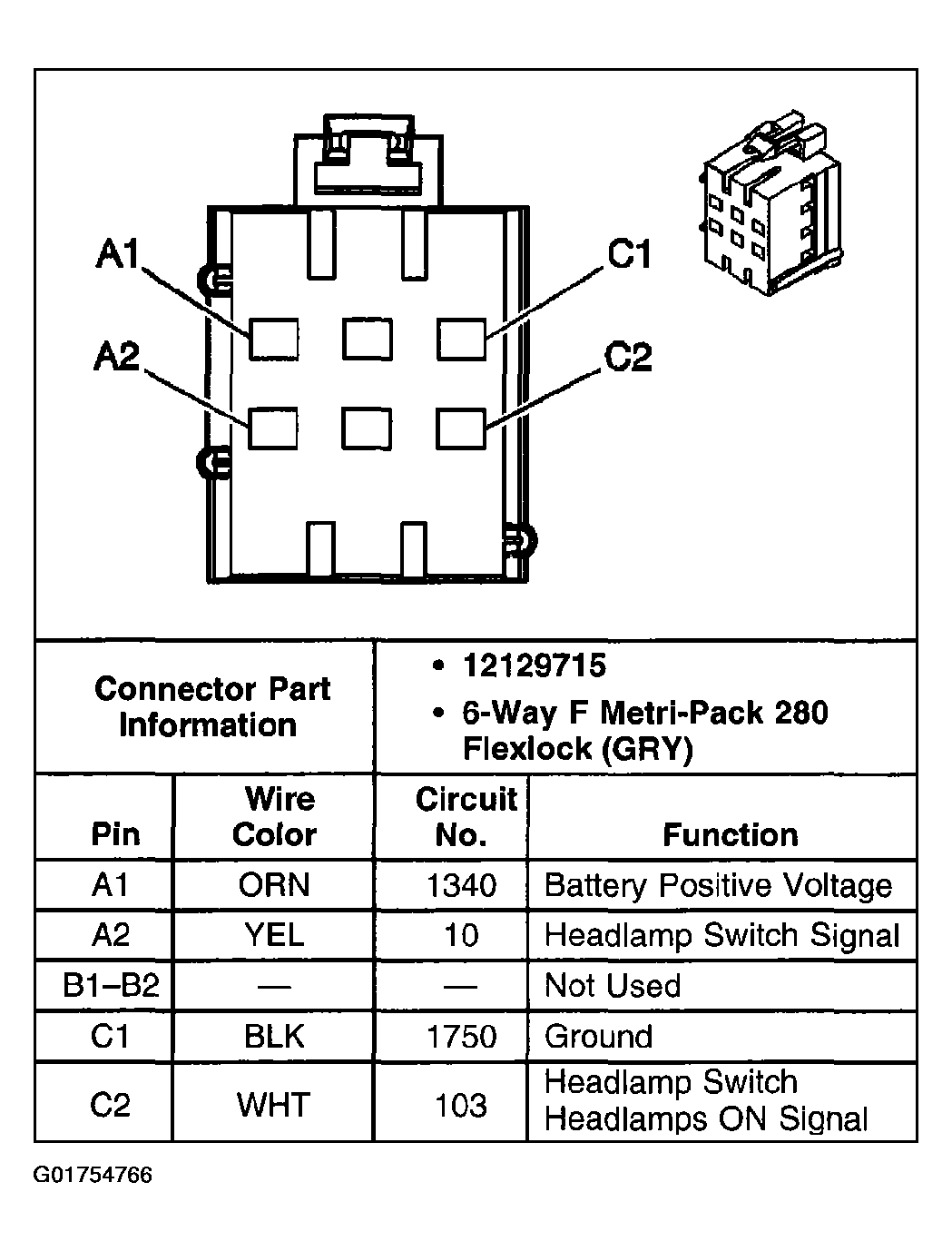

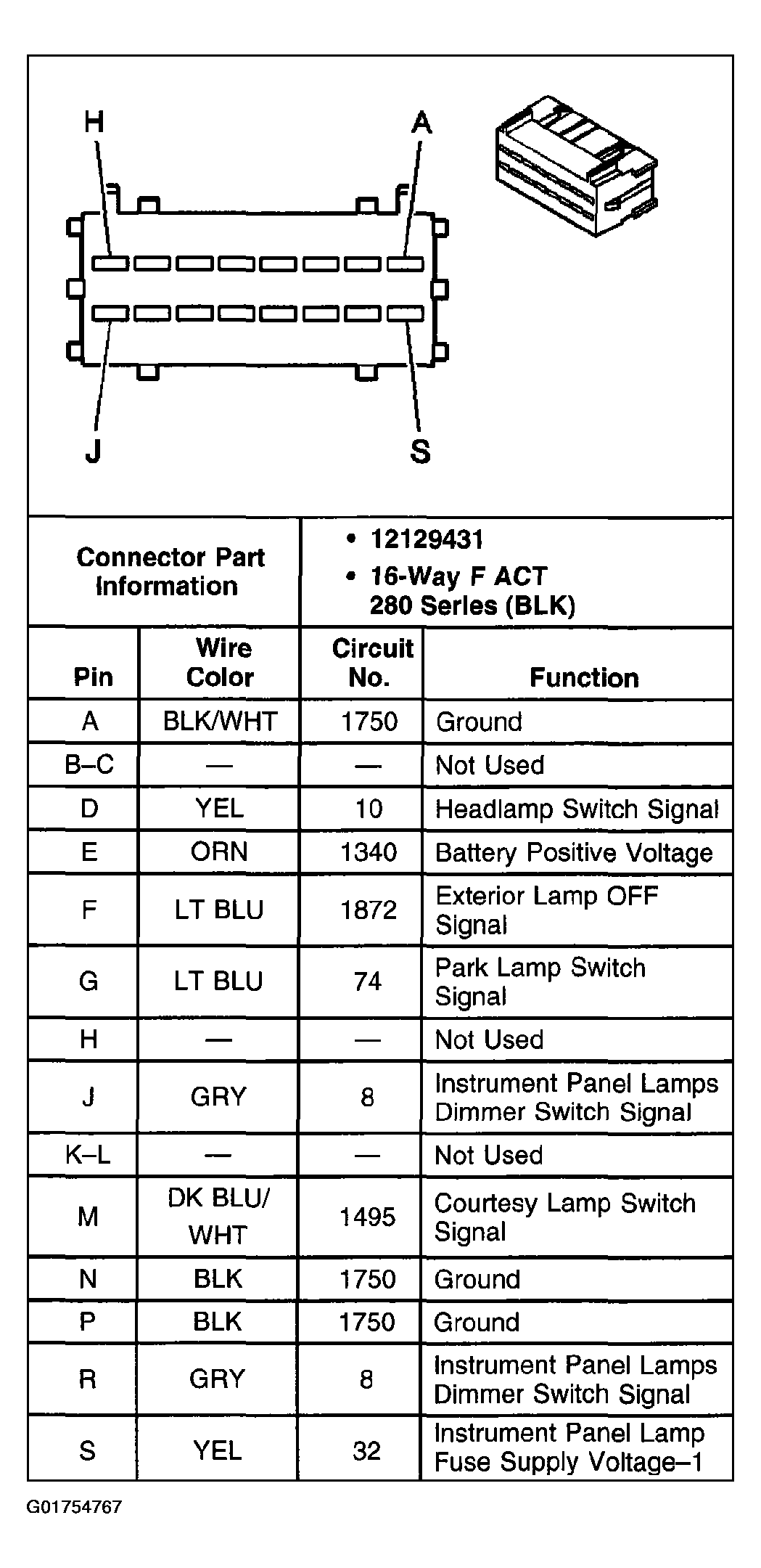

Fig 15: Identifying Headlamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying I/P Compartment Lamp/Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

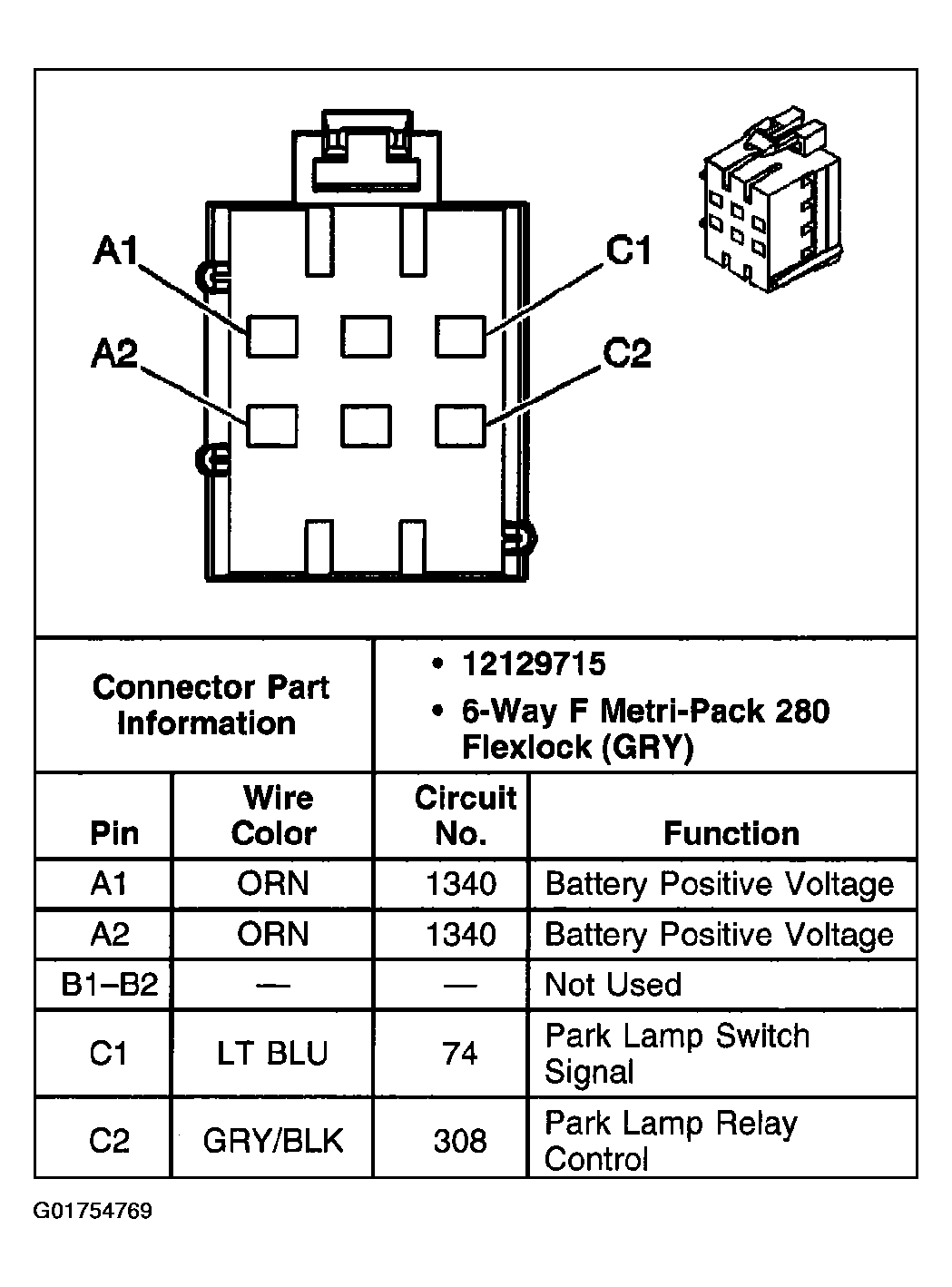

Fig 17: Identifying Park Lamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

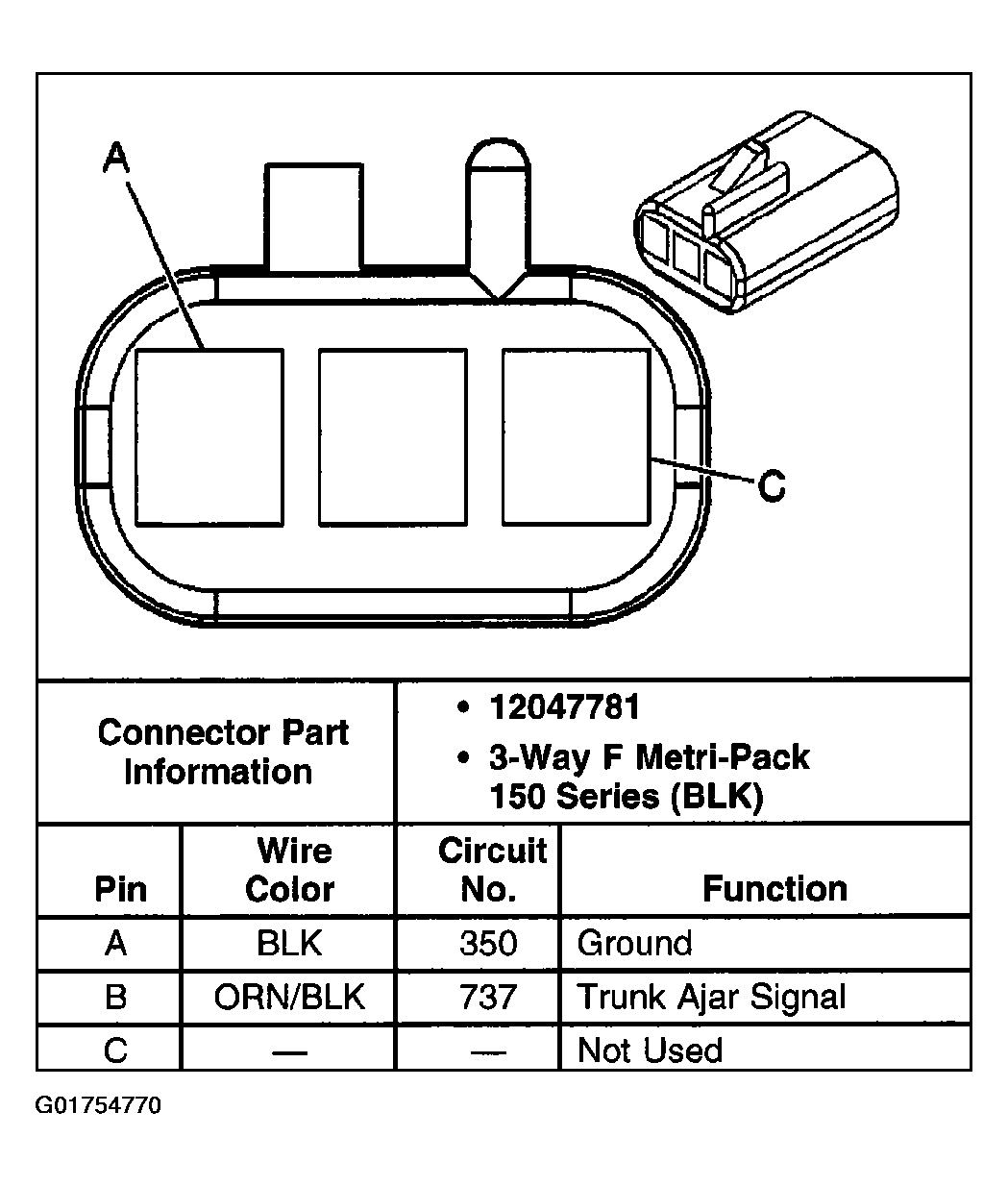

Fig 18: Identifying Rear Compartment Lid Ajar Switch Connector End View
