Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 8. Make sure the good ground used is separate from the grounds used by the Rear Integration Module.

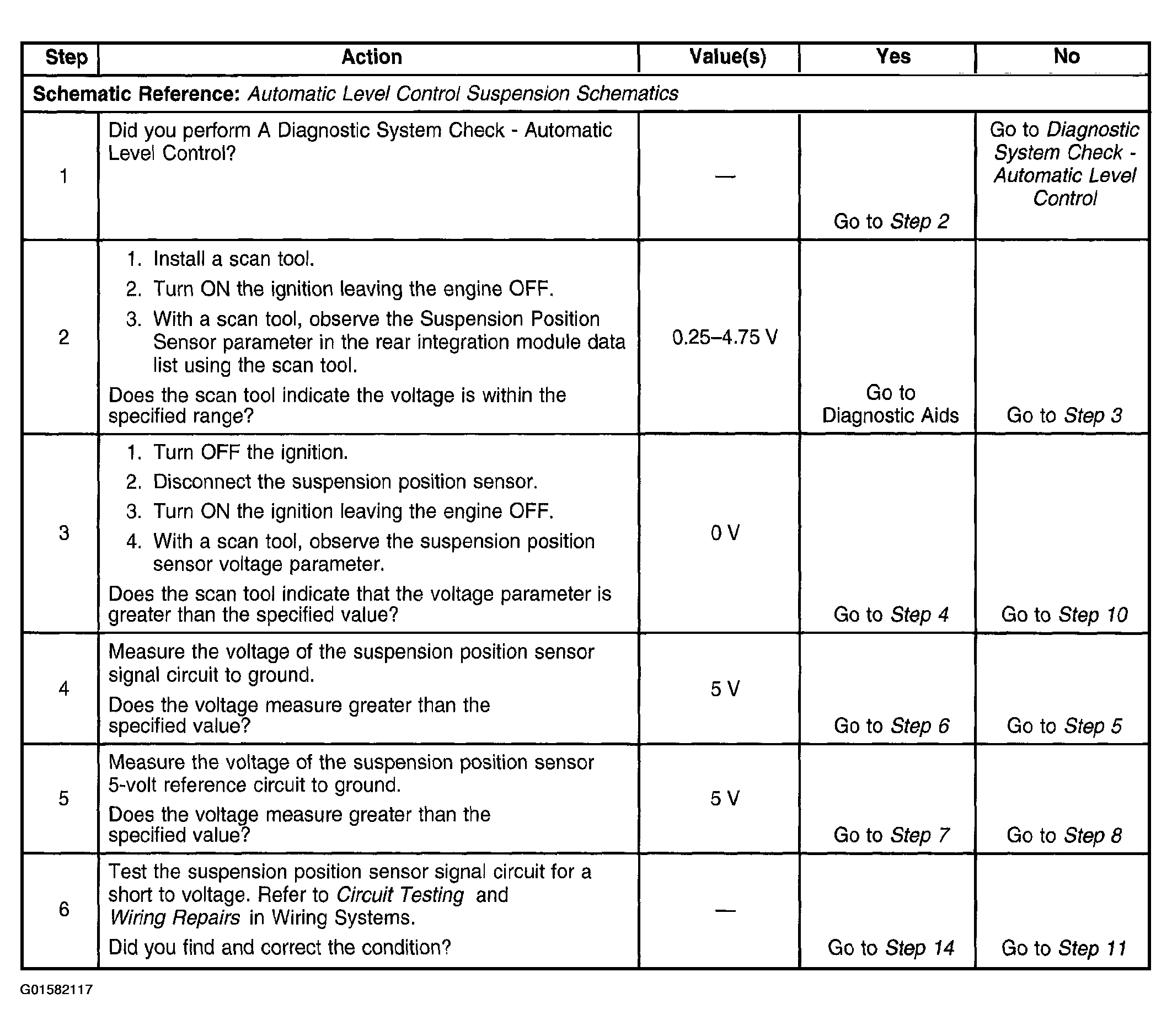

Fig 1: DTC C0628 (1 Of 2)
G01582117Courtesy of GENERAL MOTORS CORP.

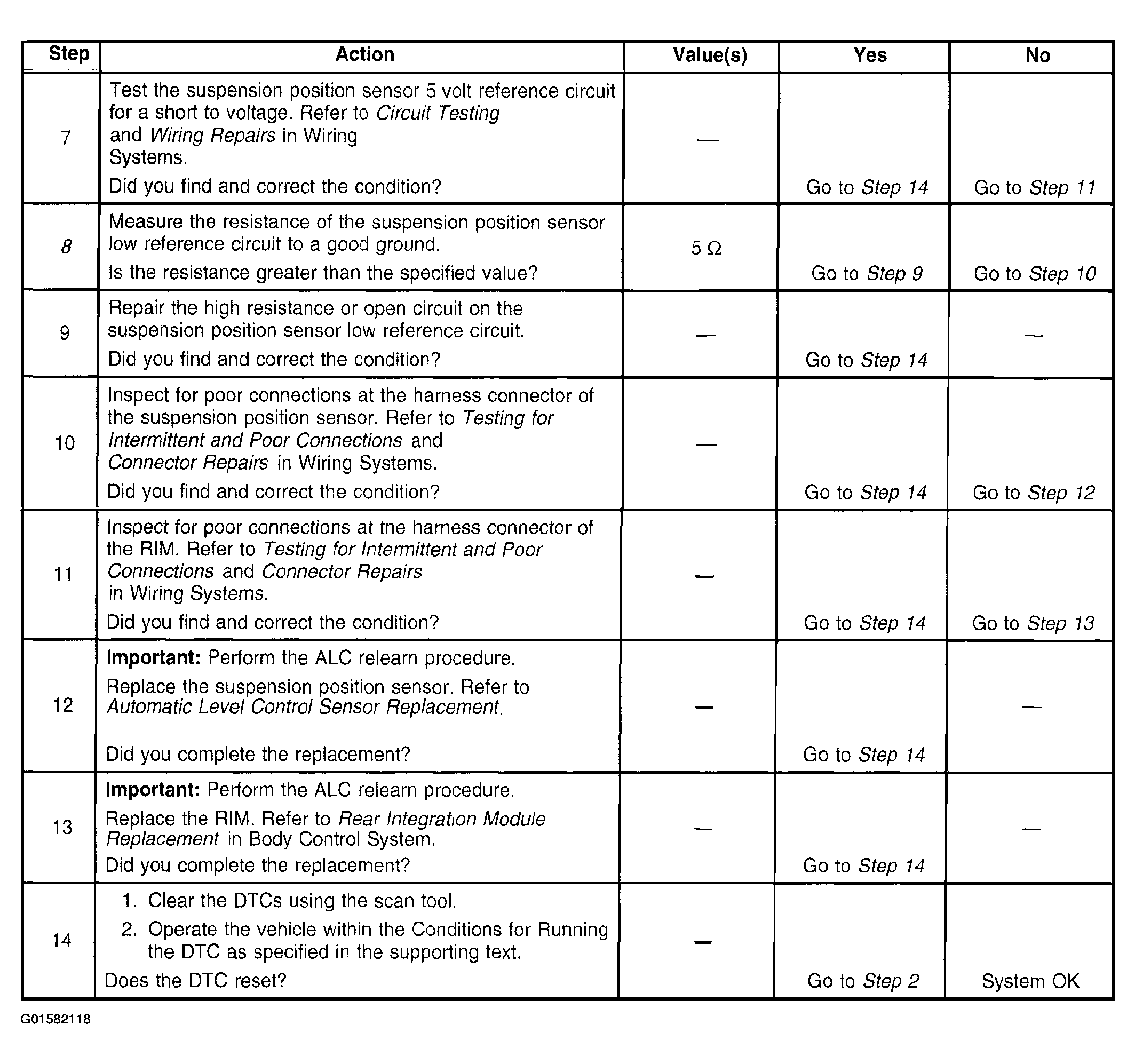

Fig 2: DTC C0628 (2 Of 2)
G01582118Courtesy of GENERAL MOTORS CORP.
