Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the head of the sensor mounting stud into the key hole.
  2. Slide the sensor upward until the anti-rotation tab engages in the lower hole.
  3. Tighten the sensor mounting nut.

    Tighten

    Tighten the nut to 9 N.m (80 in lbs).

  4. Connect the sensor link on the ball stud.
  5. Connect the height sensor connector.
  6. Install the wheel on the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  7. Lower the vehicle.

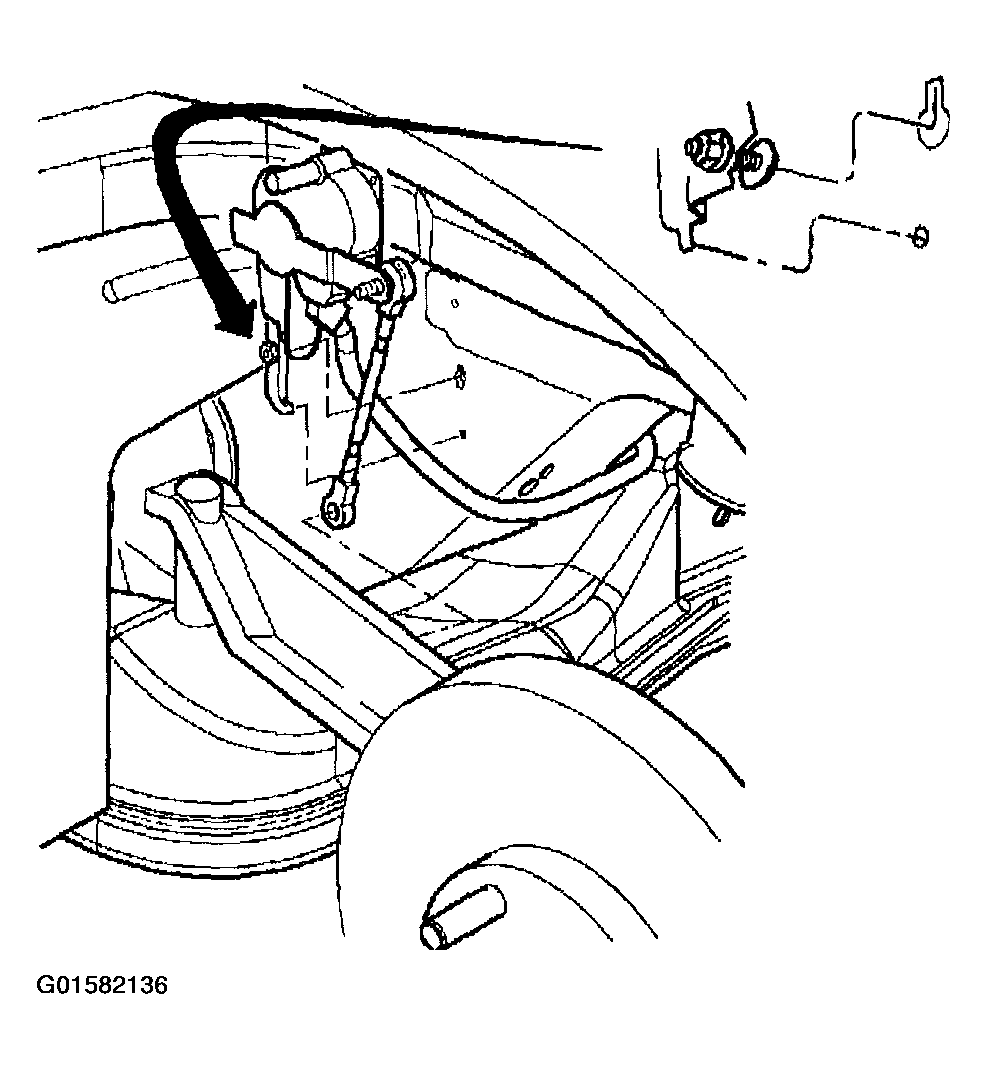

    Fig 1: Installing Automatic Level Control Sensor
    G01582136Courtesy of GENERAL MOTORS CORP.
