Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Disconnect the height sensor connector.
  4. Disconnect the sensor link from the ball stud.
  5. Loosen the sensor mounting nut.
  6. Disengage the anti-rotation tab and slide the sensor downward.
  7. Remove the sensor from the vehicle.

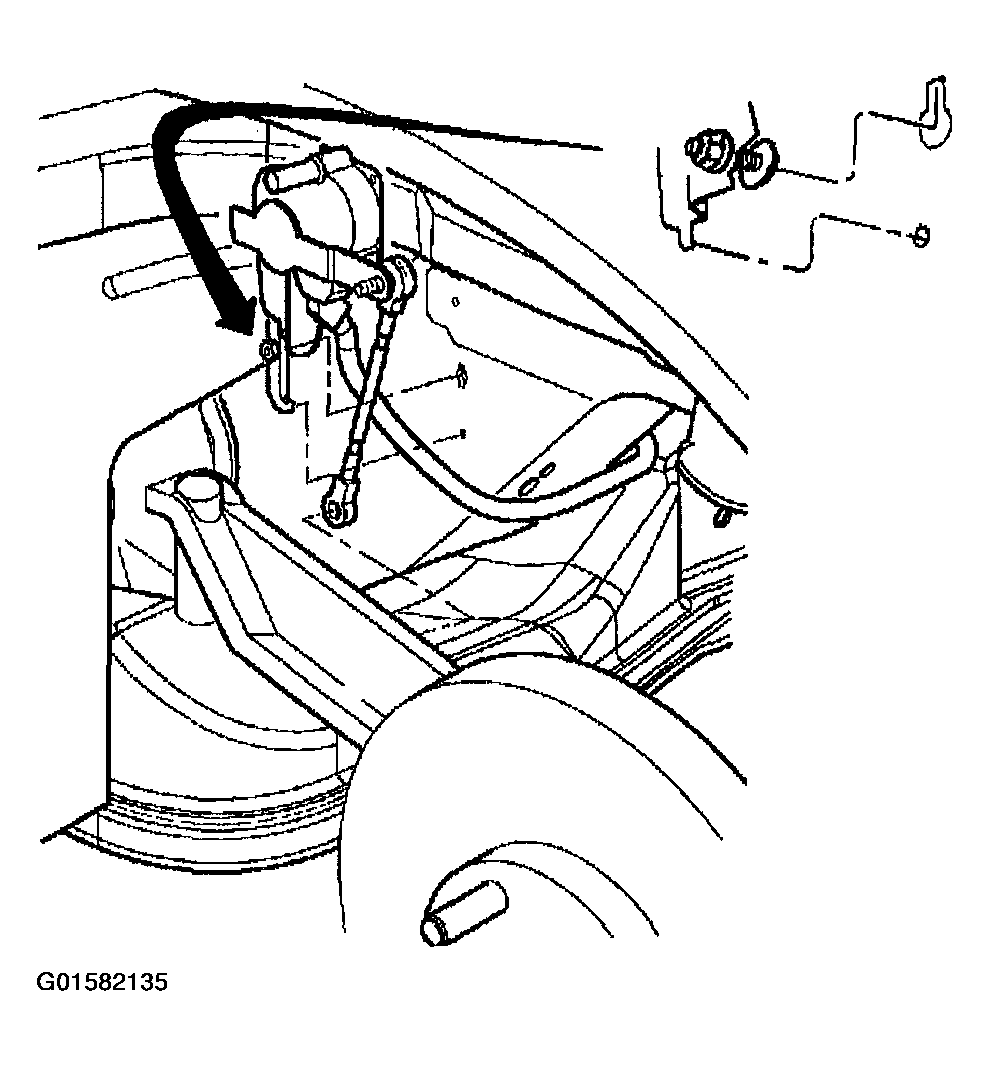

    Fig 1: Removing Automatic Level Control Sensor
    G01582135Courtesy of GENERAL MOTORS CORP.
