Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel steering control module from the bracket. Refer to Rear Wheel Steering Control Module Replacement .
  2. Remove the bolts retaining the bracket (2) to the frame.
  3. Remove the bracket (2) from the vehicle.

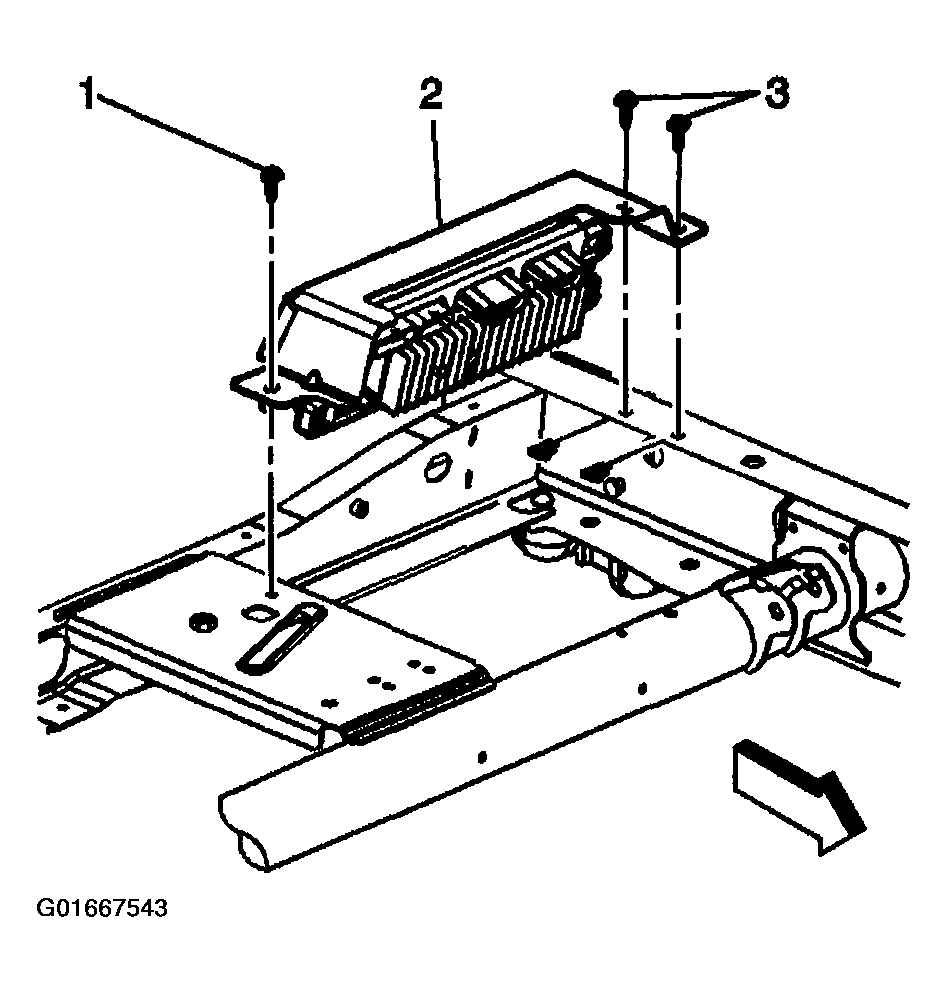

    Fig 1: Rear Wheel Steering Control Module
    G01667543Courtesy of GENERAL MOTORS CORP.
