Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

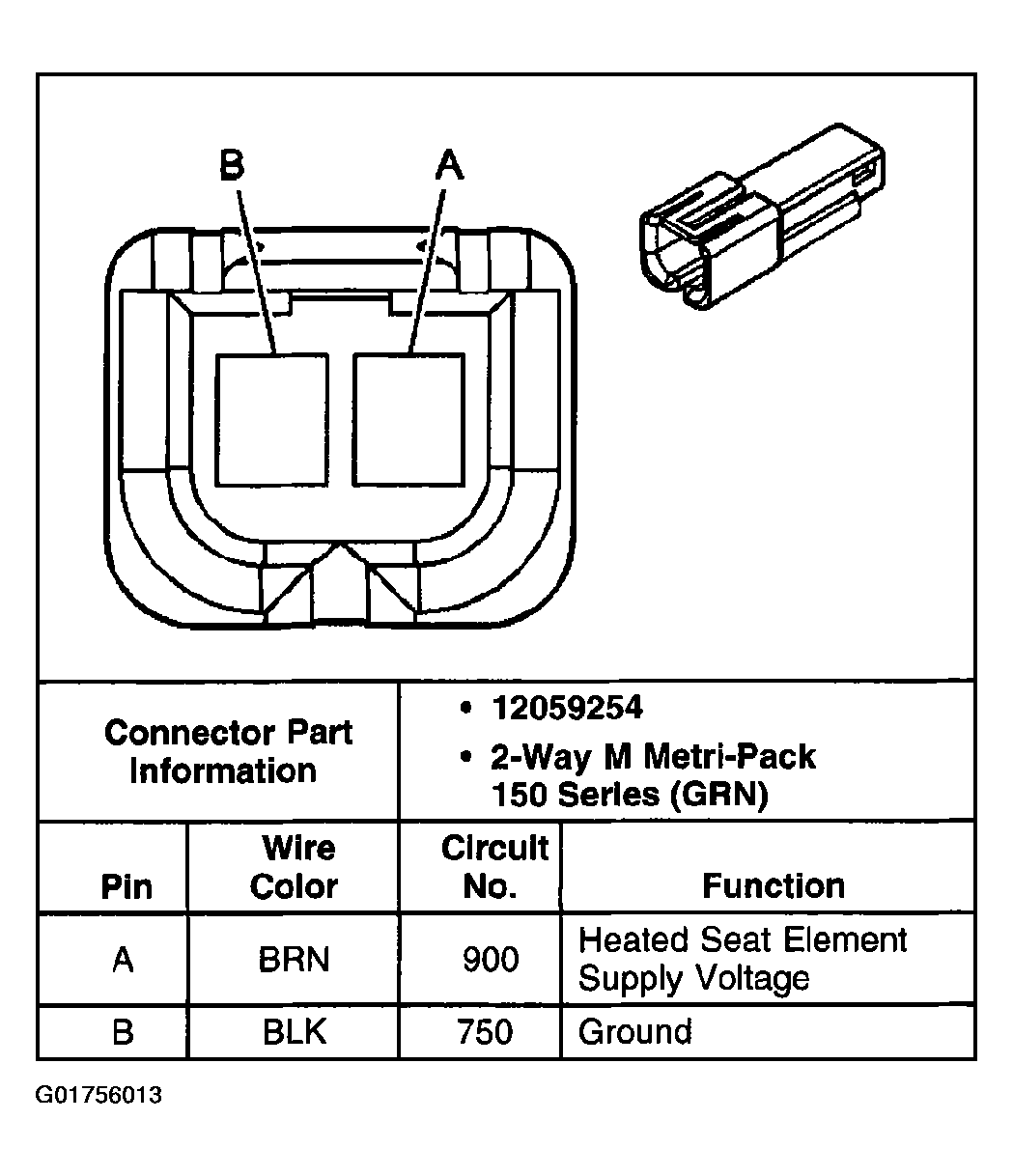

Fig 1: Identifying Heated Seat Back Element-Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Heated Seat Back Element-Front Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Heated Seat Control Module-Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Heated Seat Control Module-Front Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

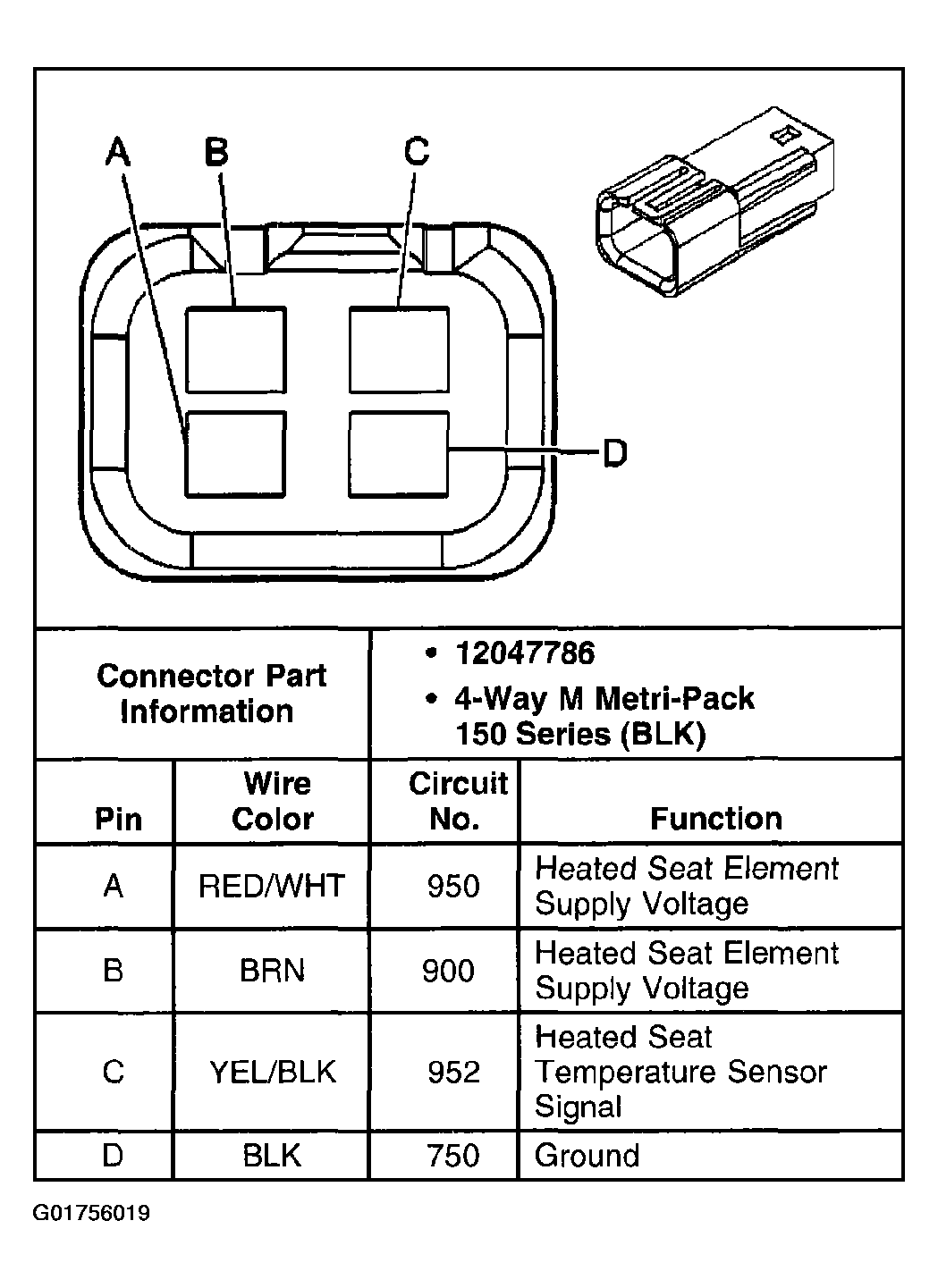

Fig 5: Identifying Heated Seat Cushion Cover-Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Heated Seat Cushion Cover-Front Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

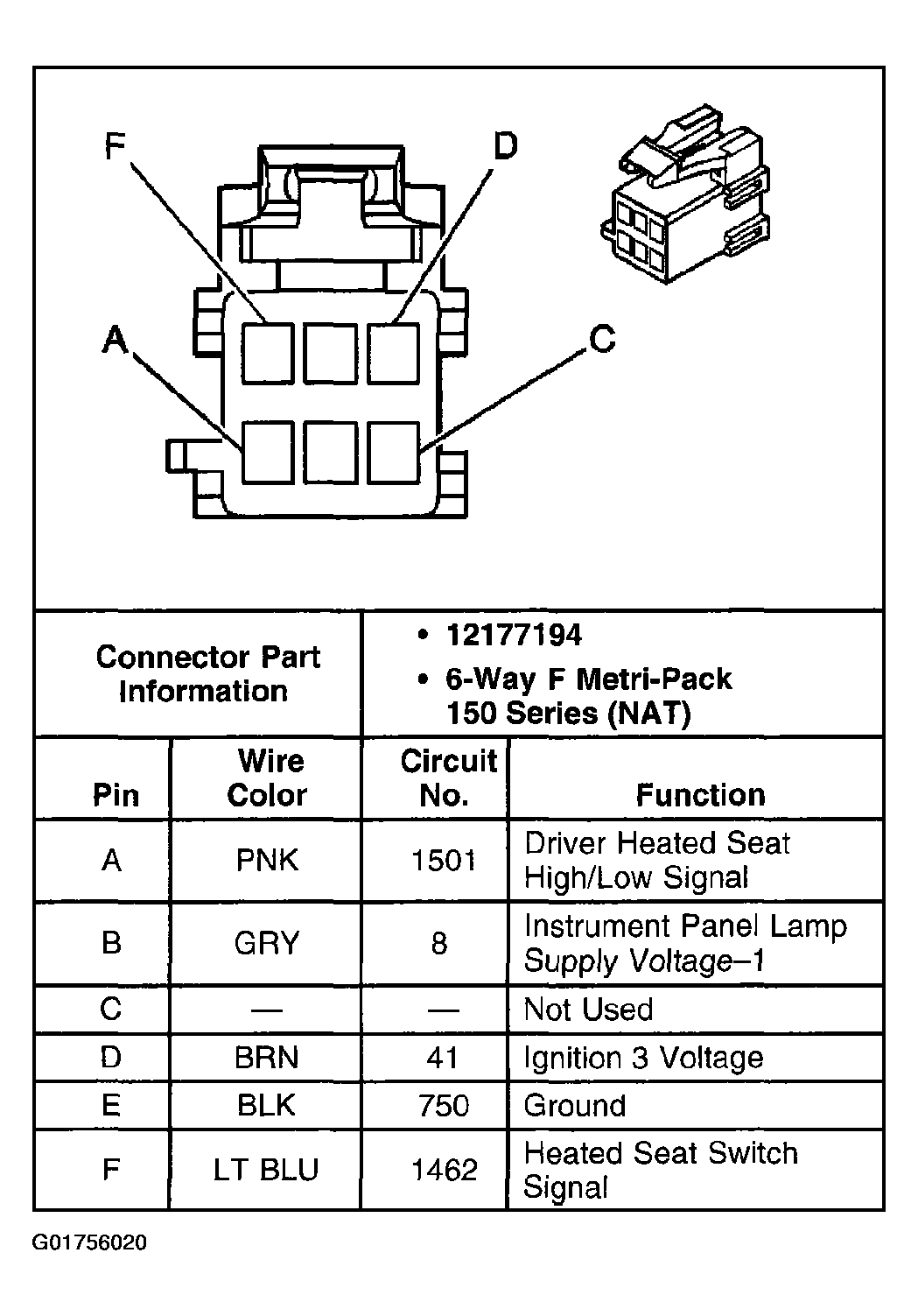

Fig 7: Identifying Heated Seat Switch-Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

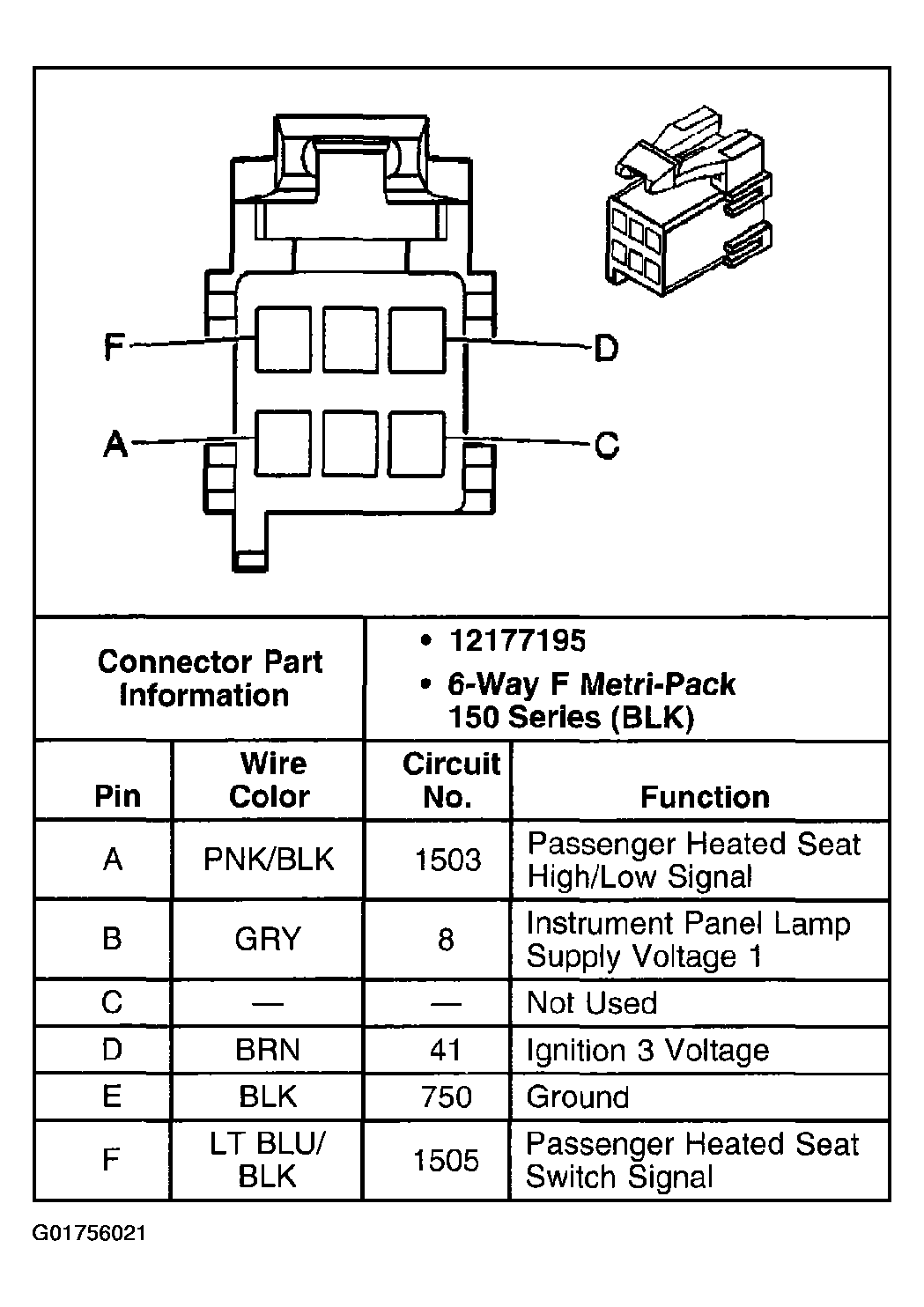

Fig 8: Identifying Heated Seat Switch-Front Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

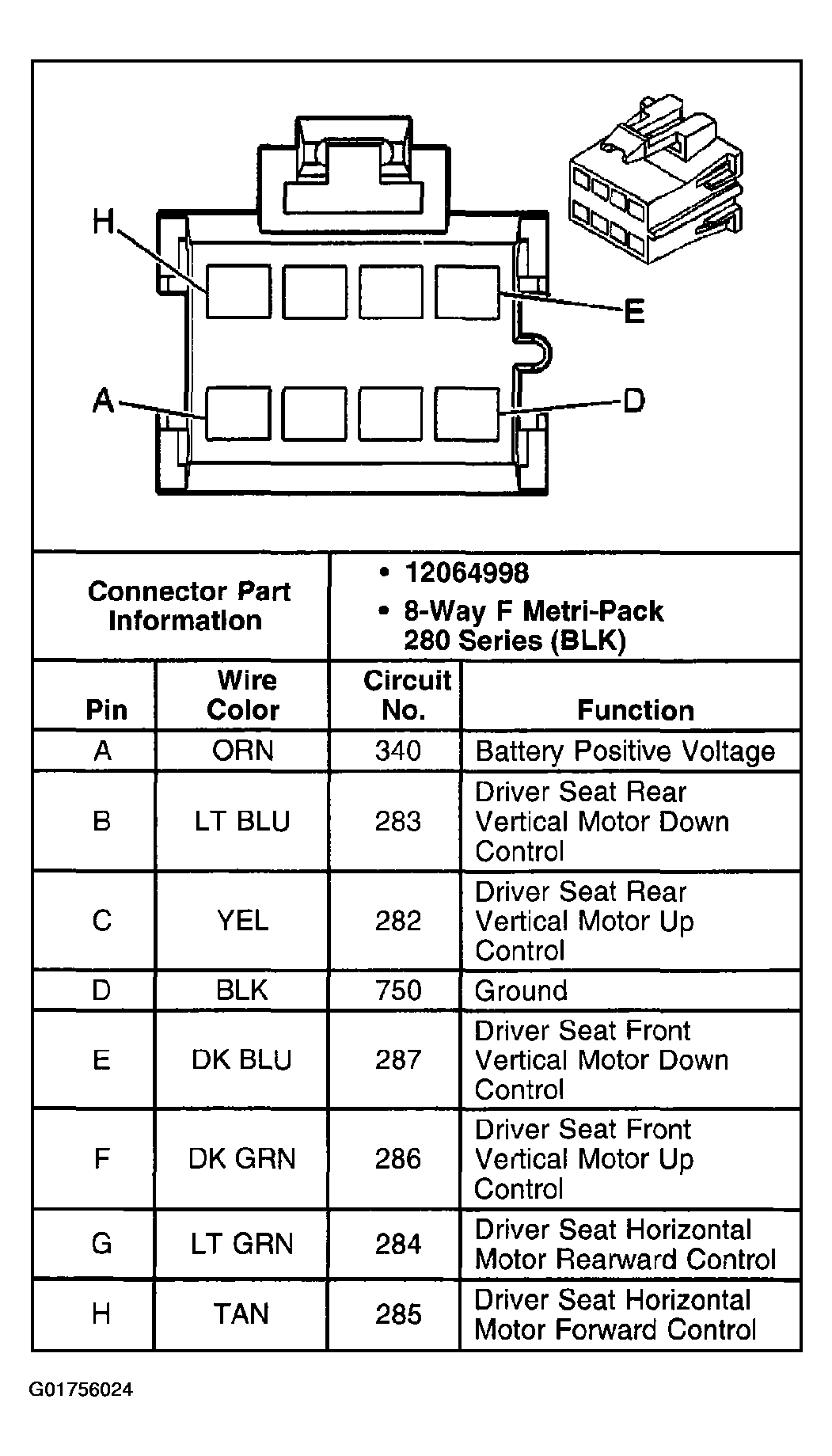

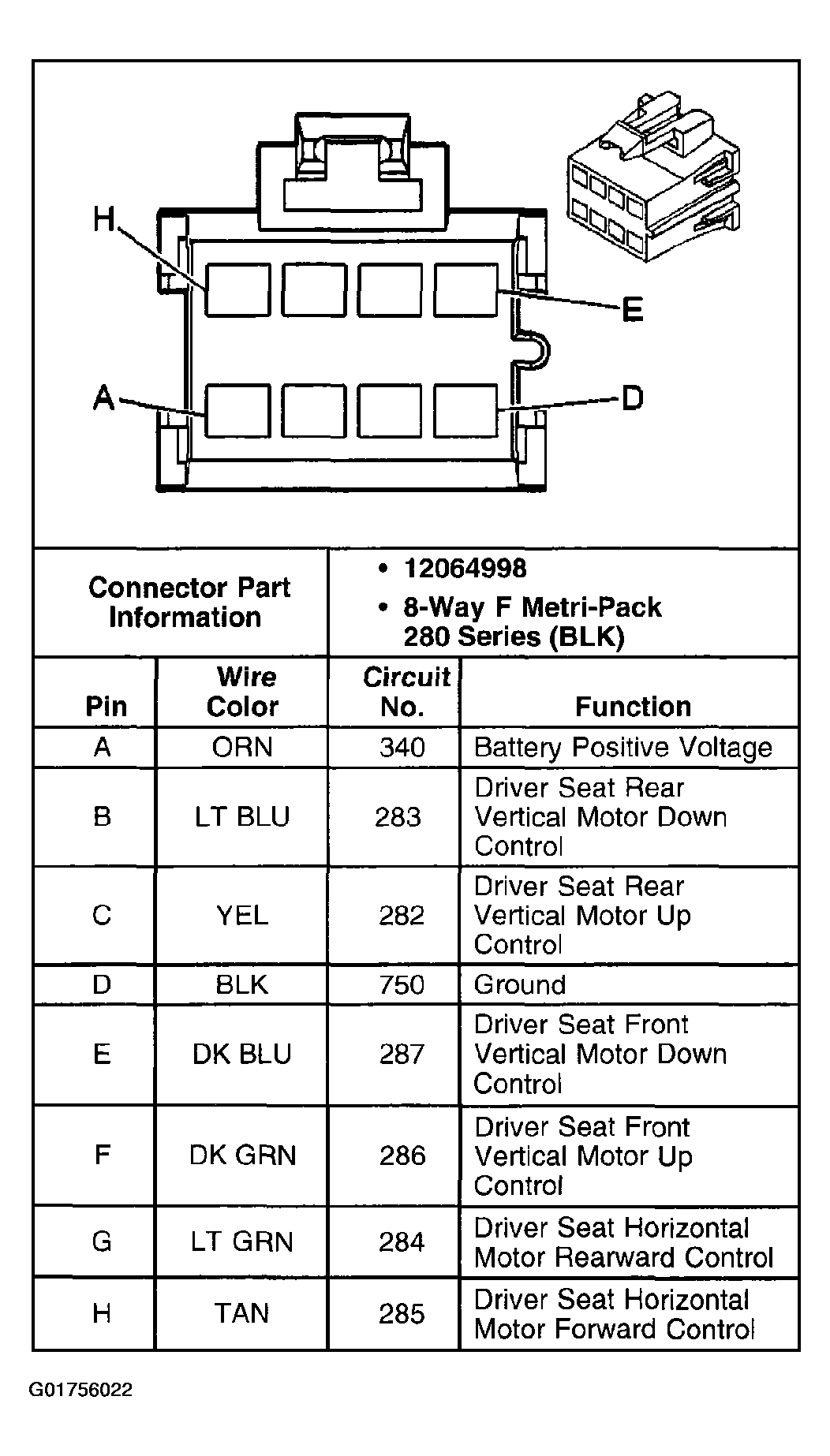

Fig 9: Identifying Seat Adjuster Switch-Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Seat Adjuster Switch-Front Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.

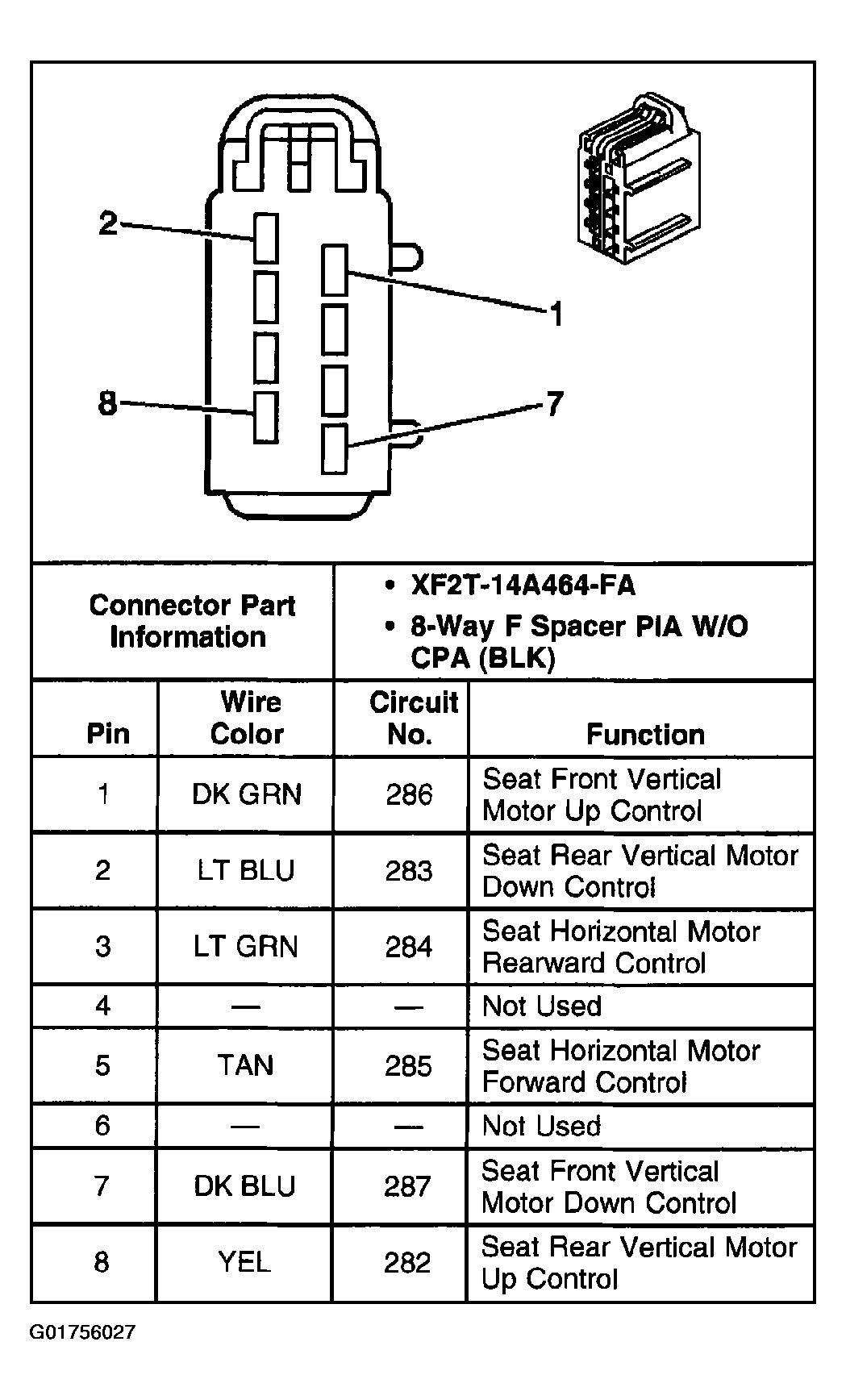

Fig 11: Identifying Seat Adjuster Motor Assembly-Driver Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Seat Adjuster Motor Assembly-Front Passenger Connector End View

Courtesy of GENERAL MOTORS CORP.
