Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

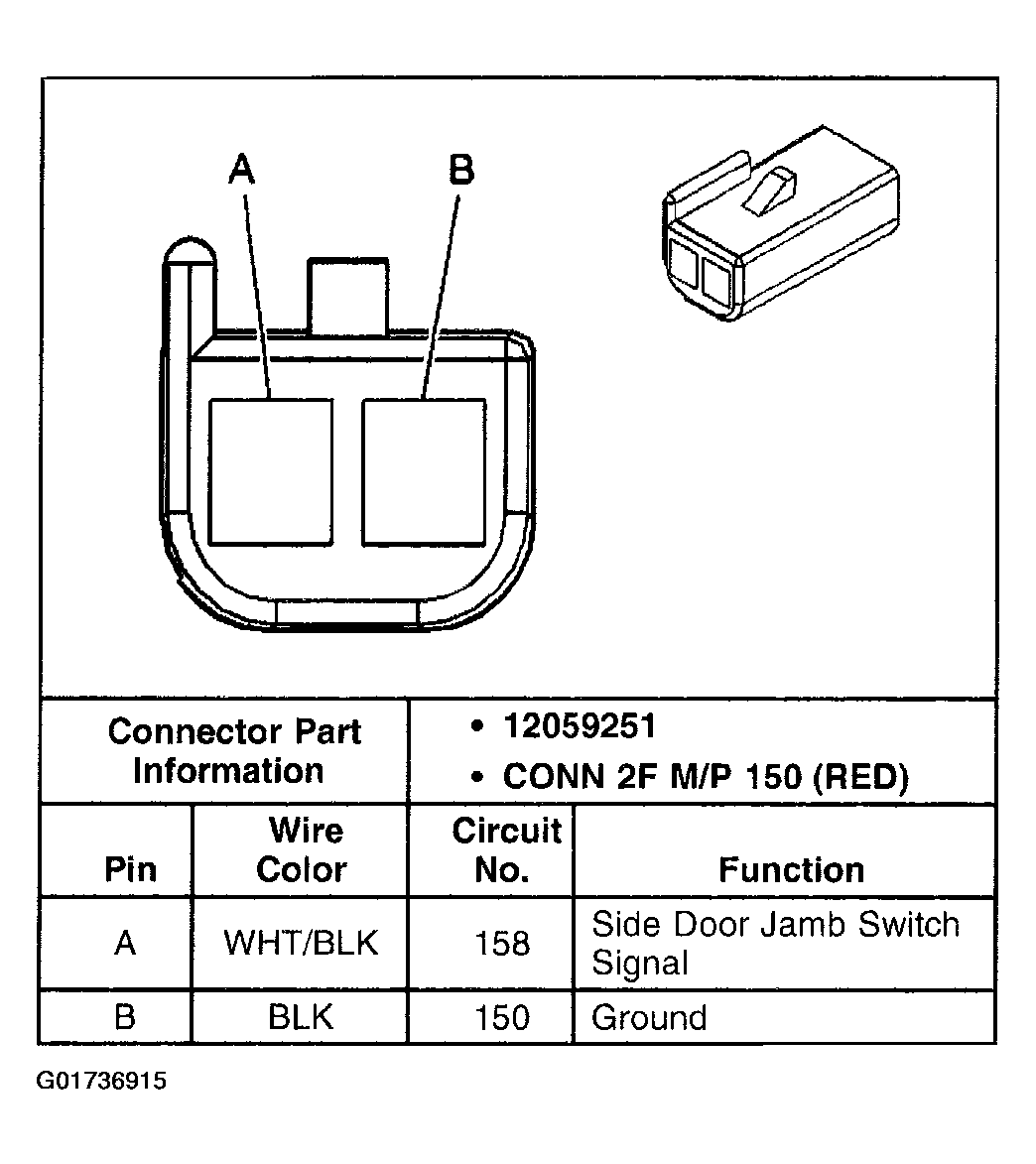

Fig 1: Identifying Door Jamb Switch Connector End View
G01736915Courtesy of GENERAL MOTORS CORP.

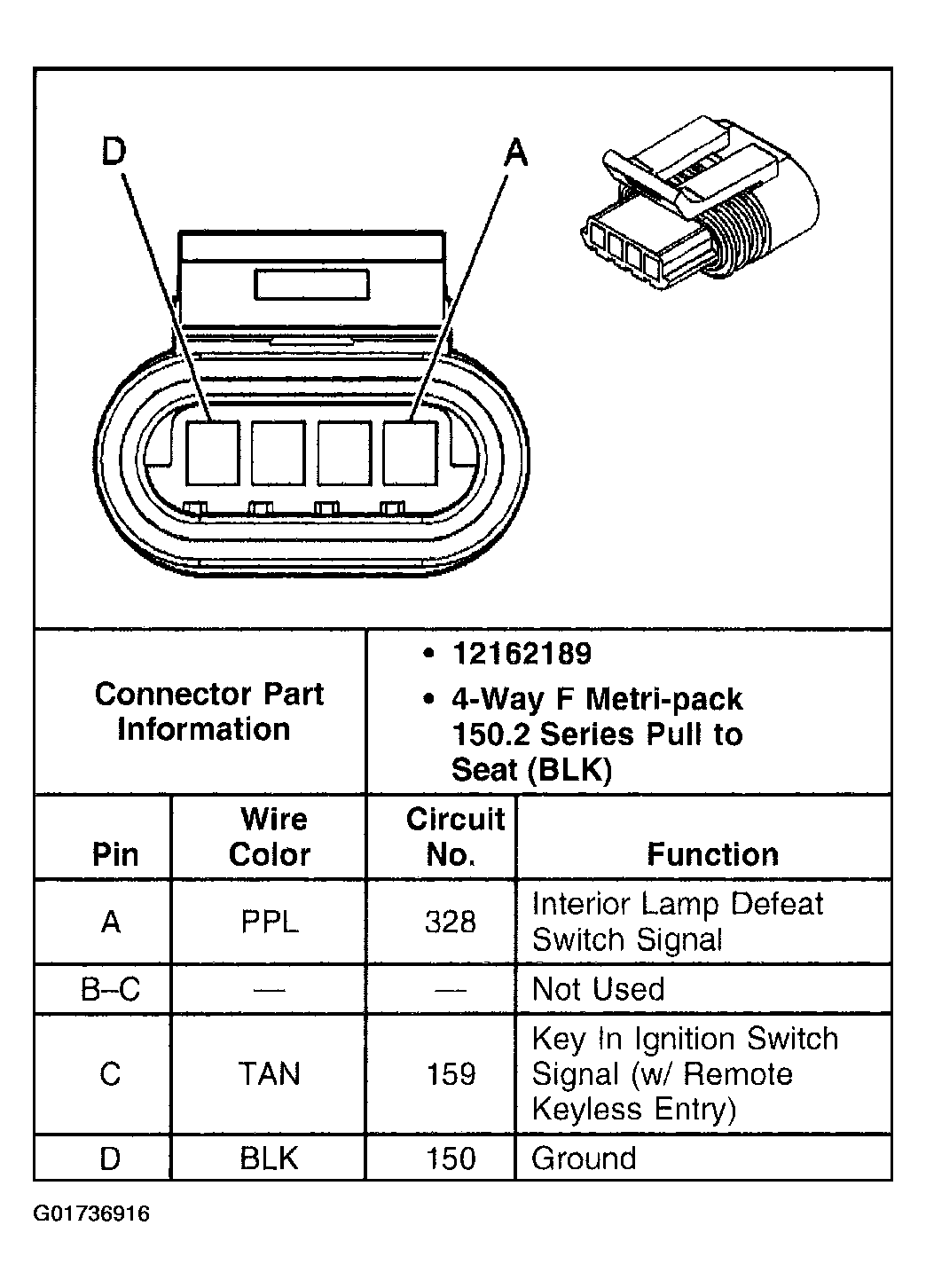

Fig 2: Identifying Door Jamb Switch - Driver Connector End View
G01736916Courtesy of GENERAL MOTORS CORP.

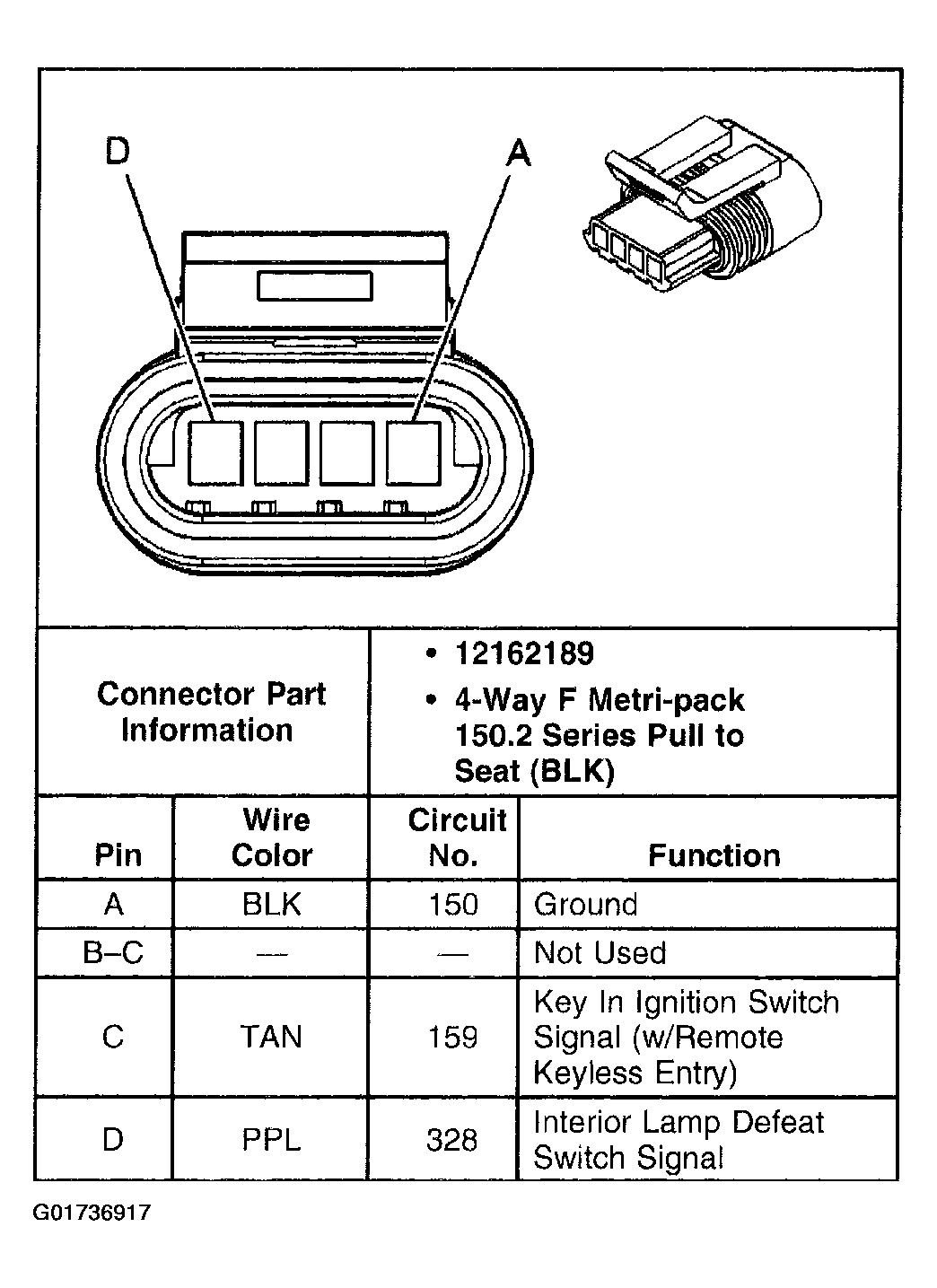

Fig 3: Identifying Door Jamb Switch - Front Passenger Connector End View
G01736917Courtesy of GENERAL MOTORS CORP.

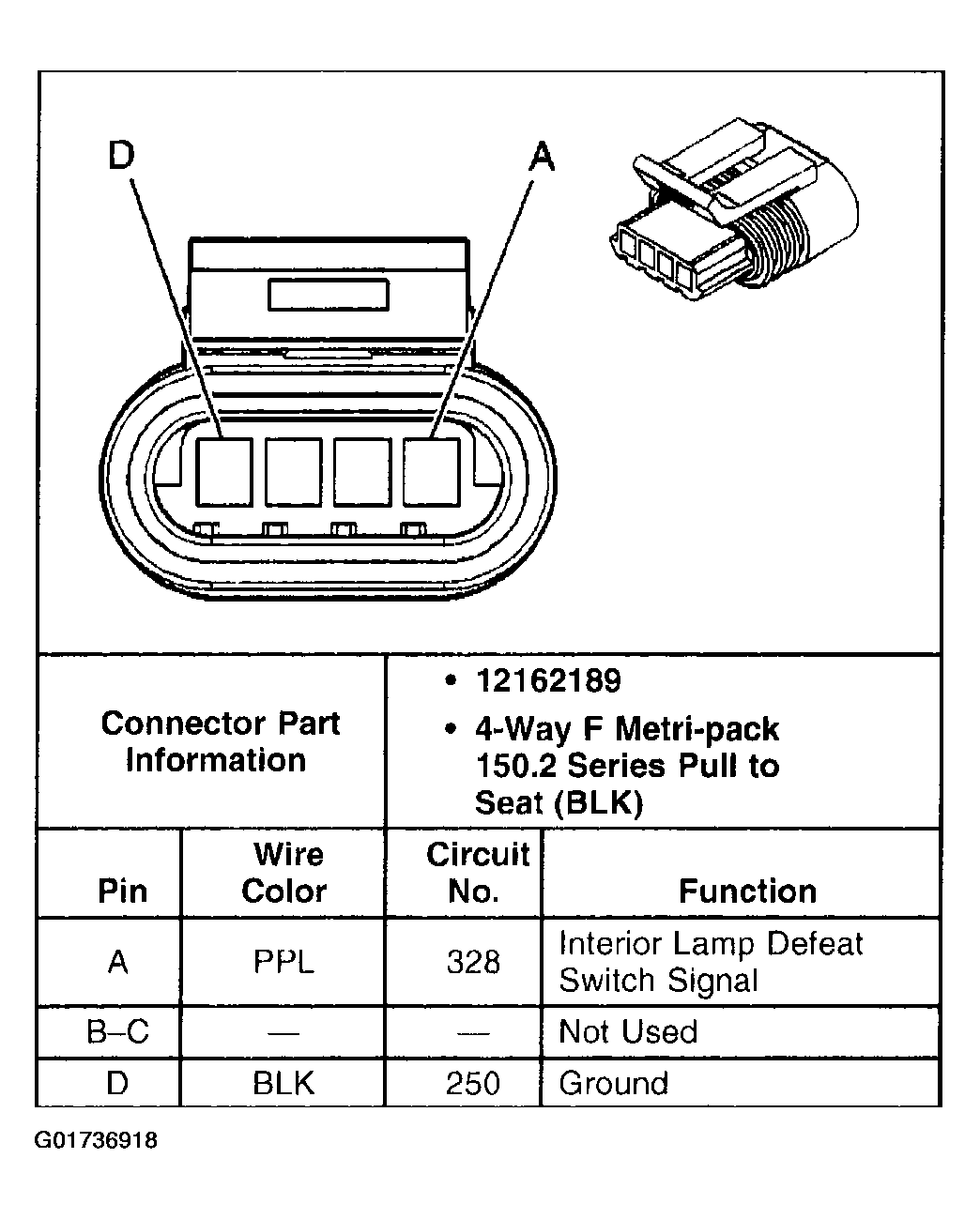

Fig 4: Identifying Door Jamb Switch - RR Connector End View
G01736918Courtesy of GENERAL MOTORS CORP.

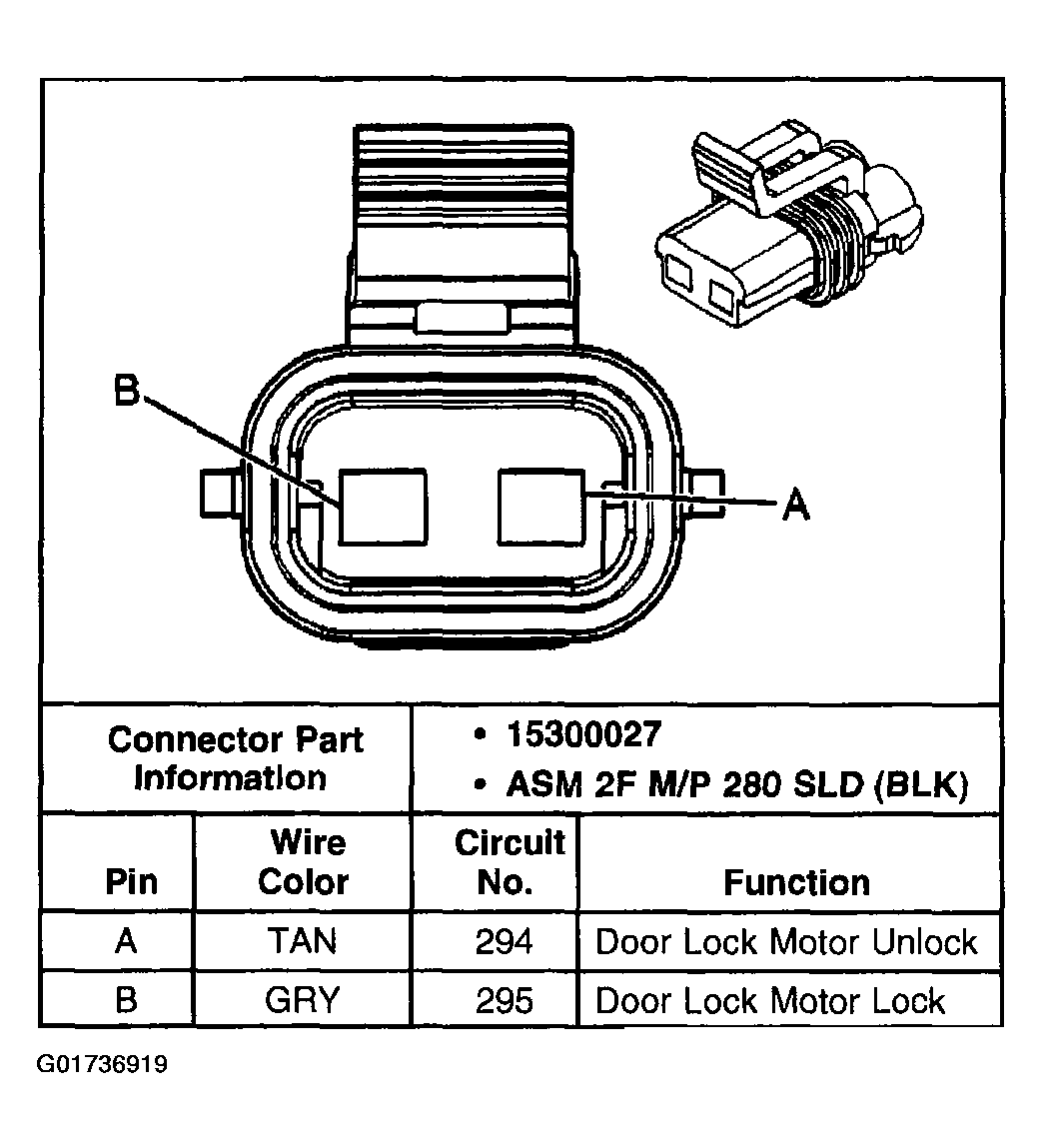

Fig 5: Identifying Door Lock Actuator - Driver, Front Passenger & Rear Connector End View
G01736919Courtesy of GENERAL MOTORS CORP.

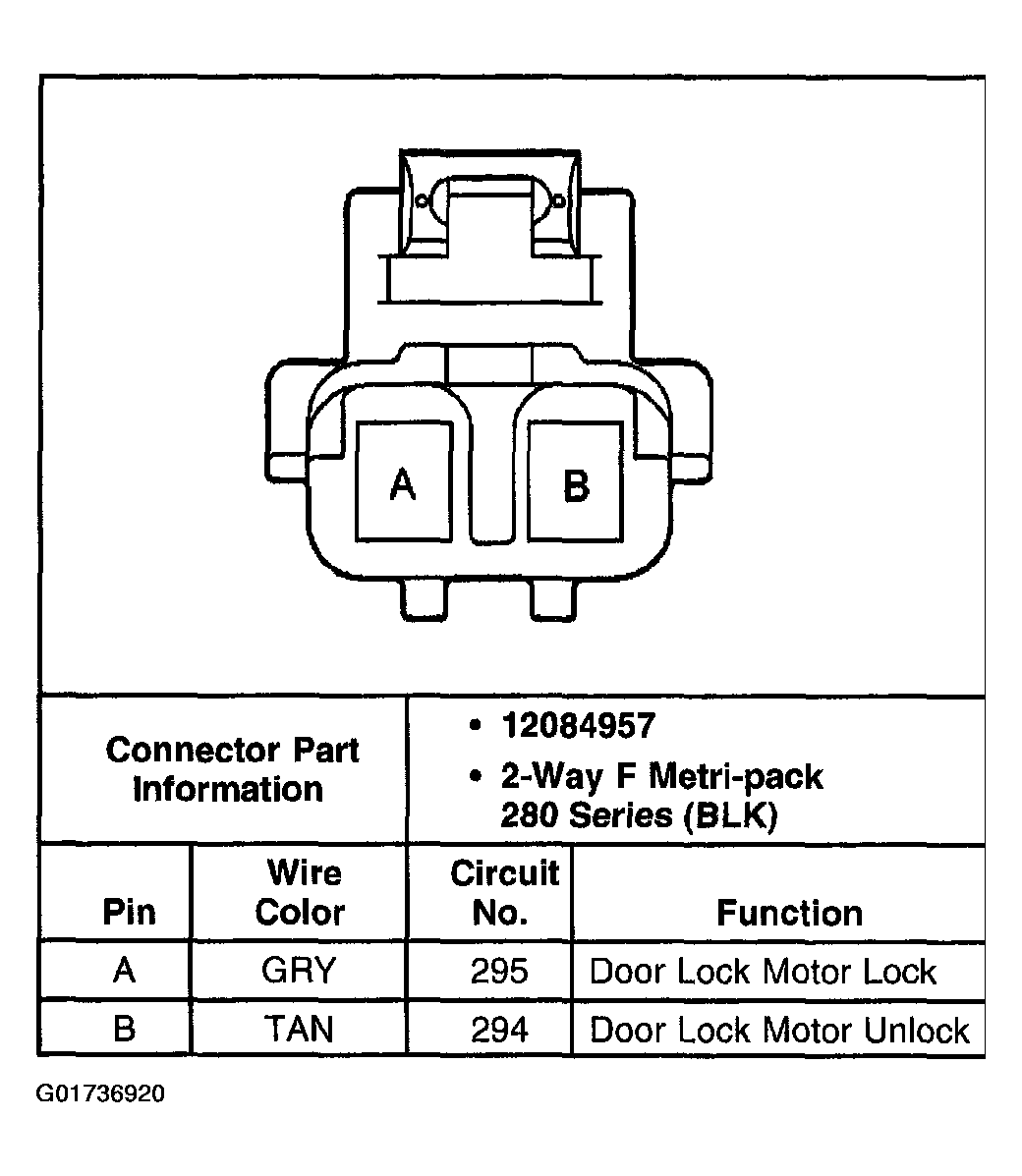

Fig 6: Identifying Door Lock Actuator, Side (Sliding) Connector End View
G01736920Courtesy of GENERAL MOTORS CORP.

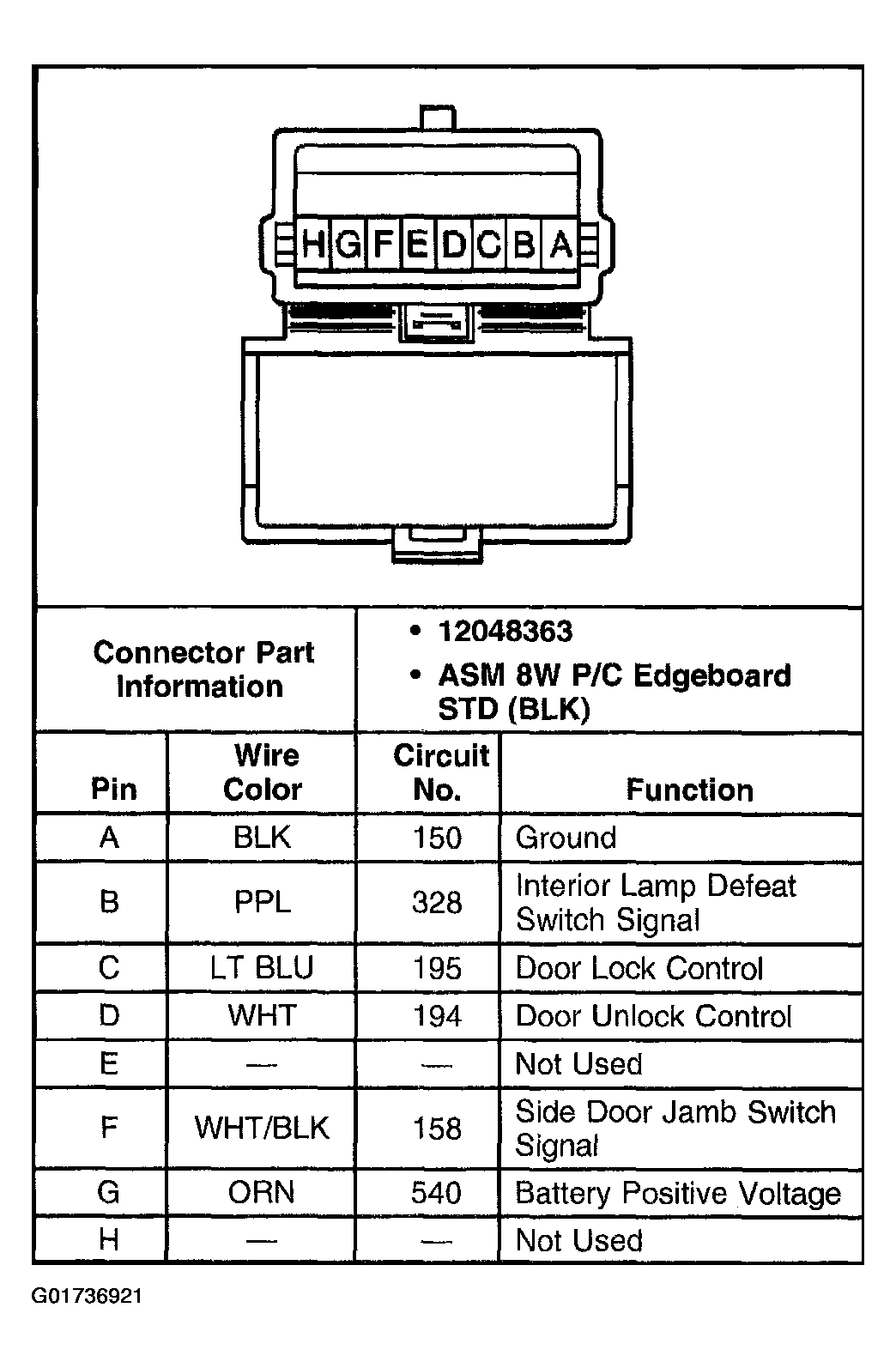

Fig 7: Identifying Door Lock Control Module Connector End View
G01736921Courtesy of GENERAL MOTORS CORP.

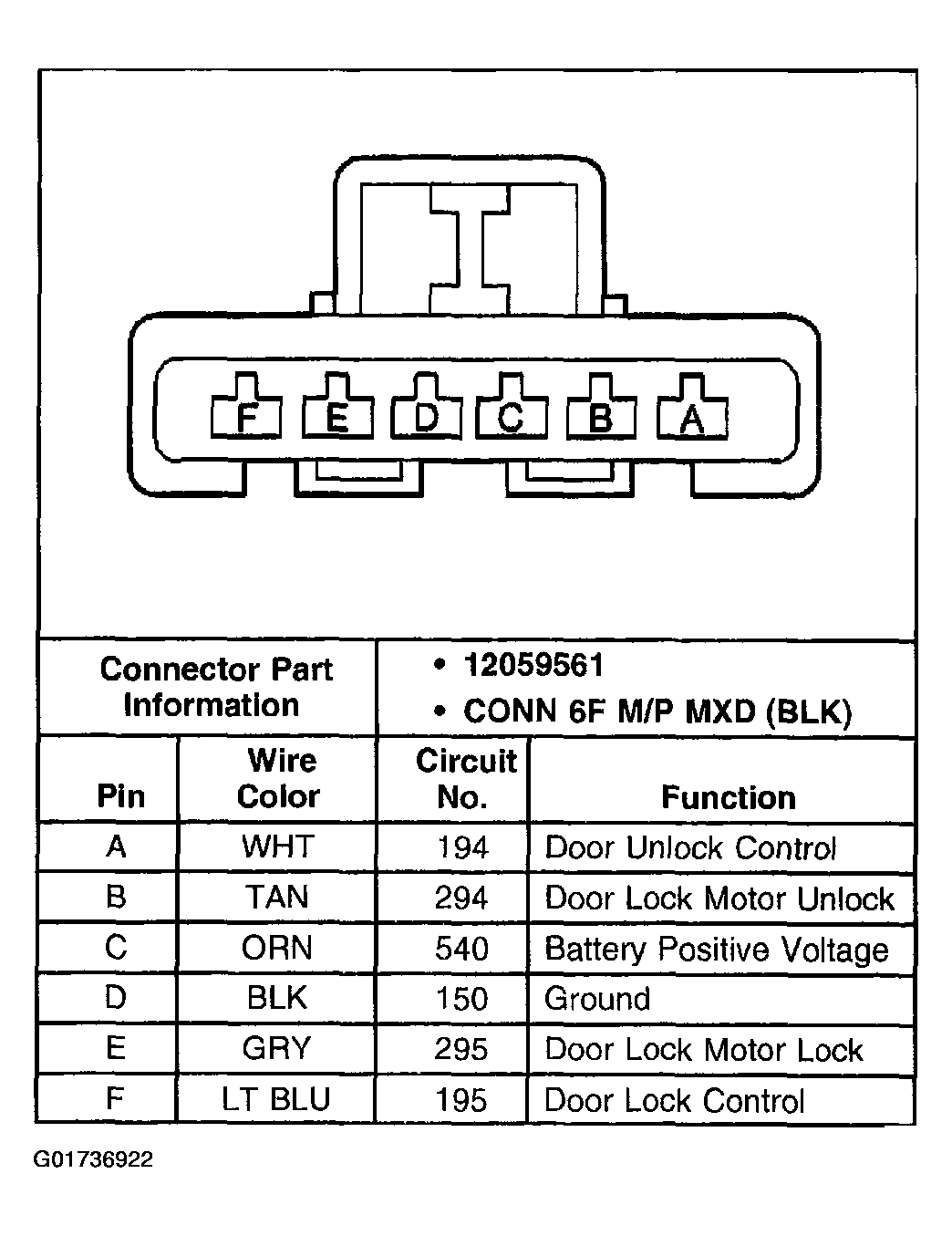

Fig 8: Identifying Door Lock Relay Connector End View
G01736922Courtesy of GENERAL MOTORS CORP.

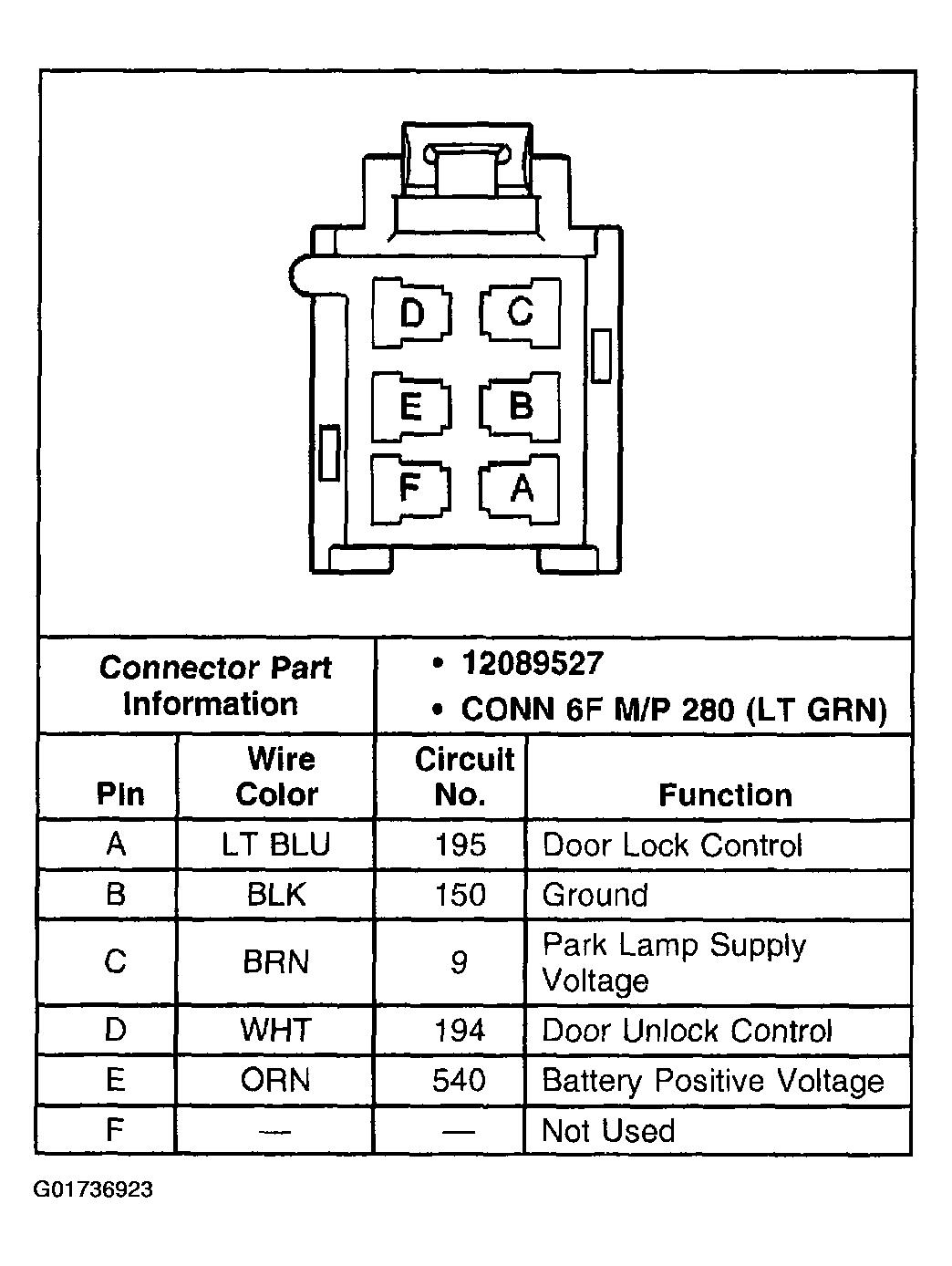

Fig 9: Identifying Door Lock Switch - Driver & Front Passenger Connector End View
G01736923Courtesy of GENERAL MOTORS CORP.

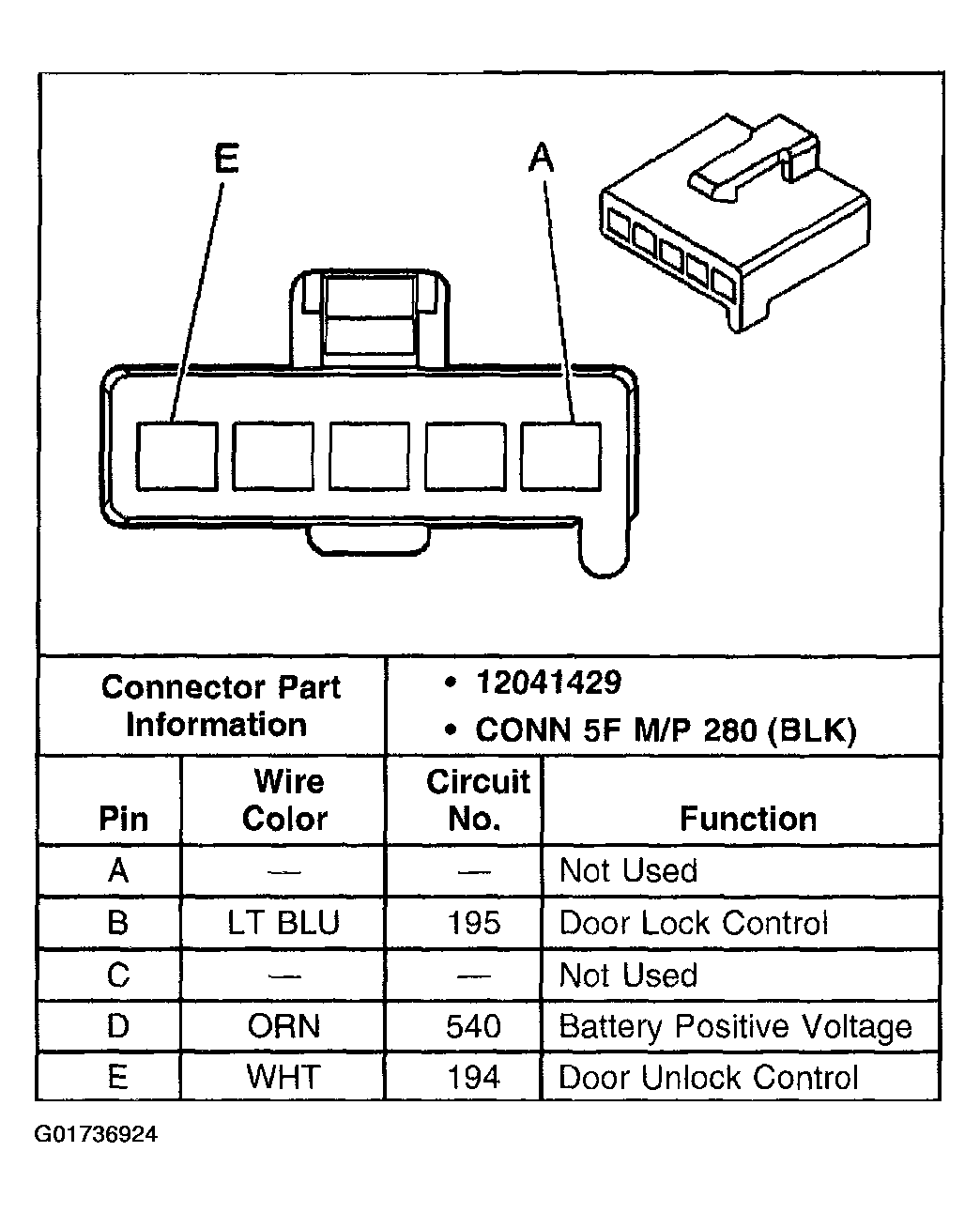

Fig 10: Identifying Door Lock Switch - Rear Cargo Connector End View
G01736924Courtesy of GENERAL MOTORS CORP.

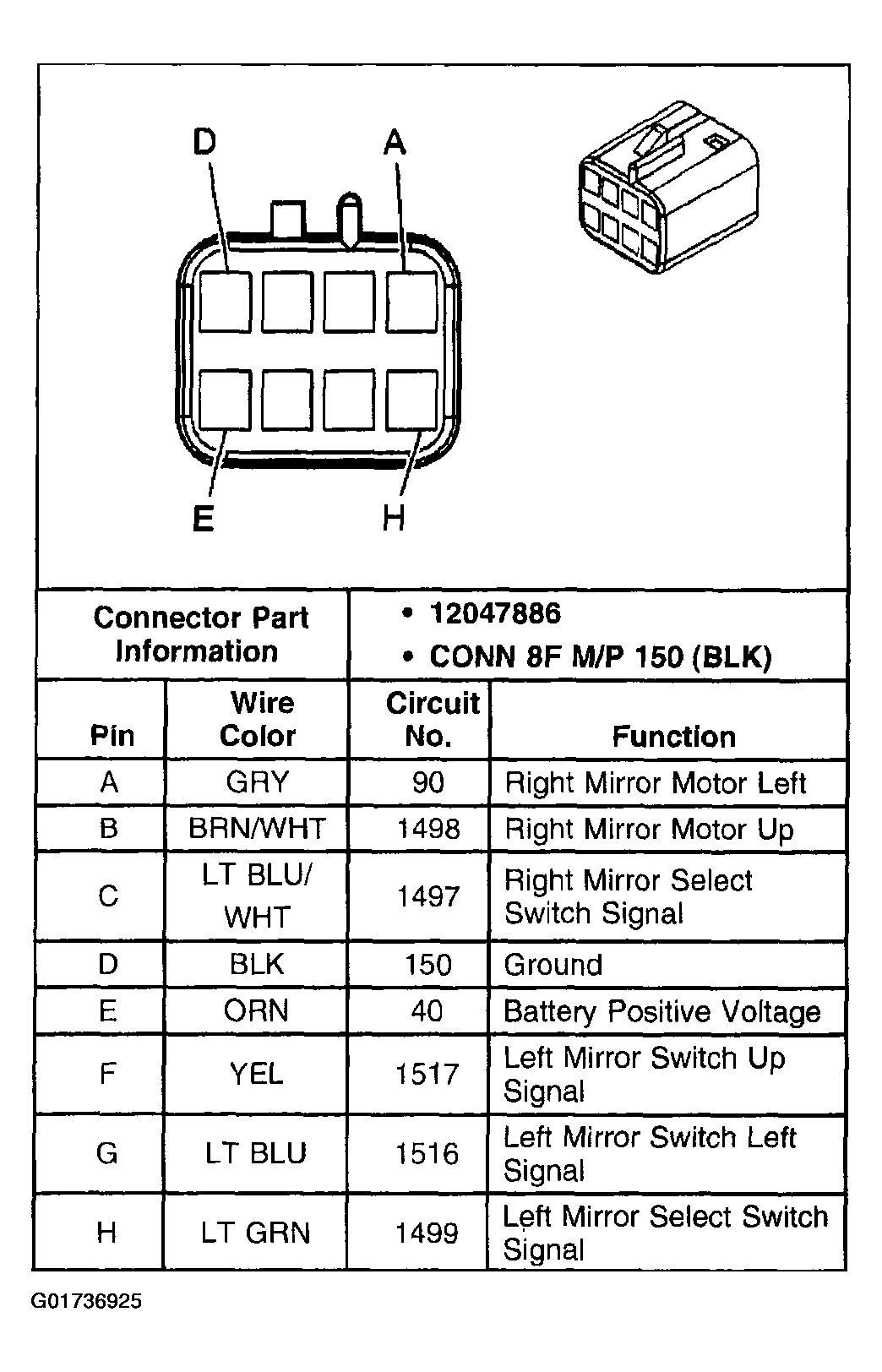

Fig 11: Identifying Outside Rearview Mirror Switch Connector End View
G01736925Courtesy of GENERAL MOTORS CORP.

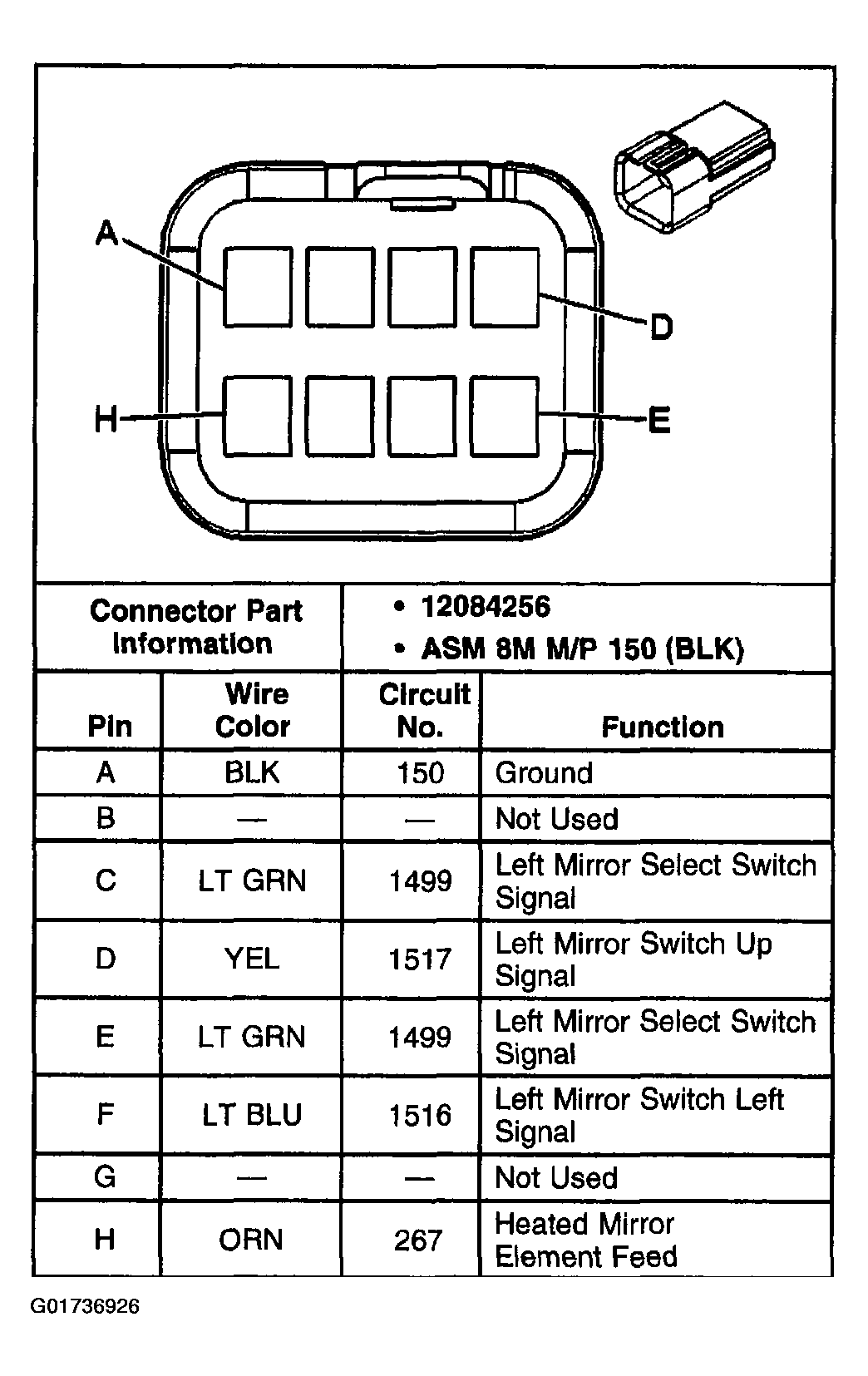

Fig 12: Identifying Outside Rearview Mirror - Driver Connector End View
G01736926Courtesy of GENERAL MOTORS CORP.

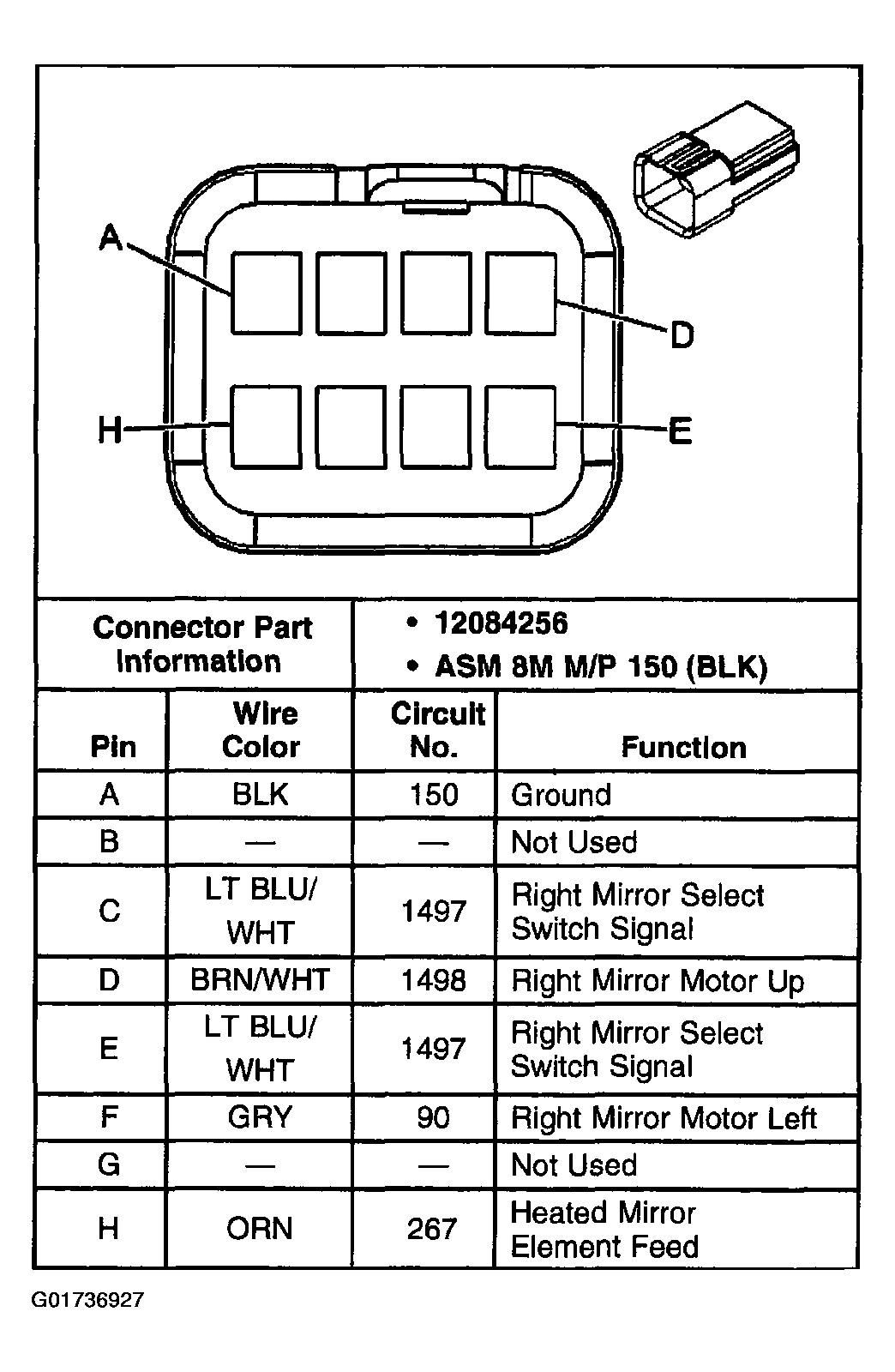

Fig 13: Identifying Outside Rearview Mirror - Passenger Connector End View
G01736927Courtesy of GENERAL MOTORS CORP.

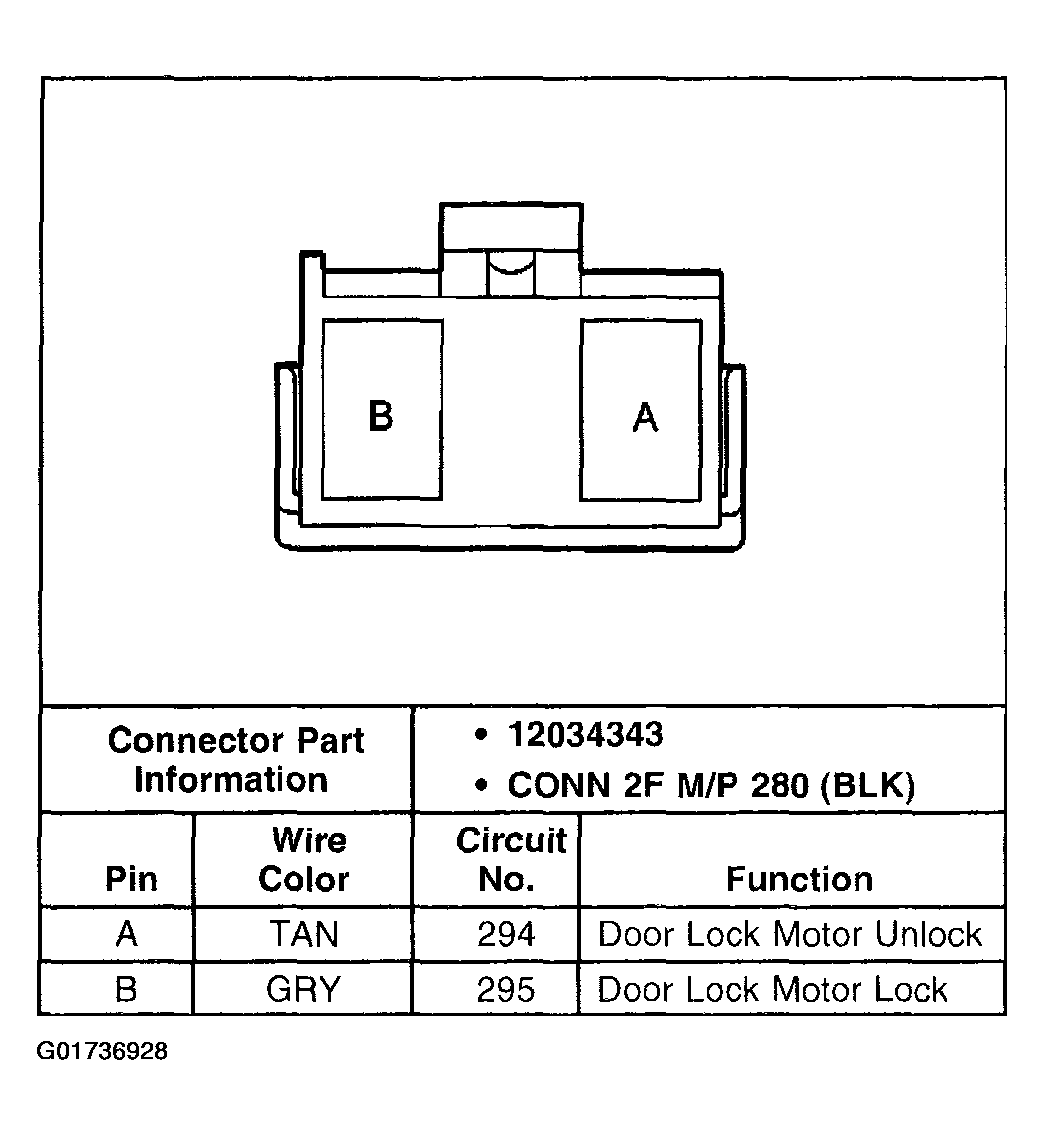

Fig 14: Identifying Side Door Contact Connector End View
G01736928Courtesy of GENERAL MOTORS CORP.

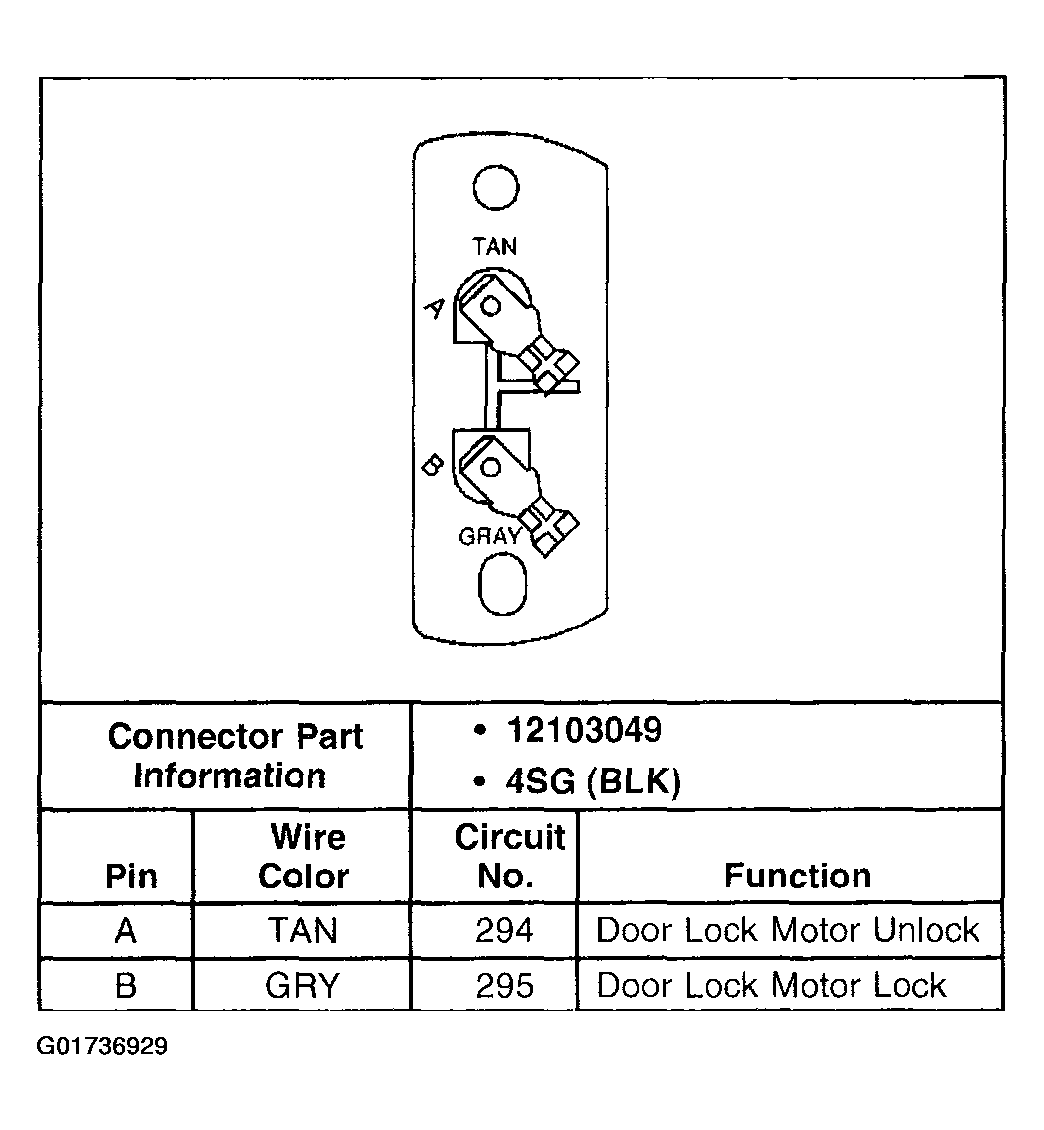

Fig 15: Identifying Side Door Contact Plunger Connector End View
G01736929Courtesy of GENERAL MOTORS CORP.

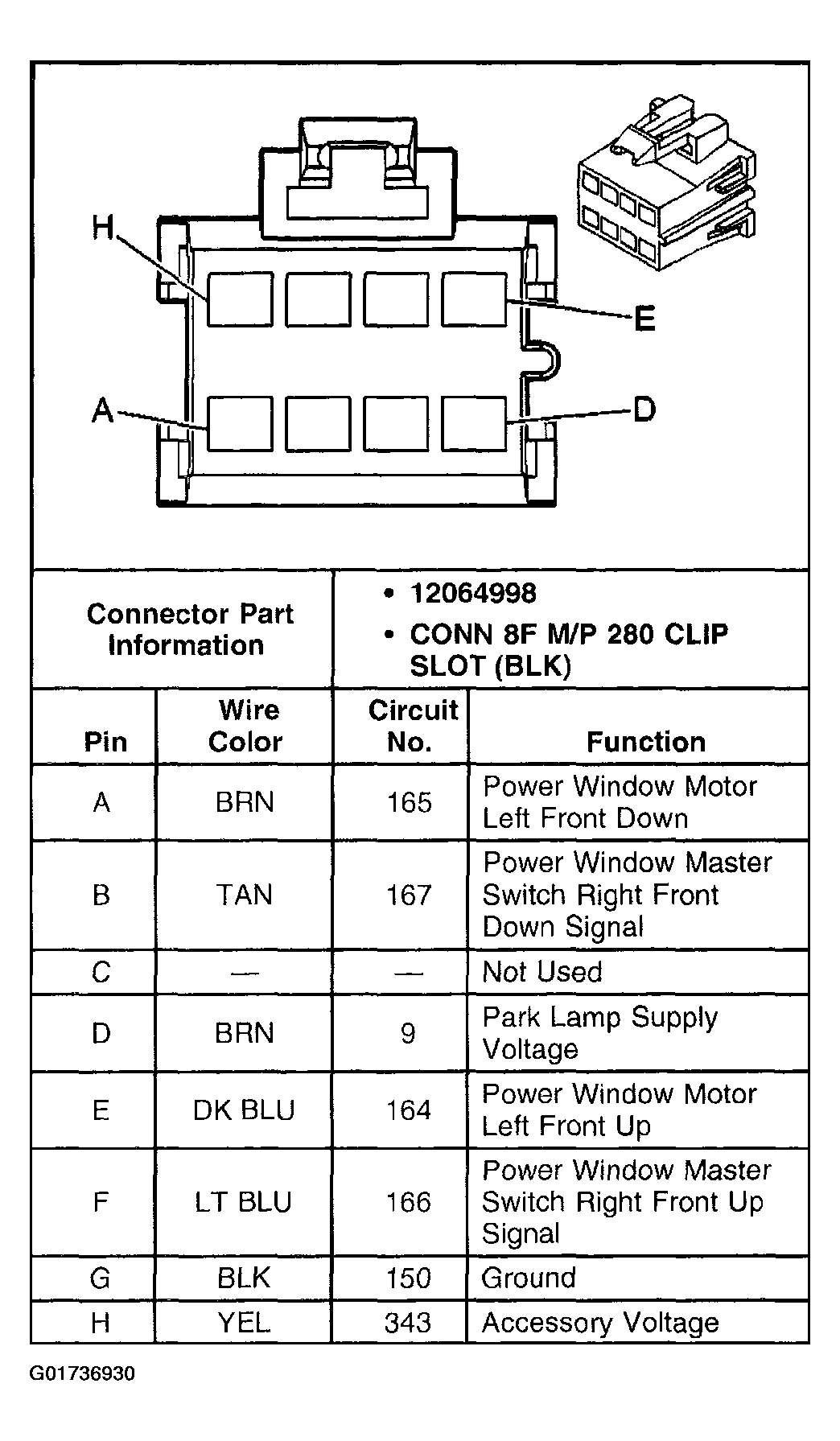

Fig 16: Identifying Window Switch - Driver Connector End View
G01736930Courtesy of GENERAL MOTORS CORP.

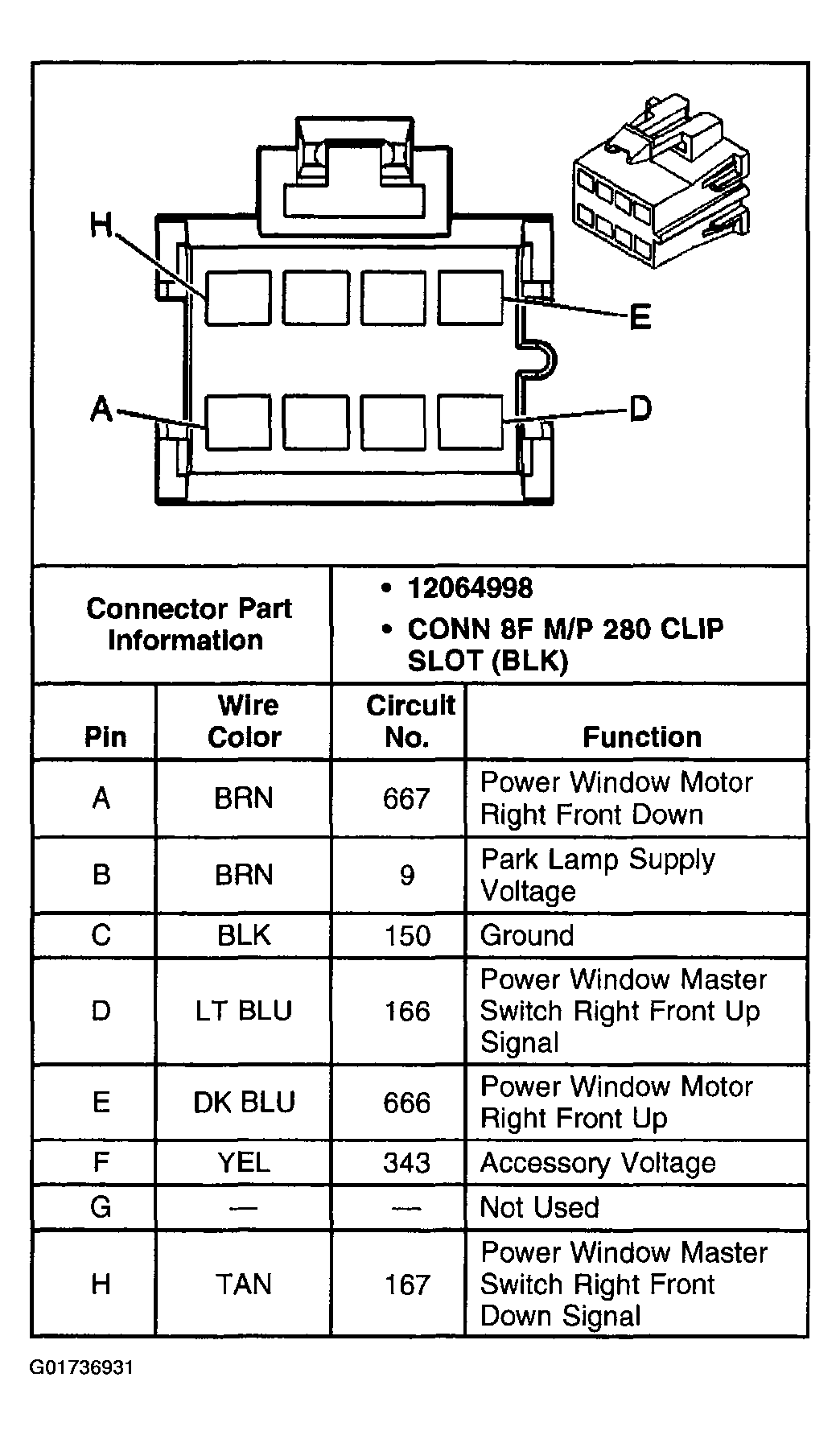

Fig 17: Identifying Window Switch - Front Passenger Connector End View
G01736931Courtesy of GENERAL MOTORS CORP.

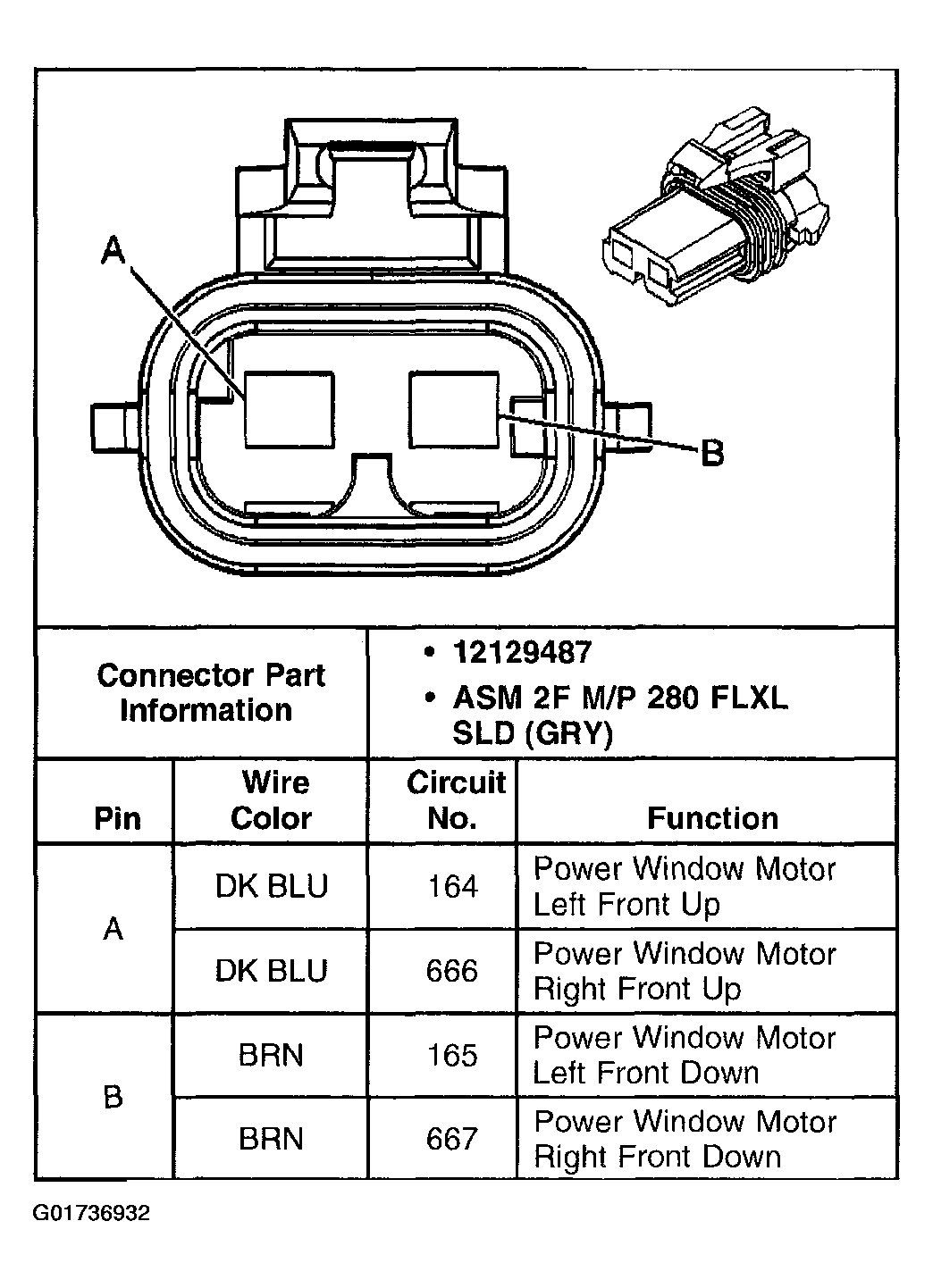

Fig 18: Identifying Window Motor - Driver & Front Passenger Connector End View
G01736932Courtesy of GENERAL MOTORS CORP.
