Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

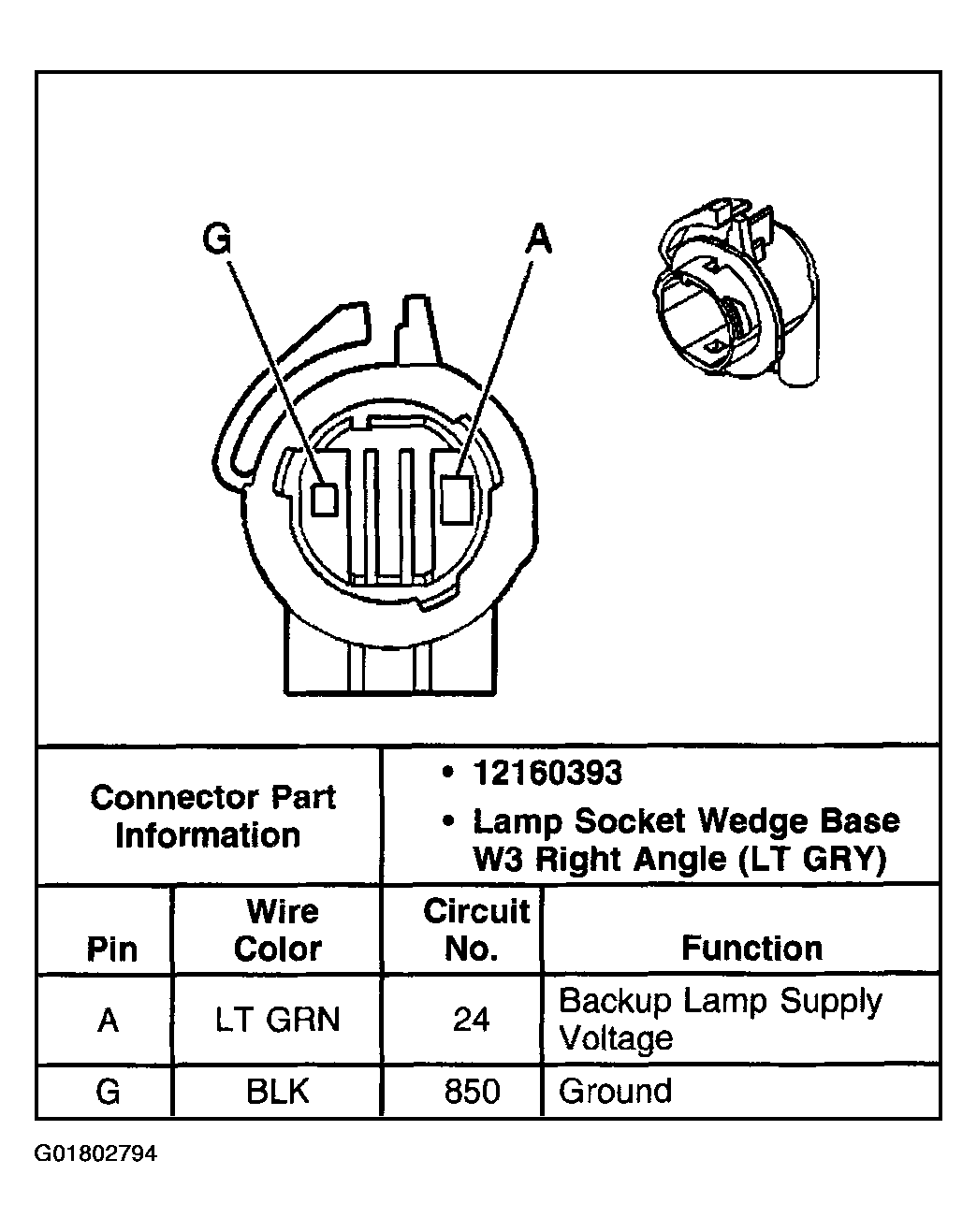

Fig 1: Backup Lamp - Left

G01802794

Courtesy of GENERAL MOTORS CORP.

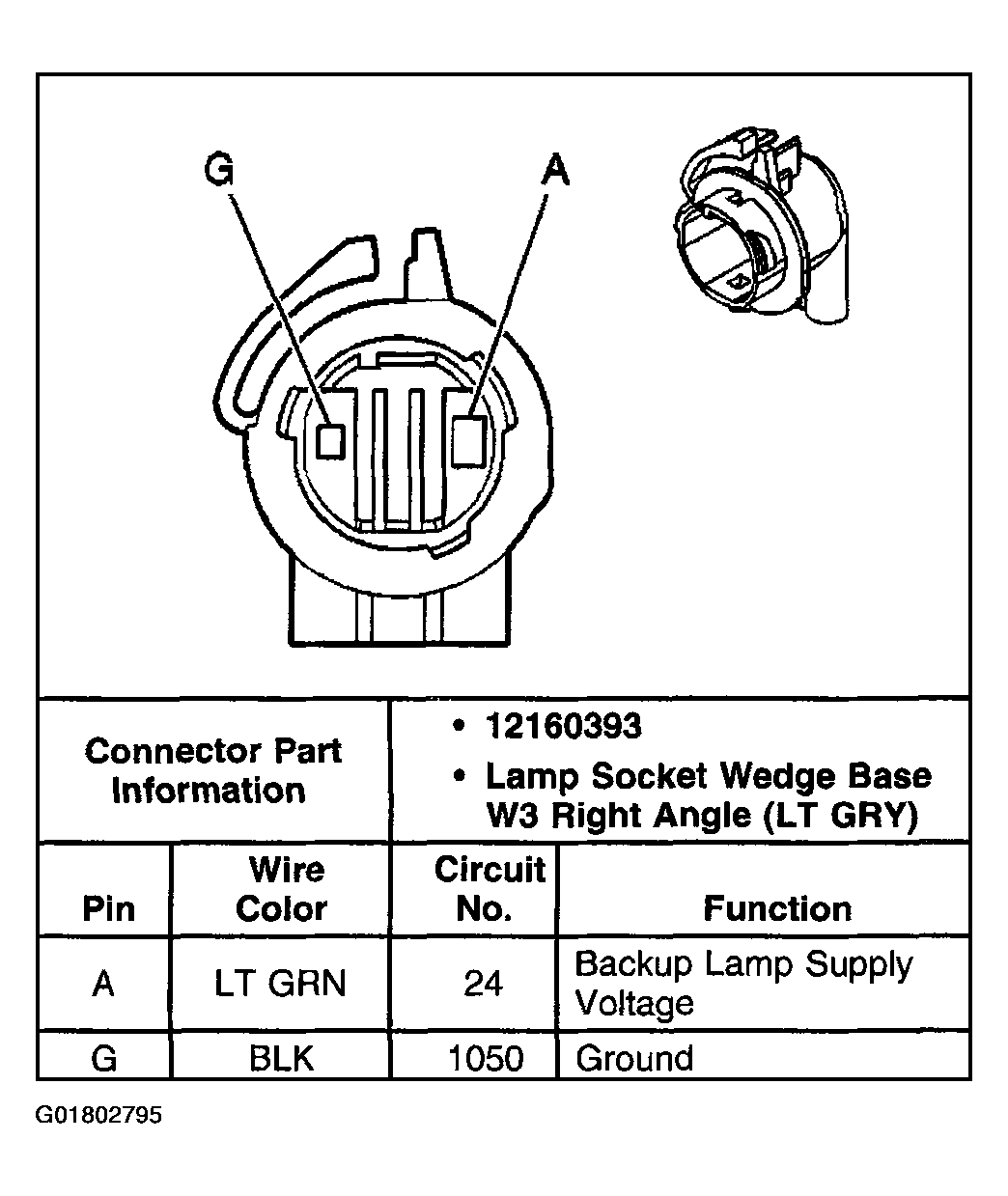

Fig 2: Backup Lamp - Right

G01802795

Courtesy of GENERAL MOTORS CORP.

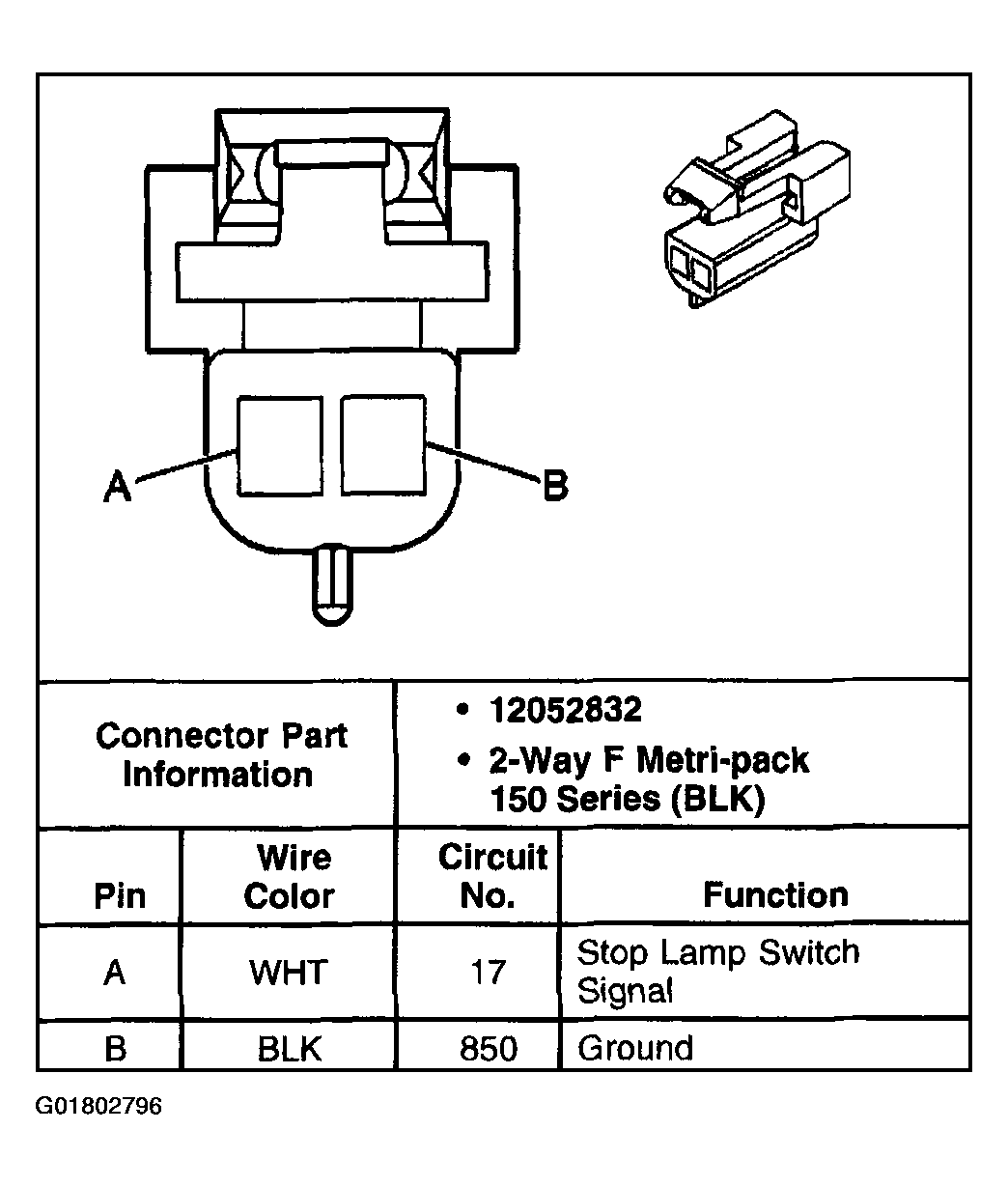

Fig 3: Center High Mounted Stop Lamp (CHMSL)

G01802796

Courtesy of GENERAL MOTORS CORP.

Fig 4: Courtesy Lamp - Left Front Door

G01802797

Courtesy of GENERAL MOTORS CORP.

Fig 5: Courtesy Lamp - Left Rear Door

G01802798

Courtesy of GENERAL MOTORS CORP.

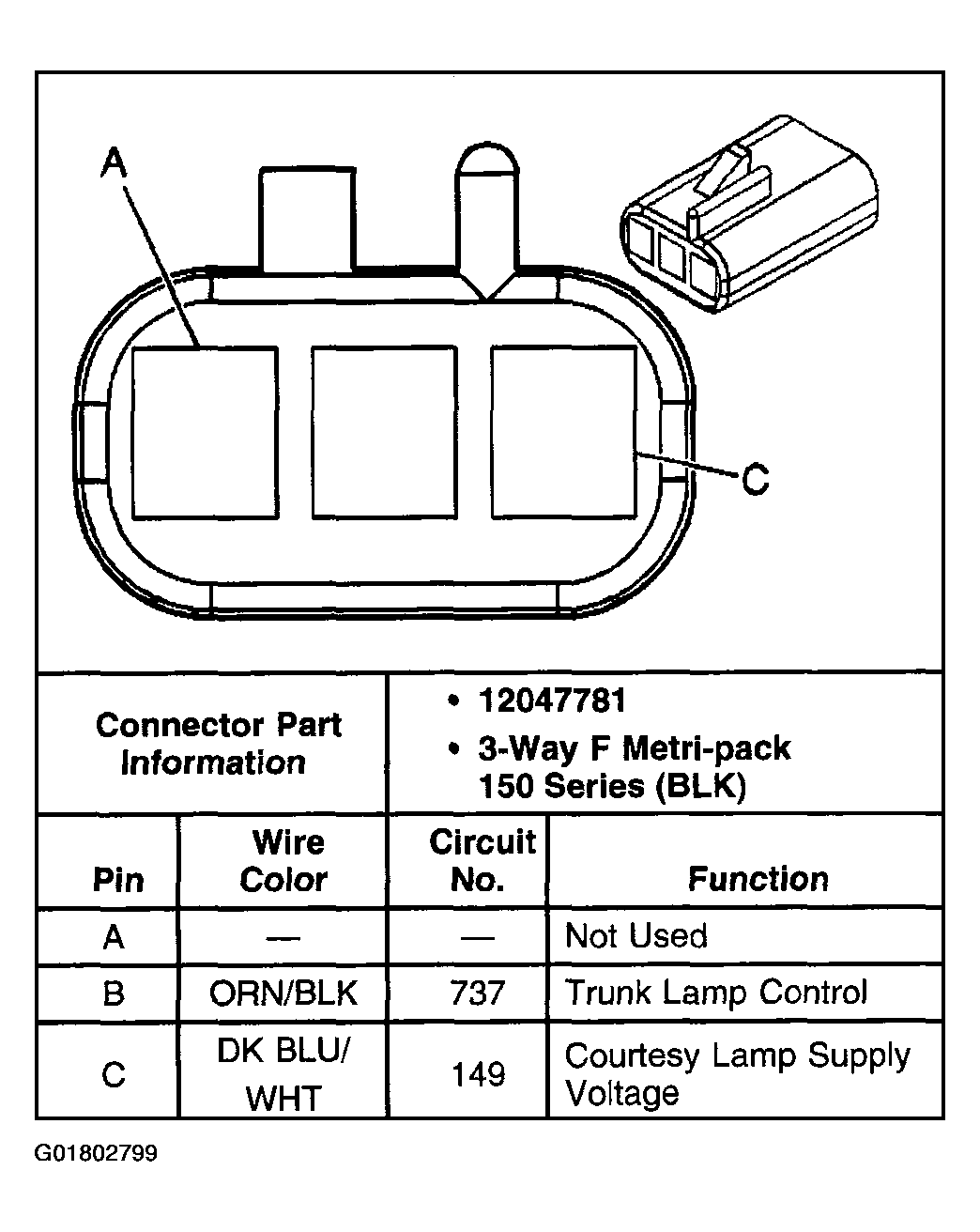

Fig 6: Courtesy Lamp - Rear Compartment

G01802799

Courtesy of GENERAL MOTORS CORP.

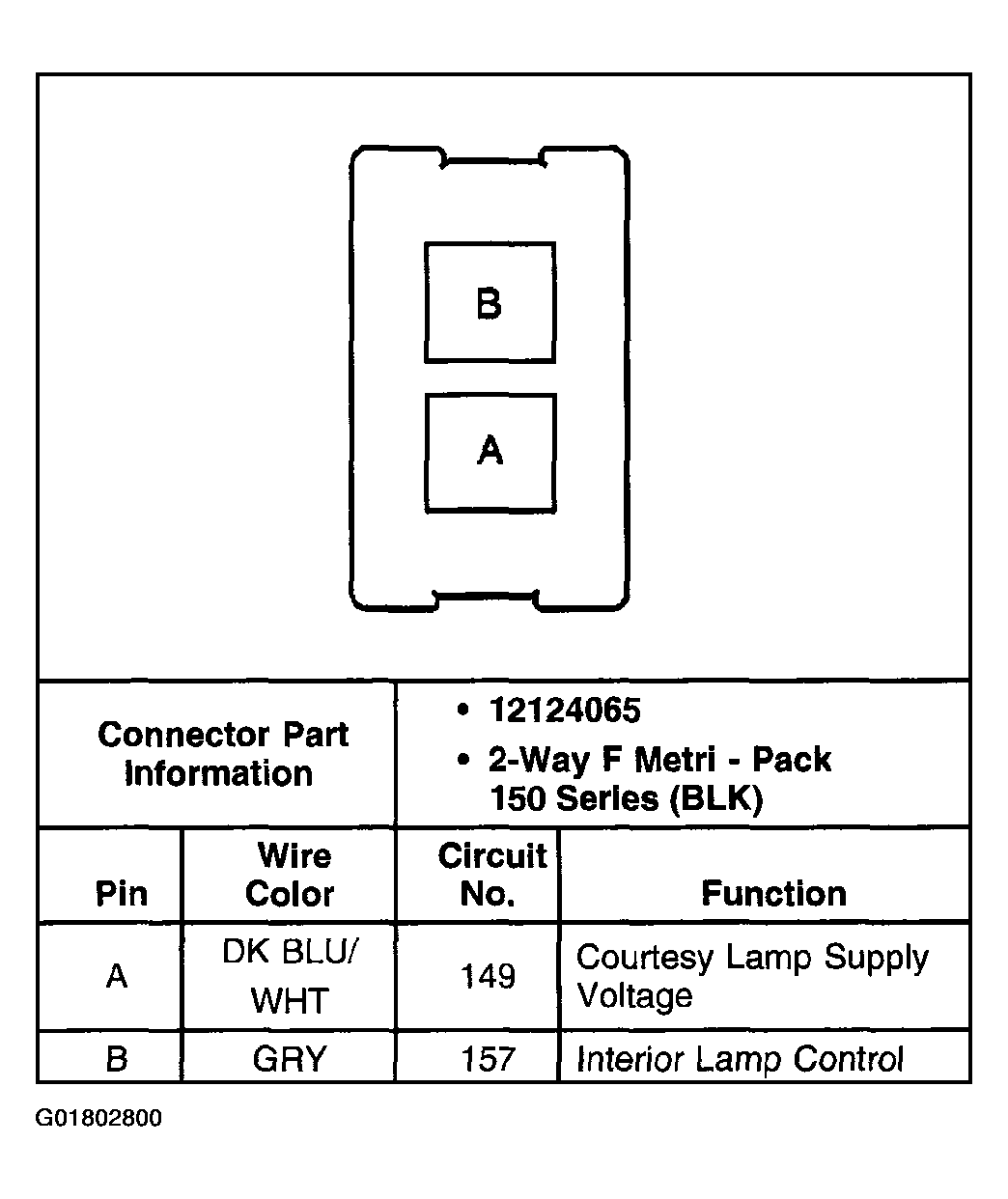

Fig 7: Courtesy Lamp - Right Front Door

G01802800

Courtesy of GENERAL MOTORS CORP.

Fig 8: Courtesy Lamp - Right Rear Door

G01802801

Courtesy of GENERAL MOTORS CORP.

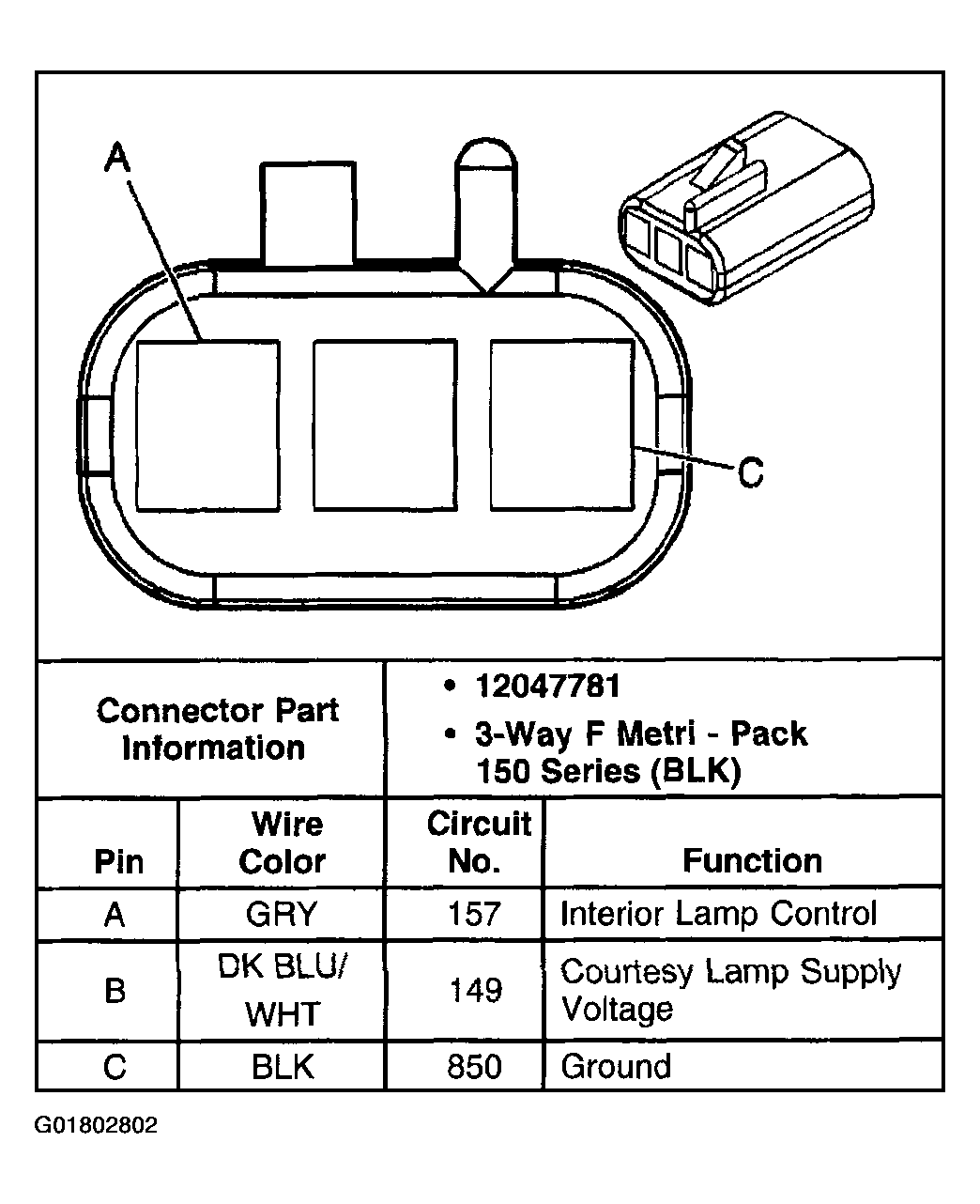

Fig 9: Courtesy/Reading Lamp - LR (W/ RPO Code C96)

G01802802

Courtesy of GENERAL MOTORS CORP.

Fig 10: Courtesy/Reading Lamp - RR (W/ RPO Code C96)

G01802803

Courtesy of GENERAL MOTORS CORP.

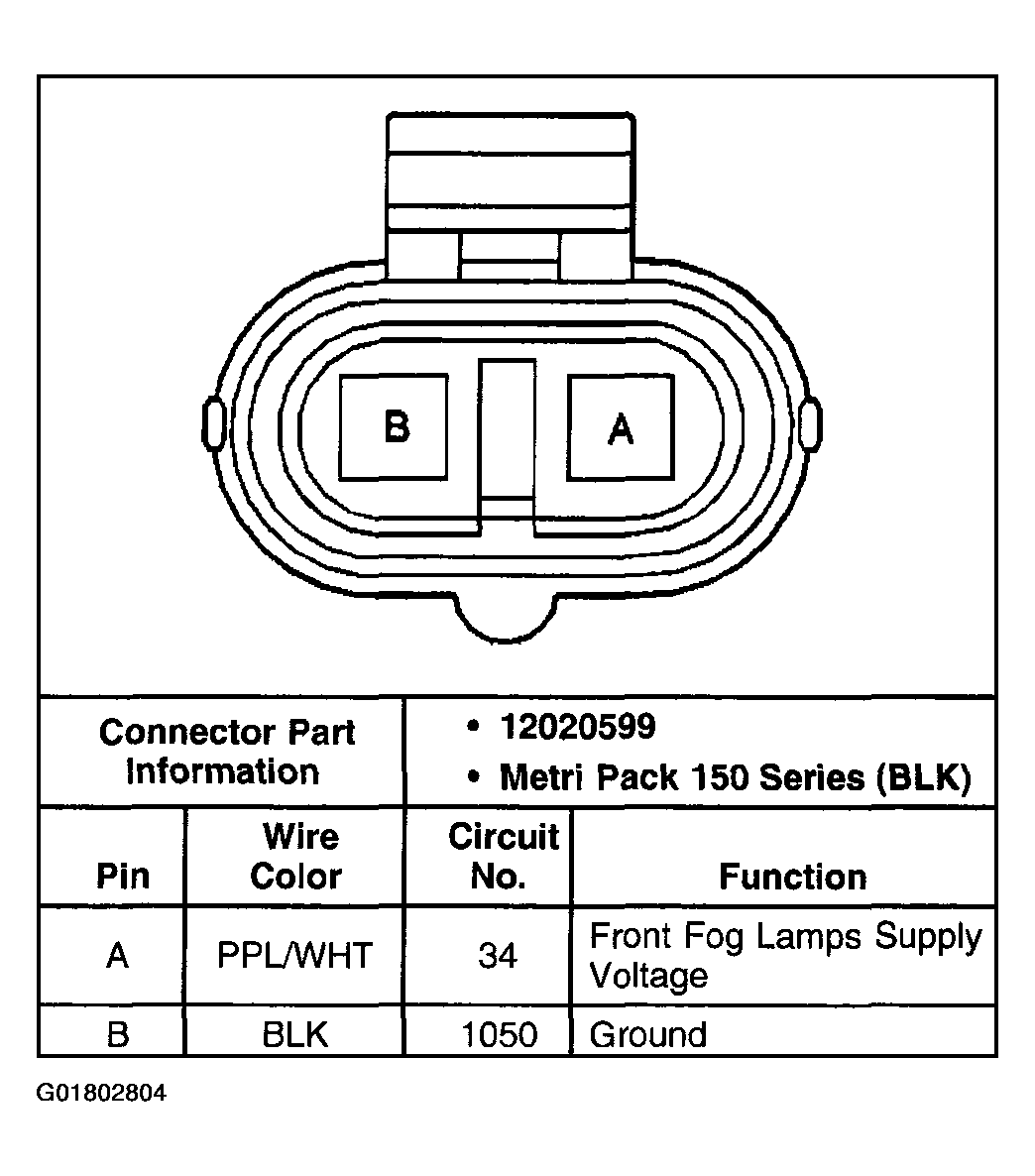

Fig 11: Fog Lamp - LF

G01802804

Courtesy of GENERAL MOTORS CORP.

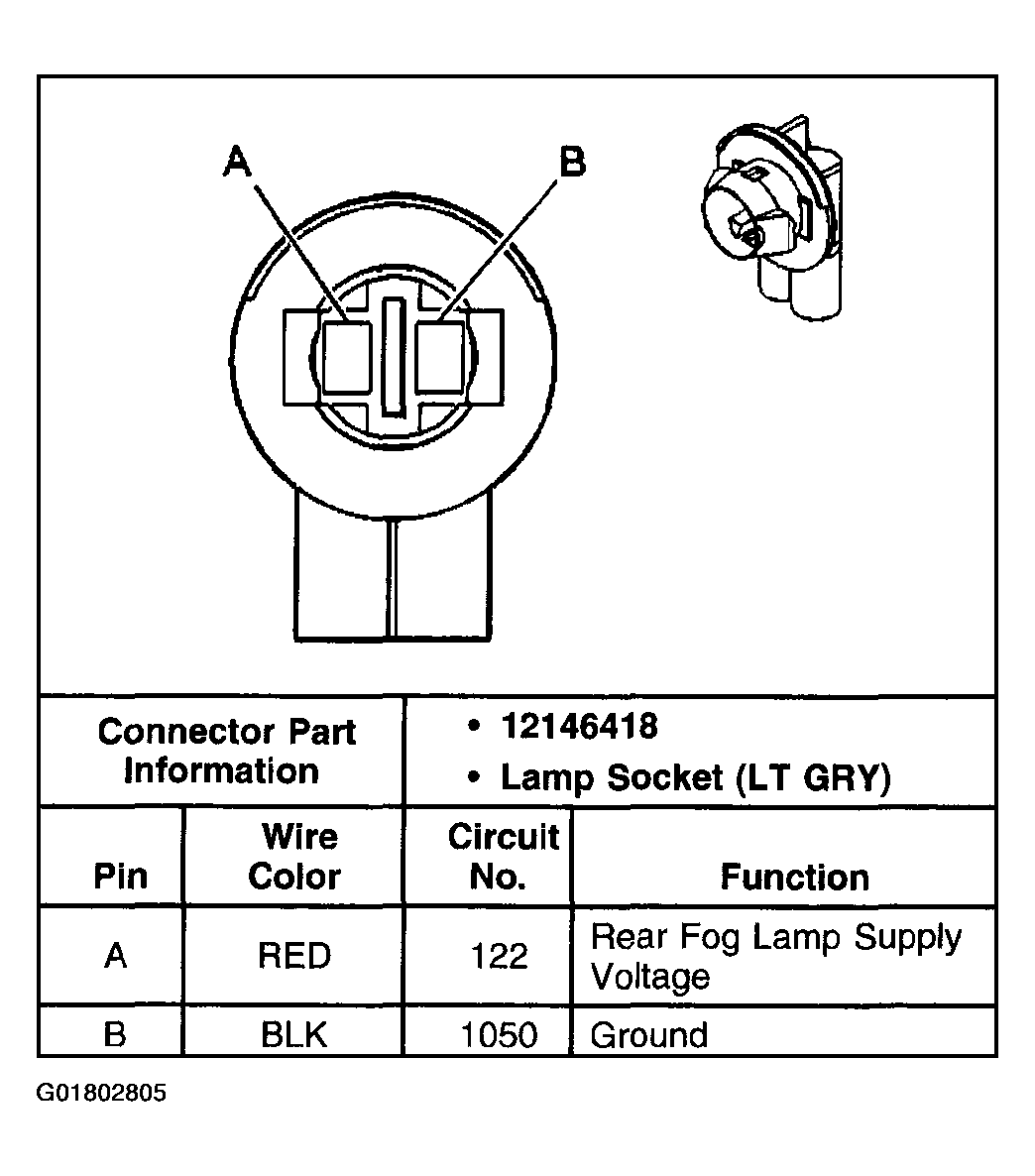

Fig 12: Fog Lamp - LR

G01802805

Courtesy of GENERAL MOTORS CORP.

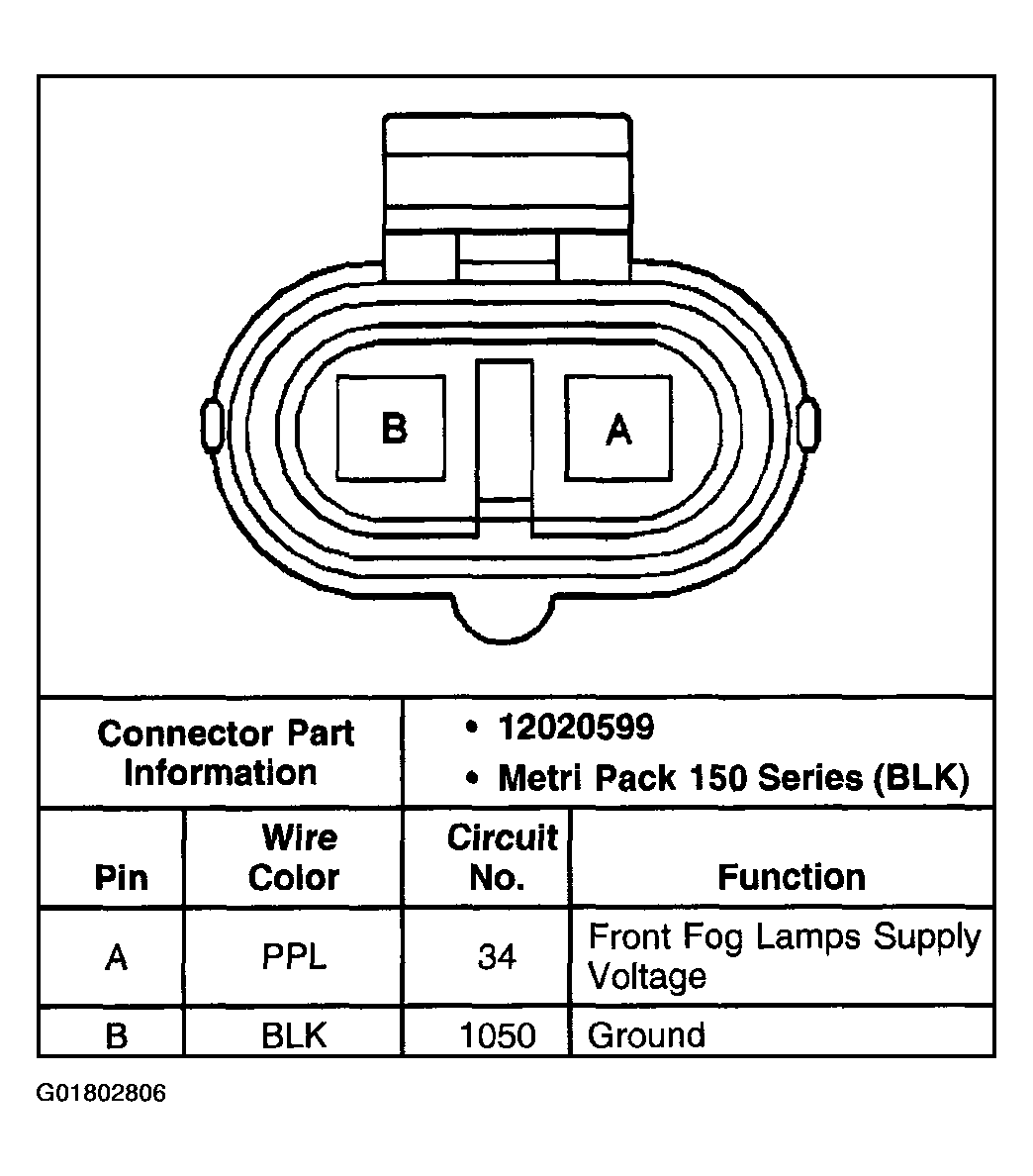

Fig 13: Fog Lamp - RF

G01802806

Courtesy of GENERAL MOTORS CORP.

Fig 14: Fog Lamp - RR

G01802807

Courtesy of GENERAL MOTORS CORP.

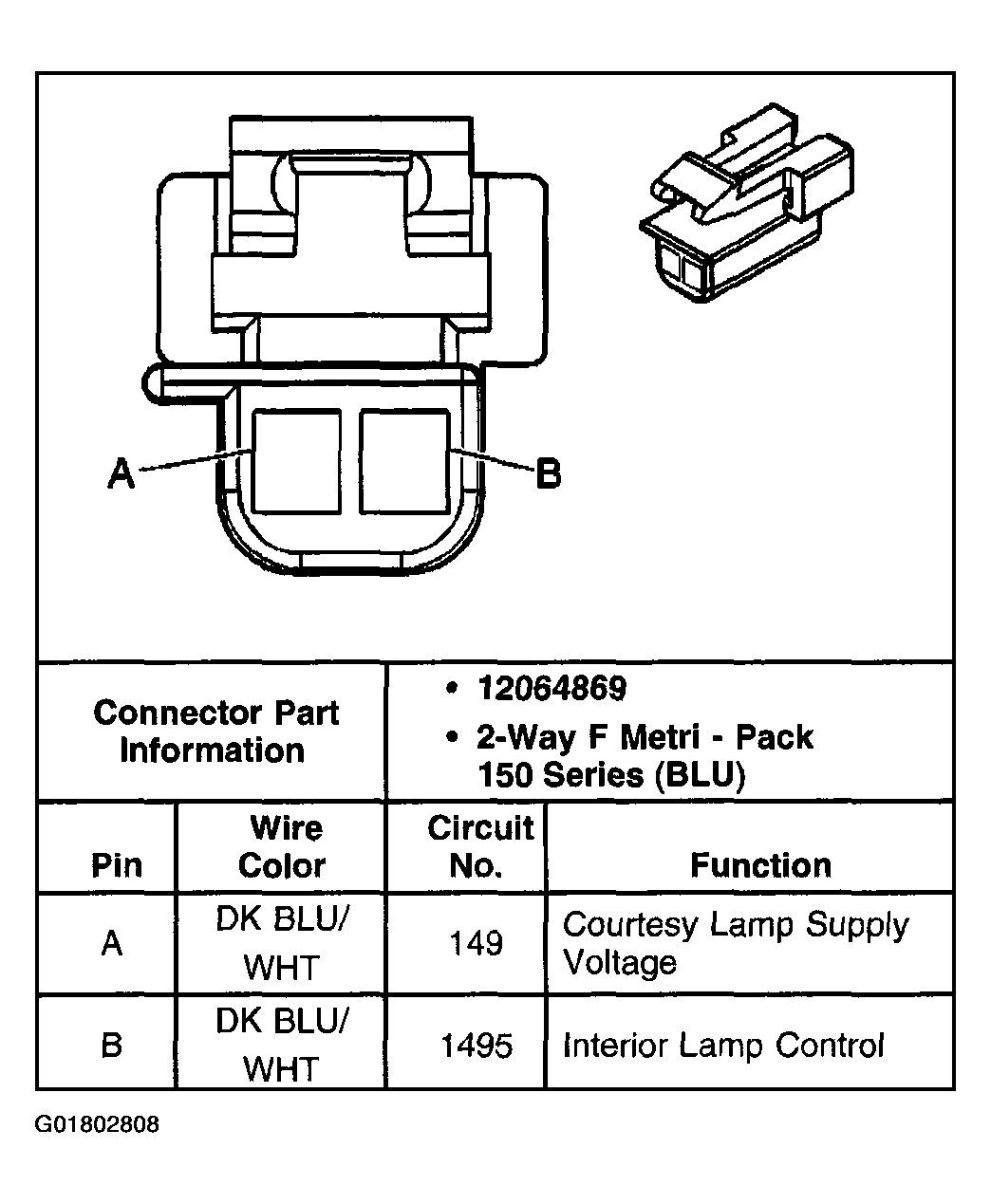

Fig 15: Footwell Courtesy Lamp - Left

G01802808

Courtesy of GENERAL MOTORS CORP.

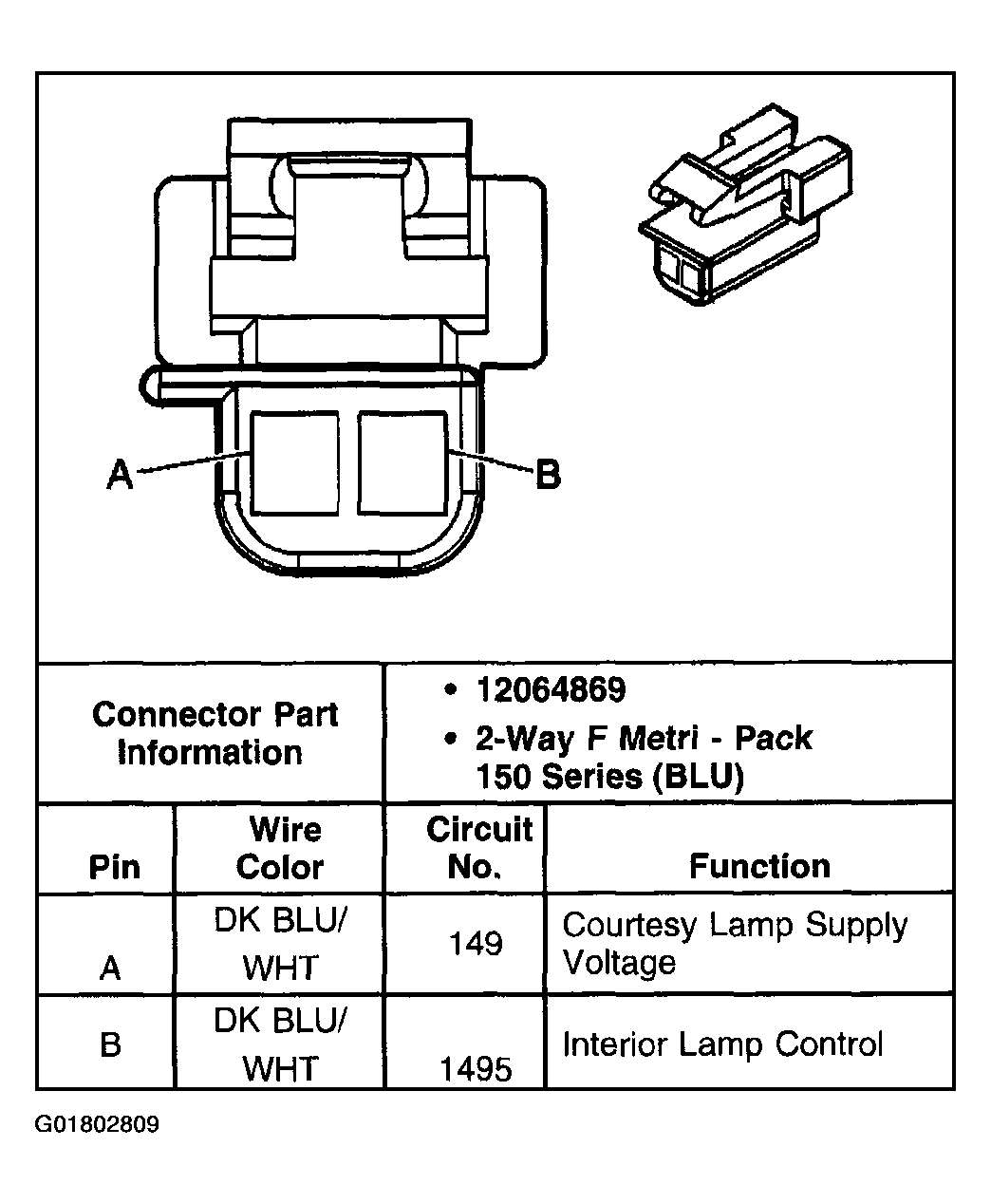

Fig 16: Footwell Courtesy Lamp - Right

G01802809

Courtesy of GENERAL MOTORS CORP.

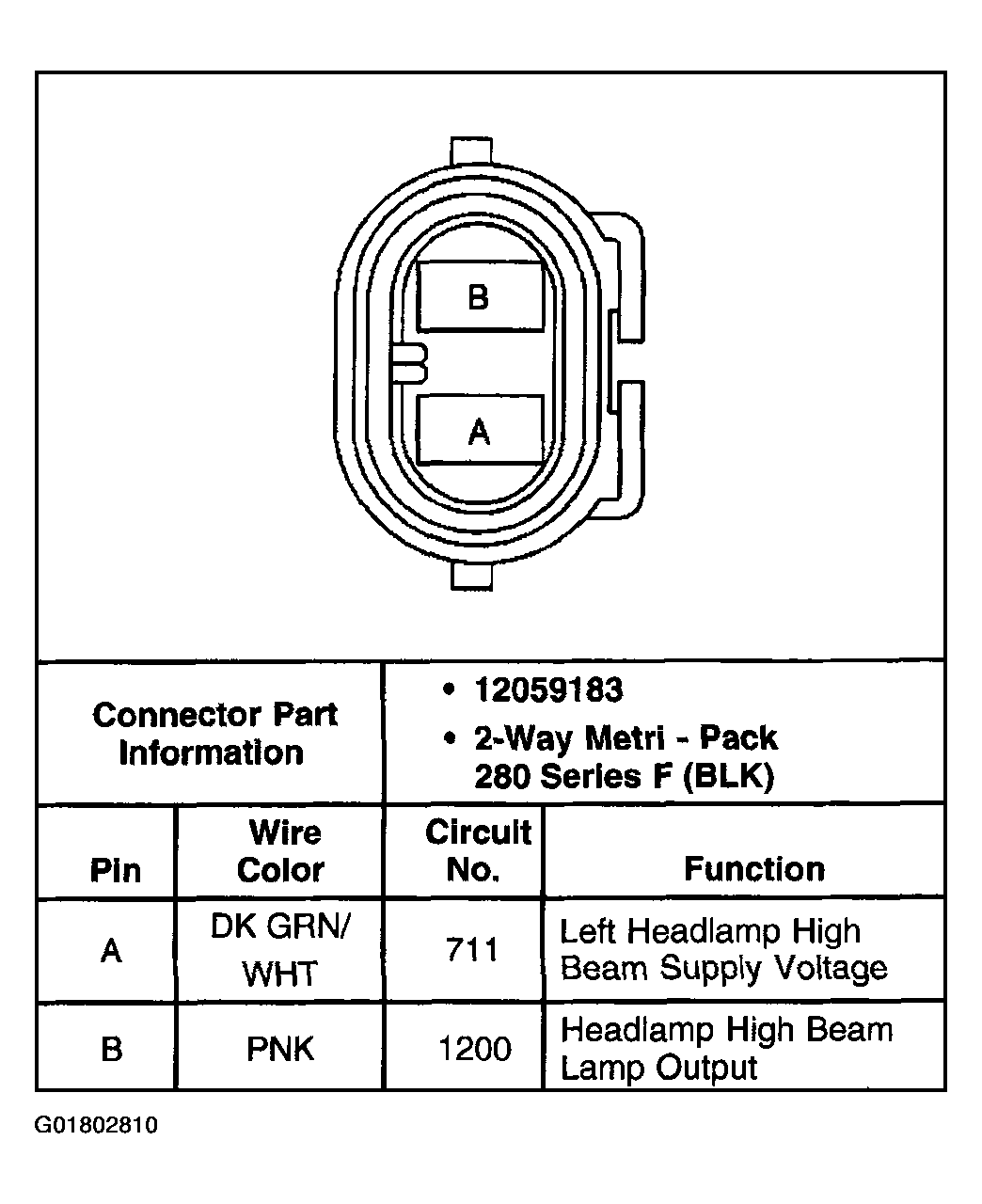

Fig 17: Headlamp - High Beam - Left

G01802810

Courtesy of GENERAL MOTORS CORP.

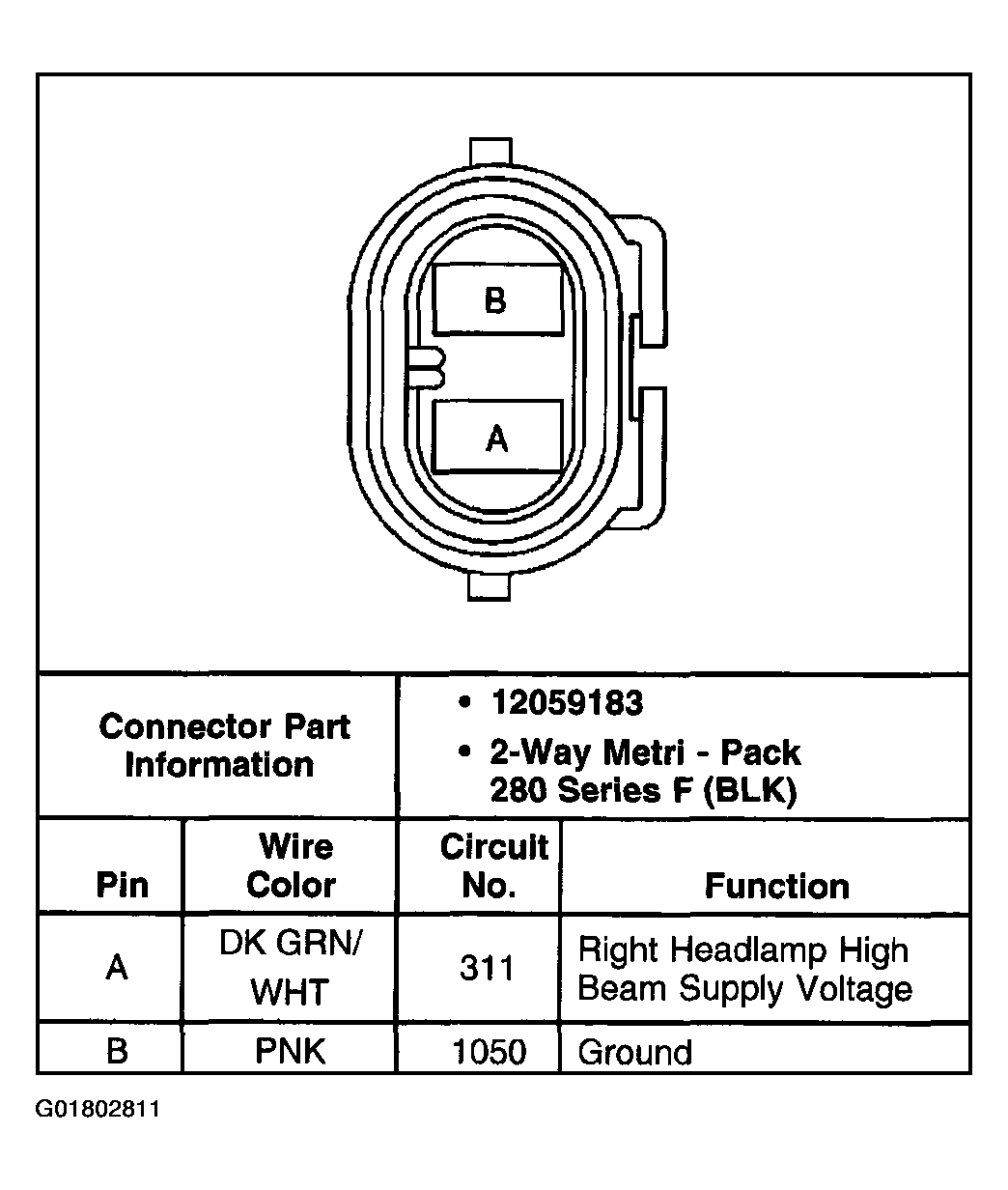

Fig 18: Headlamp - High Beam - Right

G01802811

Courtesy of GENERAL MOTORS CORP.

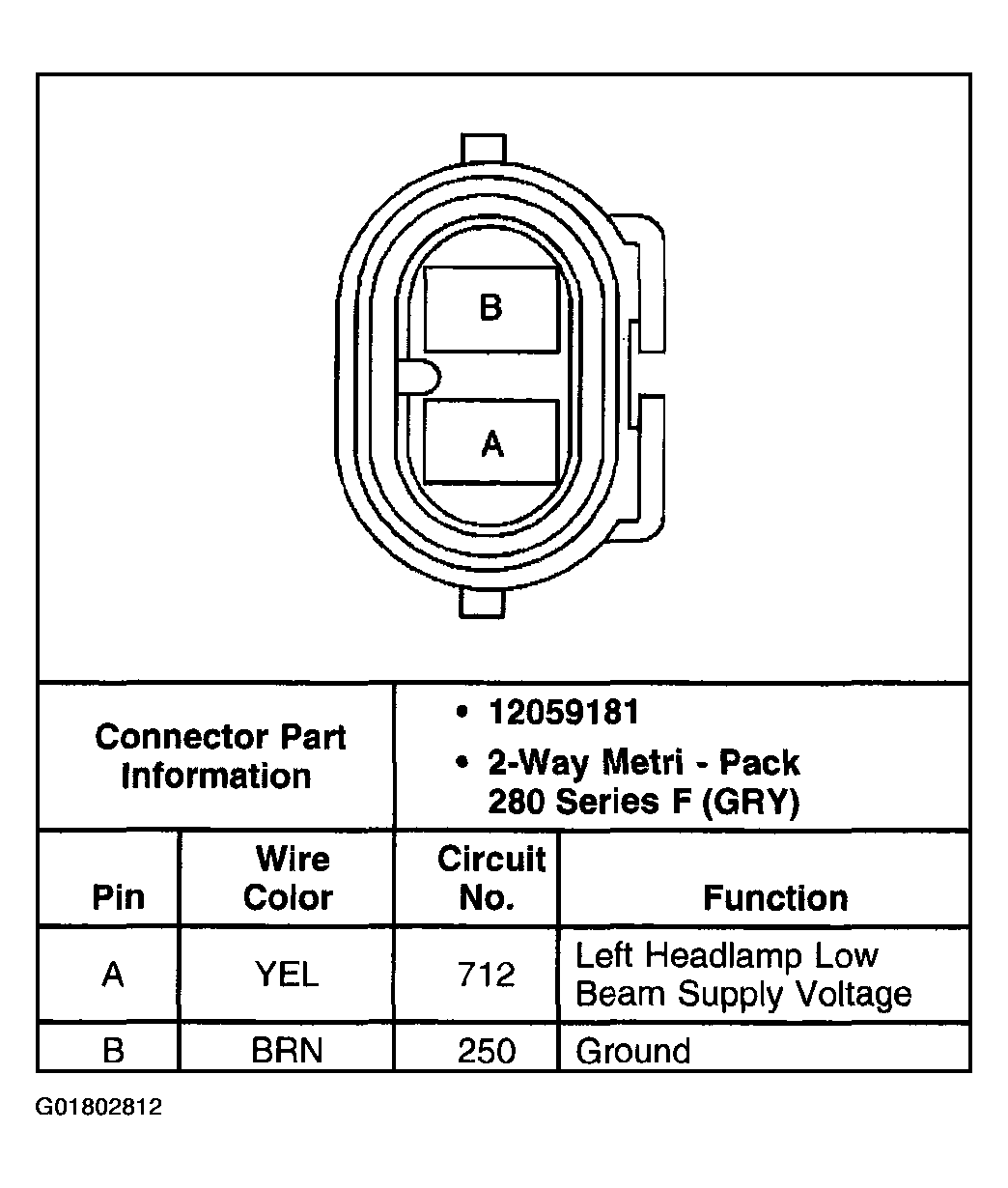

Fig 19: Headlamp - Low Beam, Left

G01802812

Courtesy of GENERAL MOTORS CORP.

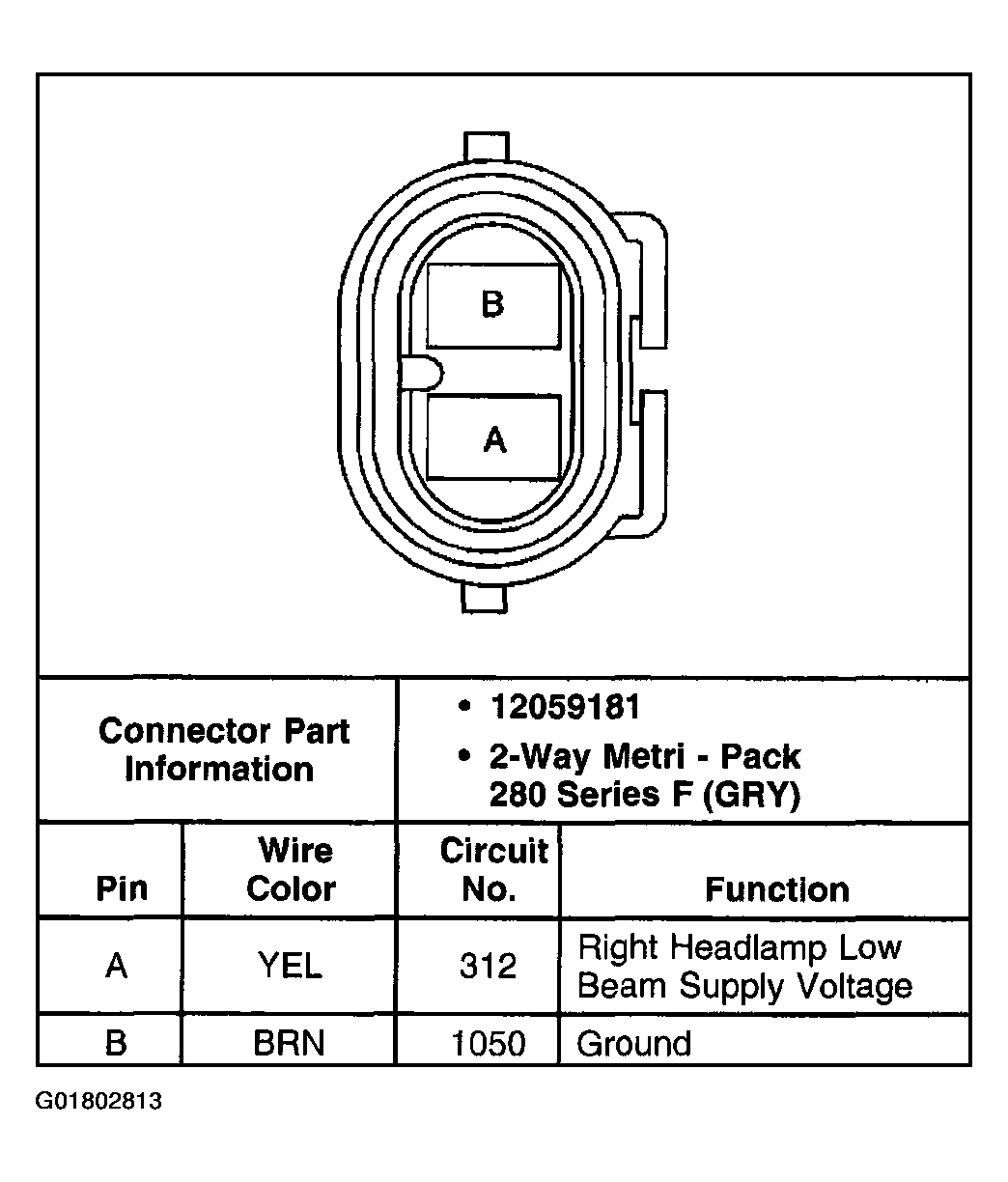

Fig 20: Headlamp - Low Beam, Right

G01802813

Courtesy of GENERAL MOTORS CORP.

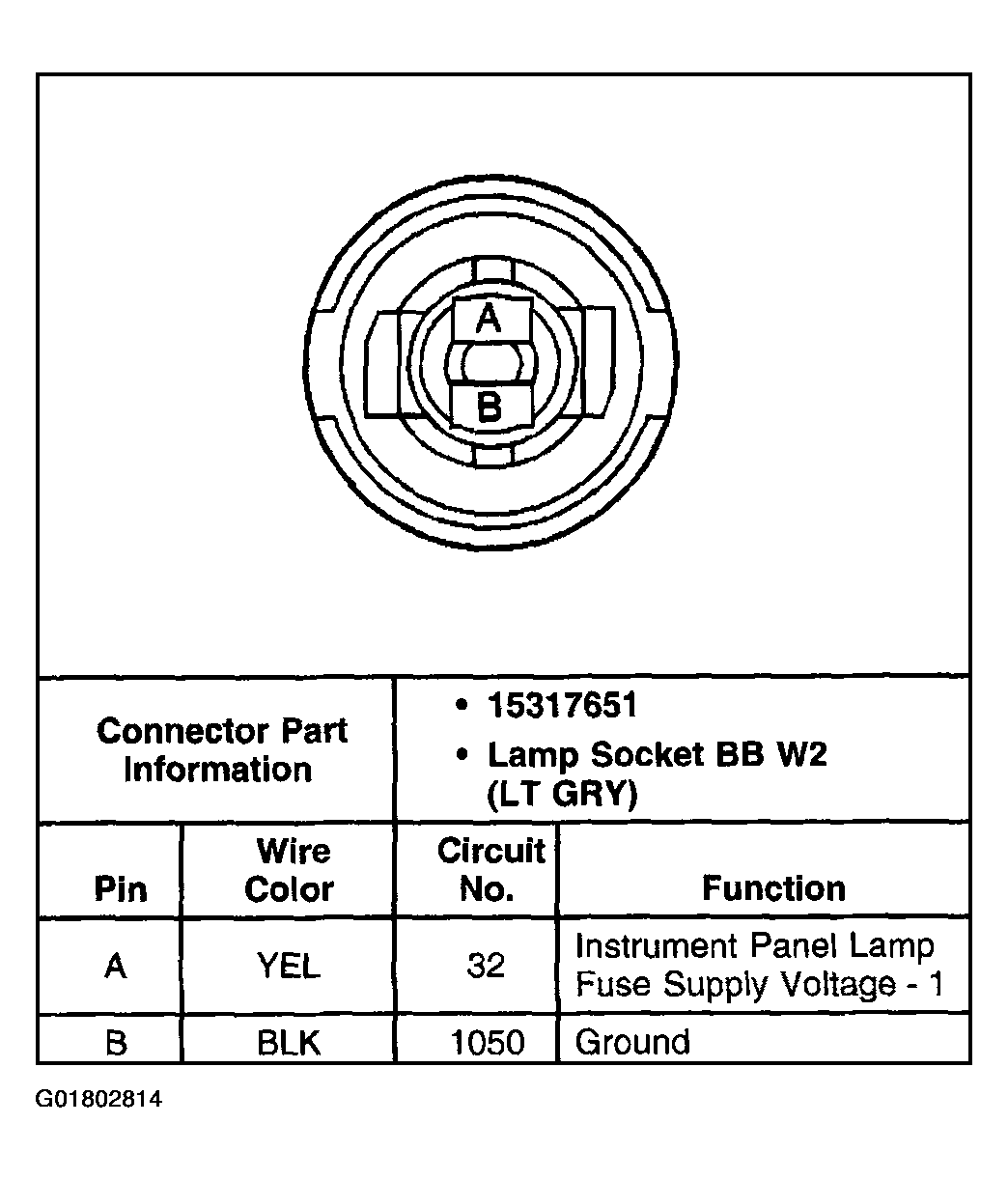

Fig 21: License Lamp

G01802814

Courtesy of GENERAL MOTORS CORP.

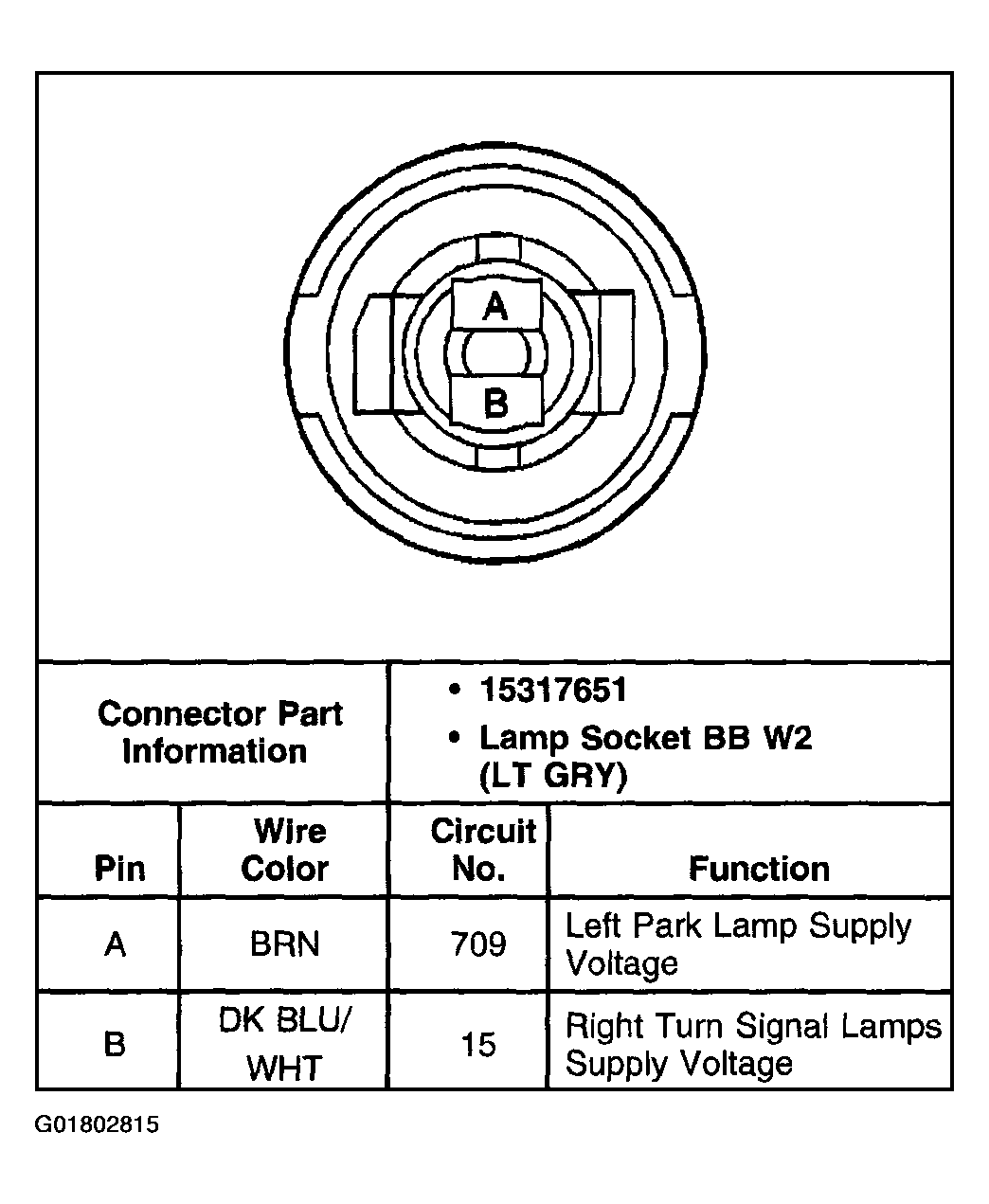

Fig 22: Marker Lamp

G01802815

Courtesy of GENERAL MOTORS CORP.

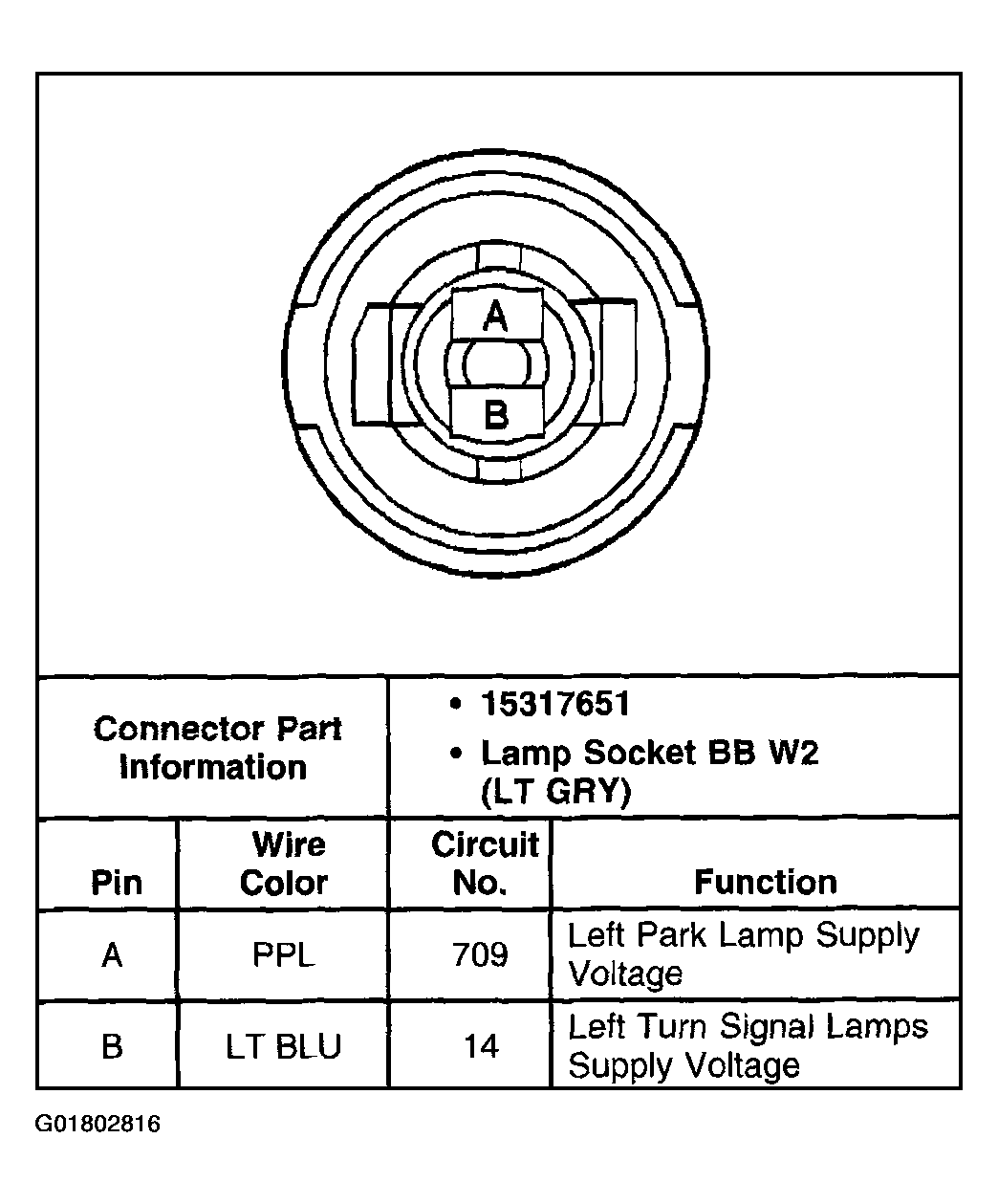

Fig 23: Marker Lamp

G01802816

Courtesy of GENERAL MOTORS CORP.

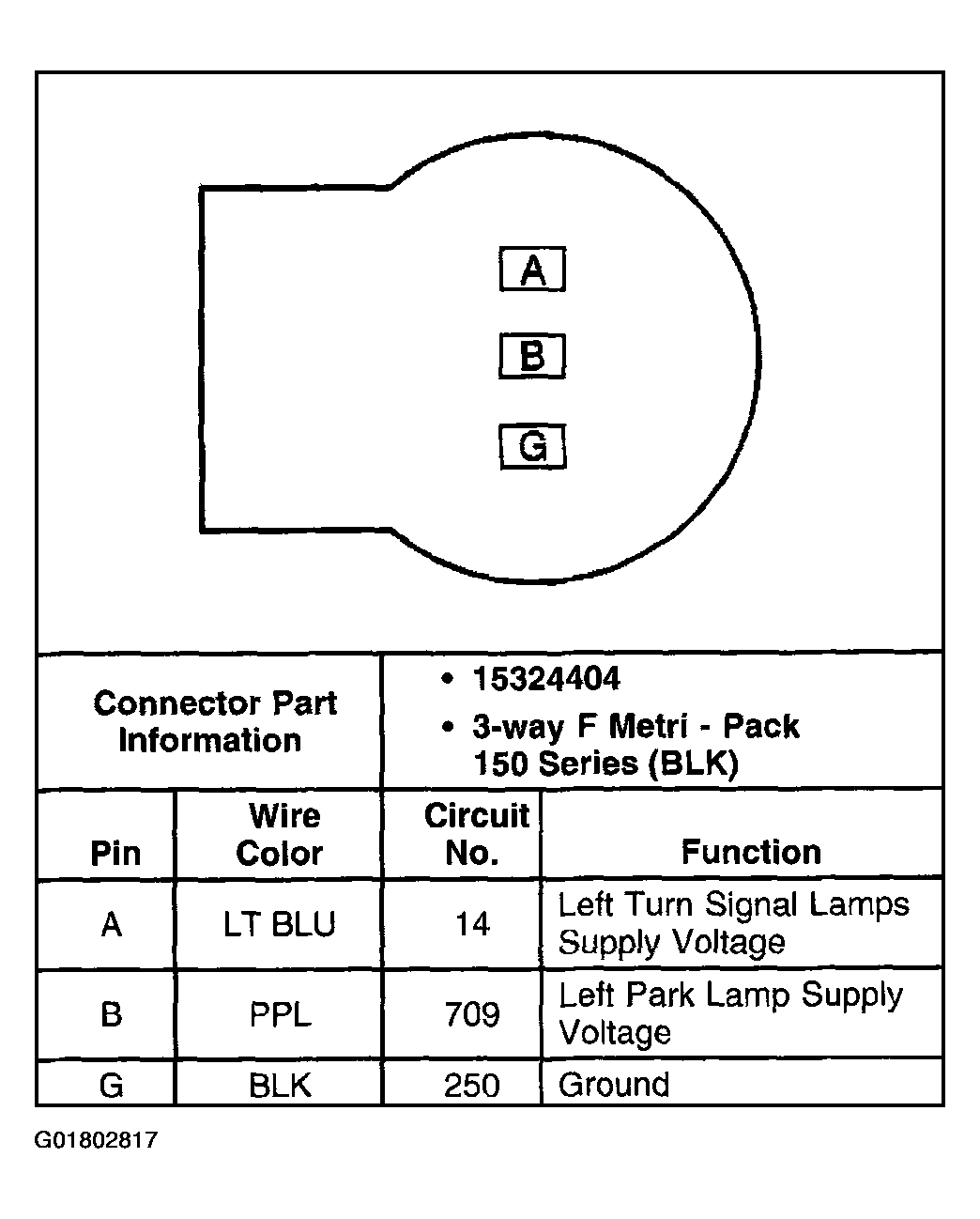

Fig 24: Park/Turn Signal Lamp - LF

G01802817

Courtesy of GENERAL MOTORS CORP.

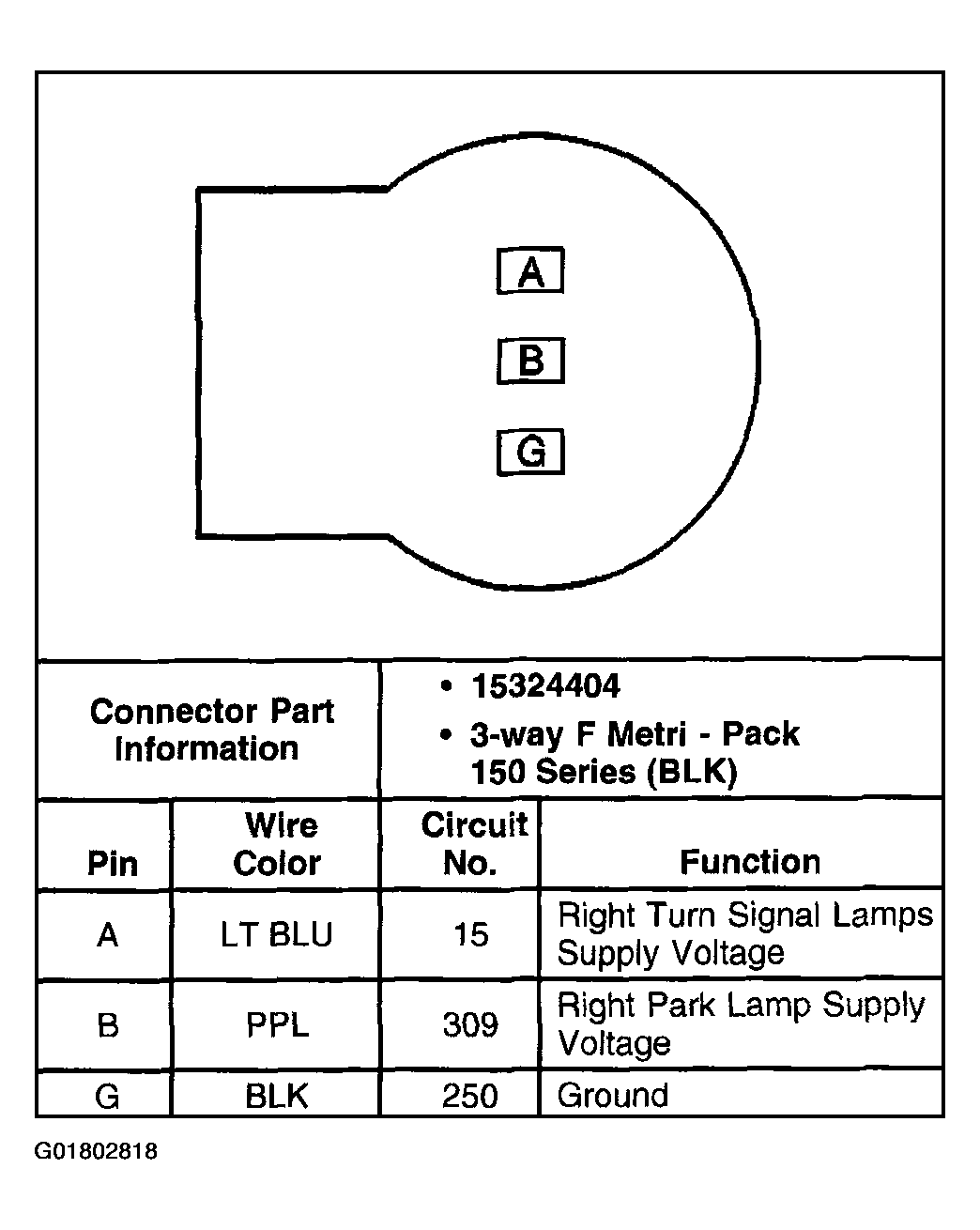

Fig 25: Park/Turn Signal Lamp - RF

G01802818

Courtesy of GENERAL MOTORS CORP.

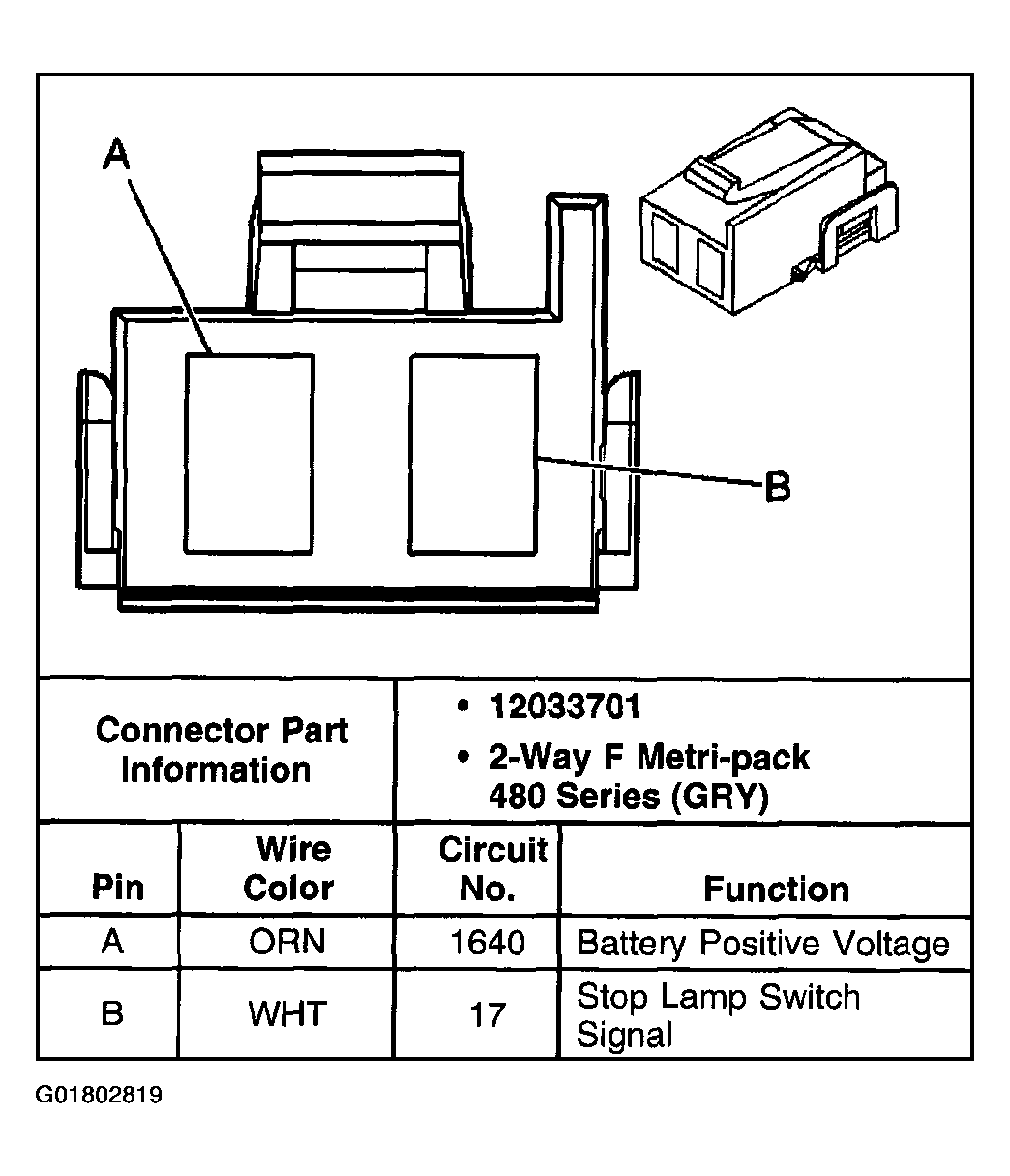

Fig 26: Stop Lamp Switch C1

G01802819

Courtesy of GENERAL MOTORS CORP.

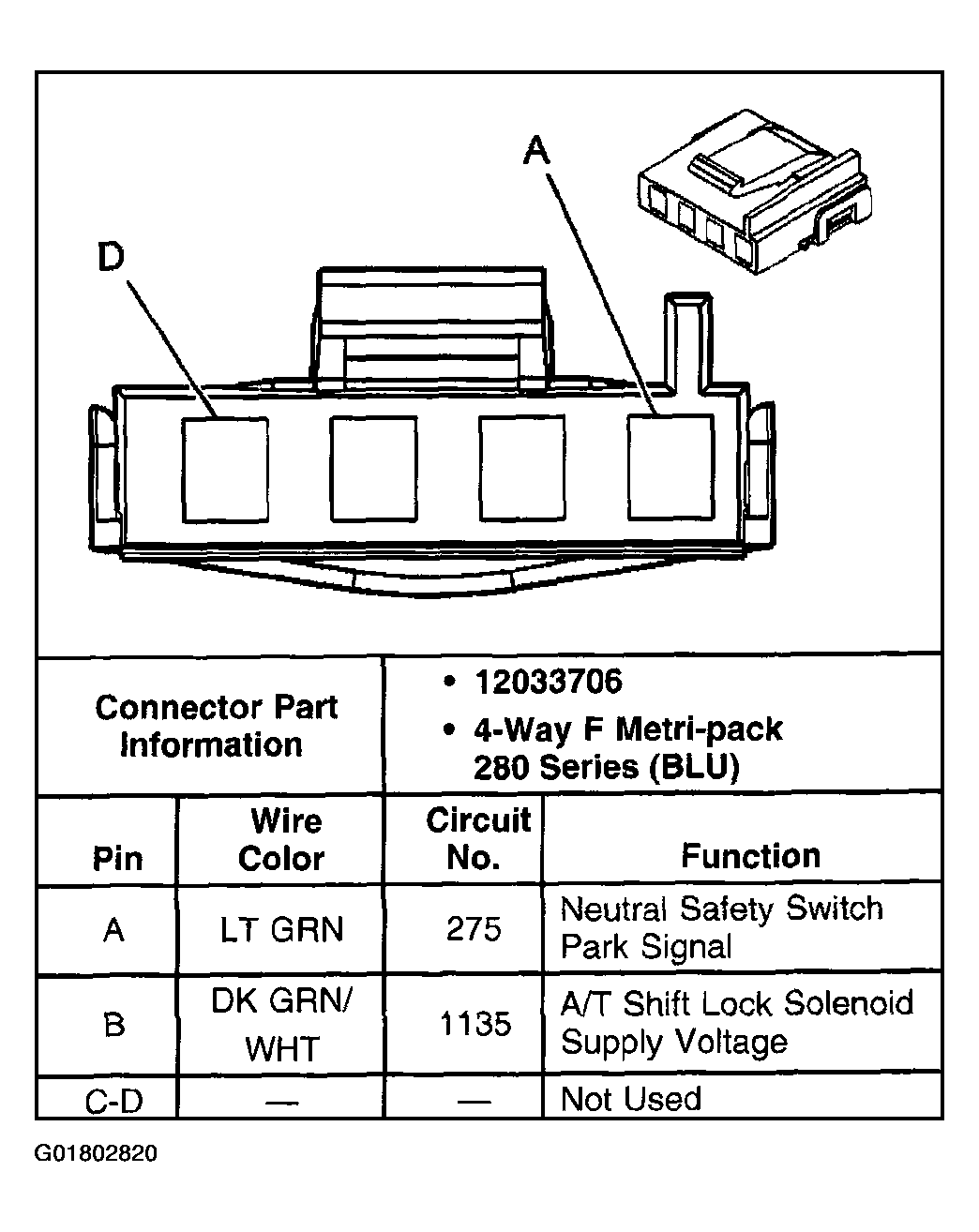

Fig 27: Stop Lamp Switch C2

G01802820

Courtesy of GENERAL MOTORS CORP.

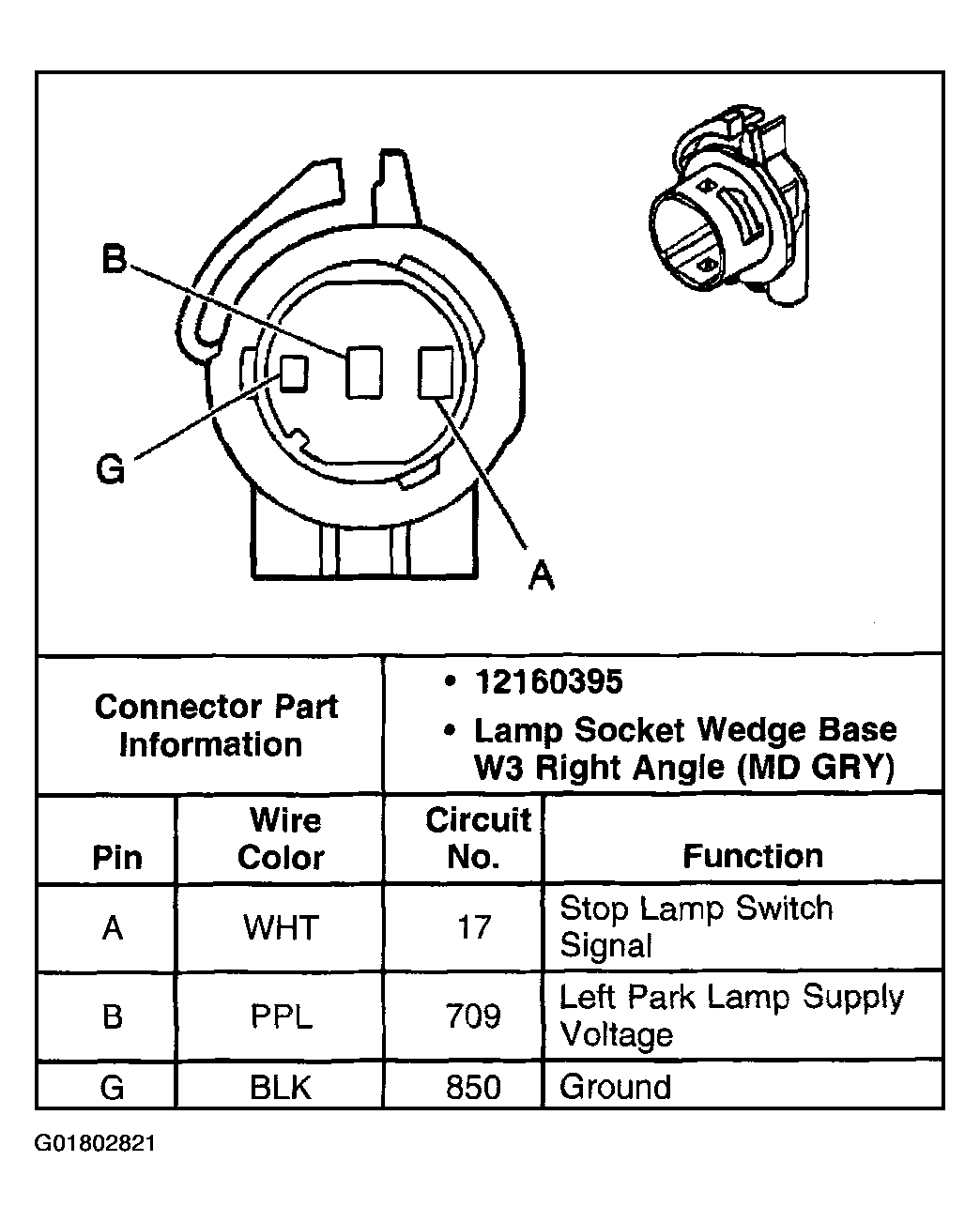

Fig 28: Tail/Stop Lamp - Left

G01802821

Courtesy of GENERAL MOTORS CORP.

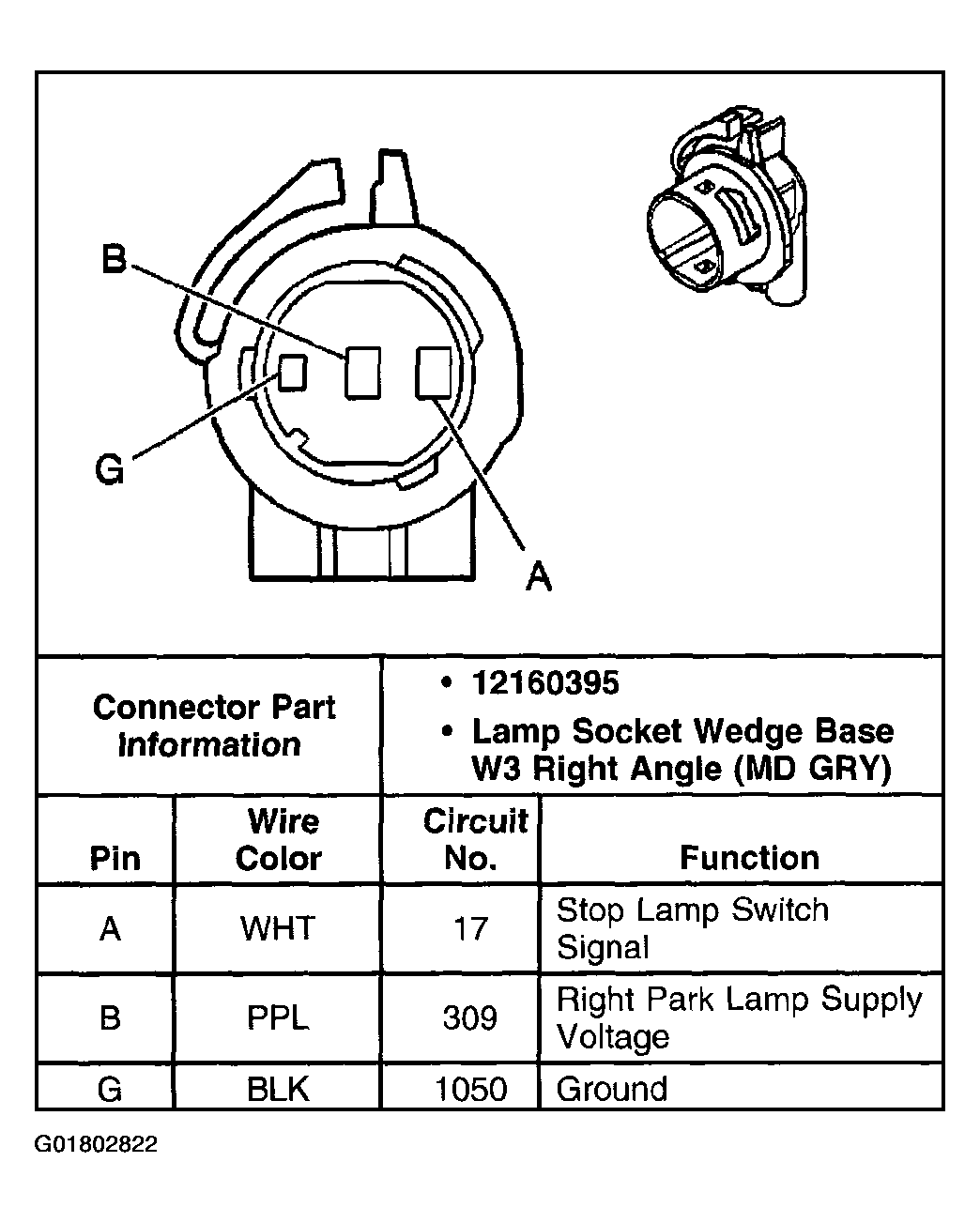

Fig 29: Tail/Stop Lamp - Right

G01802822

Courtesy of GENERAL MOTORS CORP.

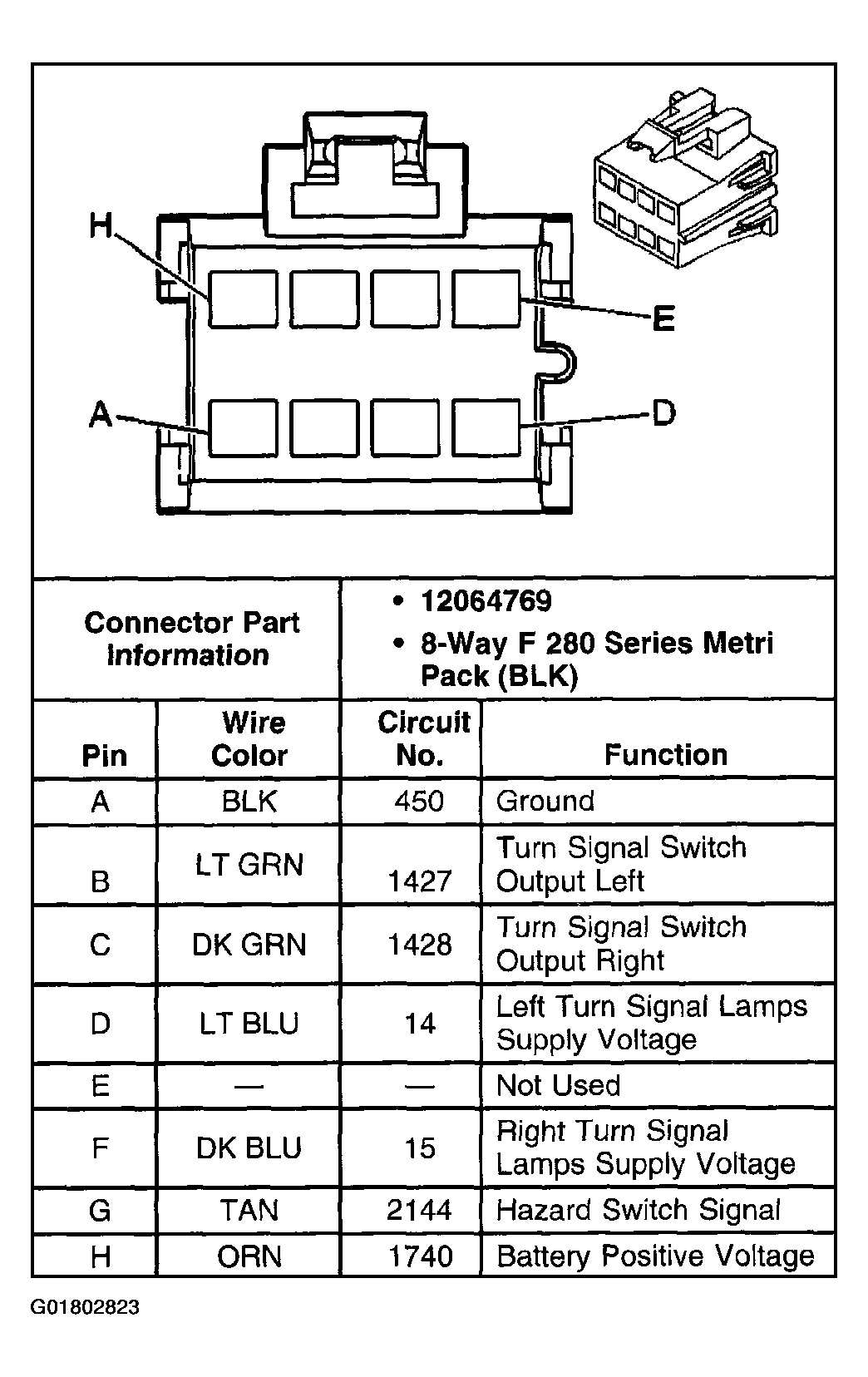

Fig 30: Turn Signal/Hazard Flasher Module

G01802823

Courtesy of GENERAL MOTORS CORP.

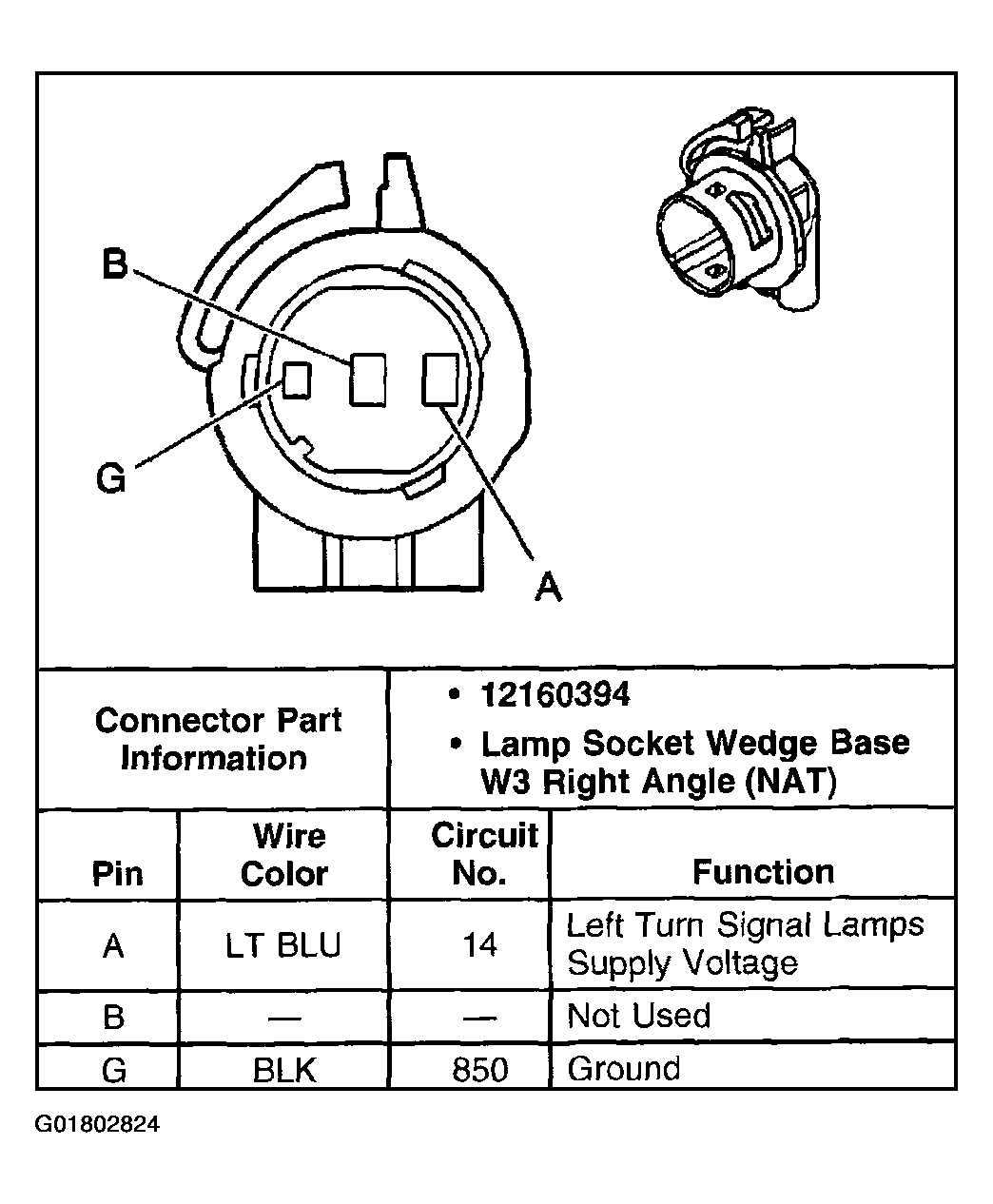

Fig 31: Turn Signal Lamp - LR

G01802824

Courtesy of GENERAL MOTORS CORP.

Fig 32: Turn Signal Lamp - RR

G01802825

Courtesy of GENERAL MOTORS CORP.

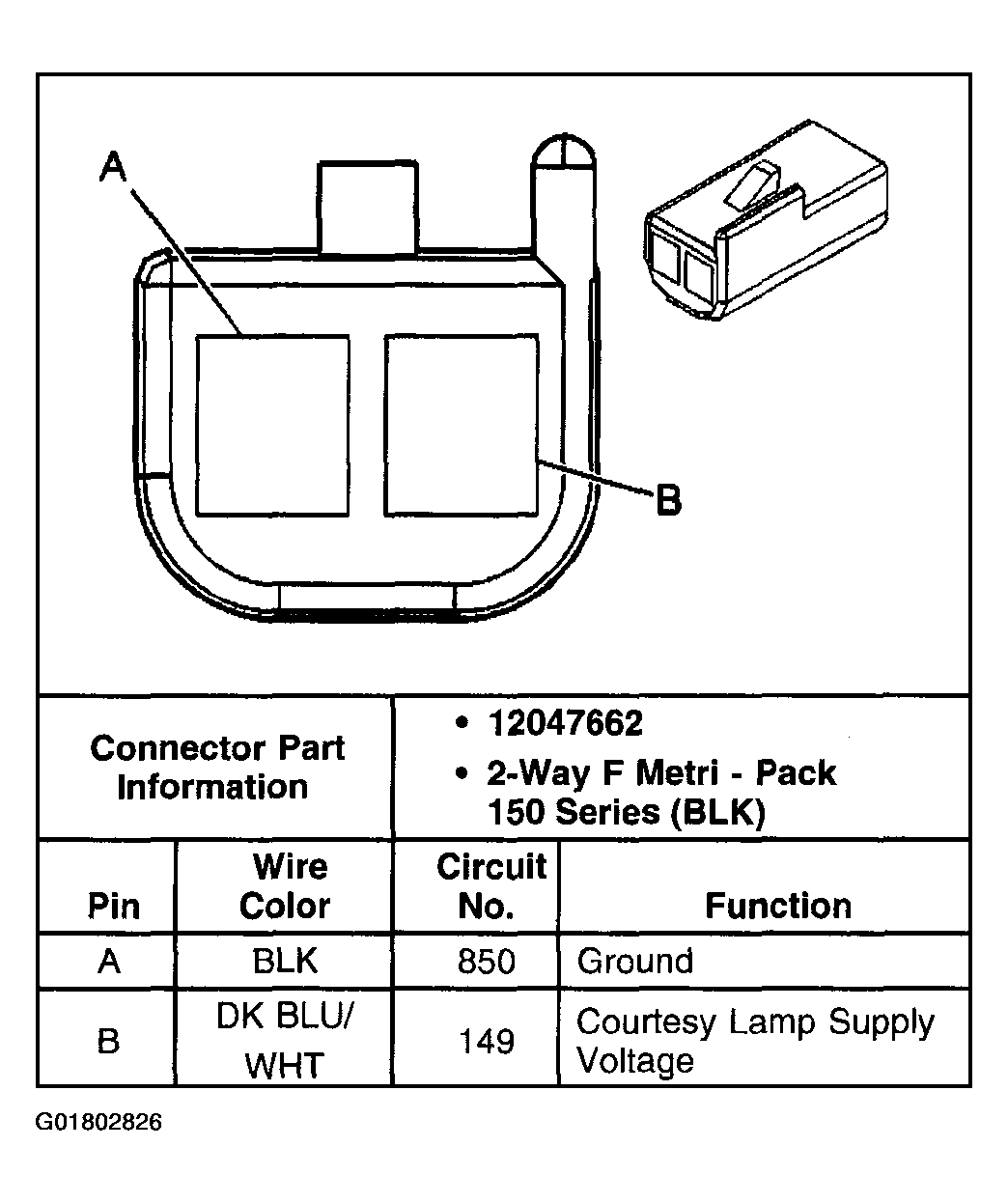

Fig 33: Vanity Mirror - Left

G01802826

Courtesy of GENERAL MOTORS CORP.

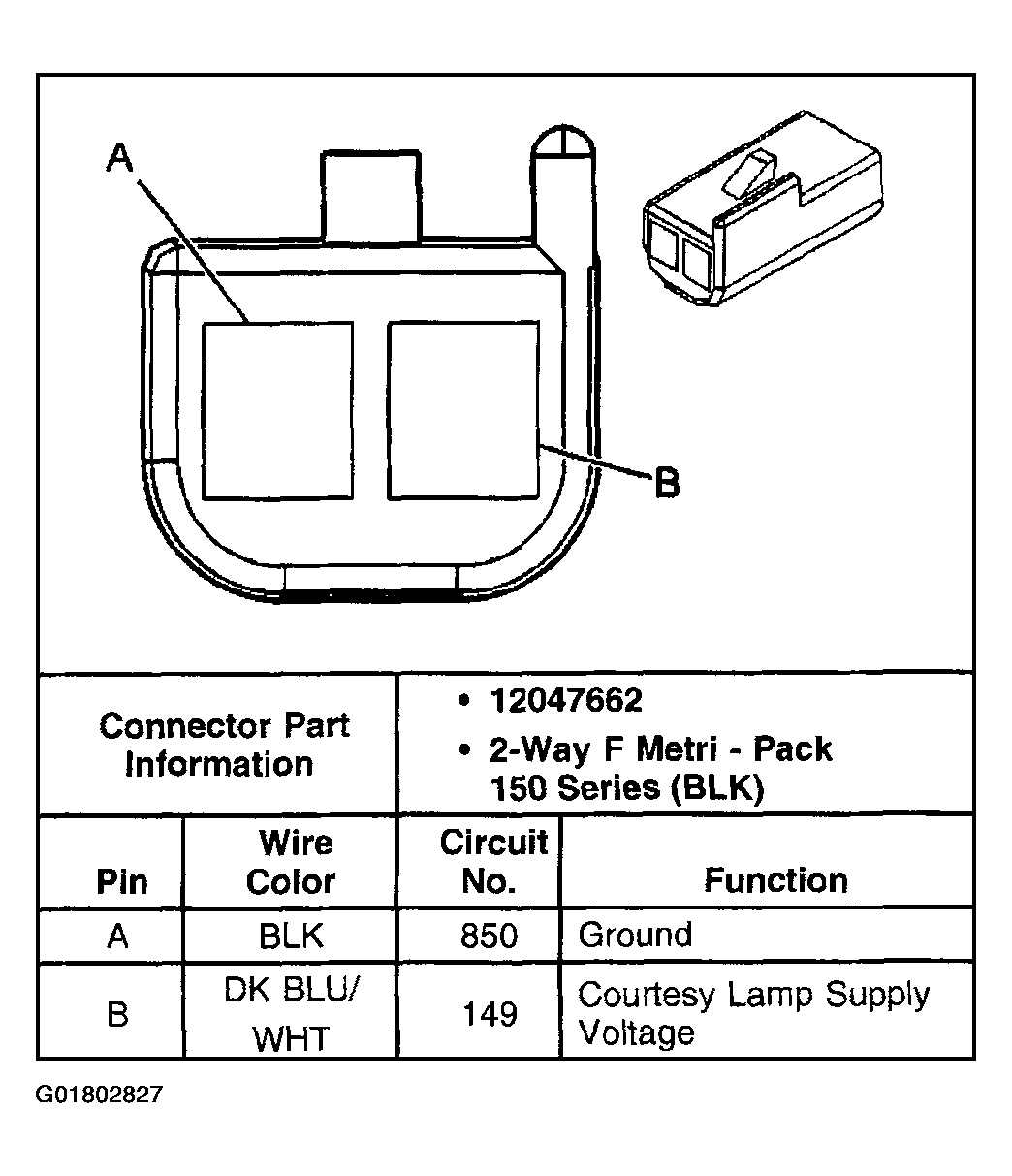

Fig 34: Vanity Mirror - Right

G01802827

Courtesy of GENERAL MOTORS CORP.
