Lighting Systems Component Views

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

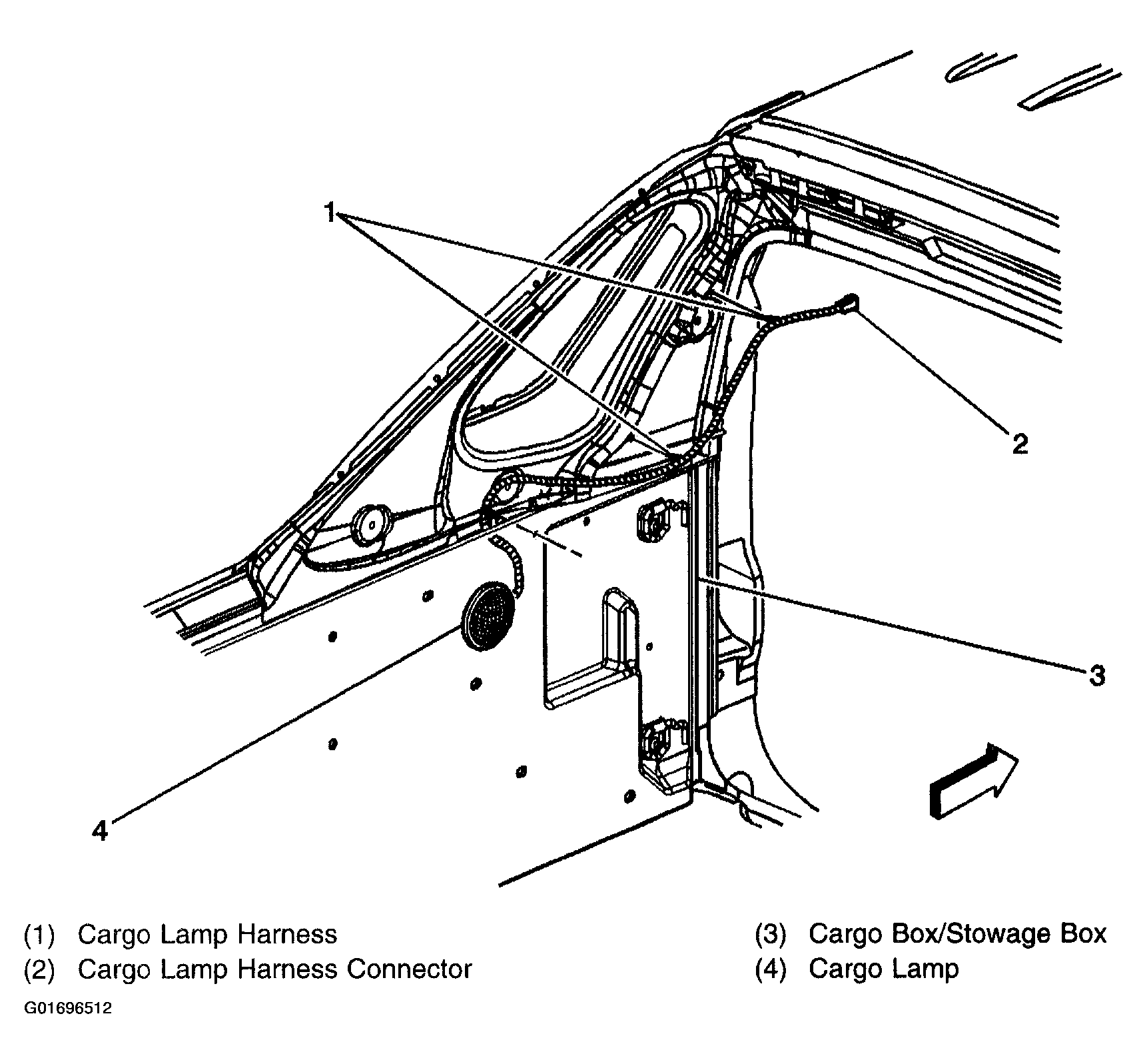

Fig 1: Cargo Lamps (Avalanche/Escalade EXT)

G01696512

Courtesy of GENERAL MOTORS CORP.

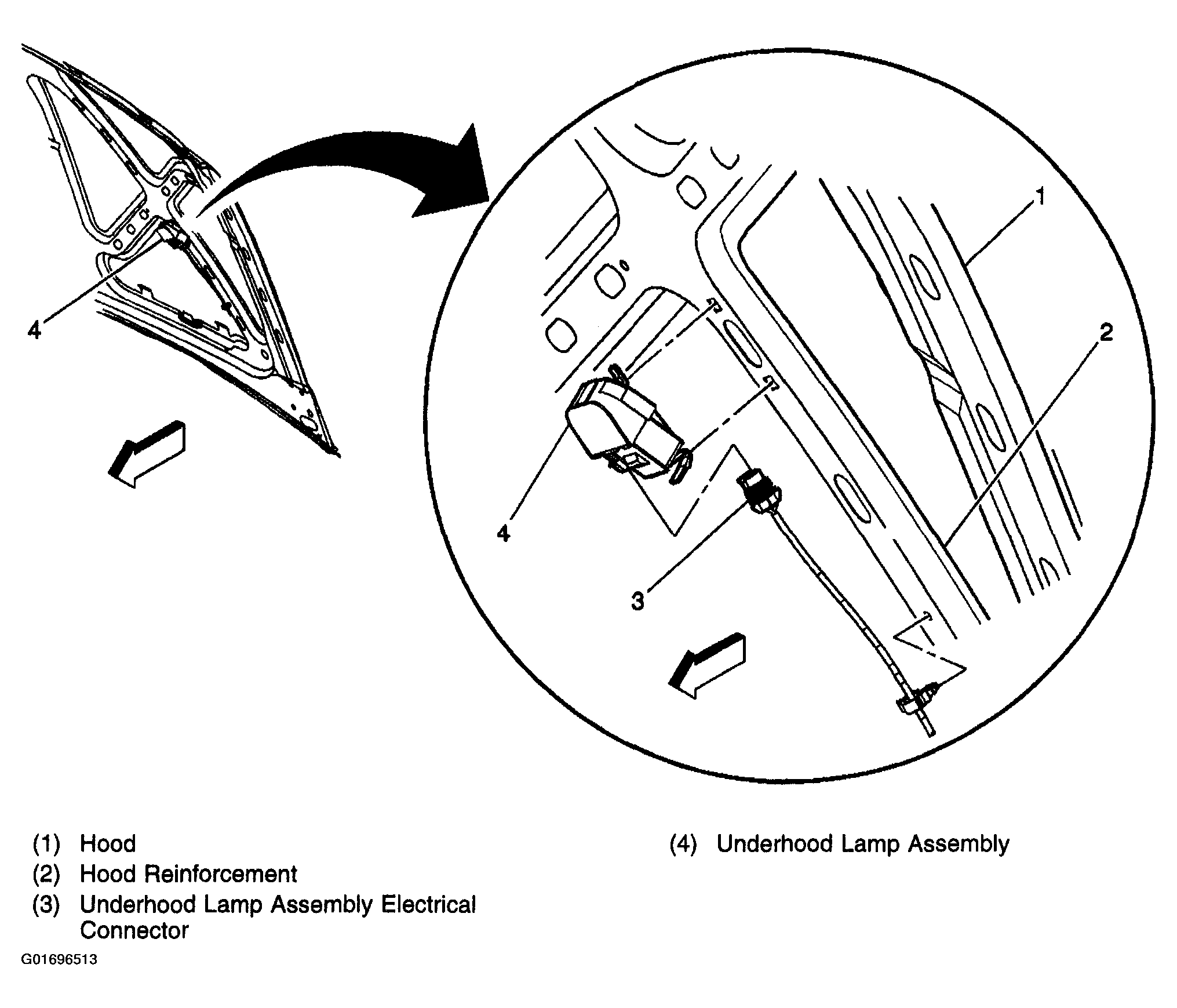

Fig 2: Underhood Lamp Assembly

G01696513

Courtesy of GENERAL MOTORS CORP.

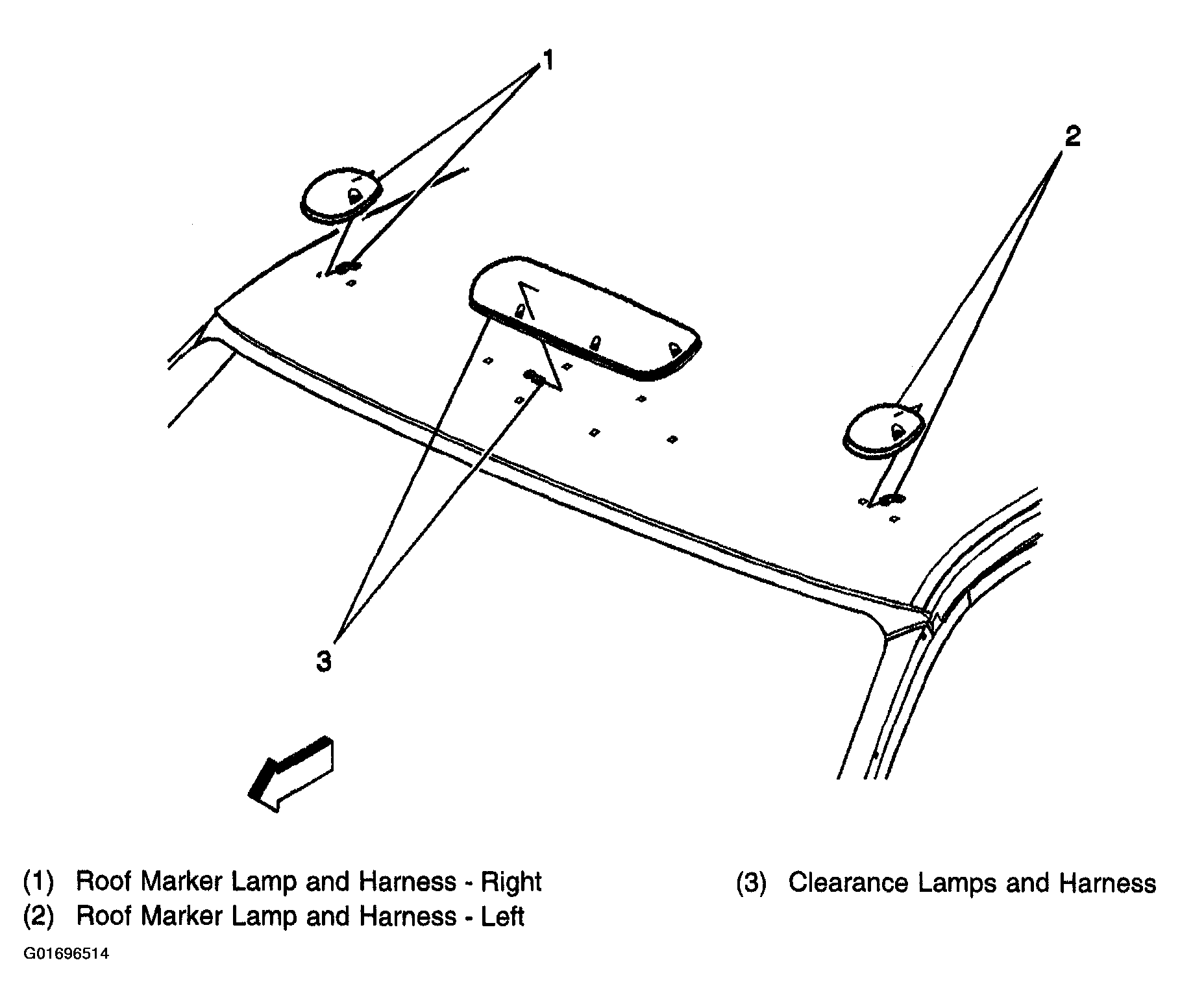

Fig 3: Roof Marker & Clearance Lamps

G01696514

Courtesy of GENERAL MOTORS CORP.

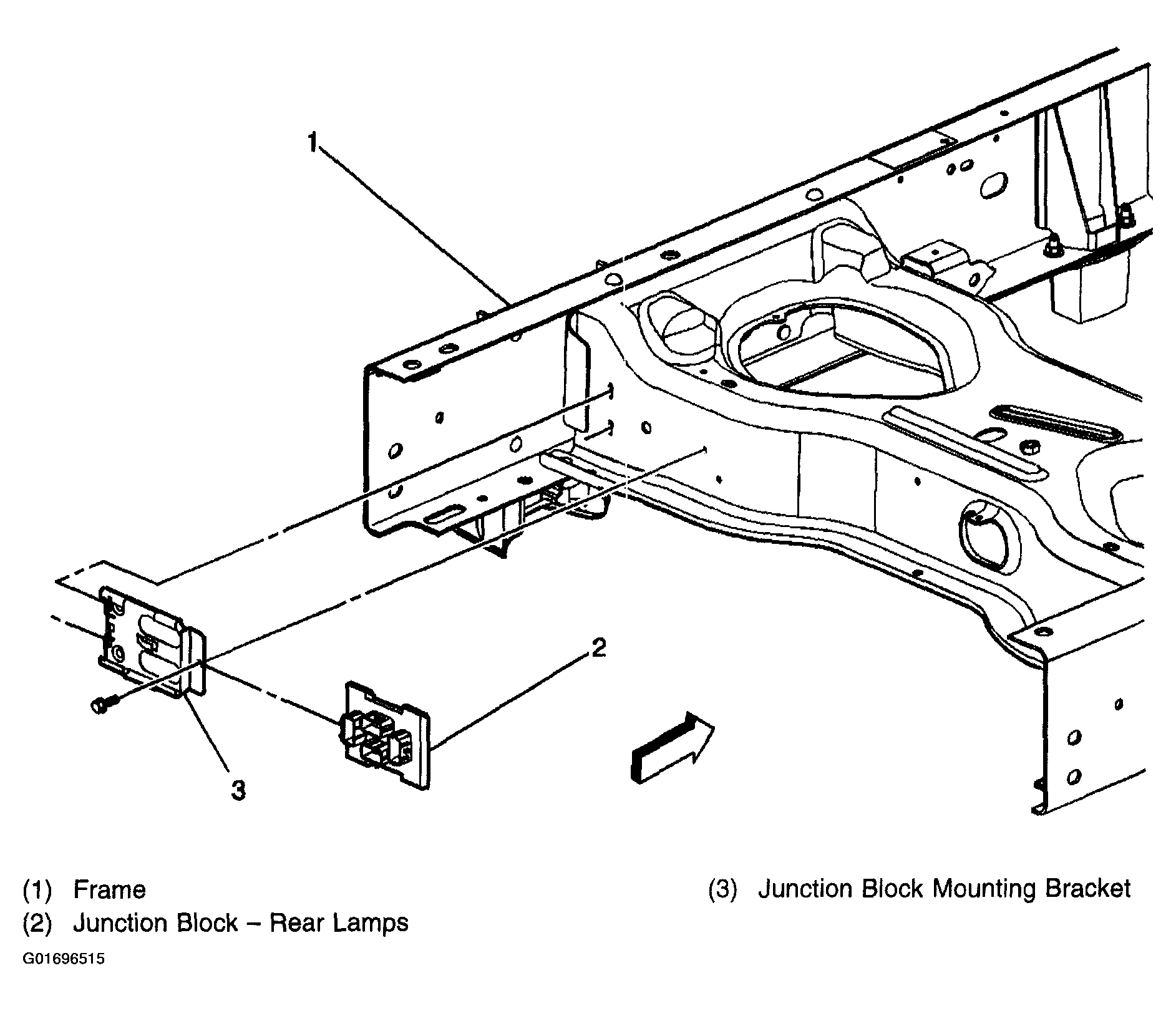

Fig 4: Junction Block - Rear Lamps

G01696515

Courtesy of GENERAL MOTORS CORP.

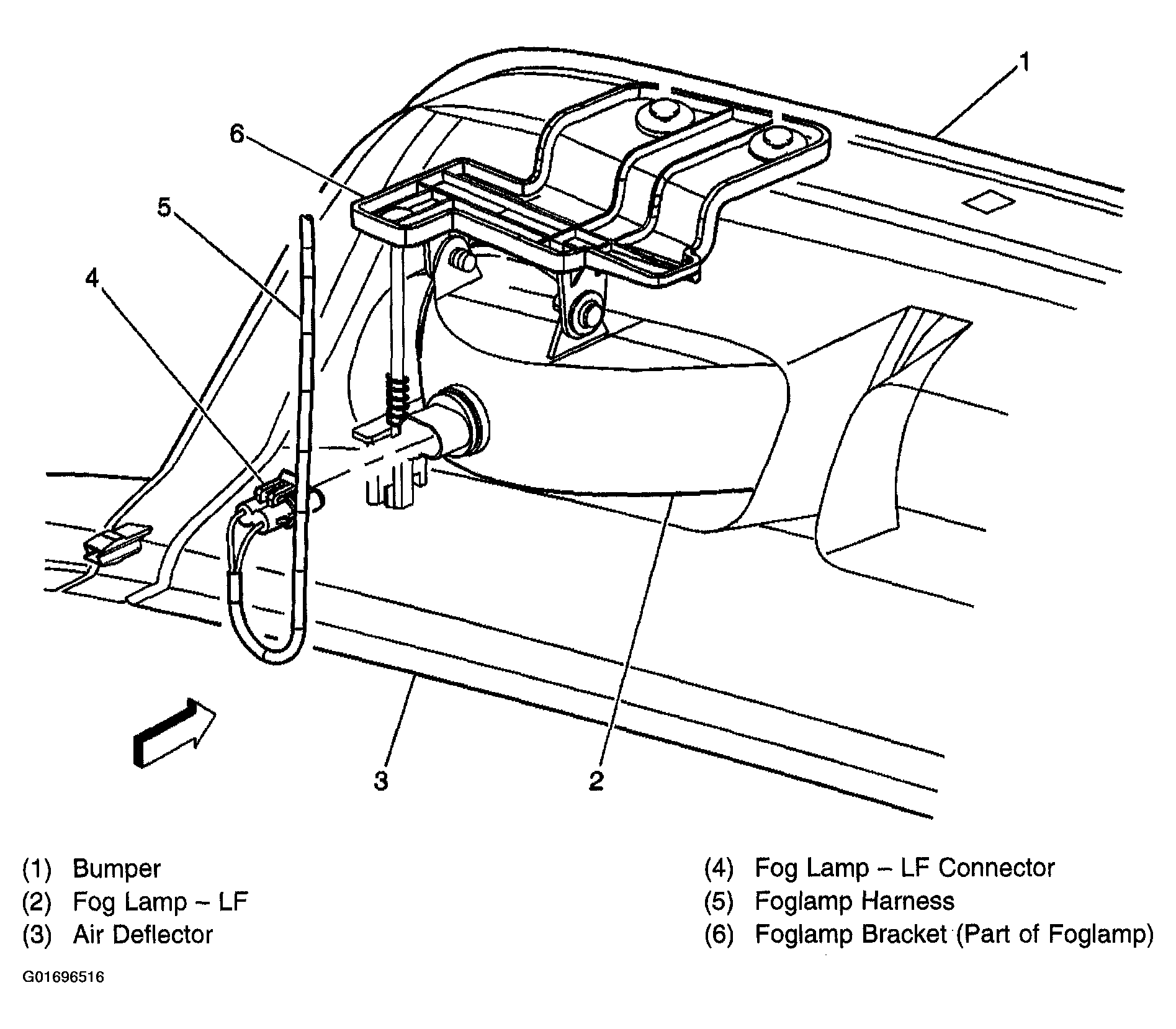

Fig 5: Left Foglamp (RH Similar)

G01696516

Courtesy of GENERAL MOTORS CORP.

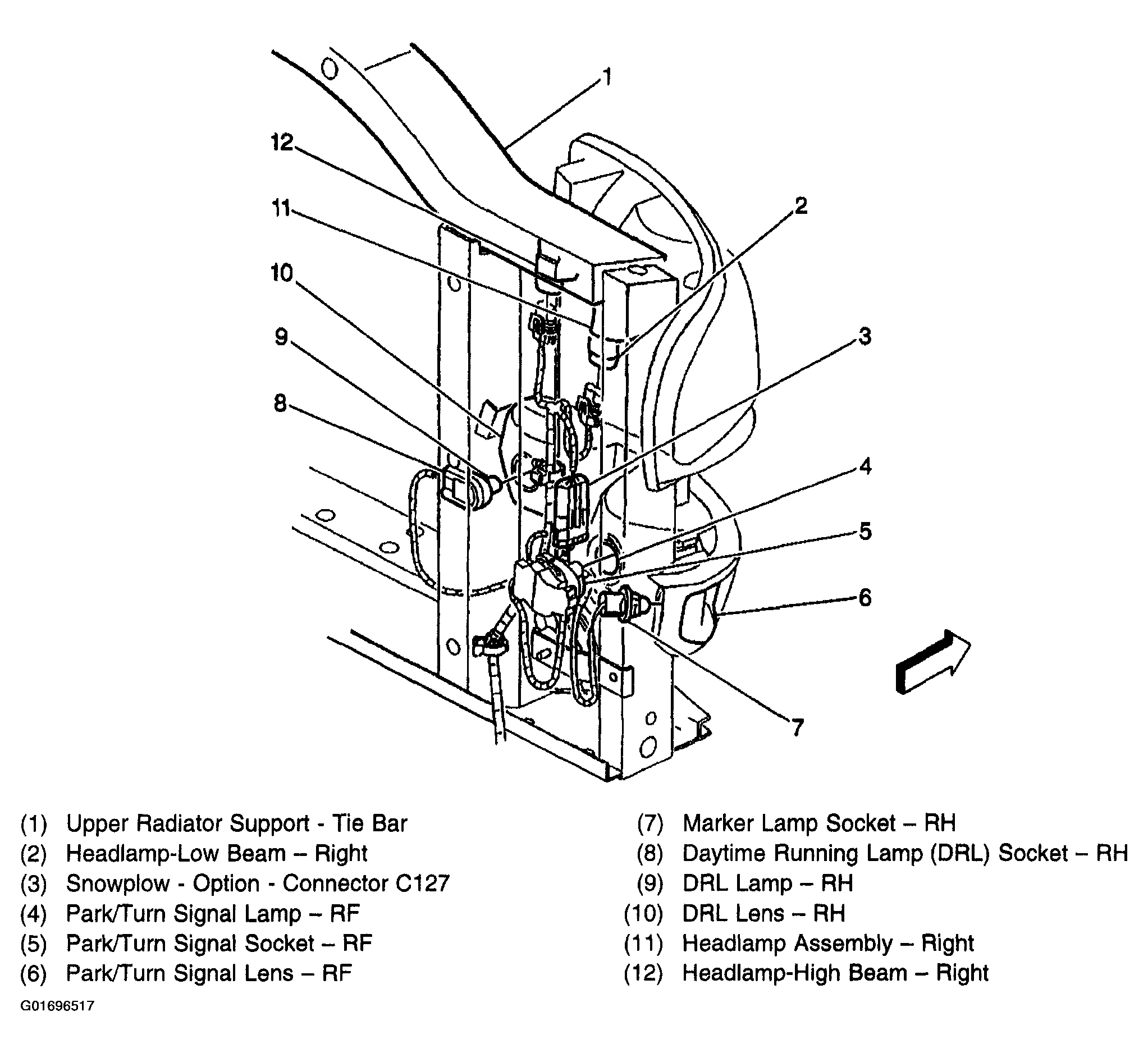

Fig 6: RH Front Of Vehicle

G01696517

Courtesy of GENERAL MOTORS CORP.

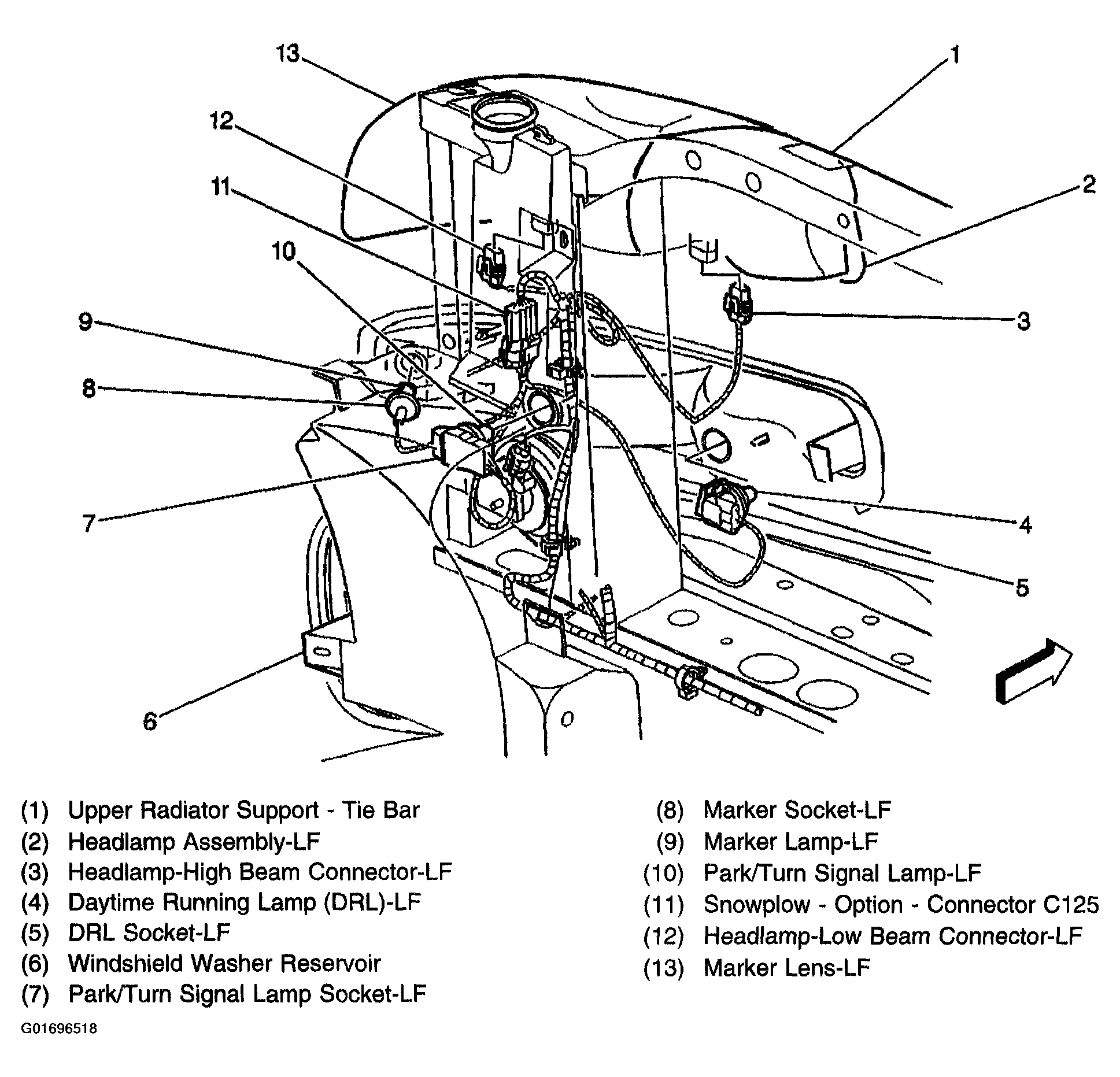

Fig 7: LH Front Of Vehicle

G01696518

Courtesy of GENERAL MOTORS CORP.

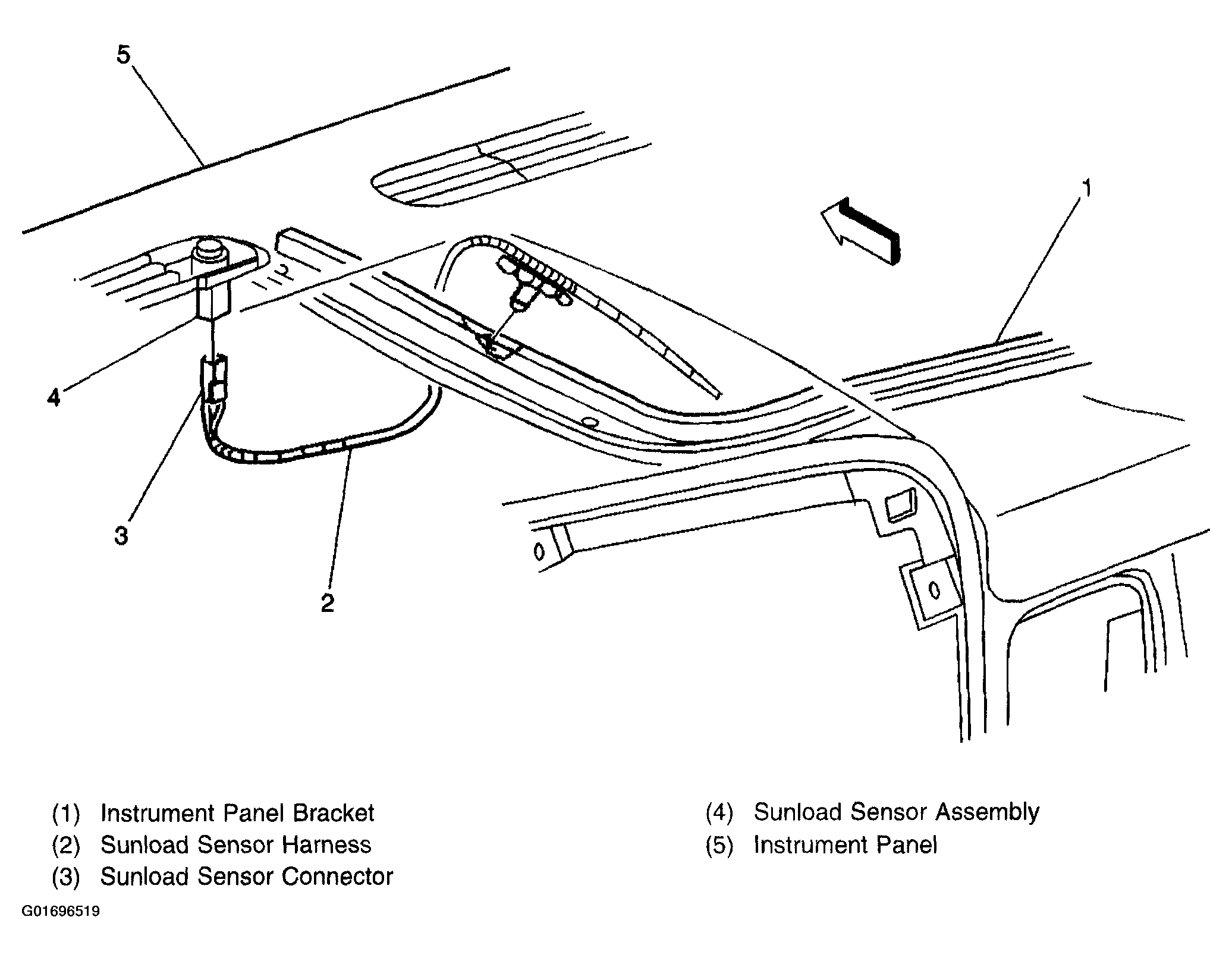

Fig 8: Sunload Sensor Assembly

G01696519

Courtesy of GENERAL MOTORS CORP.

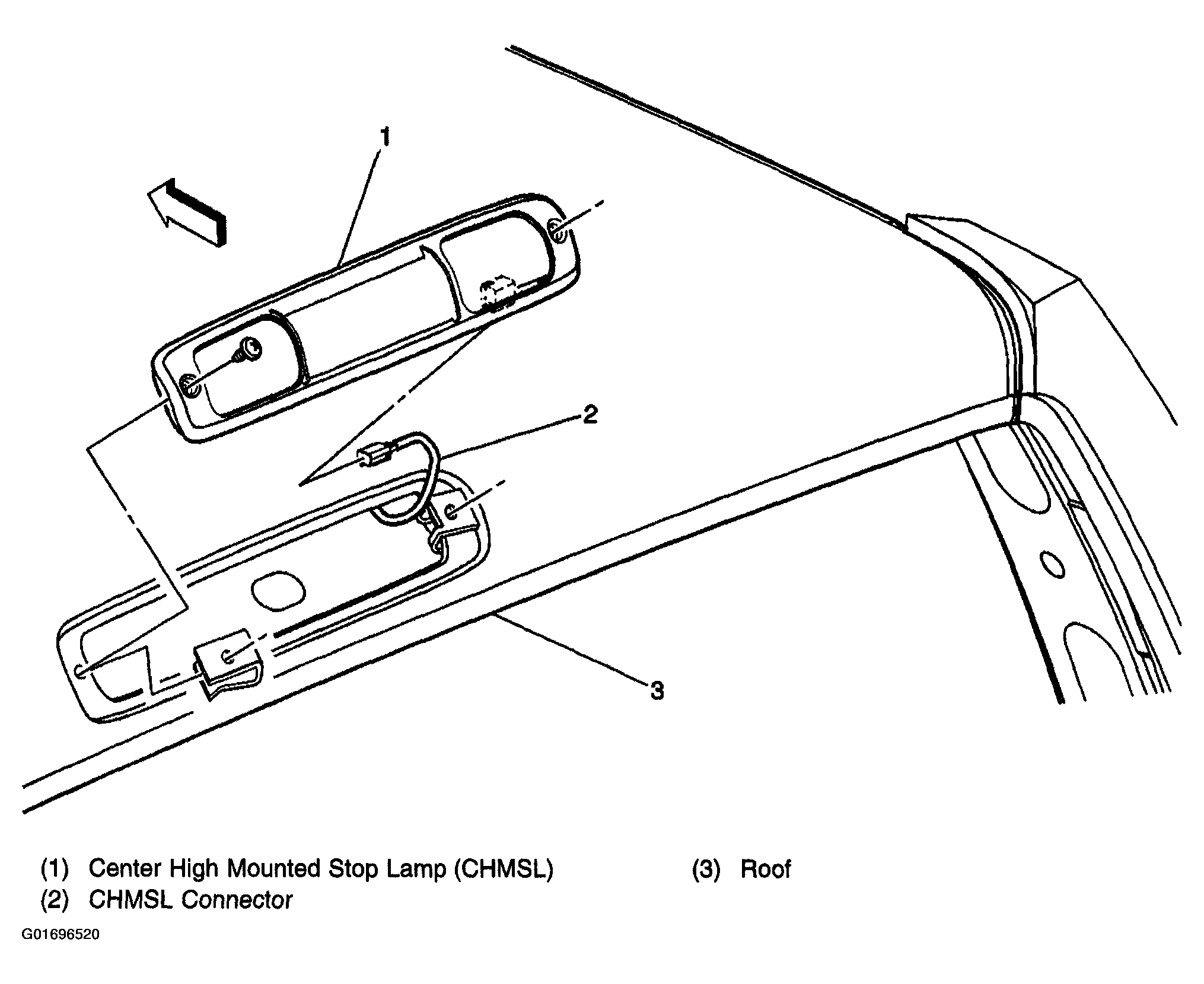

Fig 9: Center High Mounted Stop Lamp (CHMSL)

G01696520

Courtesy of GENERAL MOTORS CORP.

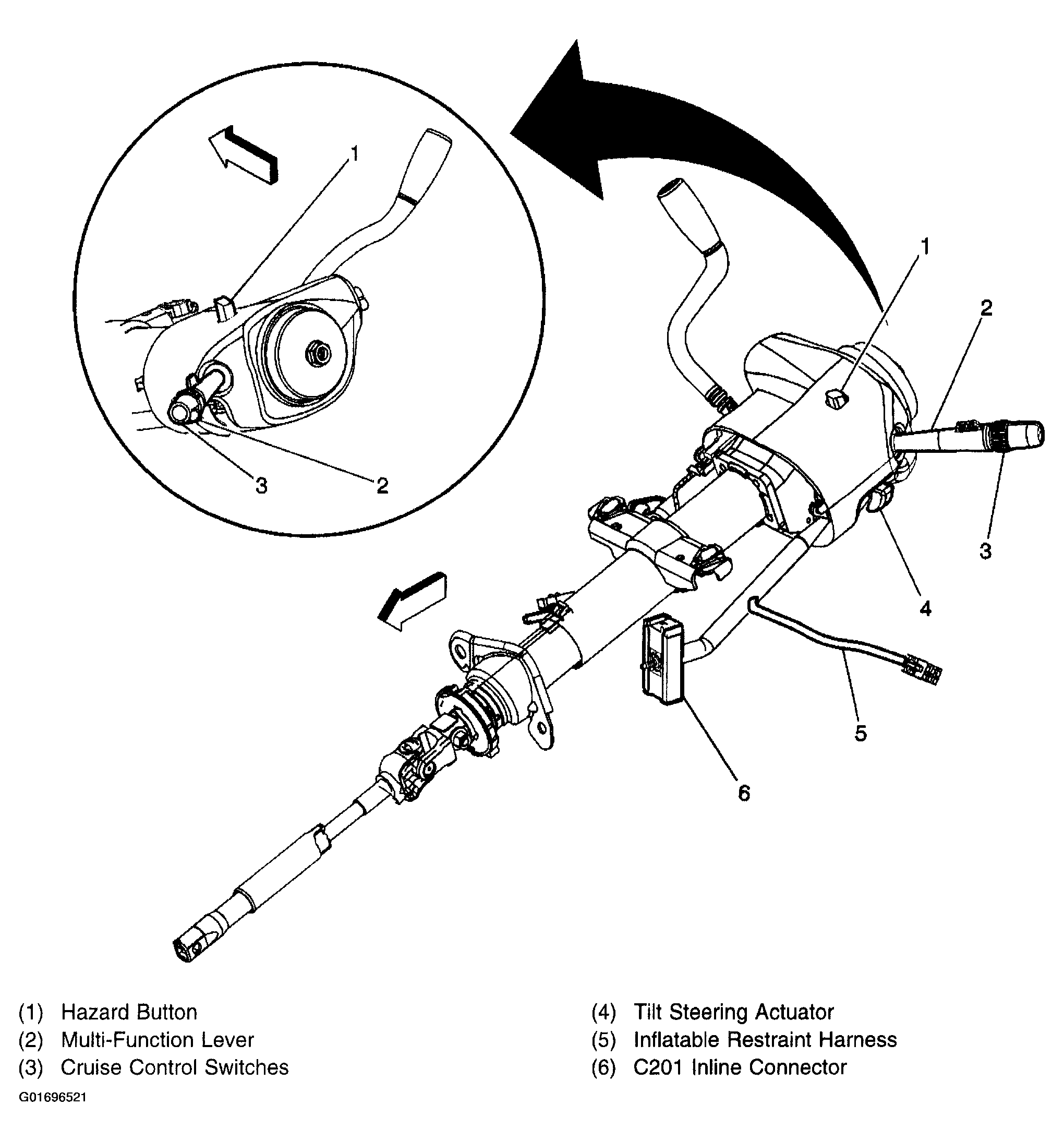

Fig 10: Steering Column

G01696521

Courtesy of GENERAL MOTORS CORP.

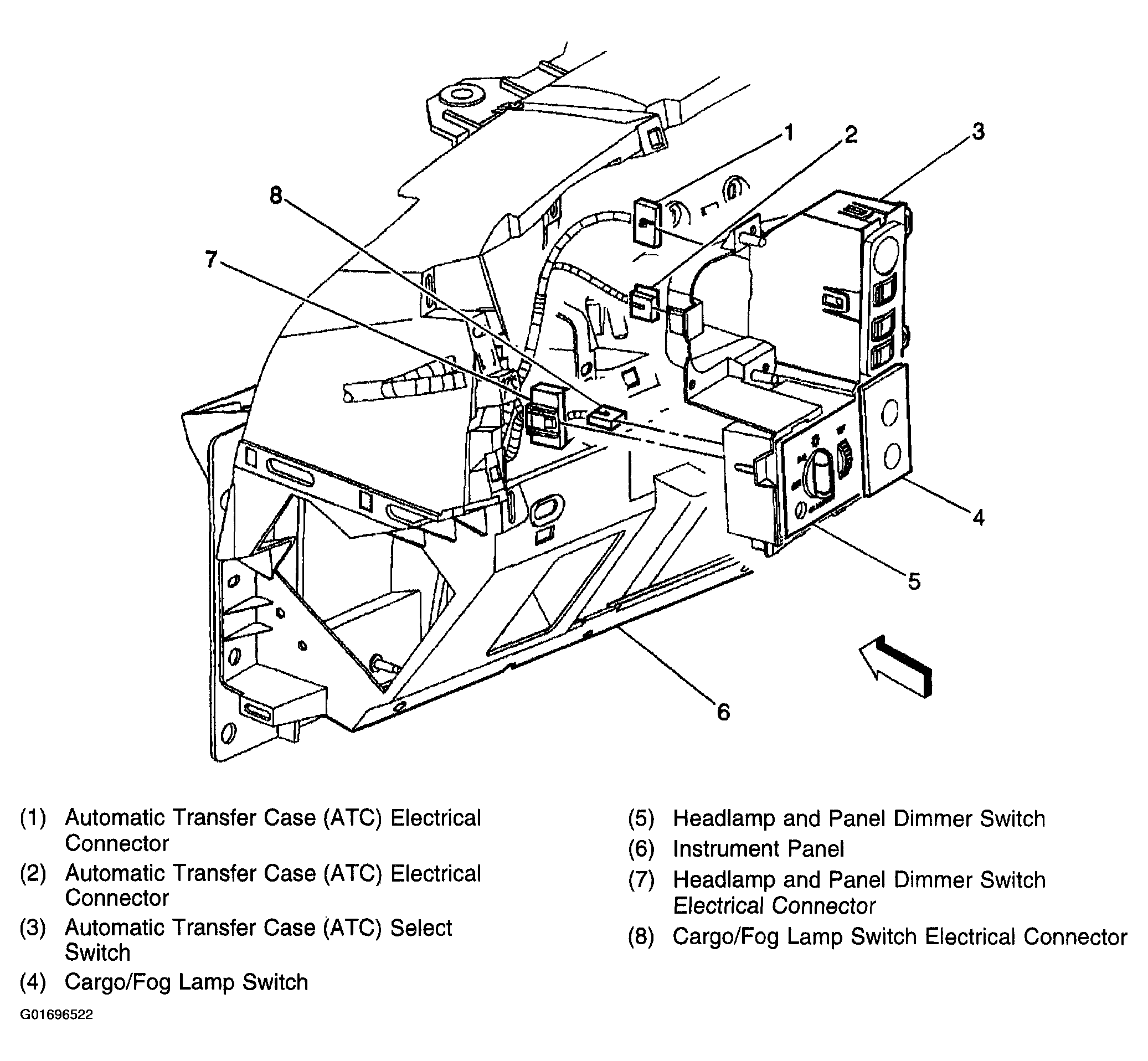

Fig 11: Instrument Panel Switches - LH

G01696522

Courtesy of GENERAL MOTORS CORP.

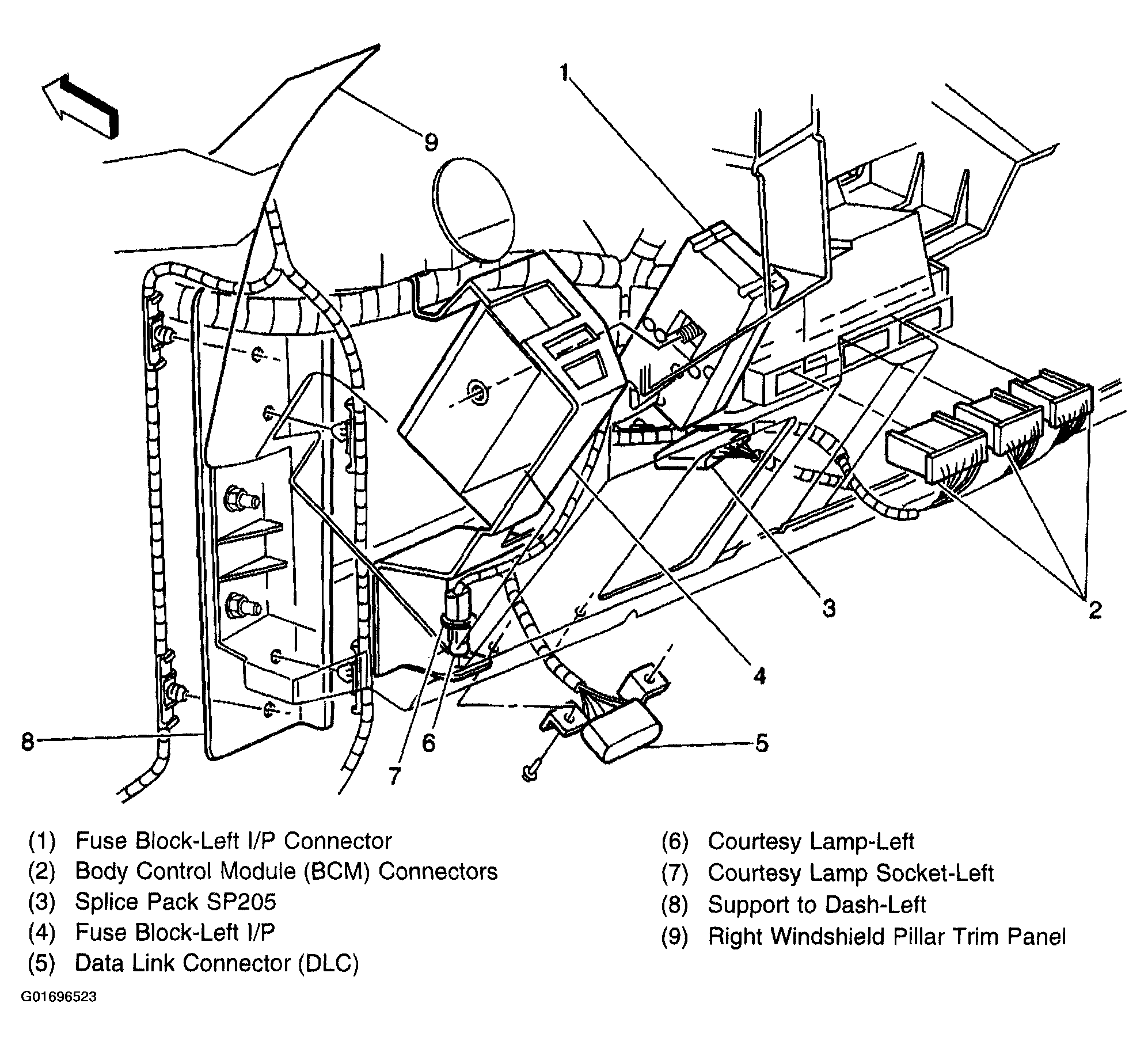

Fig 12: Left Hand Lower Dash

G01696523

Courtesy of GENERAL MOTORS CORP.

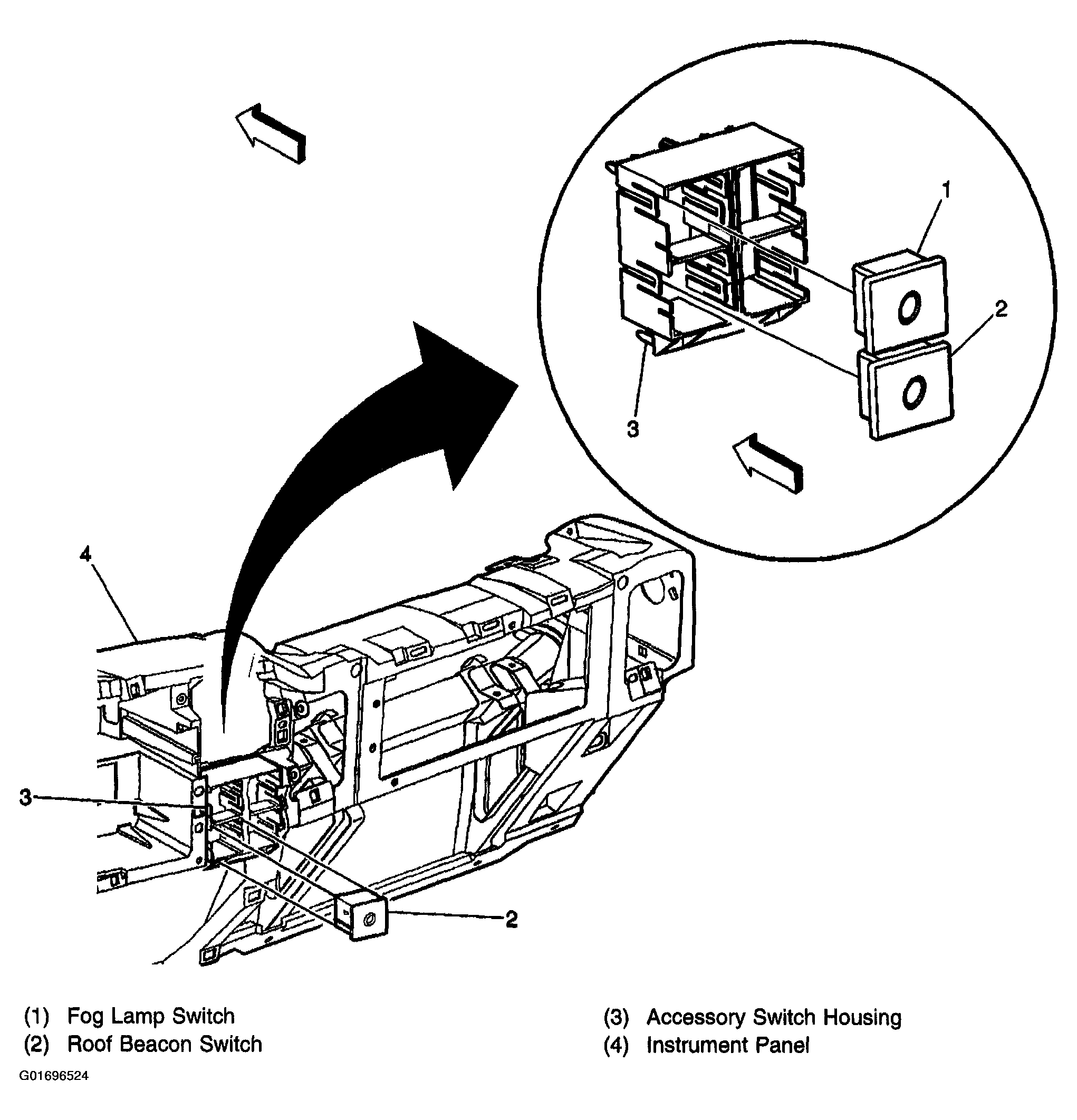

Fig 13: Accessory Switch Housing

G01696524

Courtesy of GENERAL MOTORS CORP.

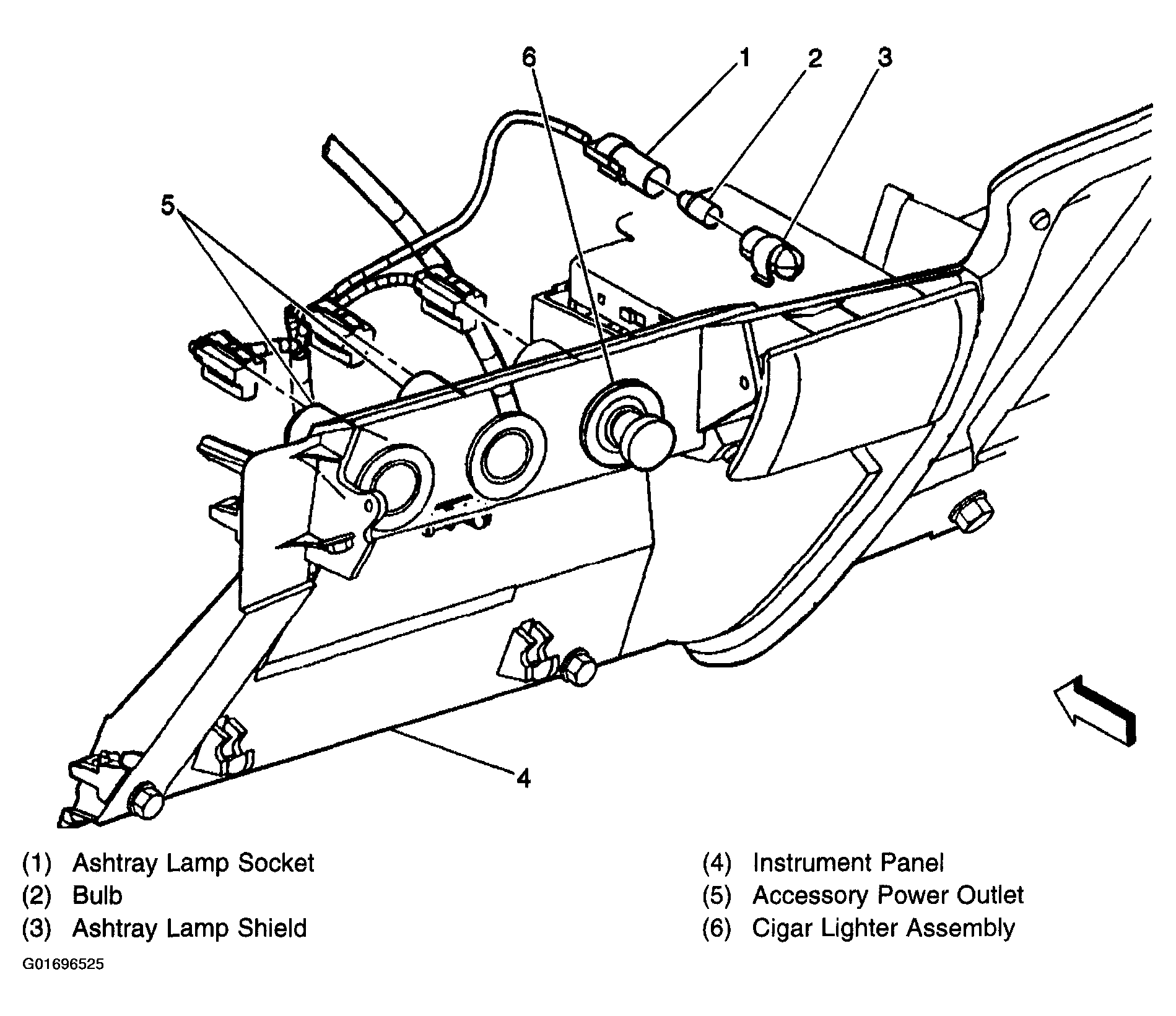

Fig 14: Accessory Power Outlets

G01696525

Courtesy of GENERAL MOTORS CORP.

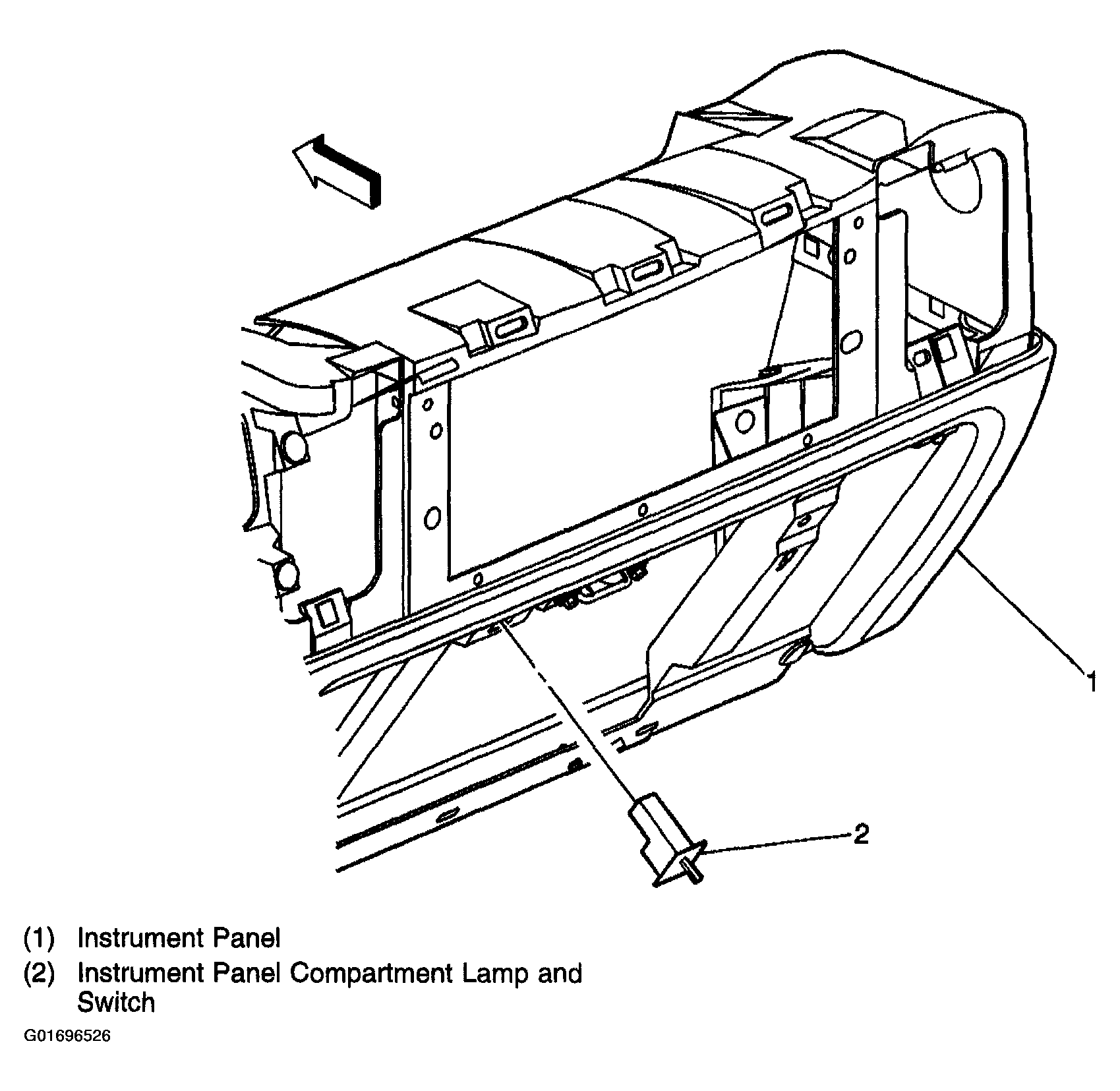

Fig 15: Instrument Panel Compartment Lamp

G01696526

Courtesy of GENERAL MOTORS CORP.

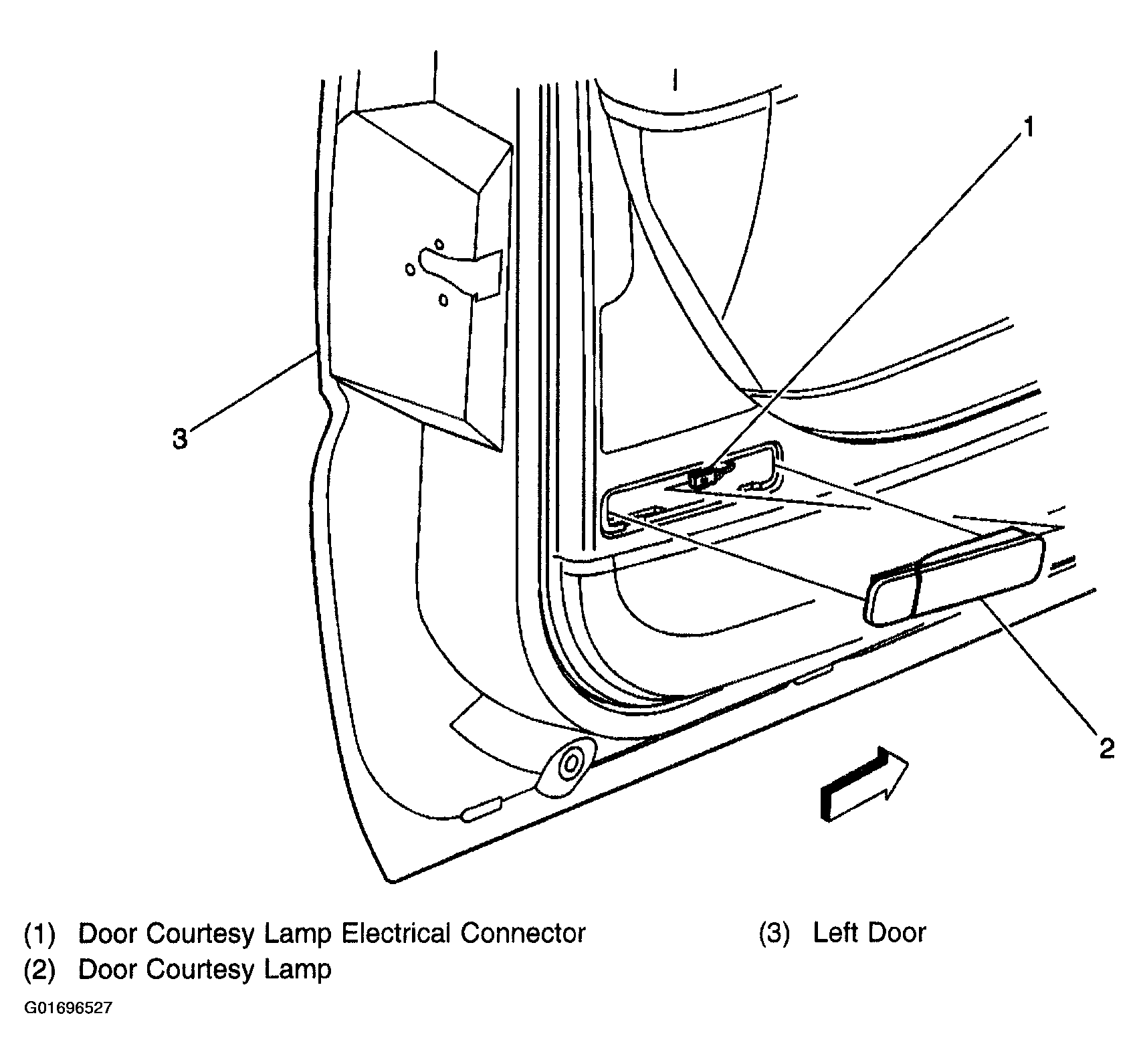

Fig 16: Left Door Courtesy Lamp (RH Similar)

G01696527

Courtesy of GENERAL MOTORS CORP.

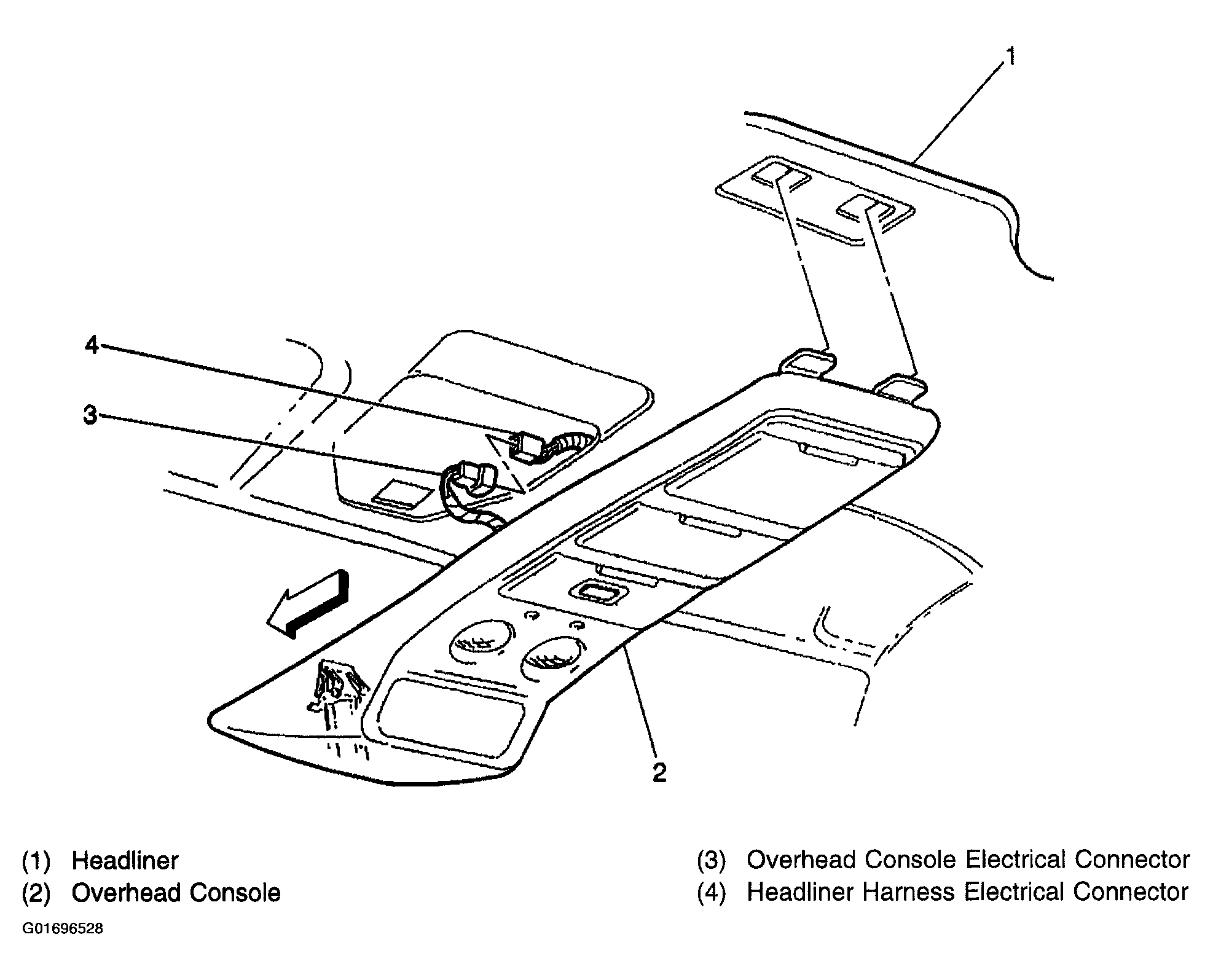

Fig 17: Overhead Console

G01696528

Courtesy of GENERAL MOTORS CORP.

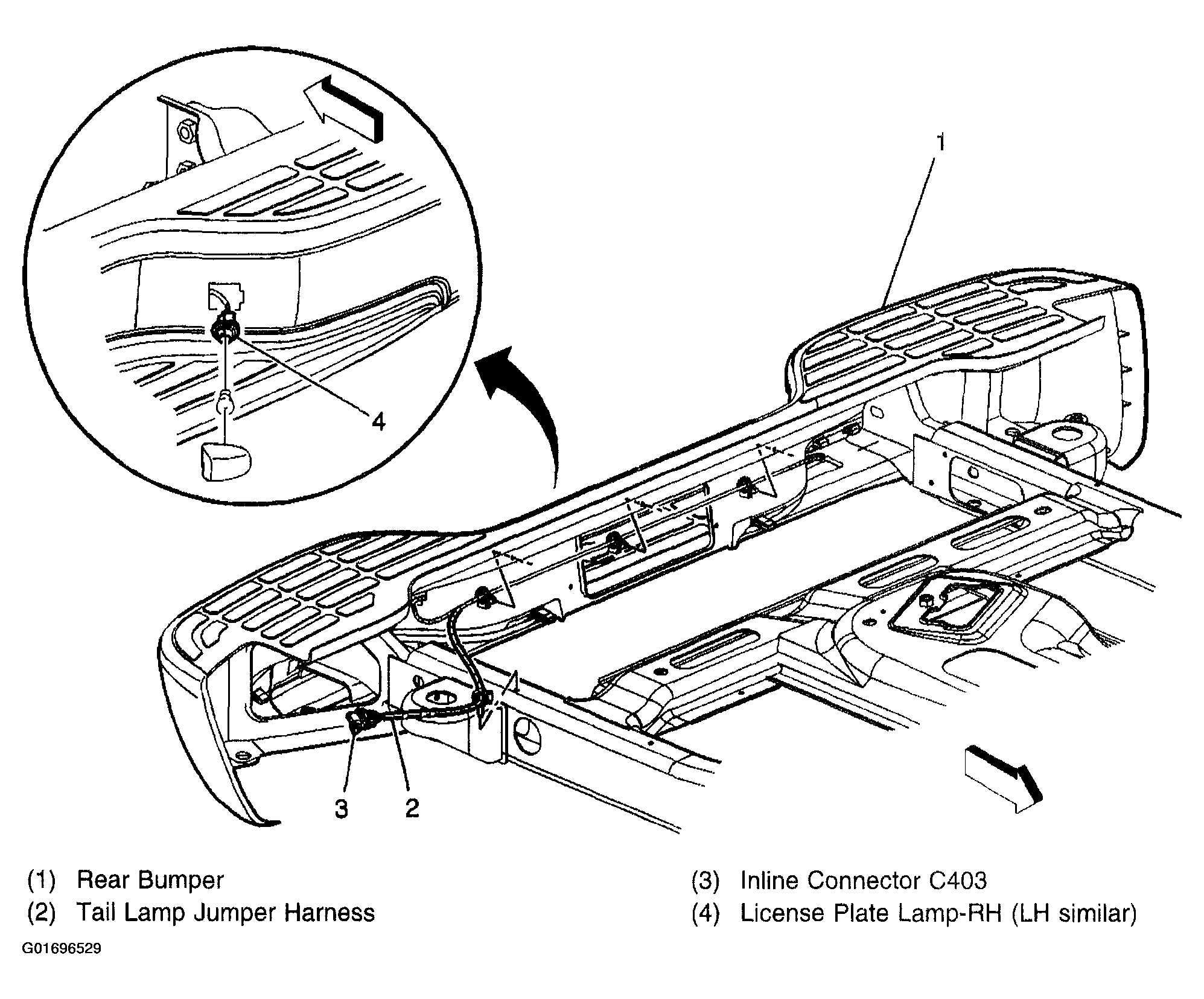

Fig 18: License Plate Lamp (Utilities)

G01696529

Courtesy of GENERAL MOTORS CORP.

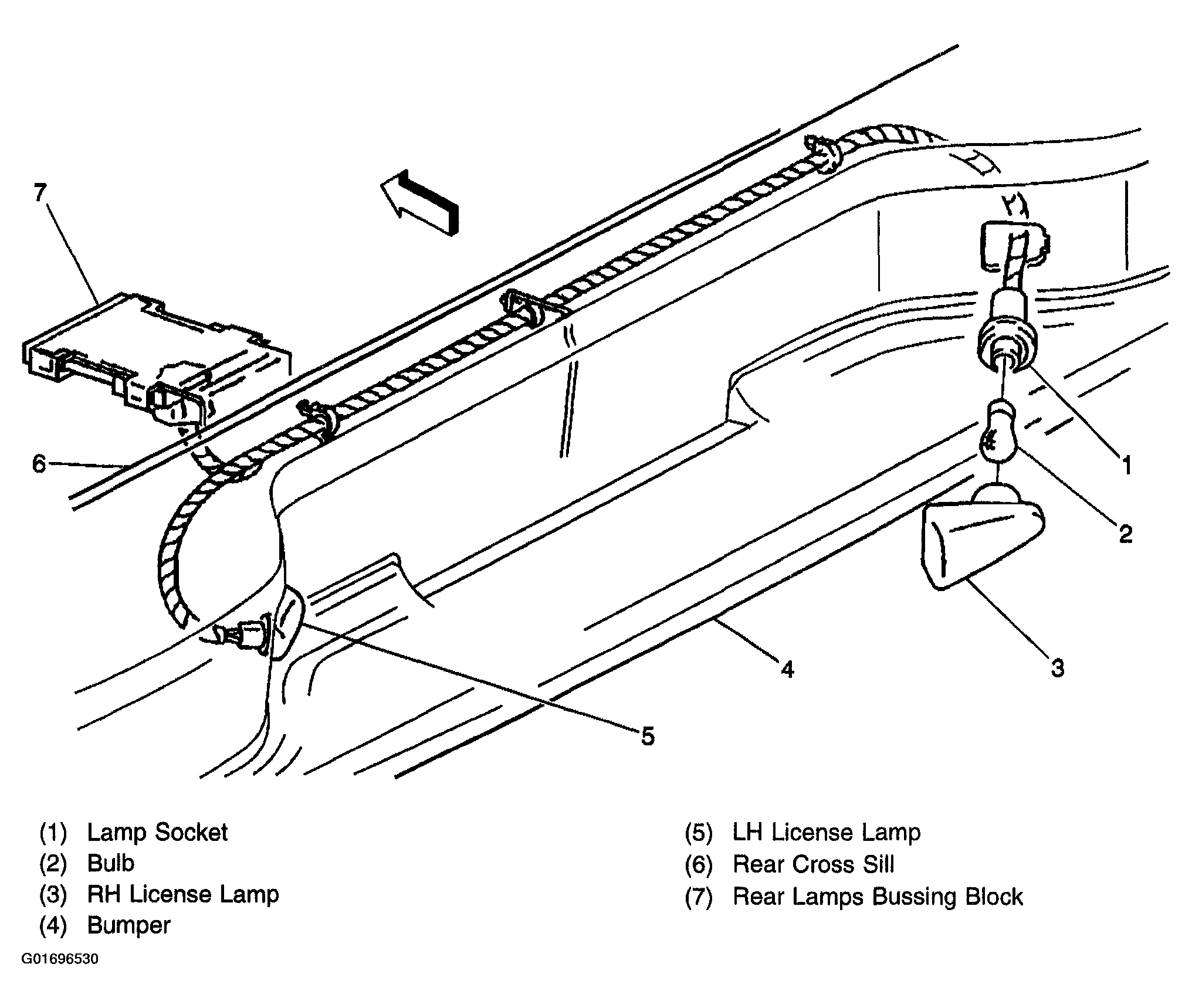

Fig 19: License Lamps

G01696530

Courtesy of GENERAL MOTORS CORP.

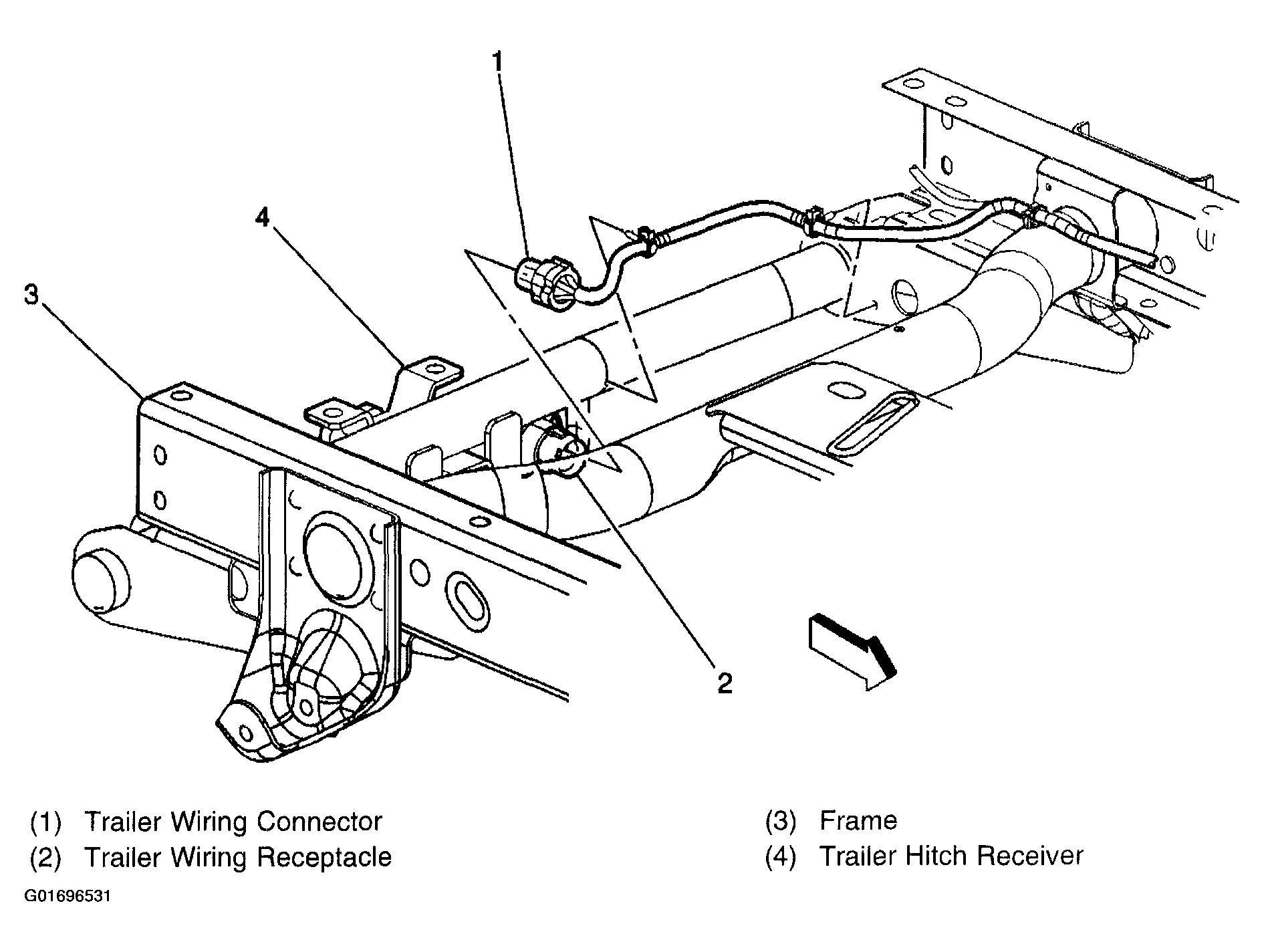

Fig 20: Trailer Wiring Connector, Heavy Duty

G01696531

Courtesy of GENERAL MOTORS CORP.
