Lighting Systems Connector End Views

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

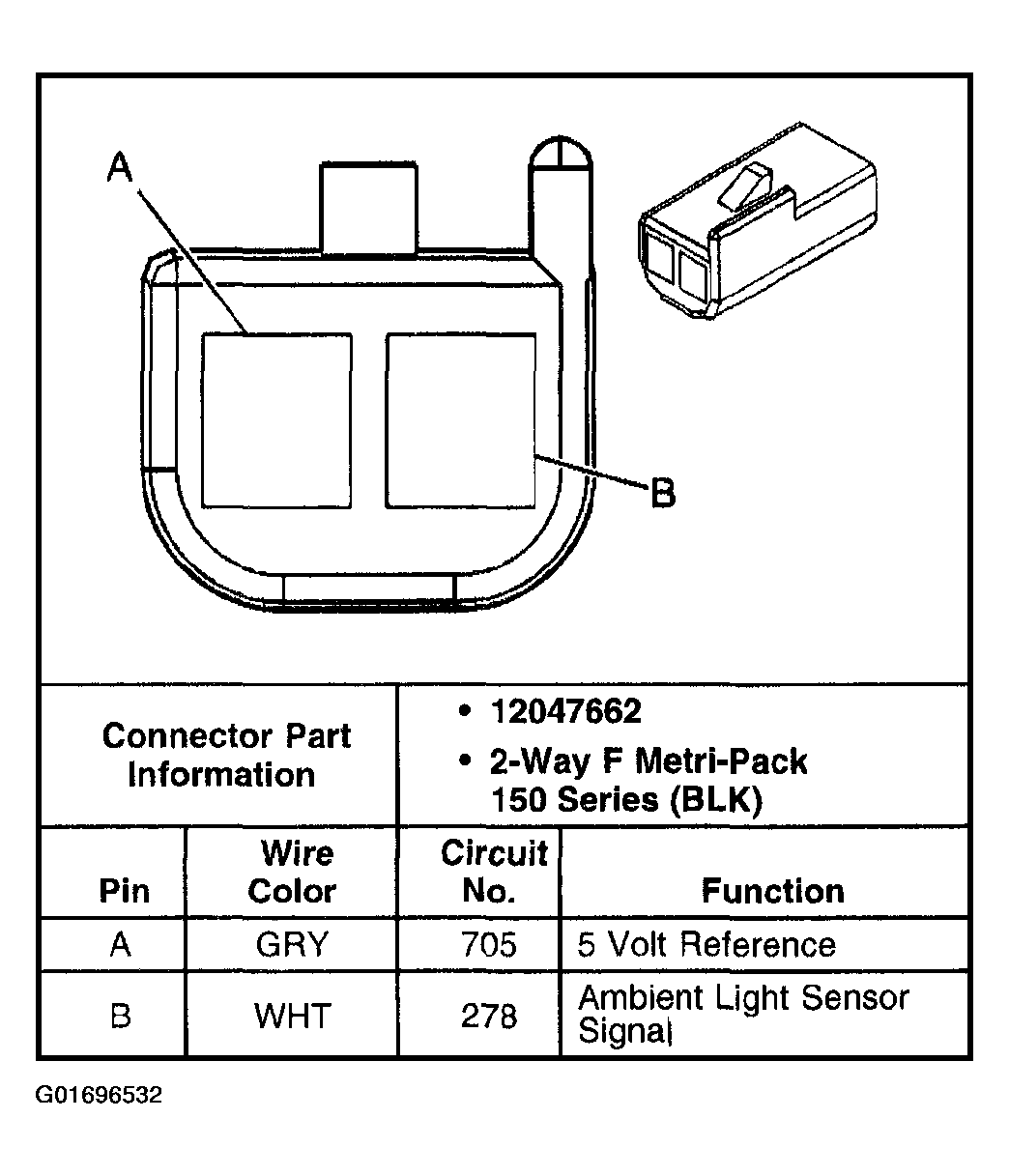

Fig 1: Ambient Light Sensor

G01696532

Courtesy of GENERAL MOTORS CORP.

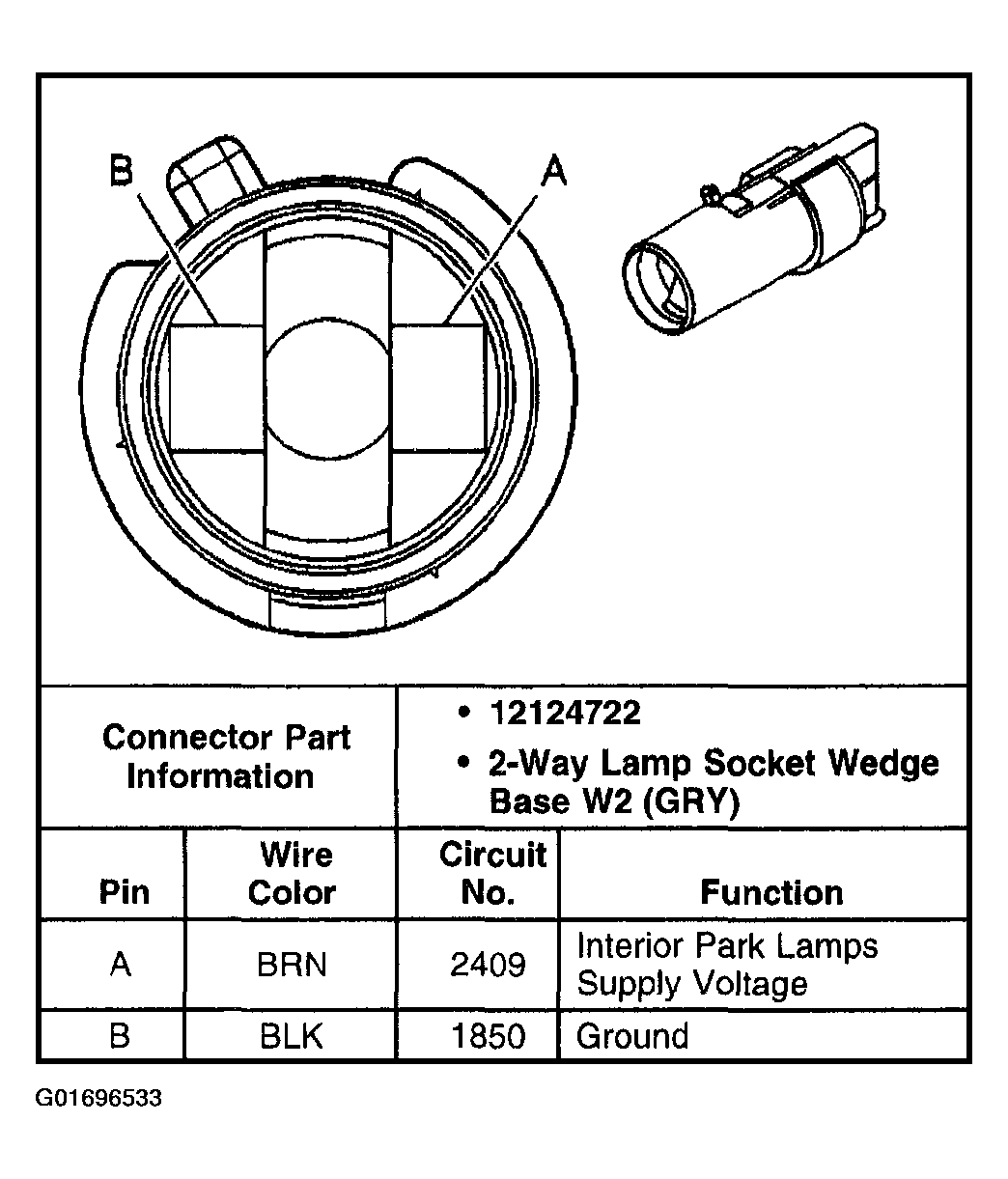

Fig 2: Ashtray Lamp

G01696533

Courtesy of GENERAL MOTORS CORP.

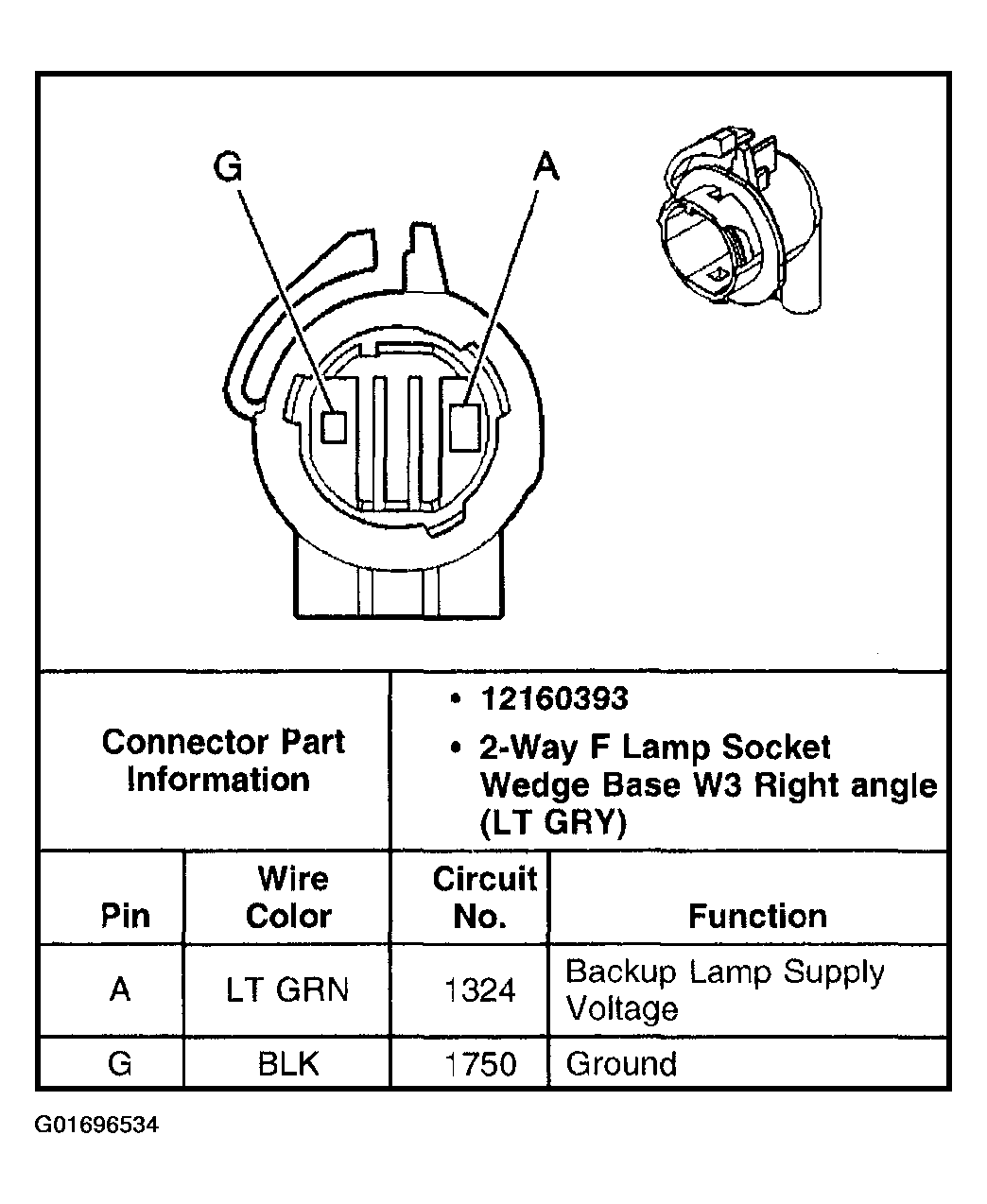

Fig 3: Backup Lamp - Left, Right

G01696534

Courtesy of GENERAL MOTORS CORP.

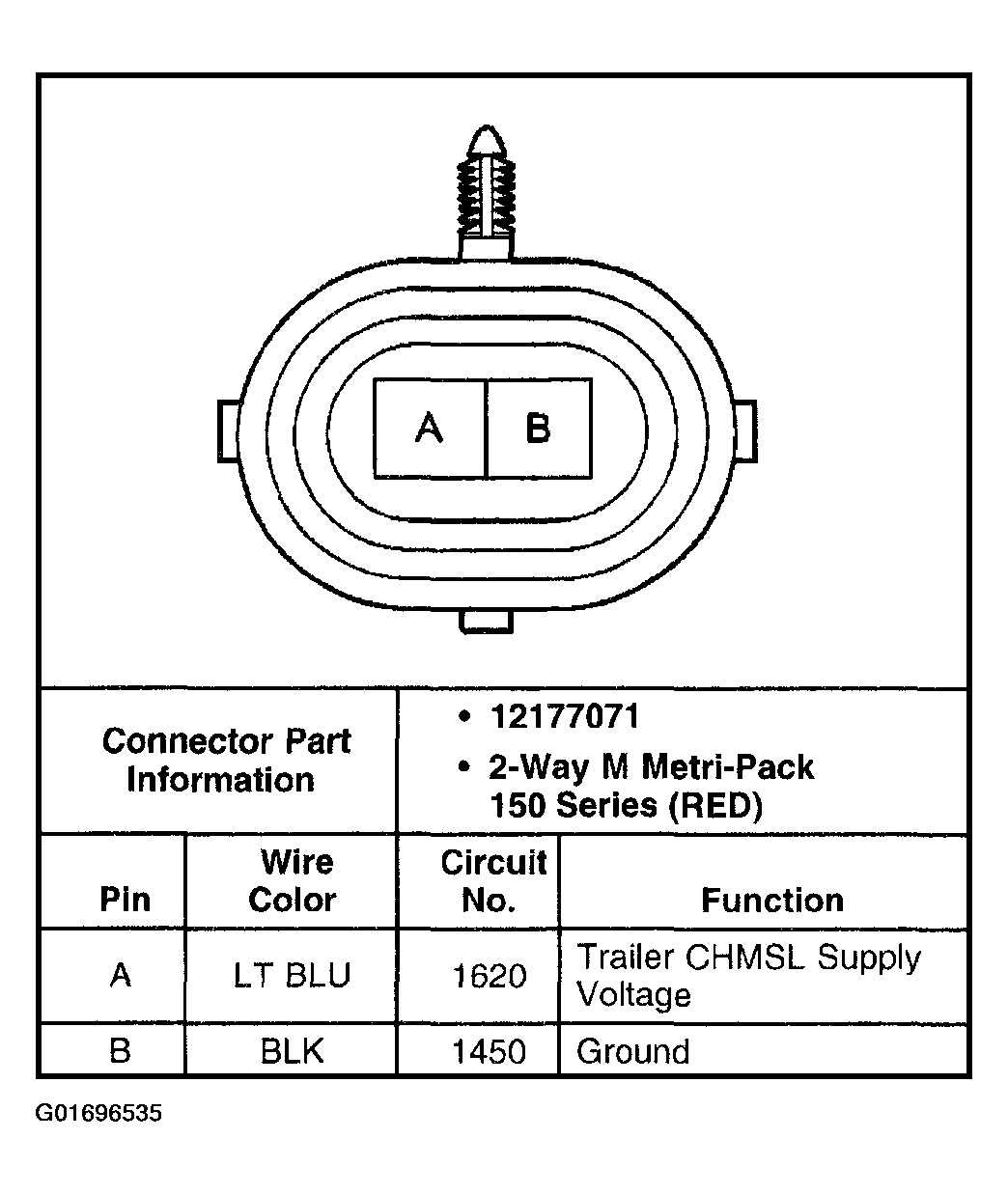

Fig 4: Center High Mounted Stop Lamp (CHMSL) - Avalanche/Escalade EXT

G01696535

Courtesy of GENERAL MOTORS CORP.

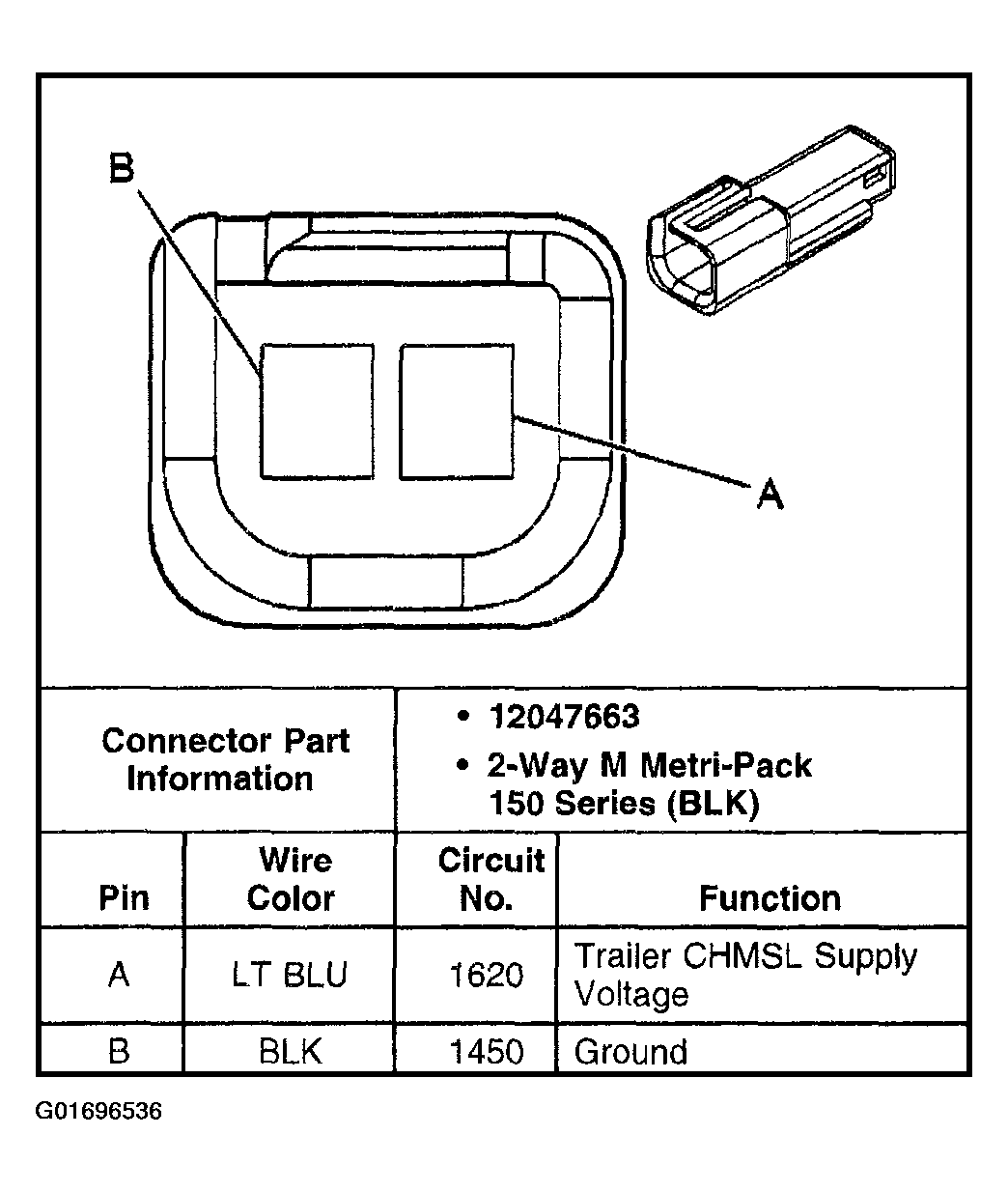

Fig 5: Center High Mounted Stop Lamp (CHMSL) -Except Avalanche/Escalade EXT

G01696536

Courtesy of GENERAL MOTORS CORP.

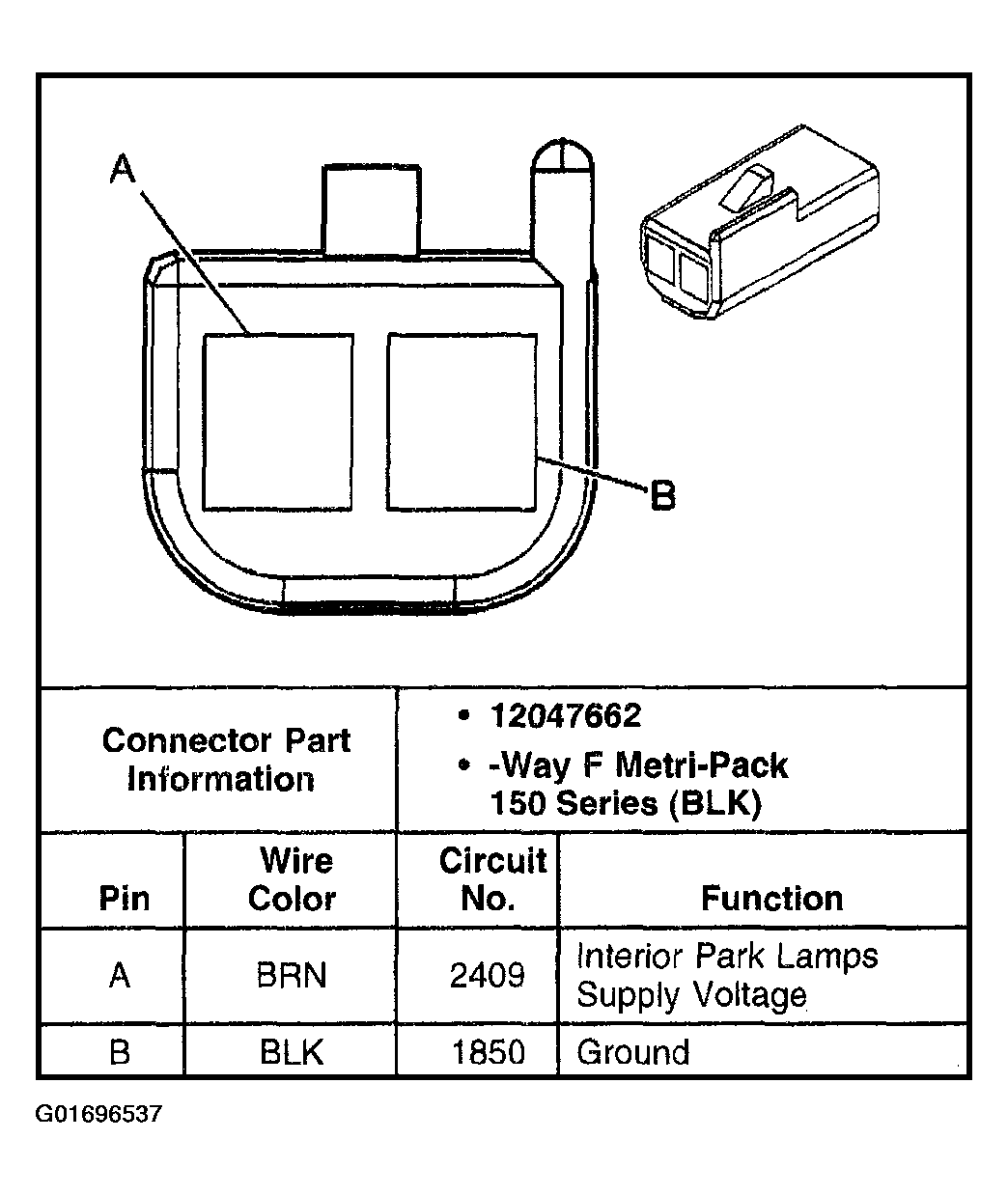

Fig 6: Clearance Lamps

G01696537

Courtesy of GENERAL MOTORS CORP.

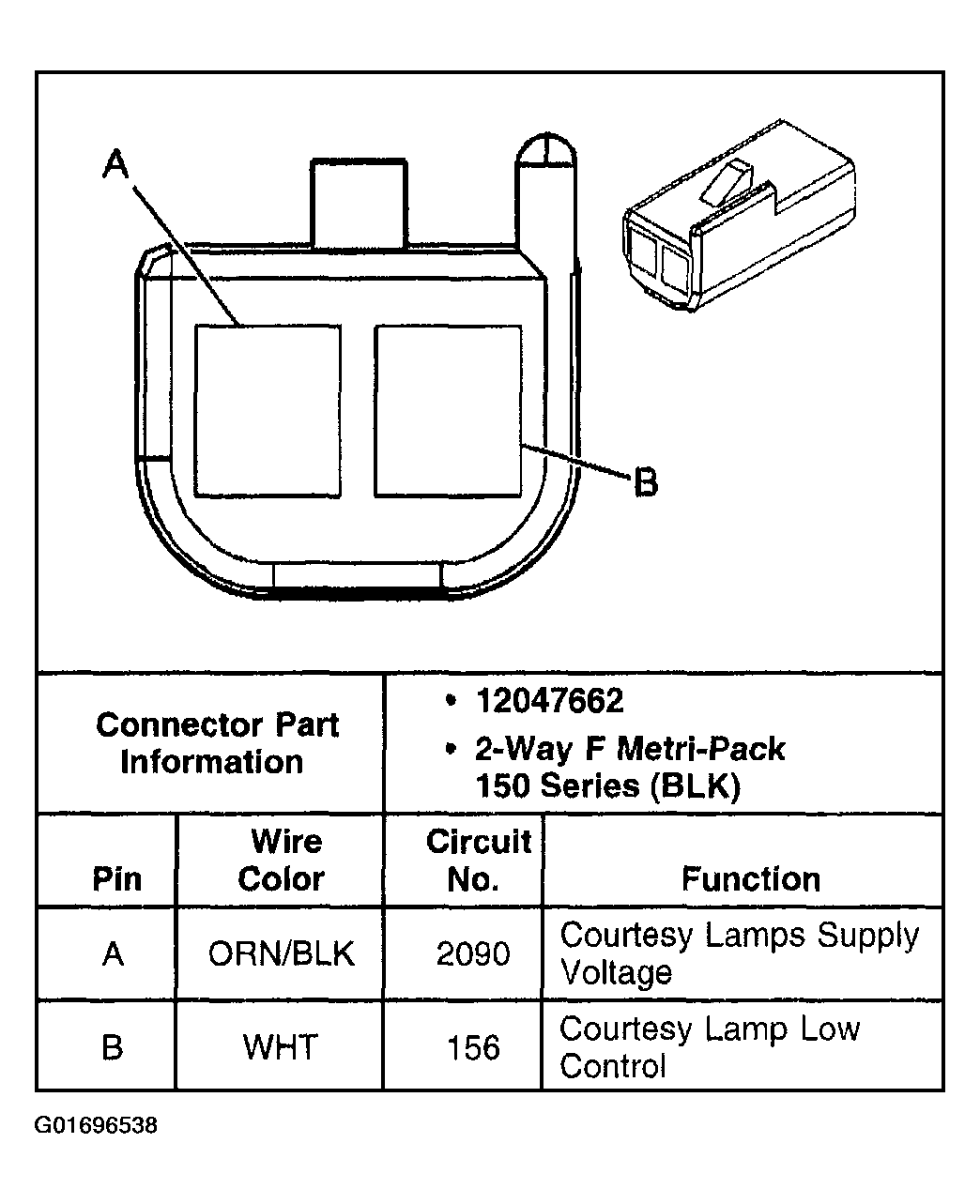

Fig 7: Console Courtesy Lamp - Luxury

G01696538

Courtesy of GENERAL MOTORS CORP.

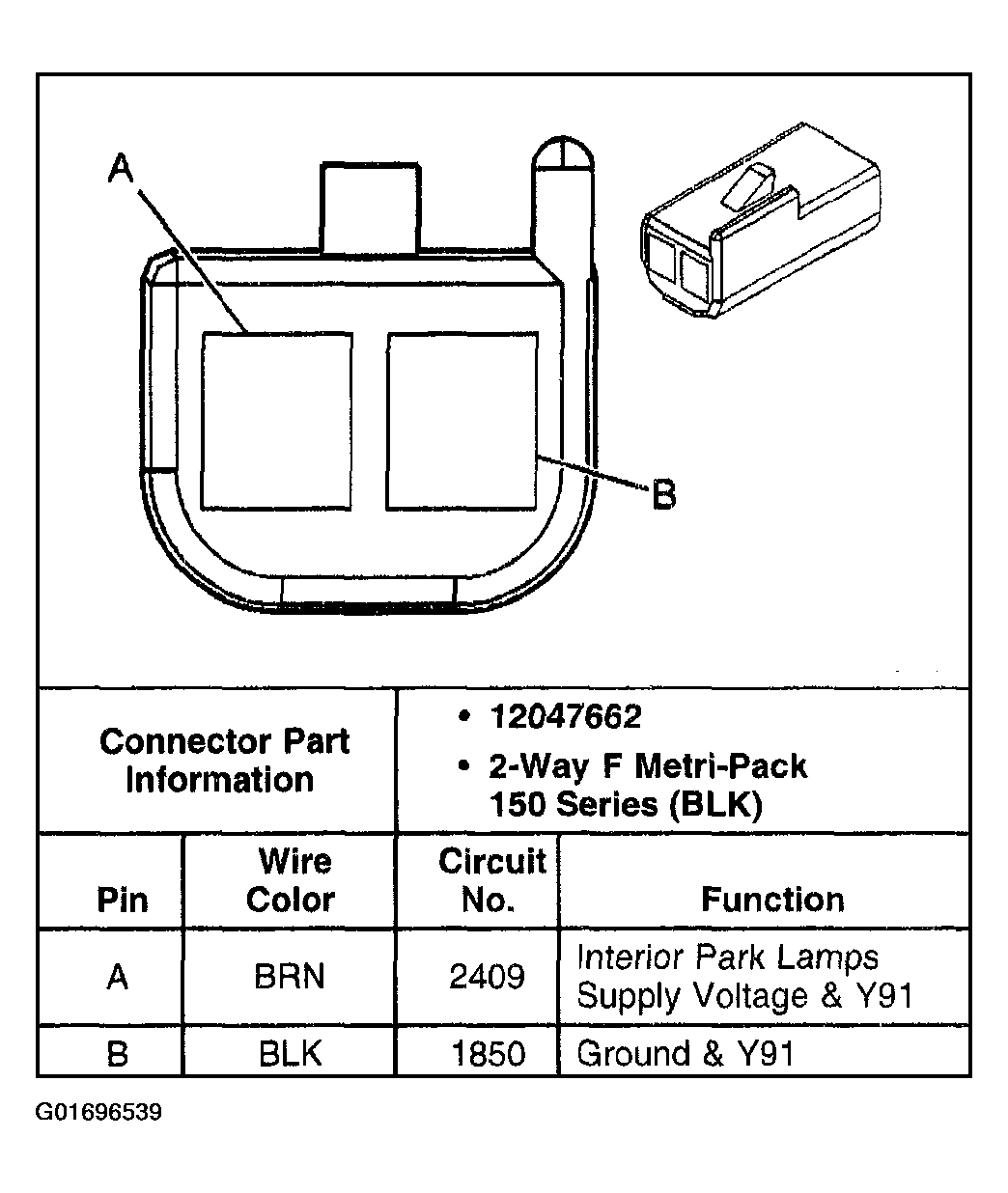

Fig 8: Console Compartment Lamp - Luxury

G01696539

Courtesy of GENERAL MOTORS CORP.

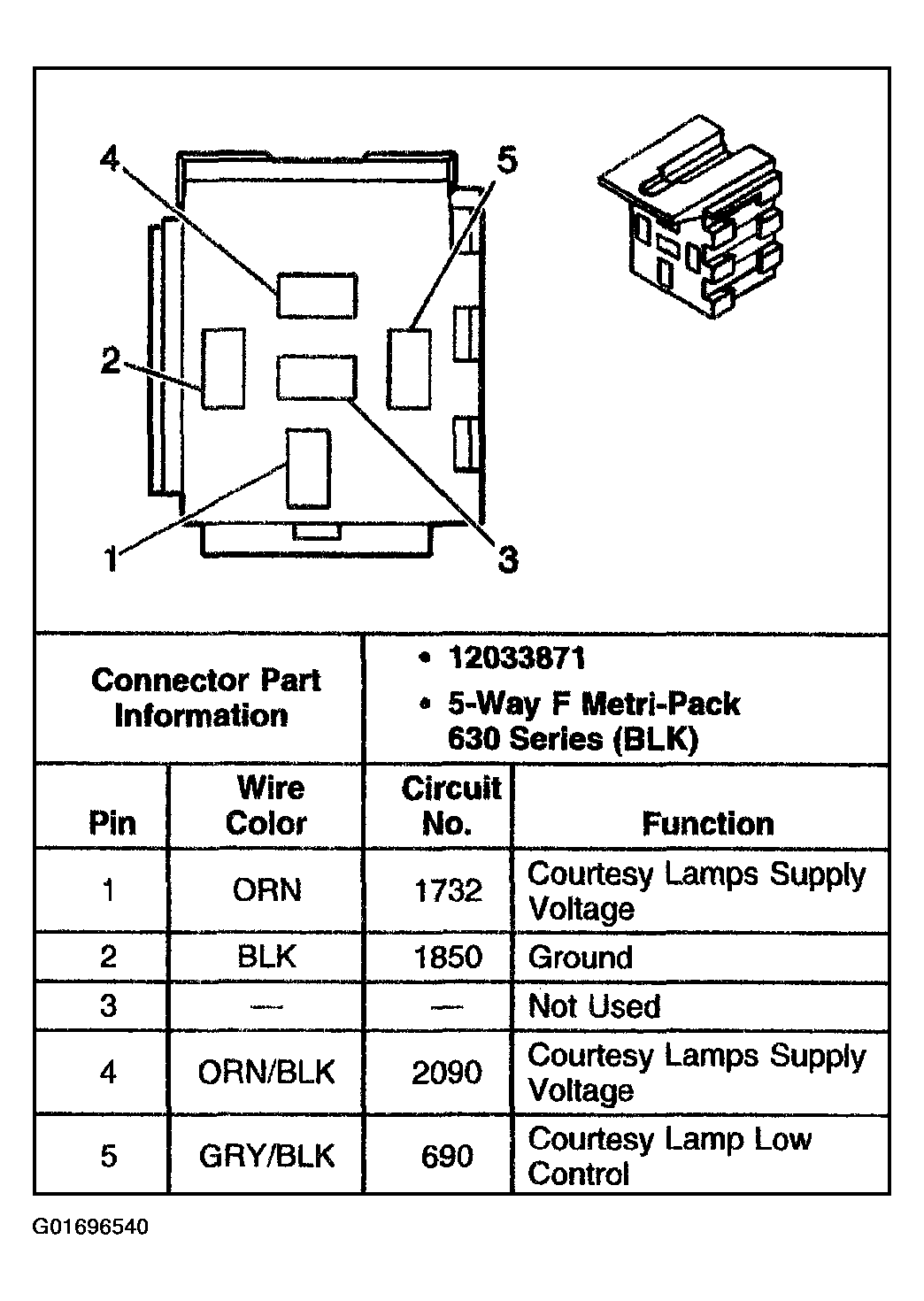

Fig 9: Courtesy Lamp Module - Luxury

G01696540

Courtesy of GENERAL MOTORS CORP.

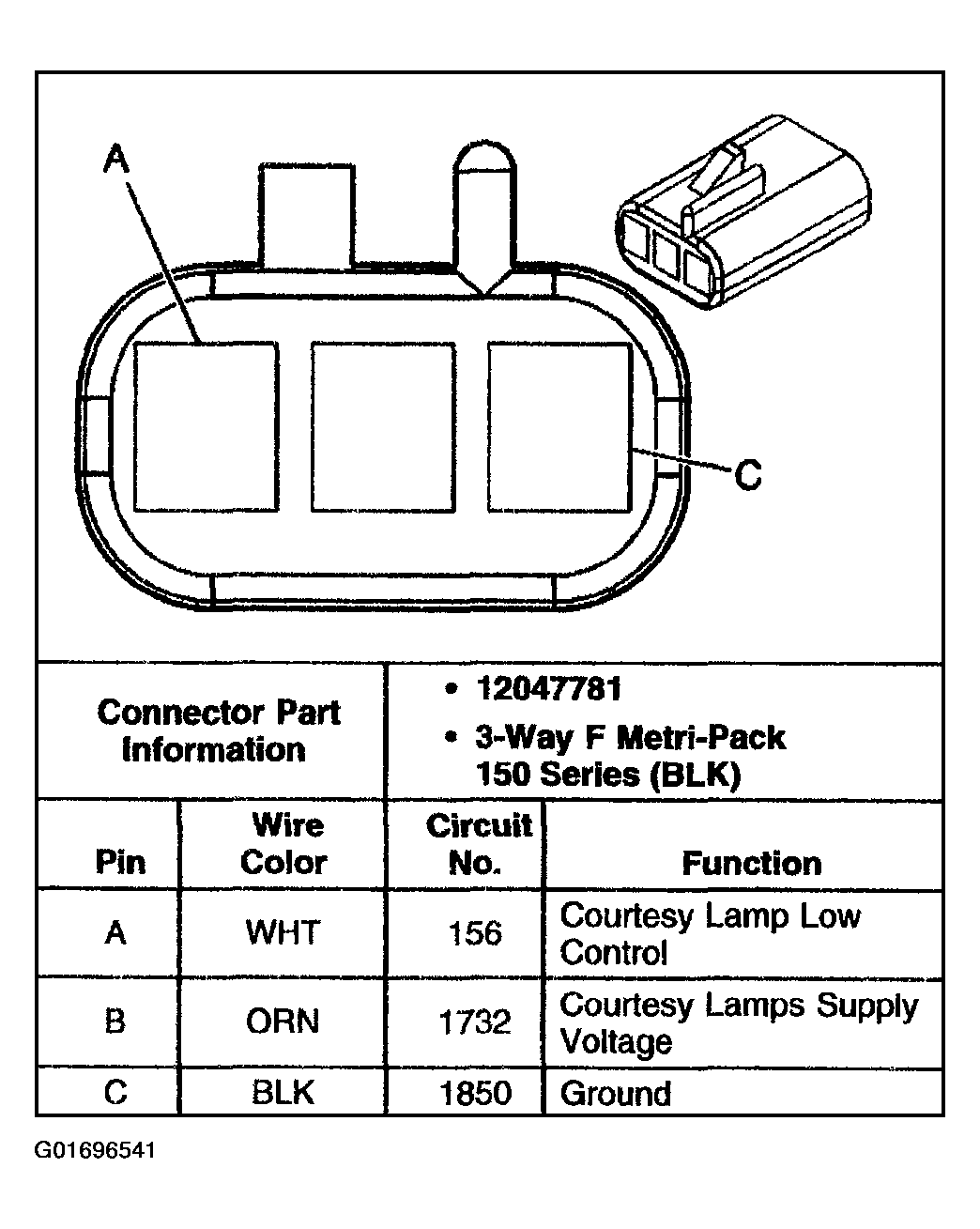

Fig 10: Courtesy/Reading Lamp - Uplevel

G01696541

Courtesy of GENERAL MOTORS CORP.

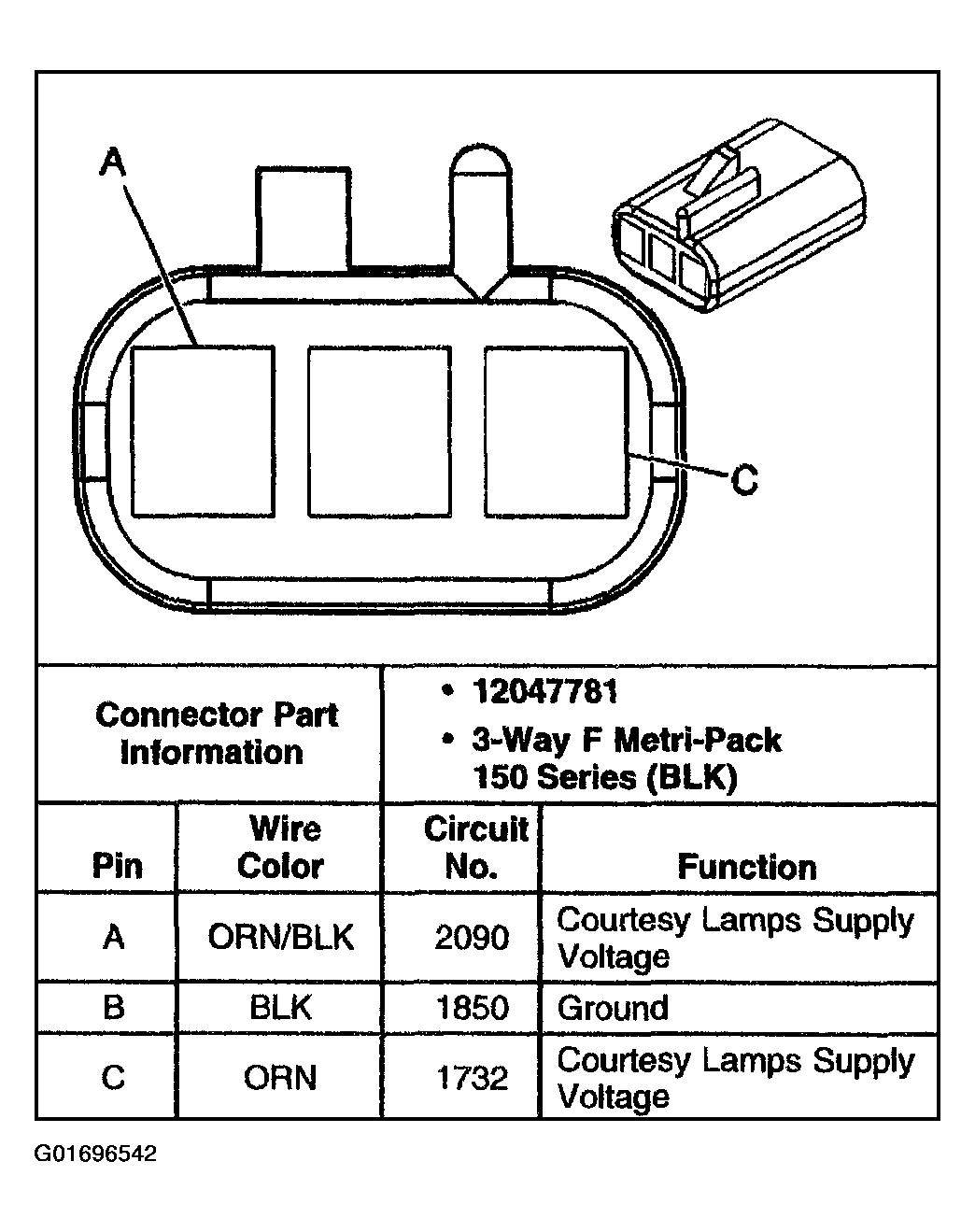

Fig 11: Courtesy/Reading Lamp - Luxury

G01696542

Courtesy of GENERAL MOTORS CORP.

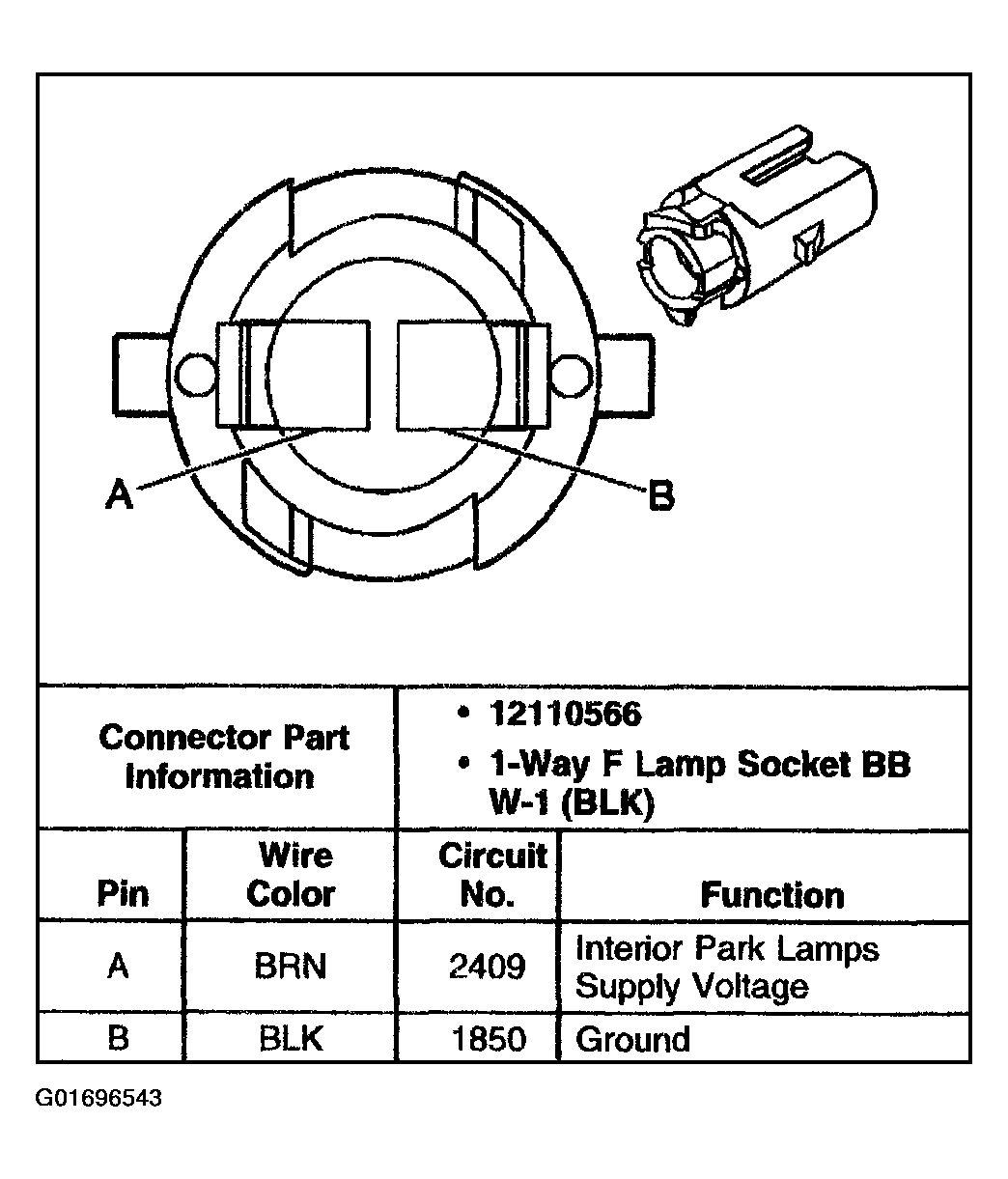

Fig 12: Cupholder Lamp

G01696543

Courtesy of GENERAL MOTORS CORP.

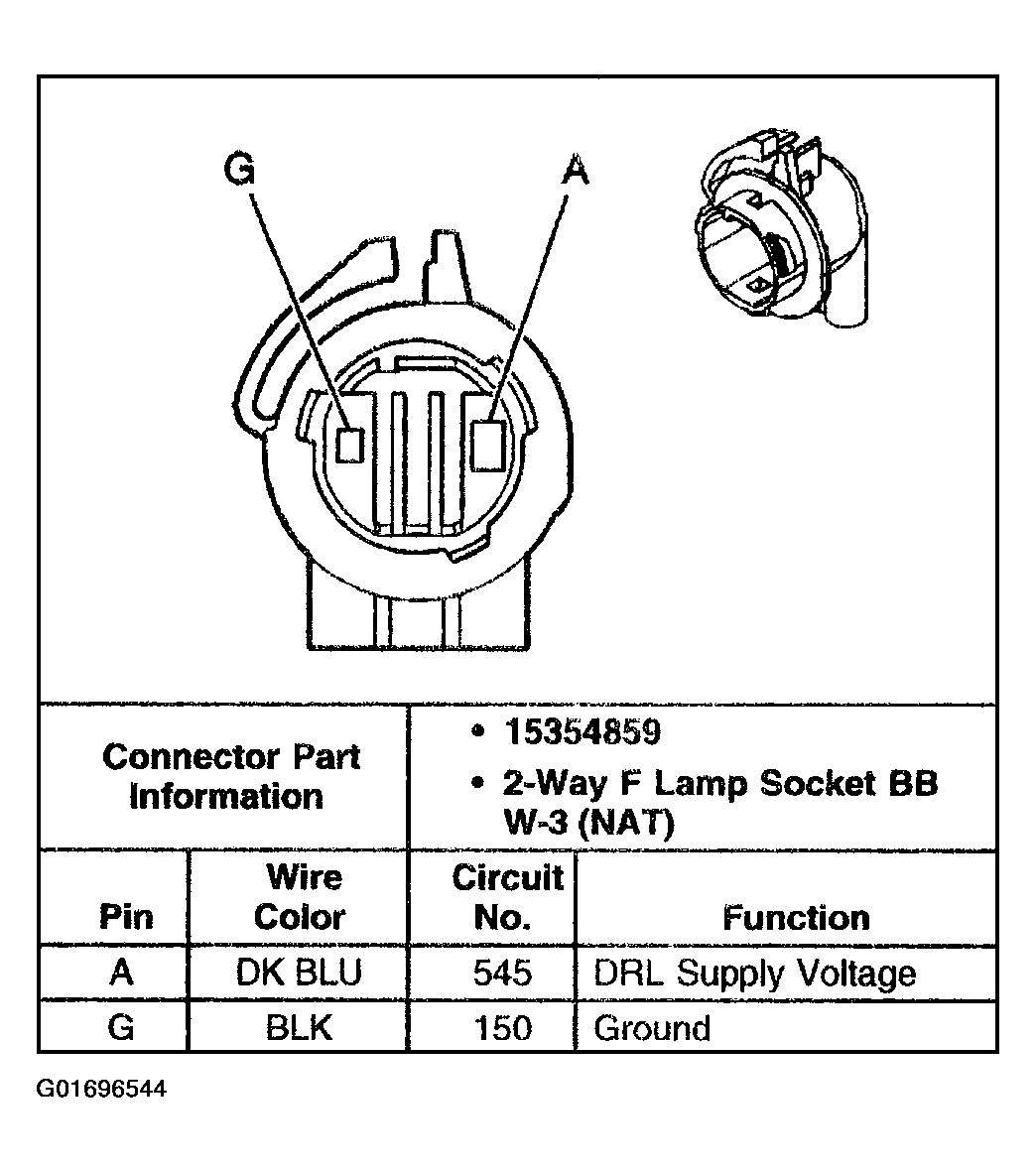

Fig 13: Daytime Running Lamp (DRL) - Left, Right

G01696544

Courtesy of GENERAL MOTORS CORP.

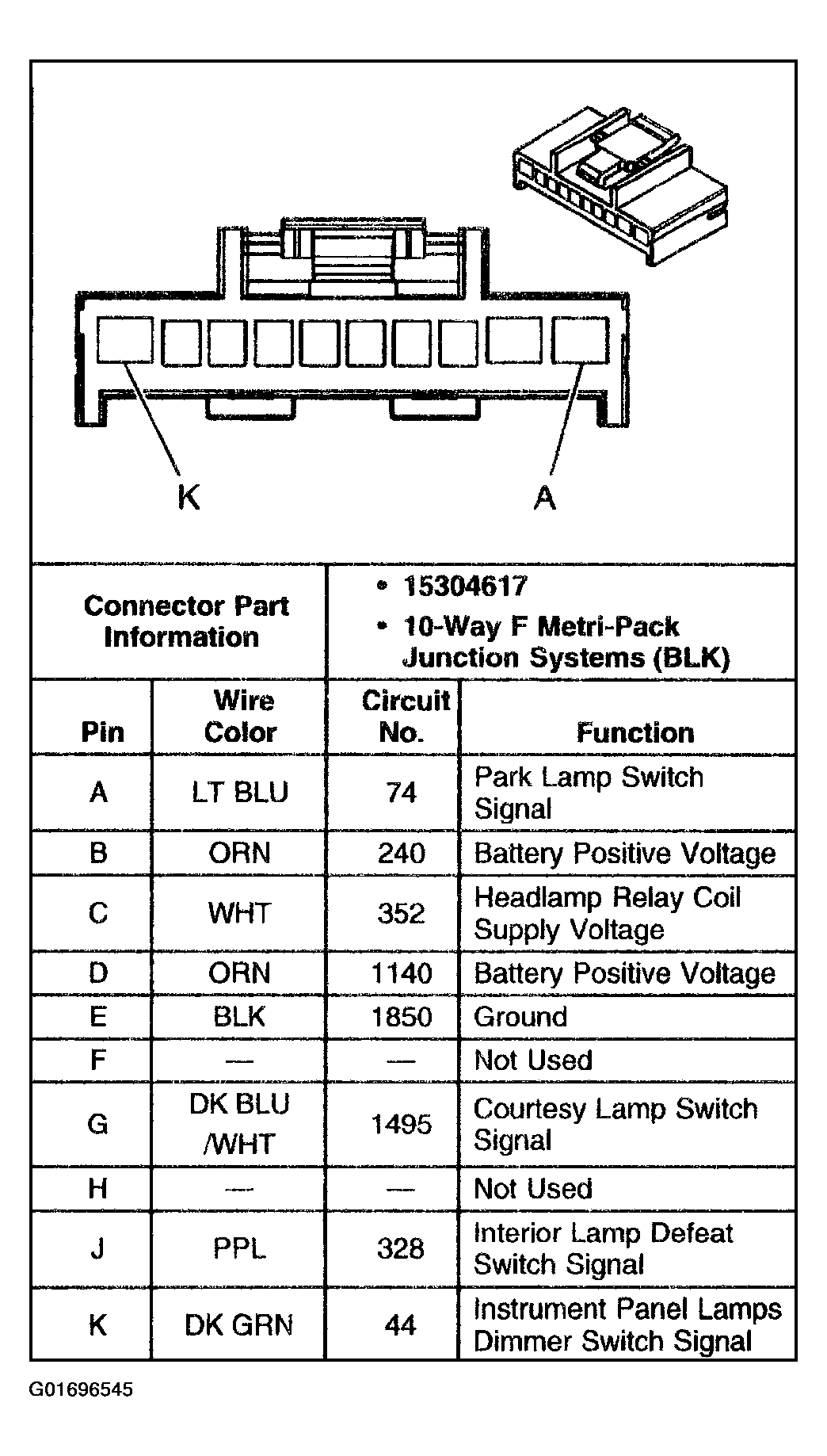

Fig 14: Dimmer Switch

G01696545

Courtesy of GENERAL MOTORS CORP.

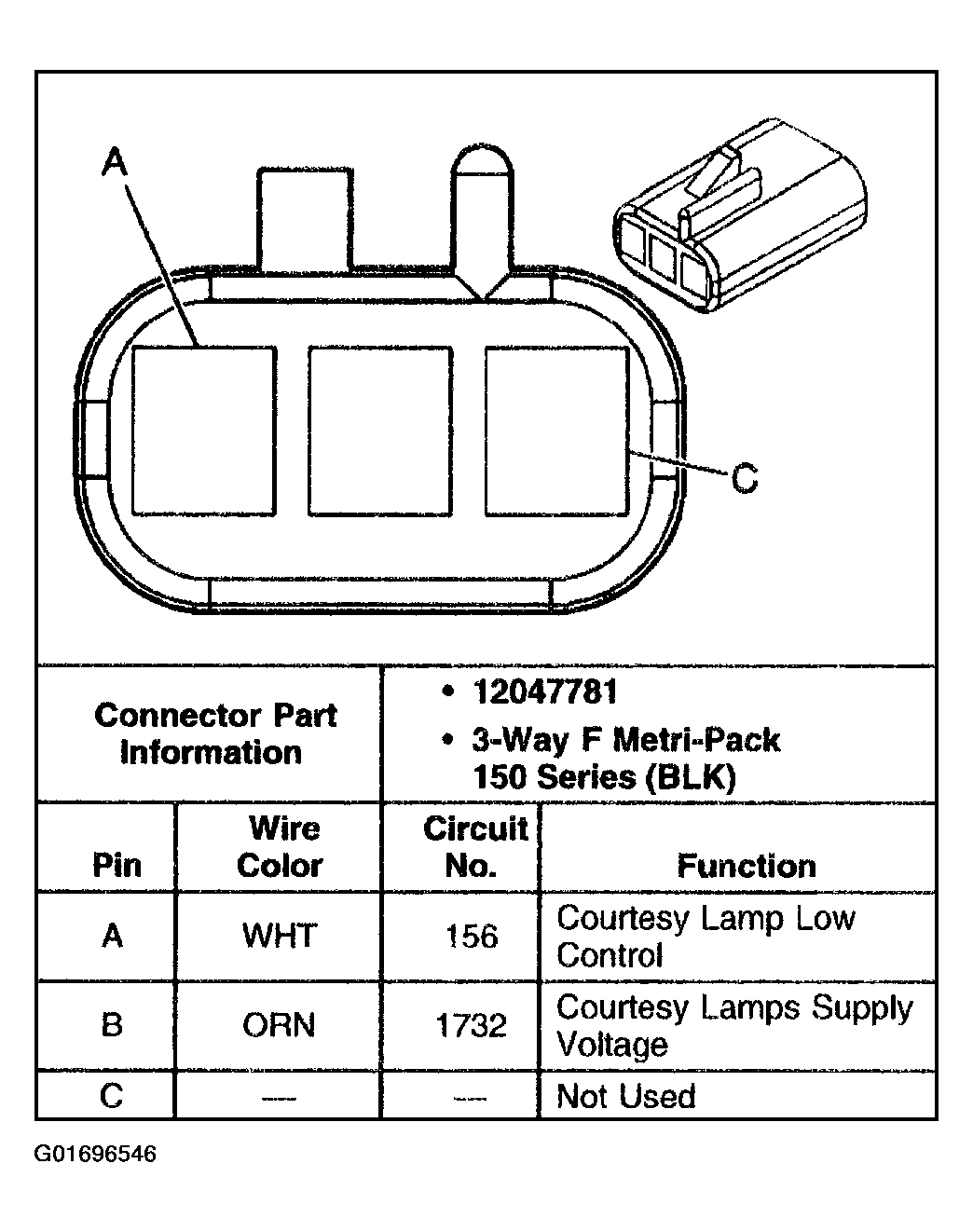

Fig 15: Dome Lamp -Base

G01696546

Courtesy of GENERAL MOTORS CORP.

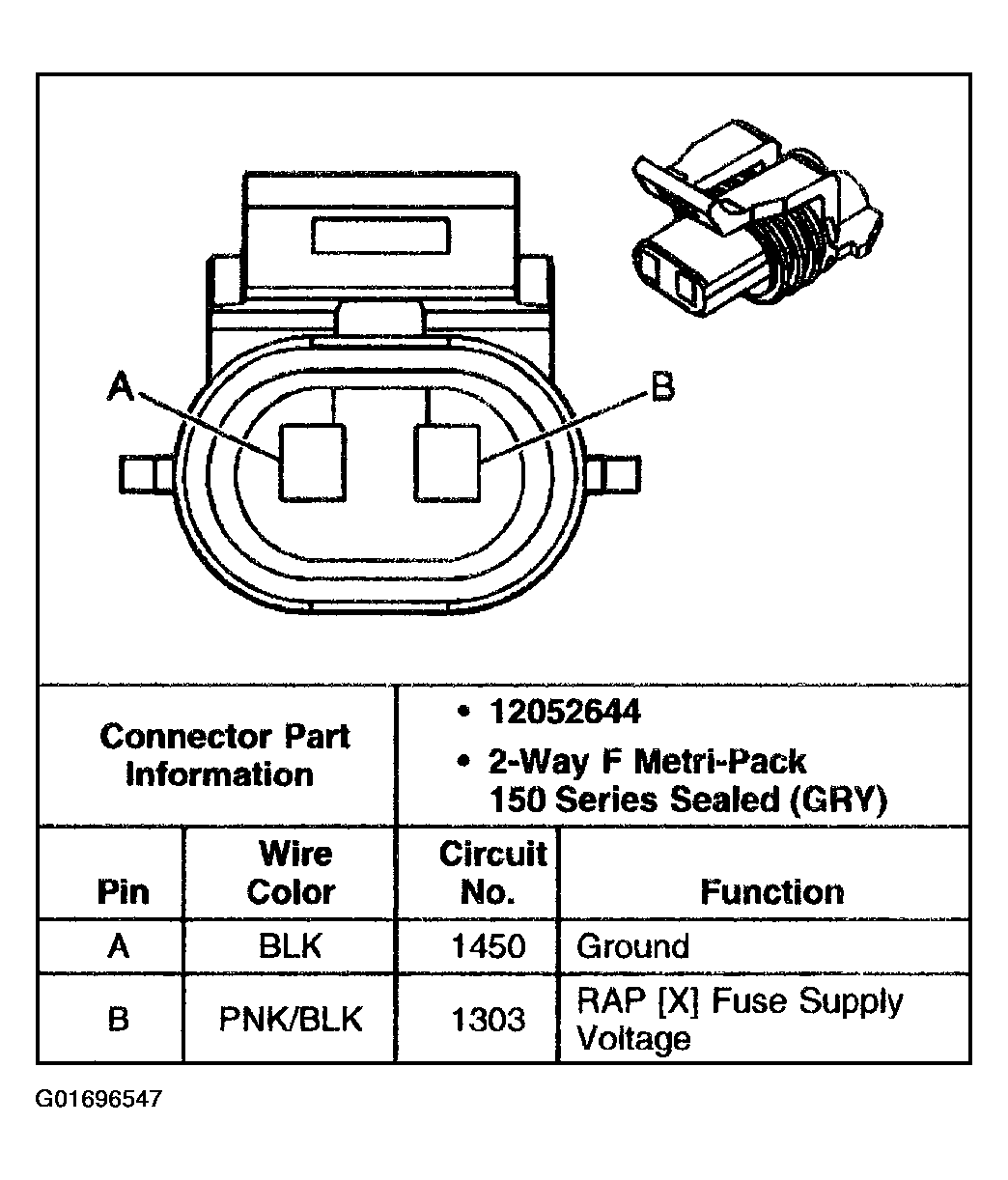

Fig 16: Door Ajar Switch - Right Cargo

G01696547

Courtesy of GENERAL MOTORS CORP.

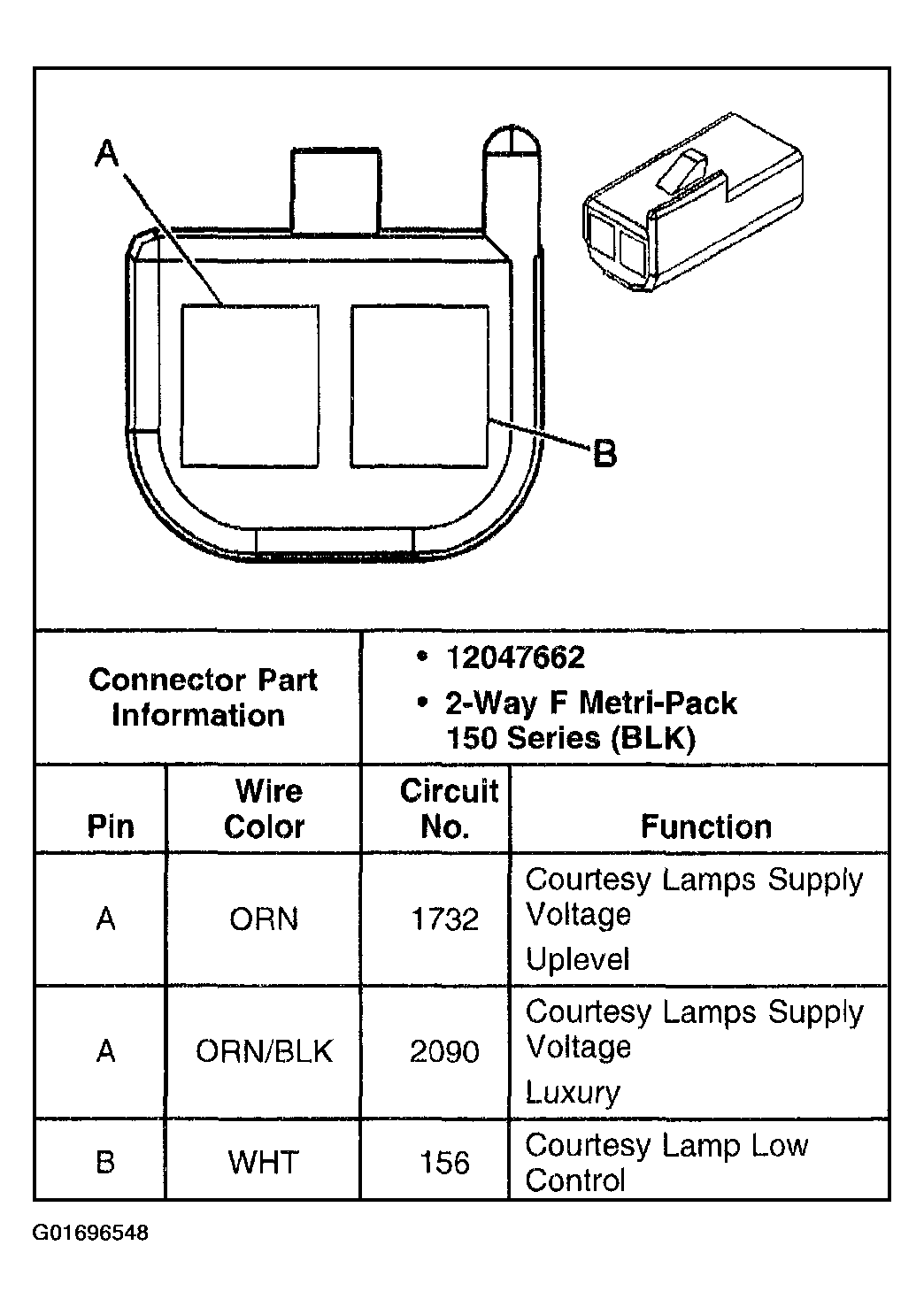

Fig 17: Door Courtesy Lamp - LF, RF, LR, RR

G01696548

Courtesy of GENERAL MOTORS CORP.

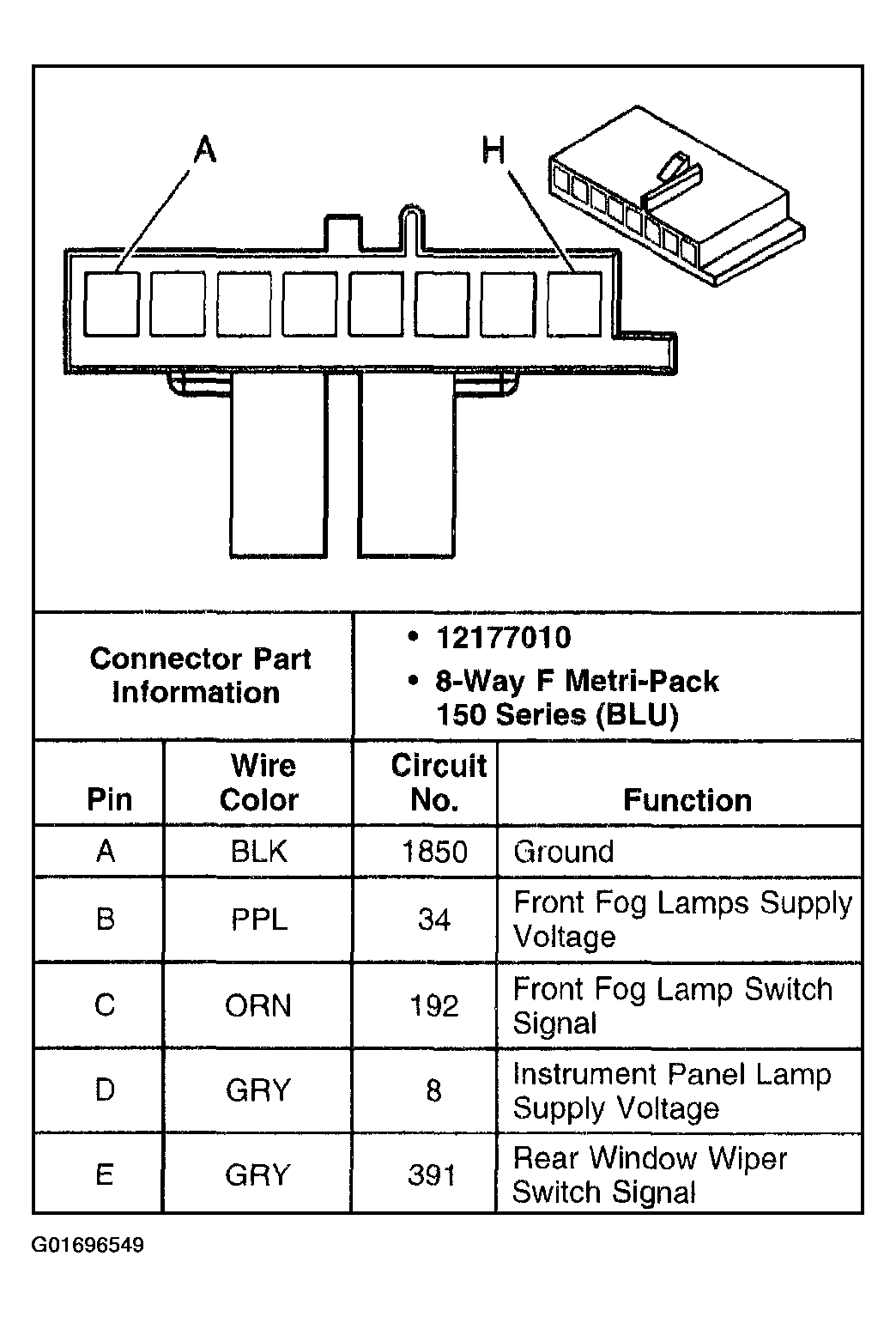

Fig 18: Fog/Cargo Lamp Switch (1 Of 2)

G01696549

Courtesy of GENERAL MOTORS CORP.

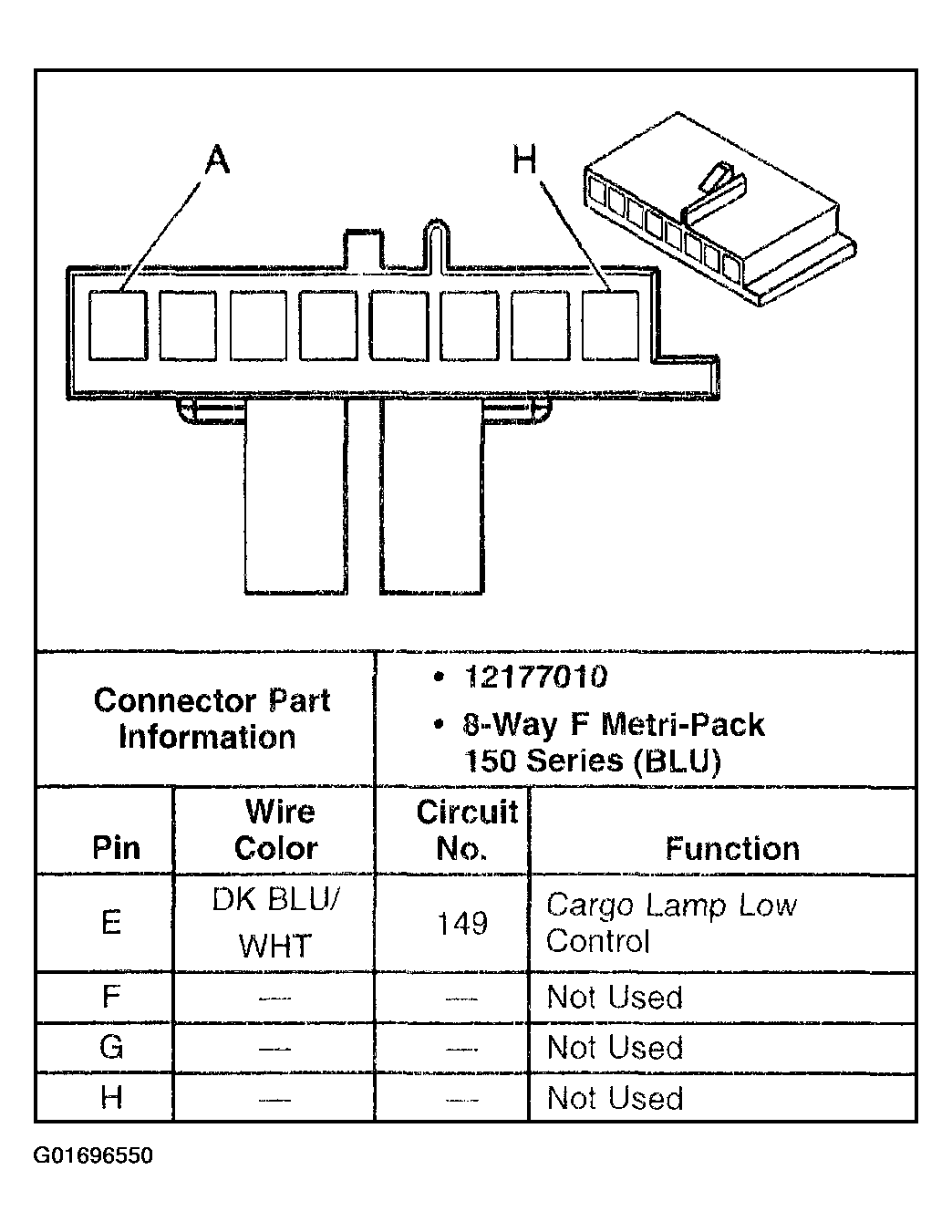

Fig 19: Fog/Cargo Lamp Switch (2 Of 2)

G01696550

Courtesy of GENERAL MOTORS CORP.

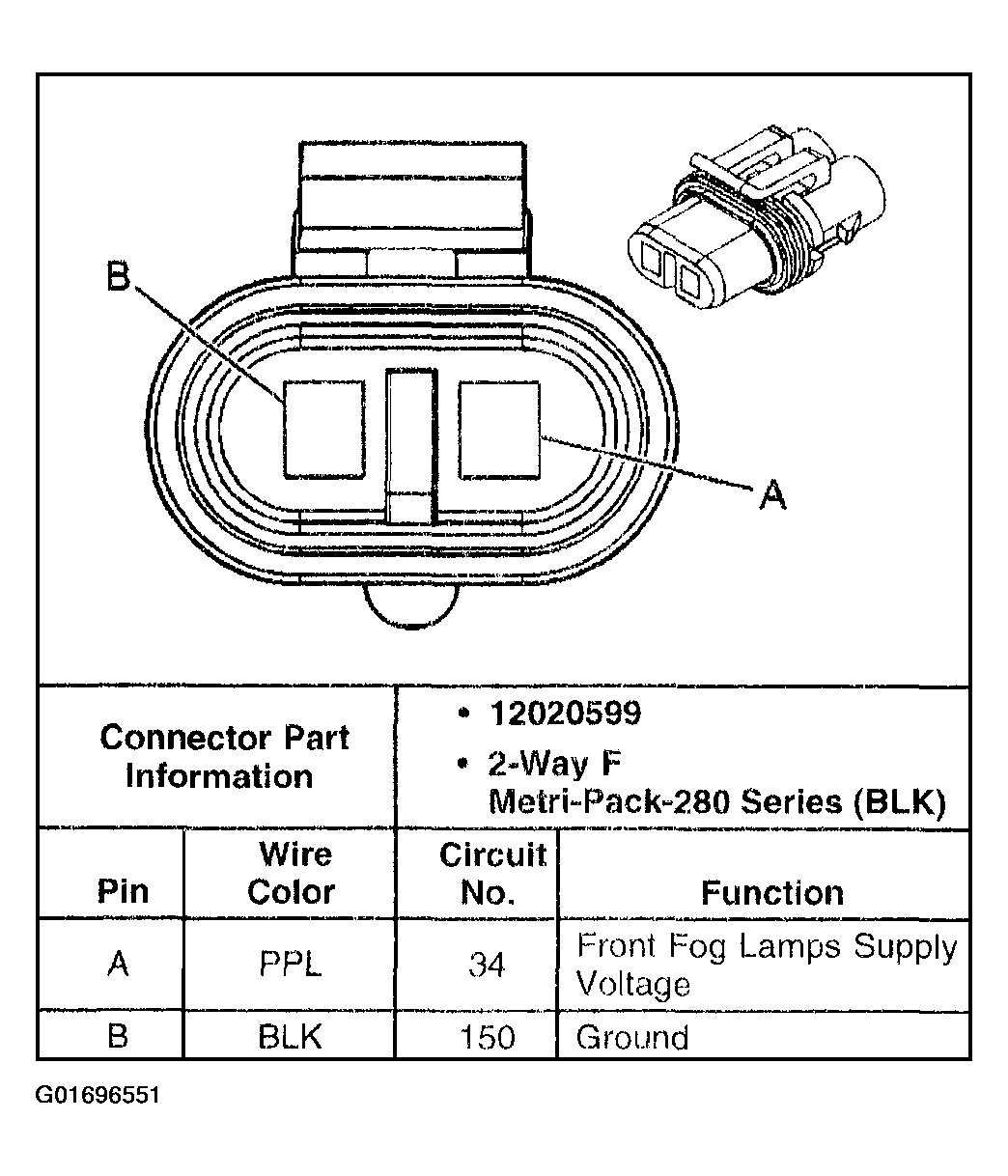

Fig 20: Fog Lamp - LF, RF

G01696551

Courtesy of GENERAL MOTORS CORP.

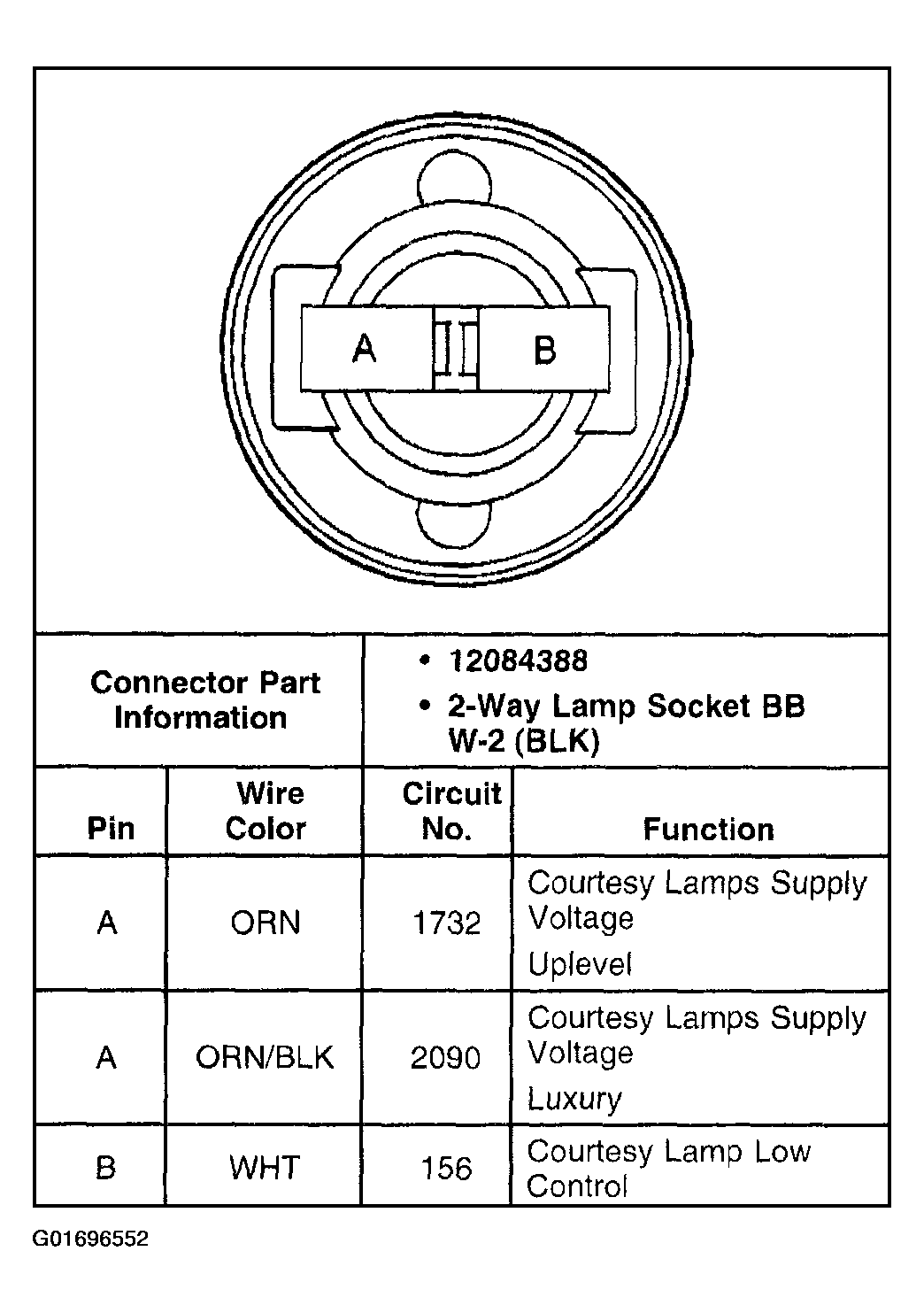

Fig 21: Footwell Courtesy Lamp - Left, Right

G01696552

Courtesy of GENERAL MOTORS CORP.

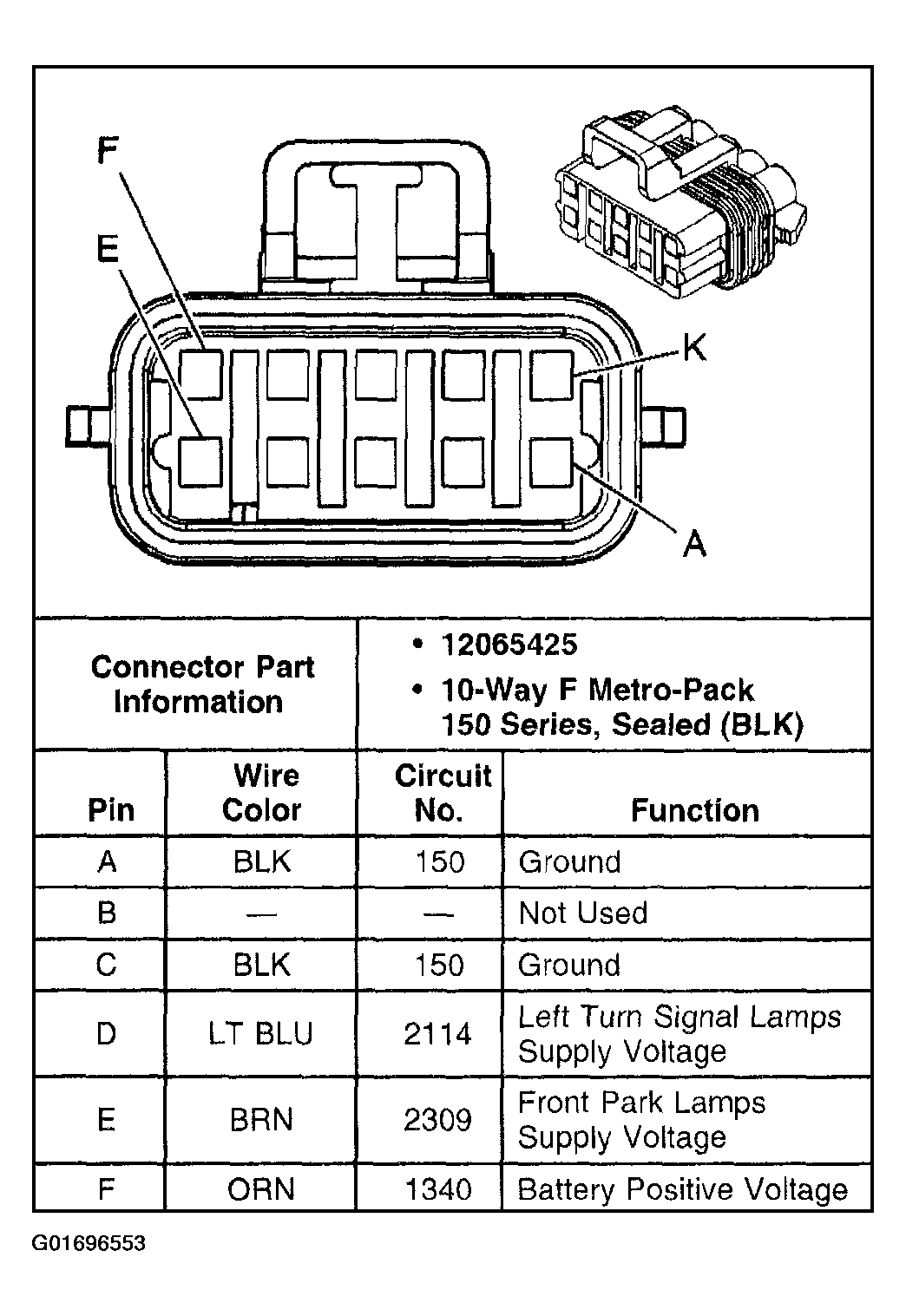

Fig 22: Headlamp Assembly - Left - W/Z75 (1 Of 2)

G01696553

Courtesy of GENERAL MOTORS CORP.

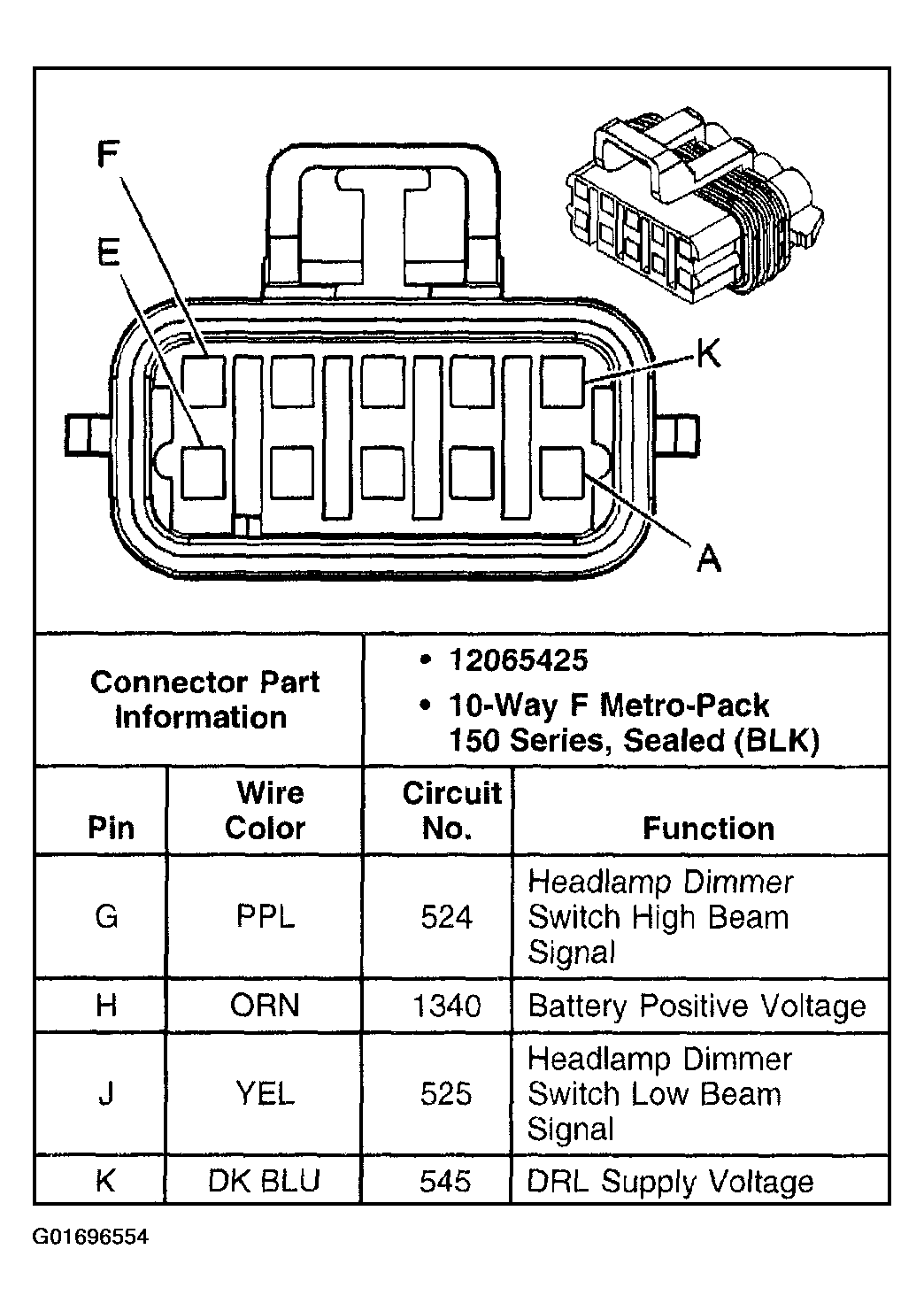

Fig 23: Headlamp Assembly - Left - W/Z75 (2 Of 2)

G01696554

Courtesy of GENERAL MOTORS CORP.

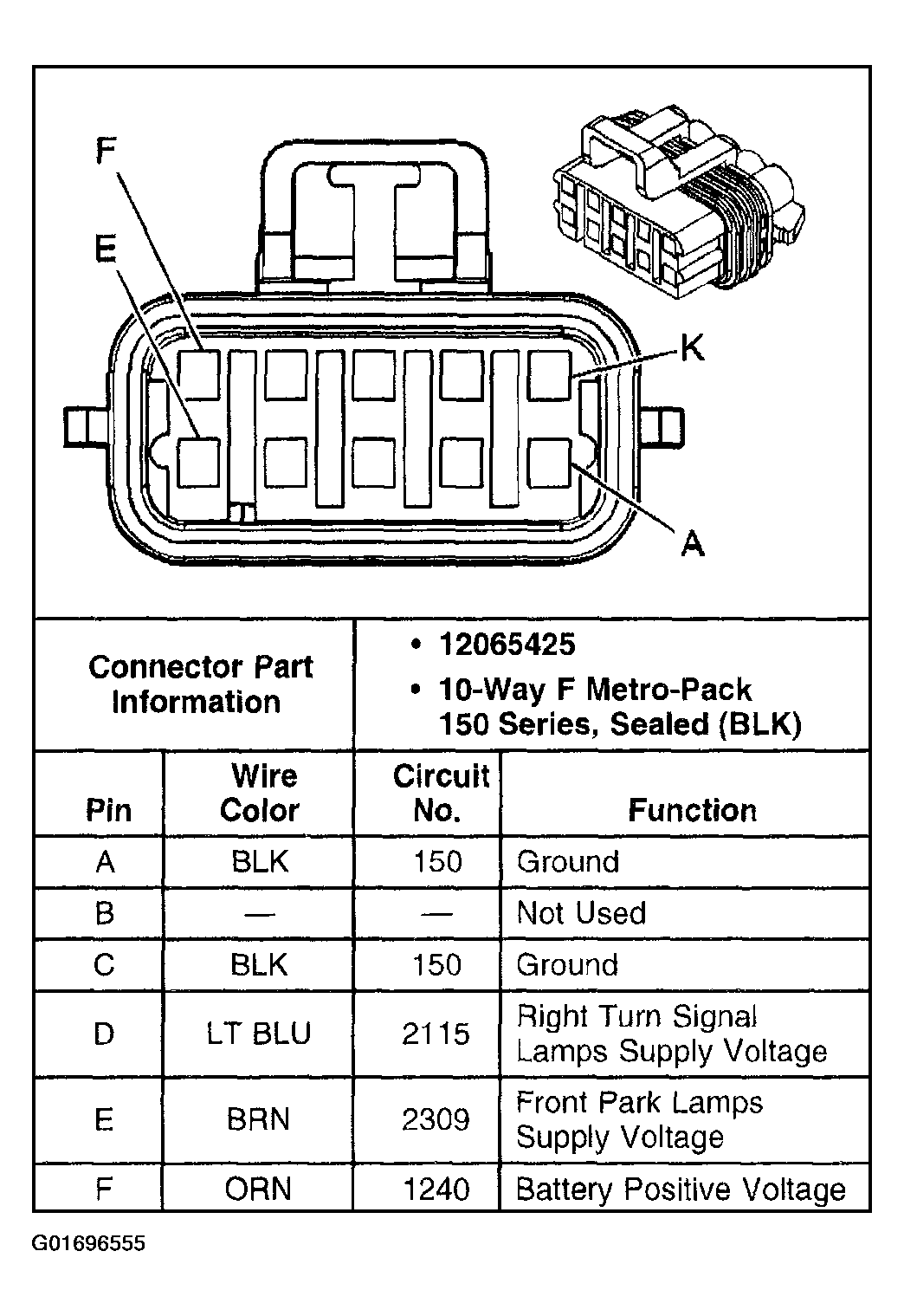

Fig 24: Headlamp Assembly - Right - W/Z75 (1 Of 2)

G01696555

Courtesy of GENERAL MOTORS CORP.

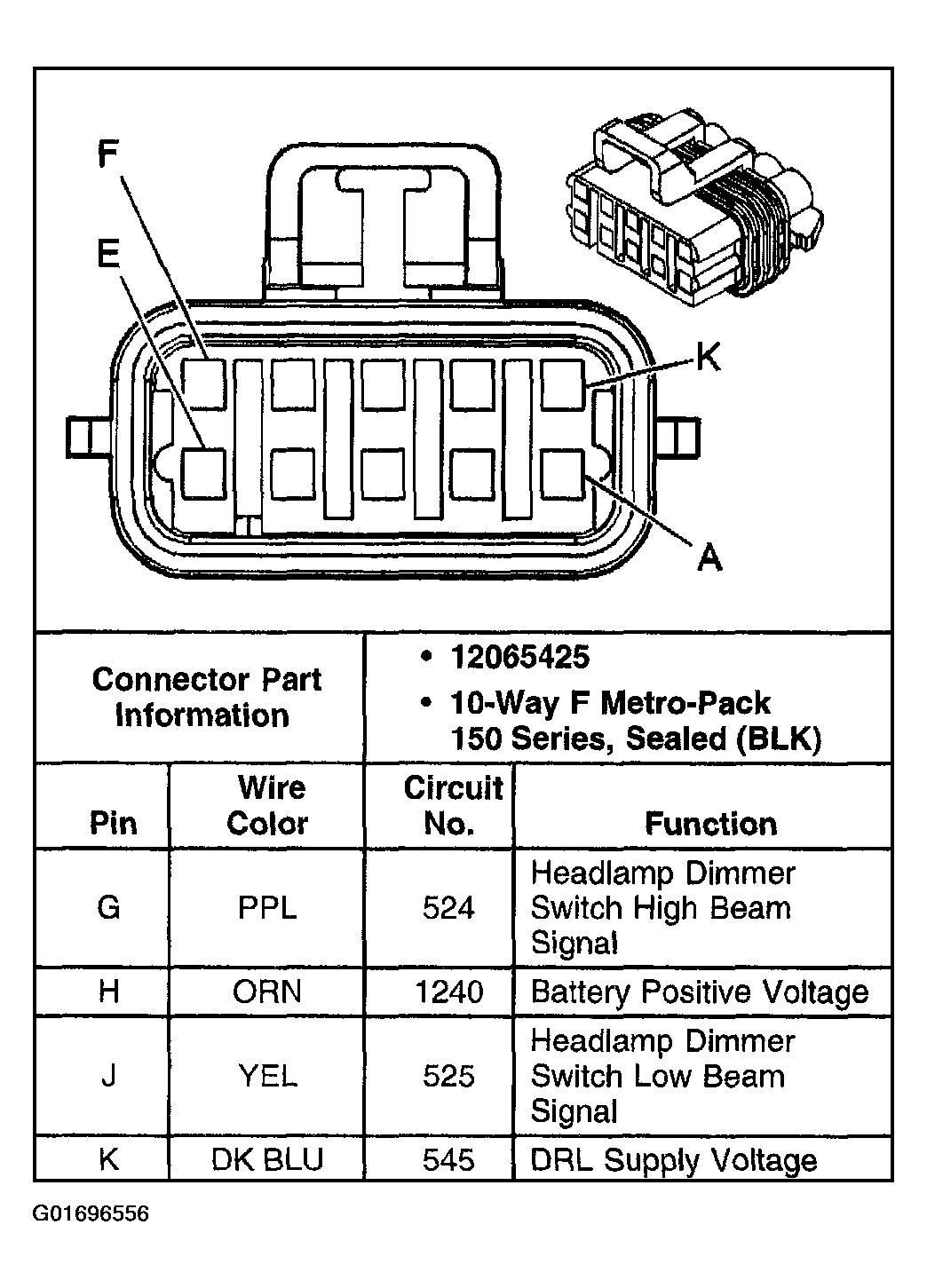

Fig 25: Headlamp Assembly - Right - W/Z75 (2 Of 2)

G01696556

Courtesy of GENERAL MOTORS CORP.

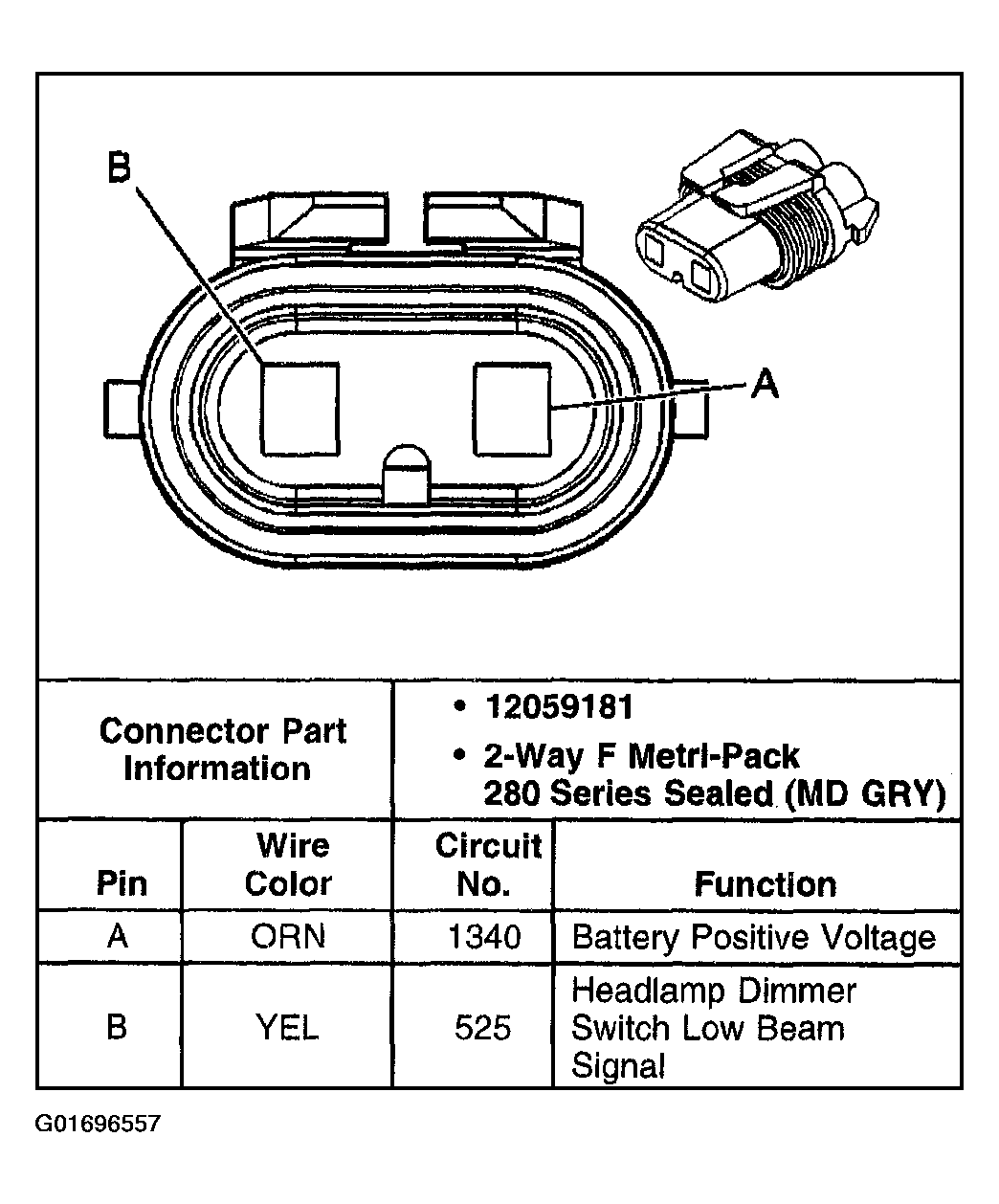

Fig 26: Headlamp - Low Beam - Left

G01696557

Courtesy of GENERAL MOTORS CORP.

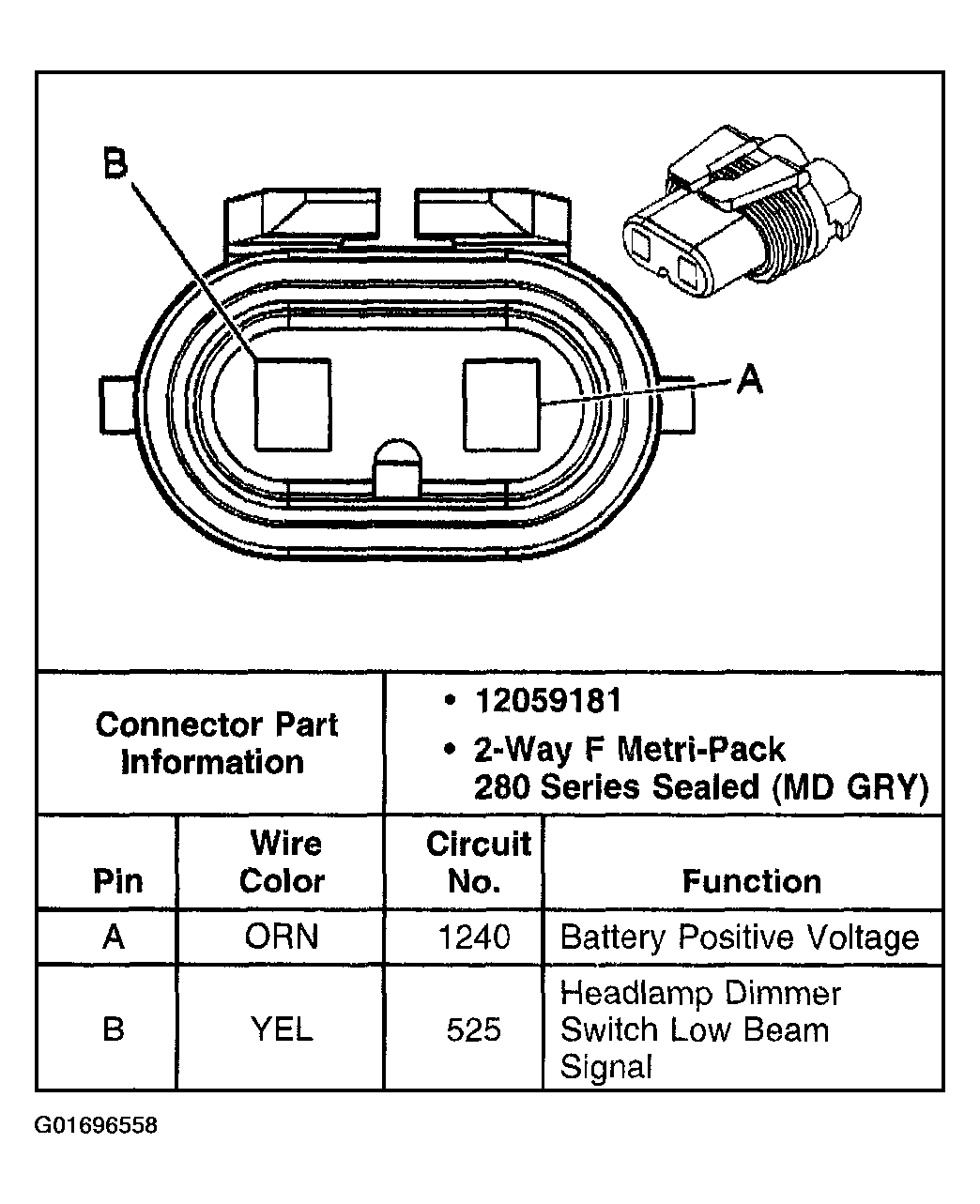

Fig 27: Headlamp - Low Beam - Right

G01696558

Courtesy of GENERAL MOTORS CORP.

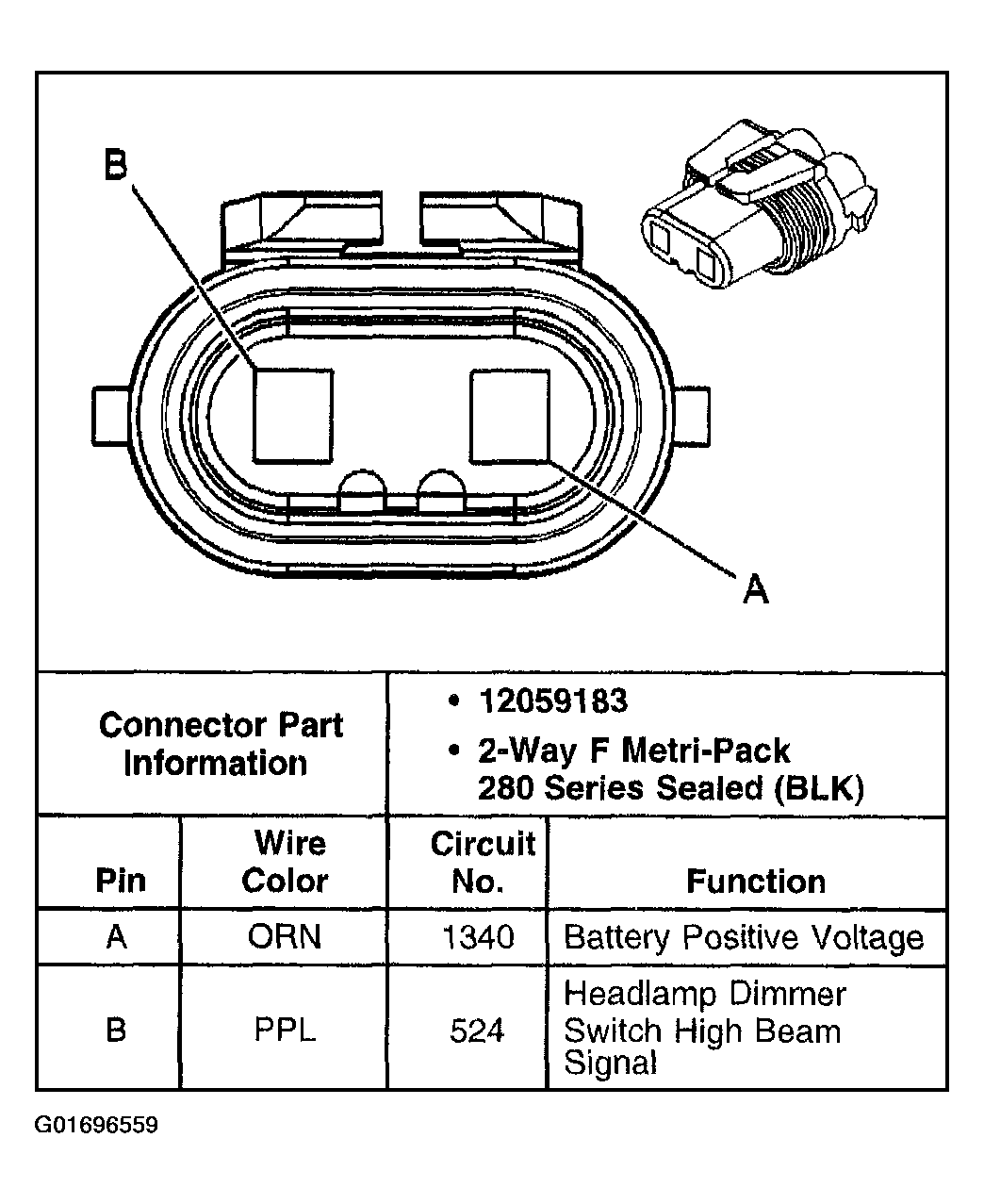

Fig 28: Headlamp - High Beam - Left

G01696559

Courtesy of GENERAL MOTORS CORP.

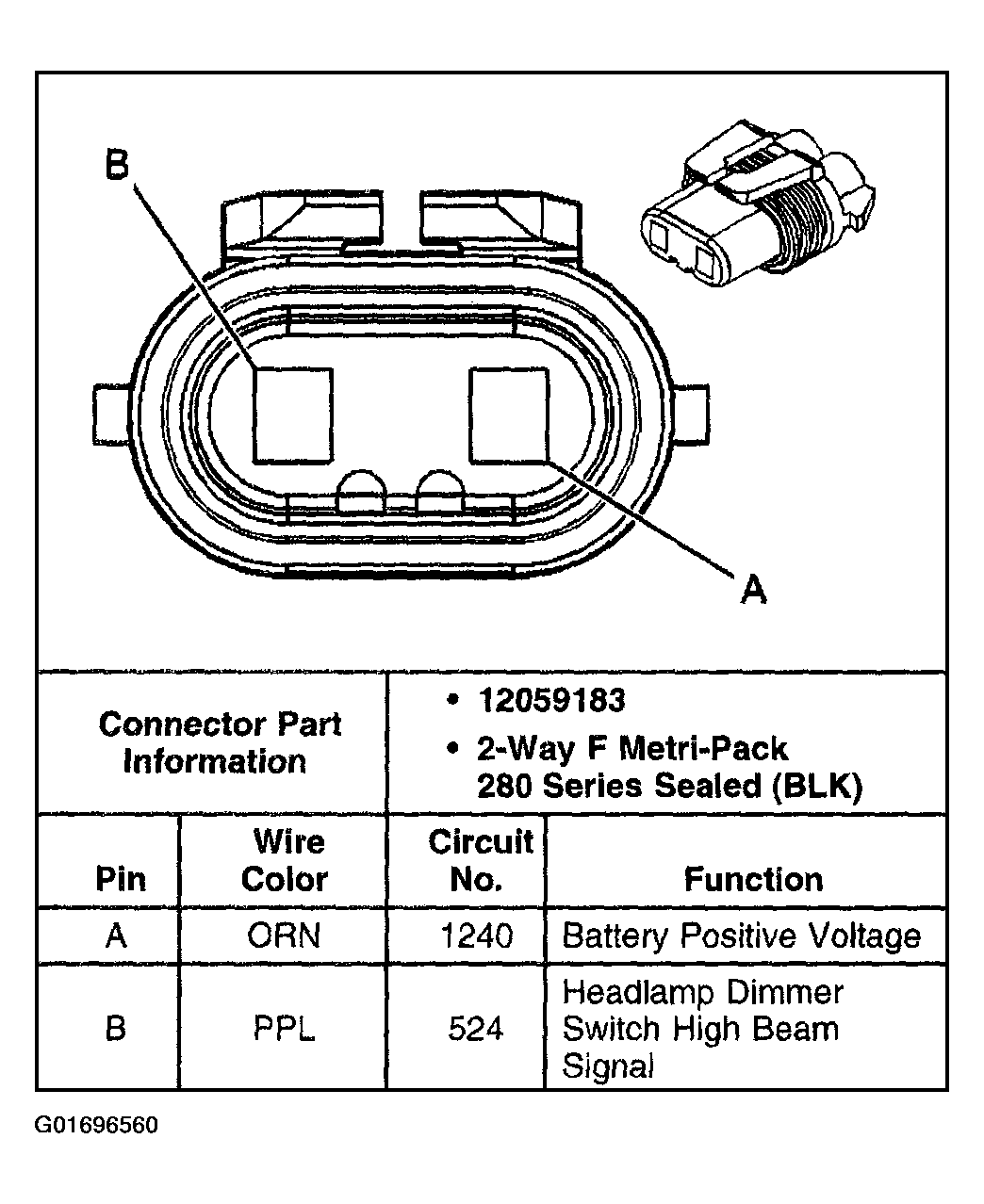

Fig 29: Headlamp - High Beam - Right

G01696560

Courtesy of GENERAL MOTORS CORP.

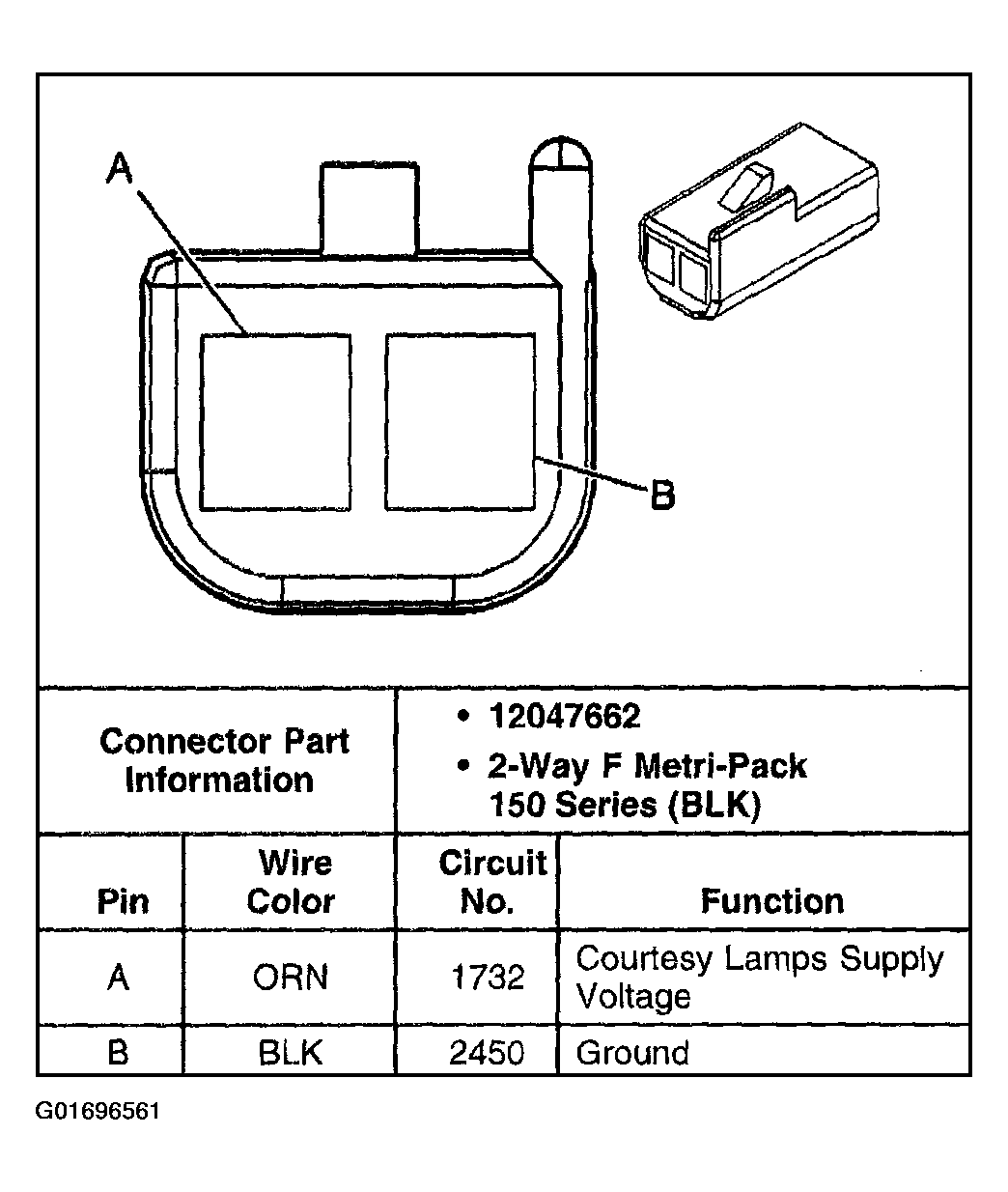

Fig 30: IP Compartment Lamp

G01696561

Courtesy of GENERAL MOTORS CORP.

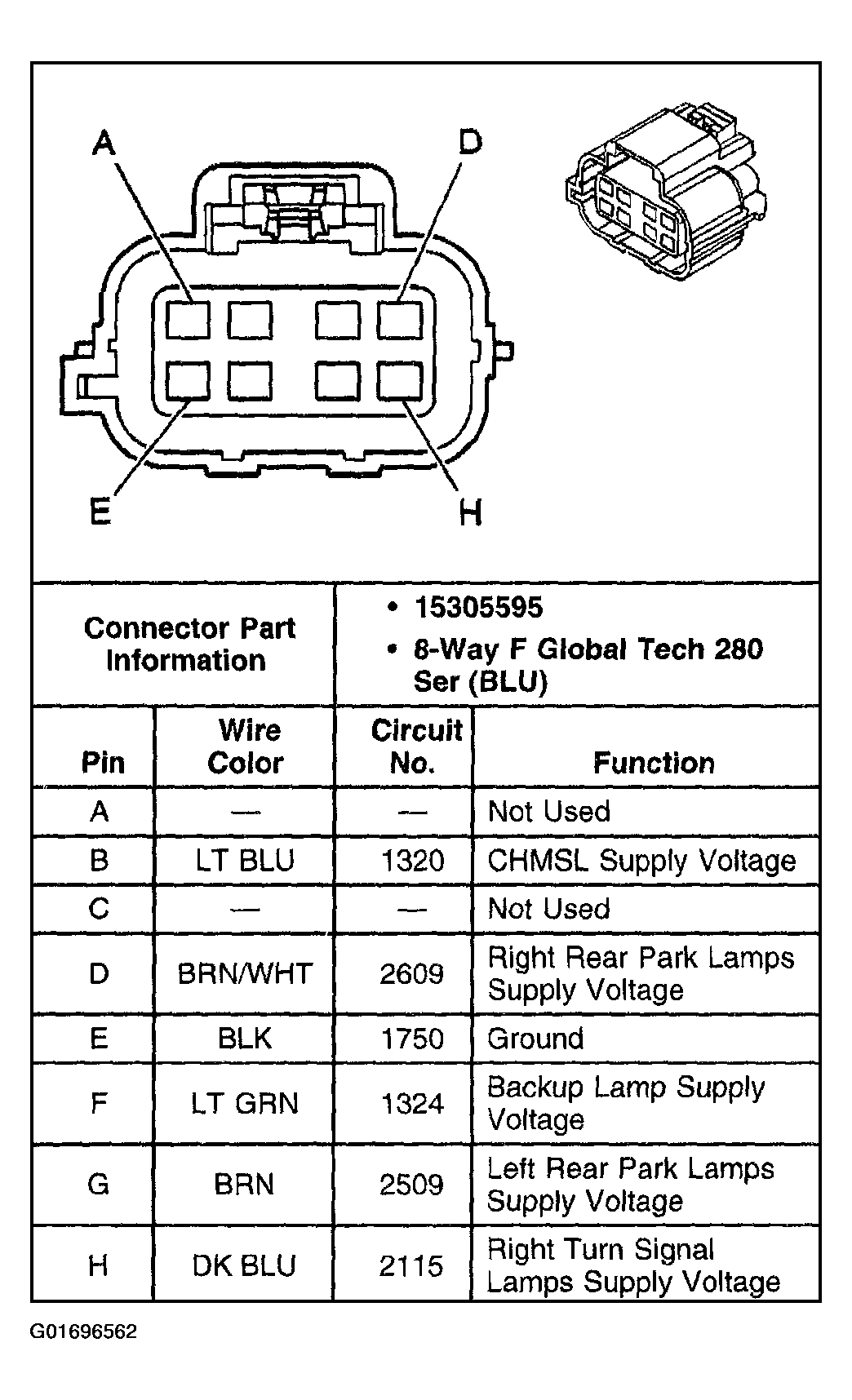

Fig 31: Junction Block - Rear Lamps - C1

G01696562

Courtesy of GENERAL MOTORS CORP.

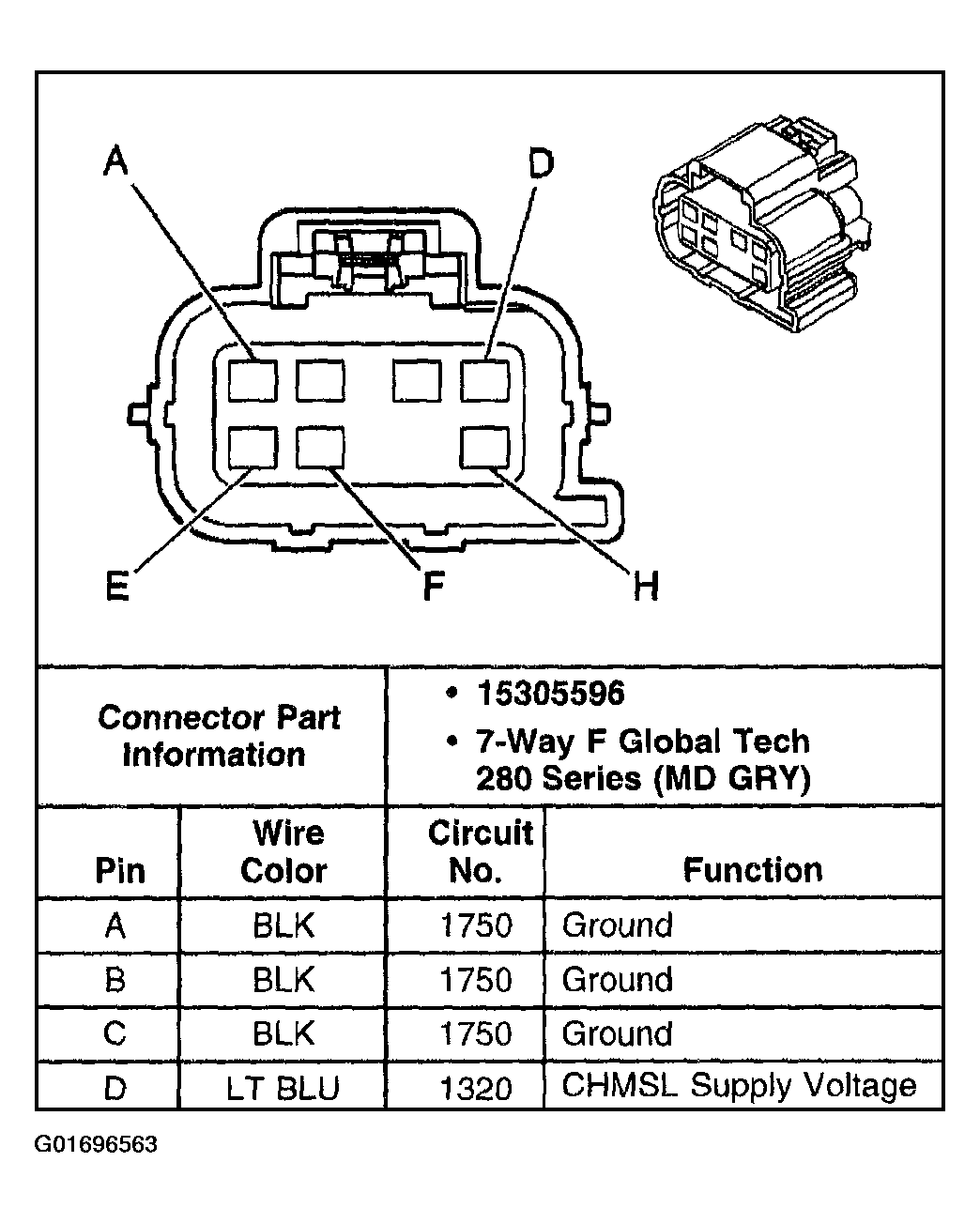

Fig 32: Junction Block - Rear Lamps - C2 (1 Of 2)

G01696563

Courtesy of GENERAL MOTORS CORP.

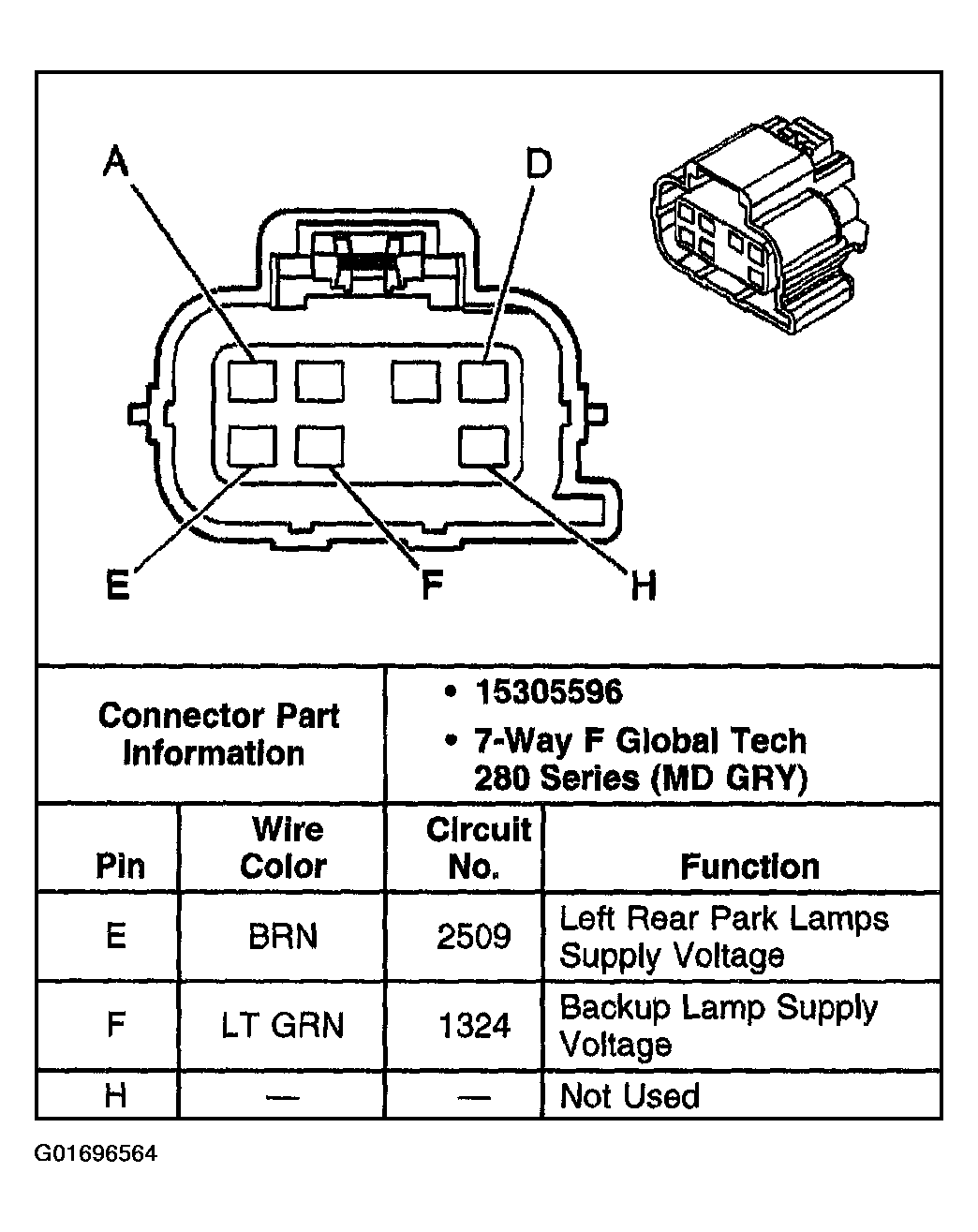

Fig 33: Junction Block - Rear Lamps - C2 (2 Of 2)

G01696564

Courtesy of GENERAL MOTORS CORP.

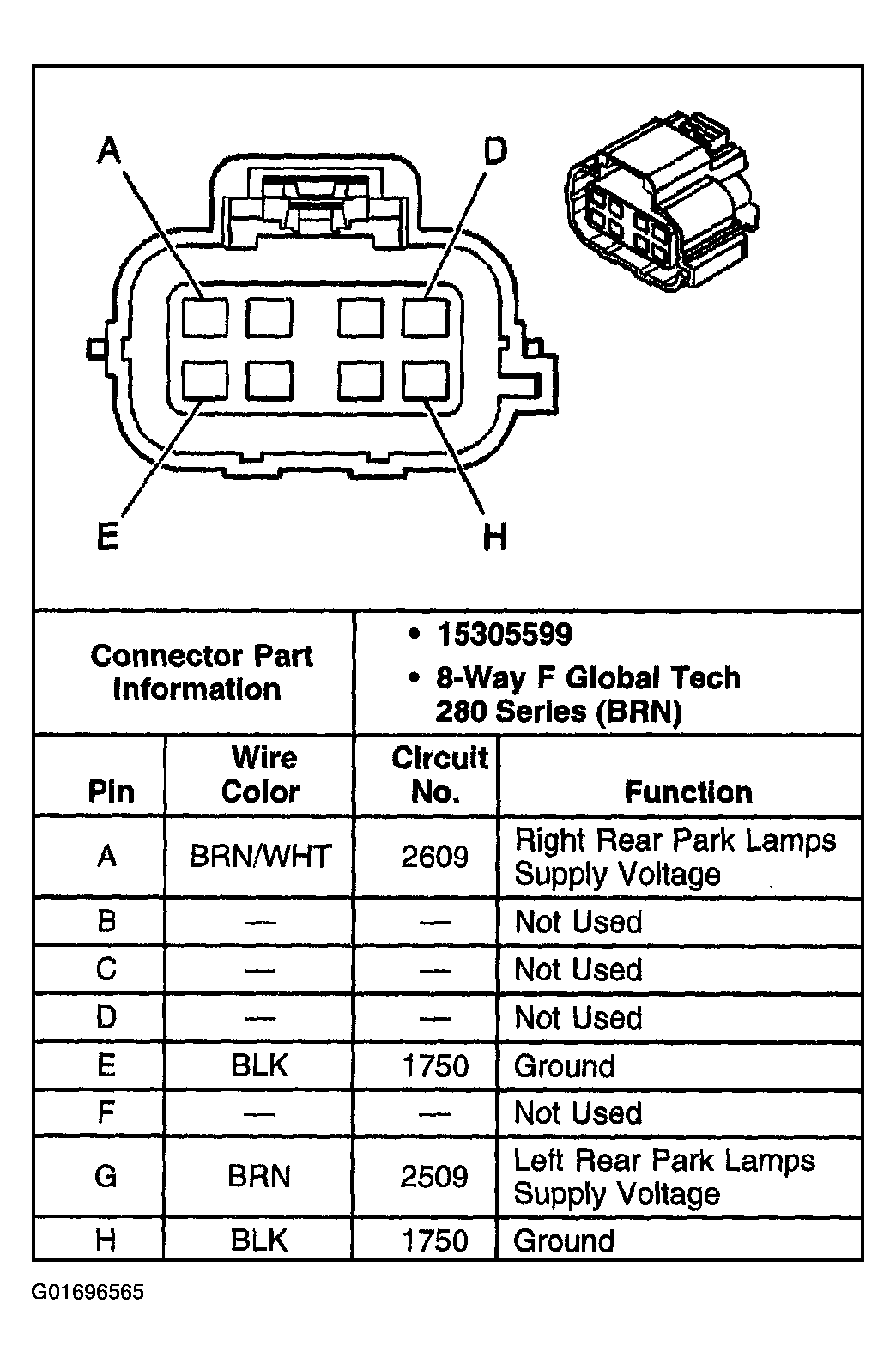

Fig 34: Junction Block - Rear Lamps - C3

G01696565

Courtesy of GENERAL MOTORS CORP.

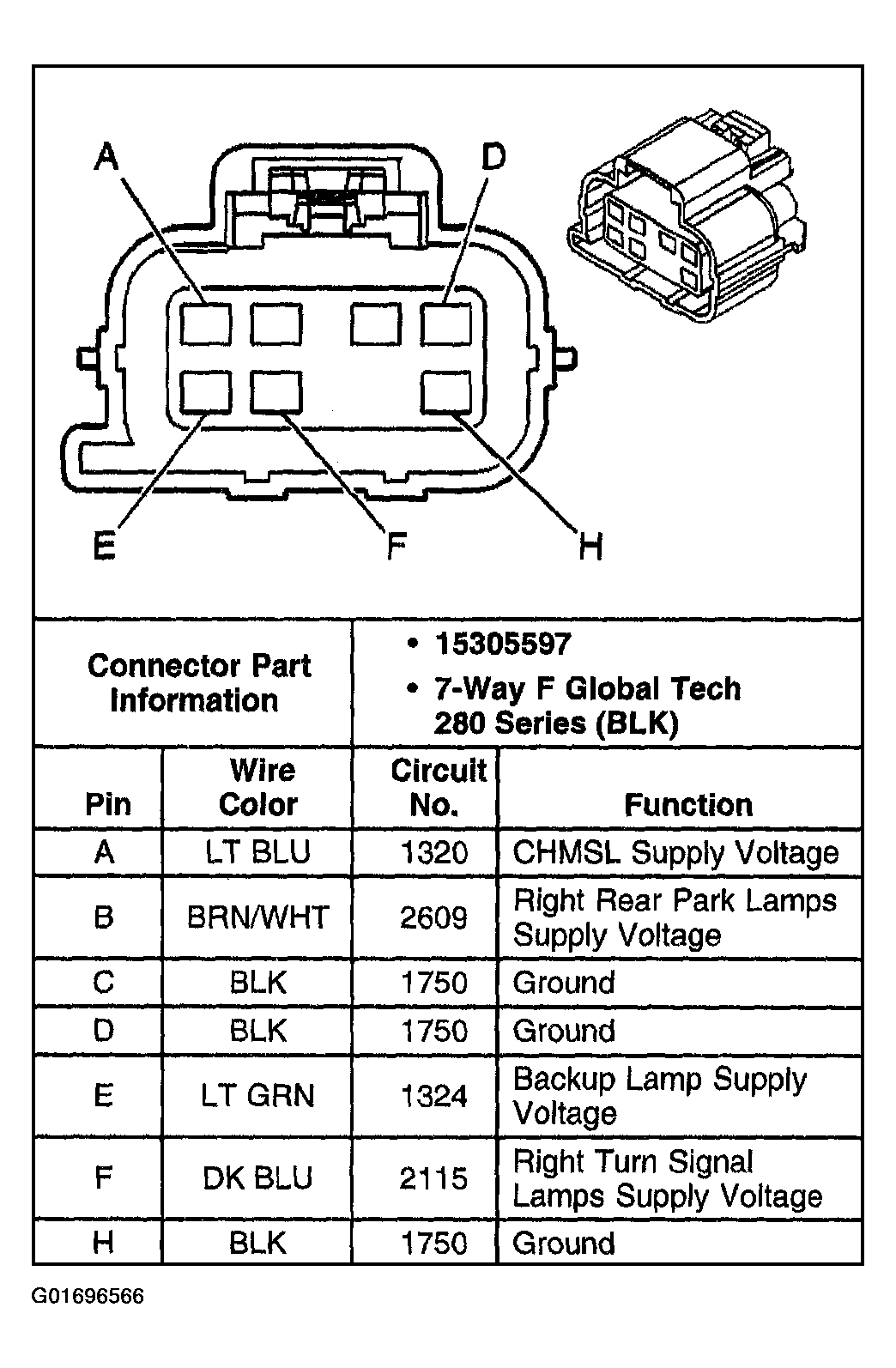

Fig 35: Junction Block - Rear Lamps - C4

G01696566

Courtesy of GENERAL MOTORS CORP.

Fig 36: License Lamp - LR

G01696567

Courtesy of GENERAL MOTORS CORP.

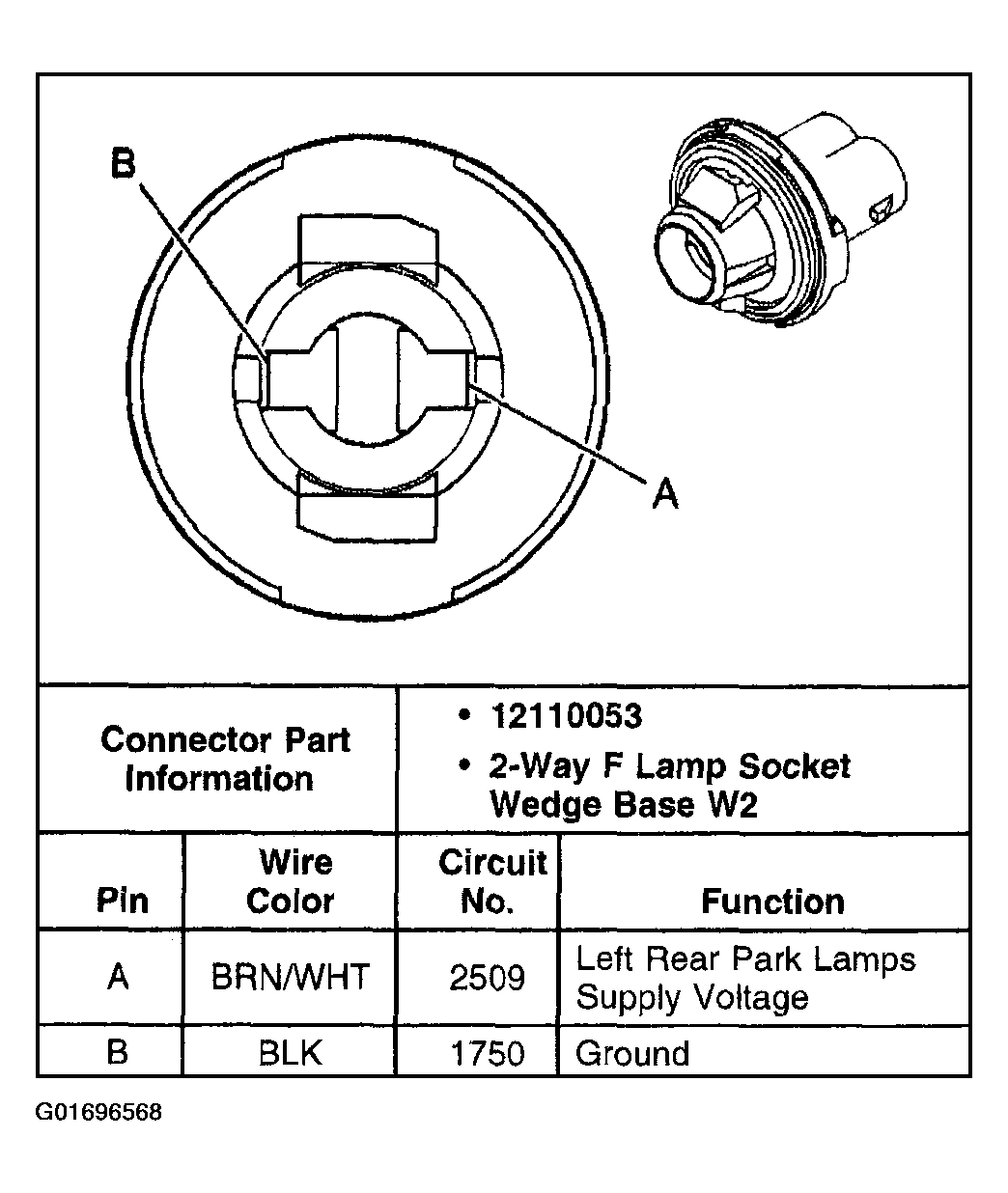

Fig 37: License Lamp - RR

G01696568

Courtesy of GENERAL MOTORS CORP.

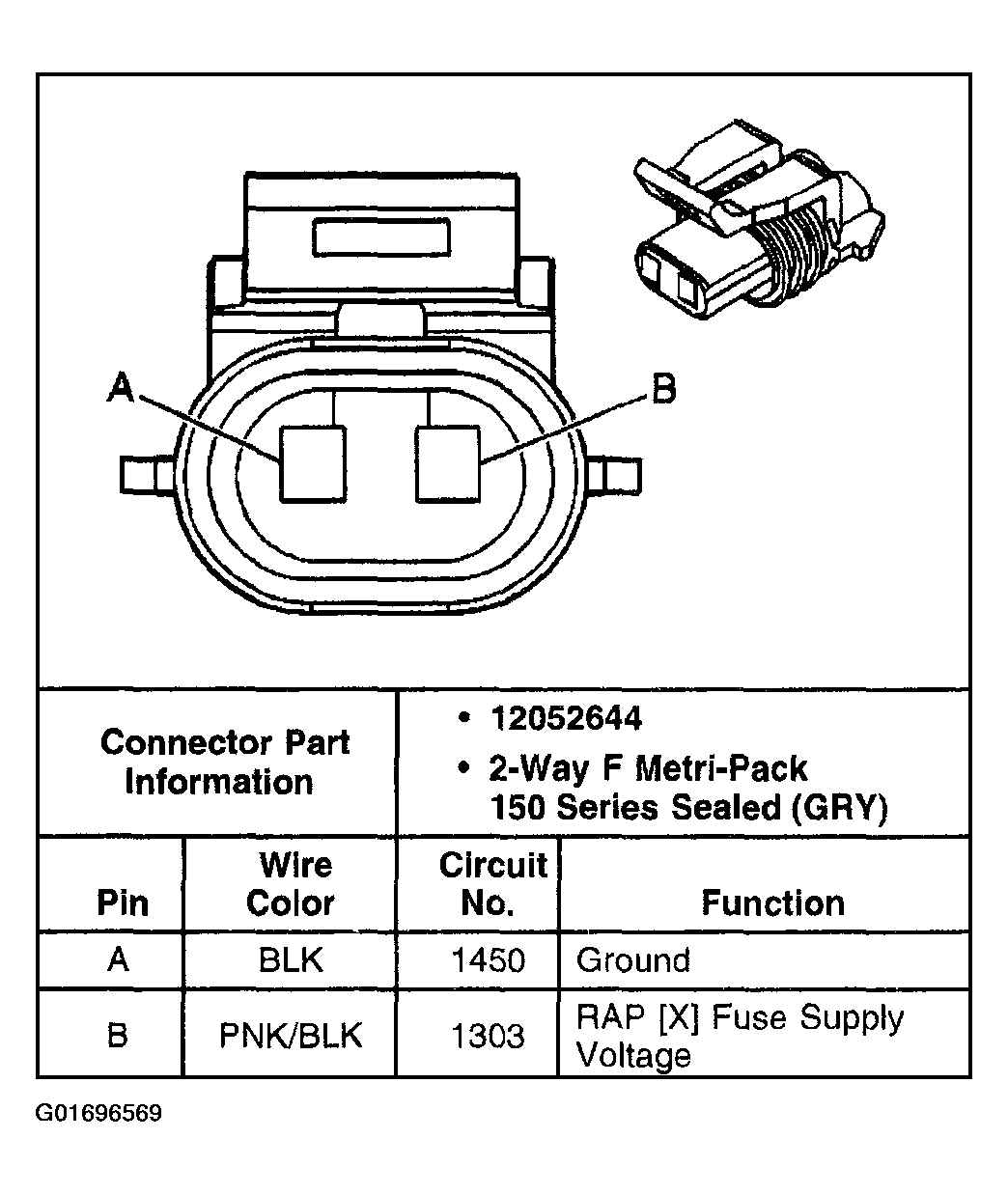

Fig 38: Liftglass Ajar Switch

G01696569

Courtesy of GENERAL MOTORS CORP.

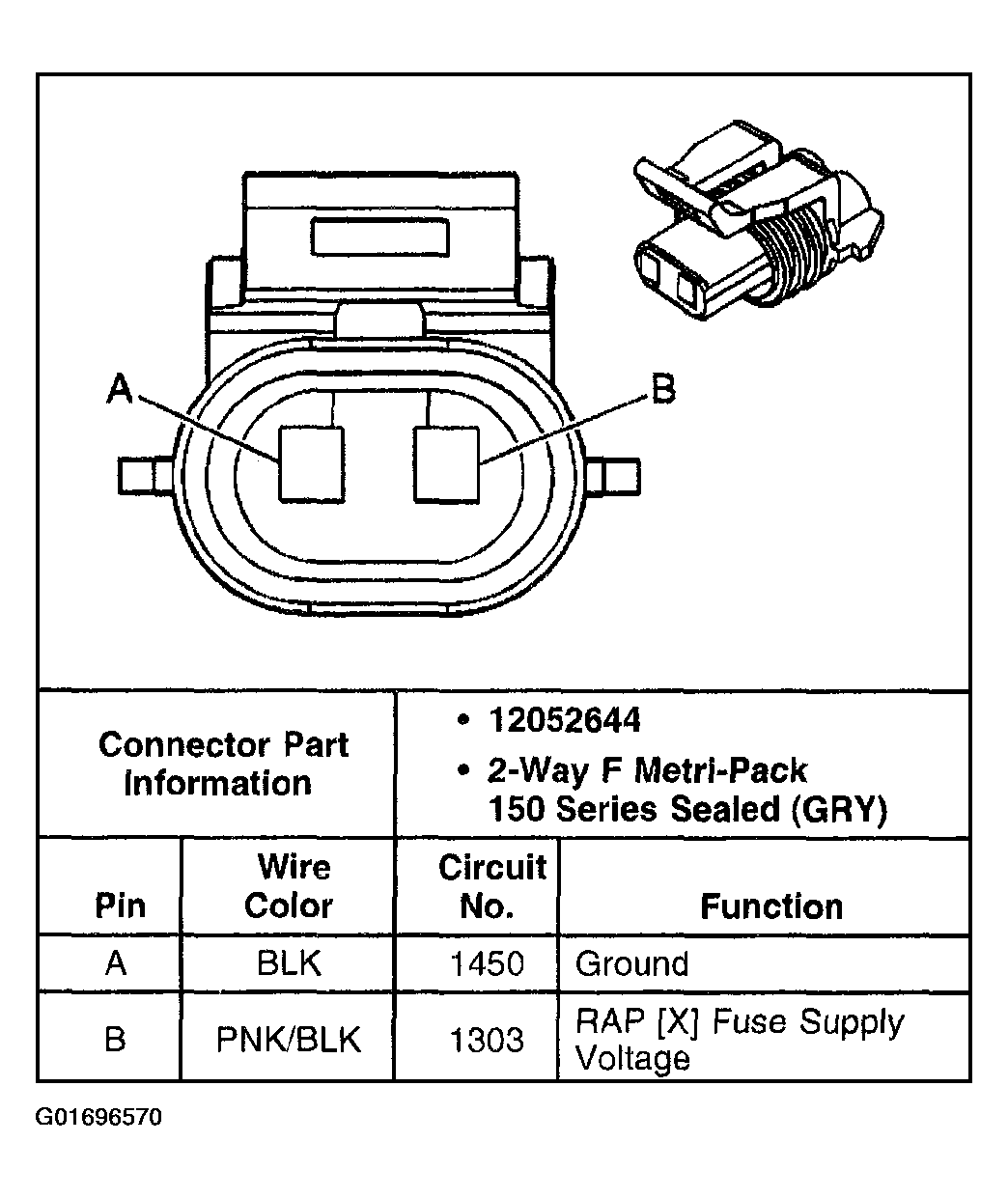

Fig 39: Liftgate Ajar Switch - Left

G01696570

Courtesy of GENERAL MOTORS CORP.

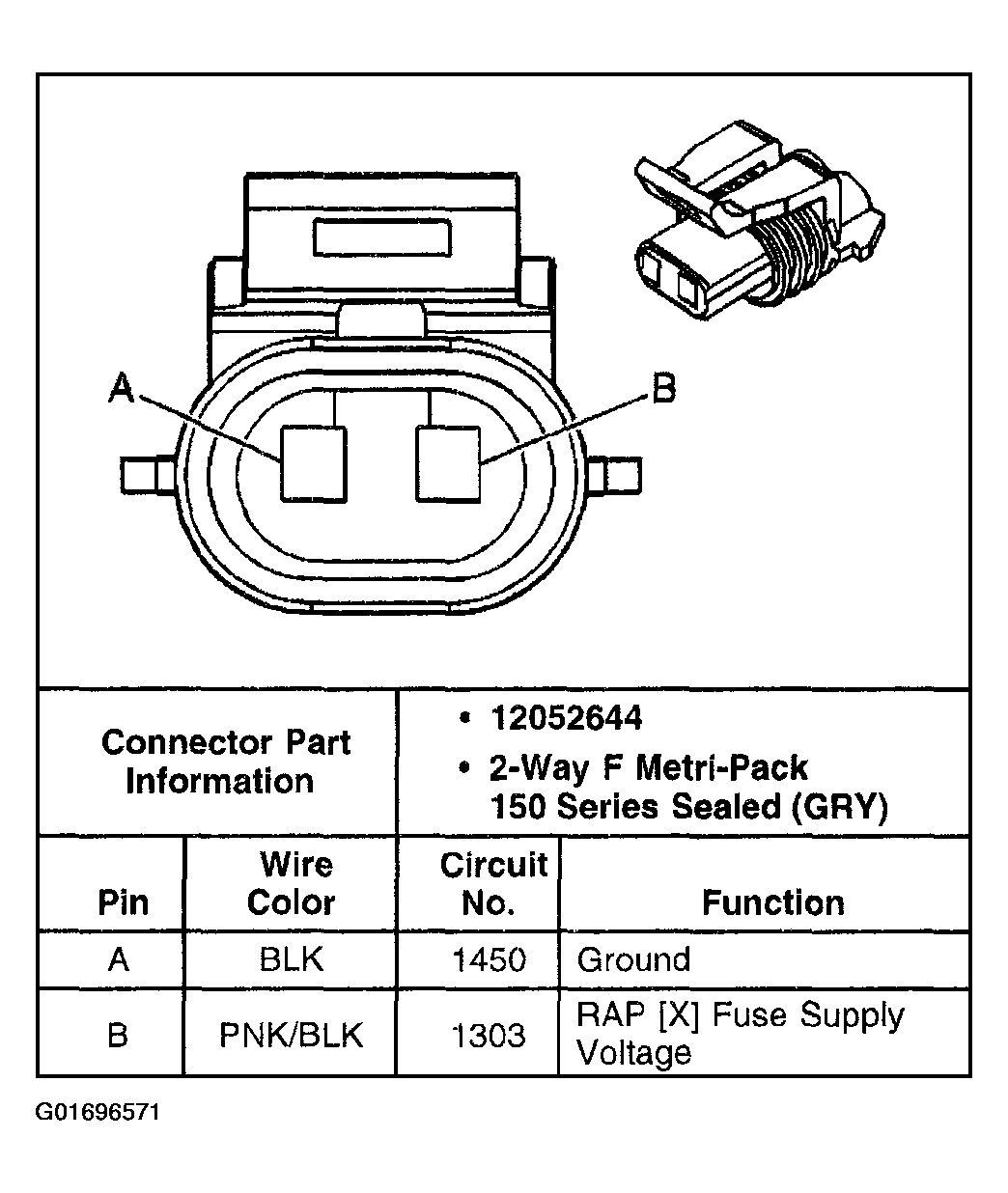

Fig 40: Liftgate Ajar Switch - Right

G01696571

Courtesy of GENERAL MOTORS CORP.

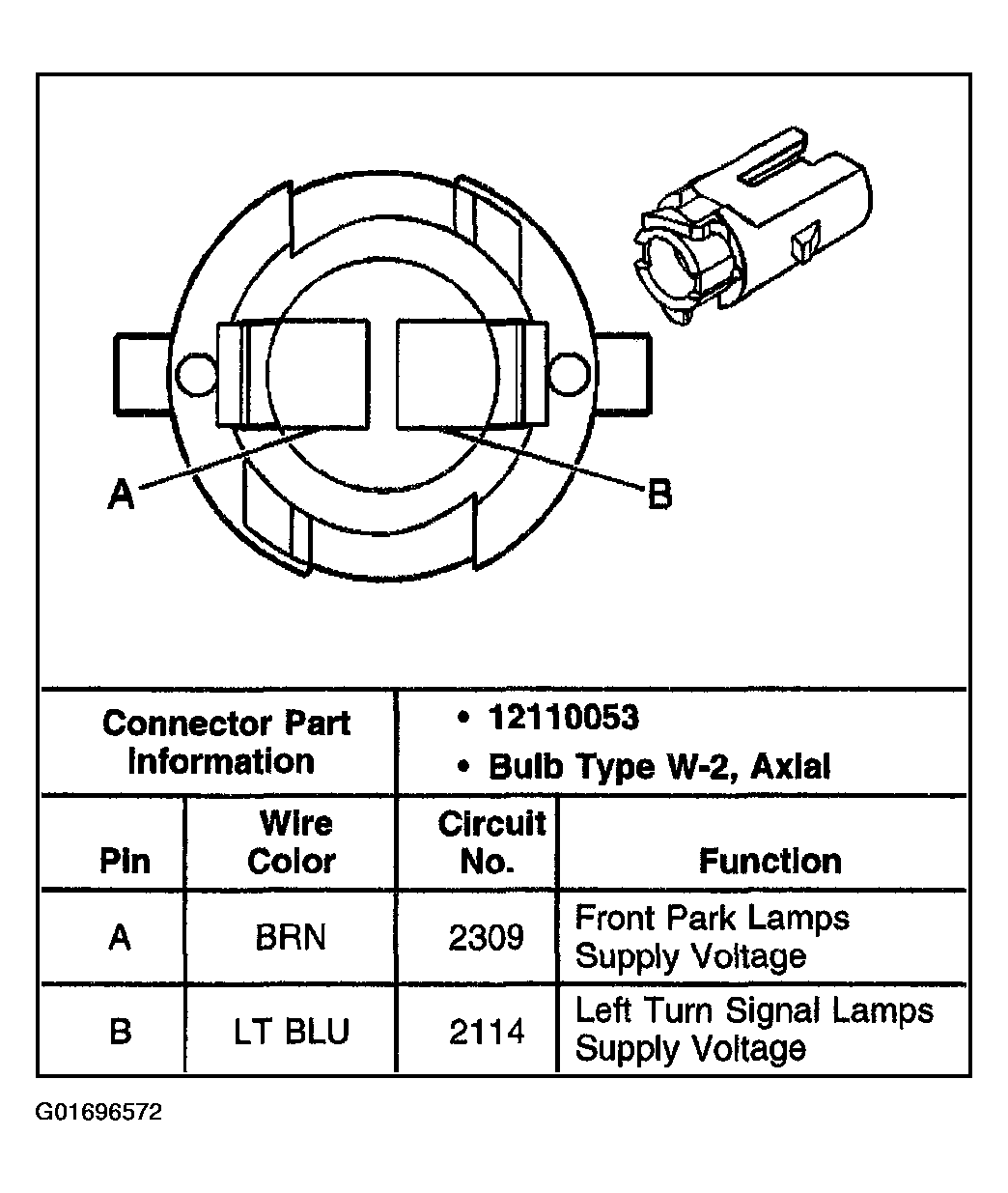

Fig 41: Marker Lamp - LF

G01696572

Courtesy of GENERAL MOTORS CORP.

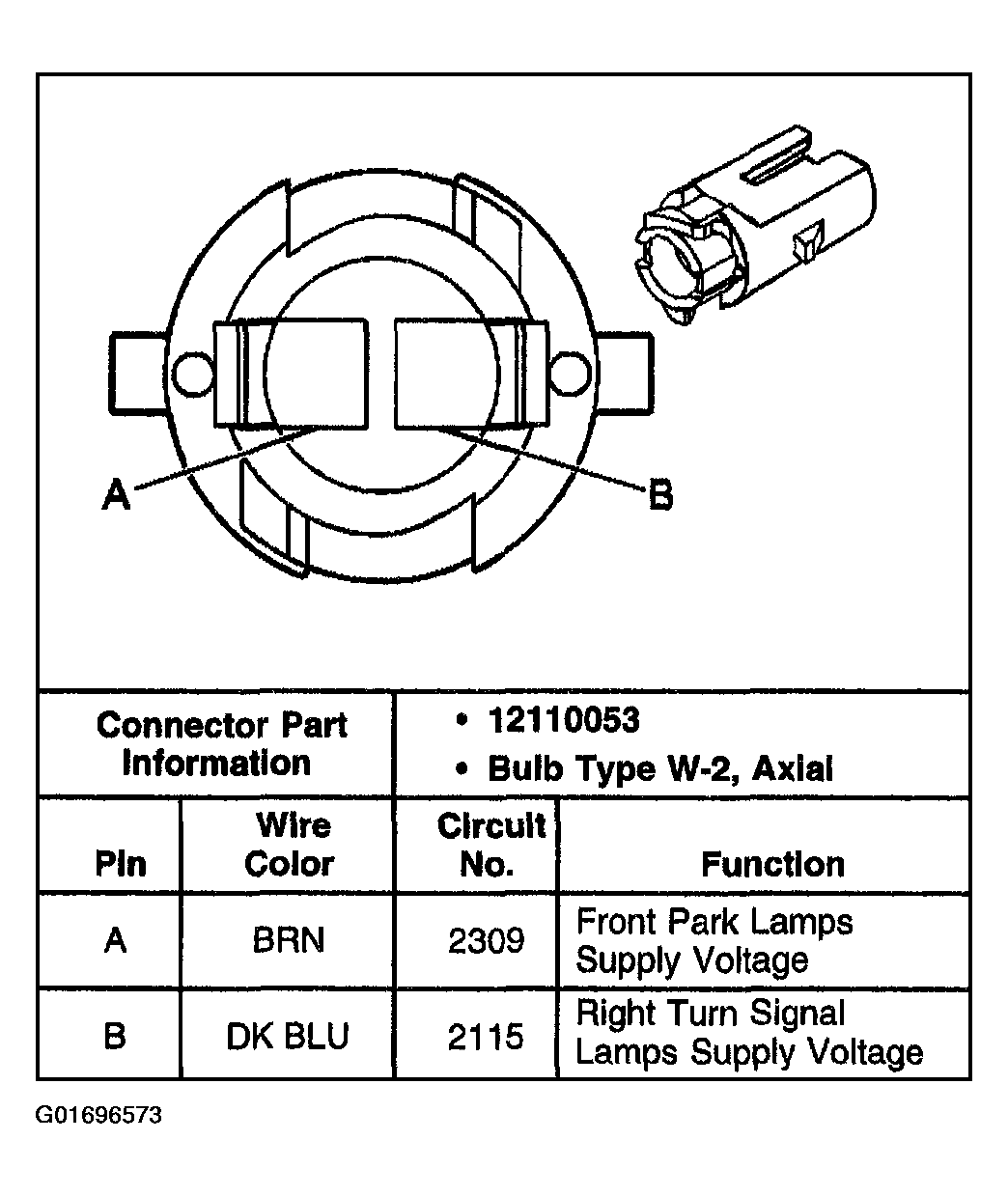

Fig 42: Marker Lamp -RF

G01696573

Courtesy of GENERAL MOTORS CORP.

Fig 43: Mini Wedge (Door Jamb Switch) - LF - C1 - Base

G01696574

Courtesy of GENERAL MOTORS CORP.

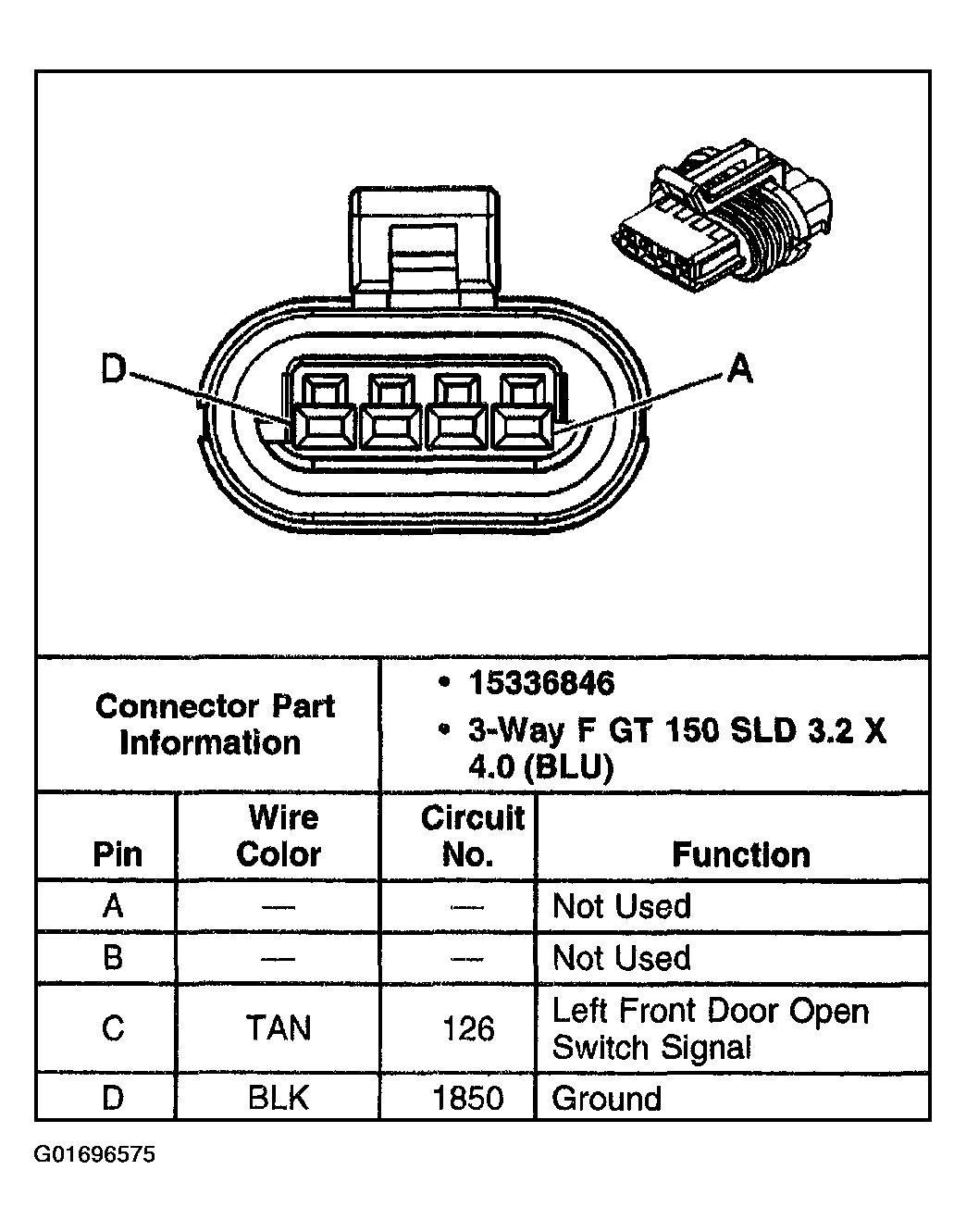

Fig 44: Mini Wedge (Door Jamb Switch) - LF - C1 - Uplevel/Luxury

G01696575

Courtesy of GENERAL MOTORS CORP.

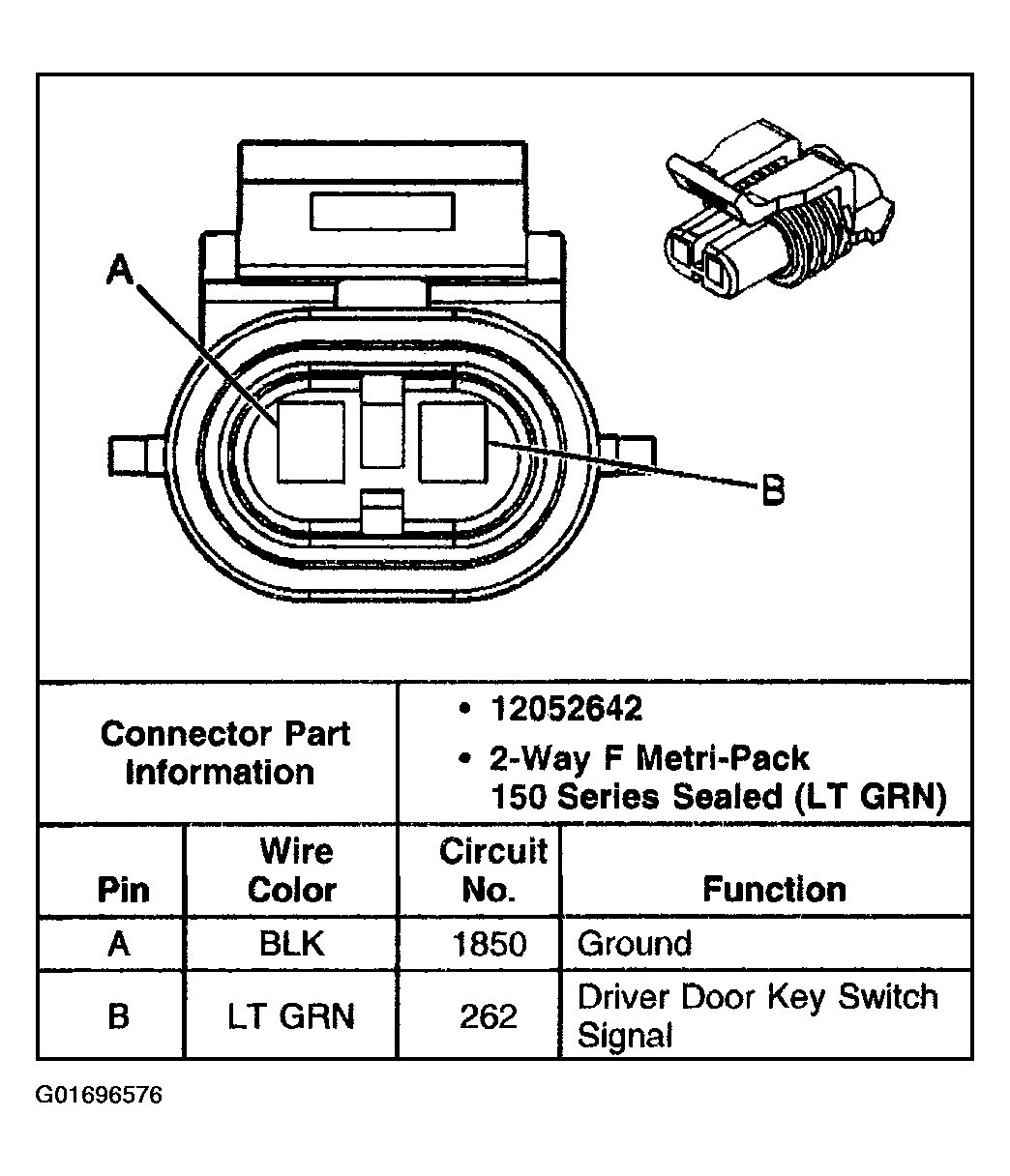

Fig 45: Mini Wedge (Door Jamb Switch) - LF - C3 - Uplevel/Luxury

G01696576

Courtesy of GENERAL MOTORS CORP.

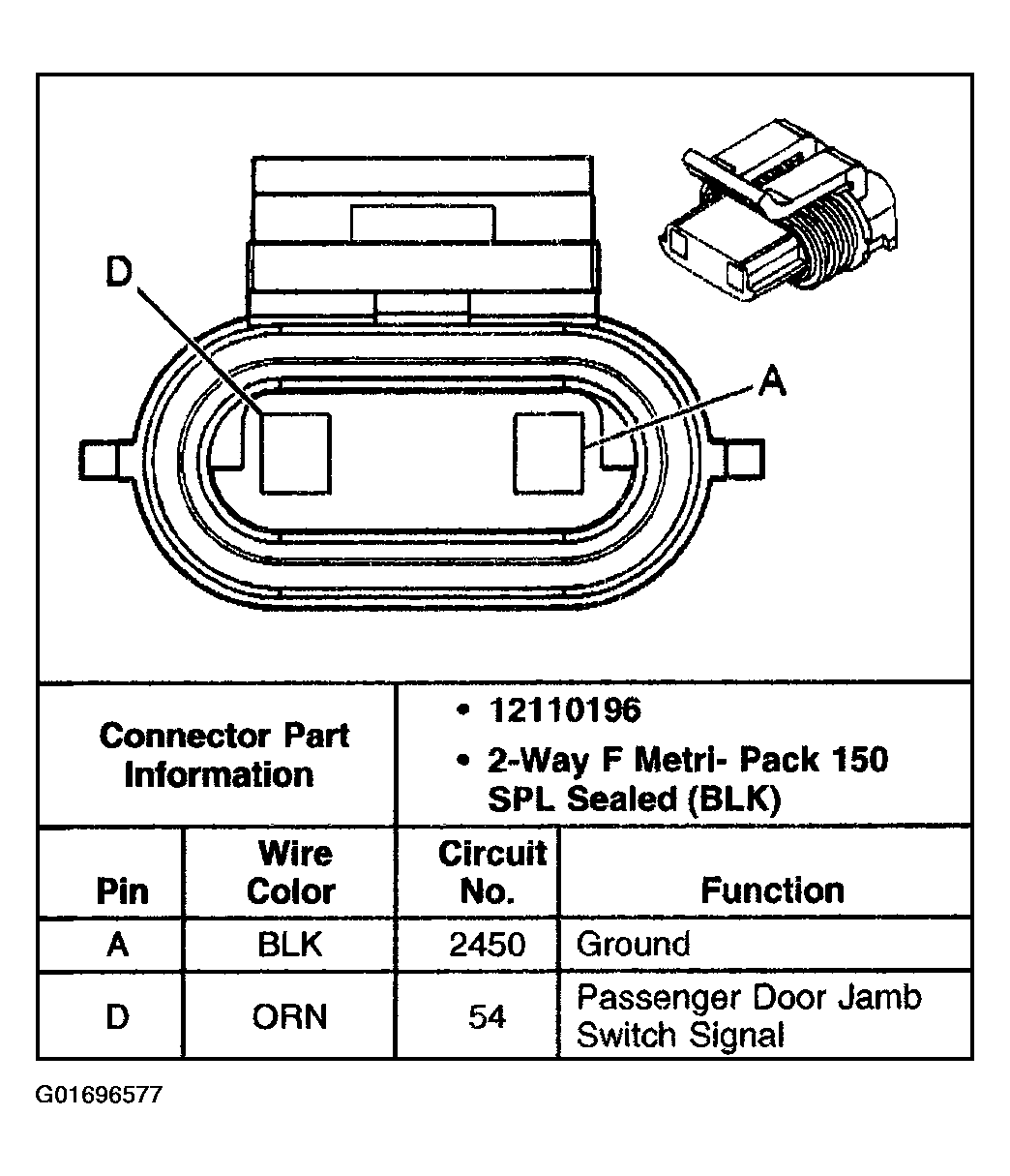

Fig 46: Mini Wedge (Door Jamb Switch) - RF - C1 - Base

G01696577

Courtesy of GENERAL MOTORS CORP.

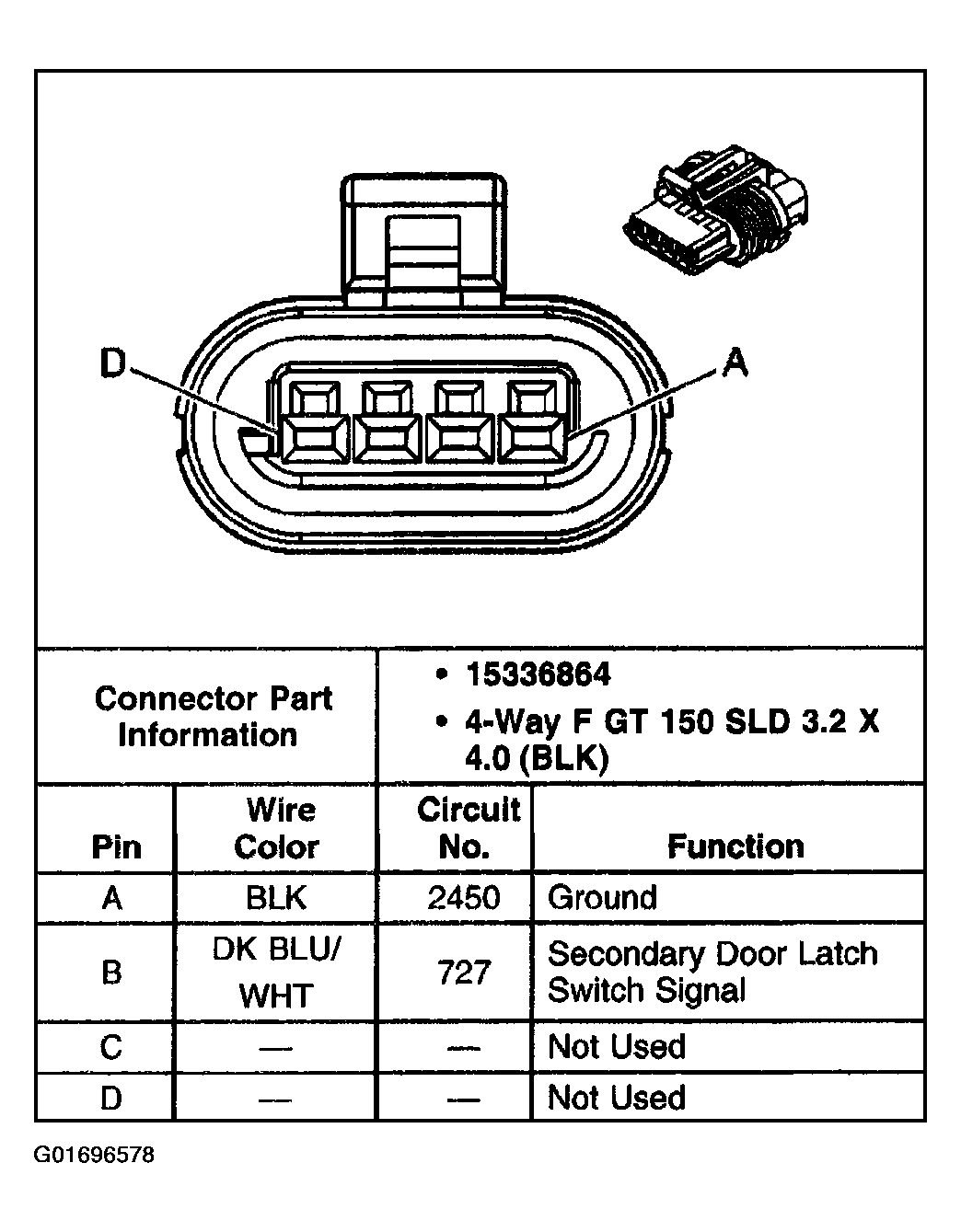

Fig 47: Mini Wedge (Door Jamb Switch) - RF - C1 - Uplevel/Luxury

G01696578

Courtesy of GENERAL MOTORS CORP.

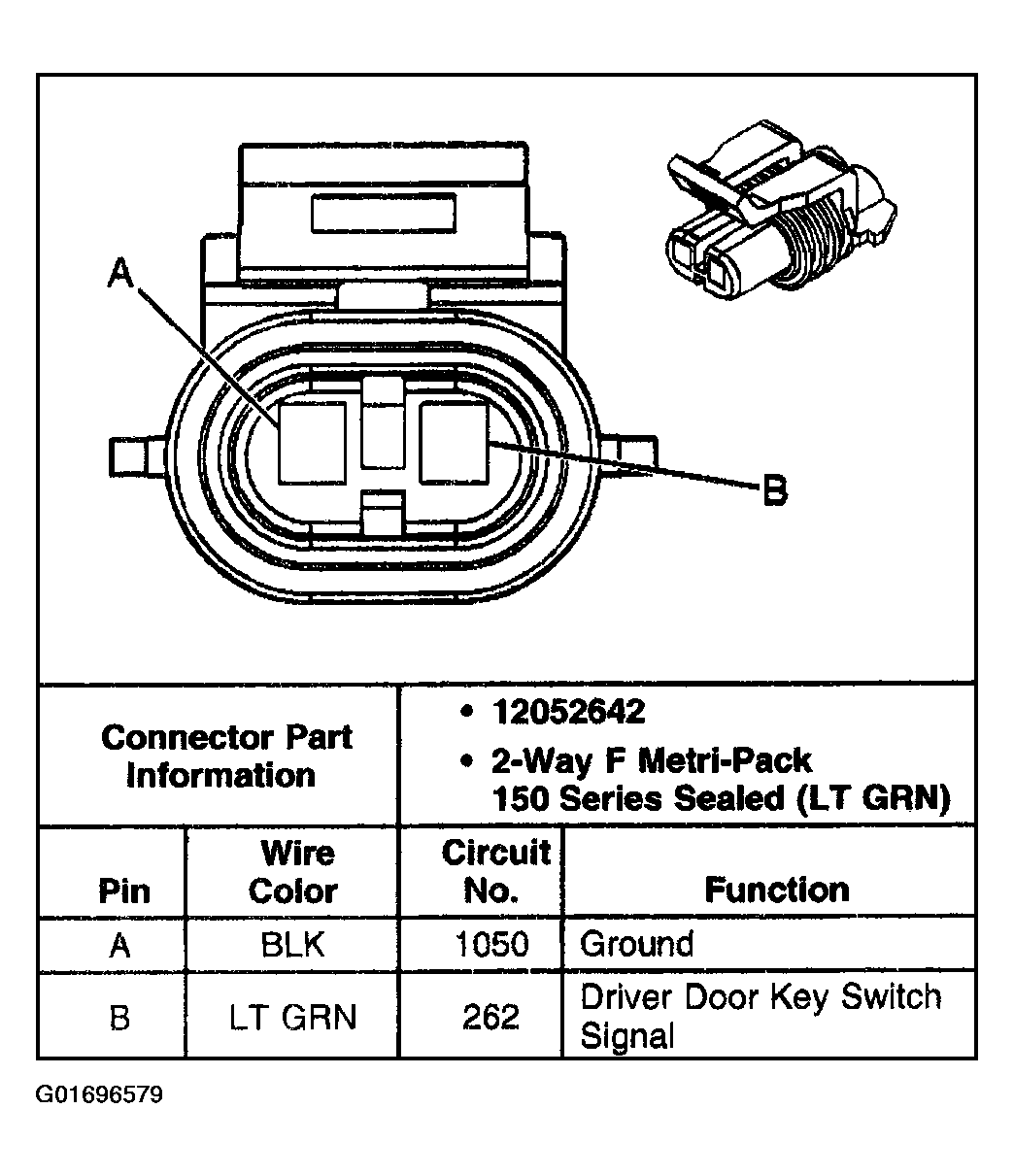

Fig 48: Mini Wedge (Door Jamb Switch) - RF - C3 - Uplevel/Luxury

G01696579

Courtesy of GENERAL MOTORS CORP.

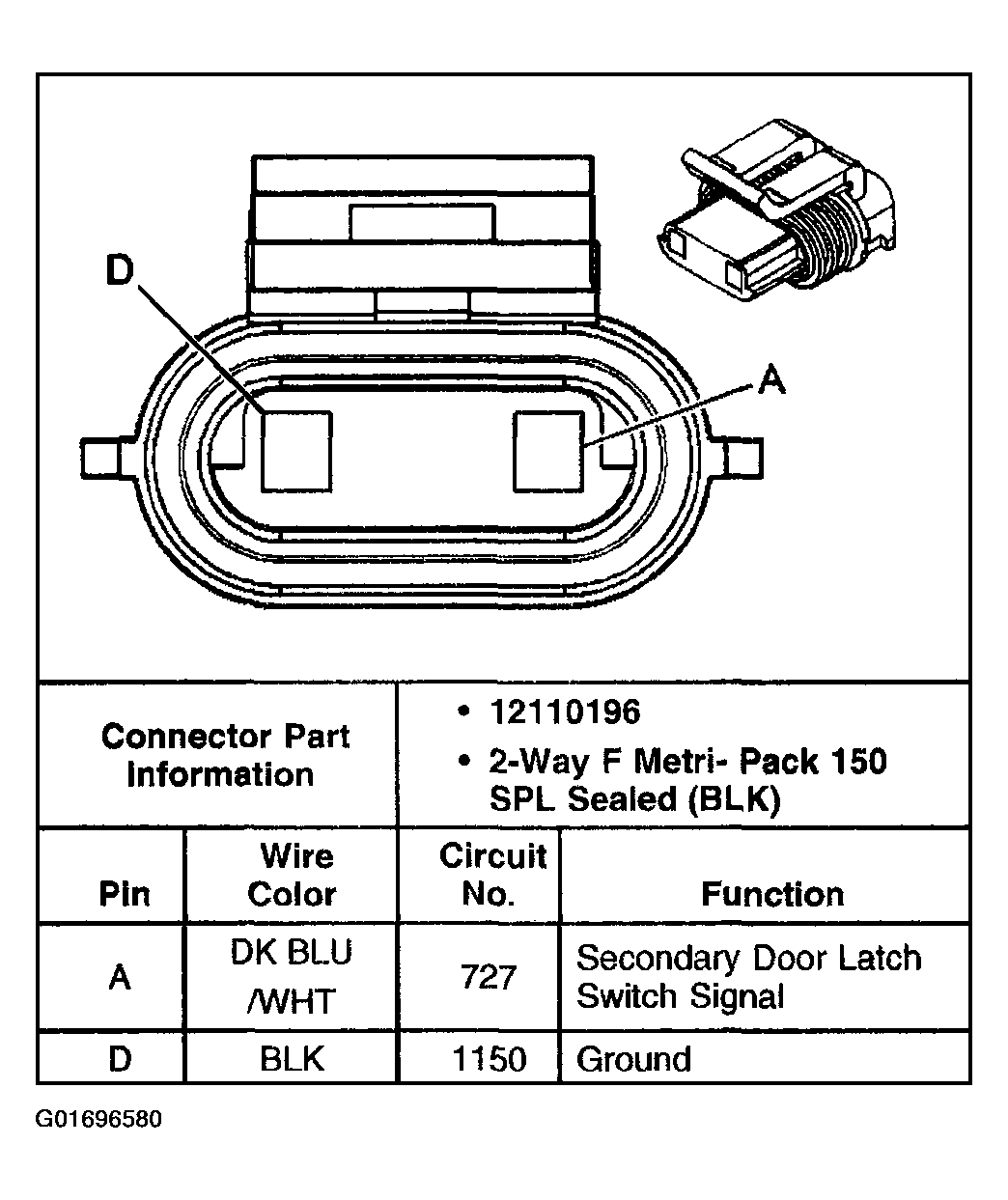

Fig 49: Mini Wedge (Door Jamb Switch) - C1 - LR

G01696580

Courtesy of GENERAL MOTORS CORP.

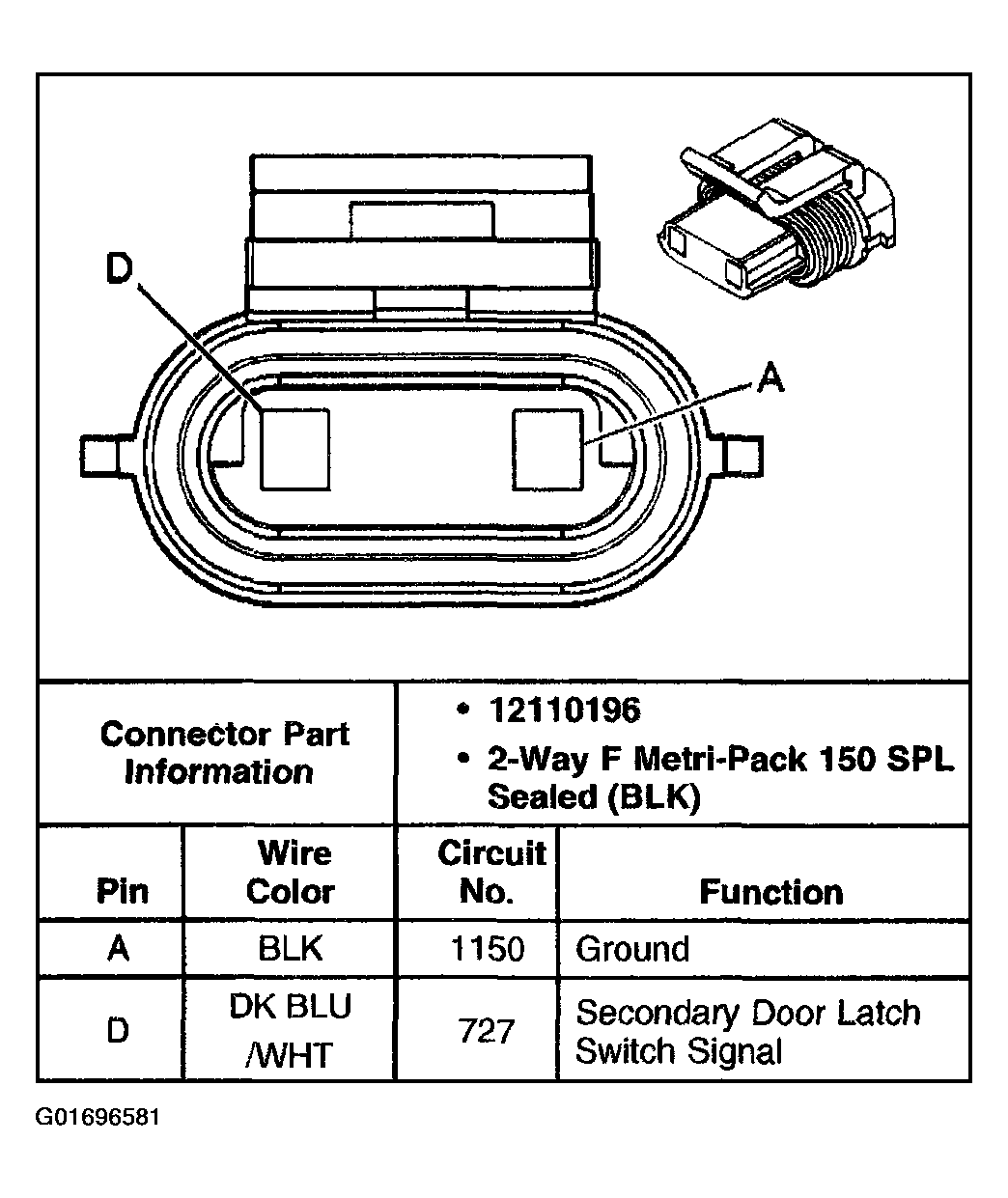

Fig 50: Mini Wedge (Door Jamb Switch) - C1 - RR

G01696581

Courtesy of GENERAL MOTORS CORP.

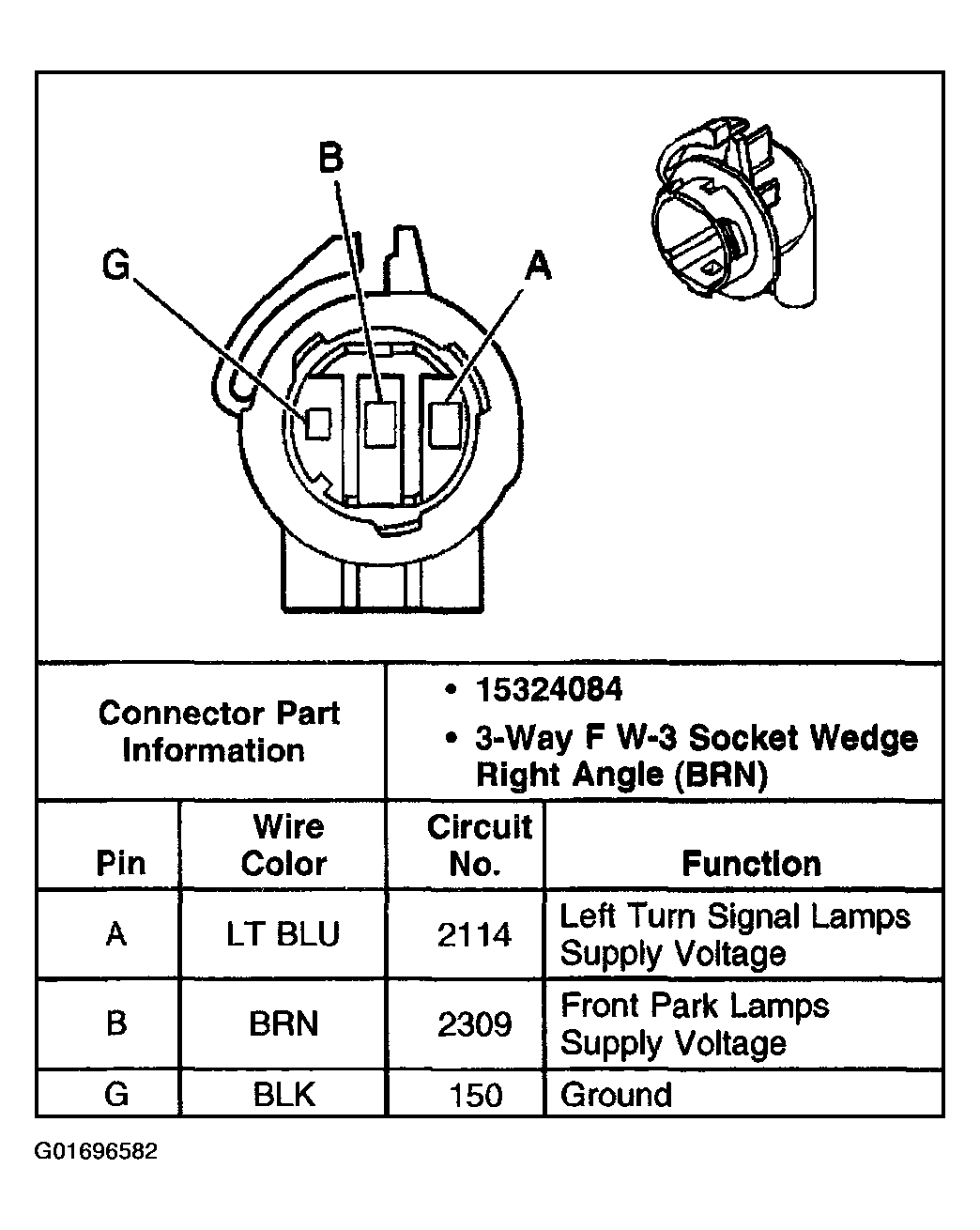

Fig 51: Park/Turn Signal Lamp - LF

G01696582

Courtesy of GENERAL MOTORS CORP.

Fig 52: Park/Turn Signal Lamp - RF

G01696583

Courtesy of GENERAL MOTORS CORP.

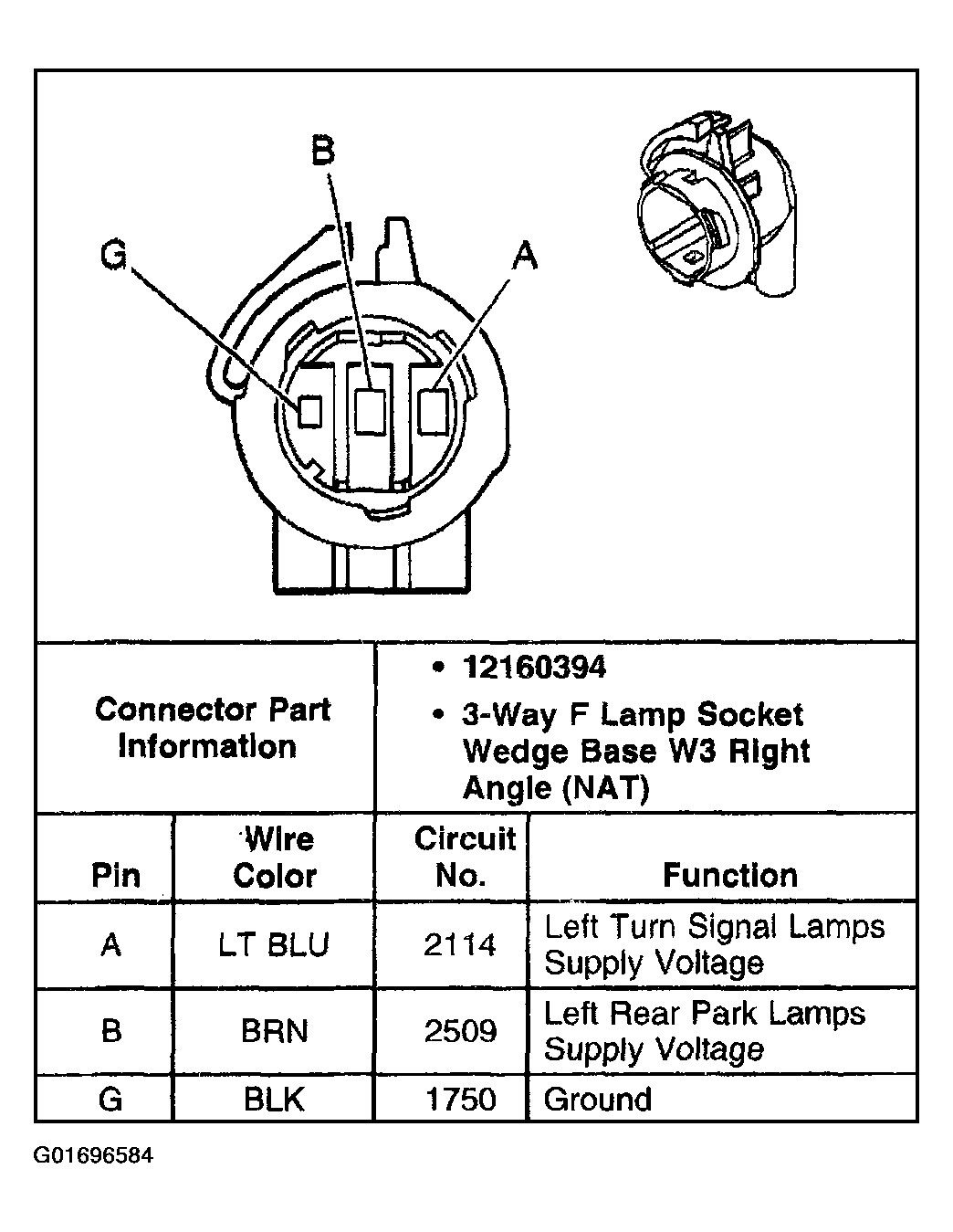

Fig 53: Park/Turn Signal Lamp - LR

G01696584

Courtesy of GENERAL MOTORS CORP.

Fig 54: Park/Turn Signal Lamp - RR

G01696585

Courtesy of GENERAL MOTORS CORP.

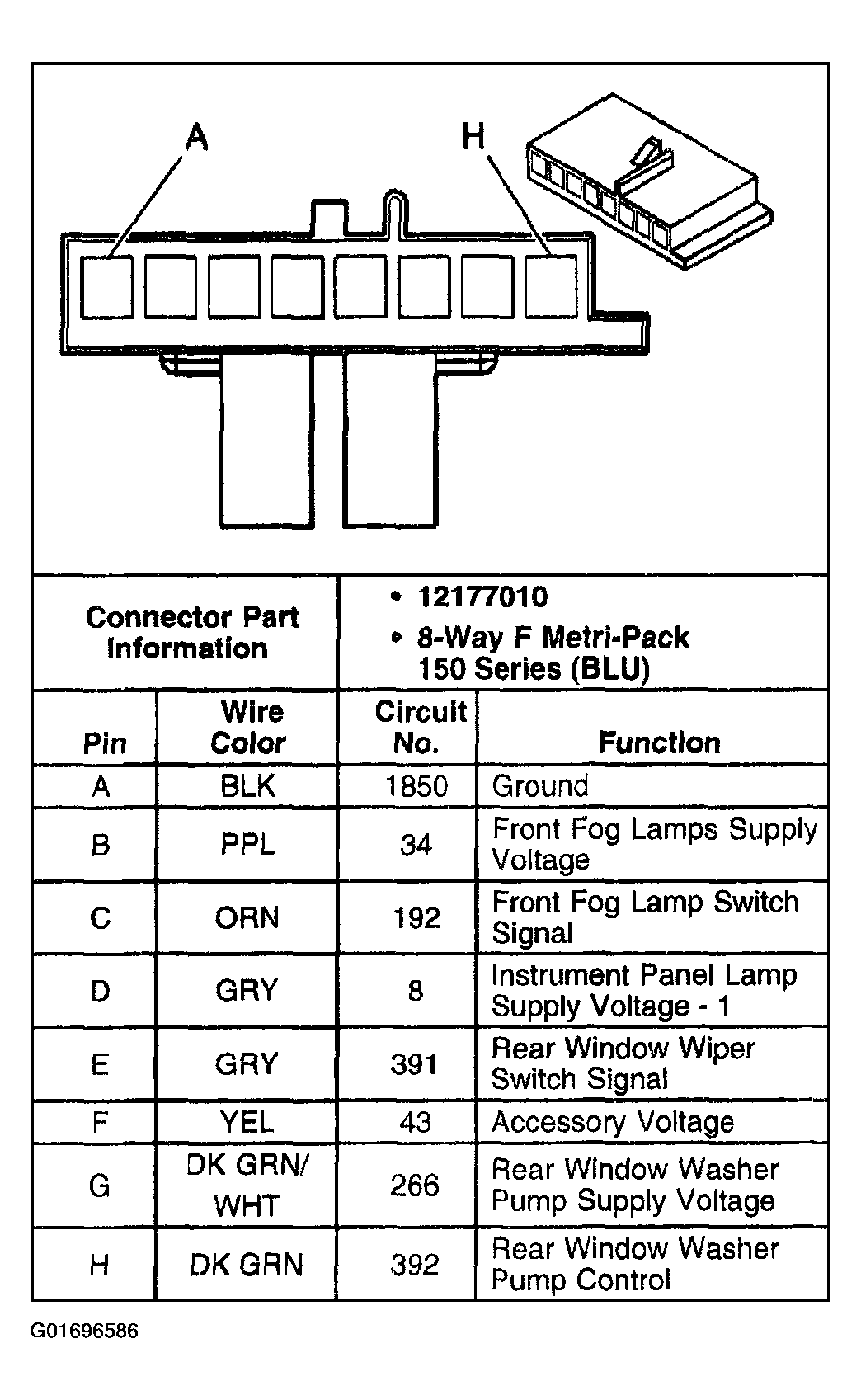

Fig 55: Rear Wiper/Washer and Fog Lamp Switch

G01696586

Courtesy of GENERAL MOTORS CORP.

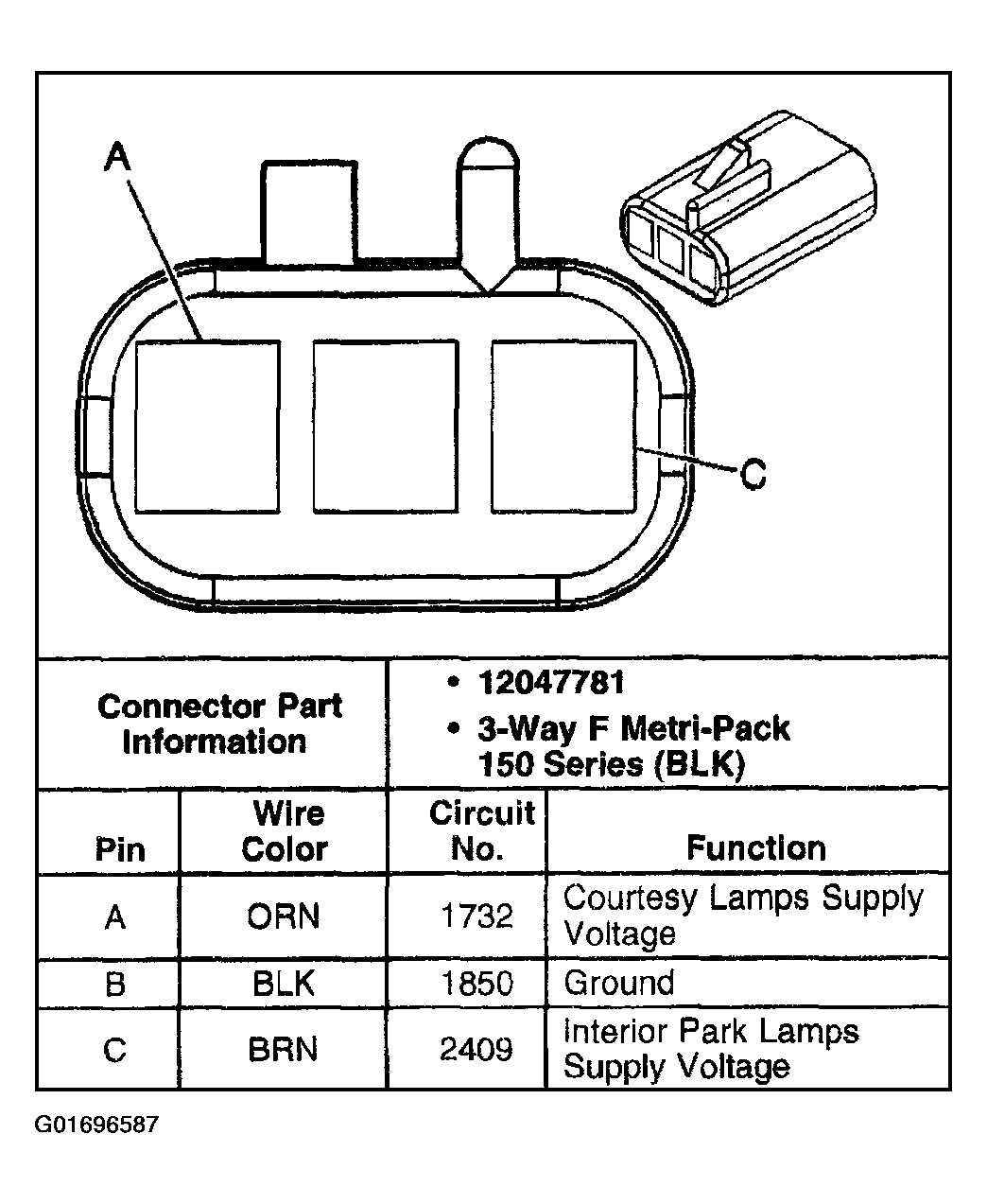

Fig 56: Reading Lamps Overhead Console

G01696587

Courtesy of GENERAL MOTORS CORP.

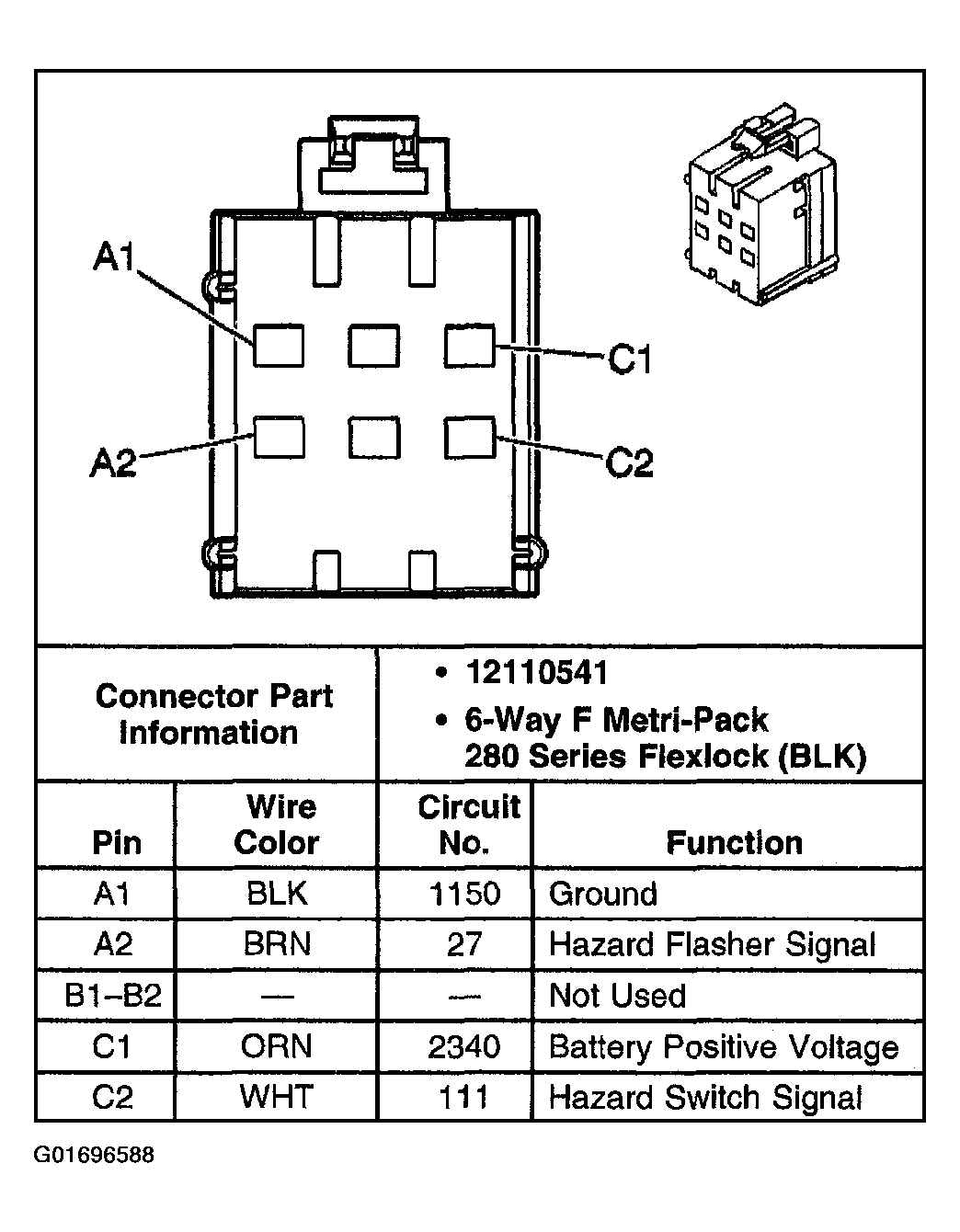

Fig 57: Roof Beacon Relay

G01696588

Courtesy of GENERAL MOTORS CORP.

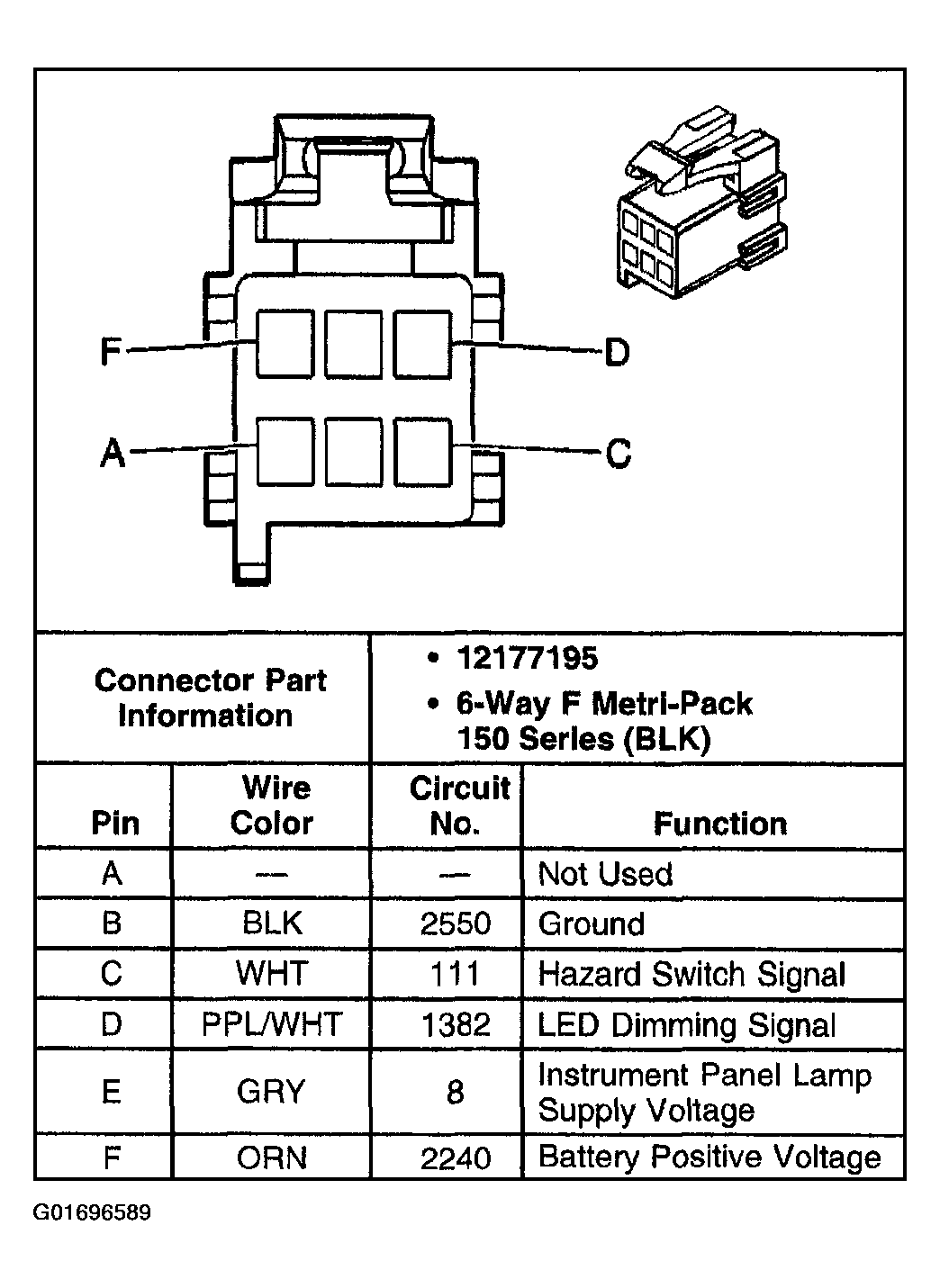

Fig 58: Roof Beacon Switch

G01696589

Courtesy of GENERAL MOTORS CORP.

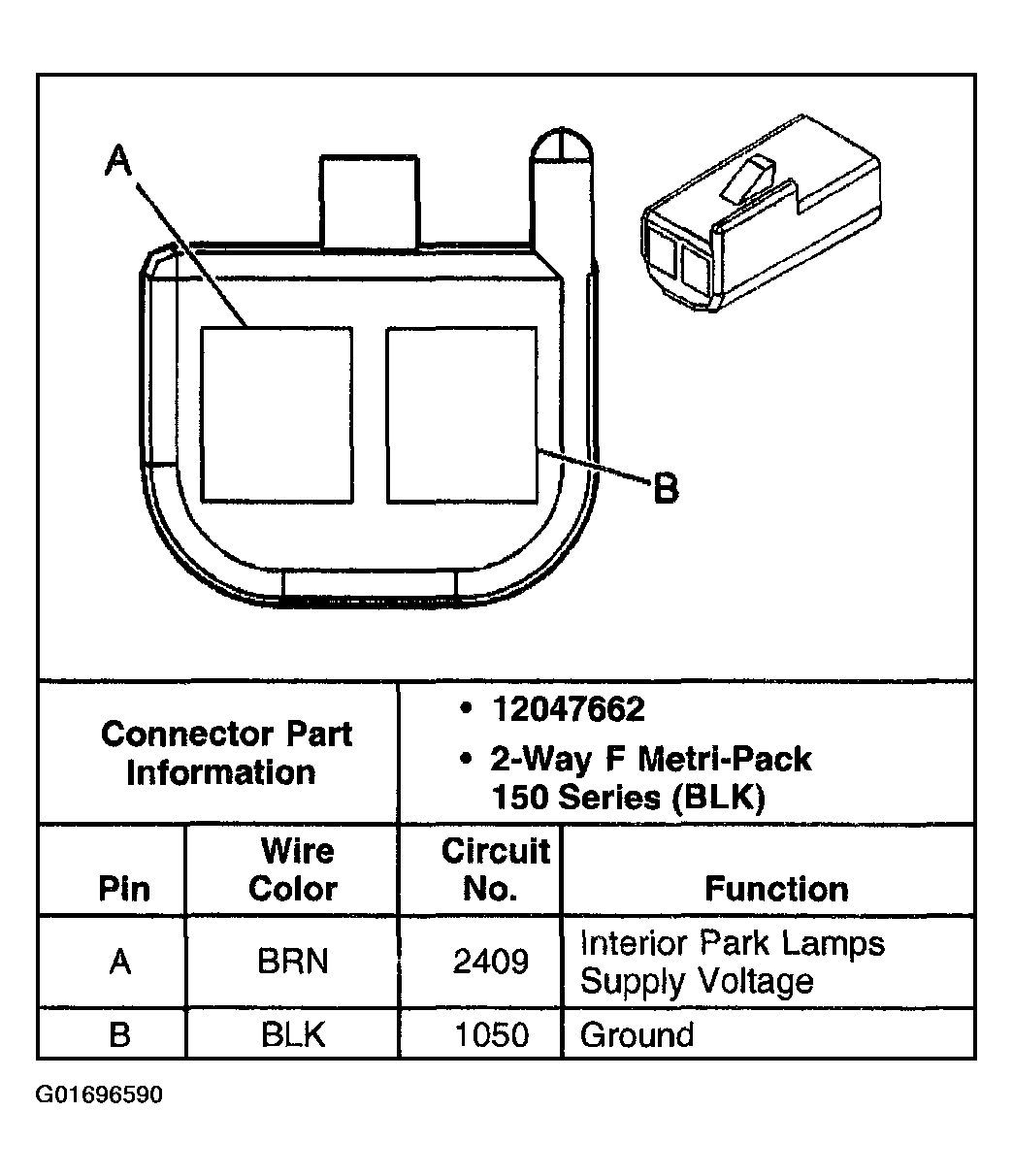

Fig 59: Roof Marker Lamps - Left, Right

G01696590

Courtesy of GENERAL MOTORS CORP.

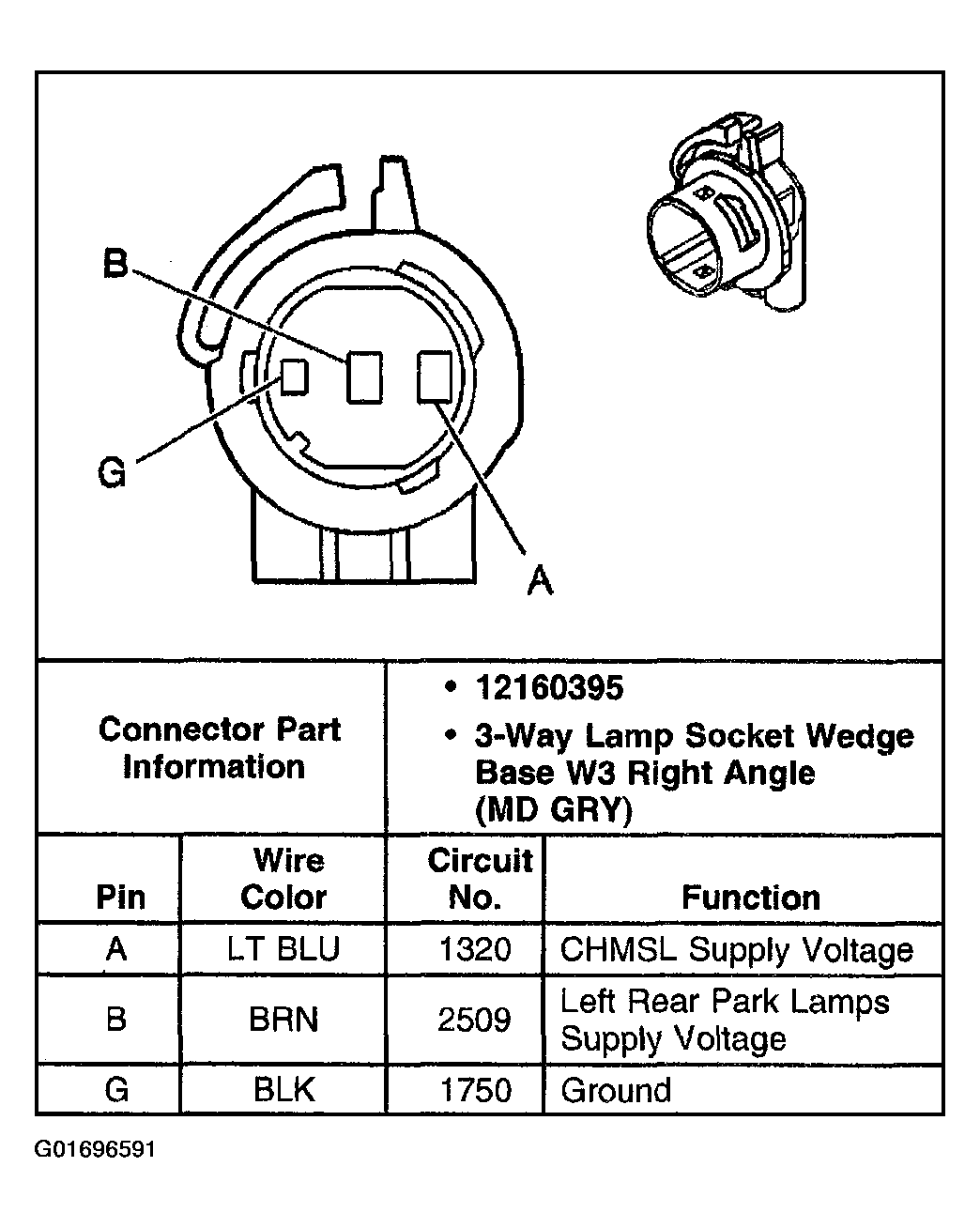

Fig 60: Stop/Park Lamp - LR

G01696591

Courtesy of GENERAL MOTORS CORP.

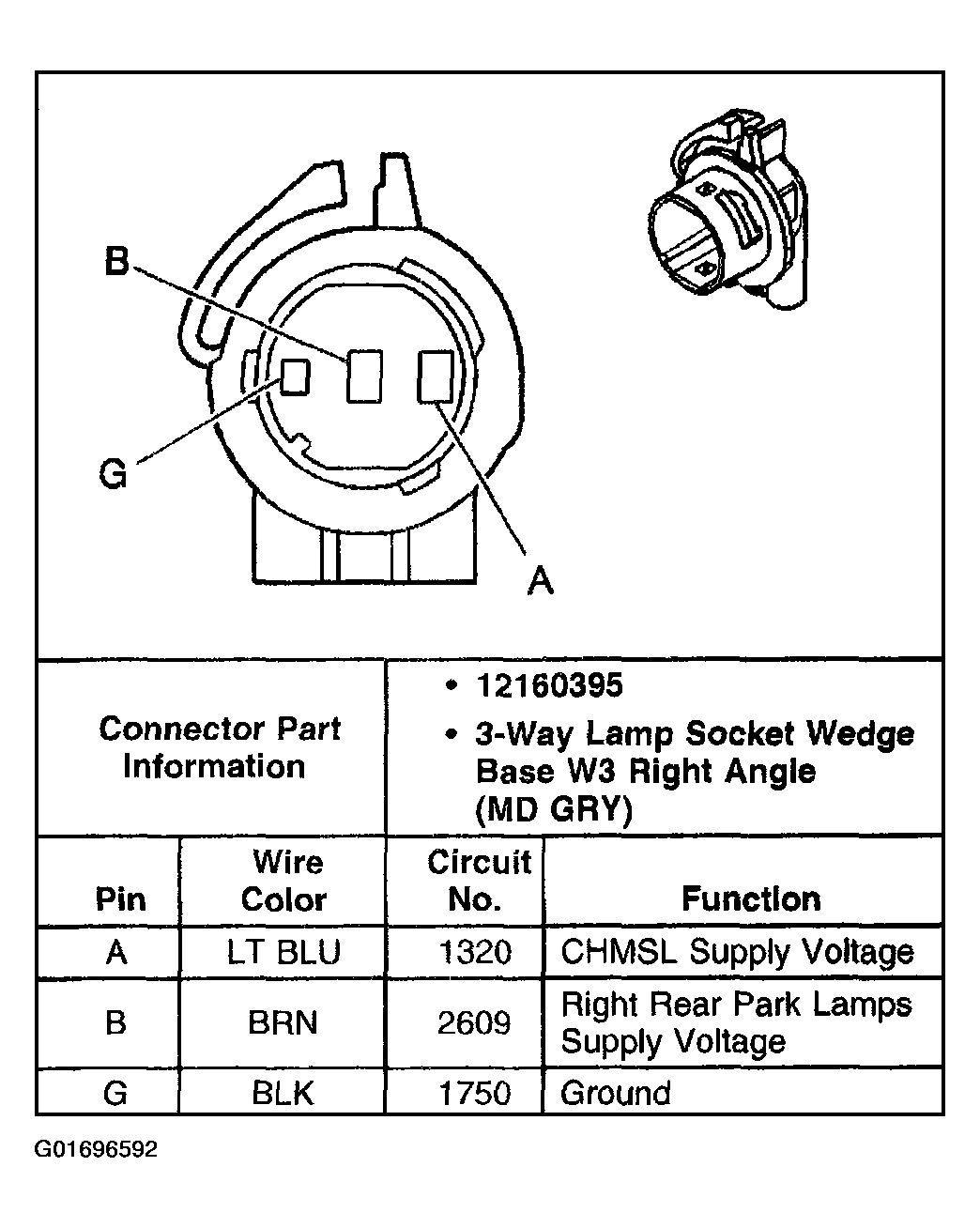

Fig 61: Stop/Park Lamp - RR

G01696592

Courtesy of GENERAL MOTORS CORP.

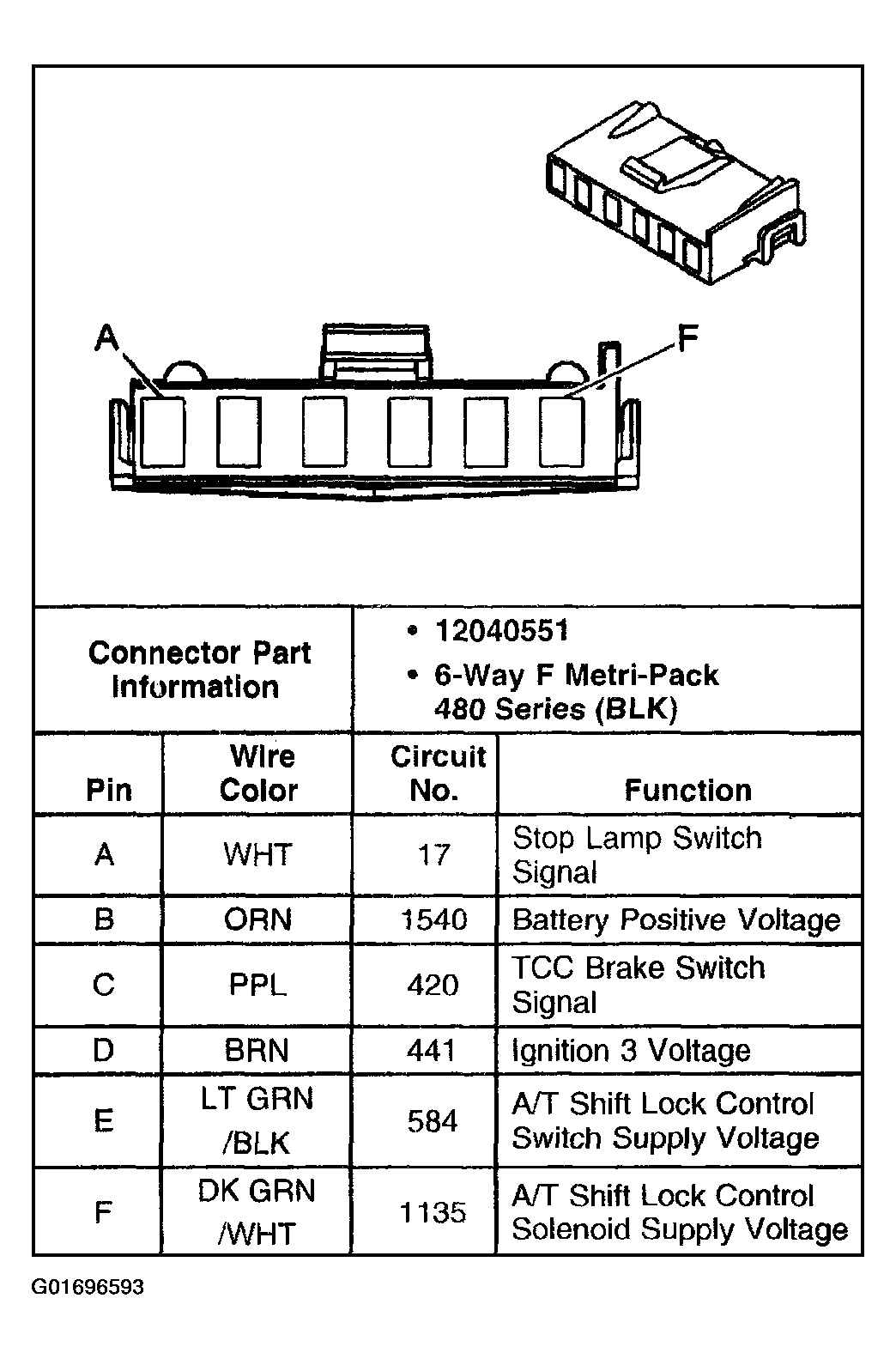

Fig 62: Stop Lamp Switch

G01696593

Courtesy of GENERAL MOTORS CORP.

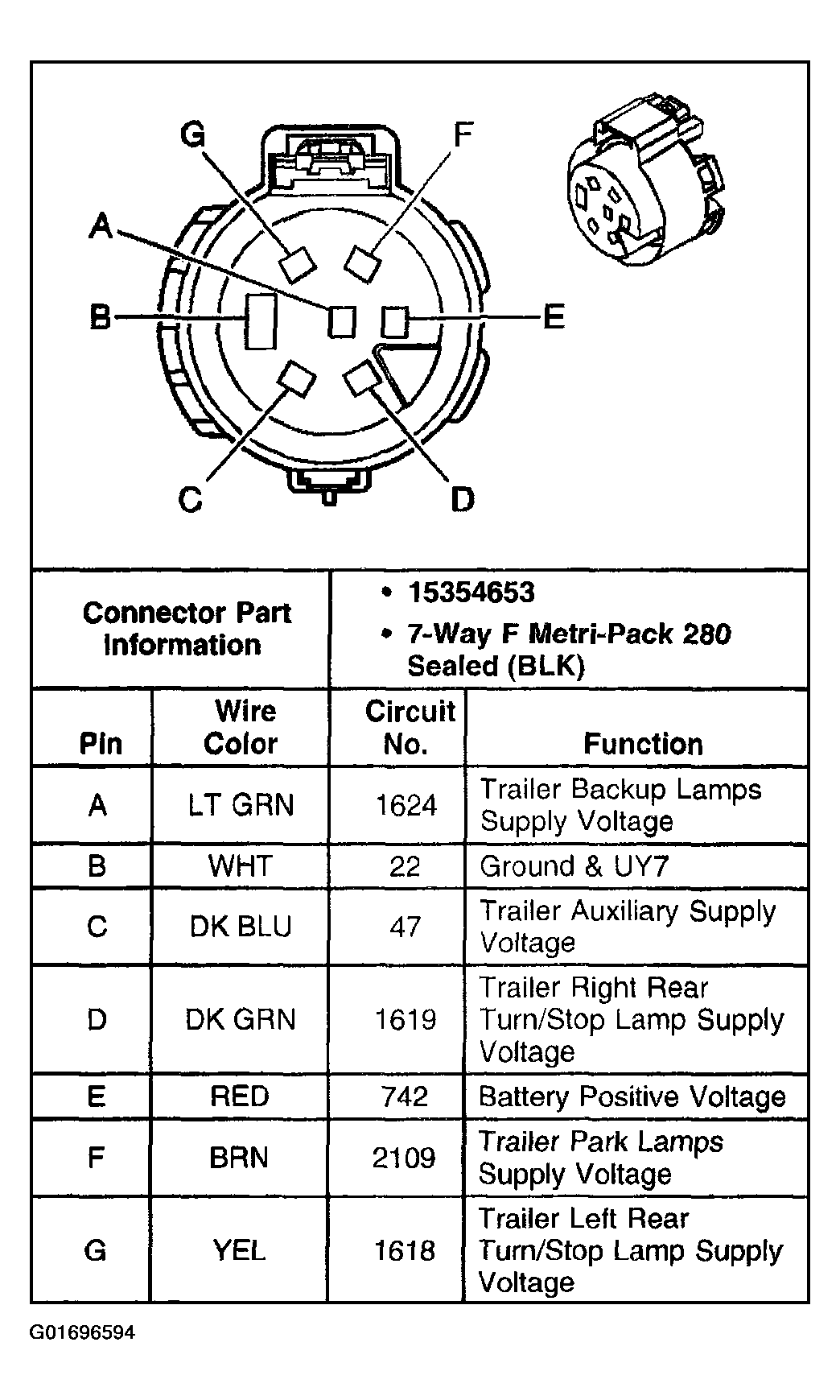

Fig 63: Trailer Connector - Heavy Duty

G01696594

Courtesy of GENERAL MOTORS CORP.

Fig 64: Underhood Lamp

G01696595

Courtesy of GENERAL MOTORS CORP.

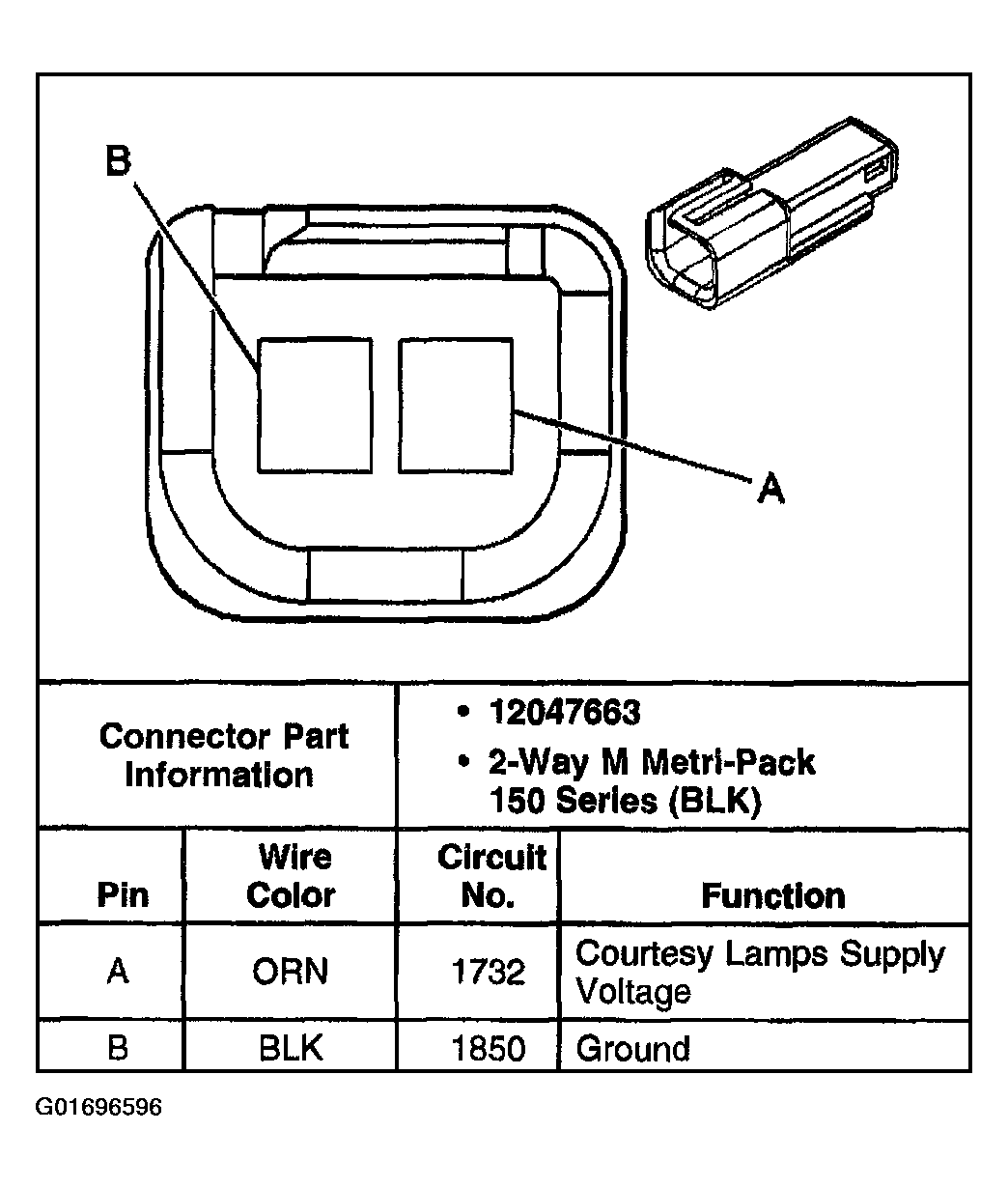

Fig 65: Vanity Mirror Lamp - Left, Right

G01696596

Courtesy of GENERAL MOTORS CORP.
