Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER .

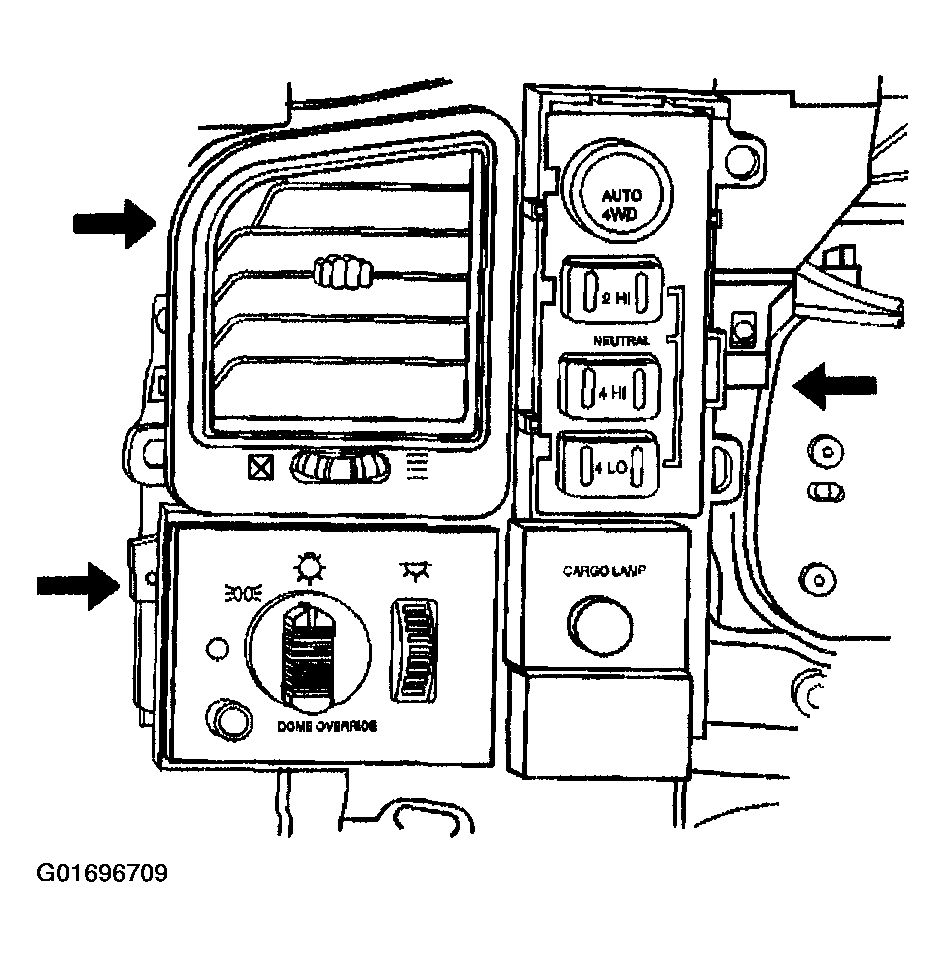

    2. Fig 1: Locating Retaining Clips
    G01696709Courtesy of GENERAL MOTORS CORP.
  2. Remove the head lamp switch/4WD shift button housing from the IP by pulling outwards.

    The arrows in the graphic shows the locations of the retaining clips.

  3. Disconnect all the electrical connectors.
  4. Remove the electrical tape around the lamp module and discard.
  5. Remove the lamp module from the connector by pulling outwards.

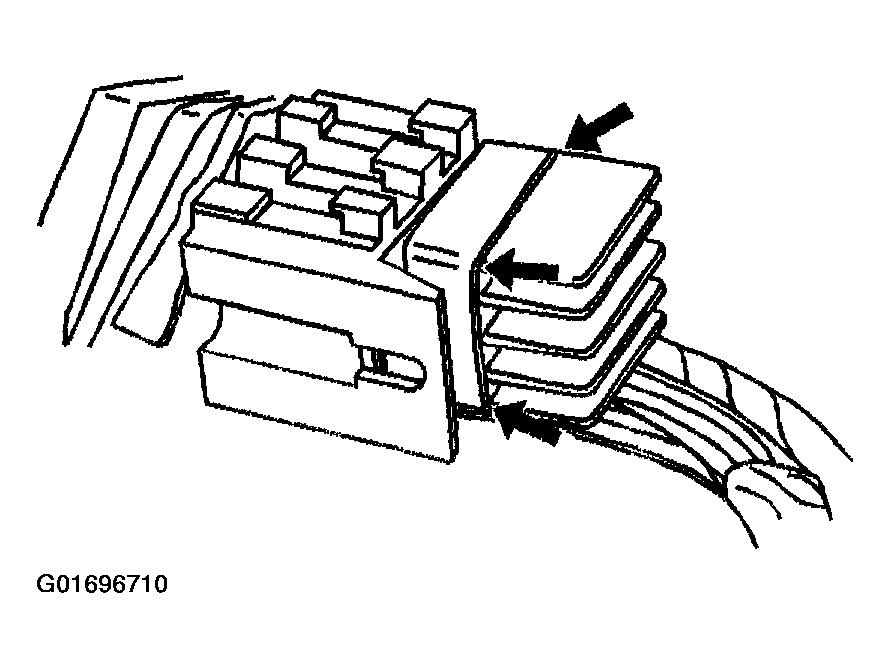

    Fig 2: Lamp Control Module
    G01696710Courtesy of GENERAL MOTORS CORP.
