Wiper/Washer System Component Views

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Rear Underhood Component View - Front of Dash

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor Module Electrical Connector
2	Cruise Control Module (CCM) Connector
3	Plenum Panel
4	Cruise Control Module
5	P100
6	Dash Panel
7	Cap For Connector, Without Cruise Control
8	Cruise Control Module (CCM) Connector
9	Harness Pass Through
10	Windshield Wiper Motor Module

Fig 2: LF Corner of the Vehicle Components - Wiper/Washer

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Windshield Washer Reservoir
3	Windshield Washer Fluid Pump Connector
4	Washer Fluid Level Sensor Connector
5	Radiator Support

Fig 3: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Button
2	High Beams/Cruise/Wiper/Washer
3	Cruise Control Switches
4	Tilt Steering Actuator
5	Inflatable Restraint Harness
6	C201 Inline Connector

Fig 4: Rear Window Wiper Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Deflector Housing
2	Rear Wiper/Washer Switch
3	Fog Lamp Switch

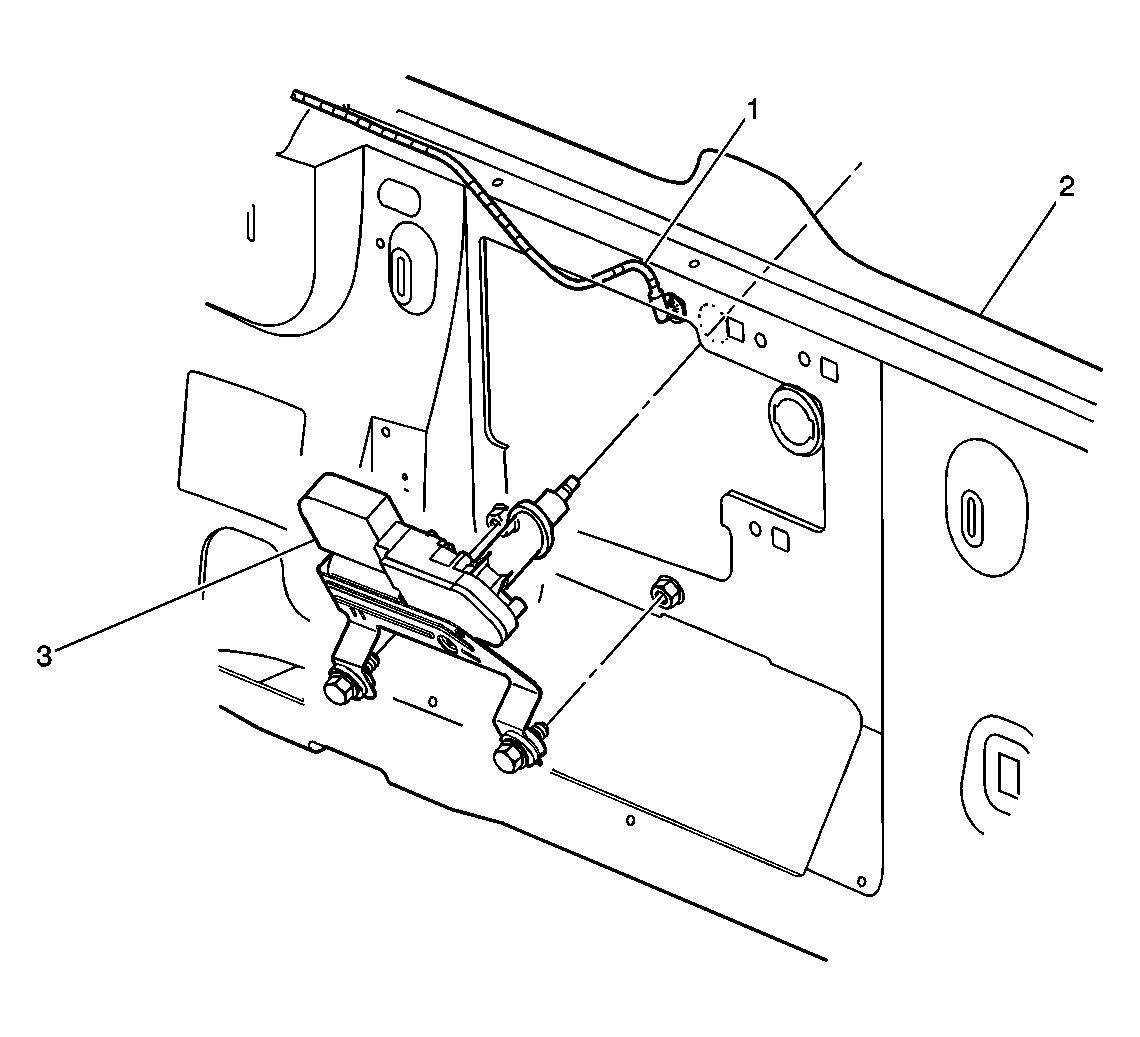

Fig 5: Rear Window Wiper Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Liftgate Harness
2	Liftgate
3	Window Wiper Module-Rear
