HVAC Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

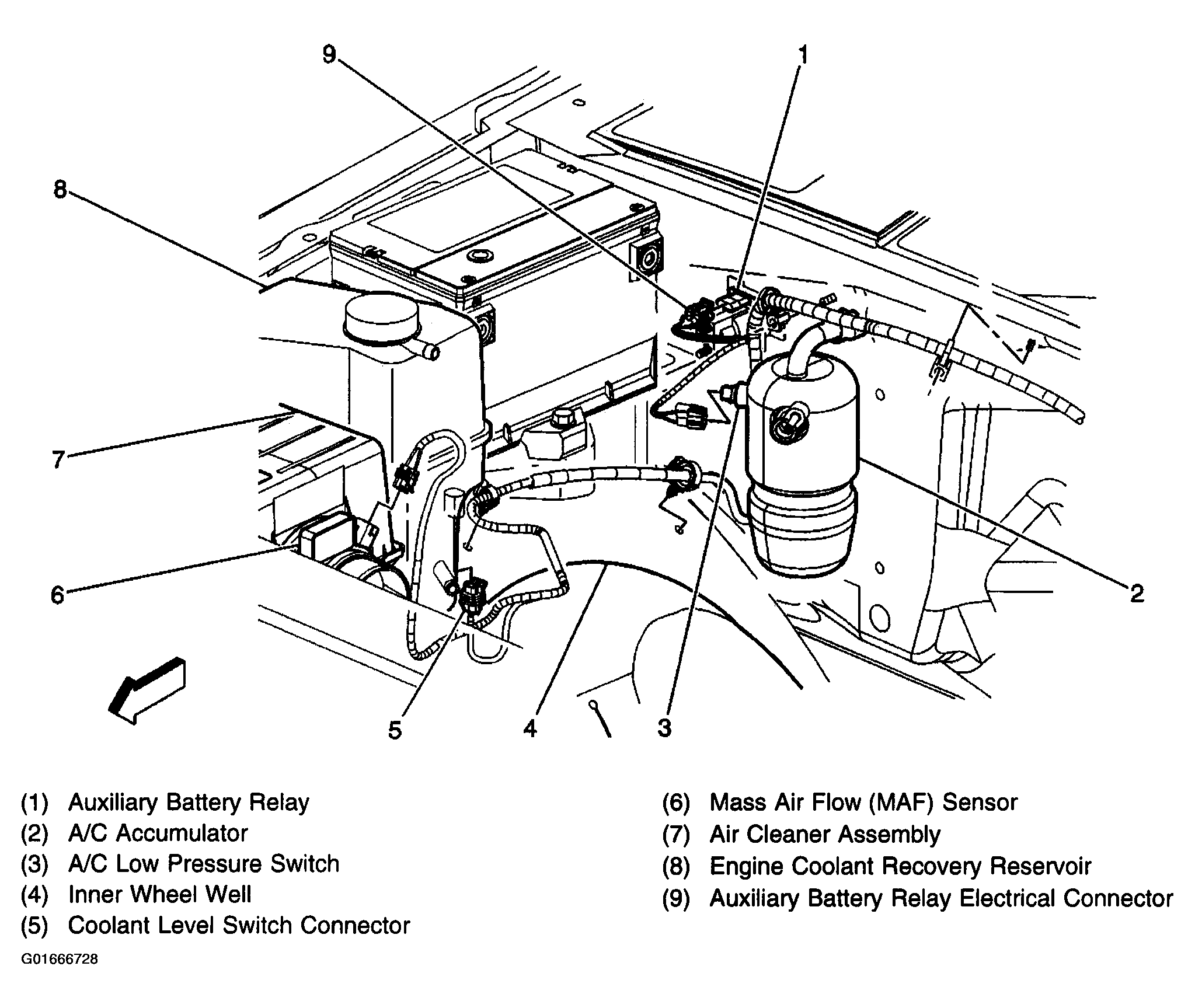

Fig 1: Locating A/C Low Pressure Switch & A/C Accumulator

G01666728

Courtesy of GENERAL MOTORS CORP.

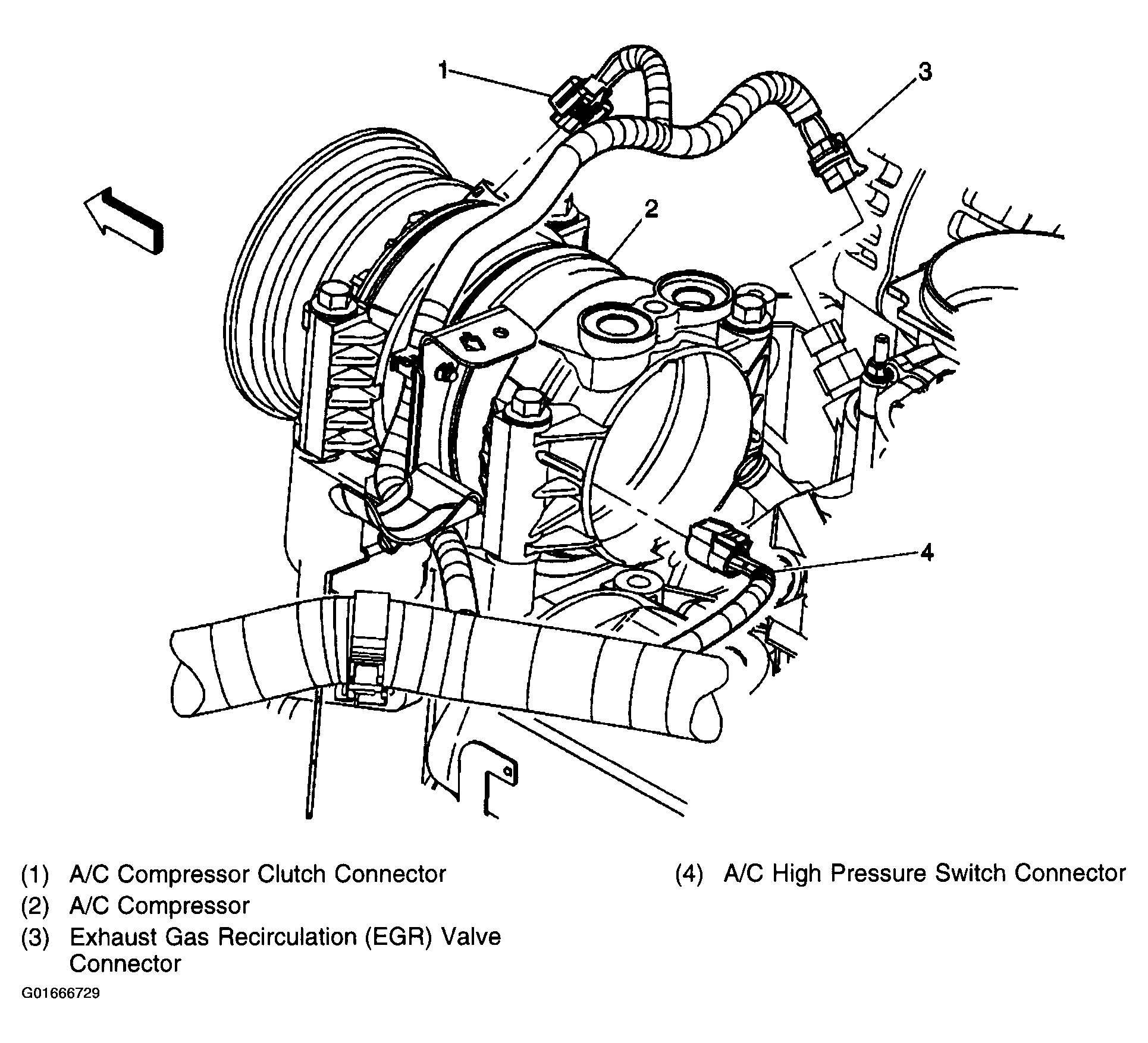

Fig 2: Locating A/C Compressor Clutch - 4.3L

G01666729

Courtesy of GENERAL MOTORS CORP.

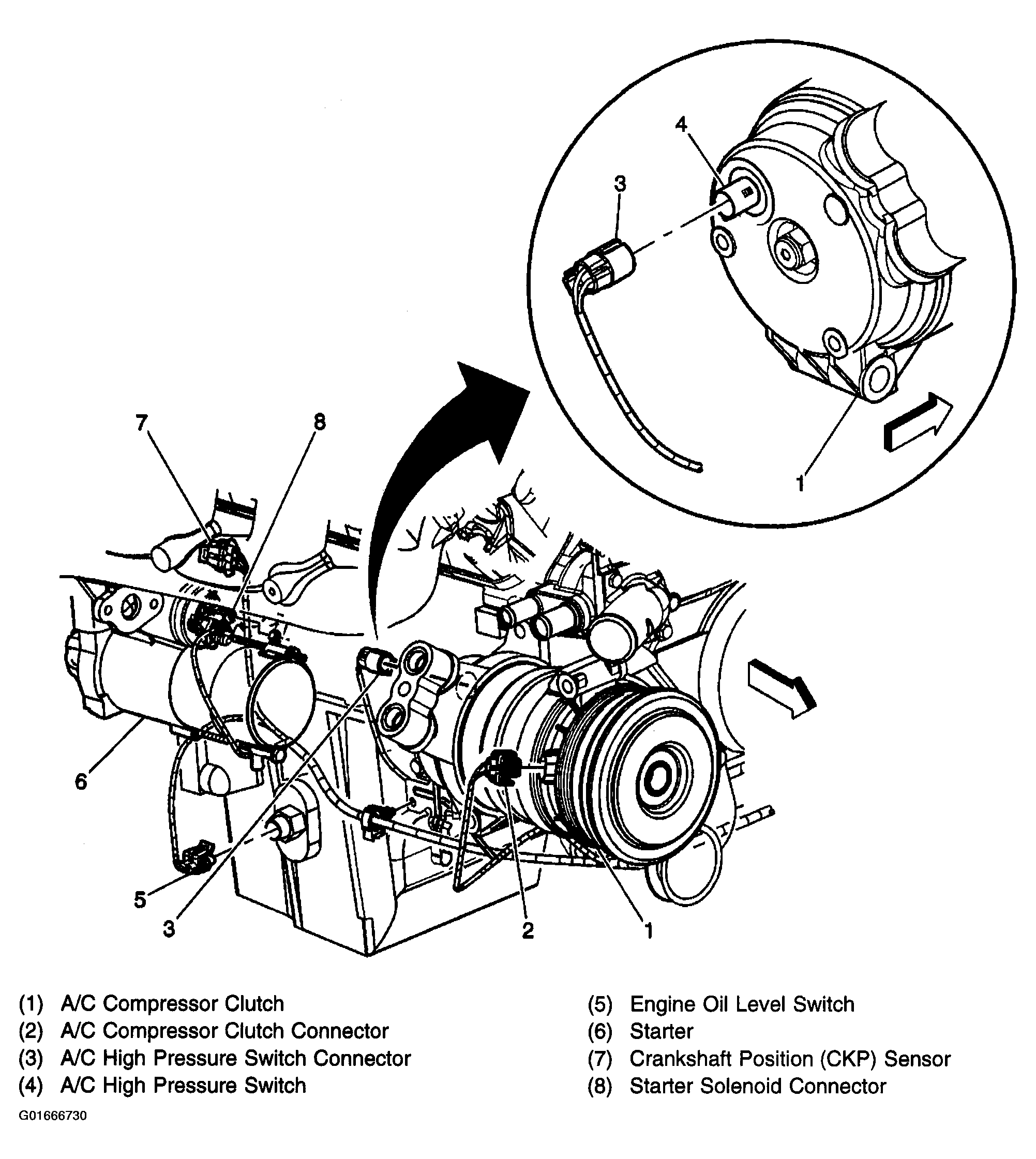

Fig 3: Locating A/C Compressor Clutch - 4.8L, 5.3L & 6.0L

G01666730

Courtesy of GENERAL MOTORS CORP.

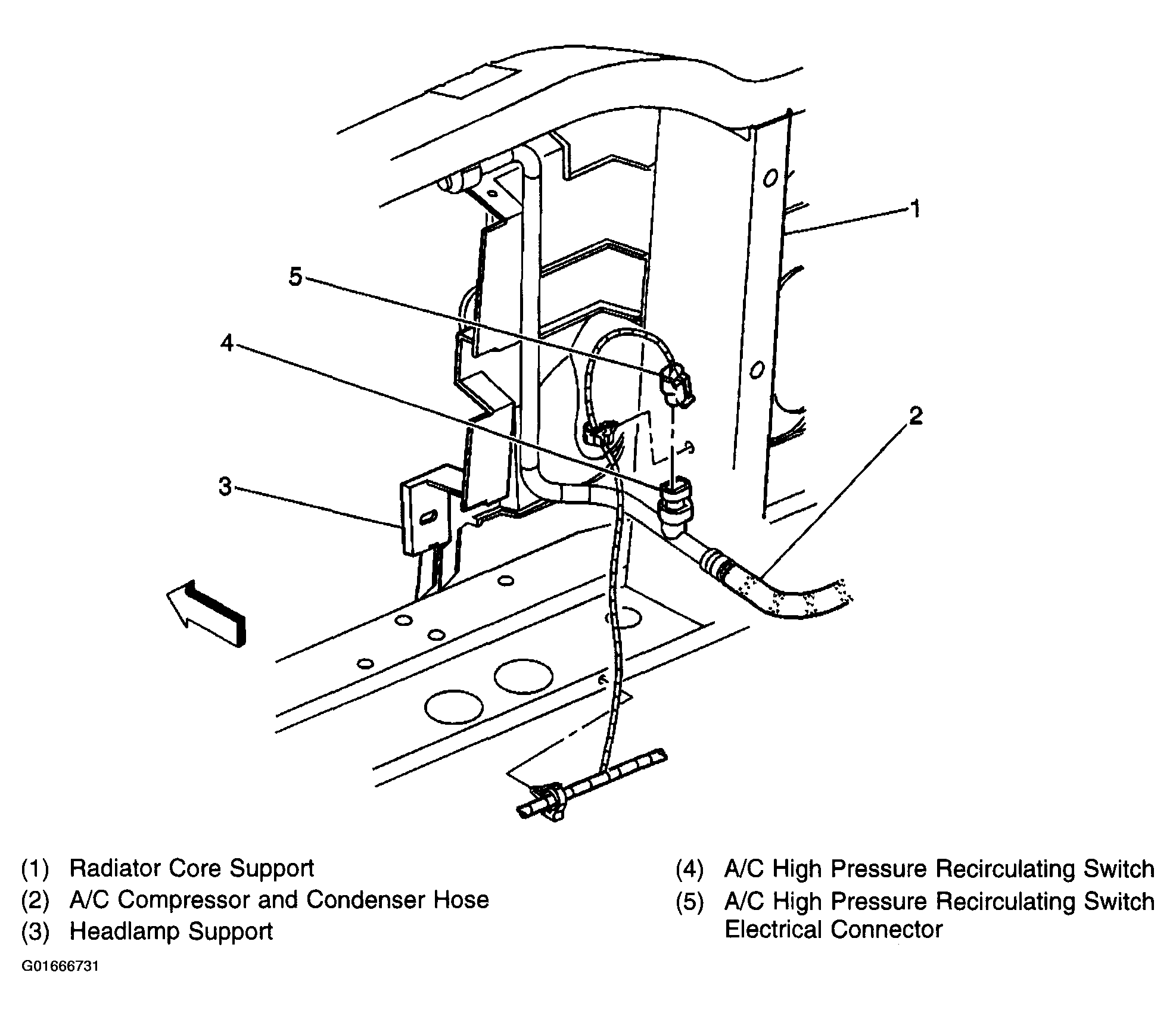

Fig 4: Locating A/C High Pressure Recirculating Switch

G01666731

Courtesy of GENERAL MOTORS CORP.

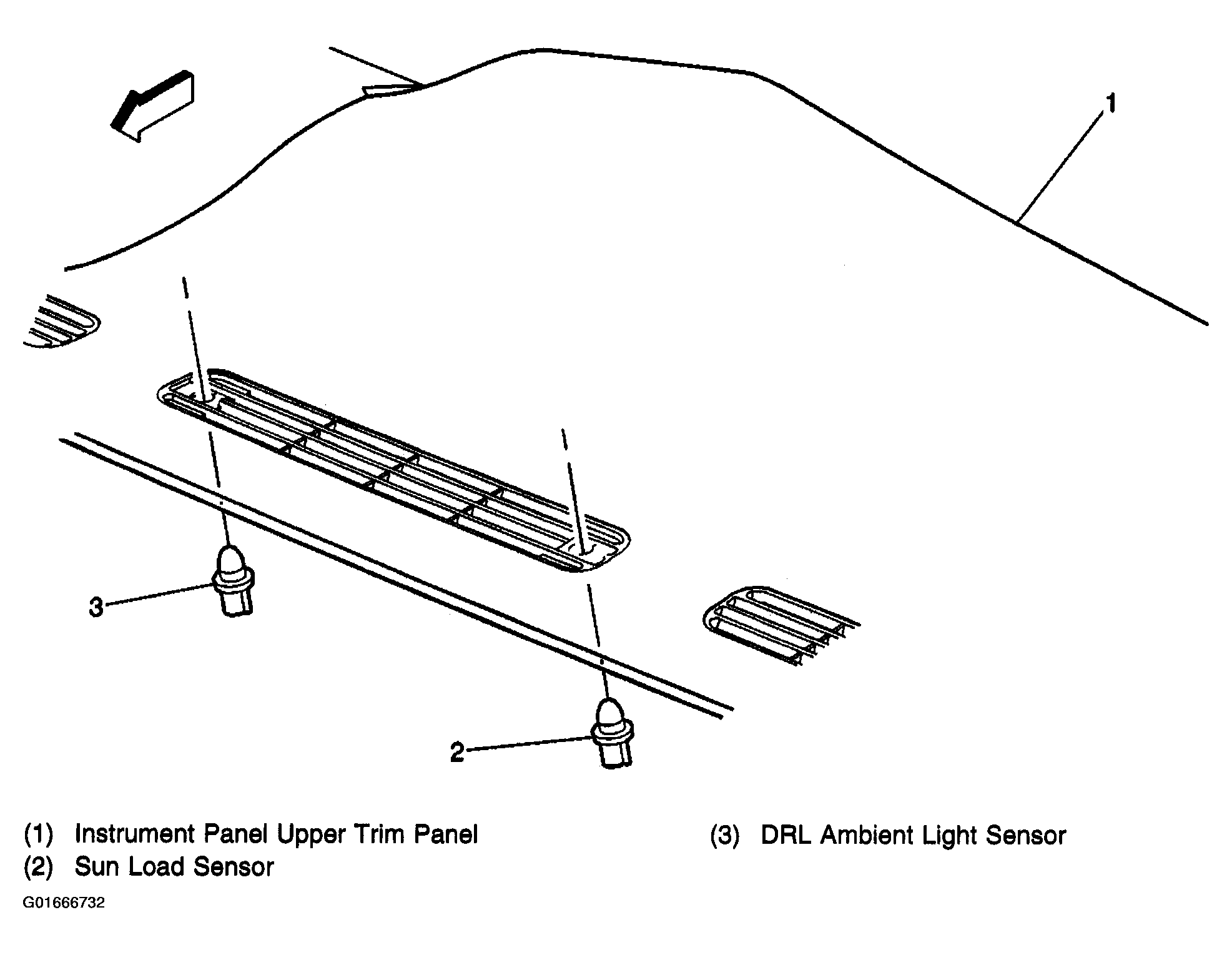

Fig 5: Locating Sunload Sensor/Daytime Running Lamp (DRL) Ambient Light Sensor

G01666732

Courtesy of GENERAL MOTORS CORP.

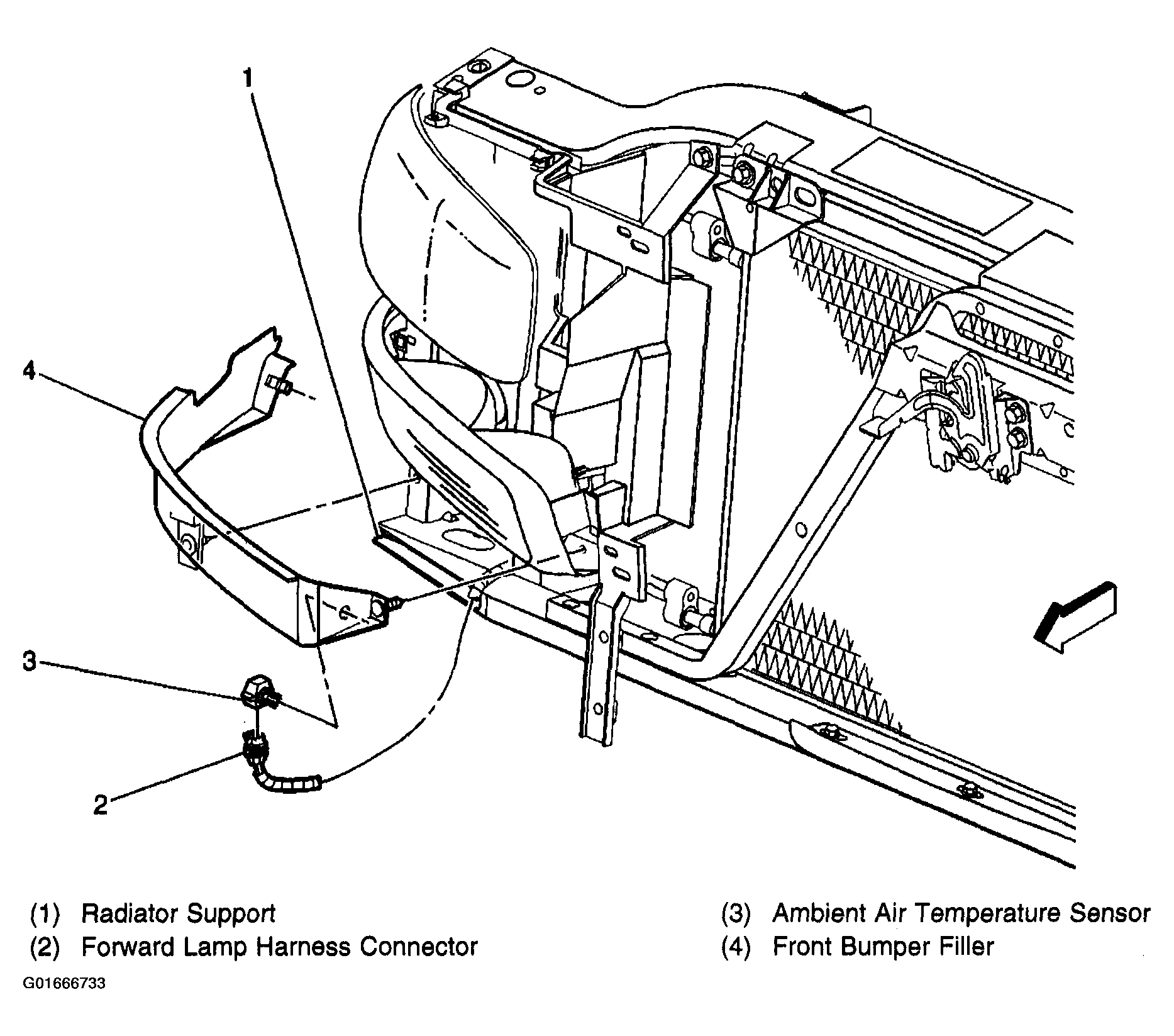

Fig 6: Locating Ambient Air Temperature Sensor

G01666733

Courtesy of GENERAL MOTORS CORP.

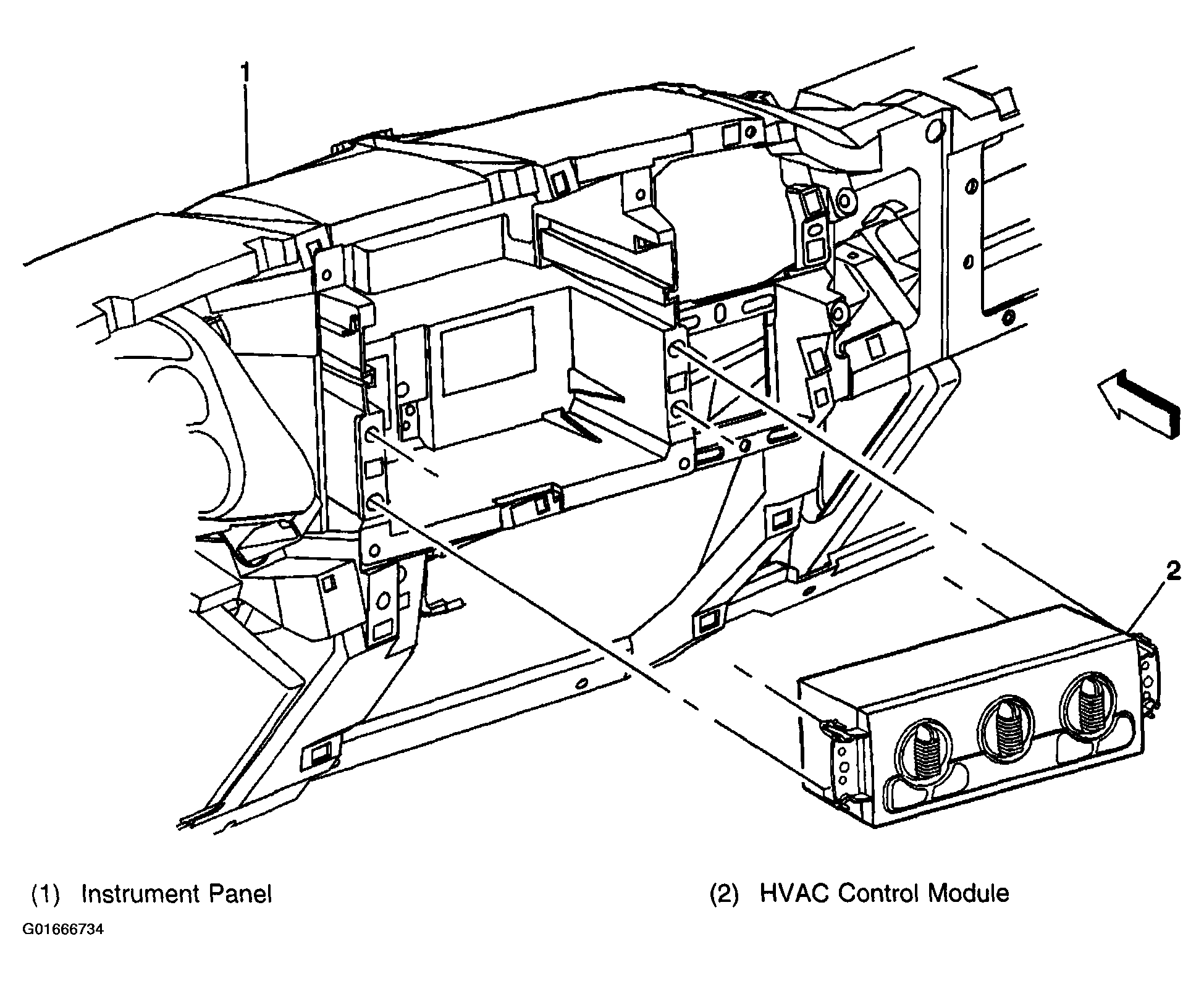

Fig 7: Locating HVAC Control Module

G01666734

Courtesy of GENERAL MOTORS CORP.

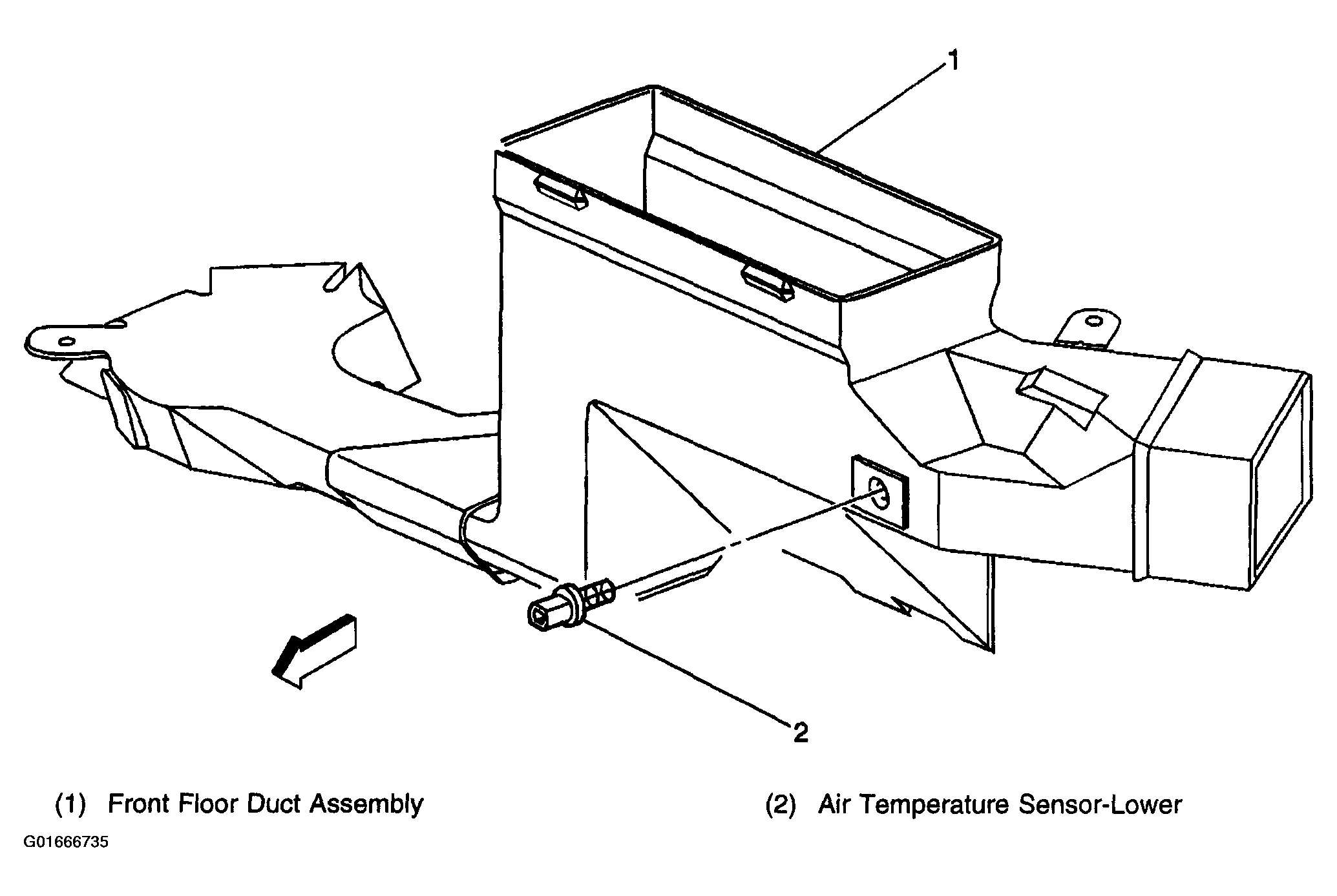

Fig 8: Locating Air Temperature Sensor - Lower

G01666735

Courtesy of GENERAL MOTORS CORP.

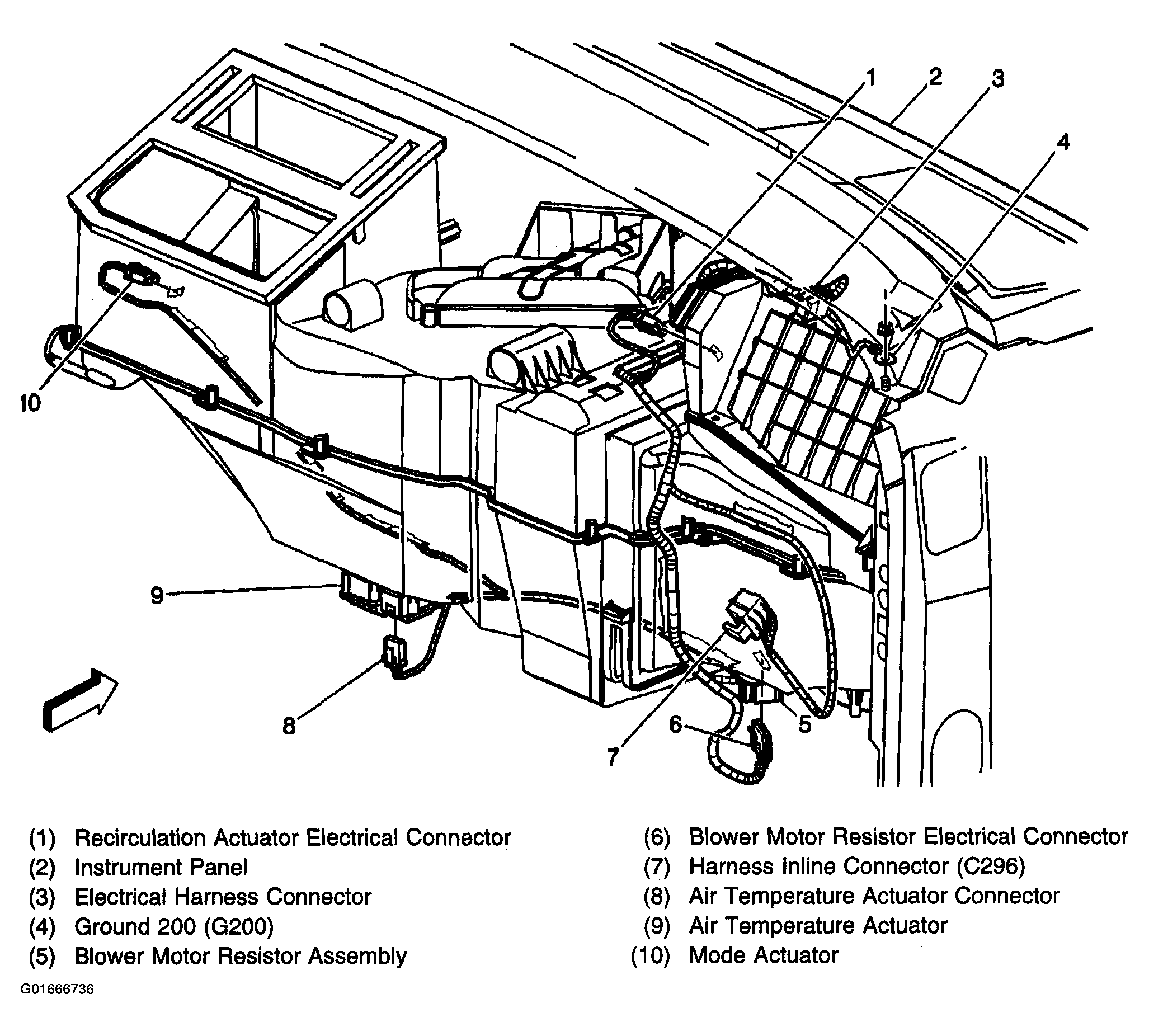

Fig 9: Locating HVAC Module Assembly - Connections

G01666736

Courtesy of GENERAL MOTORS CORP.

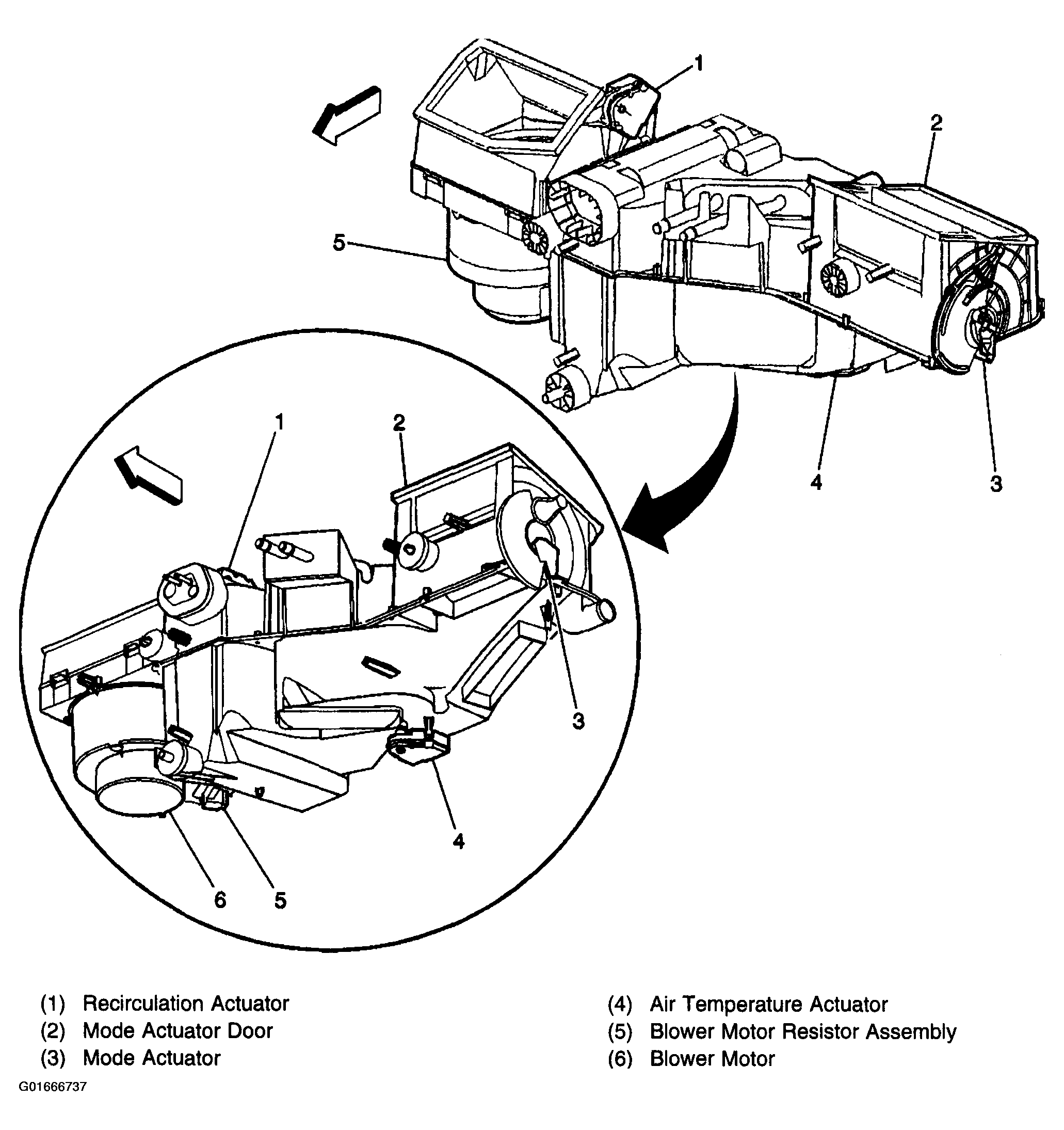

Fig 10: Locating HVAC Module Assembly Components

G01666737

Courtesy of GENERAL MOTORS CORP.
