Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel accessory trim plate.
  2. Remove the screws from the HVAC control module.
  3. Depress the control assembly retaining tabs and remove the HVAC control module from the instrument panel.
  4. Disconnect the electrical connectors from the HVAC control module.

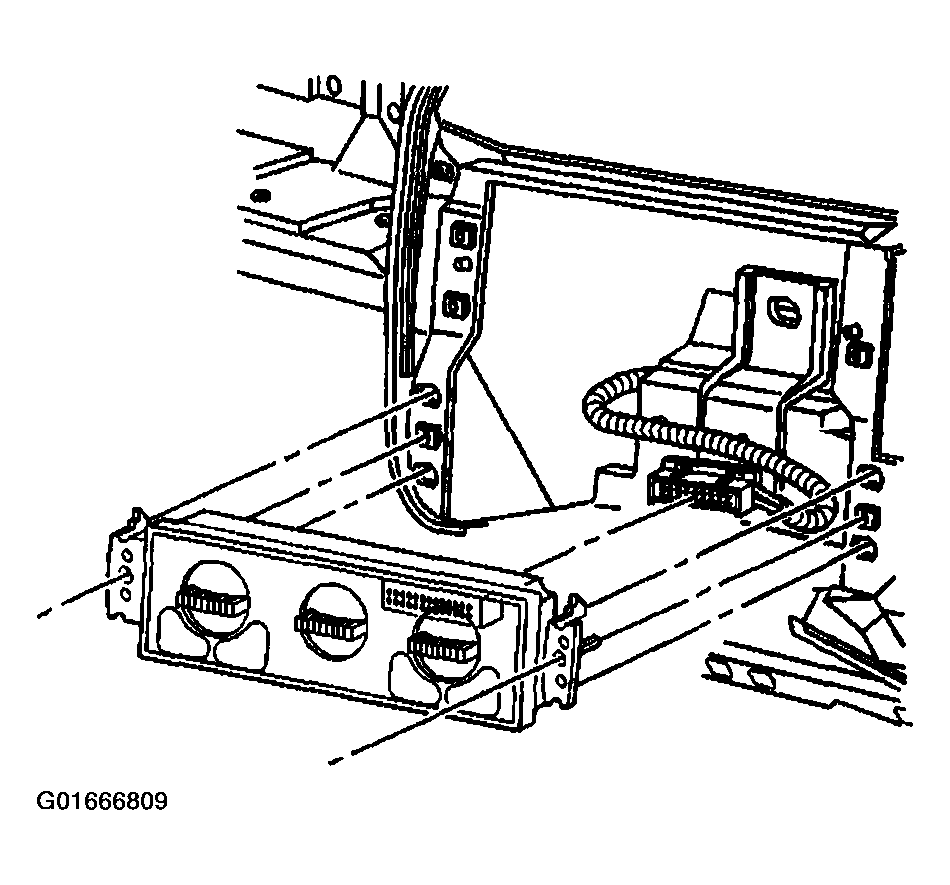

    Fig 1: HVAC Control Module
    G01666809Courtesy of GENERAL MOTORS CORP.
