ABS Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

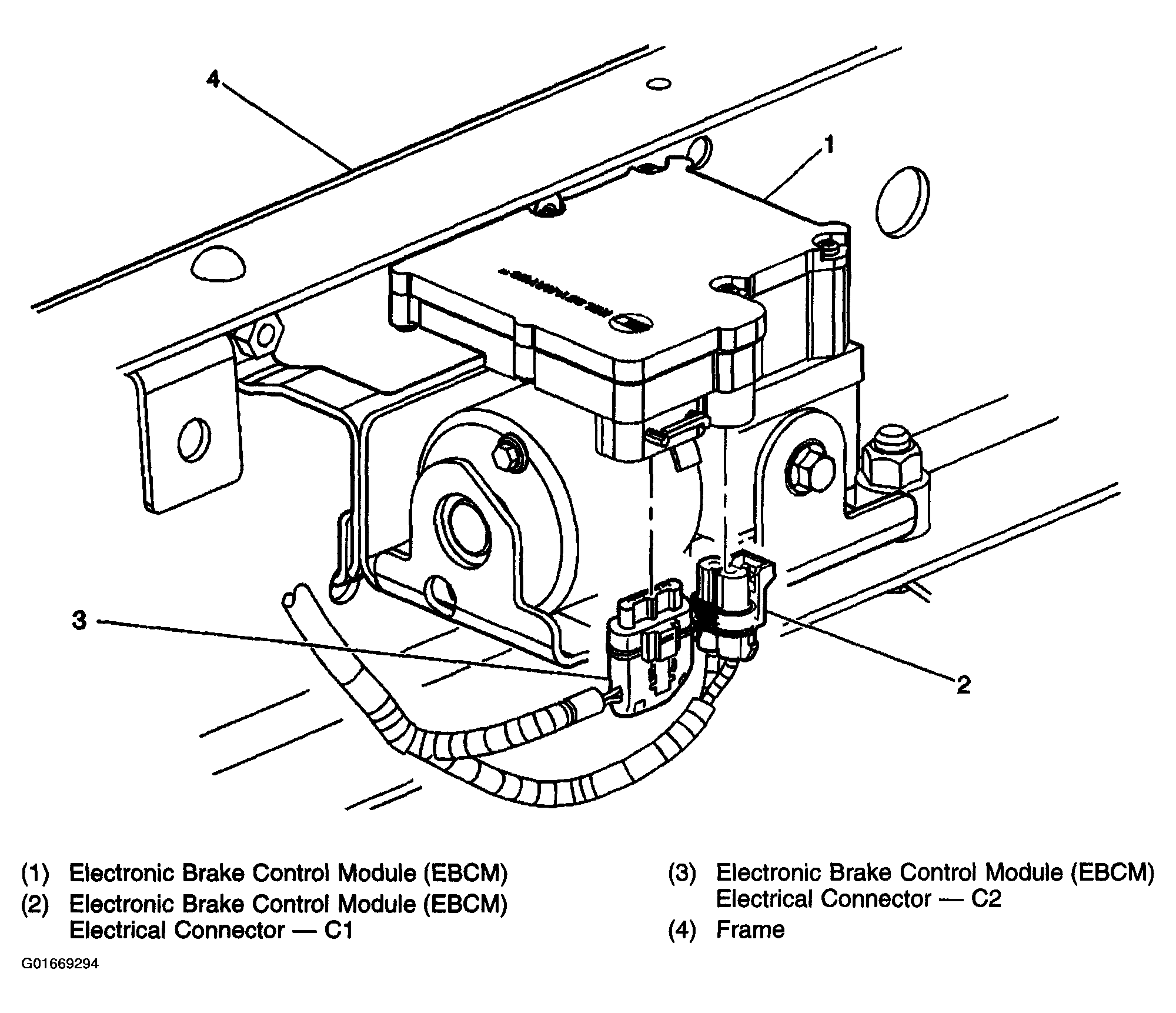

Fig 1: Locating Electronic Brake Control Module (EBCM)

Courtesy of GENERAL MOTORS CORP.

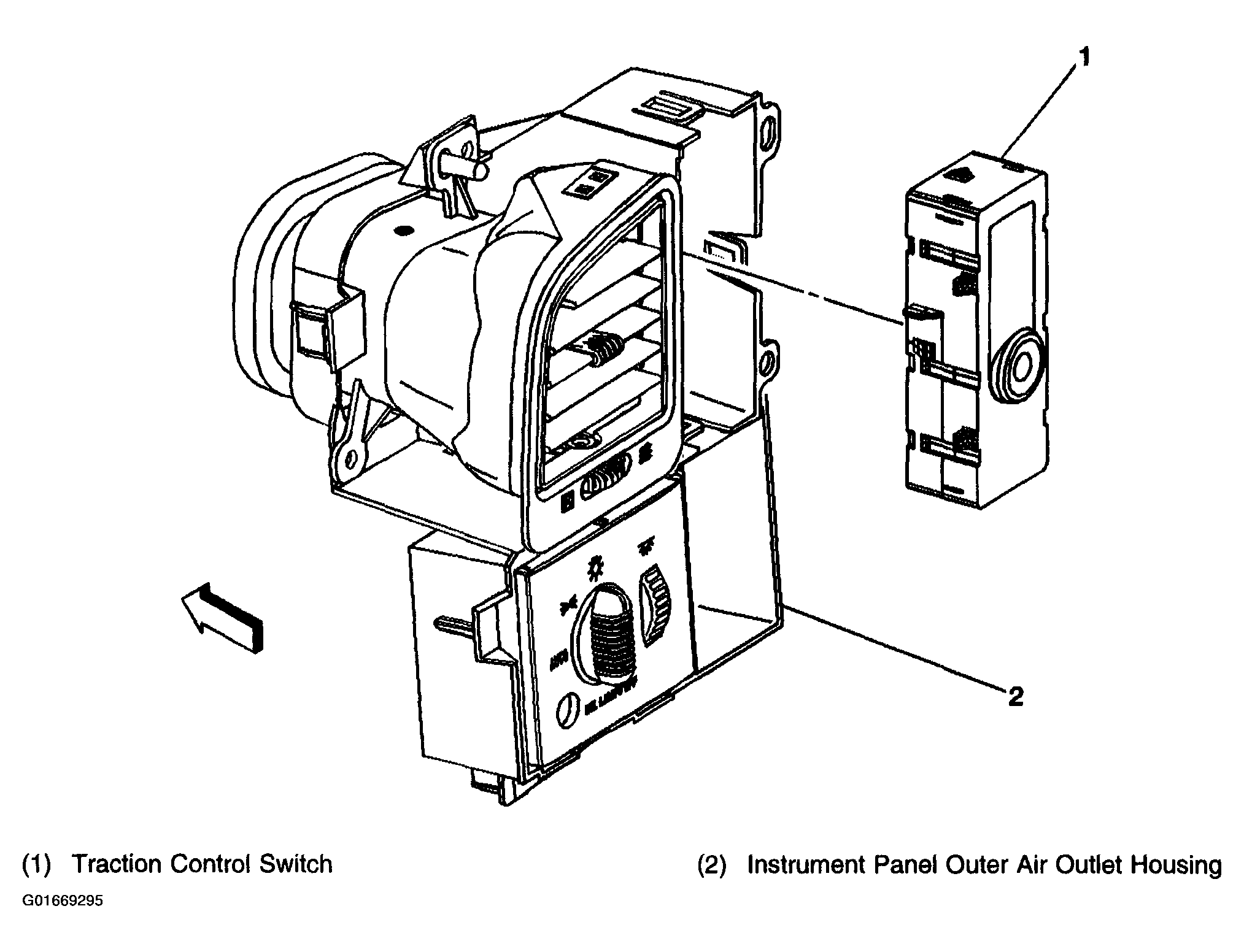

Fig 2: Locating Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

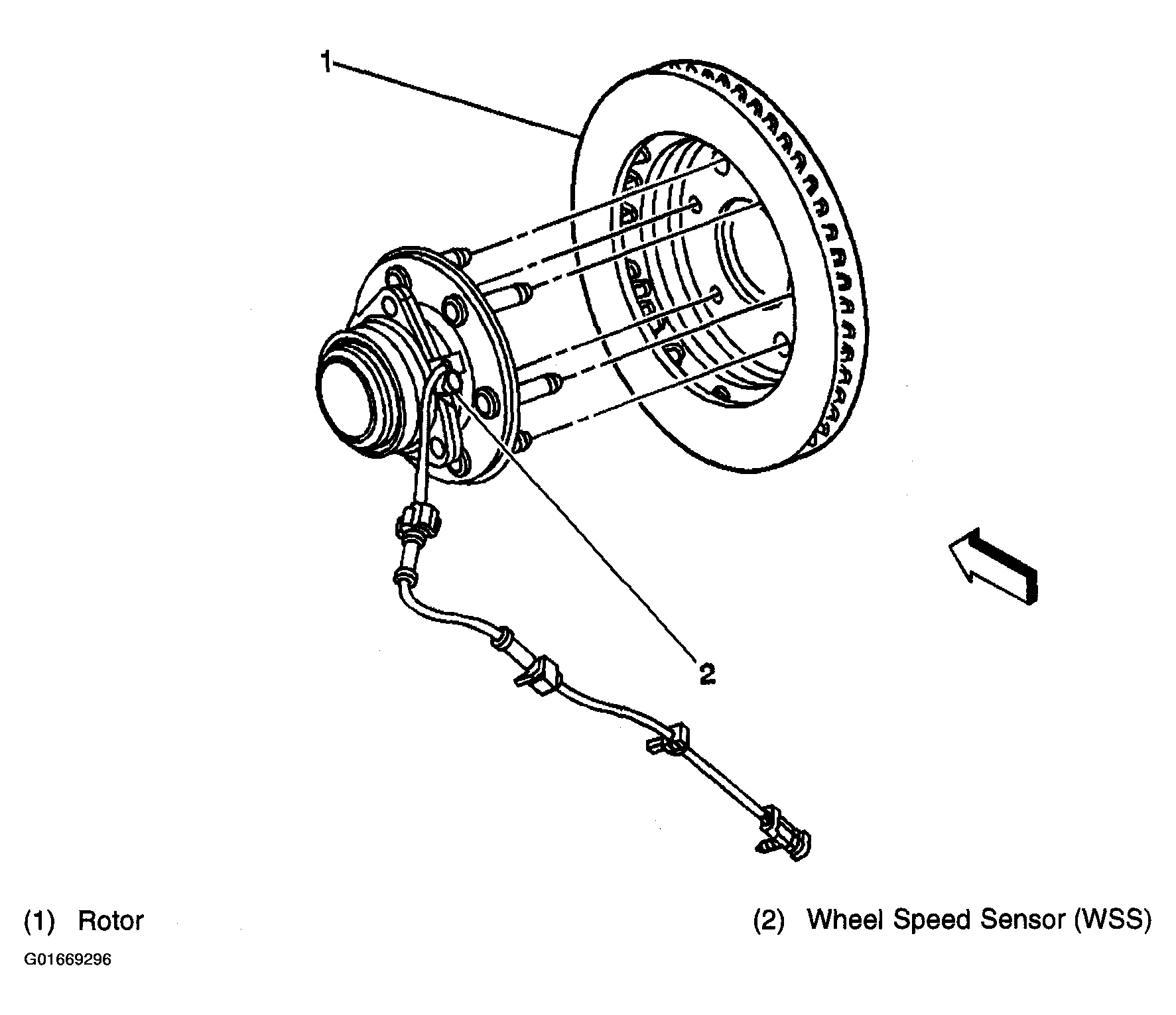

Fig 3: Locating Wheel Speed Sensor - RF (2WD)

Courtesy of GENERAL MOTORS CORP.

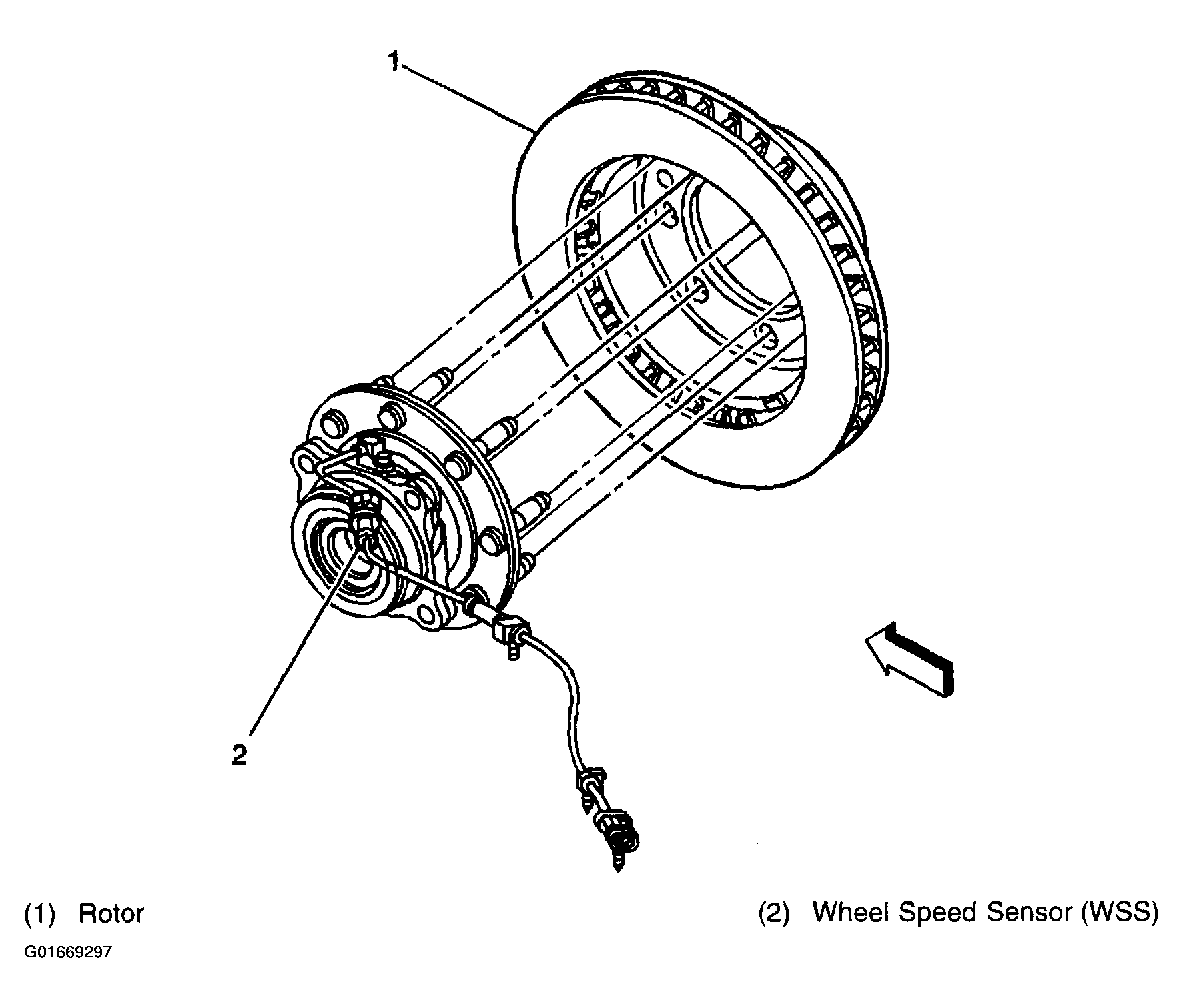

Fig 4: Locating Wheel Speed Sensor - RF (4WD)

Courtesy of GENERAL MOTORS CORP.

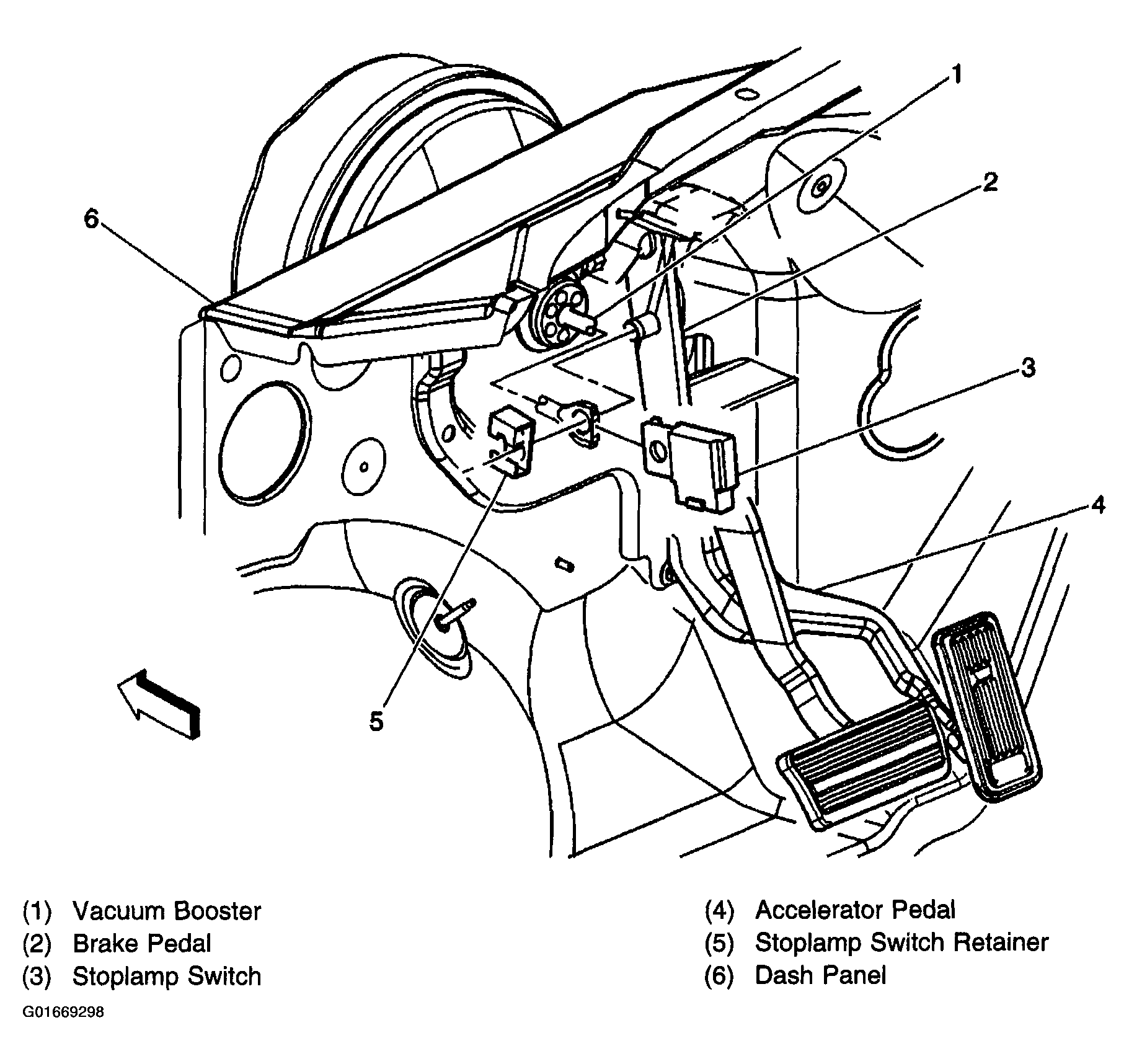

Fig 5: Locating Stoplamp Switch

Courtesy of GENERAL MOTORS CORP.
