Stationary Windows Connector End Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

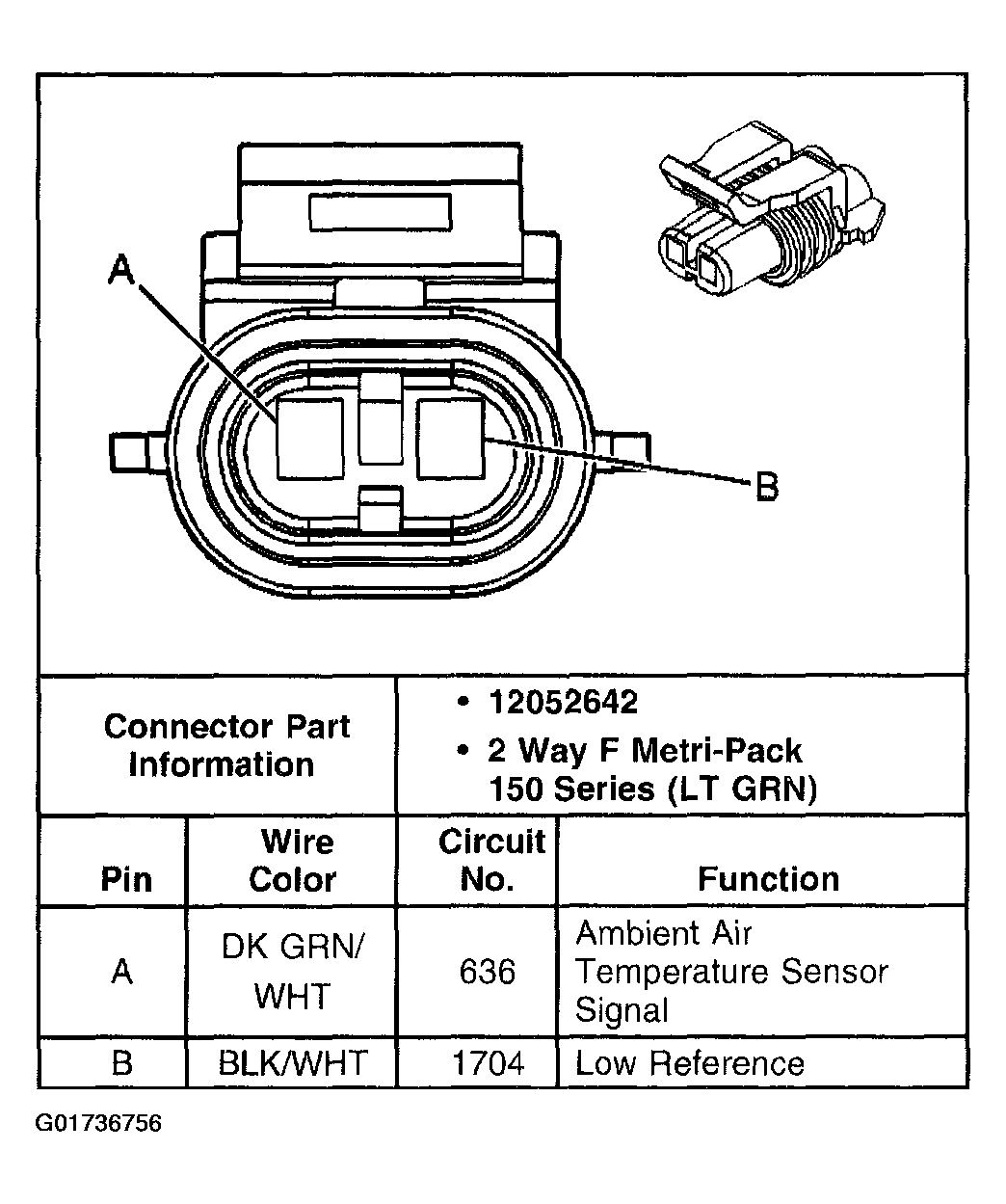

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

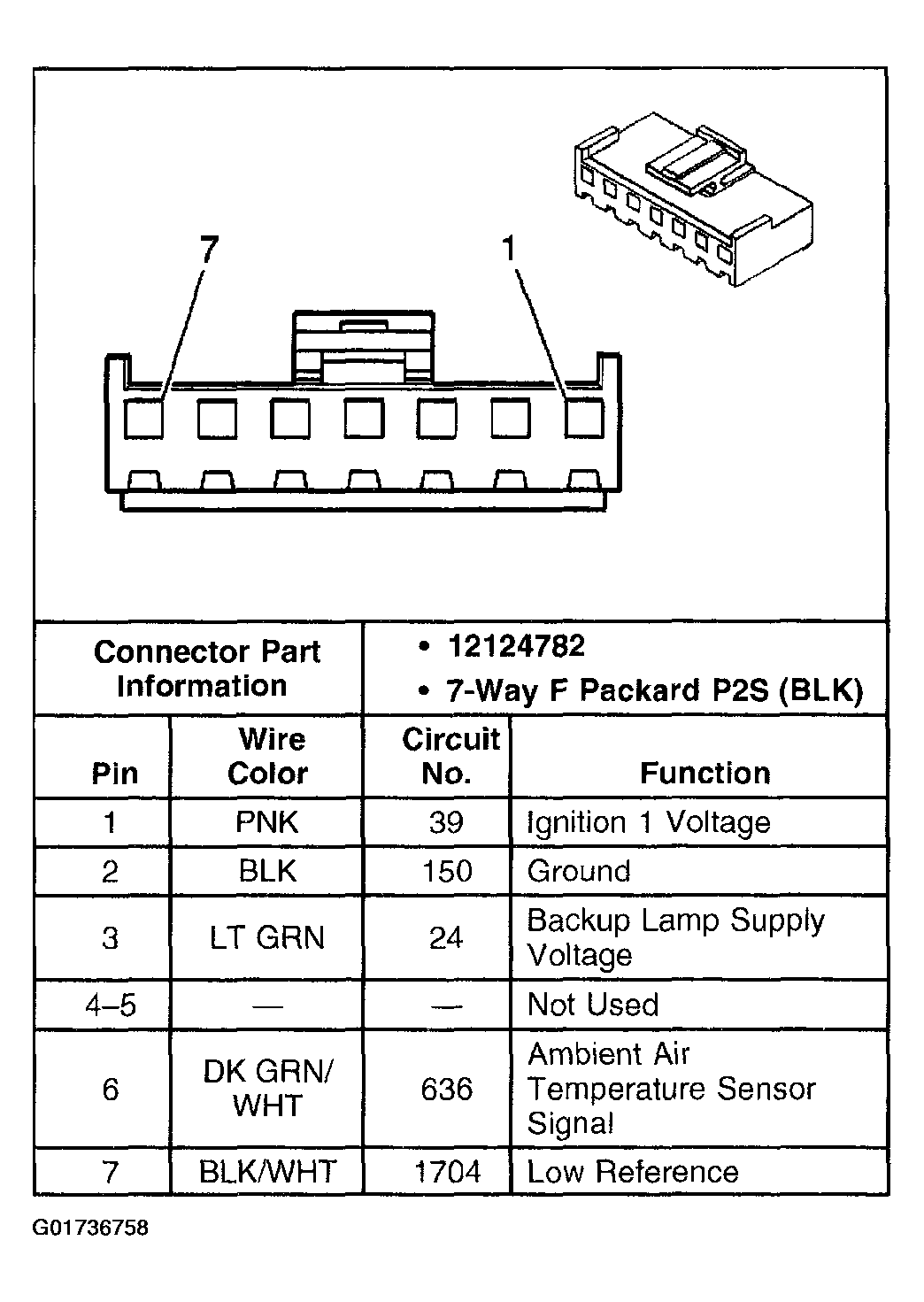

Fig 2: HVAC Control Assembly C2 Connector

Courtesy of GENERAL MOTORS CORP.

Fig 3: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

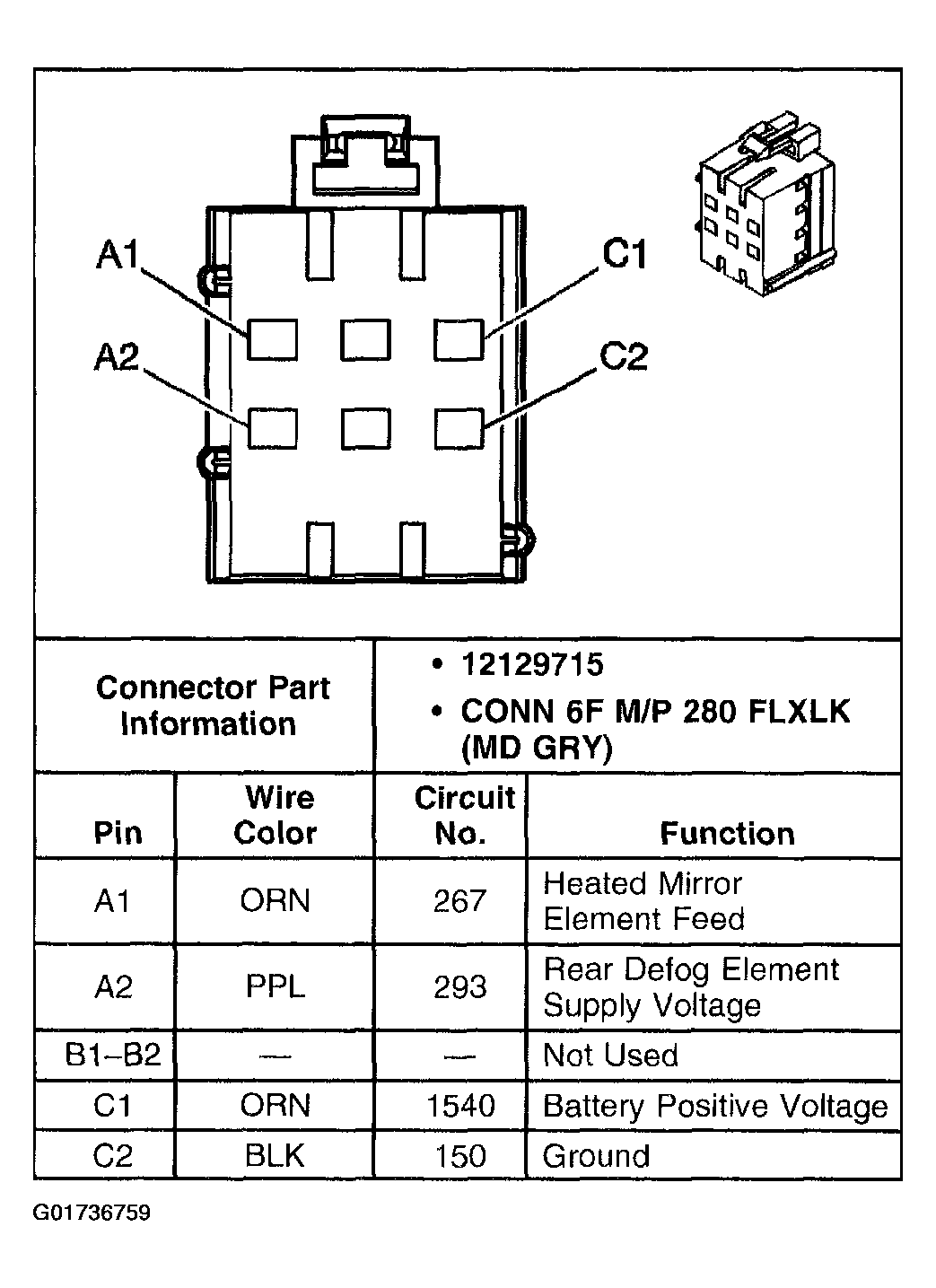

Fig 4: Rear Window Defogger Relay

Courtesy of GENERAL MOTORS CORP.
