Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

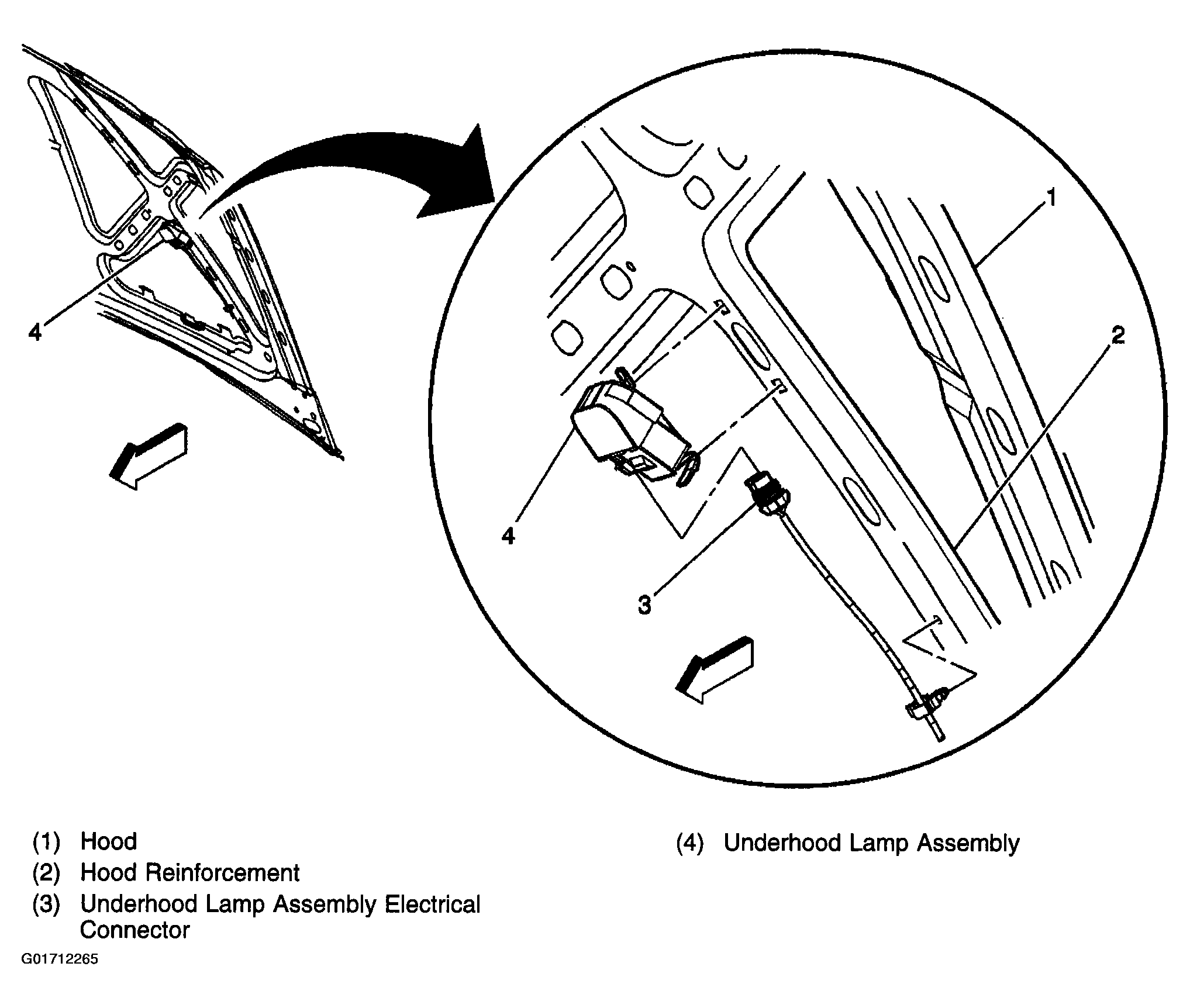

Fig 1: Locating Underhood Lamp Assembly

G01712265

Courtesy of GENERAL MOTORS CORP.

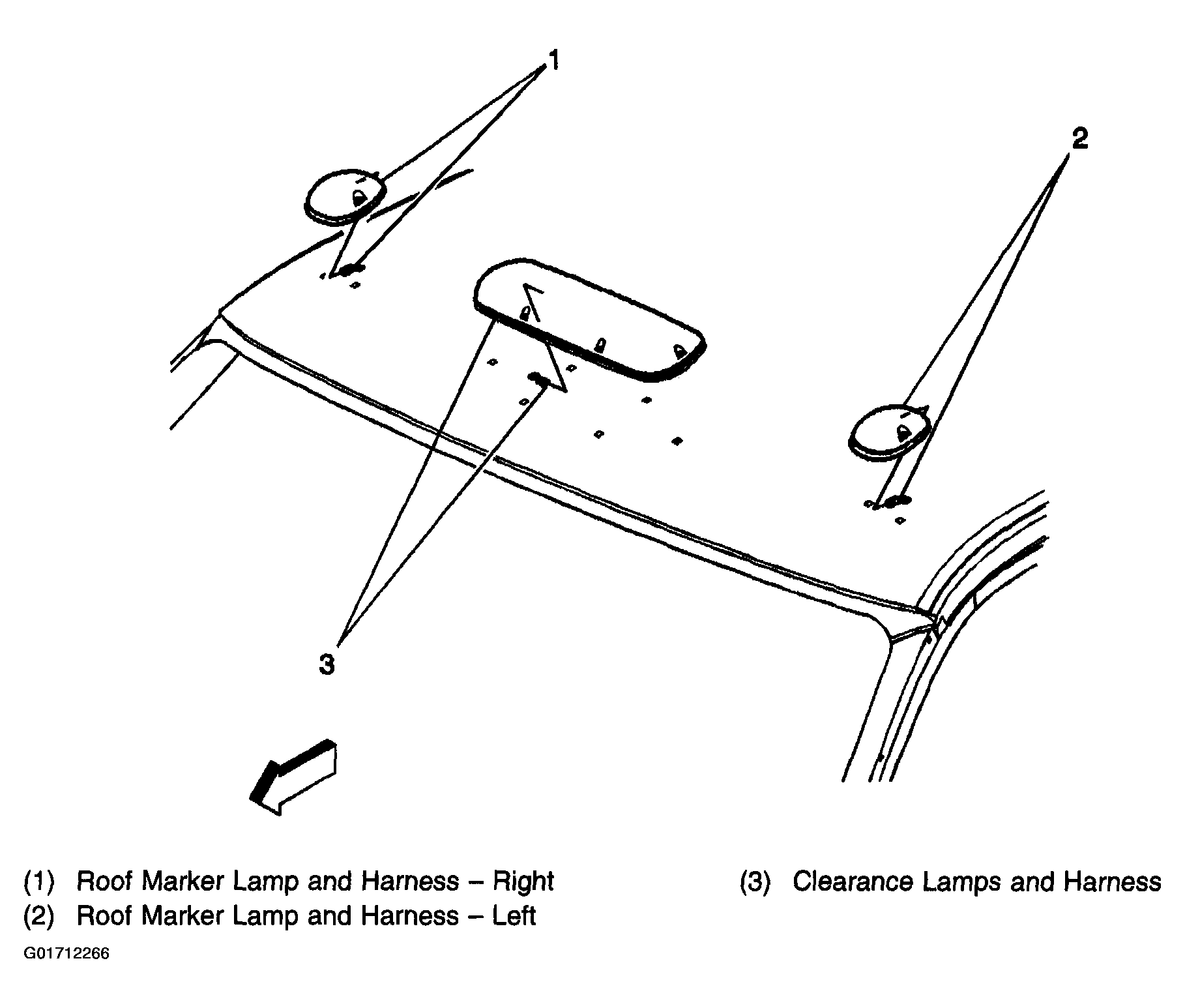

Fig 2: Locating Roof Marker & Clearance Lamps

G01712266

Courtesy of GENERAL MOTORS CORP.

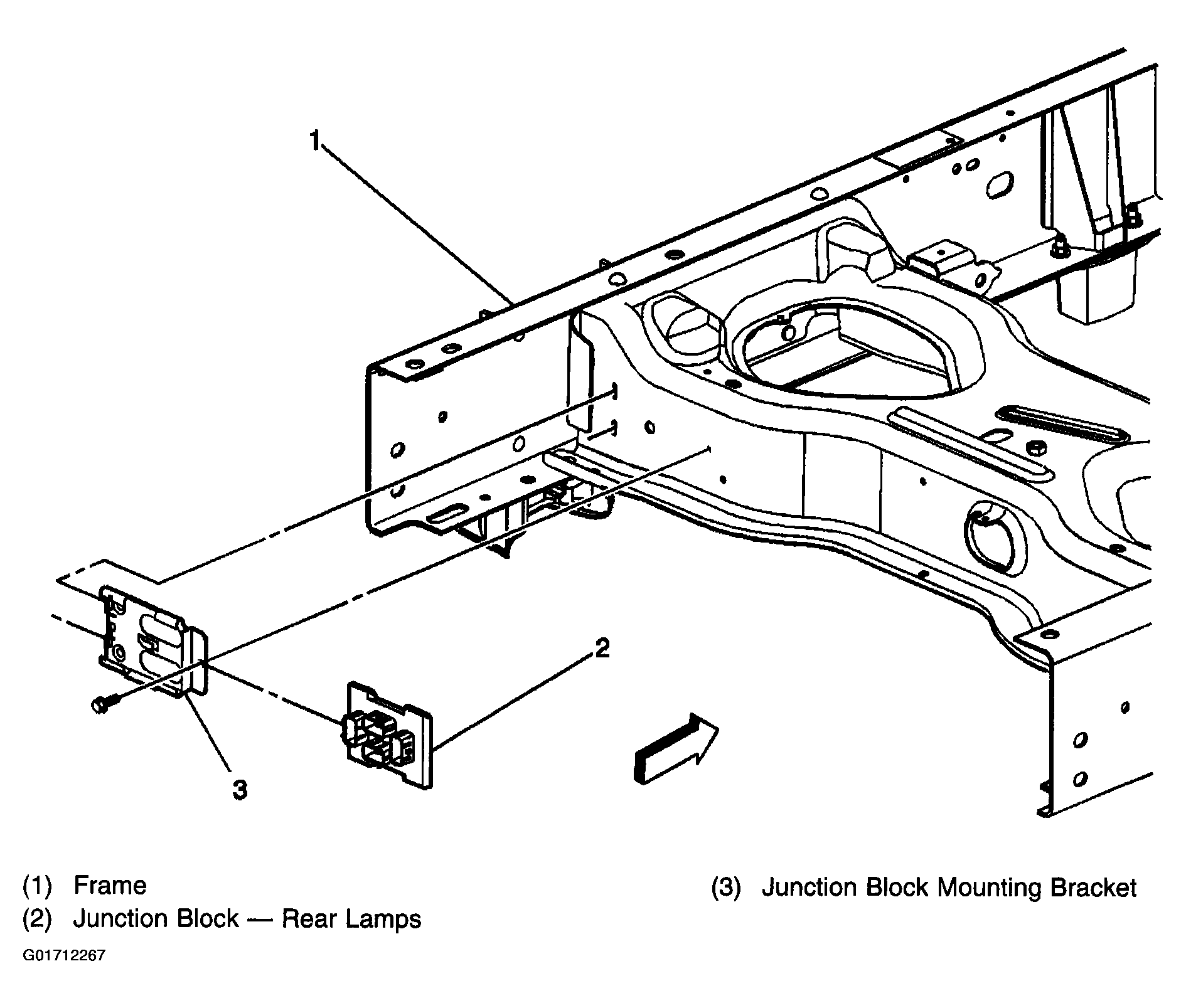

Fig 3: Locating Junction Block - Rear Lamps

G01712267

Courtesy of GENERAL MOTORS CORP.

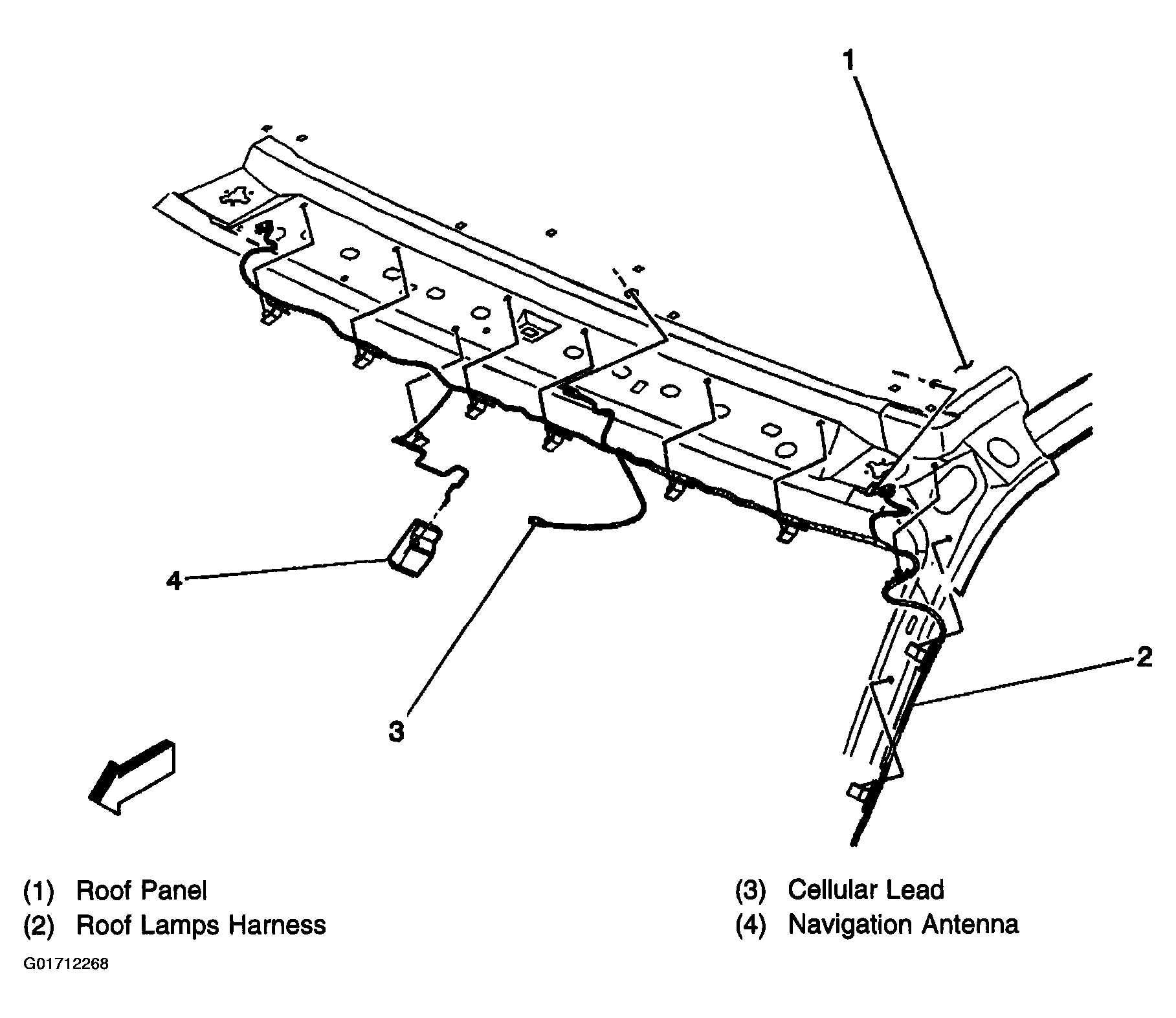

Fig 4: Locating Roof Lamps Harness

G01712268

Courtesy of GENERAL MOTORS CORP.

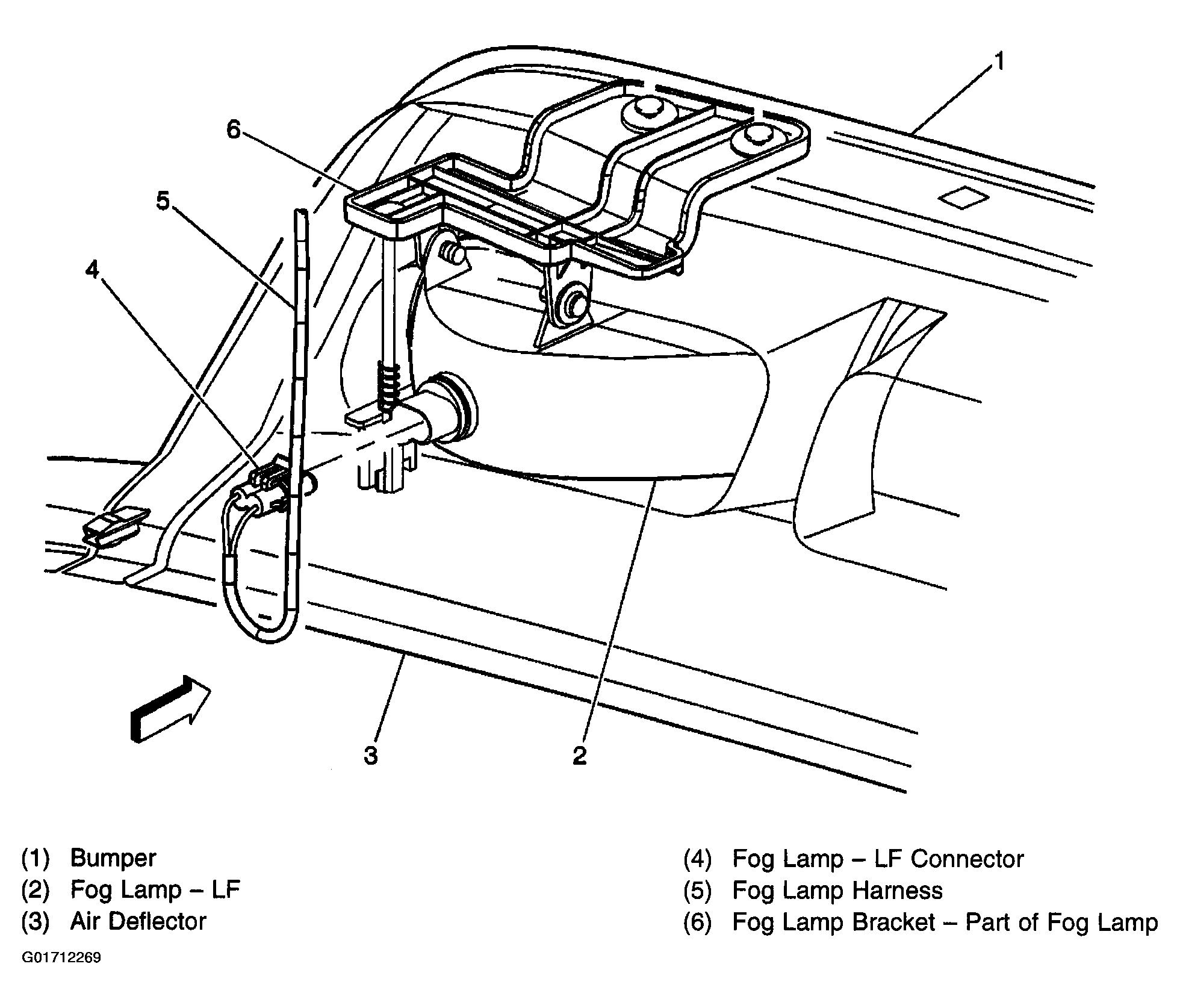

Fig 5: Locating Left Fog Lamp (RH Similar)

G01712269

Courtesy of GENERAL MOTORS CORP.

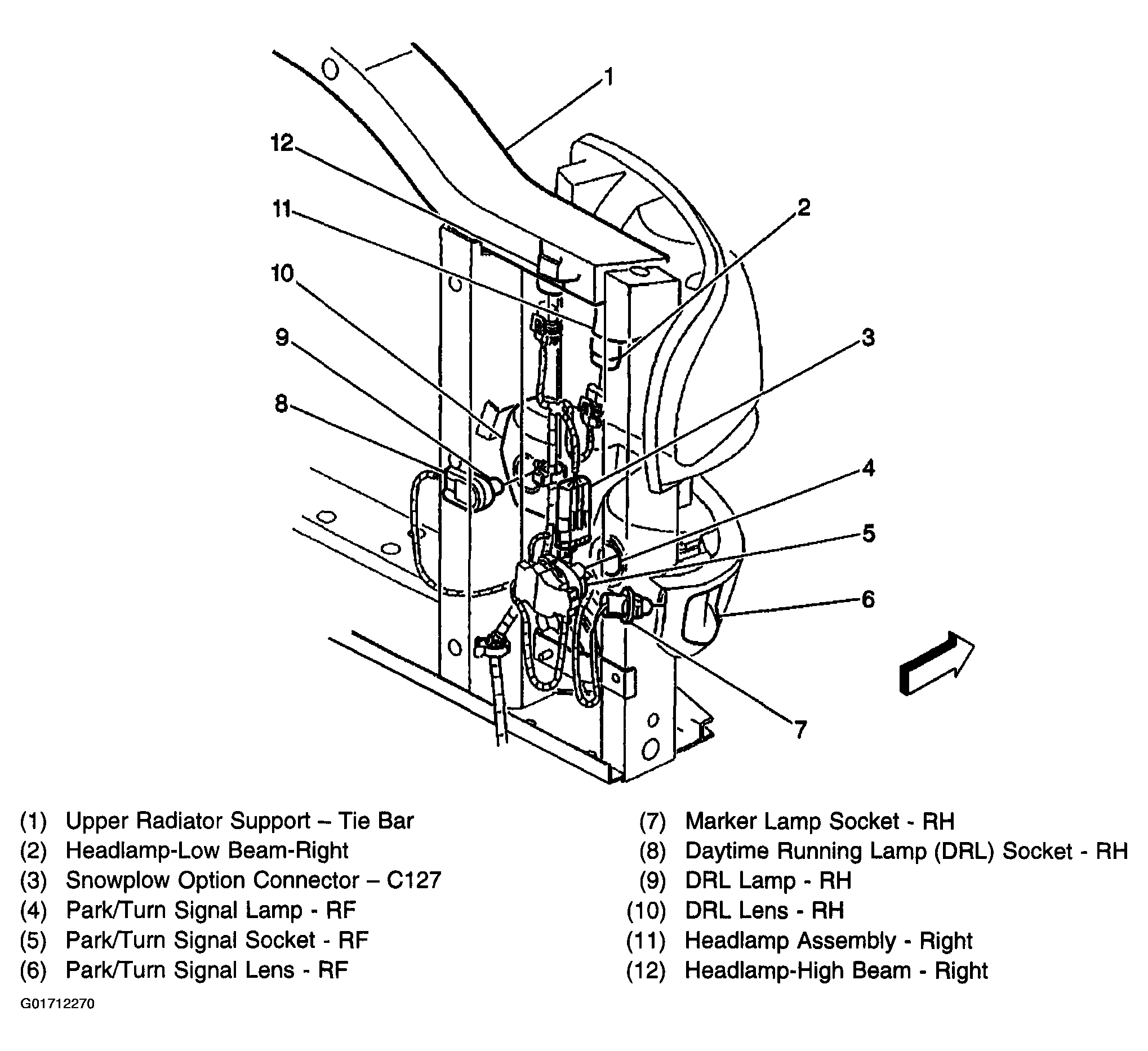

Fig 6: Locating Electrical Components On RH Front Of Vehicle

G01712270

Courtesy of GENERAL MOTORS CORP.

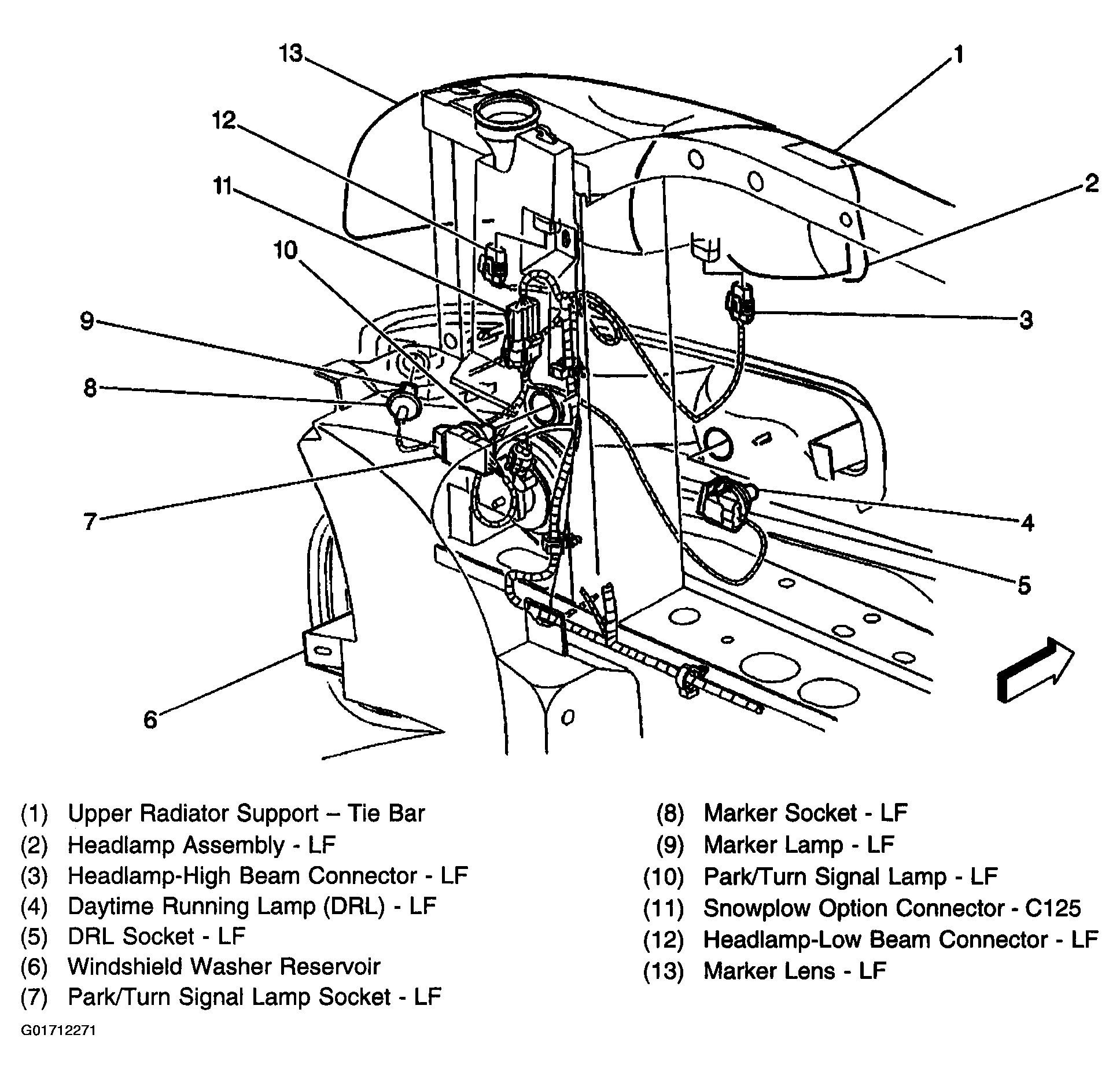

Fig 7: Locating Electrical Components LH Front Of Vehicle

G01712271

Courtesy of GENERAL MOTORS CORP.

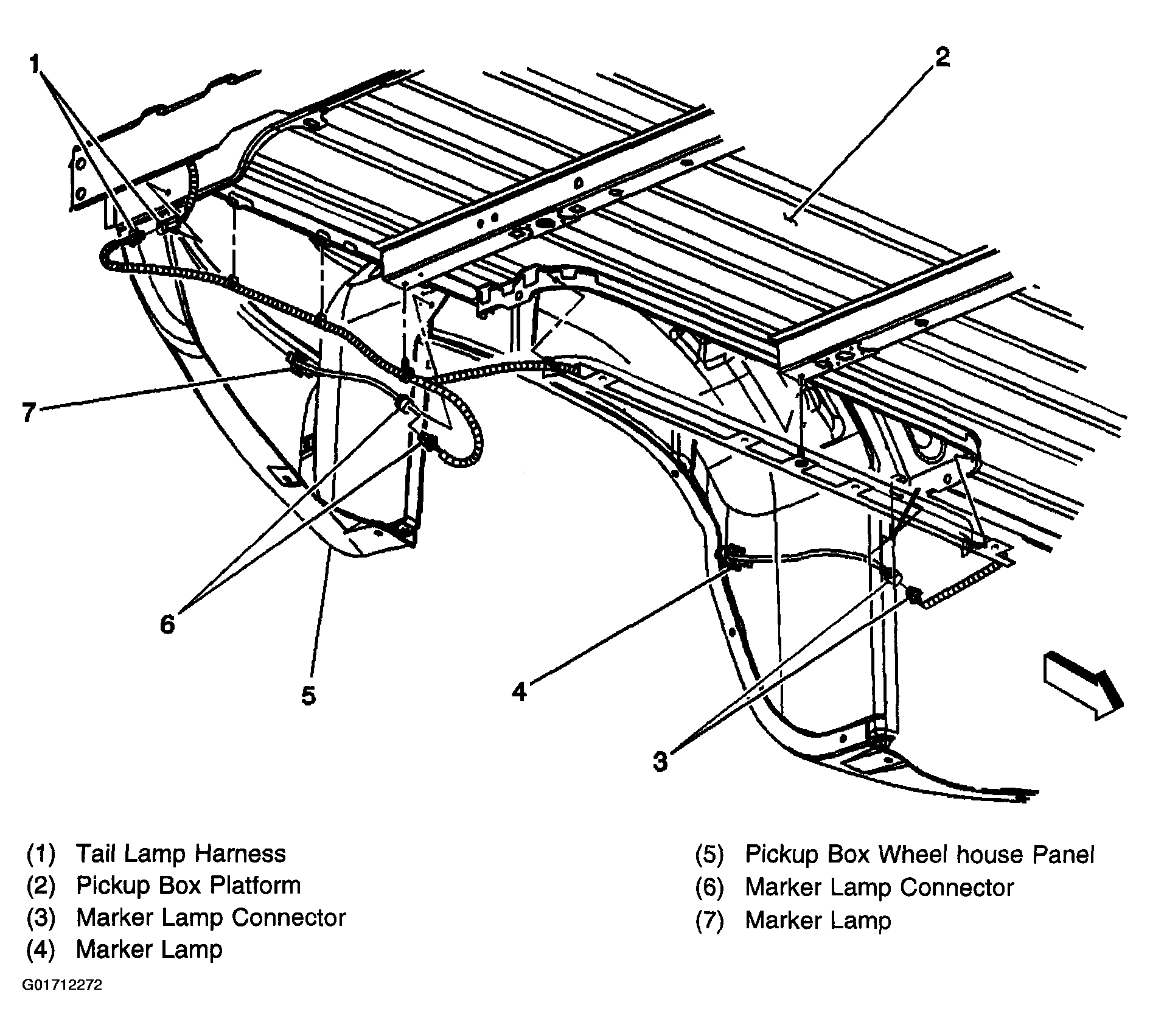

Fig 8: Locating Rear Marker Lamps LH (RH Similar)

G01712272

Courtesy of GENERAL MOTORS CORP.

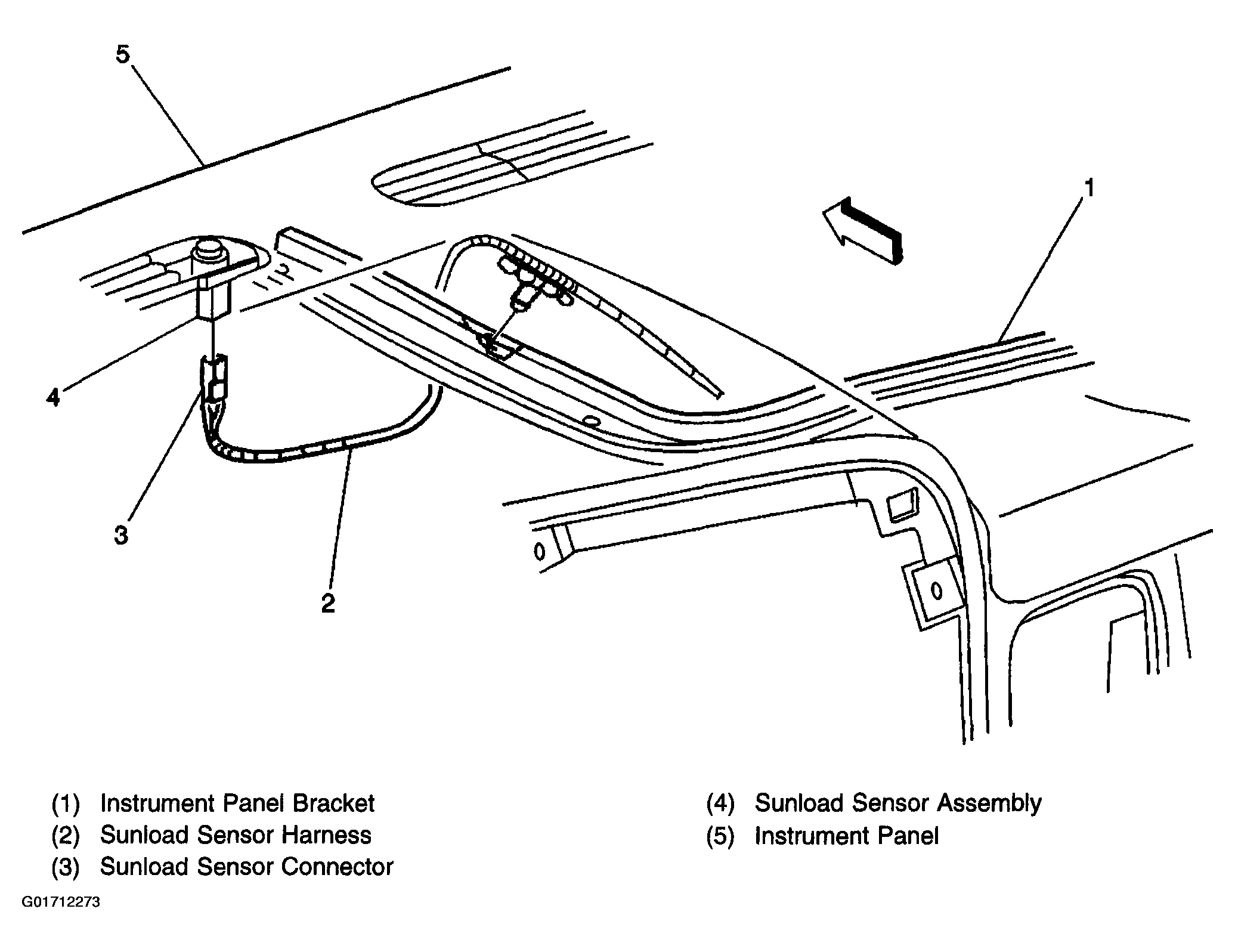

Fig 9: Locating Sunload Sensor Assembly

G01712273

Courtesy of GENERAL MOTORS CORP.

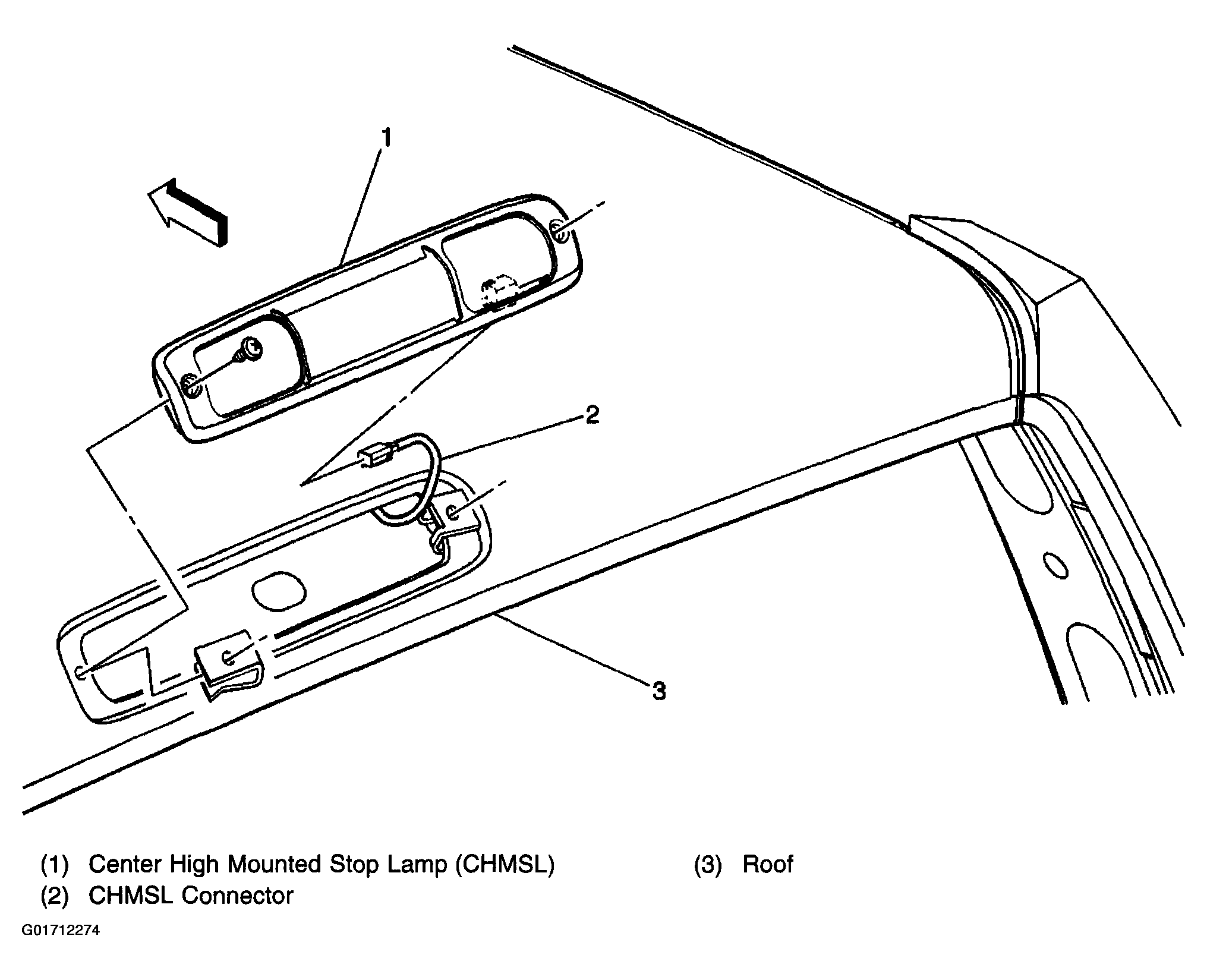

Fig 10: Locating Center High Mounted Stop Lamp (CHMSL)

G01712274

Courtesy of GENERAL MOTORS CORP.

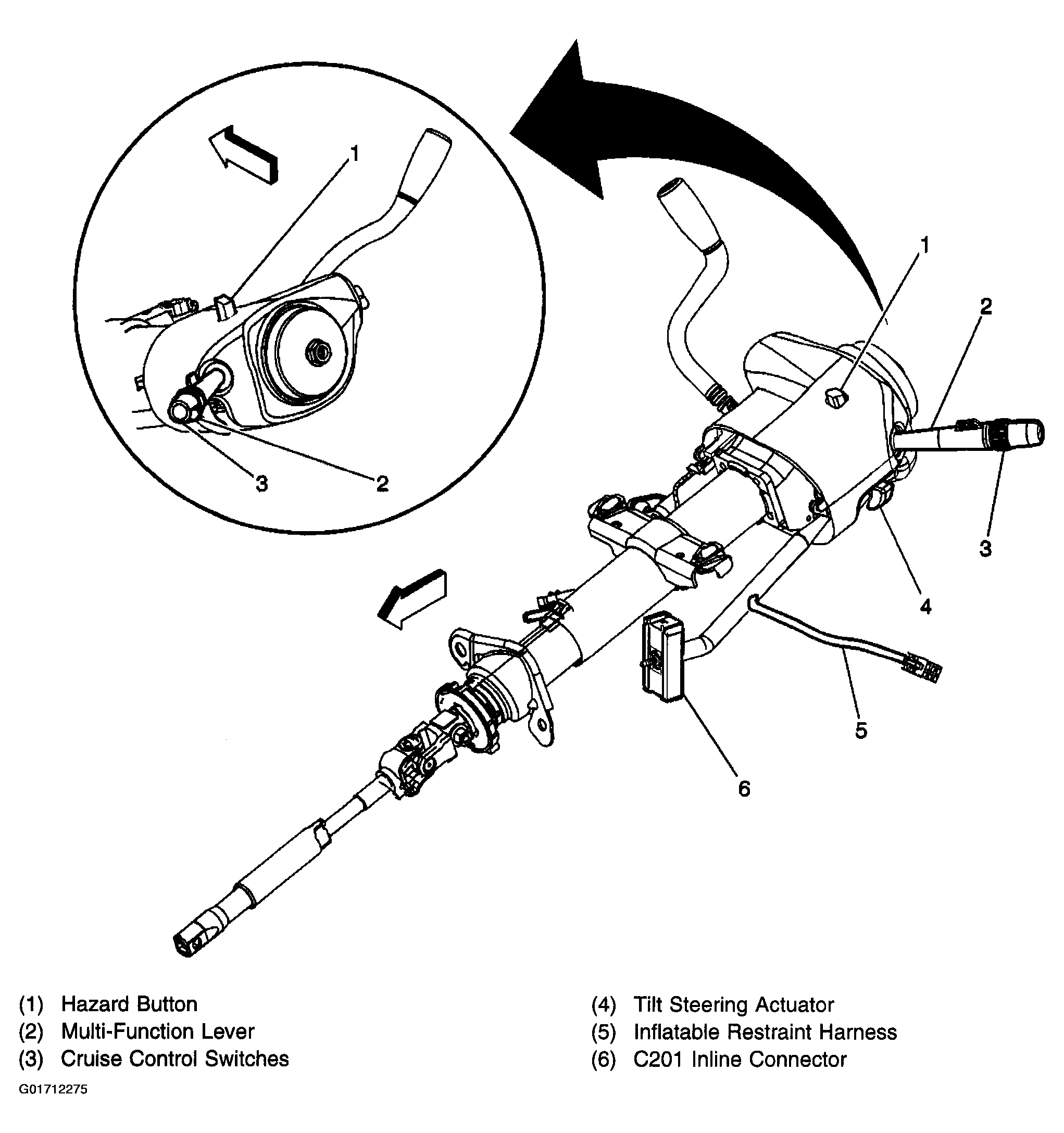

Fig 11: Locating Steering Column Switches

G01712275

Courtesy of GENERAL MOTORS CORP.

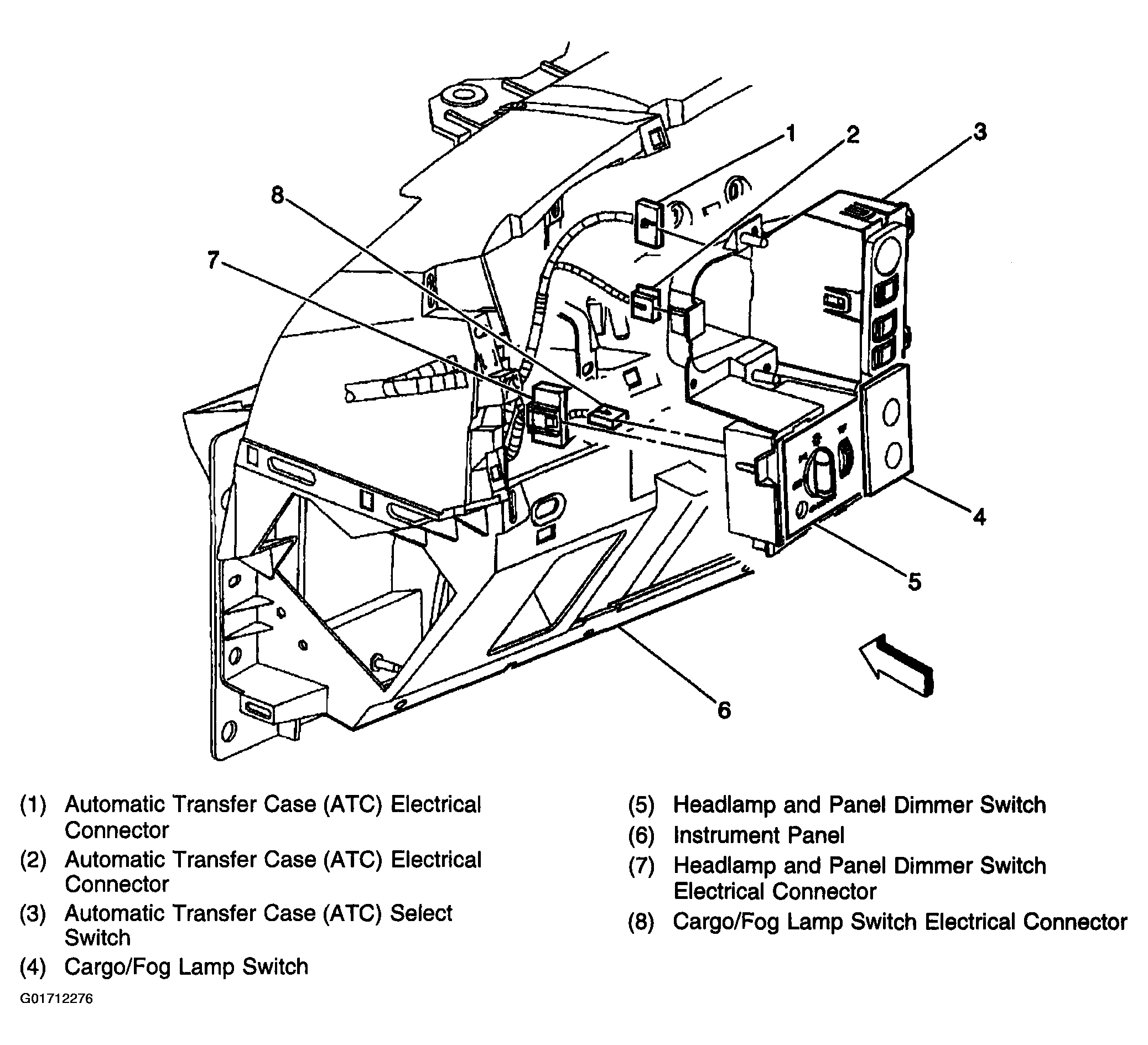

Fig 12: Locating Instrument Panel Switches (Left Side Of Dash)

G01712276

Courtesy of GENERAL MOTORS CORP.

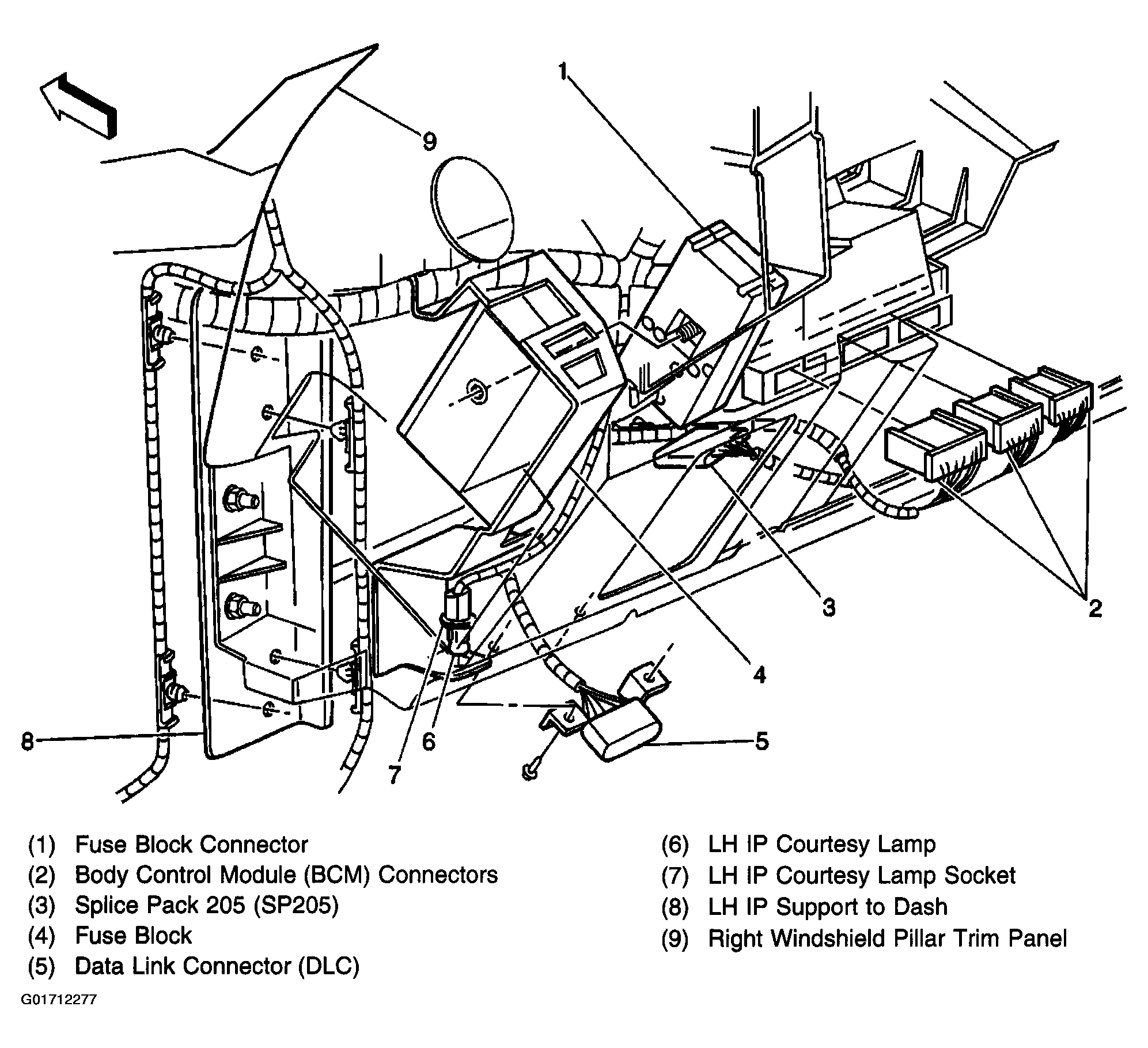

Fig 13: Locating Fuse Block, BCM & DLC Connectors (Left Side Of Dash)

G01712277

Courtesy of GENERAL MOTORS CORP.

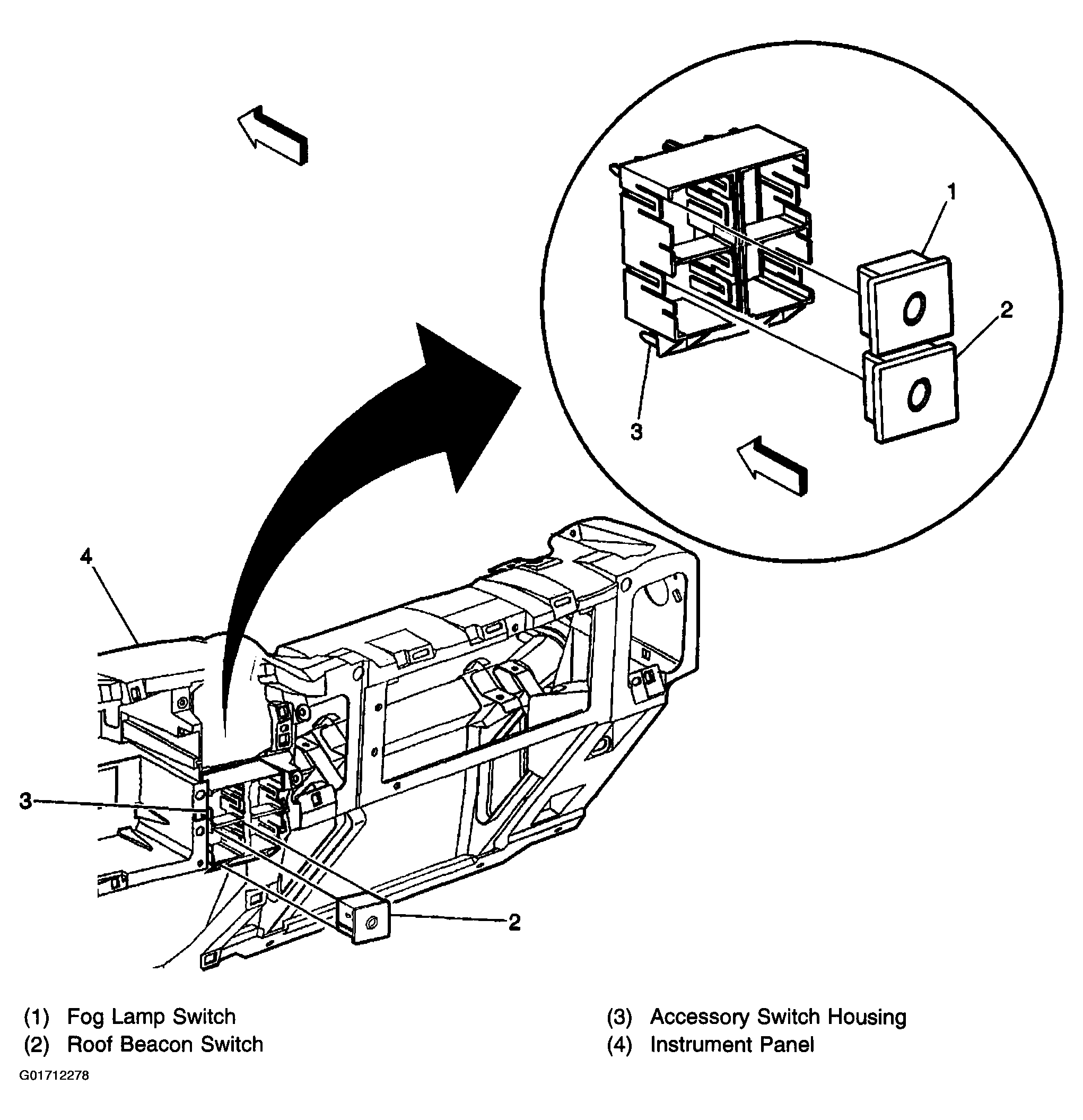

Fig 14: Locating Accessory Switch Housing (Center Of Dash)

G01712278

Courtesy of GENERAL MOTORS CORP.

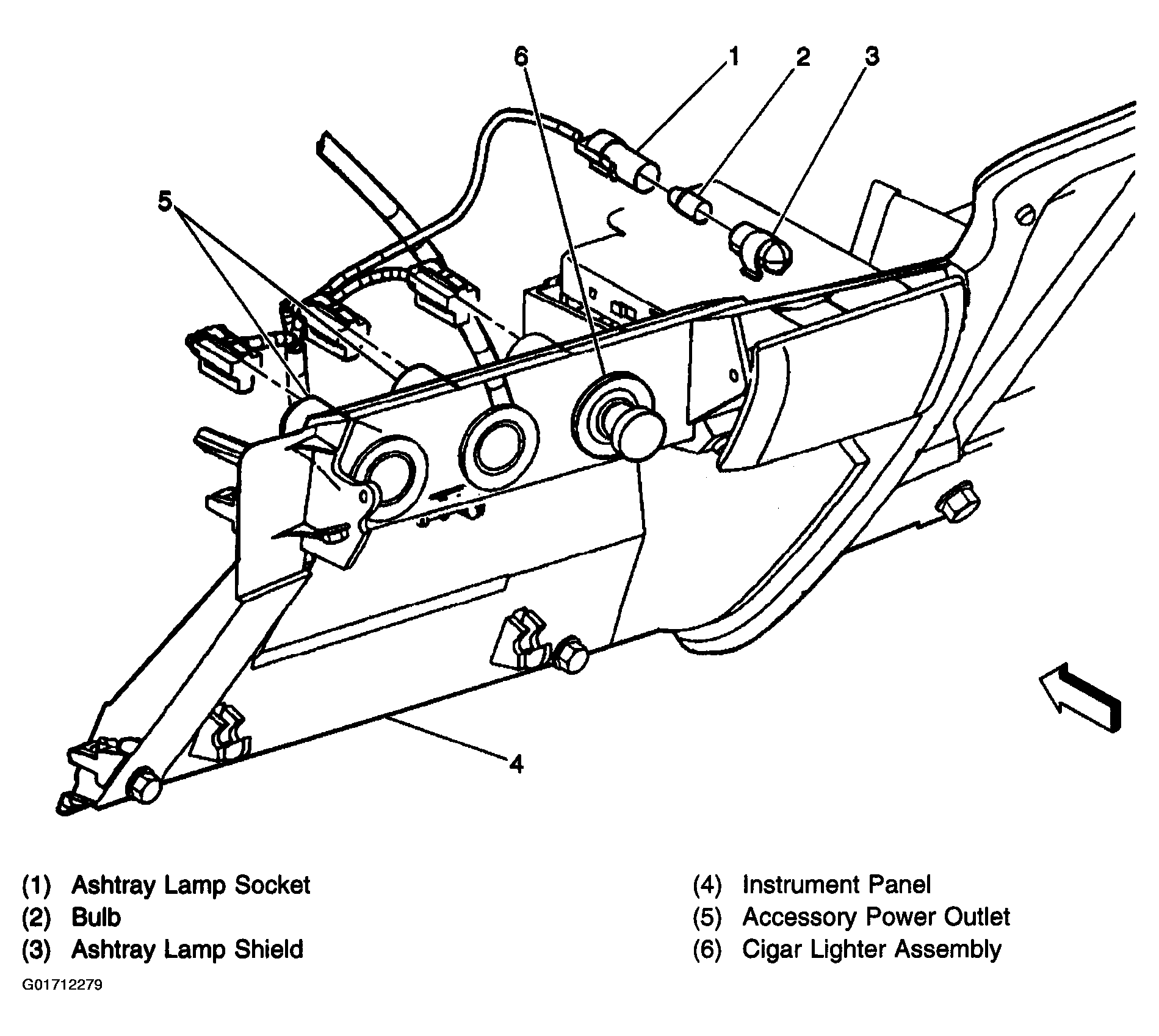

Fig 15: Locating Accessory Power Outlets (Center Of Dash)

G01712279

Courtesy of GENERAL MOTORS CORP.

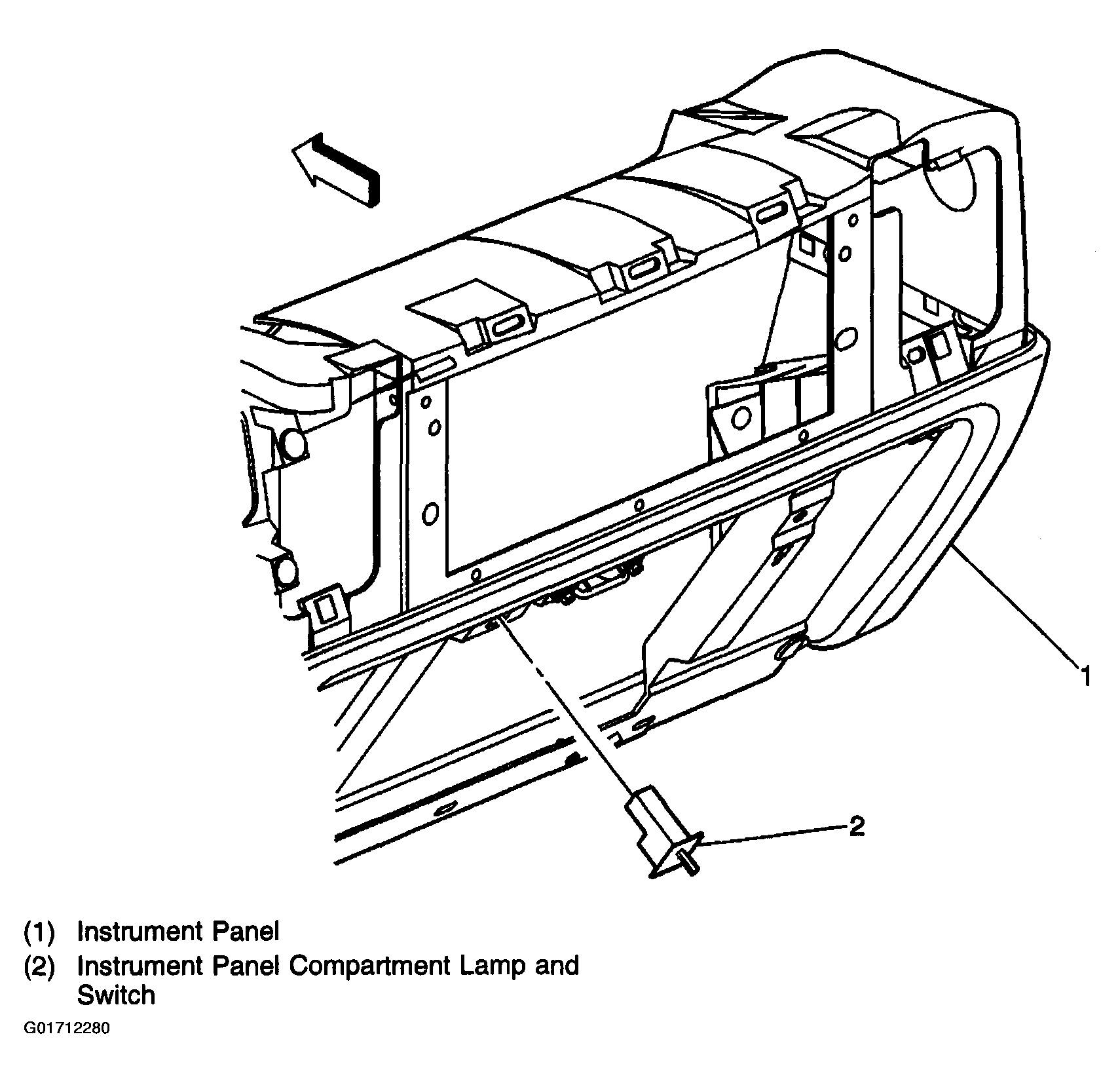

Fig 16: Locating Glove Compartment Lamp & Switch

G01712280

Courtesy of GENERAL MOTORS CORP.

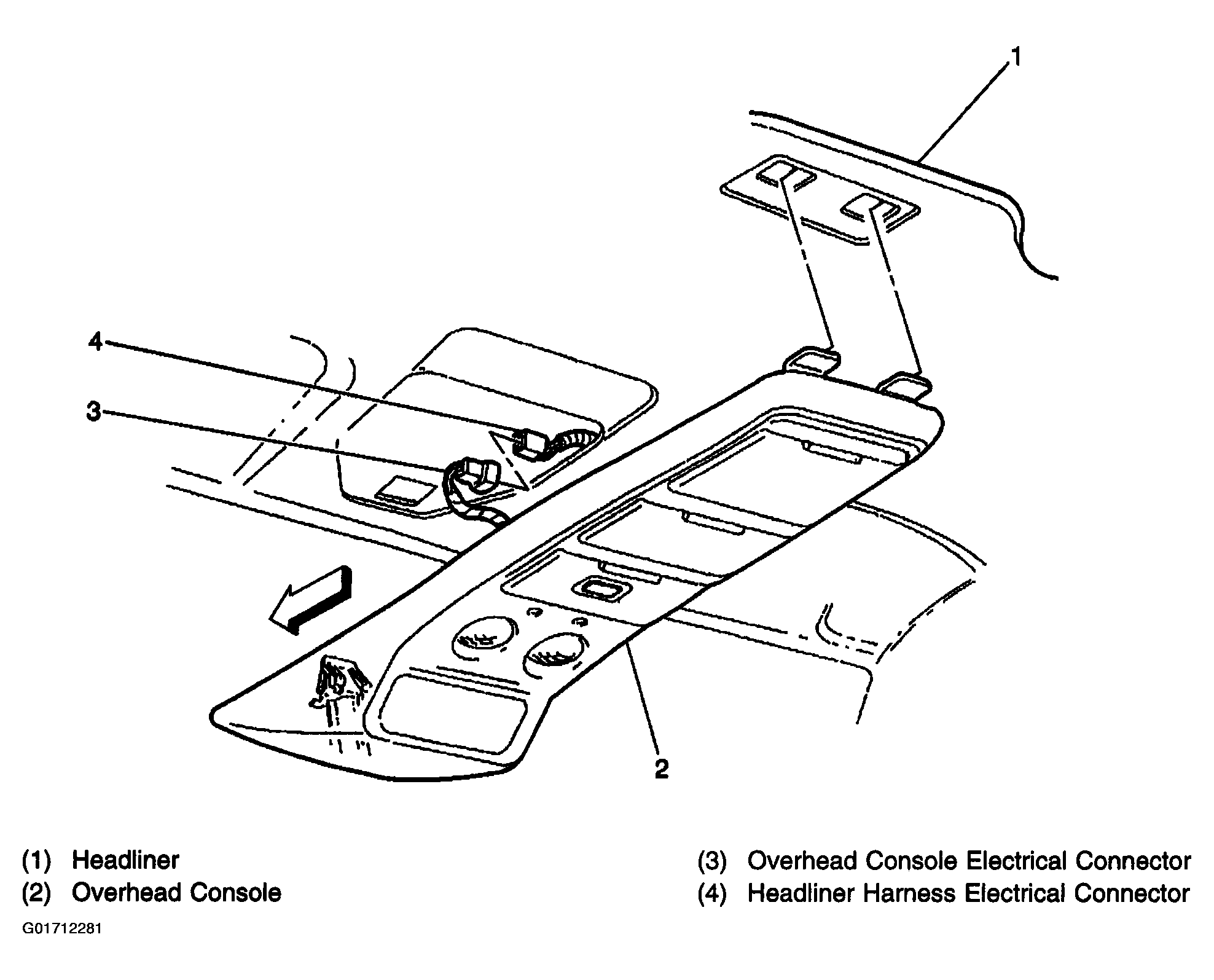

Fig 17: Locating Overhead Console Electrical Connectors (Extended Cab)

G01712281

Courtesy of GENERAL MOTORS CORP.

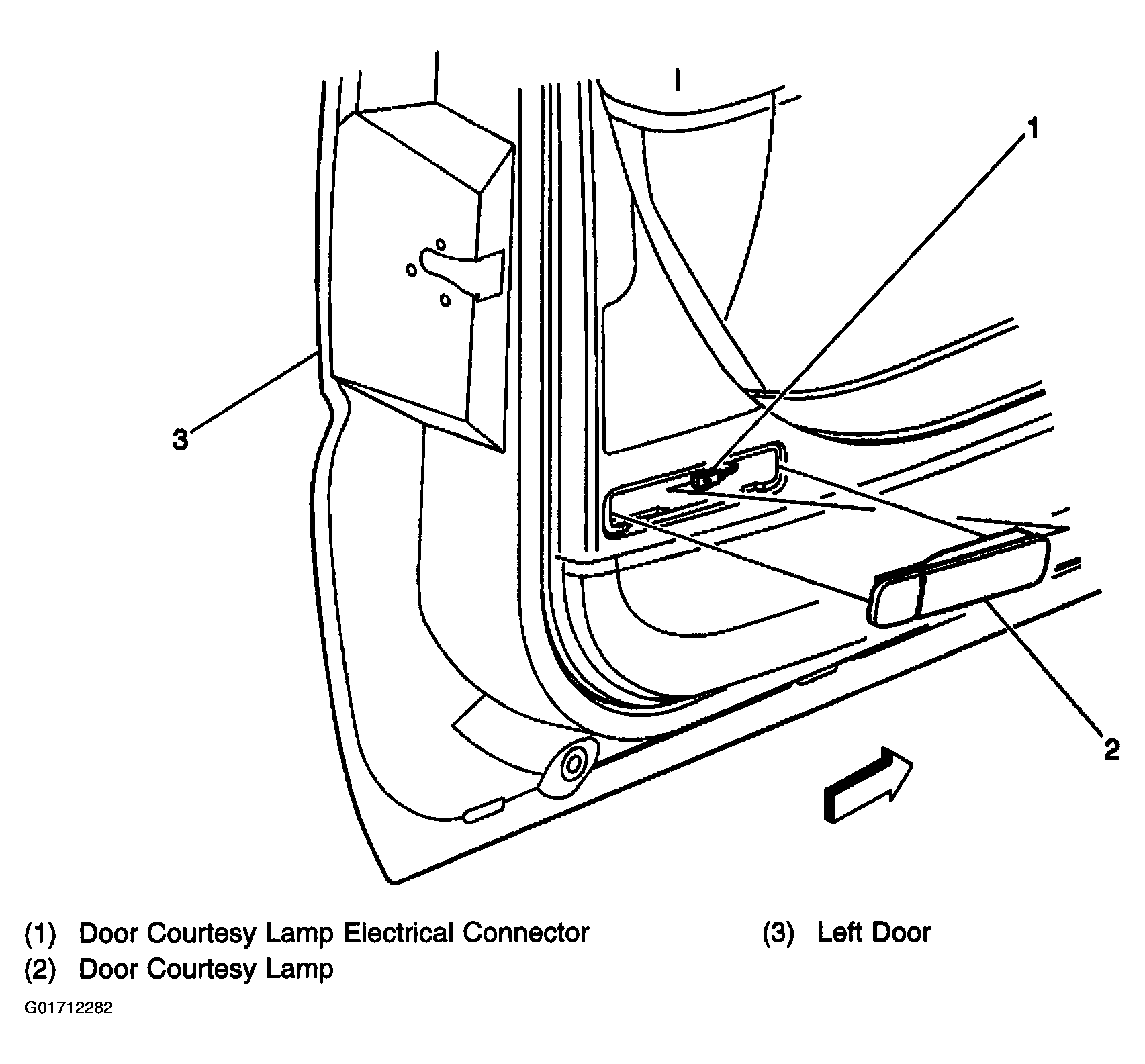

Fig 18: Locating Left Door Courtesy Lamp (RH Similar)

G01712282

Courtesy of GENERAL MOTORS CORP.

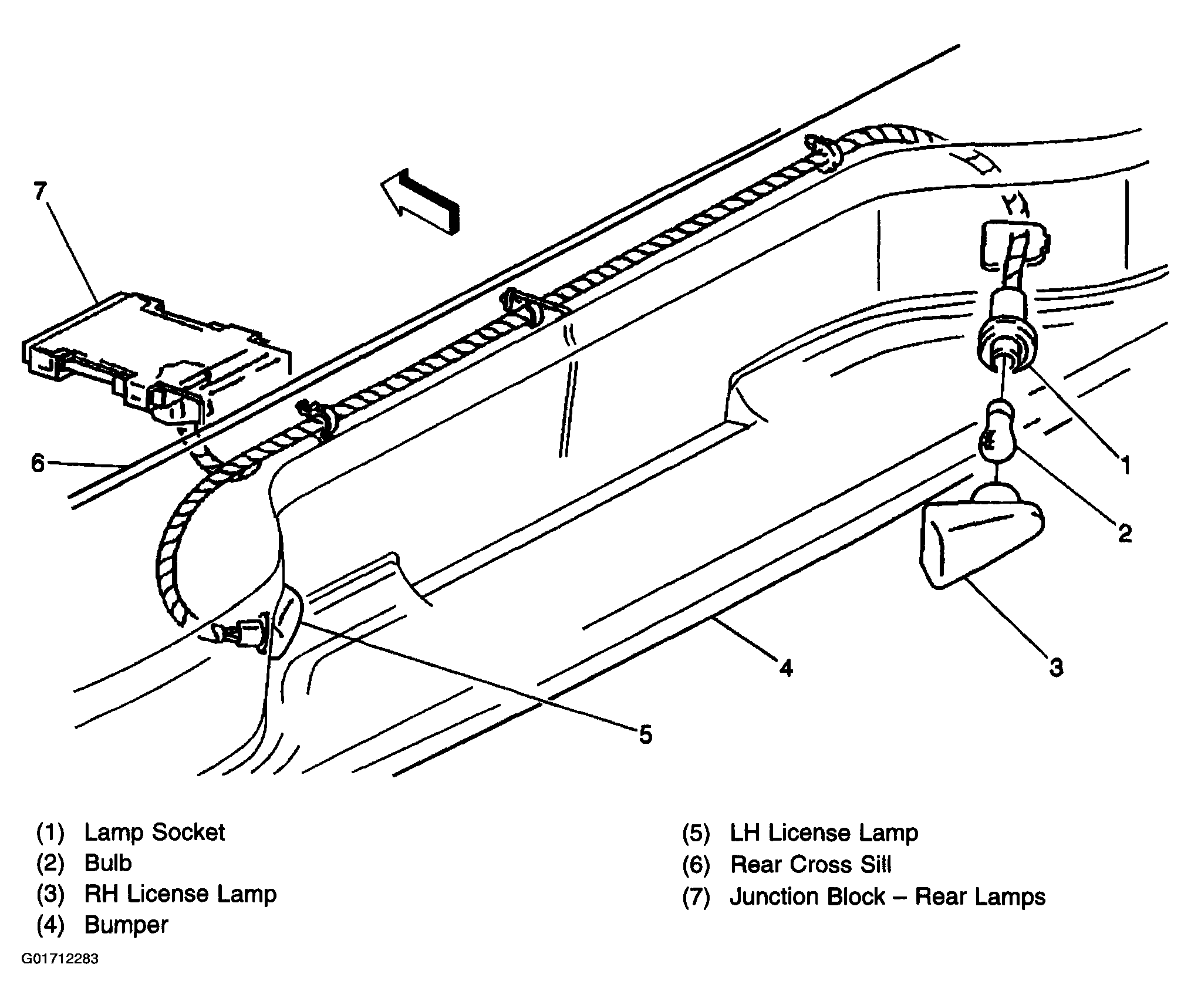

Fig 19: Locating Rear License Lamps

G01712283

Courtesy of GENERAL MOTORS CORP.

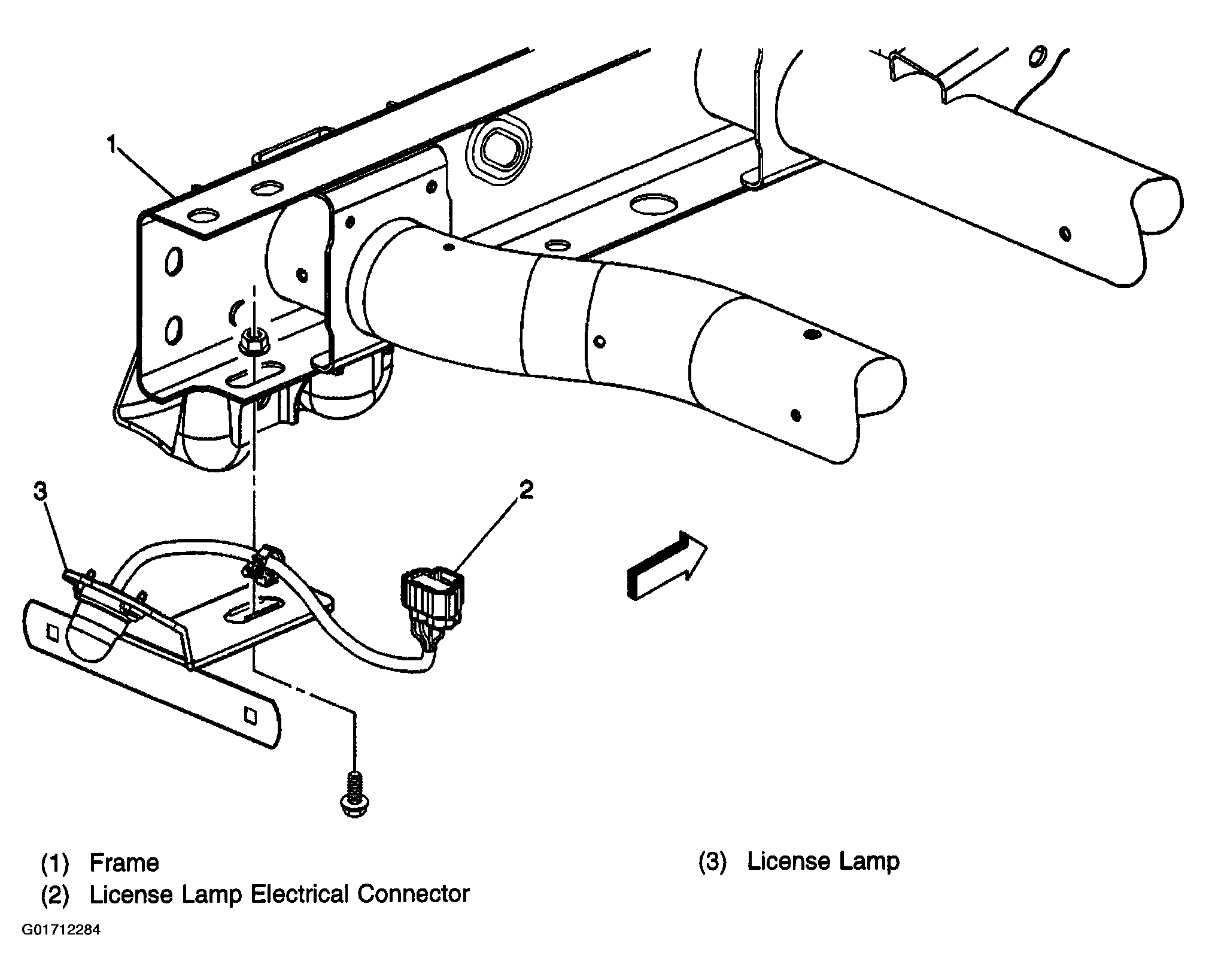

Fig 20: Locating Rear License Lamp (Without Rear Bumper)

G01712284

Courtesy of GENERAL MOTORS CORP.

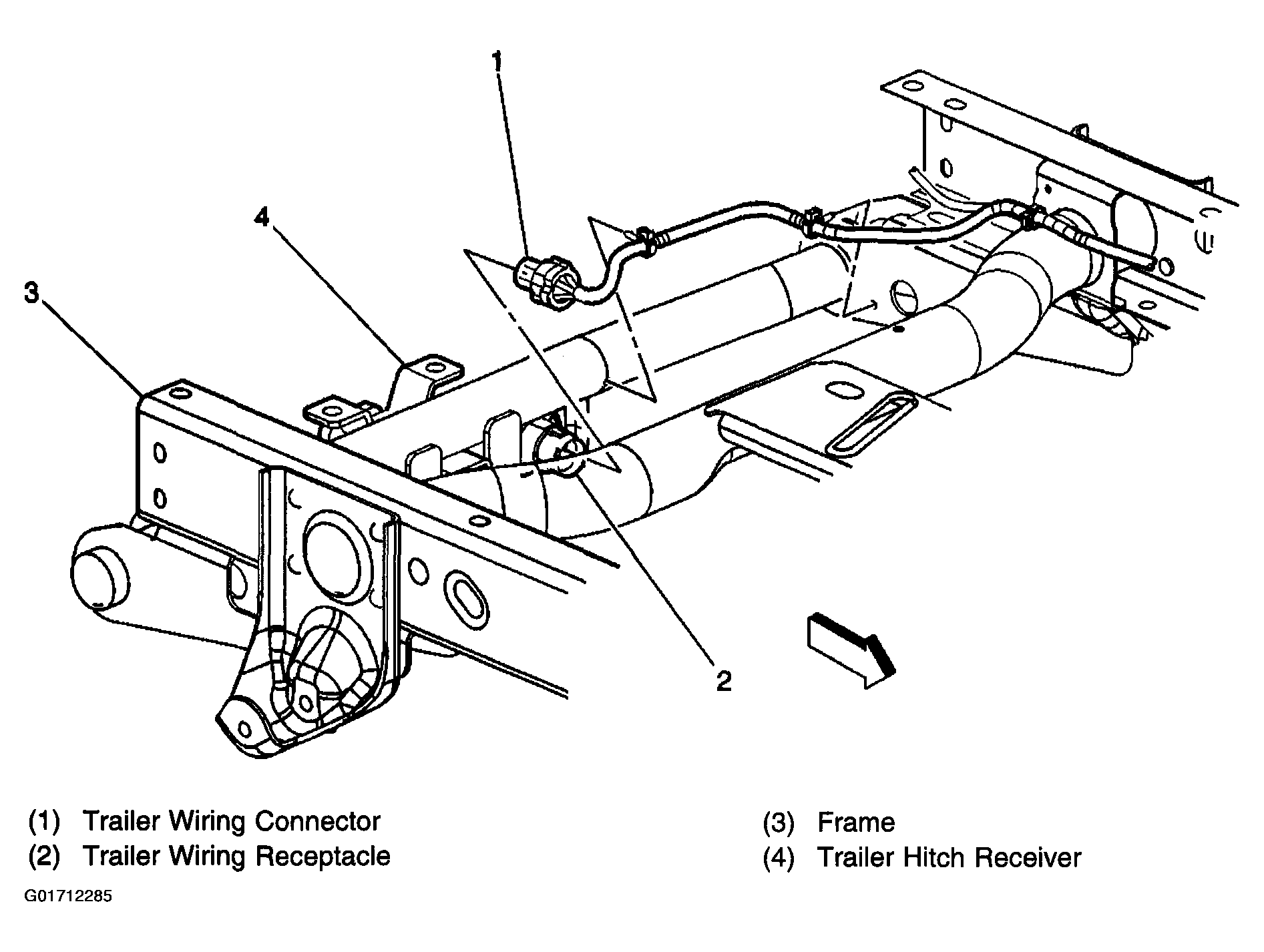

Fig 21: Locating Trailer Wiring Connector (Heavy Duty)

G01712285

Courtesy of GENERAL MOTORS CORP.

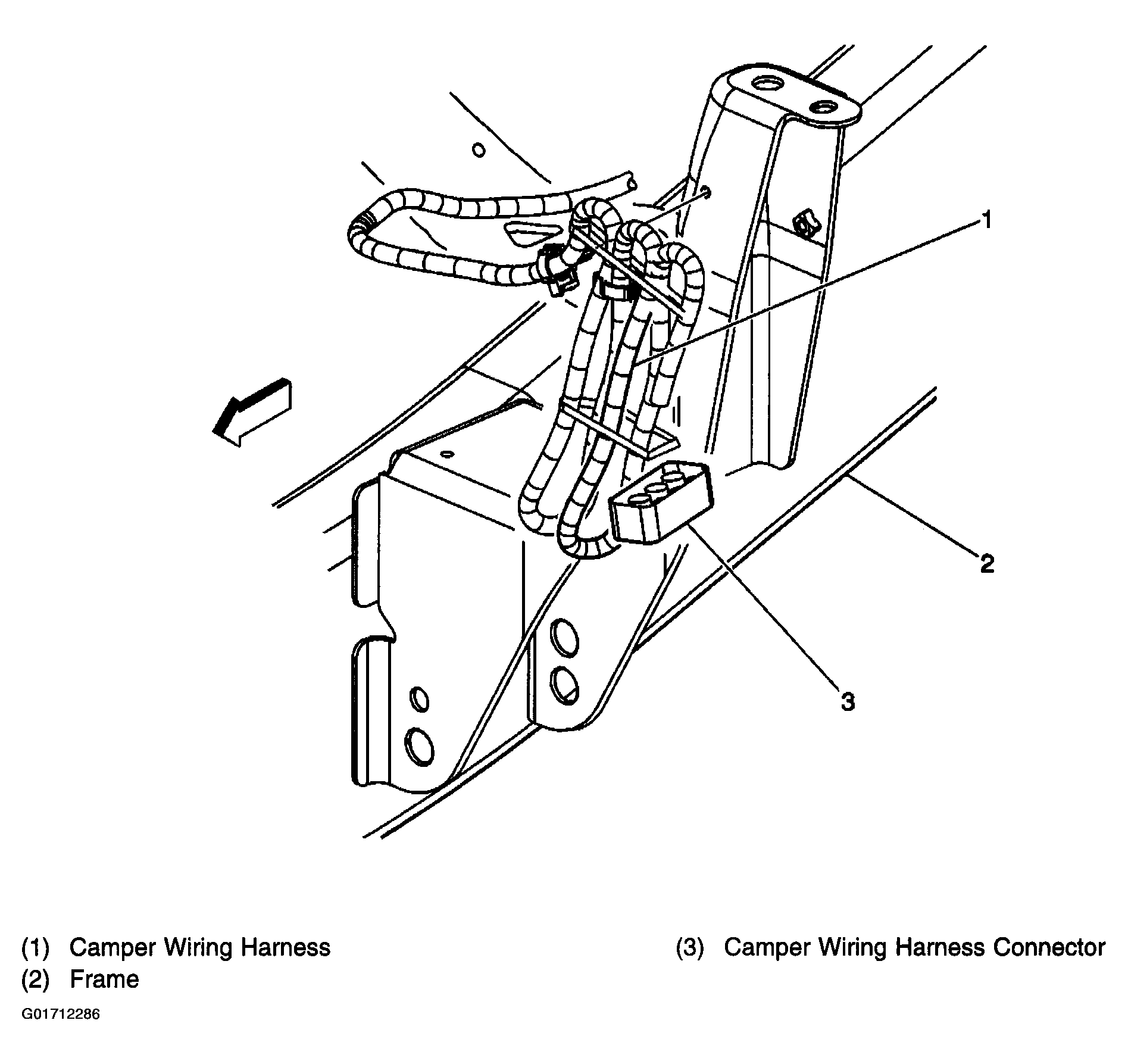

Fig 22: Locating Camper Wiring Harness

G01712286

Courtesy of GENERAL MOTORS CORP.
