Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

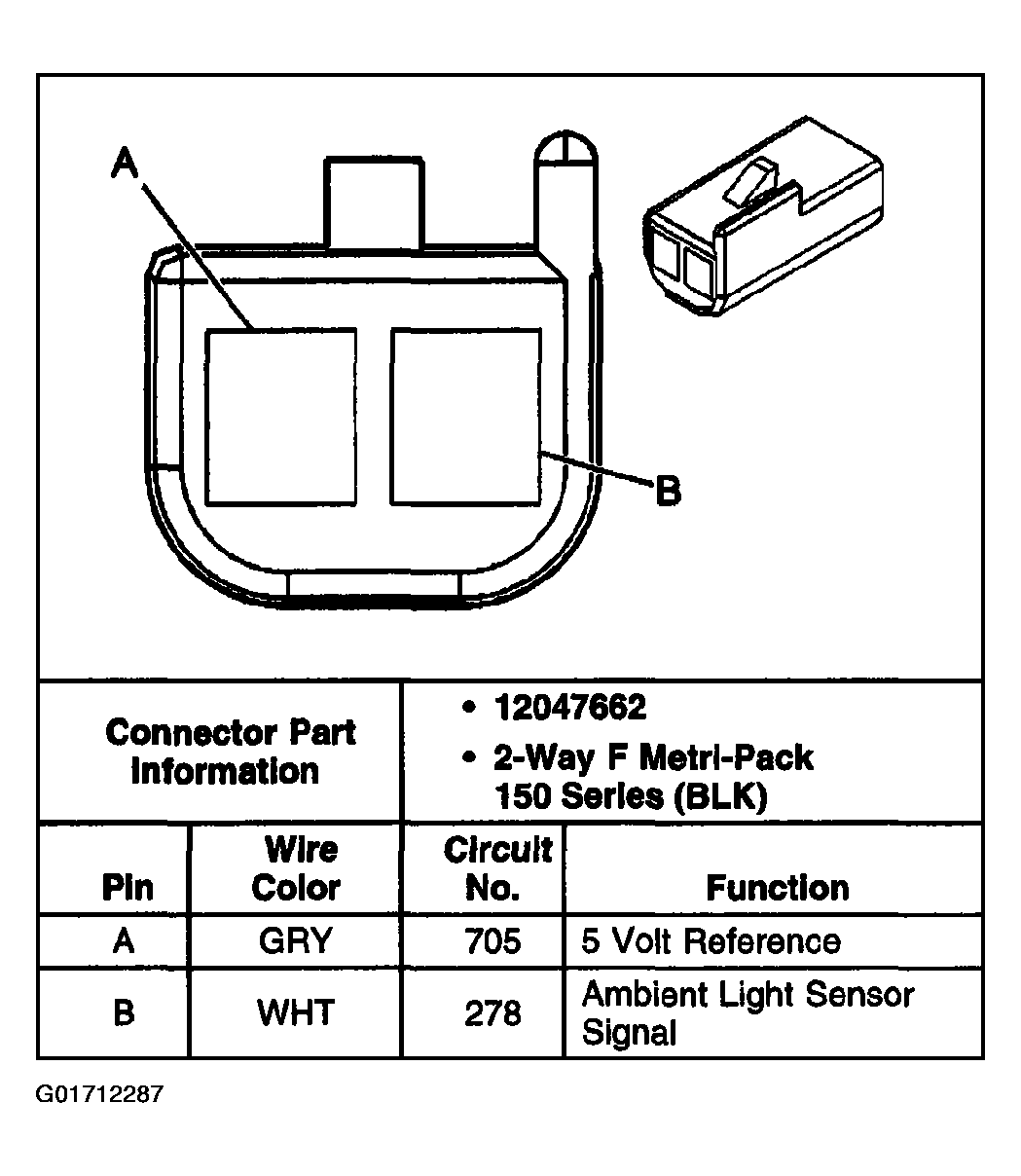

Fig 1: Identifying Ambient Light Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

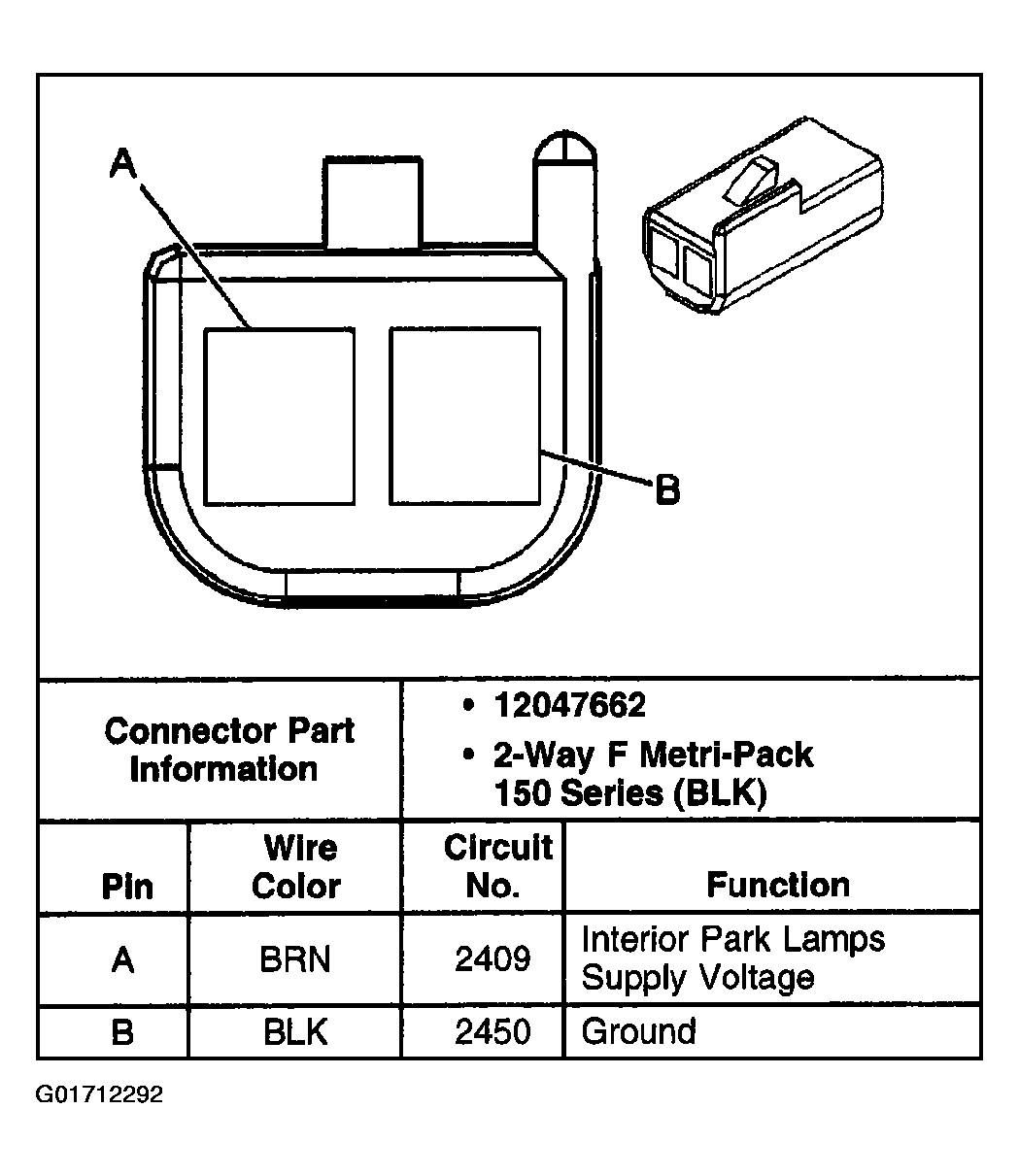

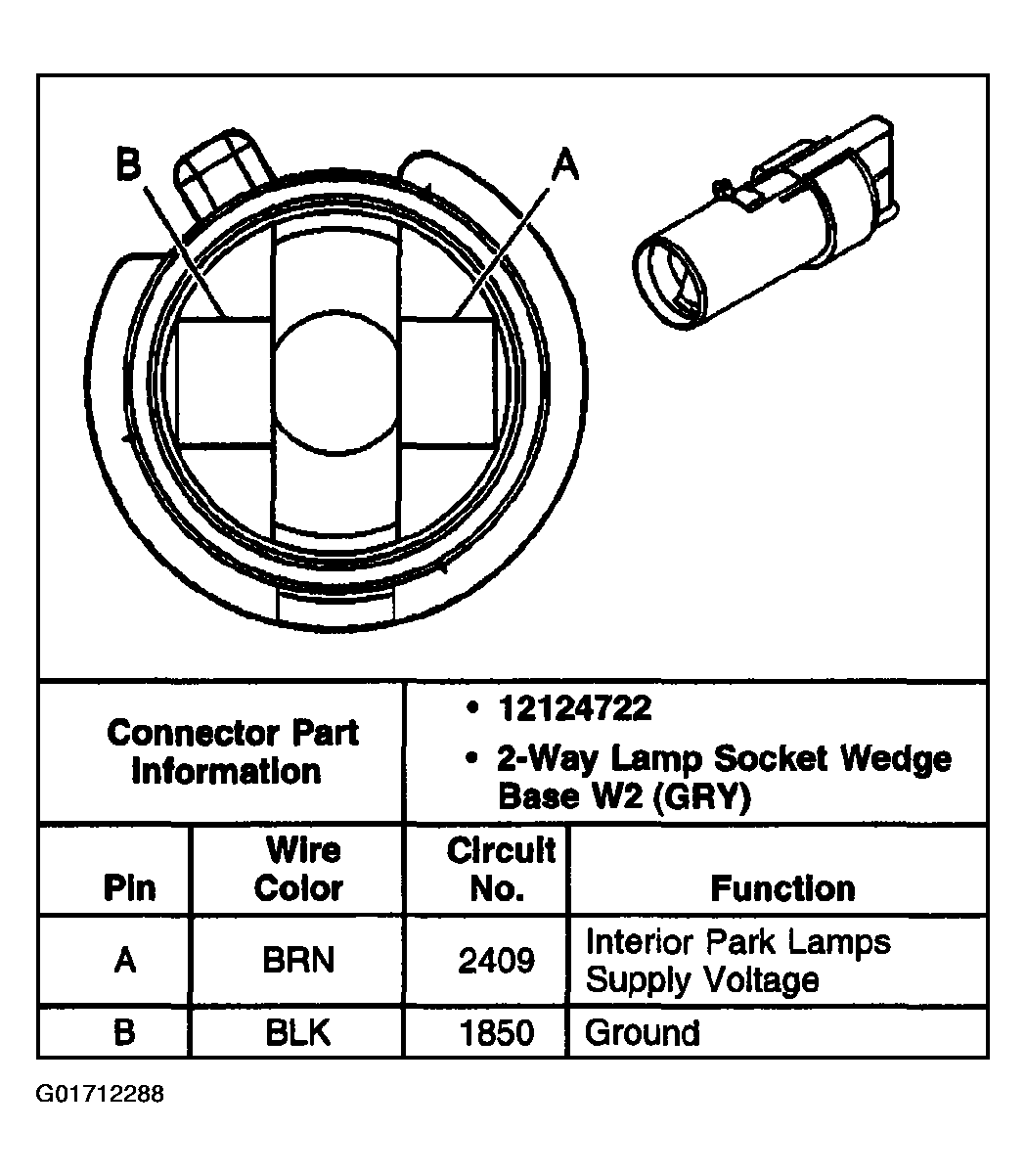

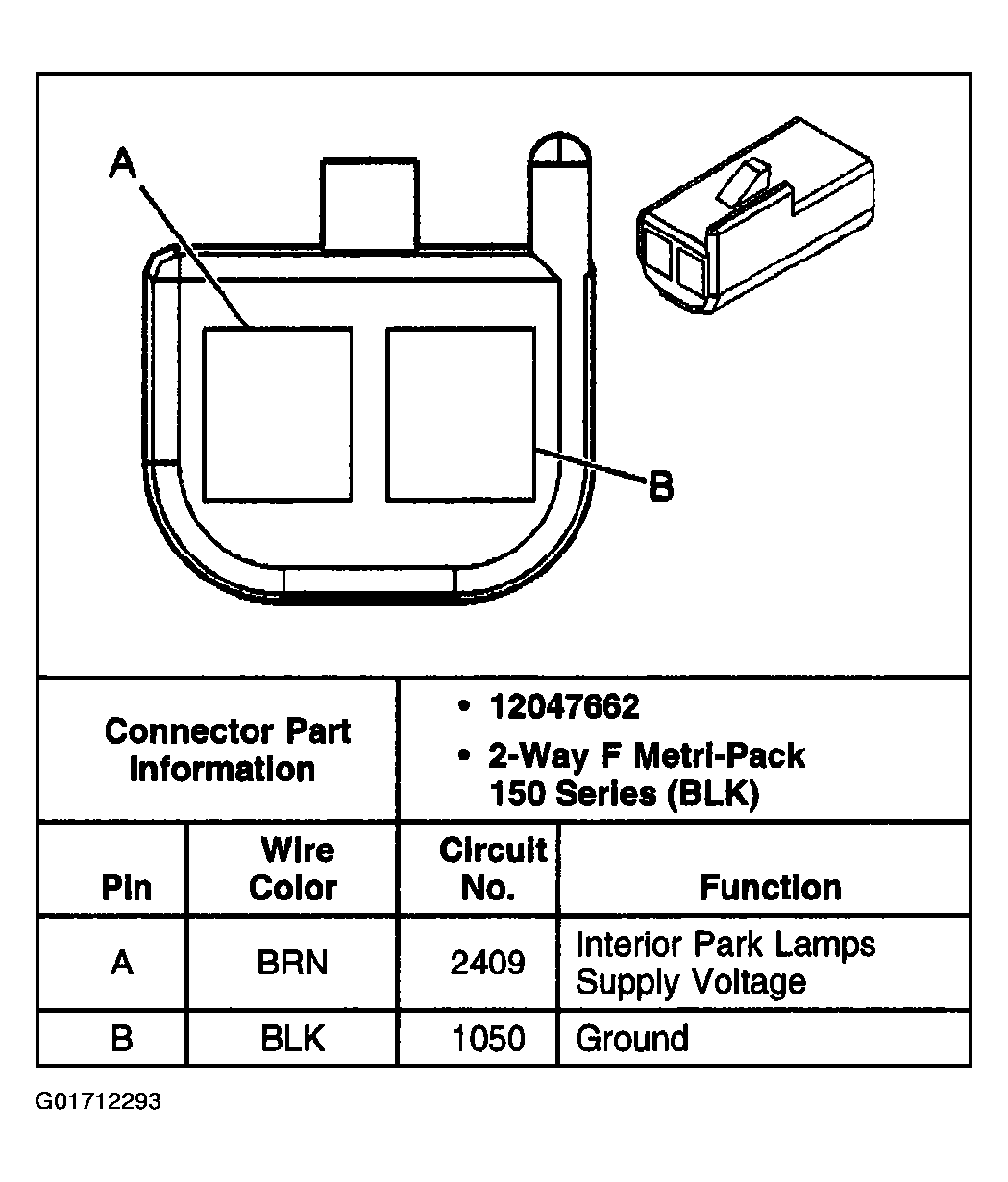

Fig 2: Identifying Ashtray Lamp Connector Terminals

Courtesy of GENERAL MOTORS CORP.

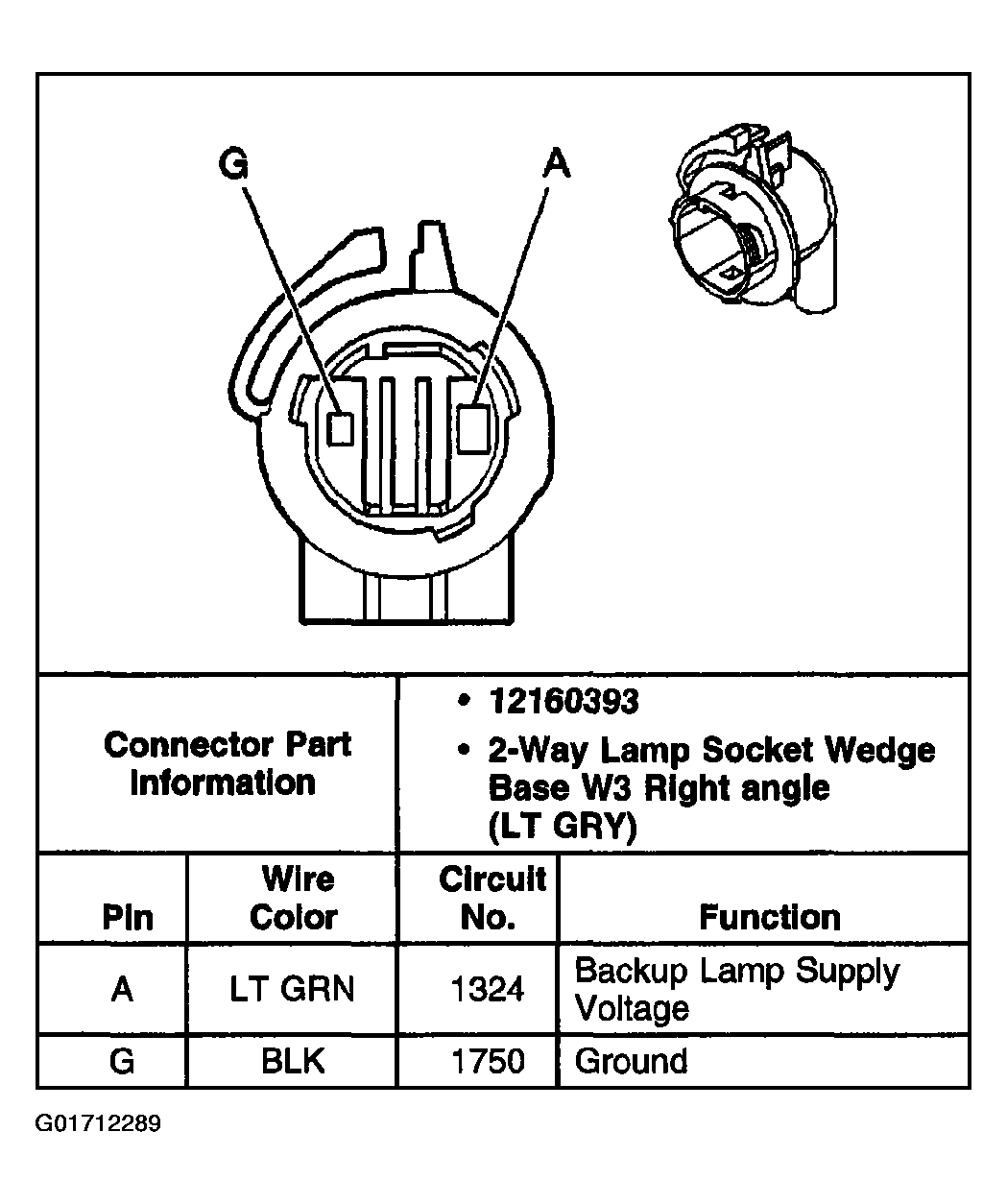

Fig 3: Identifying Backup Lamp - Left & Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

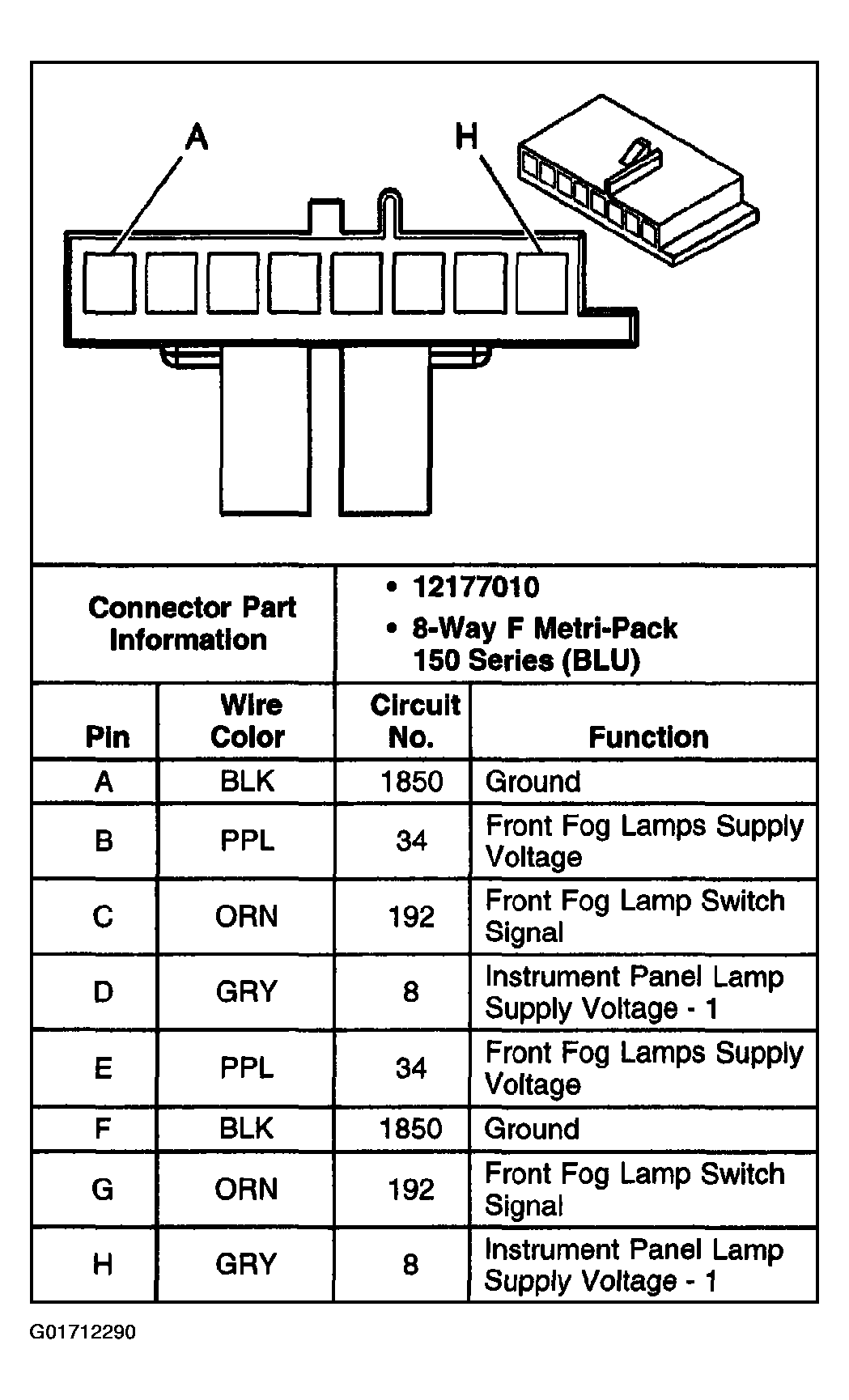

Fig 4: Identifying Cargo/Fog Lamp Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

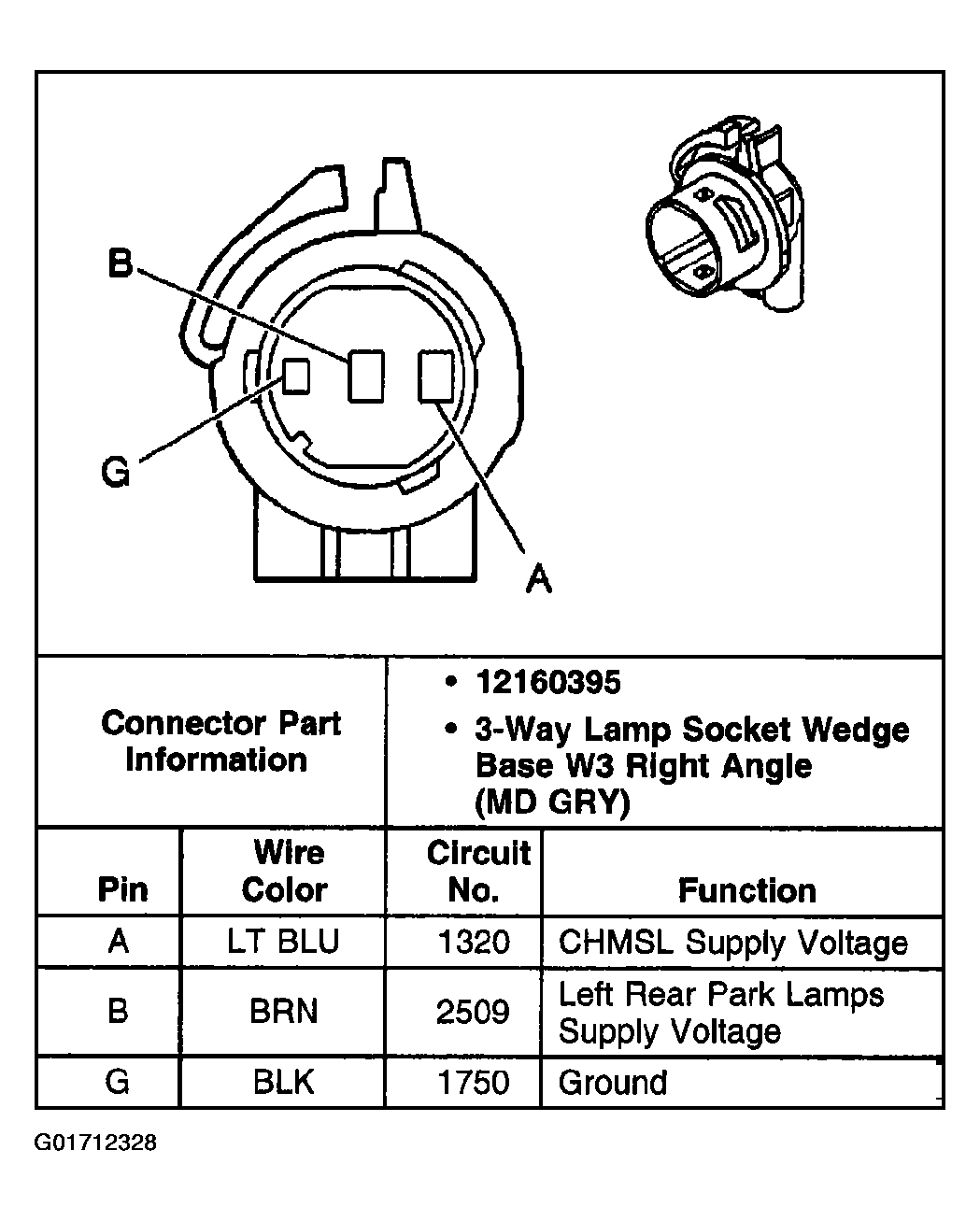

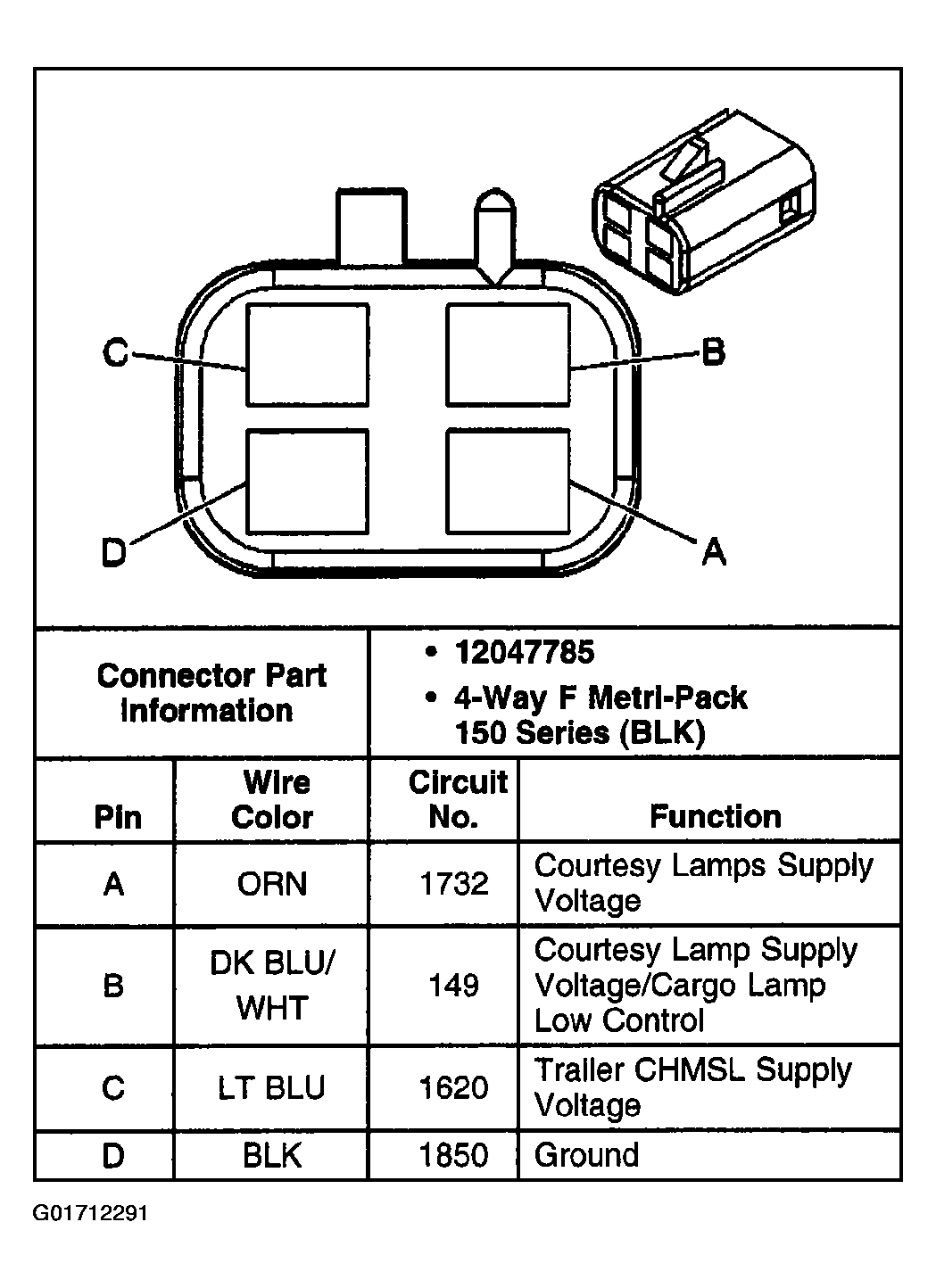

Fig 5: Identifying Center High Mounted Stop Lamp (CHMSL) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Center High Mounted Roof Marker Lamps - LH & RH Connector Terminals

Courtesy of GENERAL MOTORS CORP.

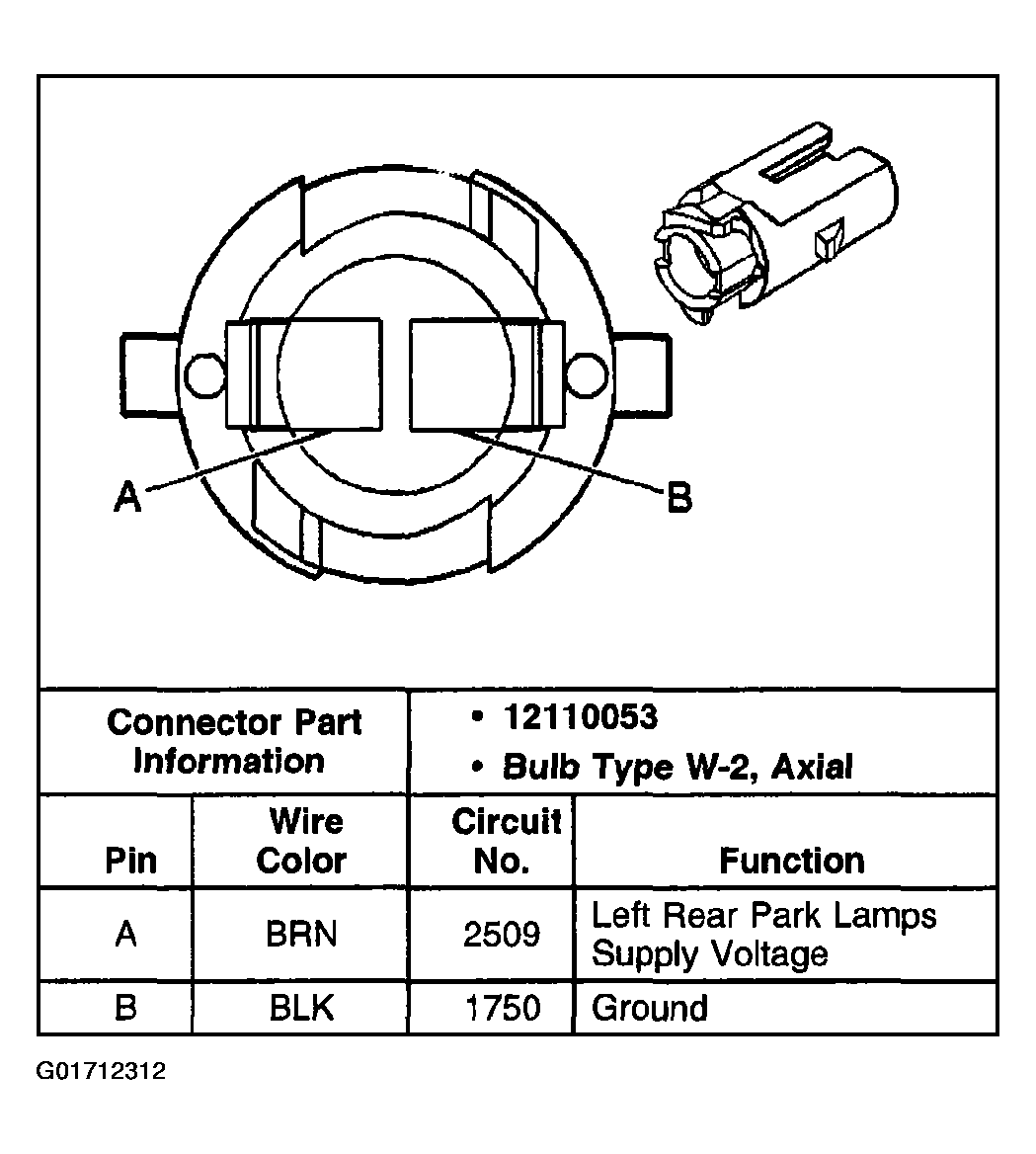

Fig 7: Identifying Clearance Lamps Connector Terminals

Courtesy of GENERAL MOTORS CORP.

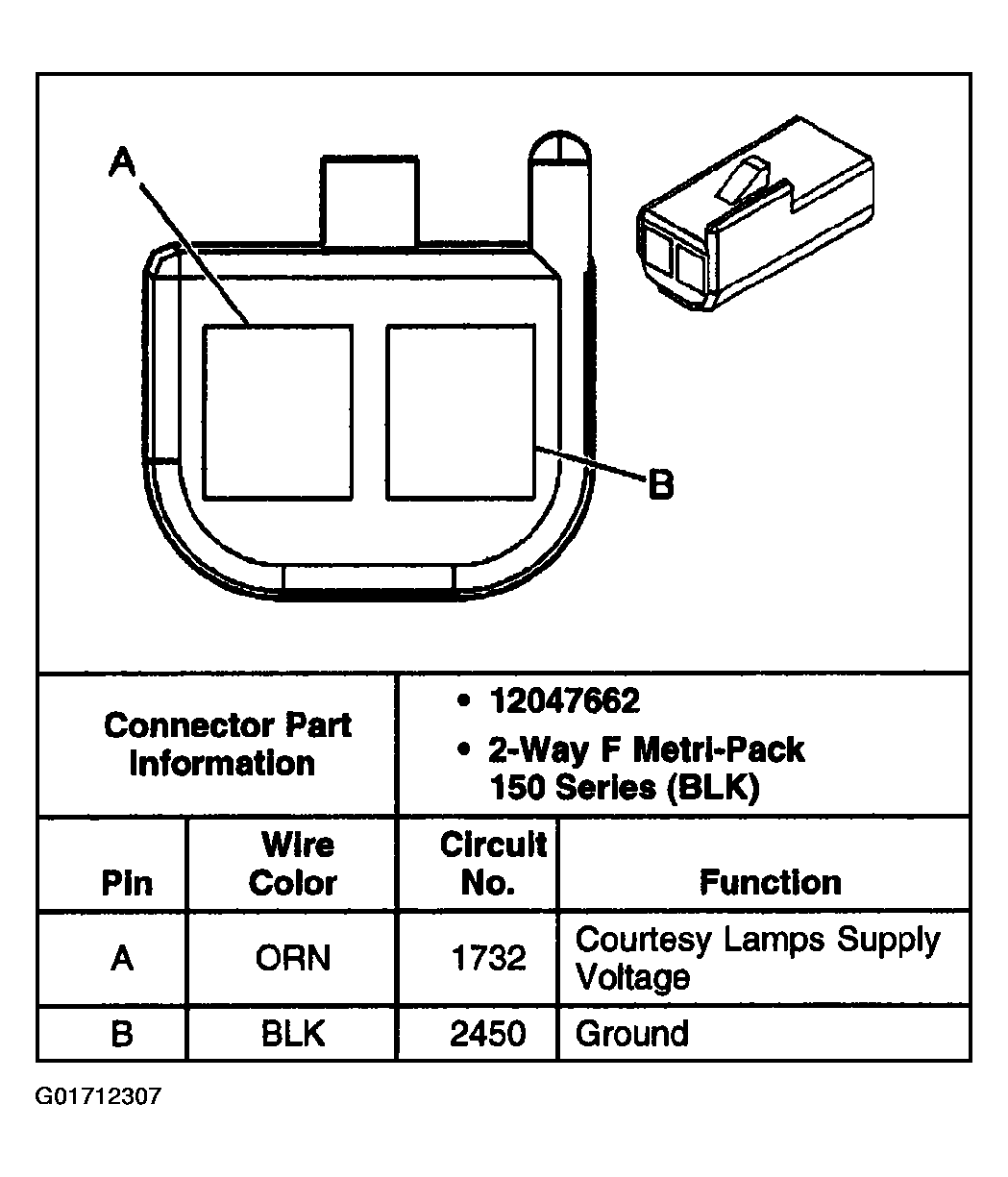

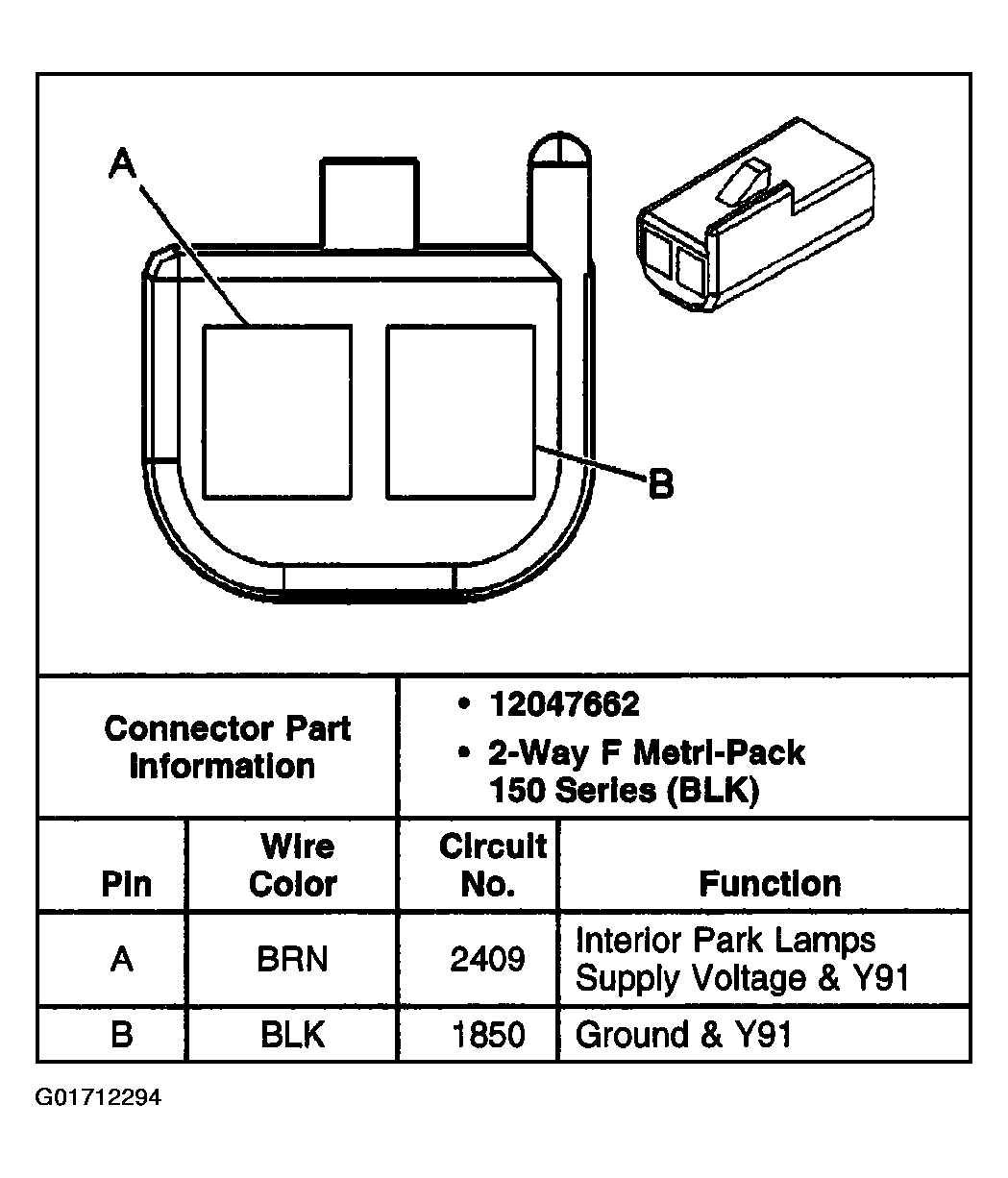

Fig 8: Identifying Console Compartment Lamp - Luxury Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Console Courtesy Lamp - Luxury Connector Terminals

Courtesy of GENERAL MOTORS CORP.

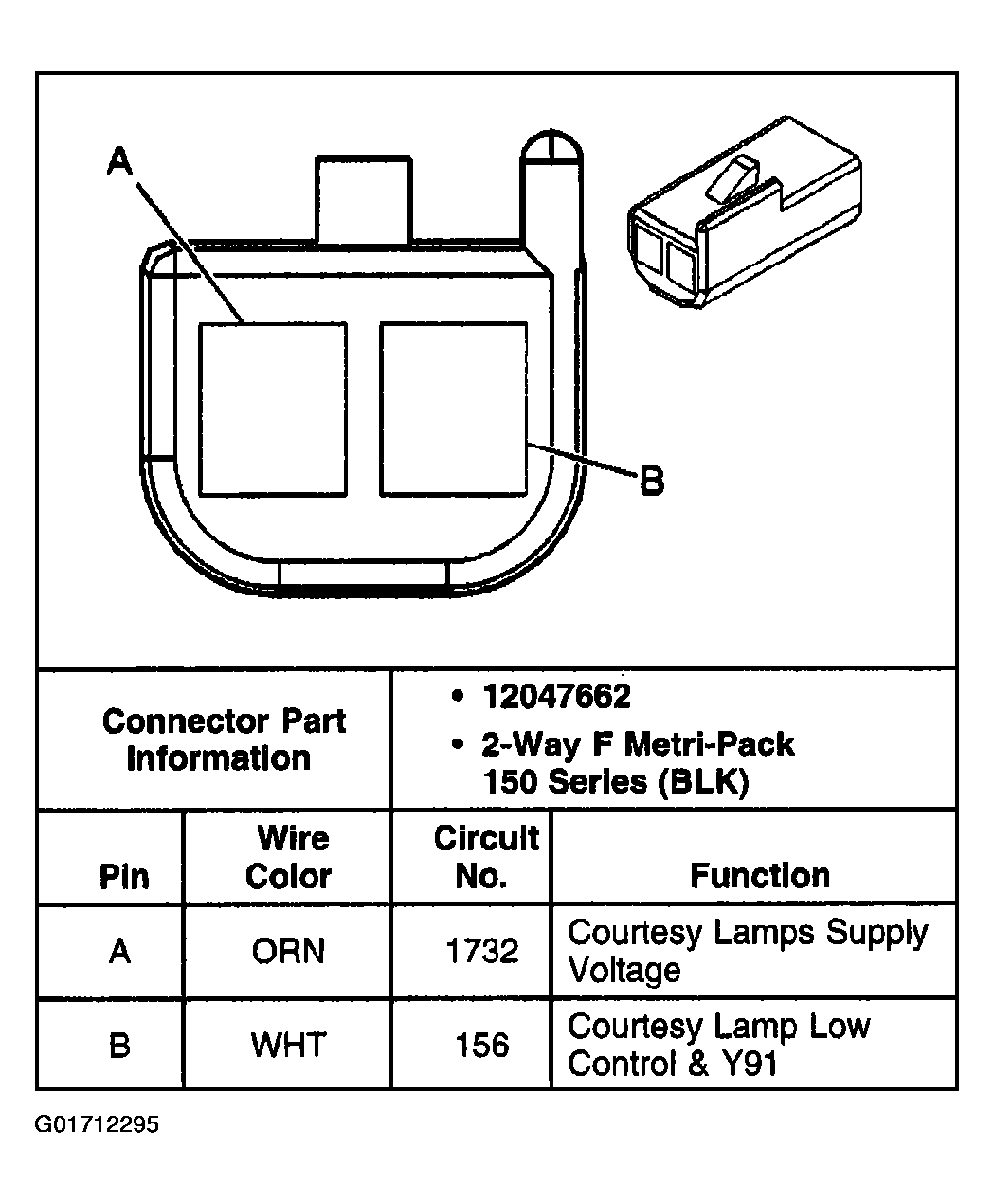

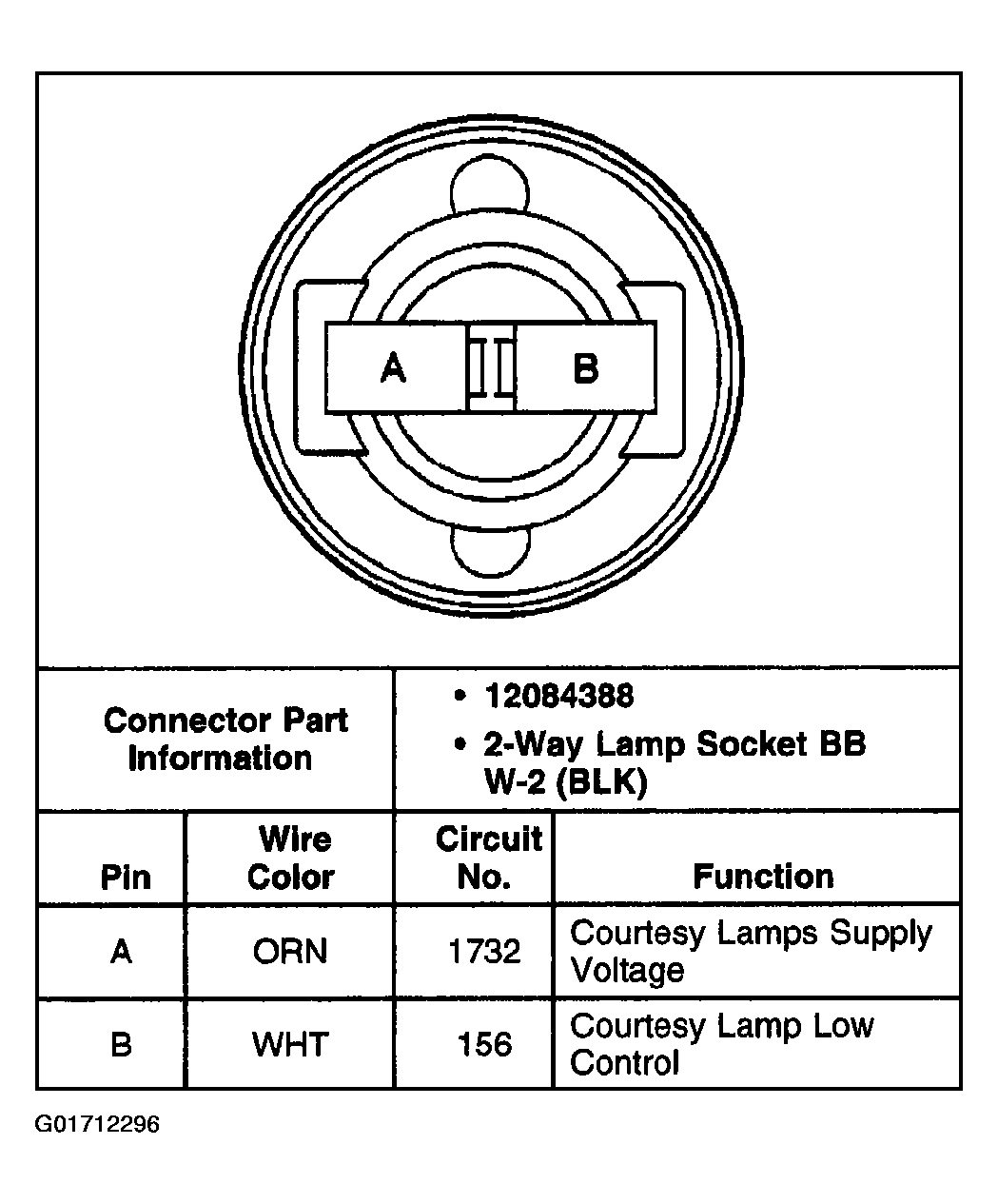

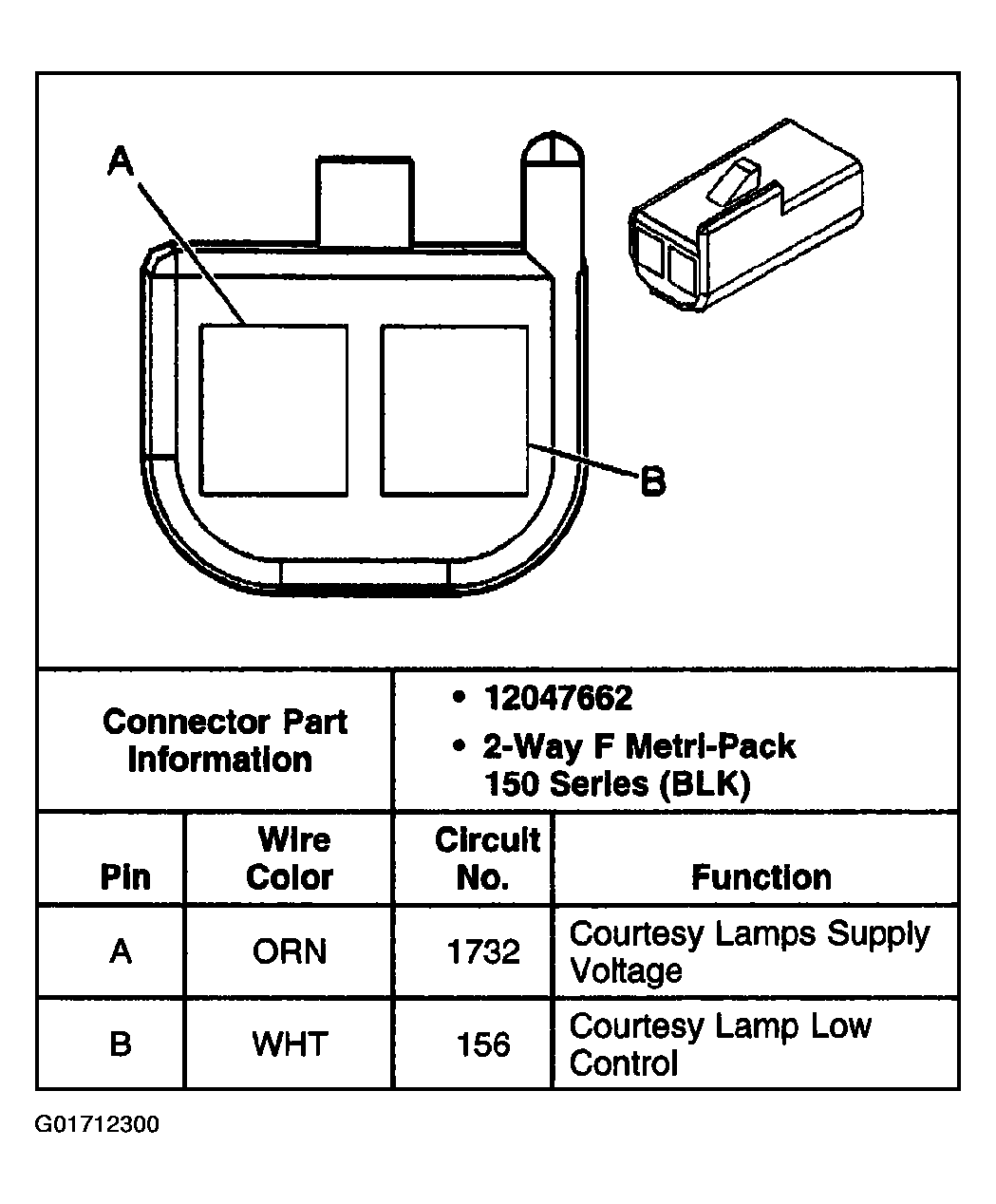

Fig 10: Identifying Courtesy Lamp - Left & Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

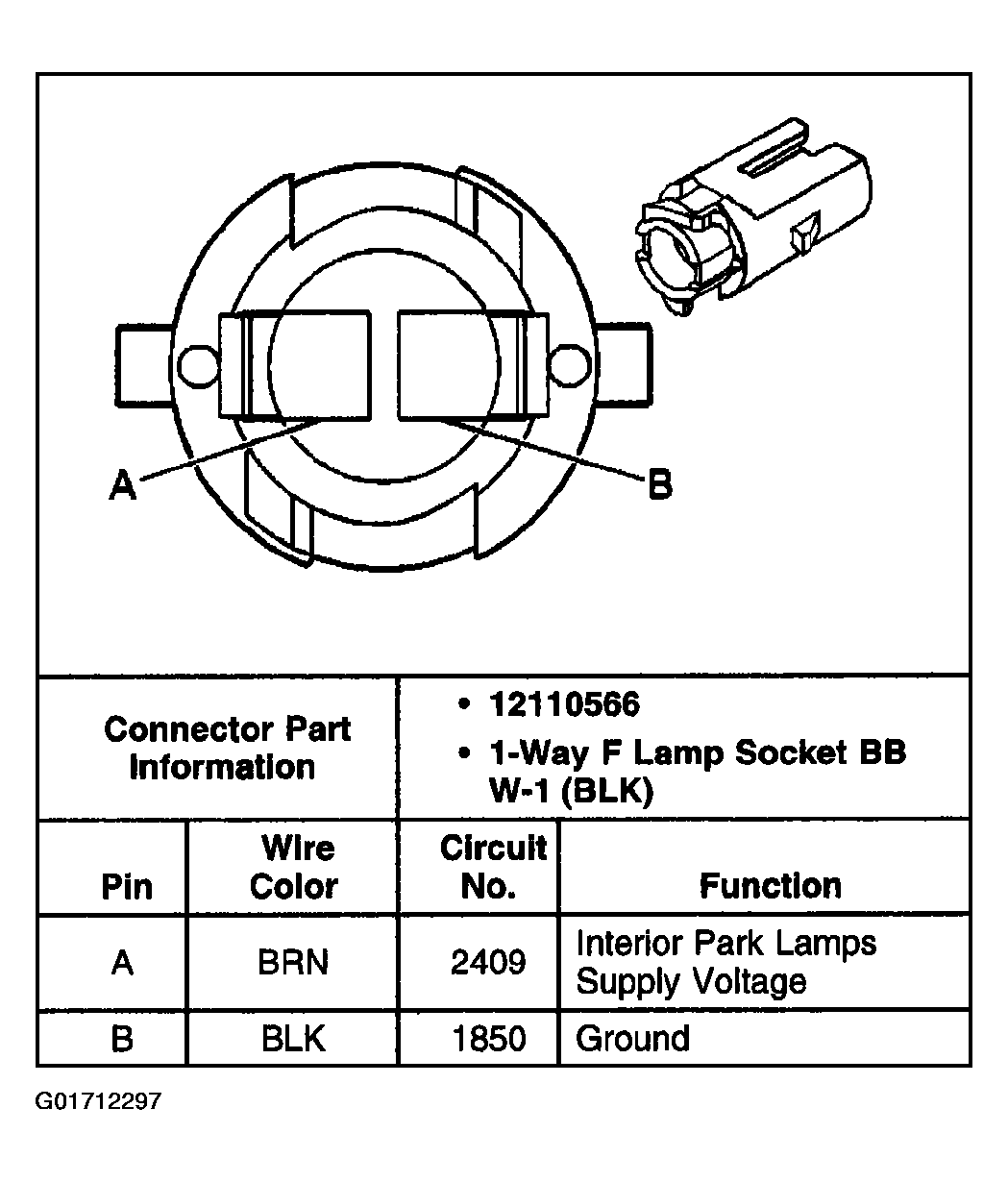

Fig 11: Identifying Cupholder Lamp Connector Terminals

Courtesy of GENERAL MOTORS CORP.

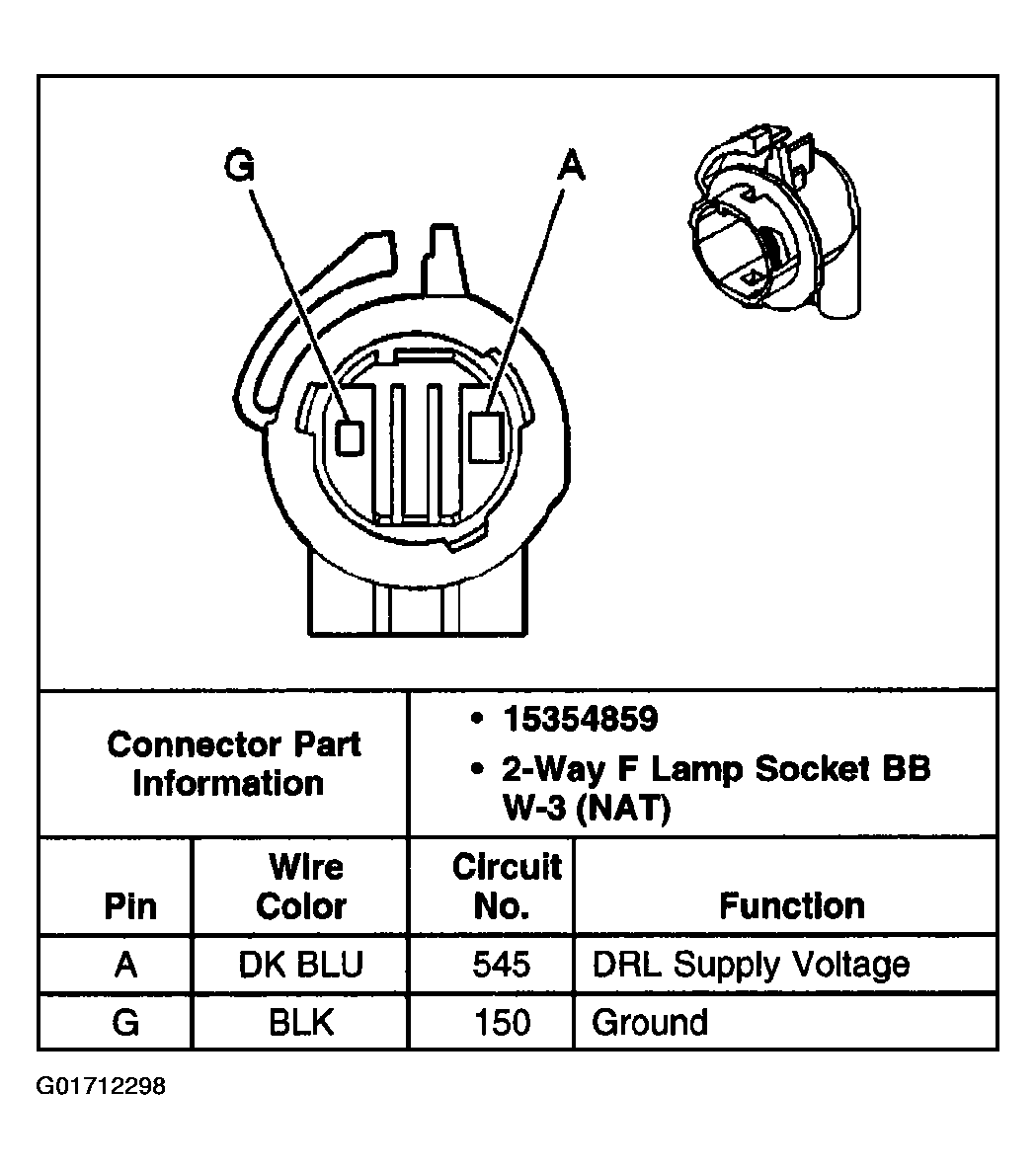

Fig 12: Identifying Daytime Running Lamp (DRL) - Left & Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

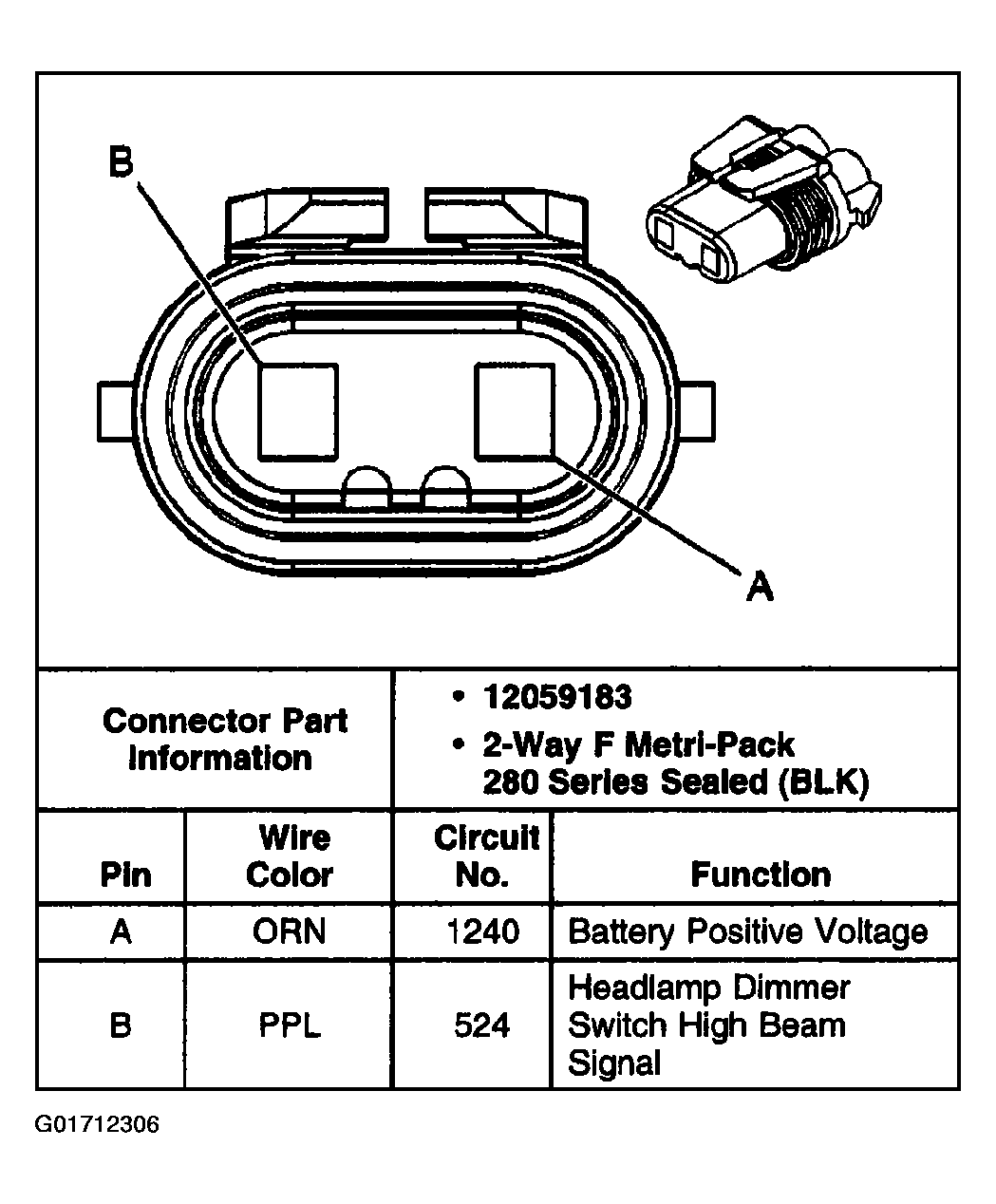

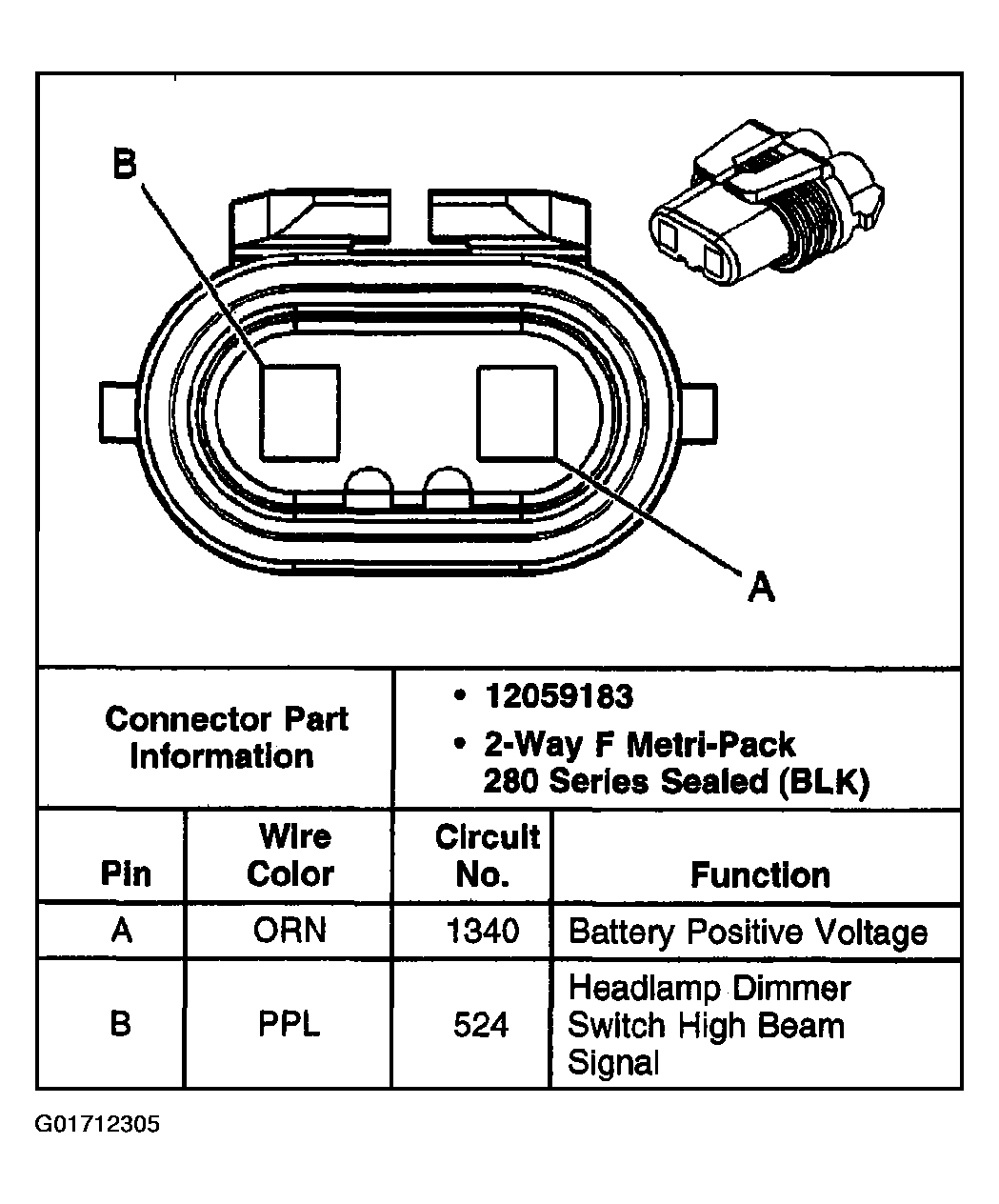

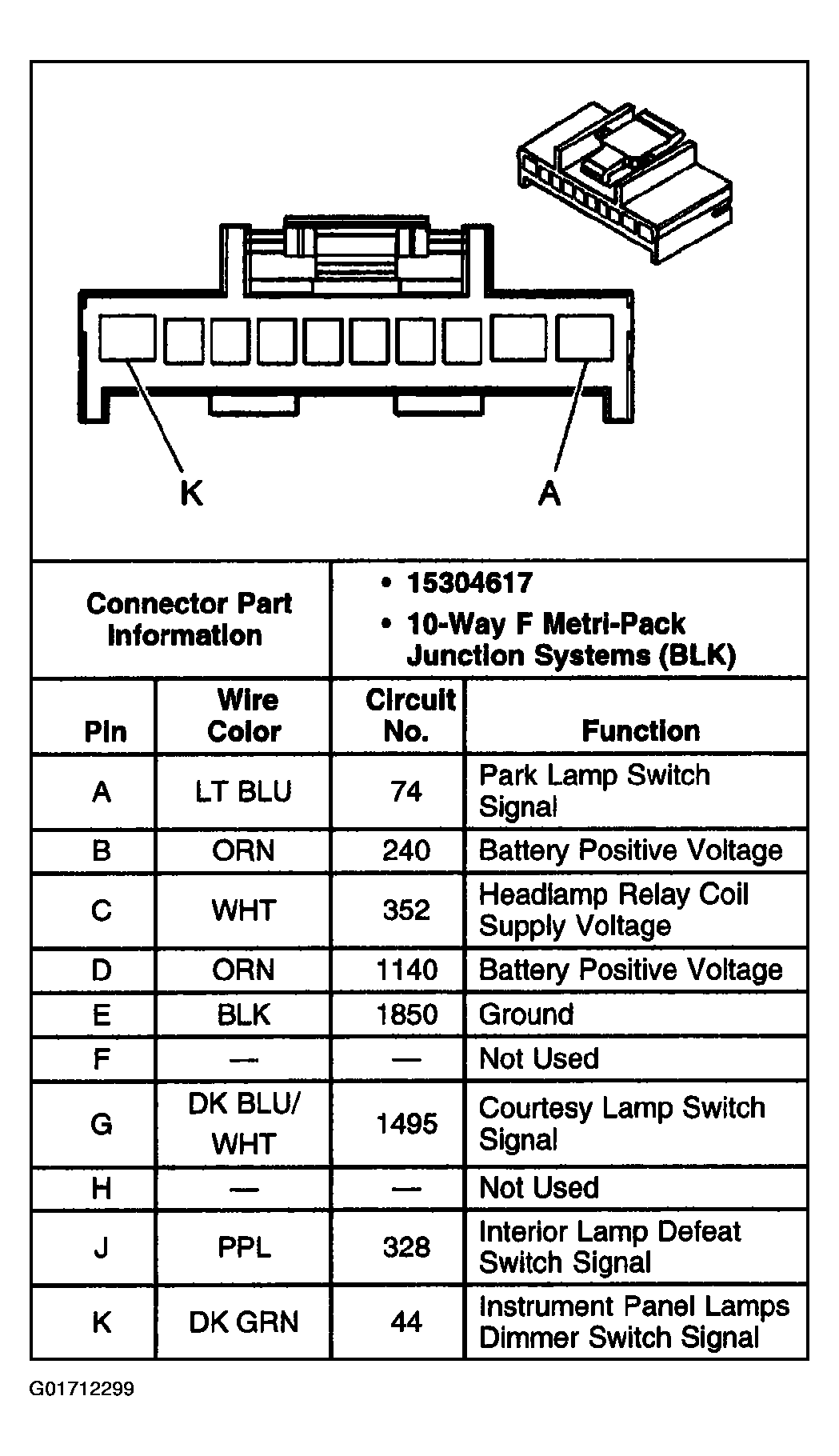

Fig 13: Identifying Dimmer Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

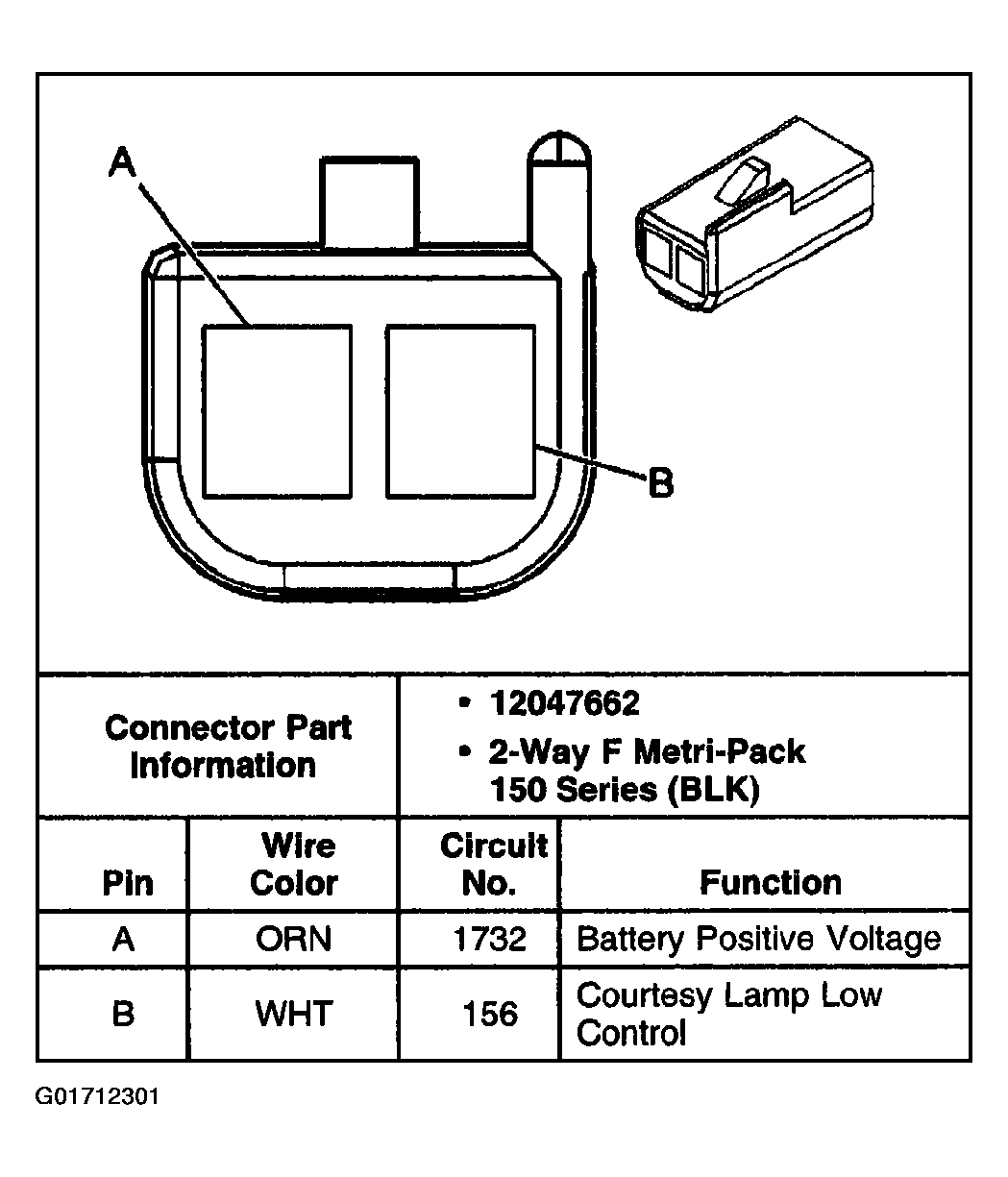

Fig 14: Identifying Door Courtesy Lamp - LF, RF& LR Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Door Courtesy Lamp - RR Connector Terminals

Courtesy of GENERAL MOTORS CORP.

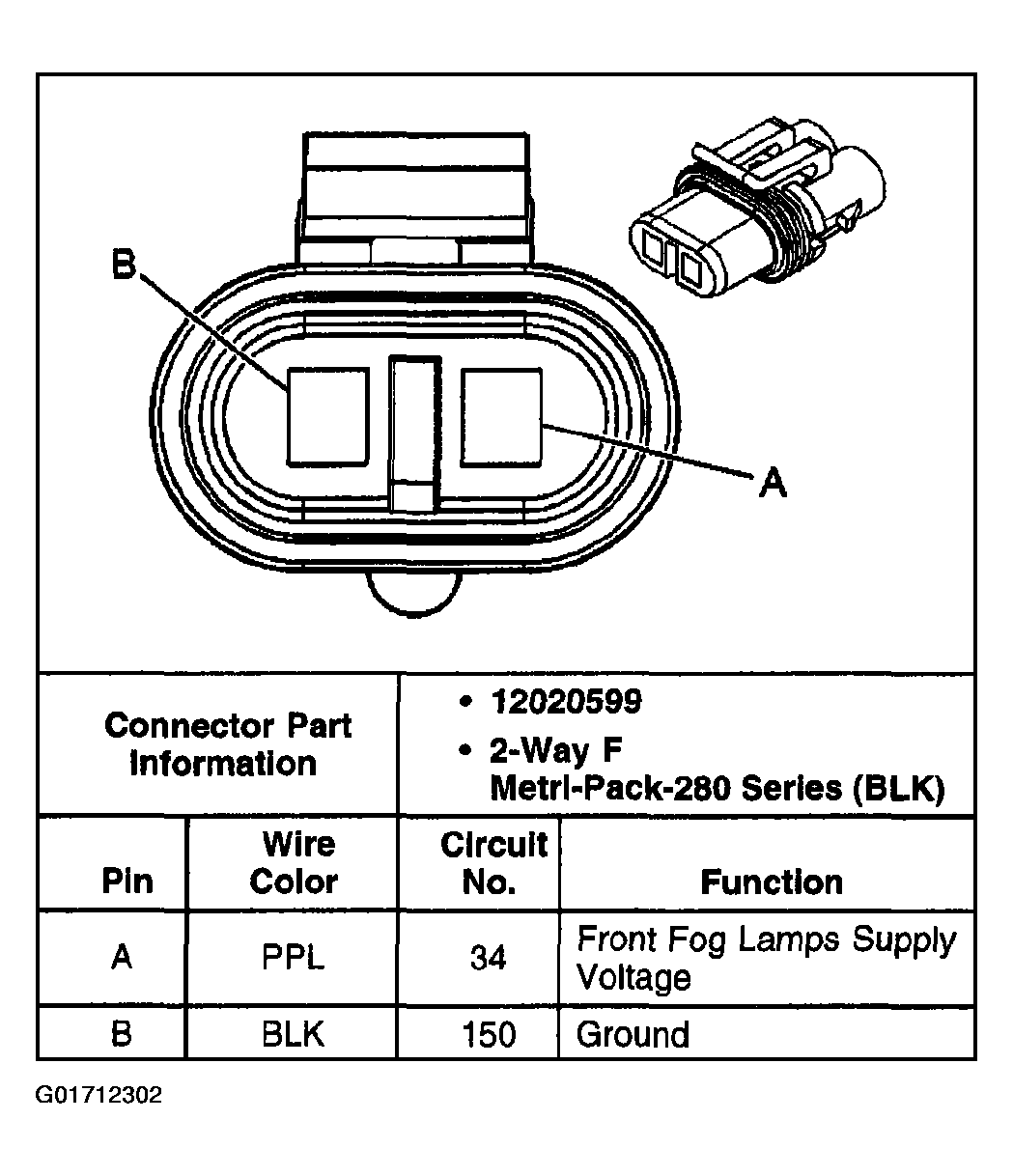

Fig 16: Identifying Fog Lamp - Left & Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

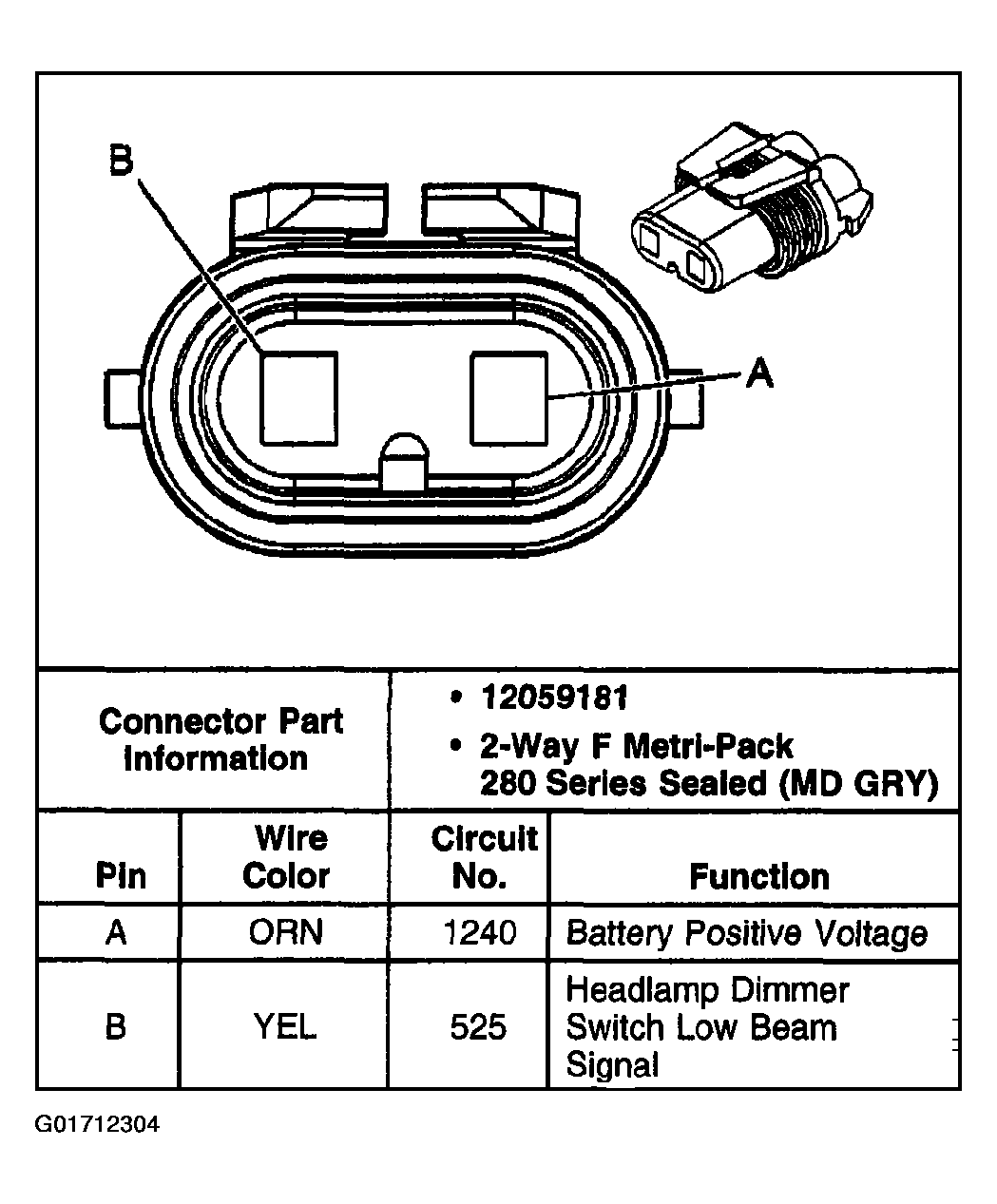

Fig 17: Identifying Headlamp - Low Beam - Left Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Headlamp - Low Beam - Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Headlamp - High Beam - Left Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Headlamp - High Beam - Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying IP Compartment Lamp Connector Terminals

Courtesy of GENERAL MOTORS CORP.

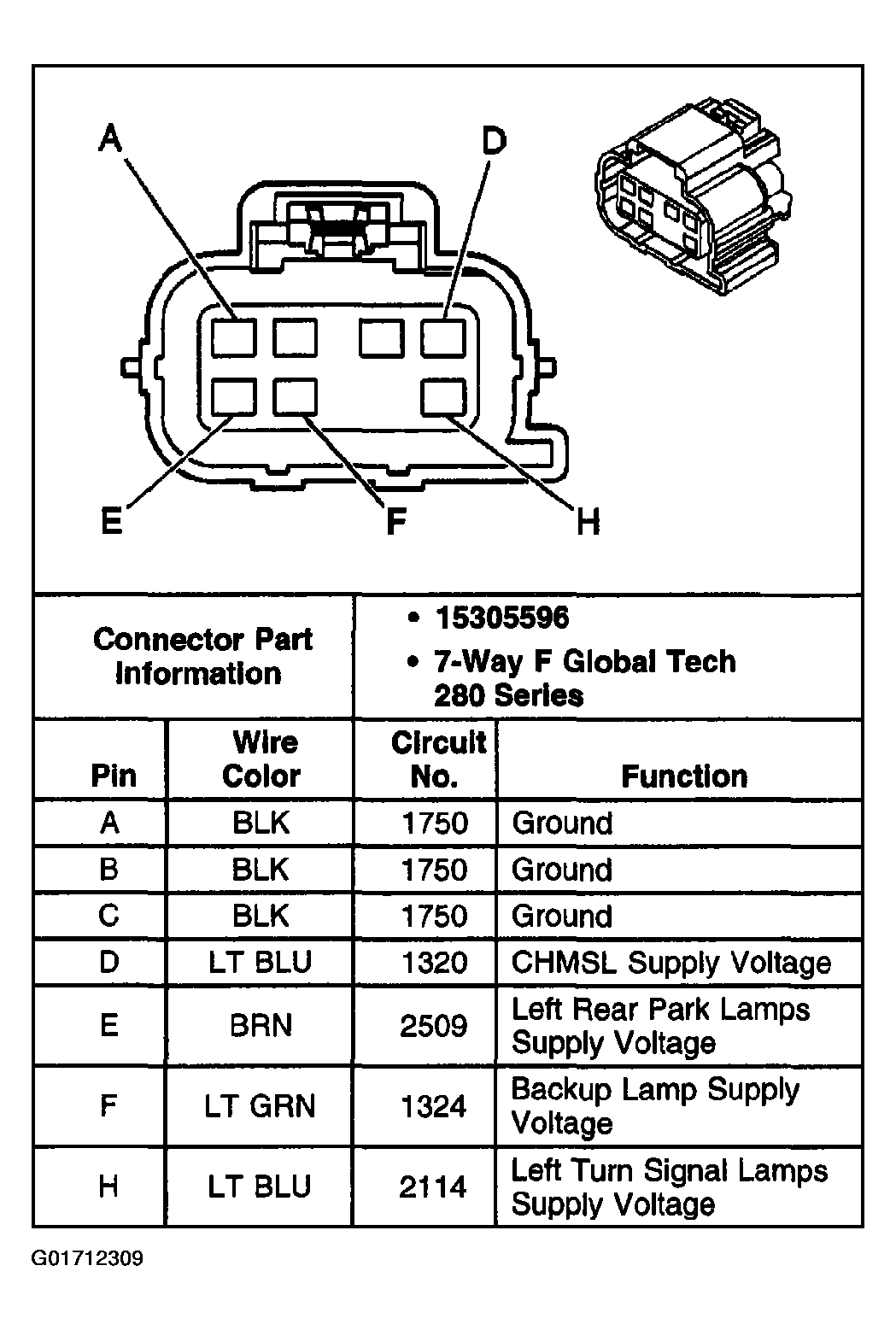

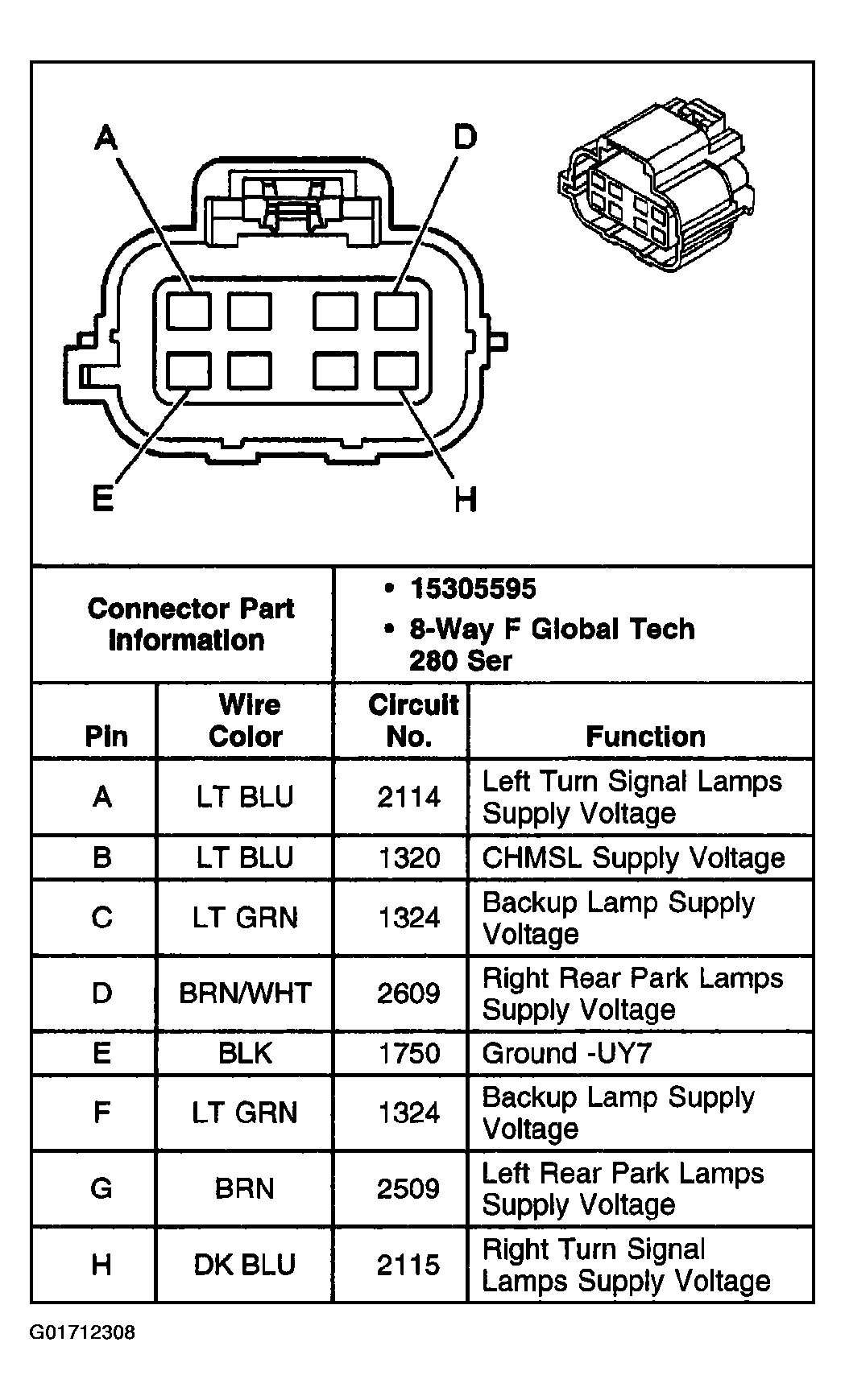

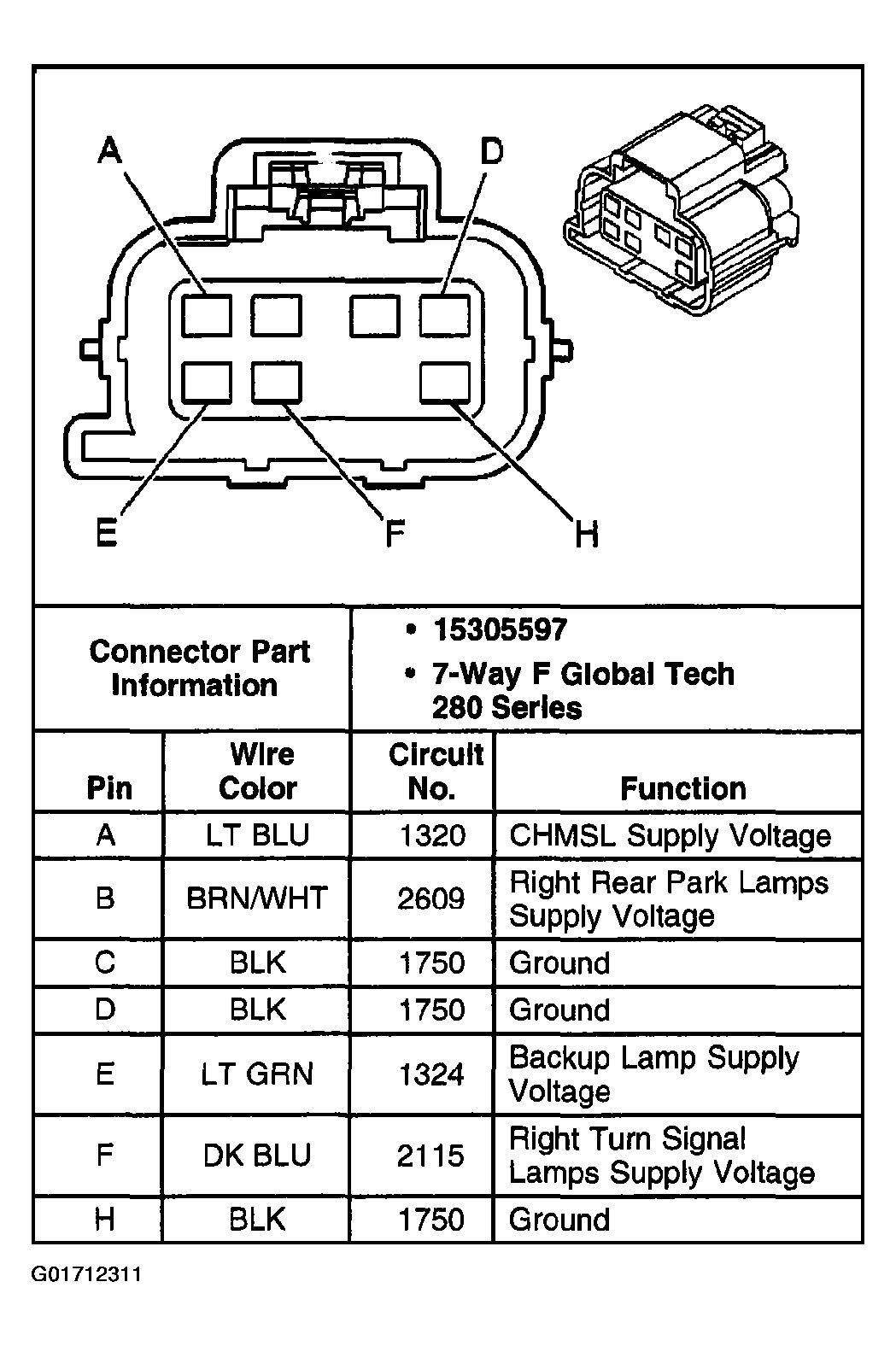

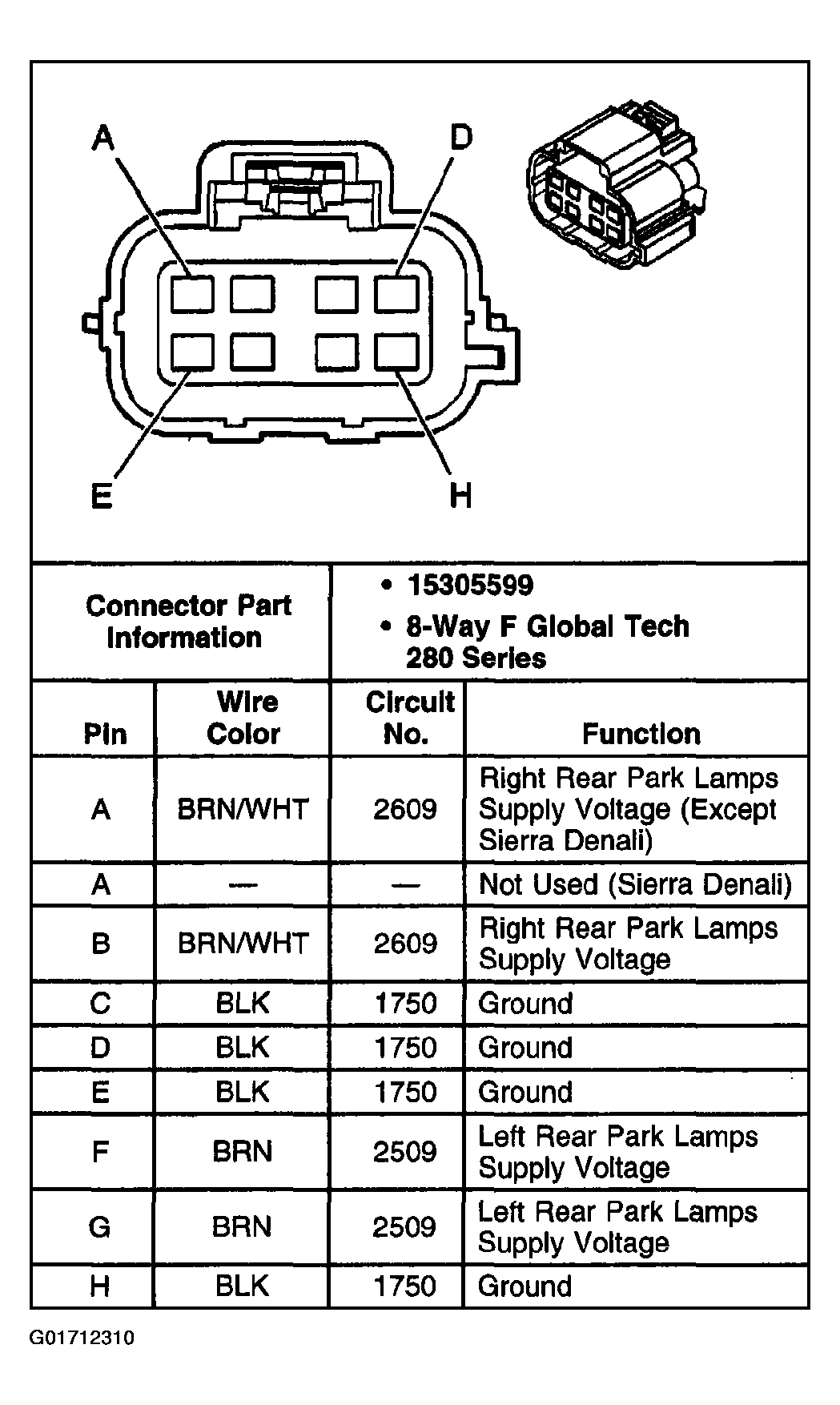

Fig 22: Identifying Junction Block - Rear Lamps, C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying Junction Block - Rear Lamps, C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying Junction Block - Rear Lamps, C3 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying Junction Block - Rear Lamps, C4 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying License Lamps Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying Marker Lamp - LF Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying Marker Lamp - RF Connector Terminals

Courtesy of GENERAL MOTORS CORP.

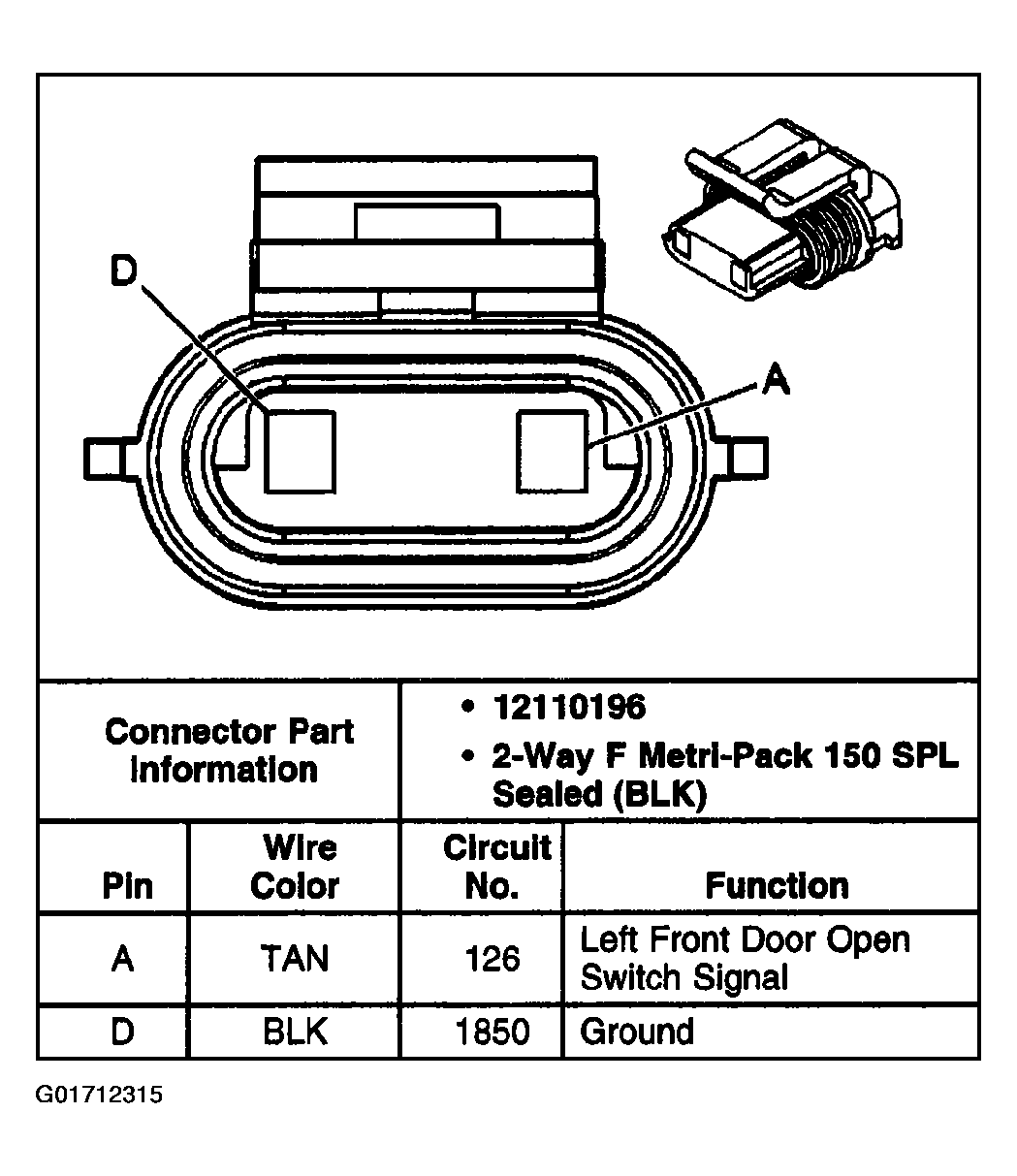

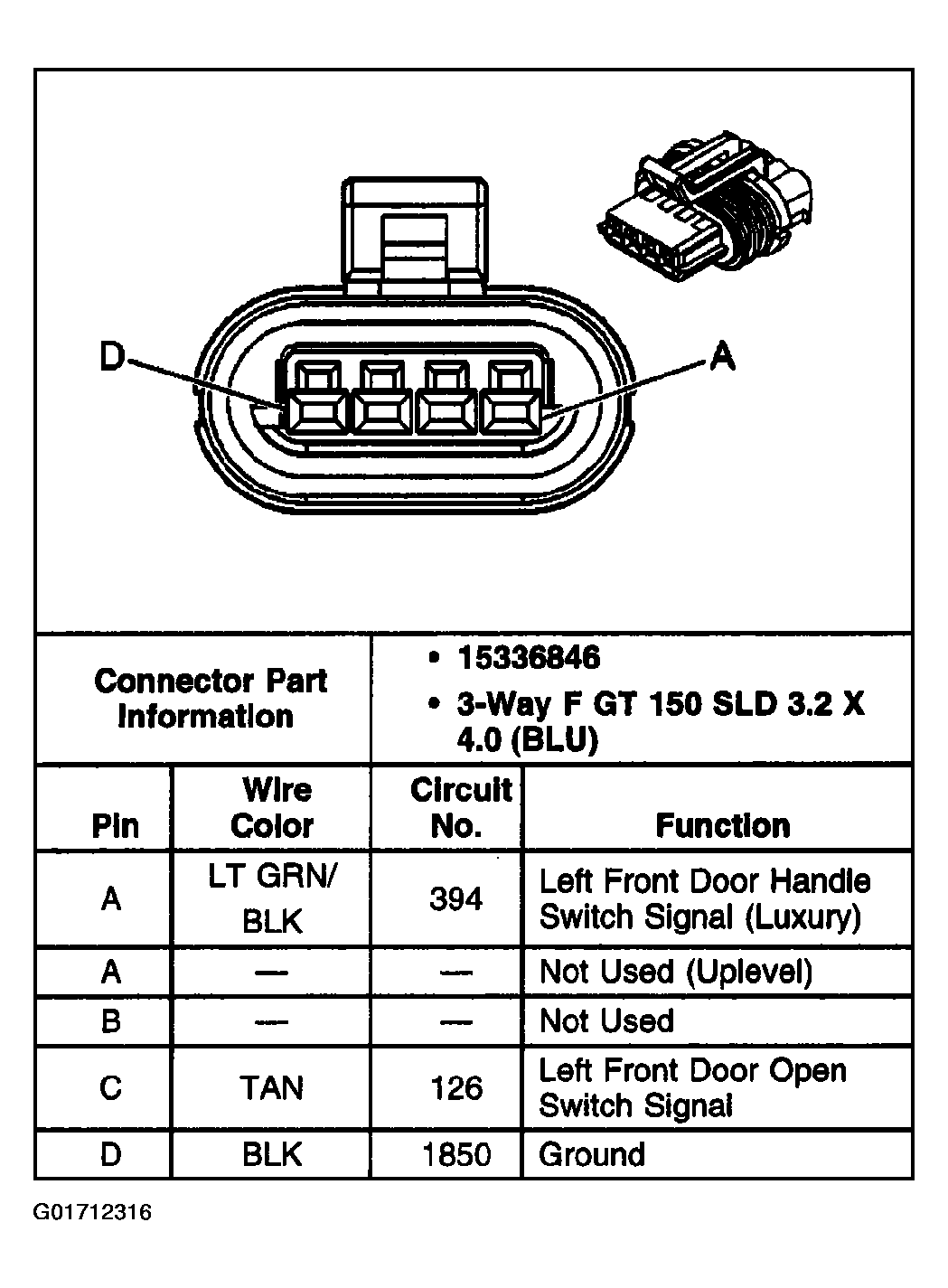

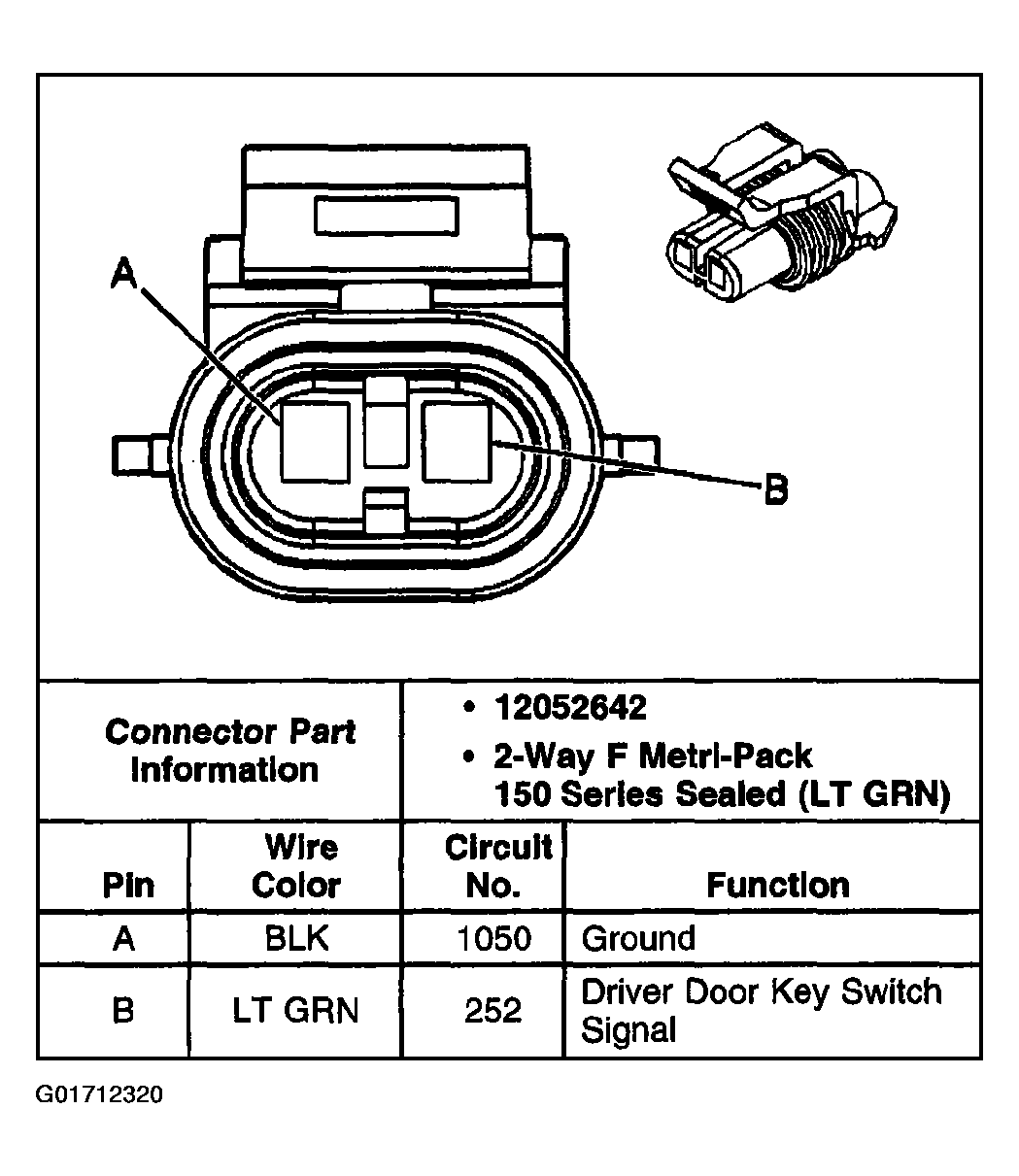

Fig 29: Identifying Mini Wedge (Door Jamb Switch - Driver), Base Model Connector Terminals

Courtesy of GENERAL MOTORS CORP.

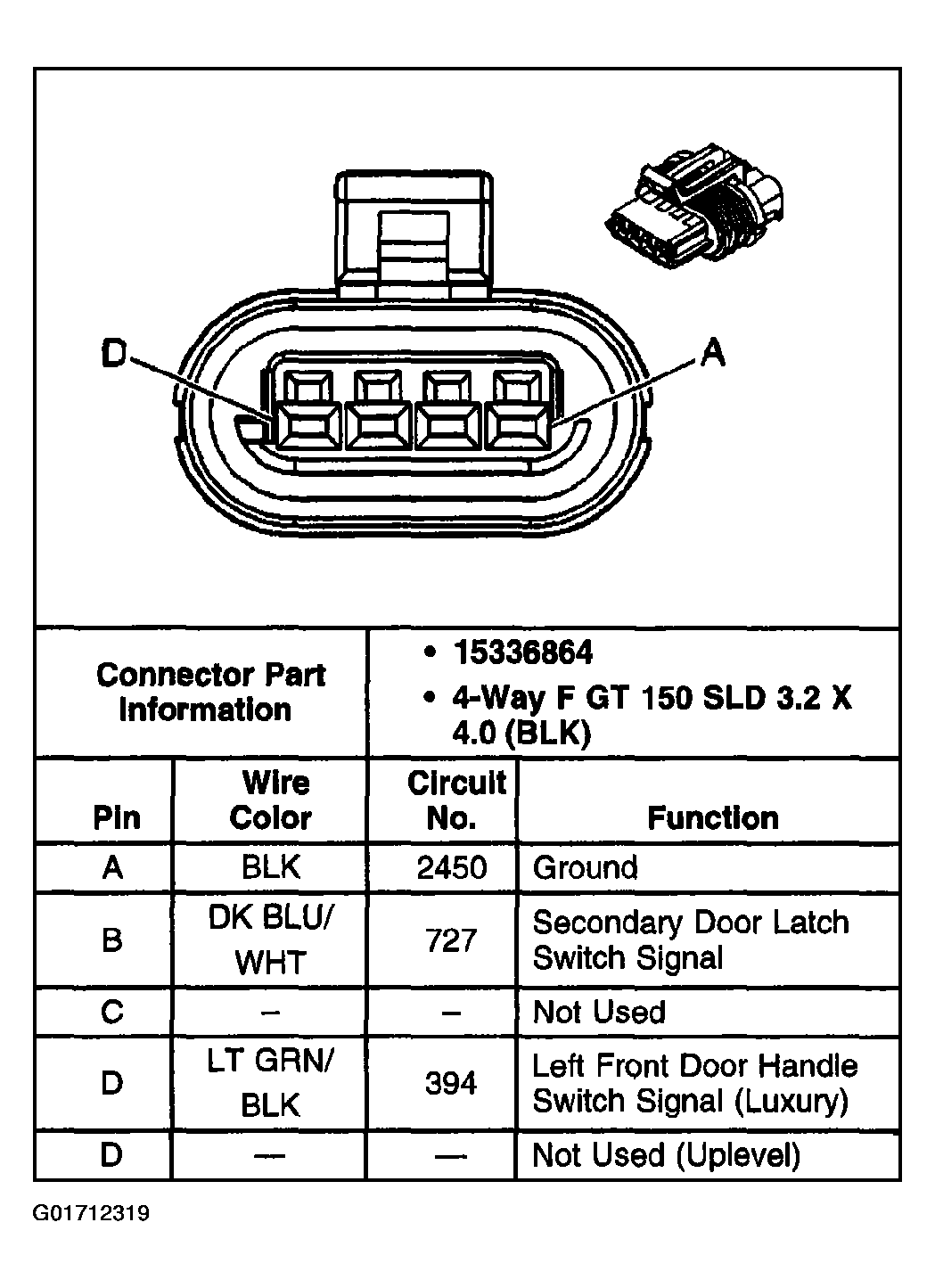

Fig 30: Identifying Mini Wedge (Door Jamb Switch - Driver) C1, Uplevel & Luxury Models Connector Terminals

Courtesy of GENERAL MOTORS CORP.

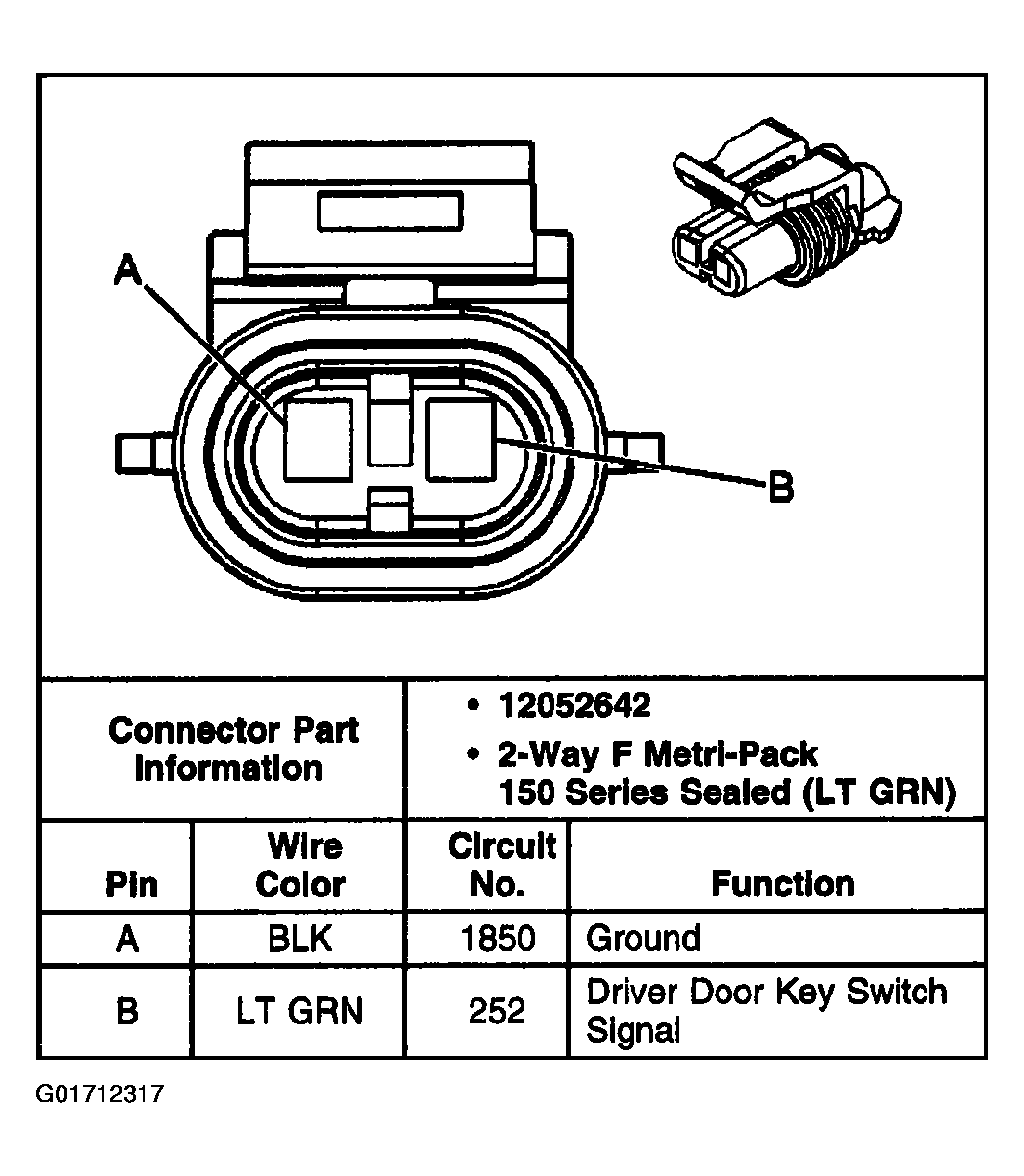

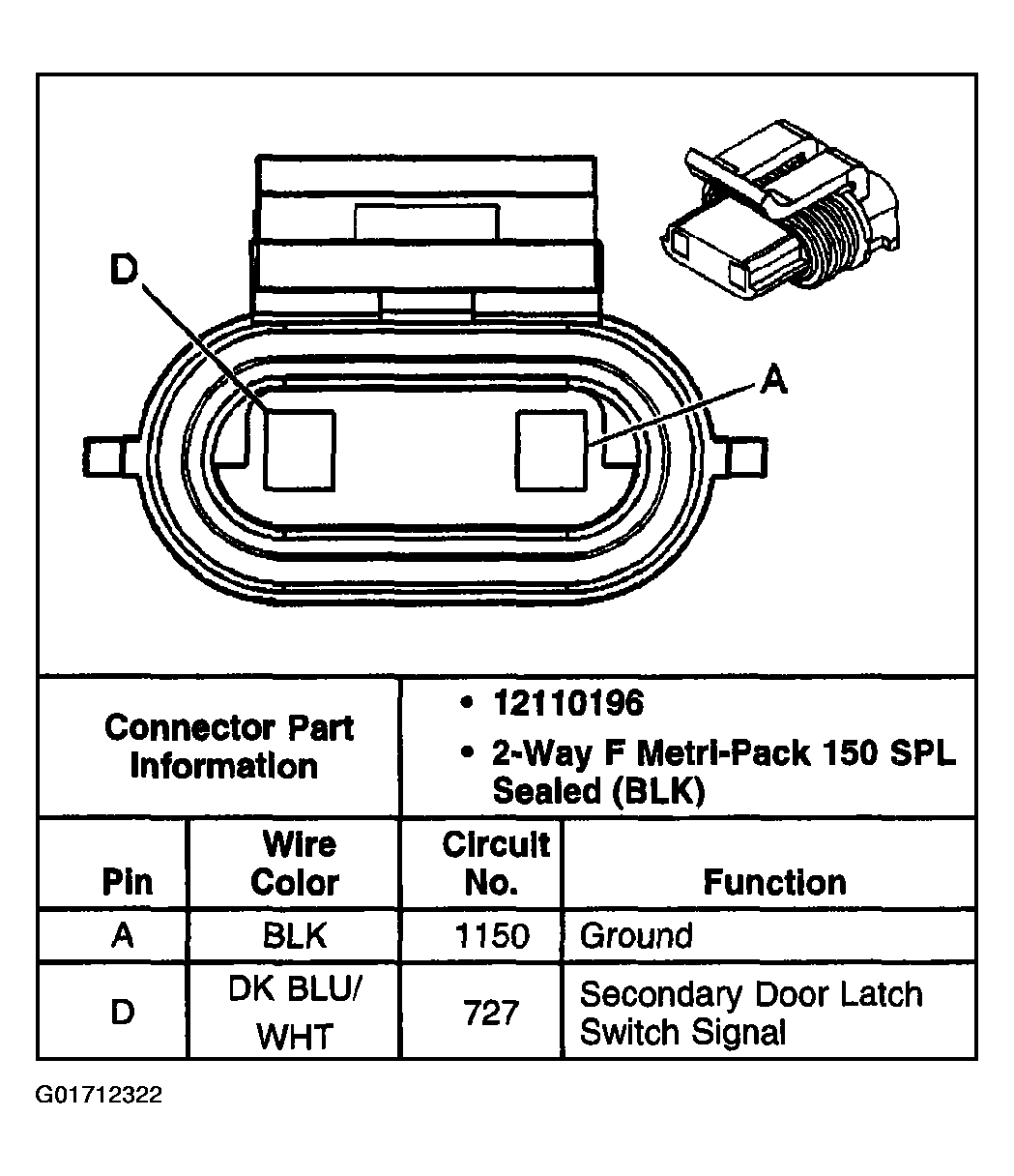

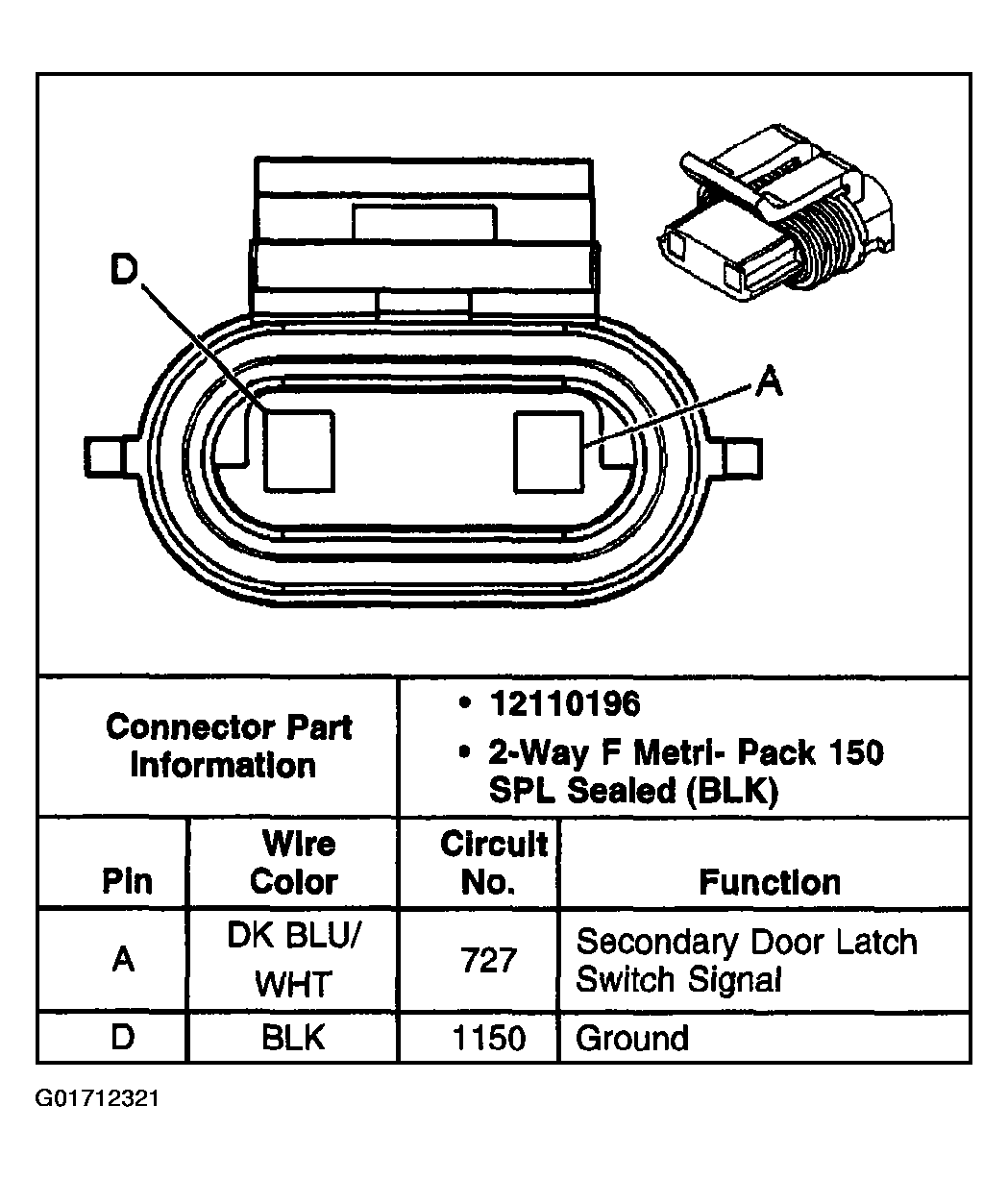

Fig 31: Identifying Mini Wedge (Door Jamb Switch - Driver) C3, Luxury Model Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 32: Identifying Mini Wedge (Door Jamb Switch - Front Passenger) C1, Base Model Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying Mini Wedge (Door Jamb Switch - Front Passenger) C1, Uplevel & Luxury Model Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying Mini Wedge (Door Jamb Switch - Front Passenger) C3, Luxury Model Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 35: Identifying Mini Wedge (Door Jamb Switch) C1 (LR) Crew Cab Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying Mini Wedge (Door Jamb Switch) C1 (RR) Crew Cab Connector Terminals

Courtesy of GENERAL MOTORS CORP.

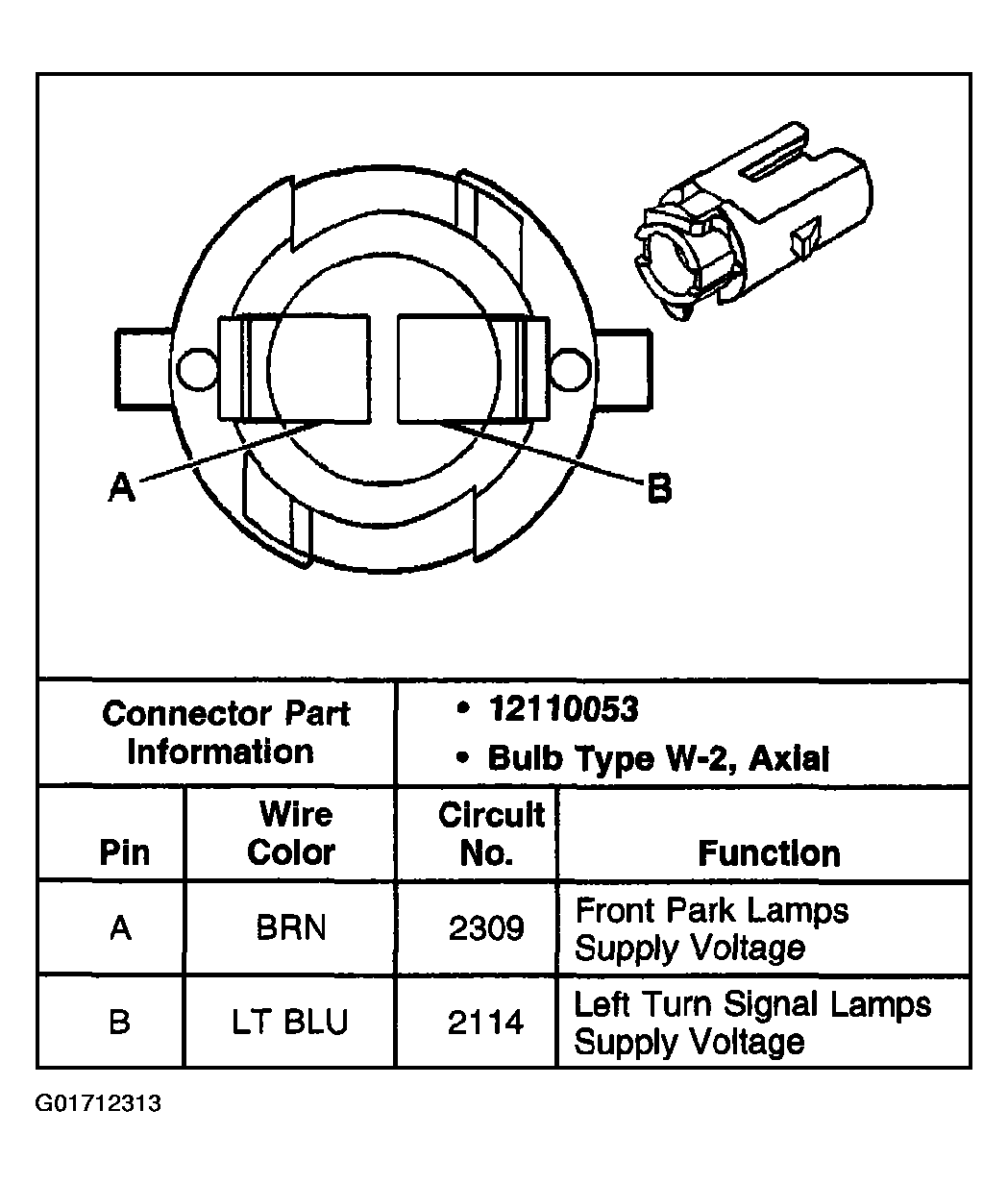

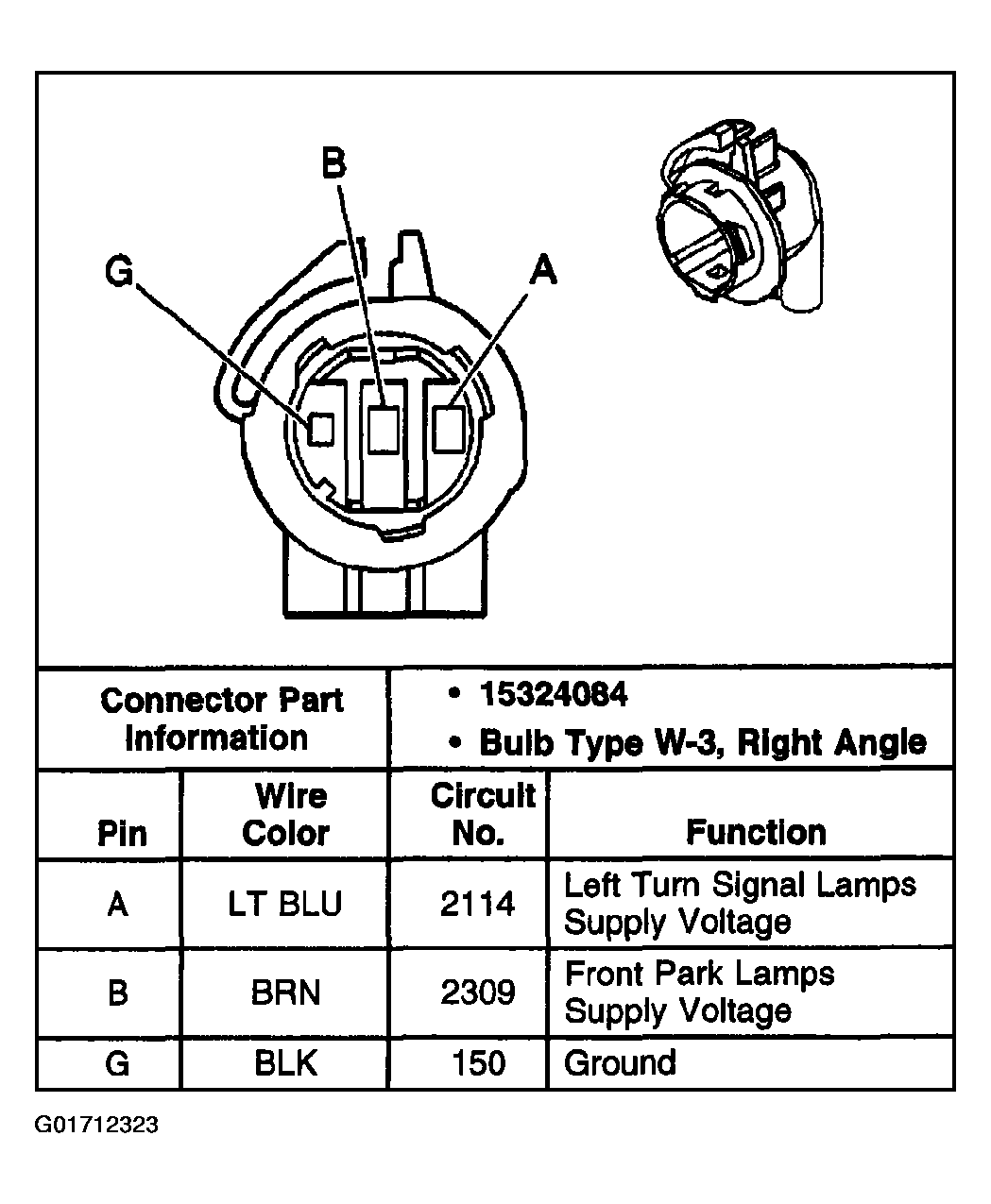

Fig 37: Identifying Park/Turn Signal Lamp - LF Connector Terminals

Courtesy of GENERAL MOTORS CORP.

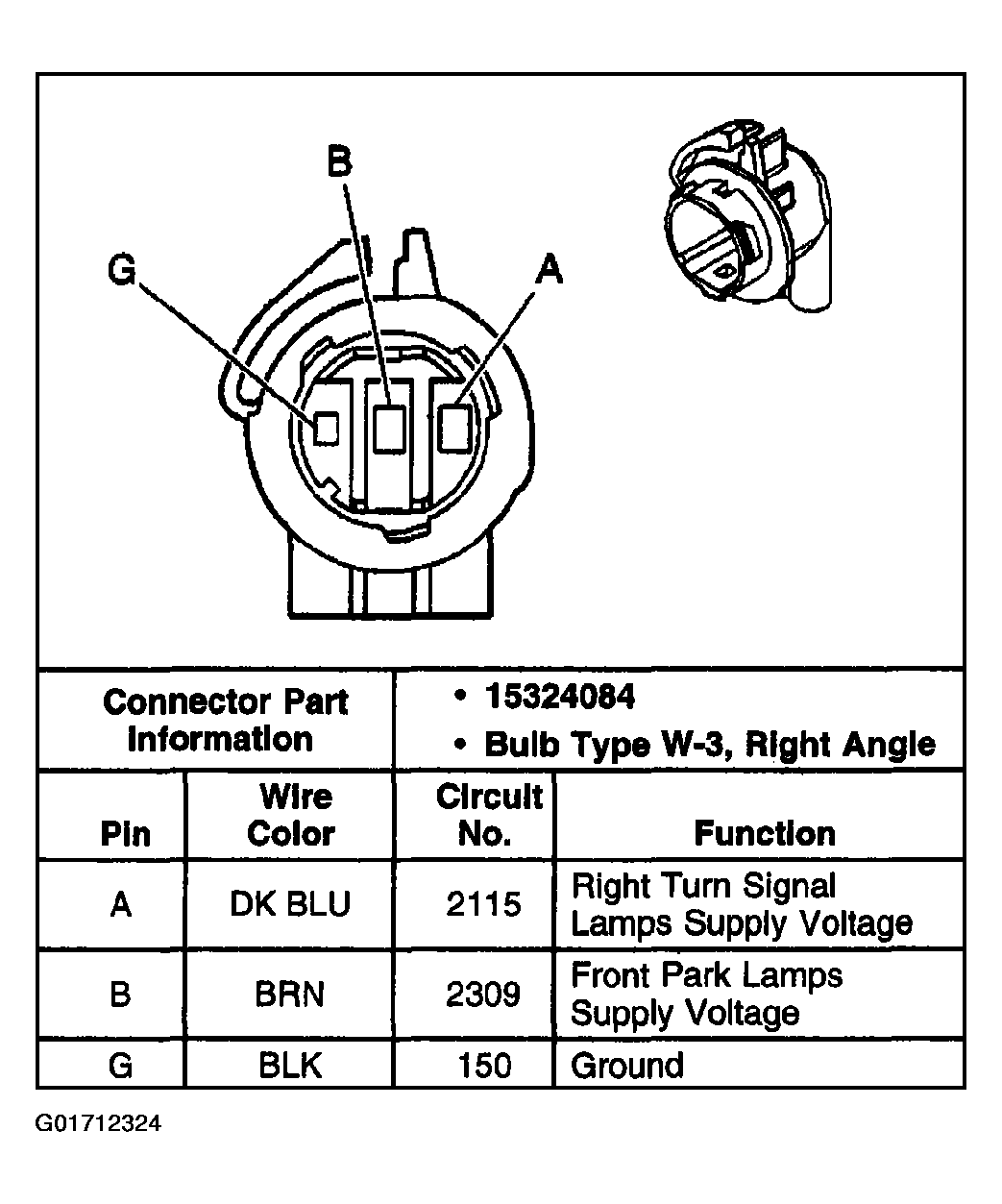

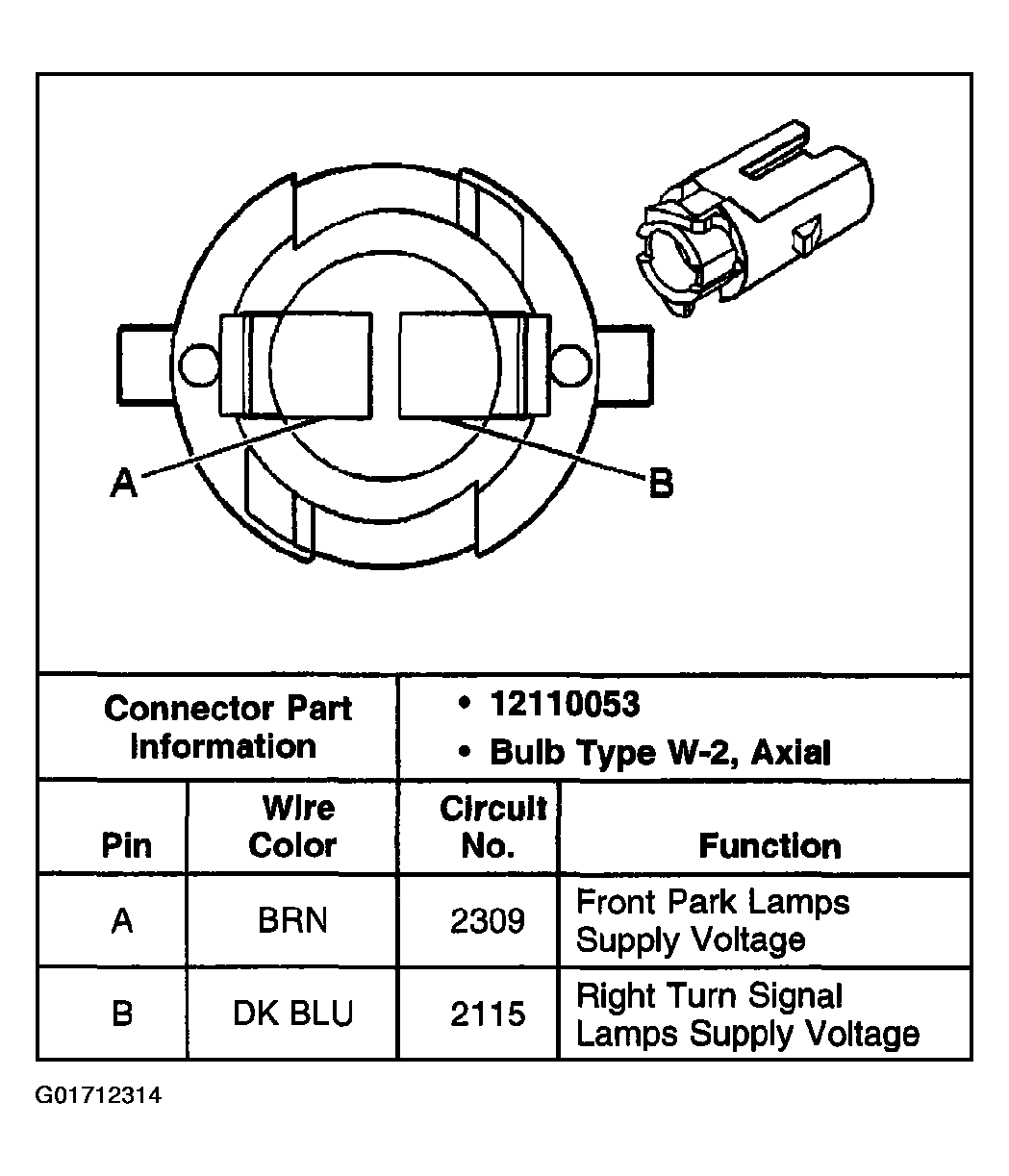

Fig 38: Identifying Park/Turn Signal Lamp - RF Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 39: Identifying Roof Beacon Relay Connector Terminals

Courtesy of GENERAL MOTORS CORP.

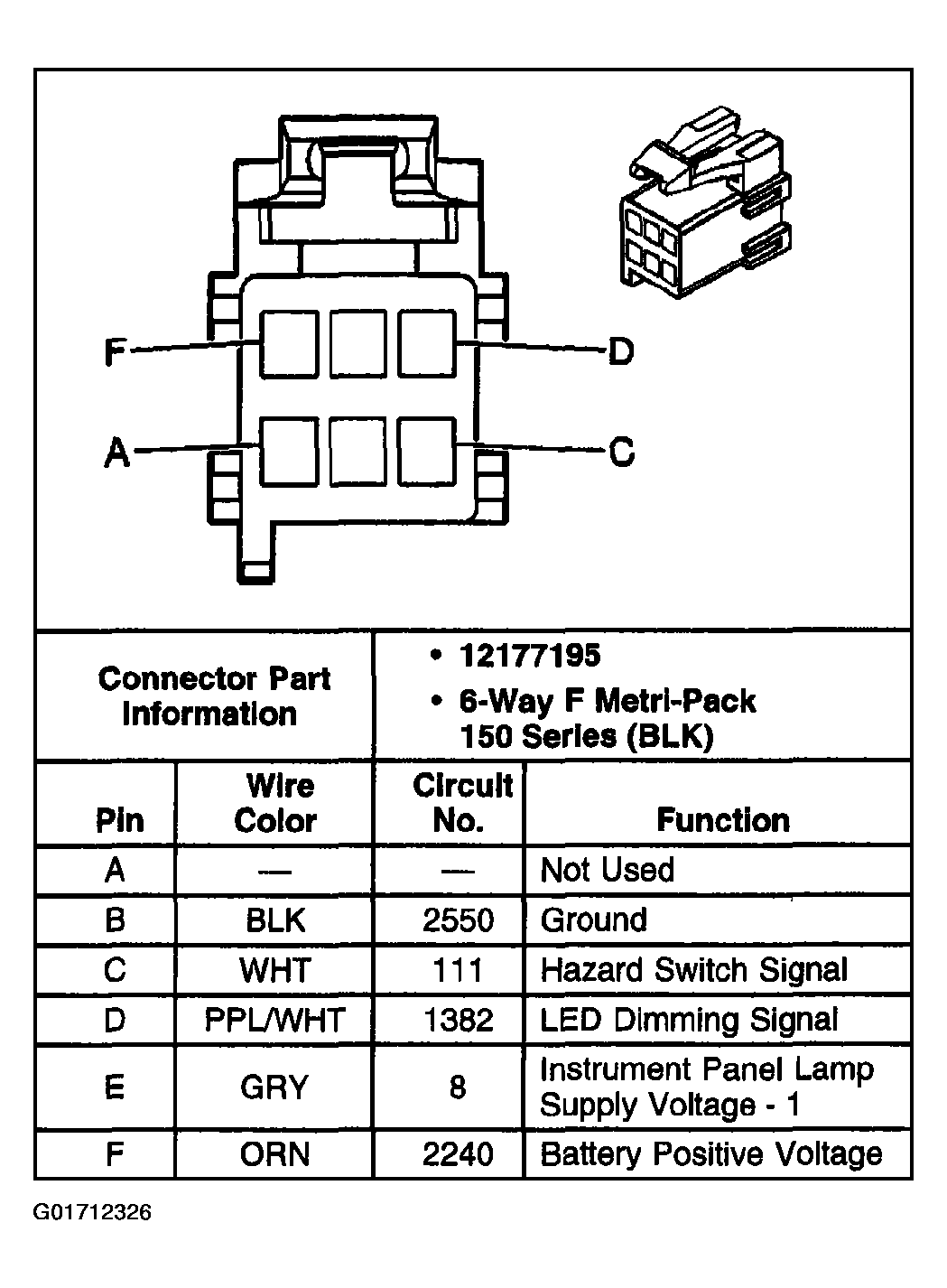

Fig 40: Identifying Roof Beacon Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

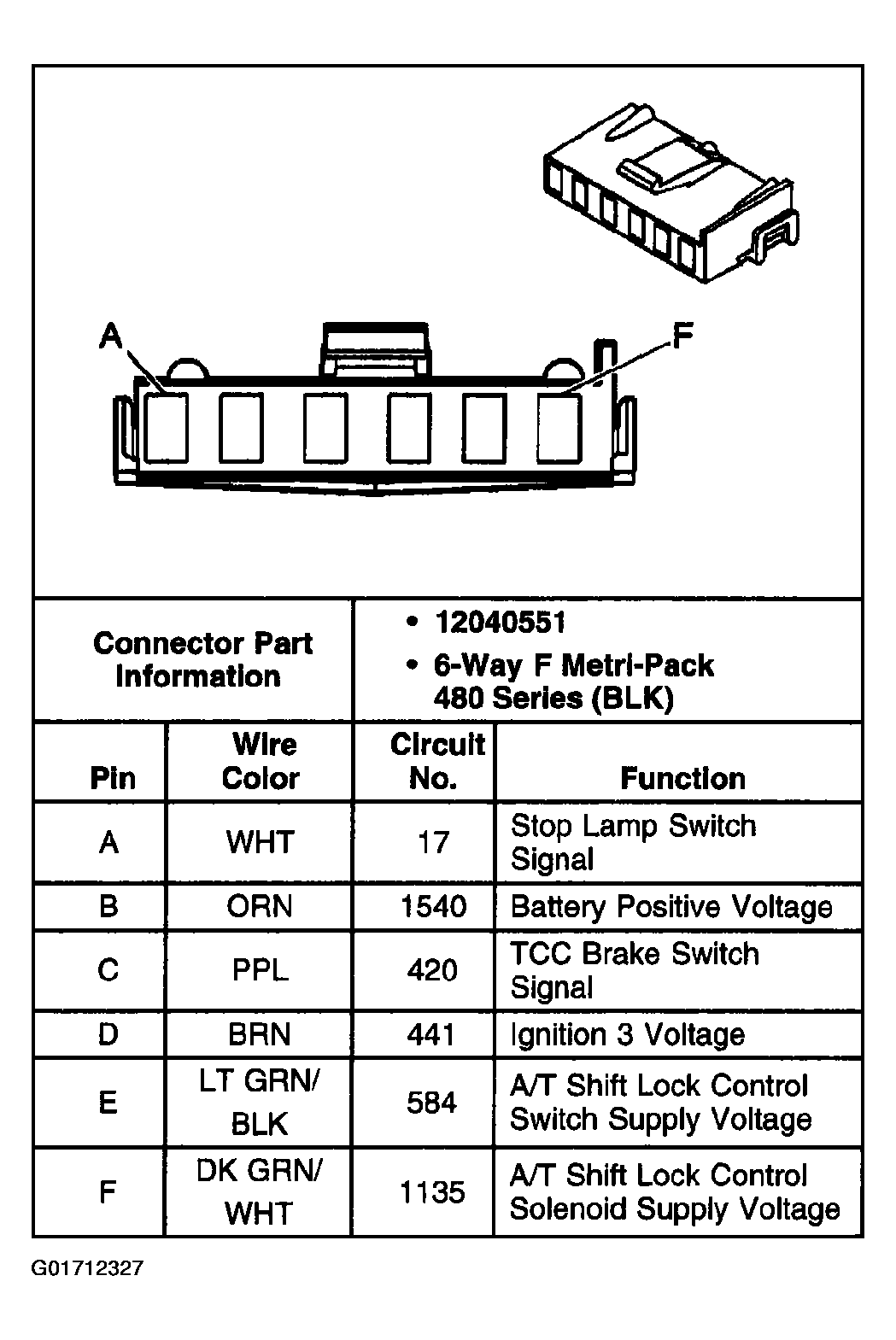

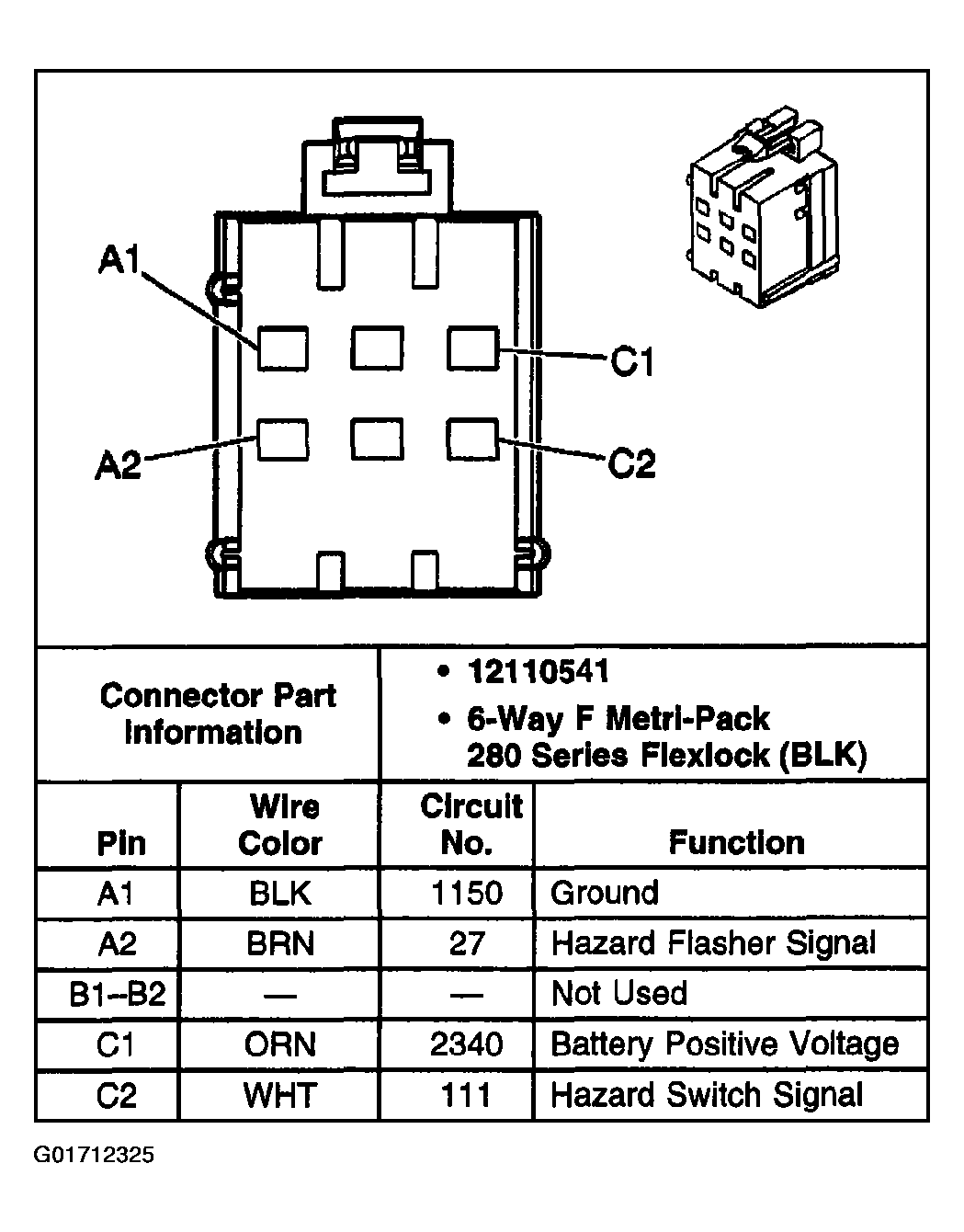

Fig 41: Identifying Stop lamp Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 42: Identifying Tail/Stop Lamp - Left Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 43: Identifying Tail/Stop Lamp - Right Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 44: Identifying Trailer Connector - Light Duty Models Connector Terminals

Courtesy of GENERAL MOTORS CORP.

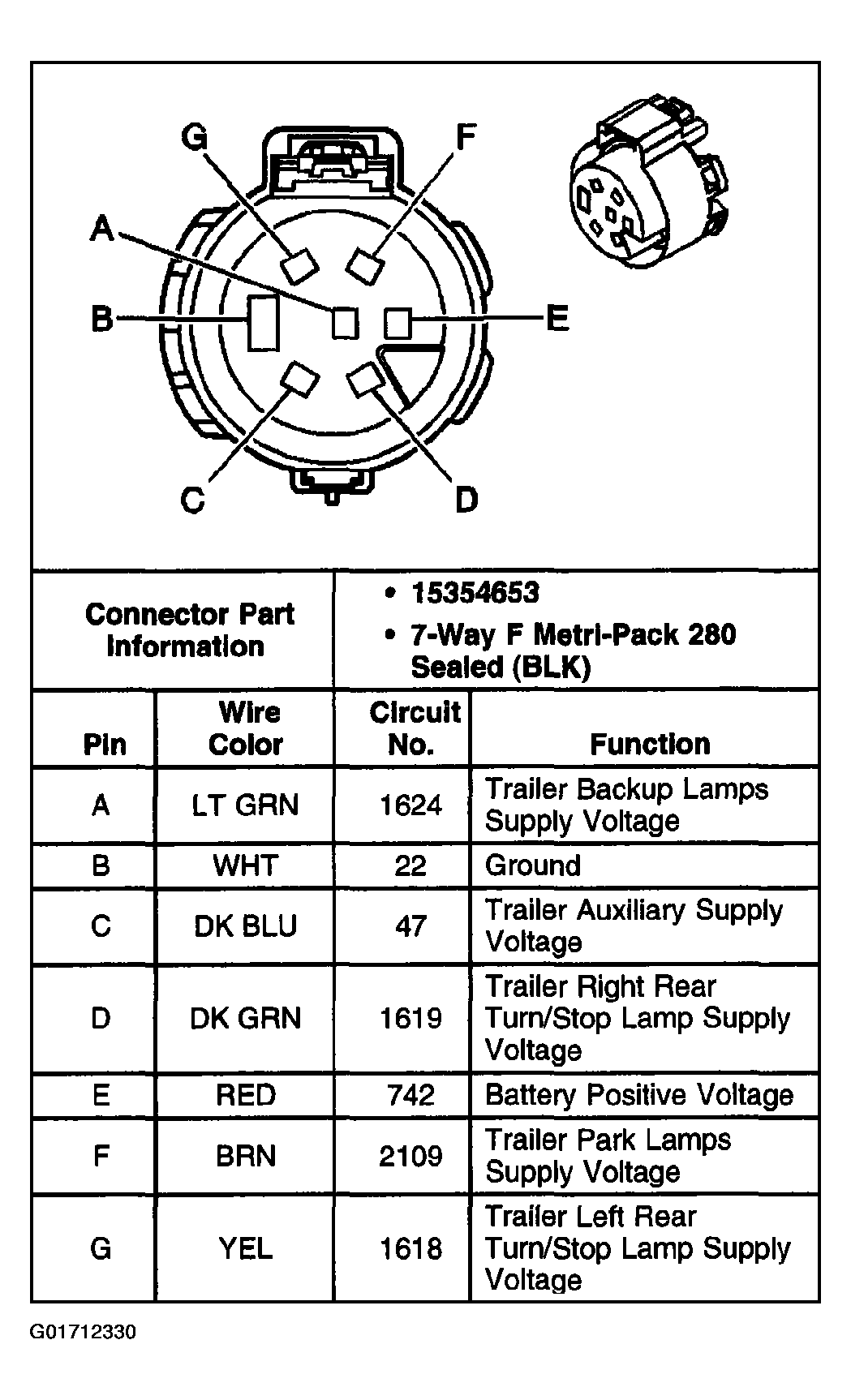

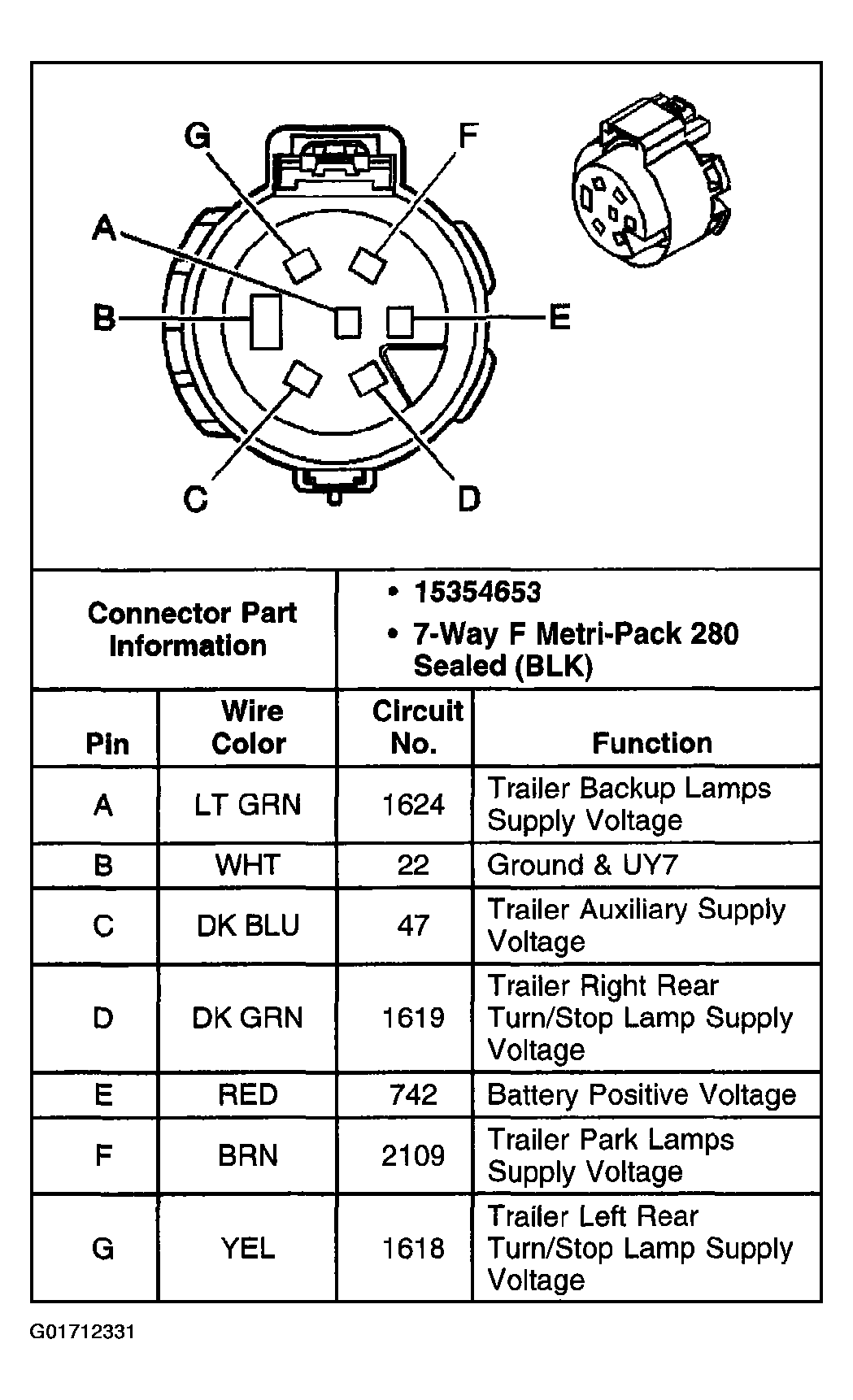

Fig 45: Identifying Trailer Connector - Heavy Duty Models Connector Terminals

Courtesy of GENERAL MOTORS CORP.

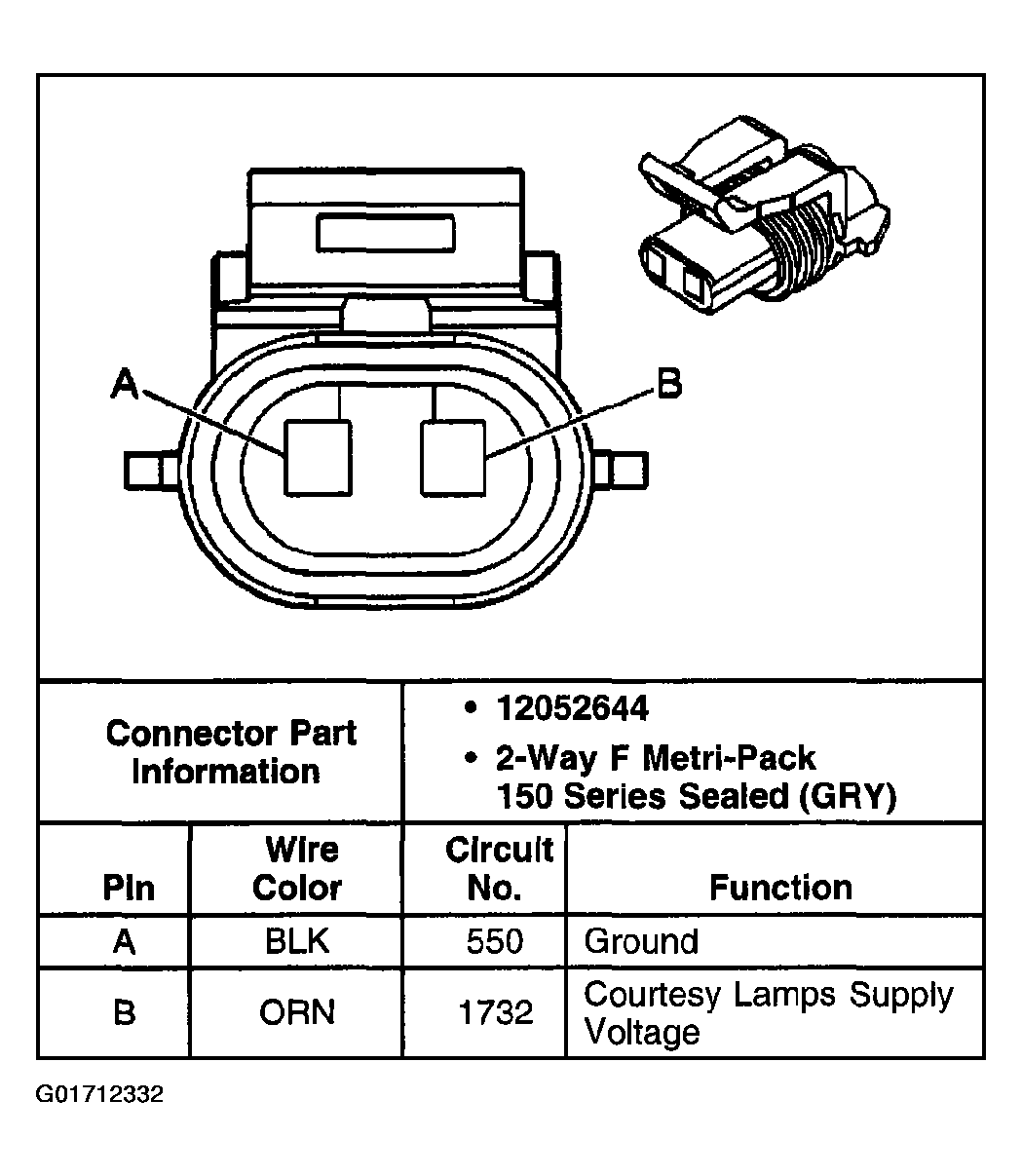

Fig 46: Identifying Underhood Lamp Connector Terminals

Courtesy of GENERAL MOTORS CORP.
