Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

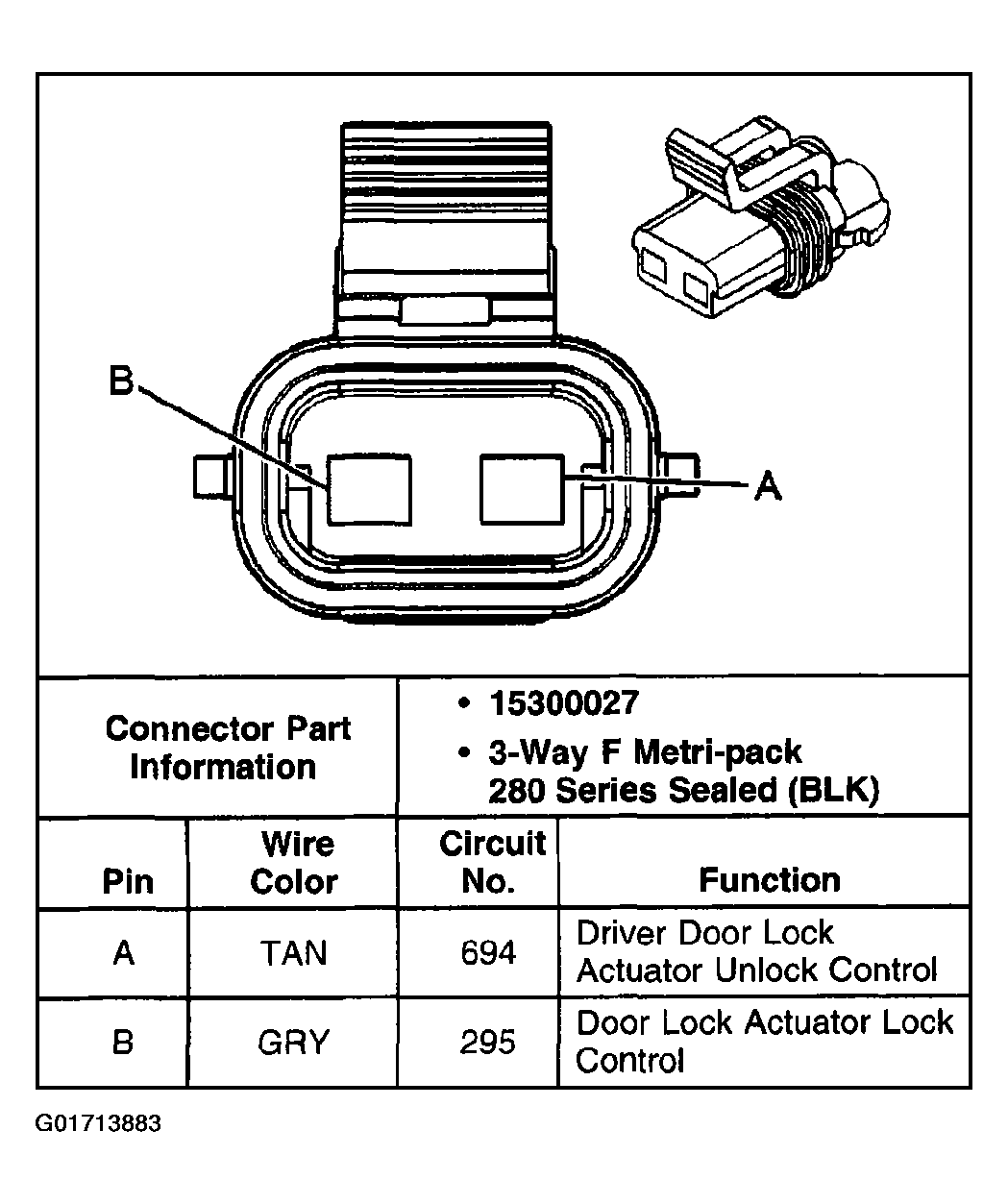

Fig 1: Identifying Door Lock Actuator Connector End View - Driver Side
G01713883Courtesy of GENERAL MOTORS CORP.

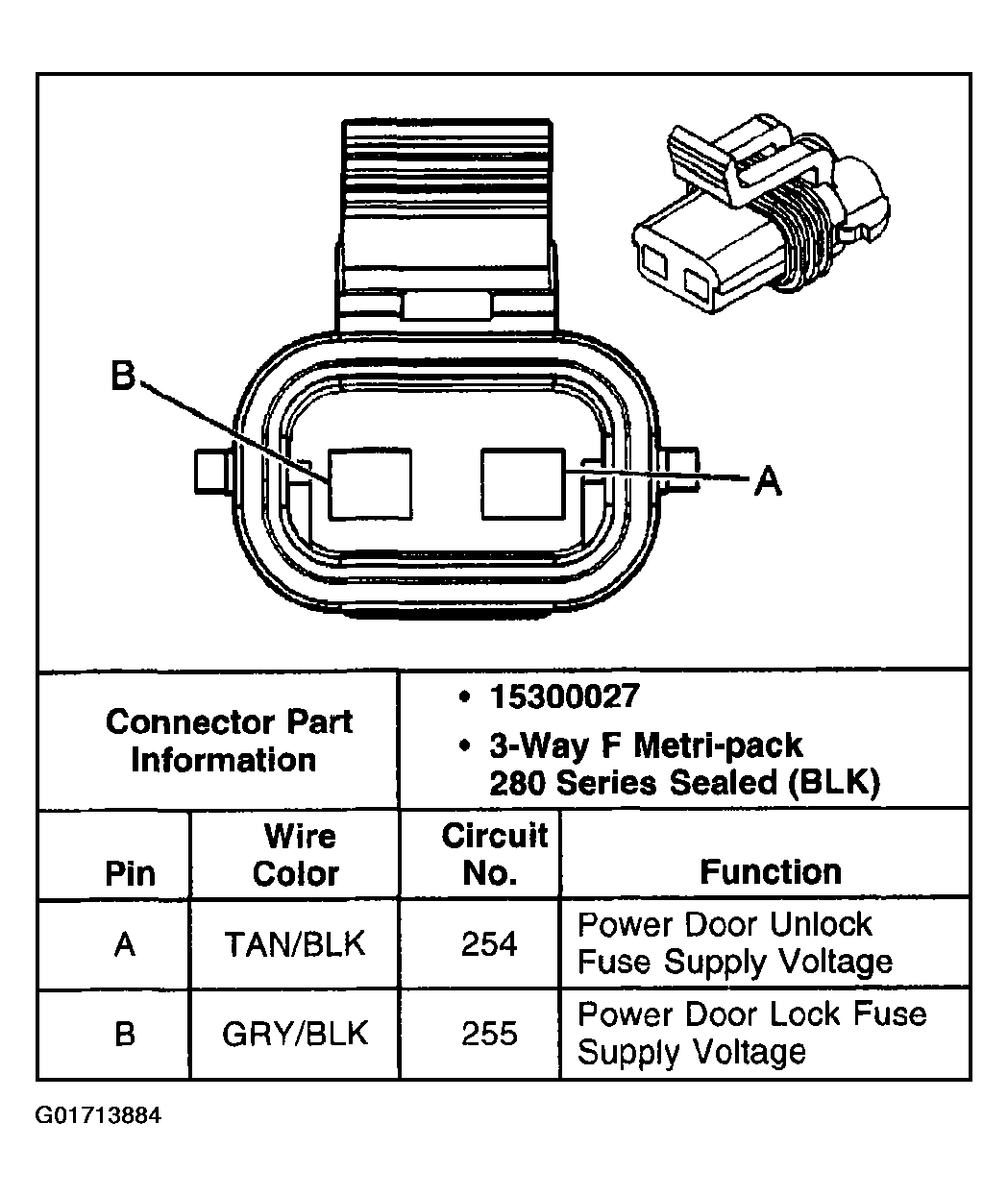

Fig 2: Identifying Door Lock Actuator Connector End View - RF/LR/RR
G01713884Courtesy of GENERAL MOTORS CORP.

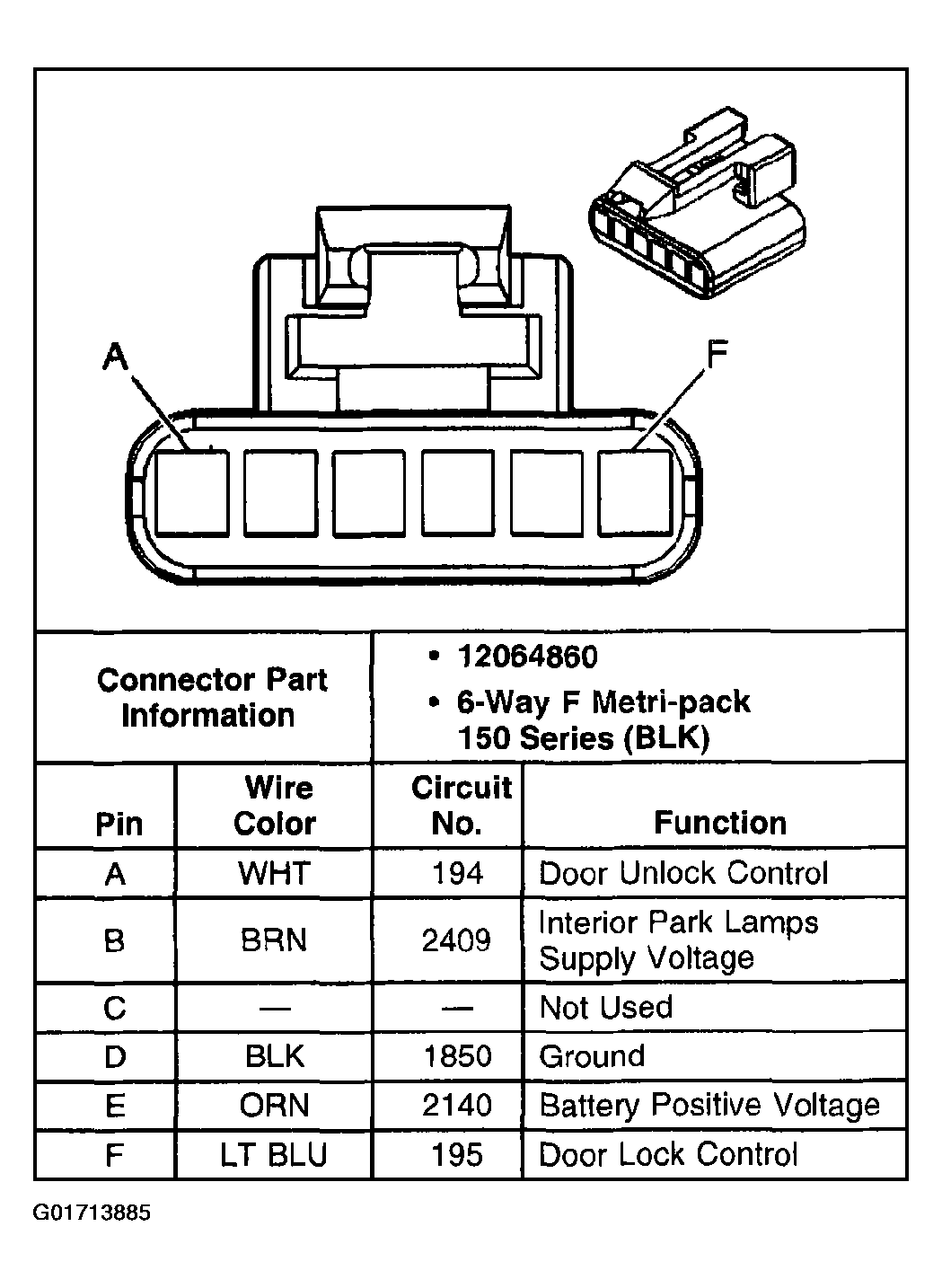

Fig 3: Identifying Door Lock Switch Connector End View - Driver Side (Base)
G01713885Courtesy of GENERAL MOTORS CORP.

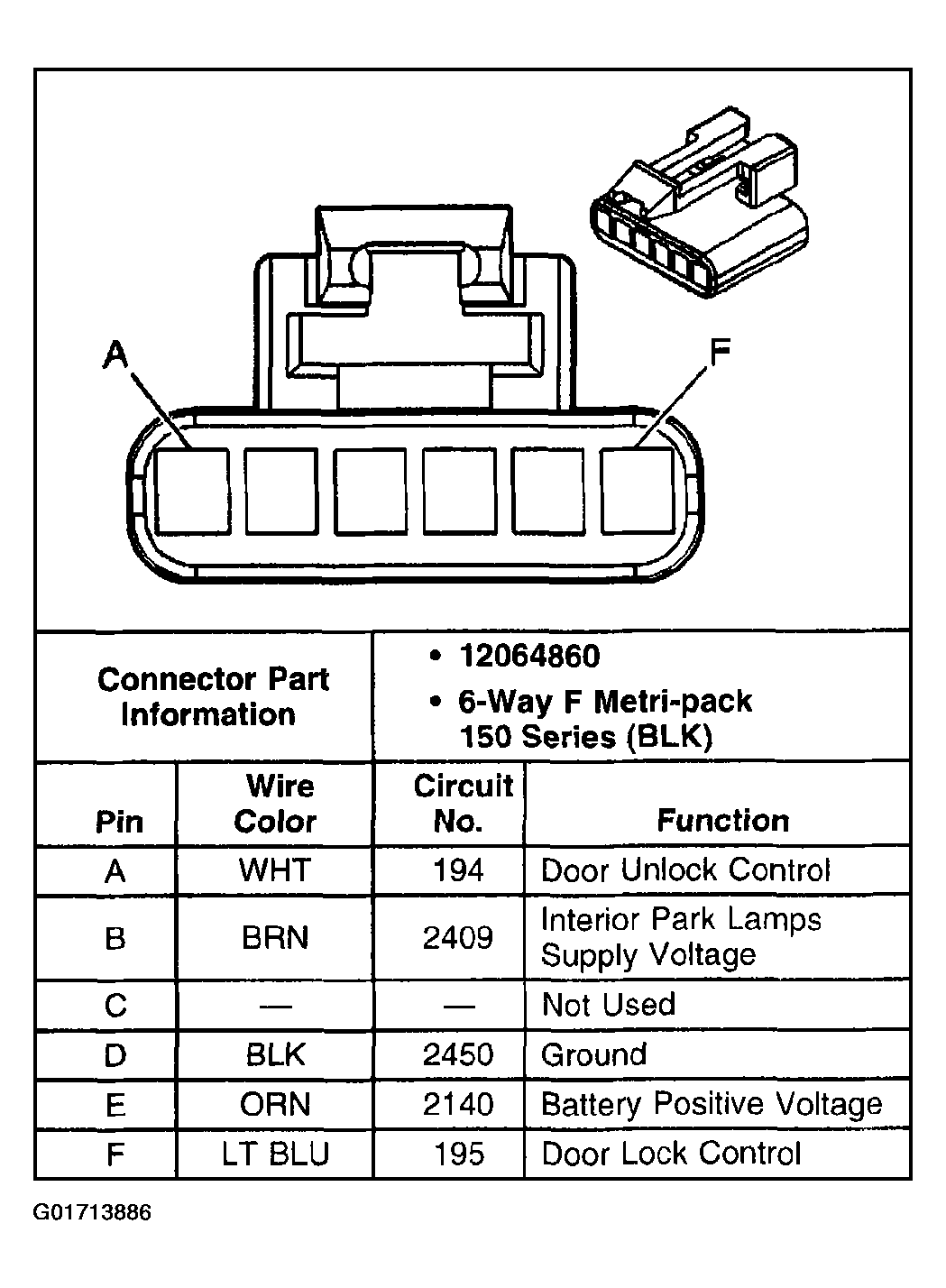

Fig 4: Identifying Door Lock Switch Connector End View - Front Passenger Side (Base)
G01713886Courtesy of GENERAL MOTORS CORP.

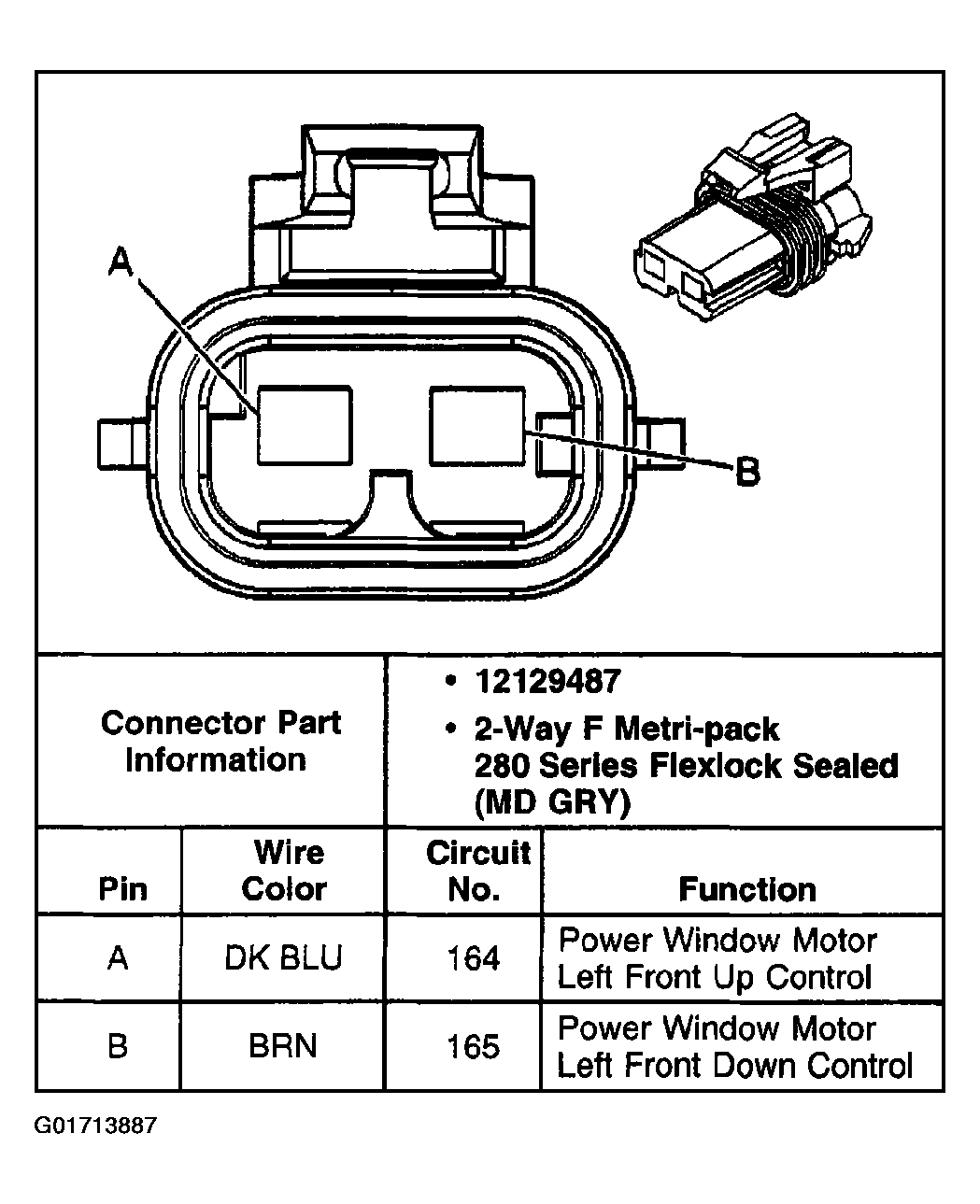

Fig 5: Identifying Window Motor Connector End View - Driver
G01713887Courtesy of GENERAL MOTORS CORP.

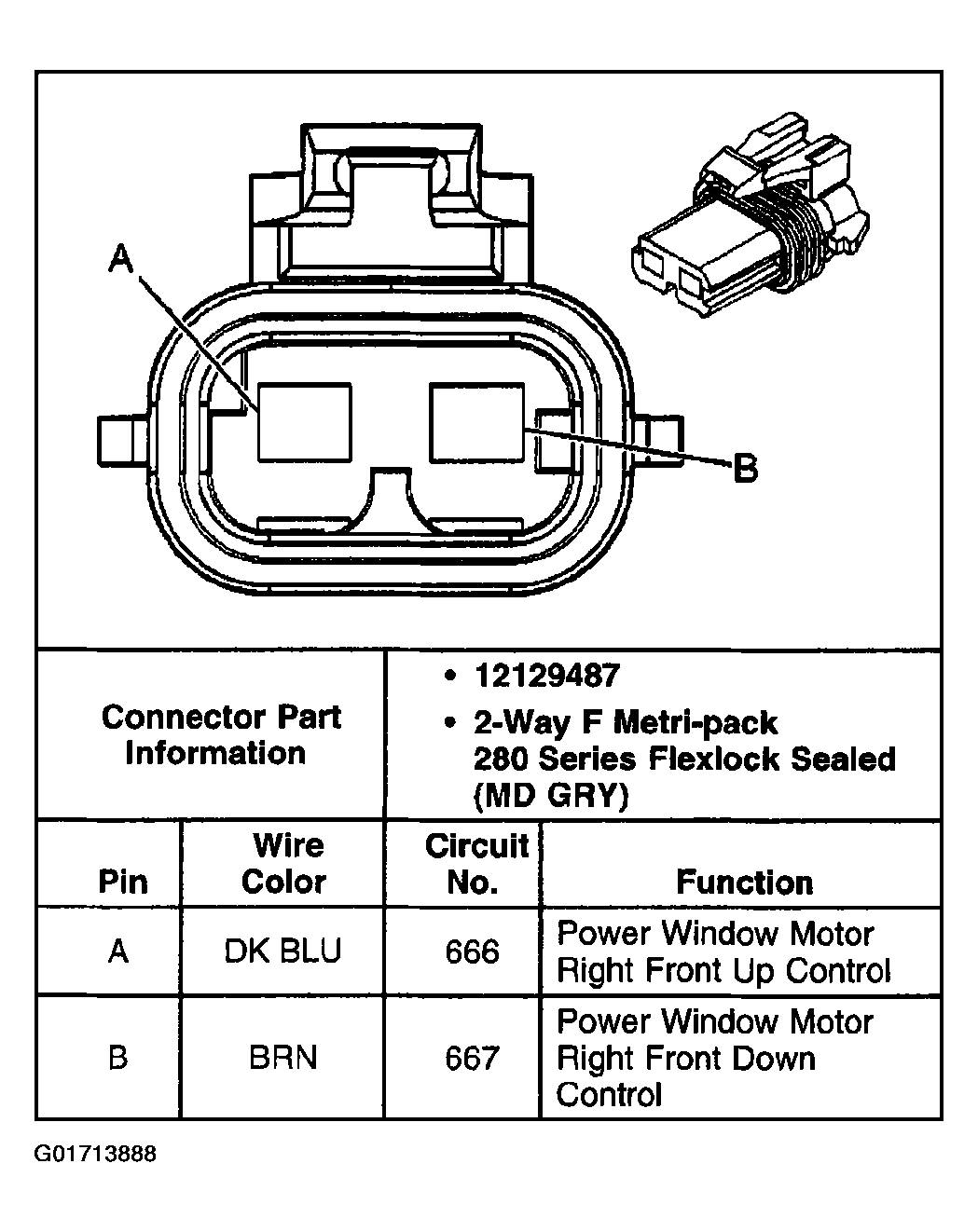

Fig 6: Identifying Window Motor Connector End View - Front Passenger Side
G01713888Courtesy of GENERAL MOTORS CORP.

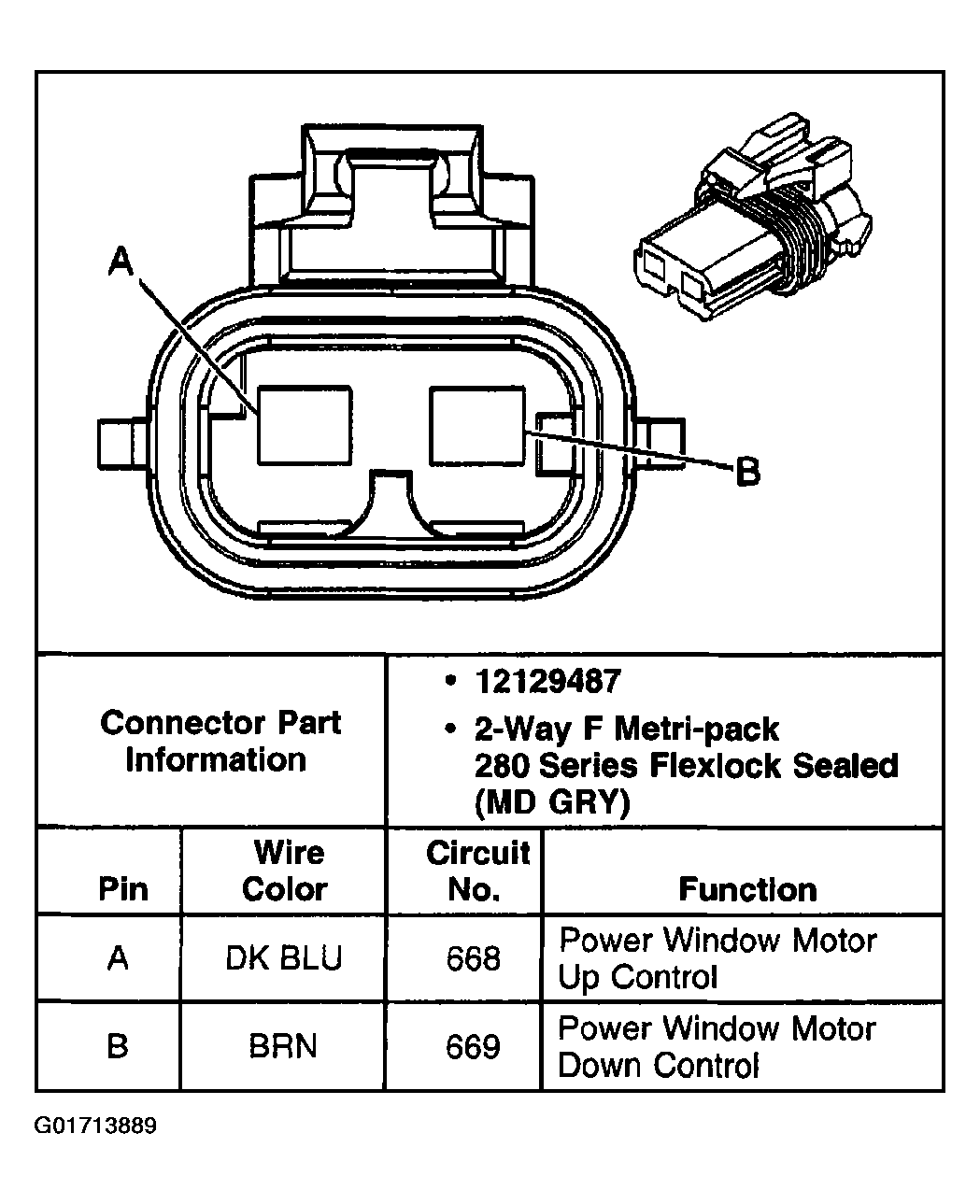

Fig 7: Identifying Window Motor LR/RR Connector End View
G01713889Courtesy of GENERAL MOTORS CORP.

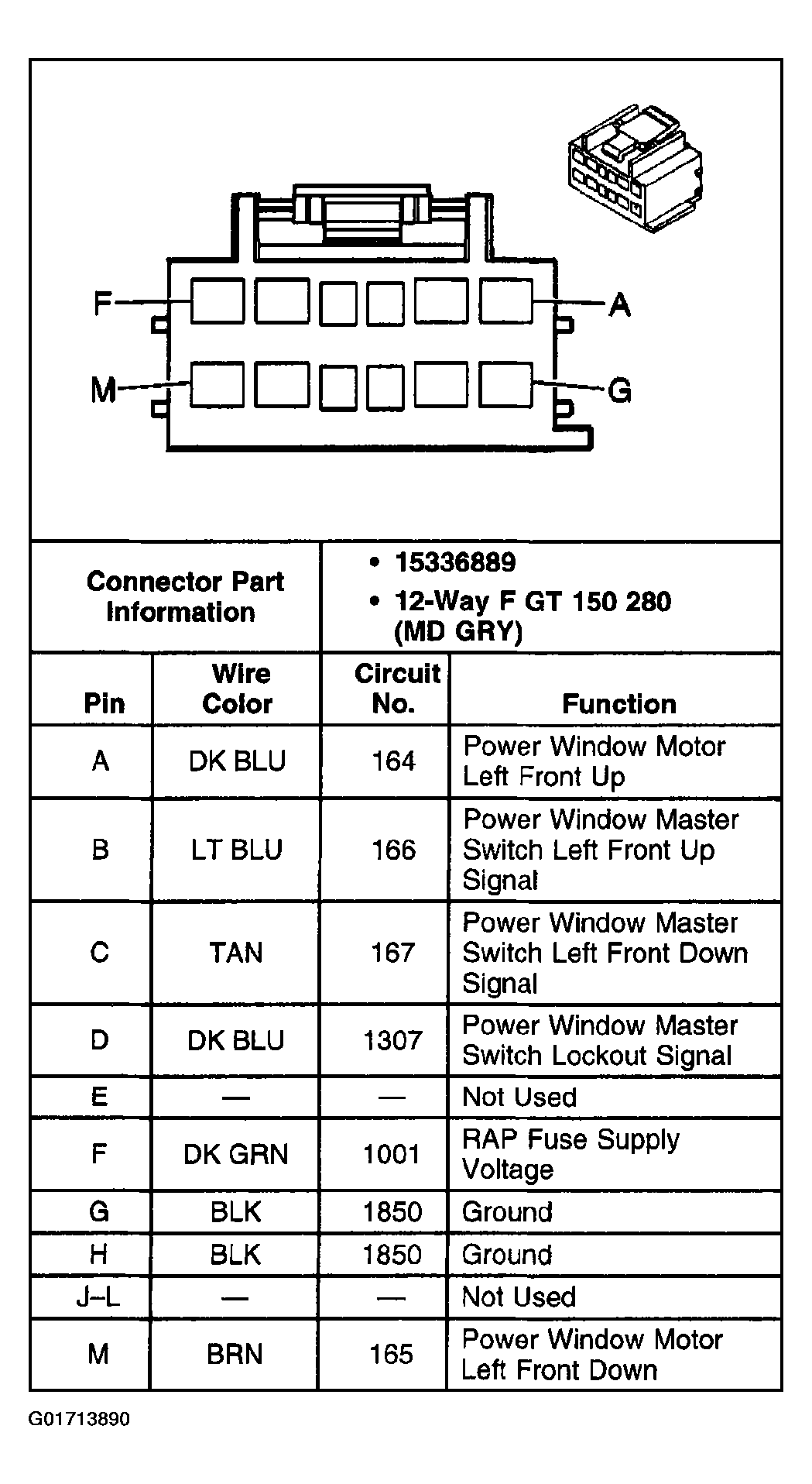

Fig 8: Identifying Window/Door Lock Switch Connector End View - Driver Side Except 4-Door C1
G01713890Courtesy of GENERAL MOTORS CORP.

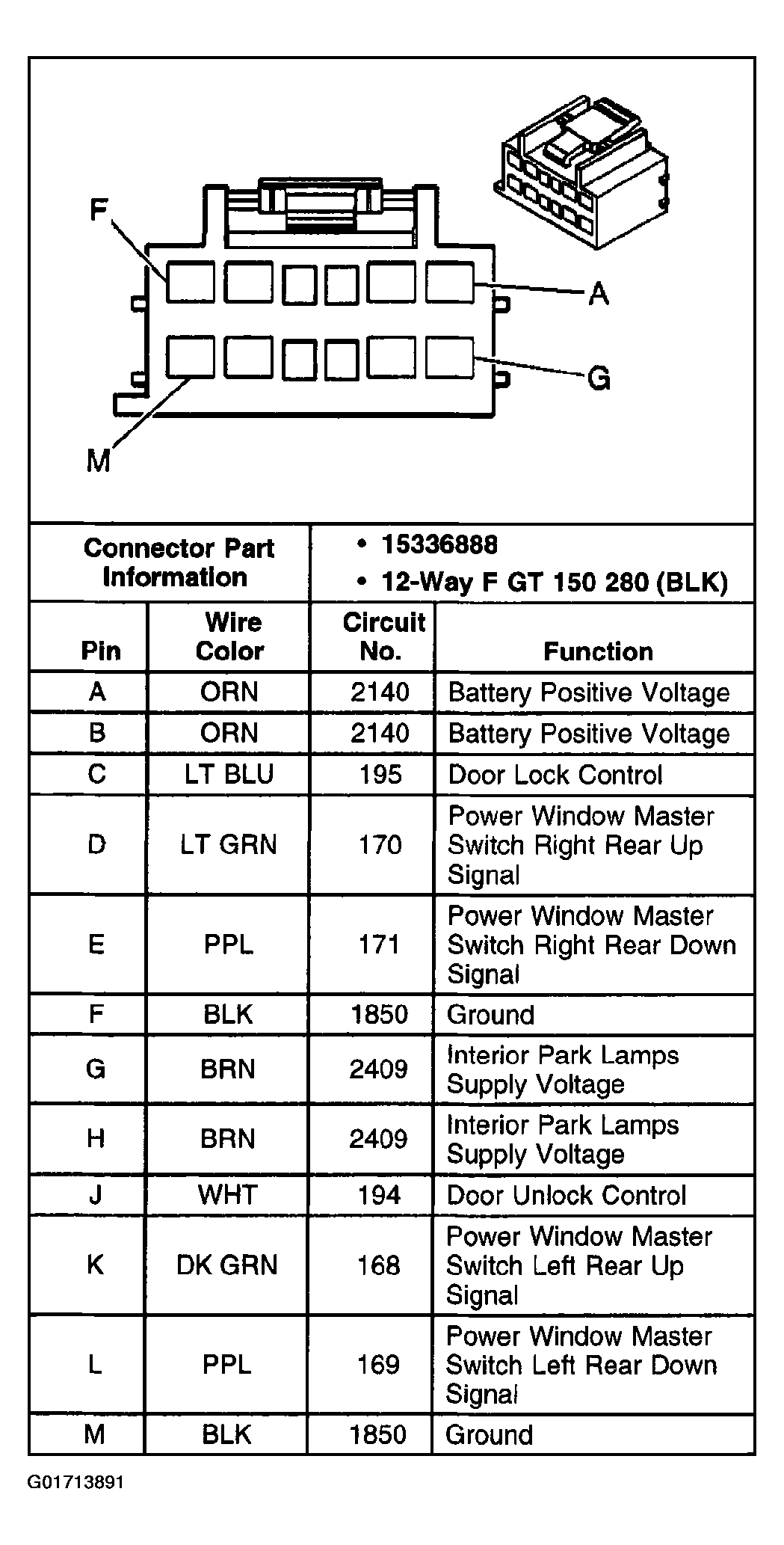

Fig 9: Identifying Window/Door Lock Switch Connector End View - Driver Side 4-Door C1
G01713891Courtesy of GENERAL MOTORS CORP.

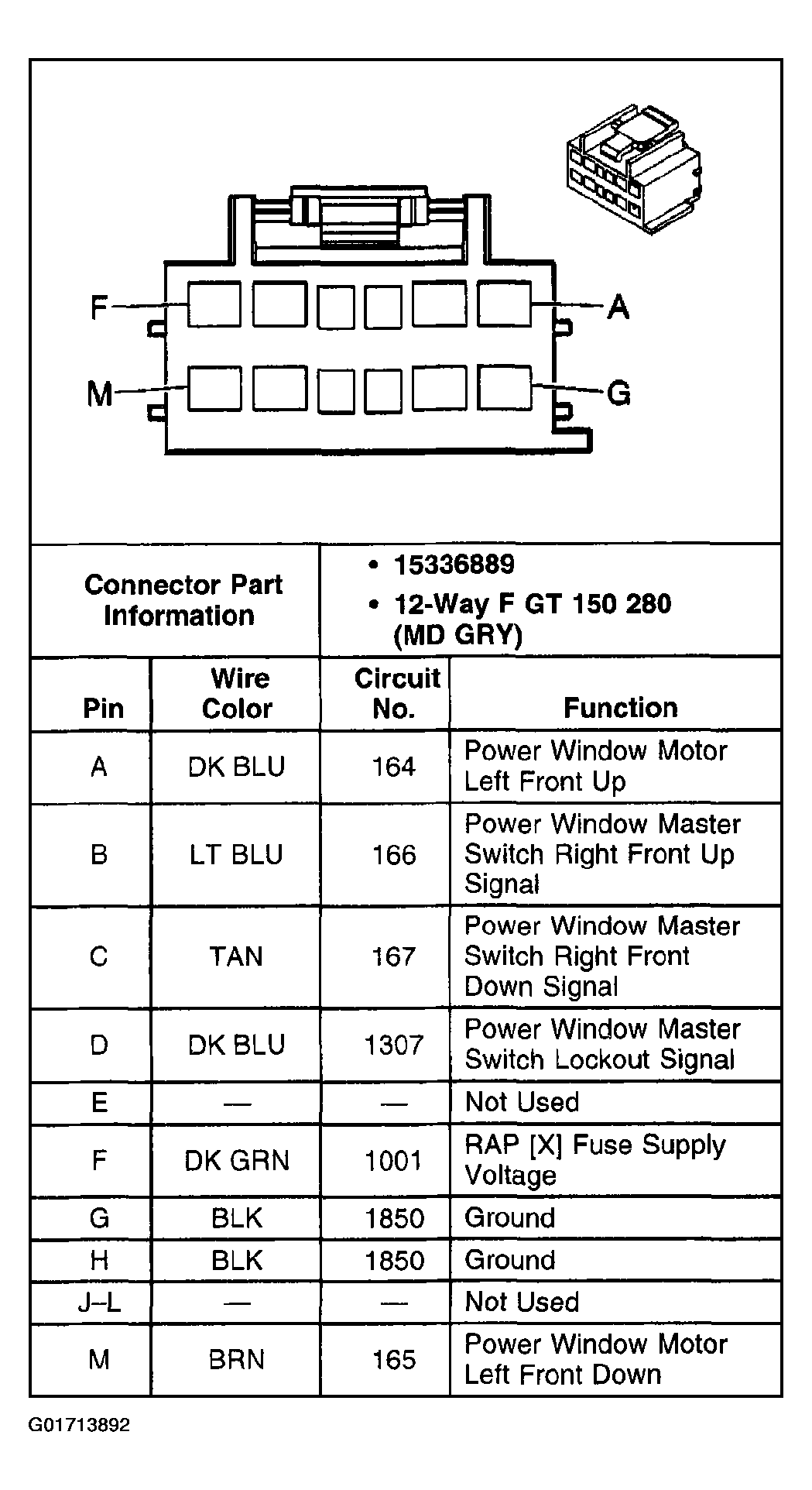

Fig 10: Identifying Window/Door Lock Switch Connector End View - Driver Side Except 4-Door C2
G01713892Courtesy of GENERAL MOTORS CORP.

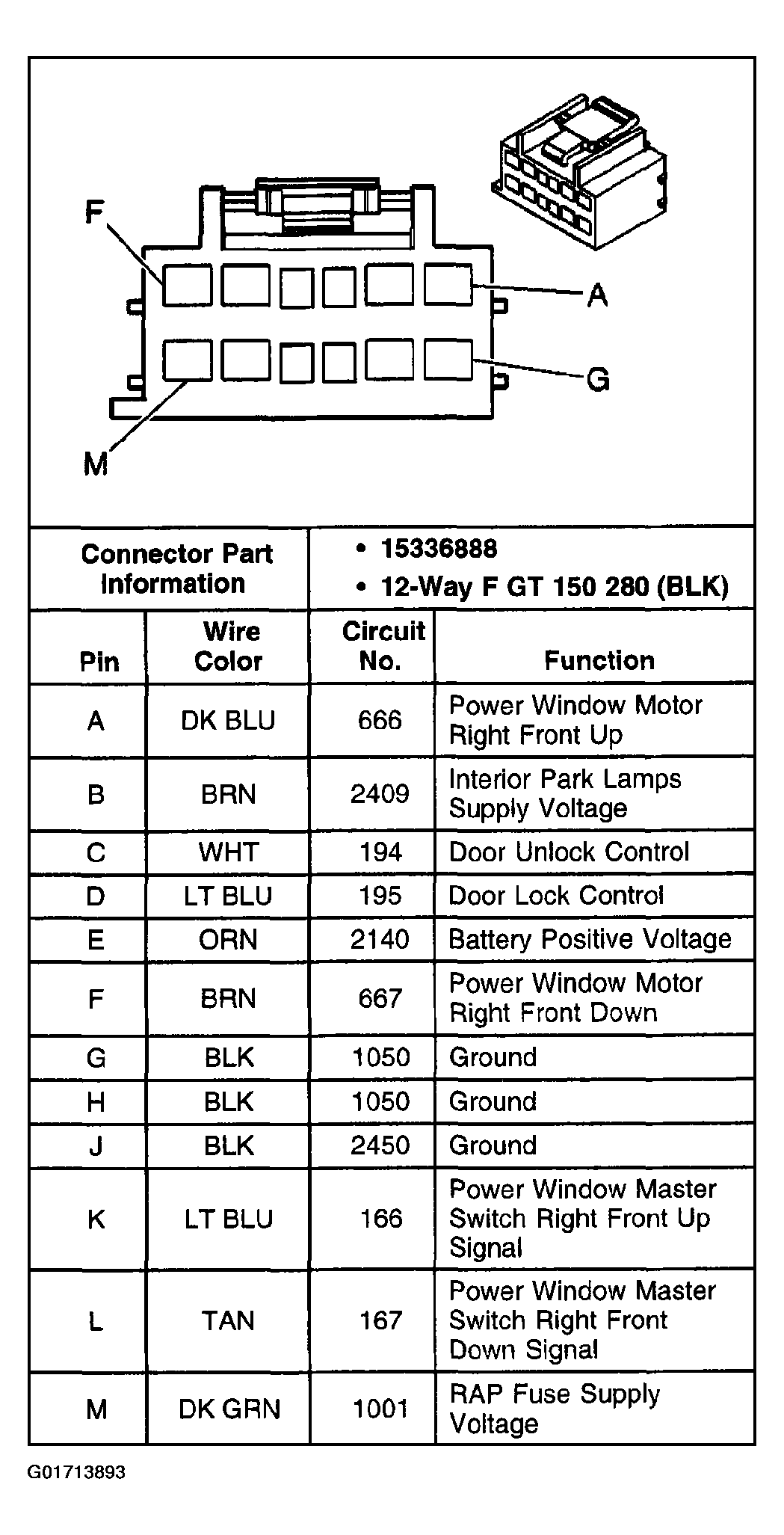

Fig 11: Identifying Window/Door Lock Switch Connector End View - Front Passenger Side
G01713893Courtesy of GENERAL MOTORS CORP.

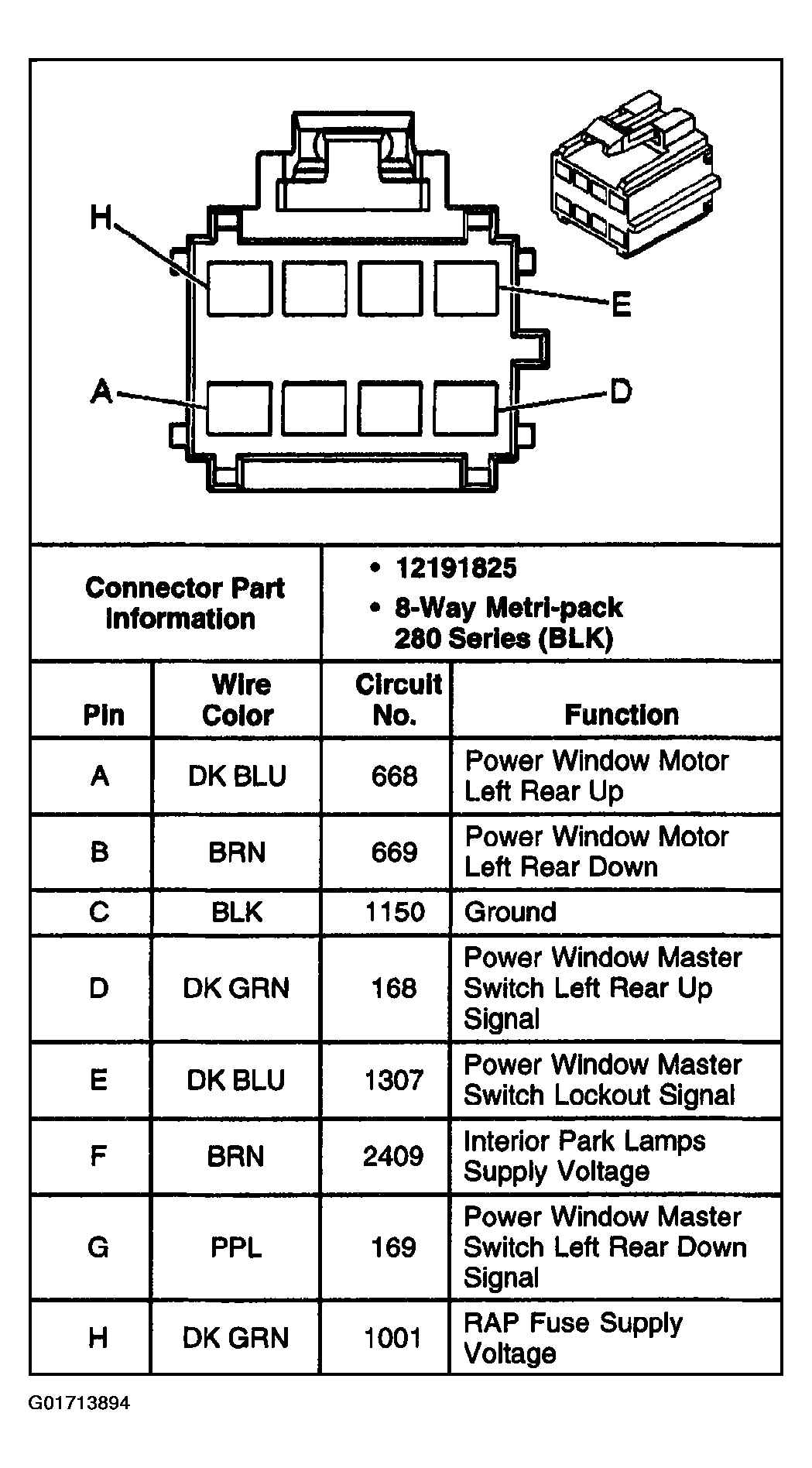

Fig 12: Identifying Window Switch, LR Connector End View
G01713894Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Window Switch, RR Connector End View
G01713895Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Outside Rearview Mirror Switch Connector End View
G01713896Courtesy of GENERAL MOTORS CORP.

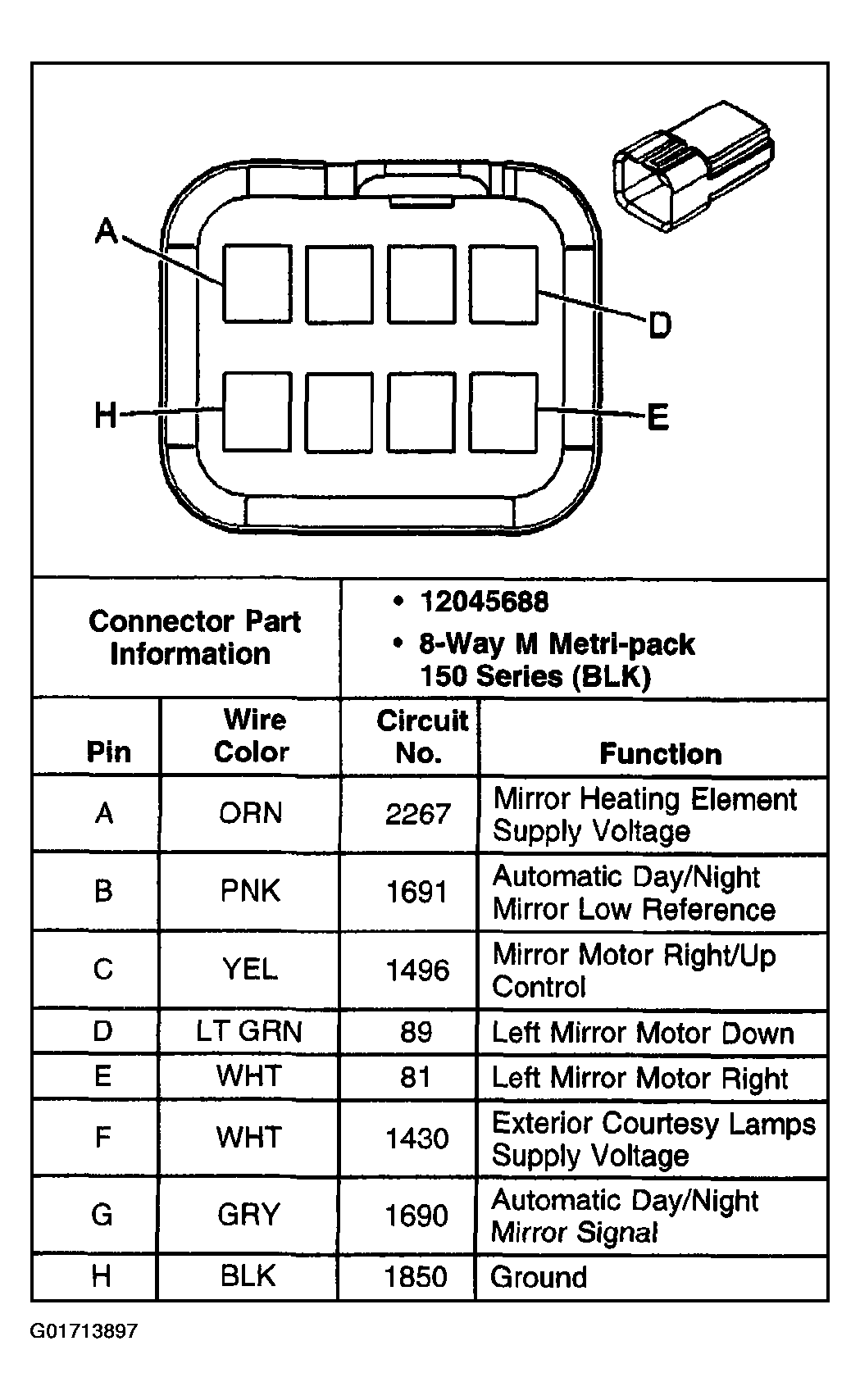

Fig 15: Identifying Outside Rearview Mirror Connector End View - Driver Side
G01713897Courtesy of GENERAL MOTORS CORP.

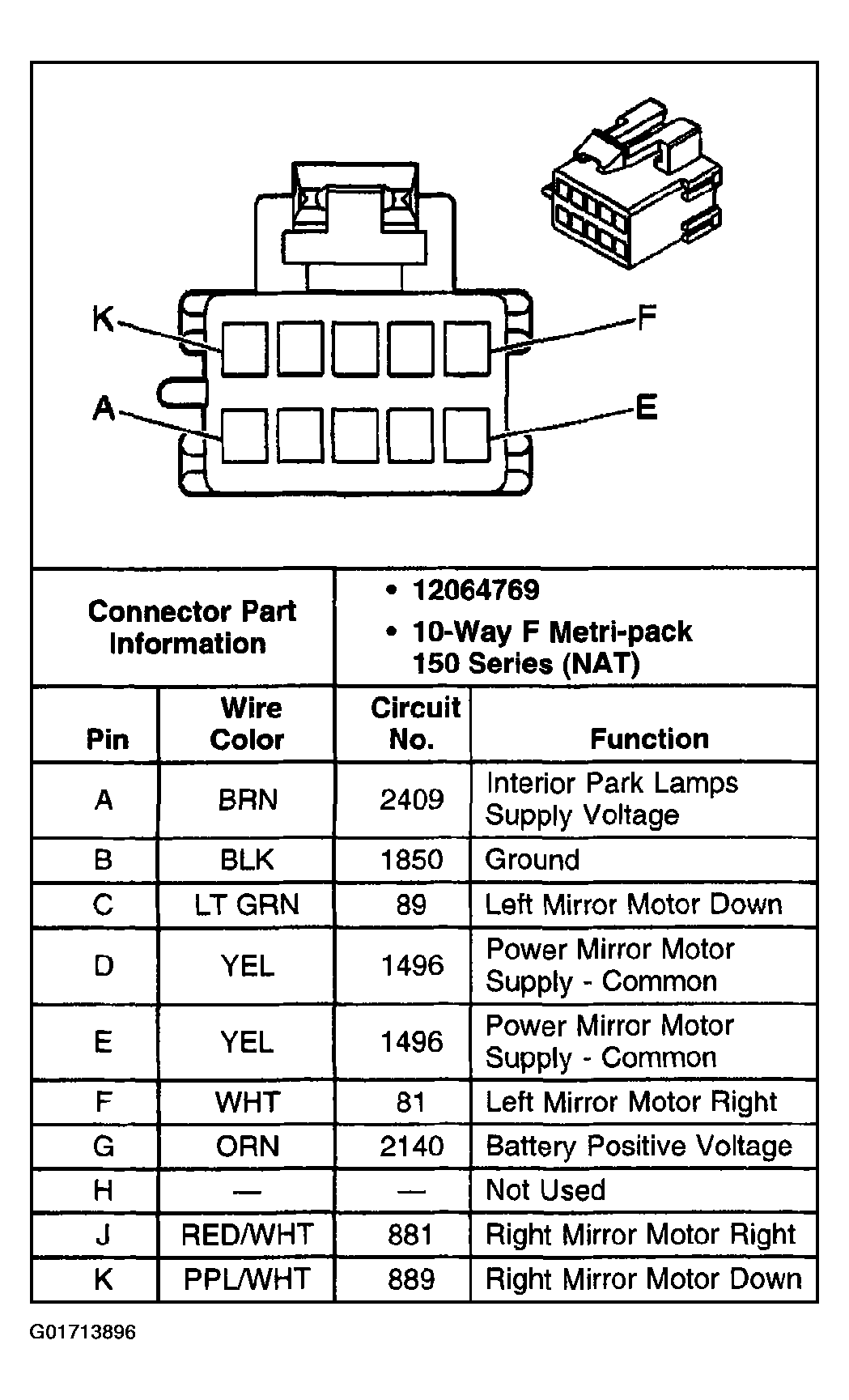

Fig 16: Identifying Outside Rearview Mirror Connector End View - Passenger Side
G01713898Courtesy of GENERAL MOTORS CORP.
