Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  2. Disconnect the power window switch electrical connector.
  3. Remove the screws from the window switch.
  4. Remove the switch from the switch panel by lifting the rear of the switch and sliding the switch out from the switch panel.

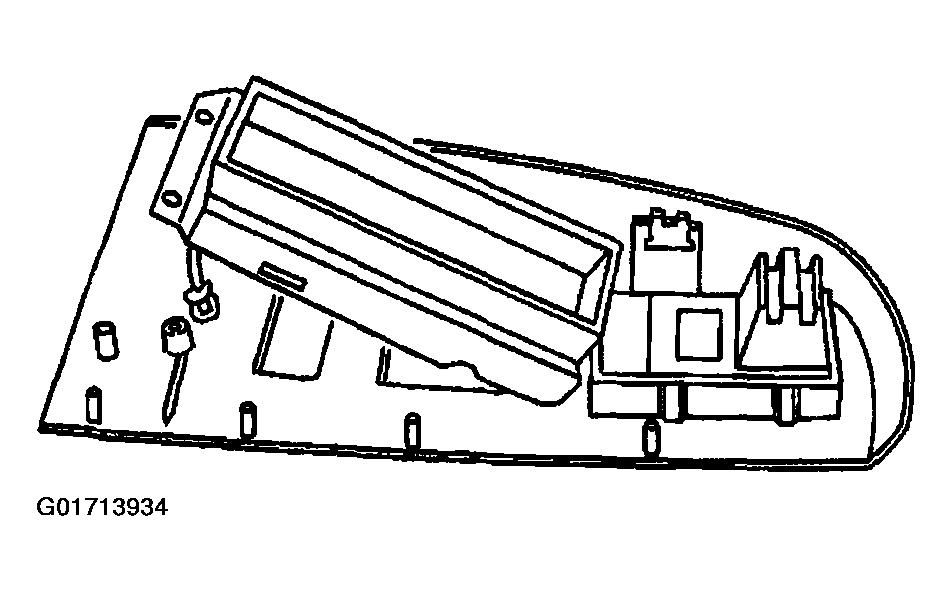

    Fig 1: Removing Switch From Switch Panel
    G01713934Courtesy of GENERAL MOTORS CORP.
