Power Seat Systems Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

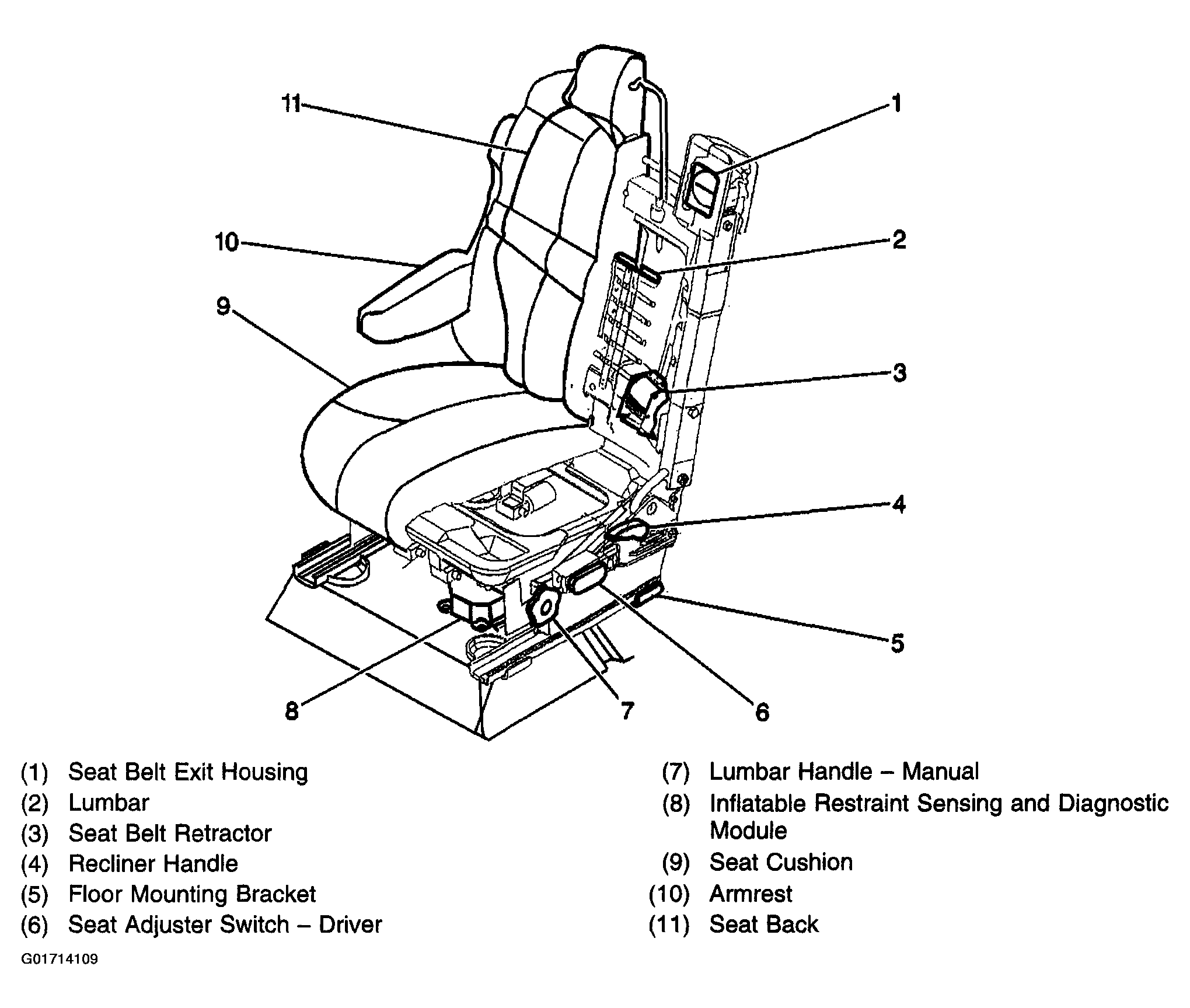

Fig 1: Identifying LH Front Seat Electrical Components - Mid Level; RH Similar

Courtesy of GENERAL MOTORS CORP.

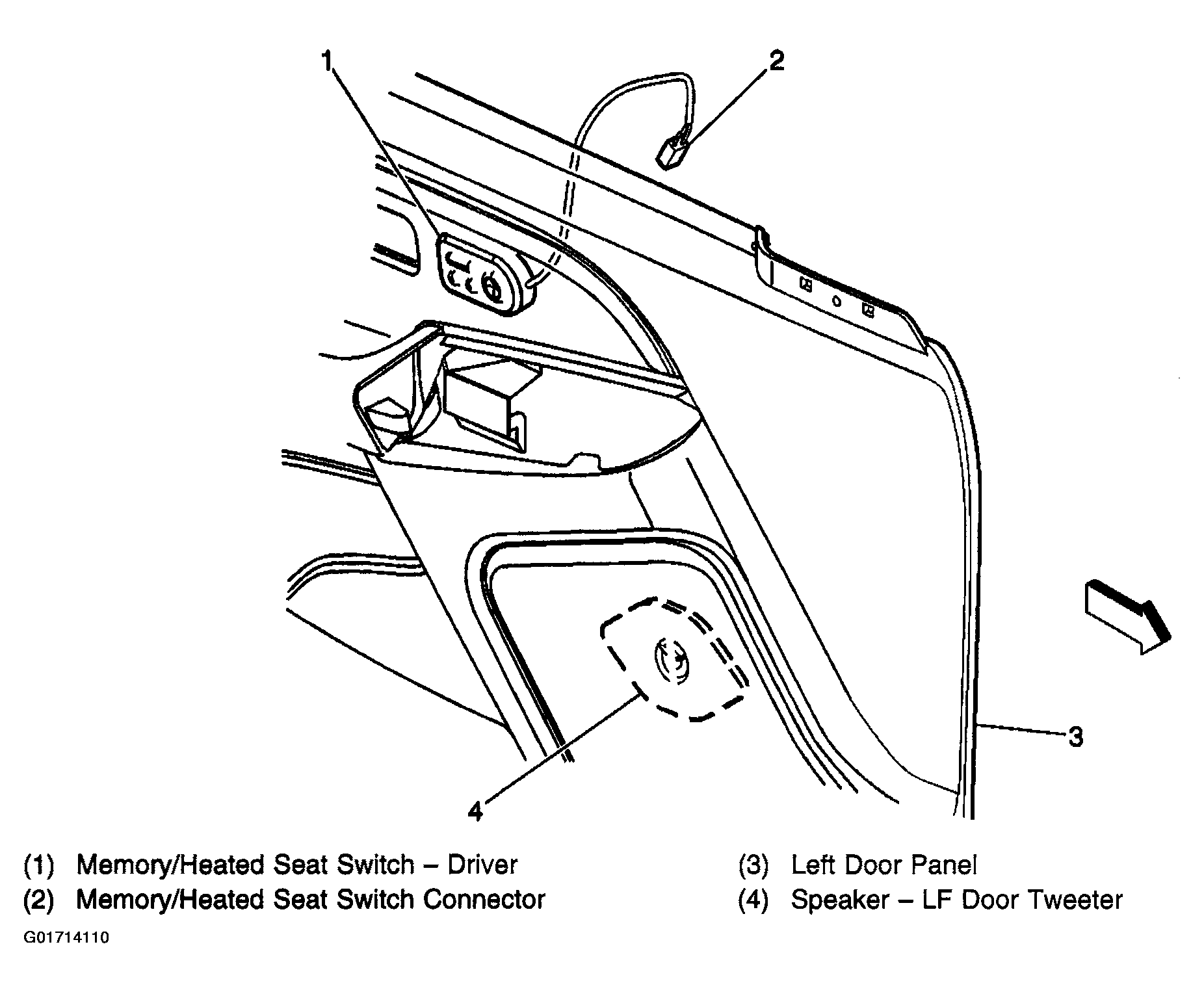

Fig 2: Identifying Left Door Panel Electrical Components (RH Similar)

Courtesy of GENERAL MOTORS CORP.

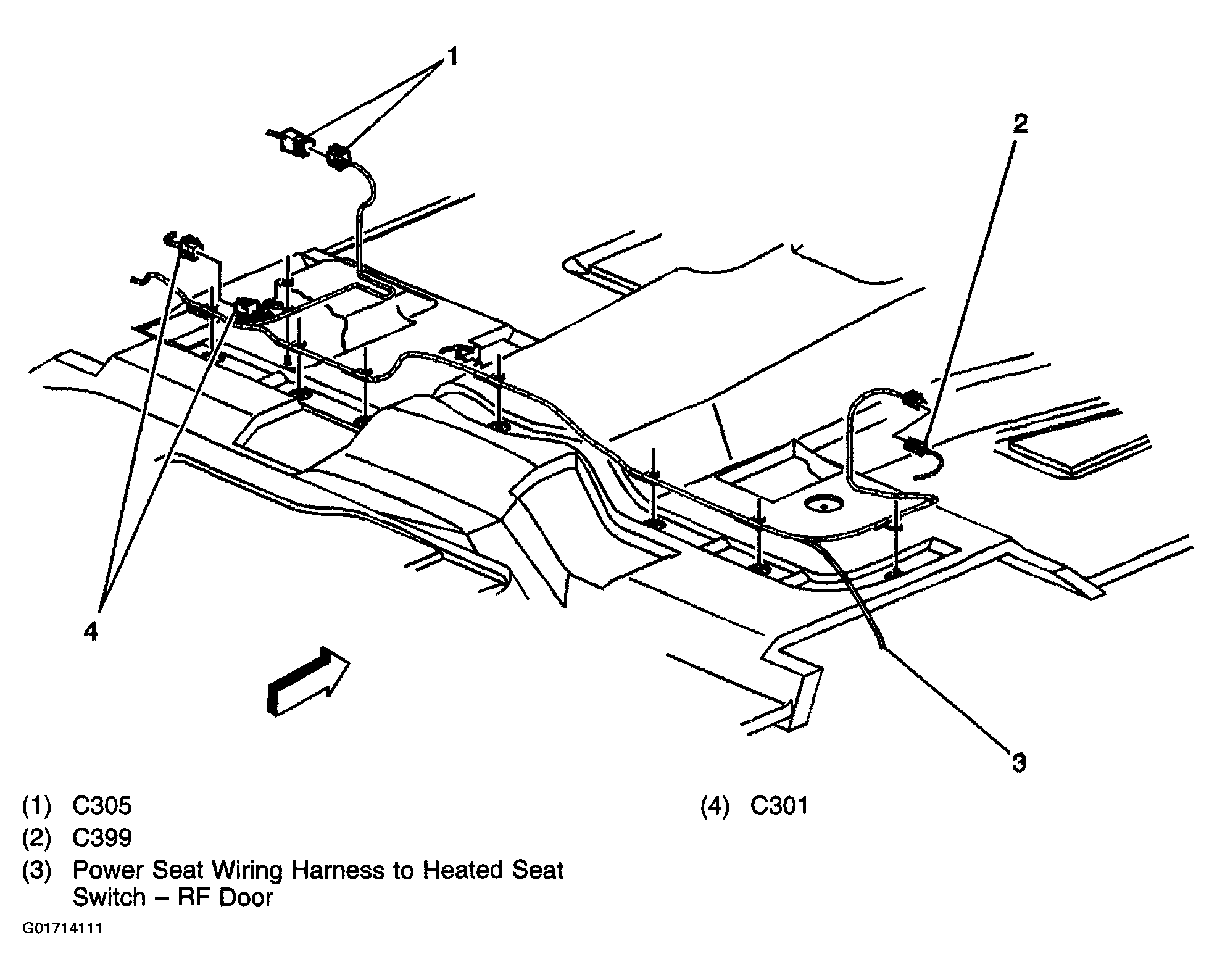

Fig 3: Identifying Driver/Passenger Power Seat Wiring

Courtesy of GENERAL MOTORS CORP.

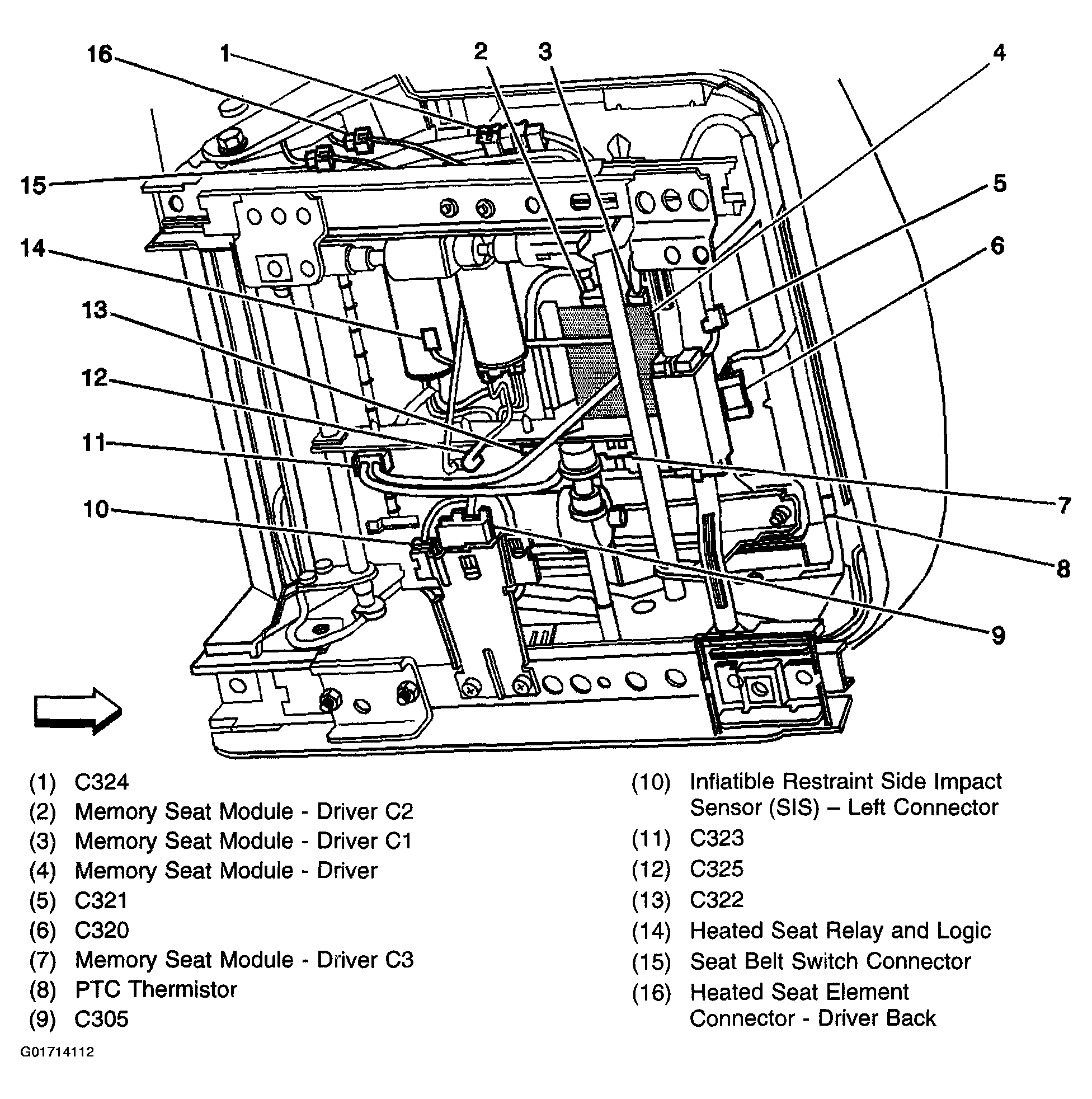

Fig 4: Identifying Driver Seat Electrical Components - Luxury Full Feature Seat (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

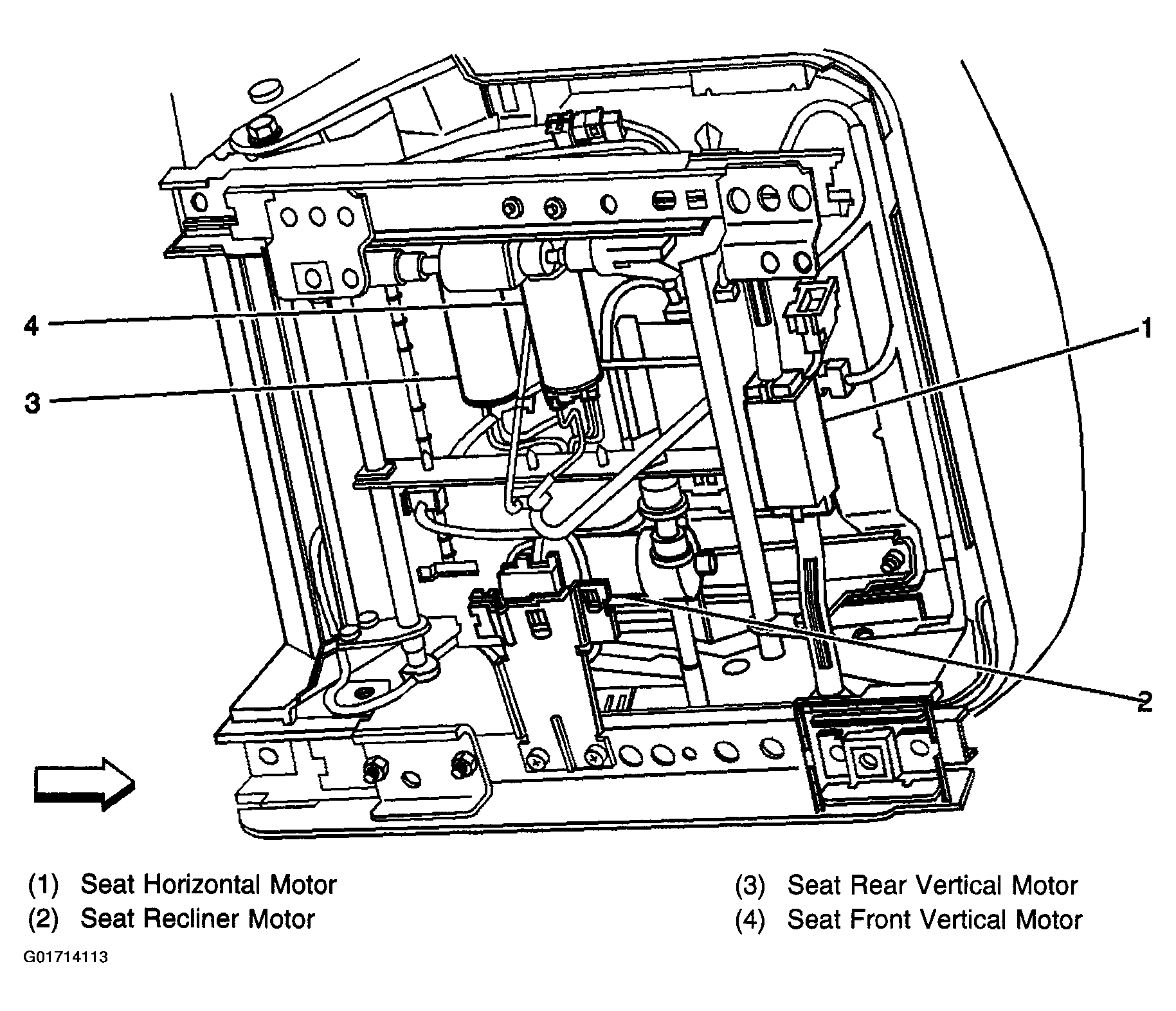

Fig 5: Identifying Driver Seat Electrical Components - Luxury Full Feature Seat (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
