Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

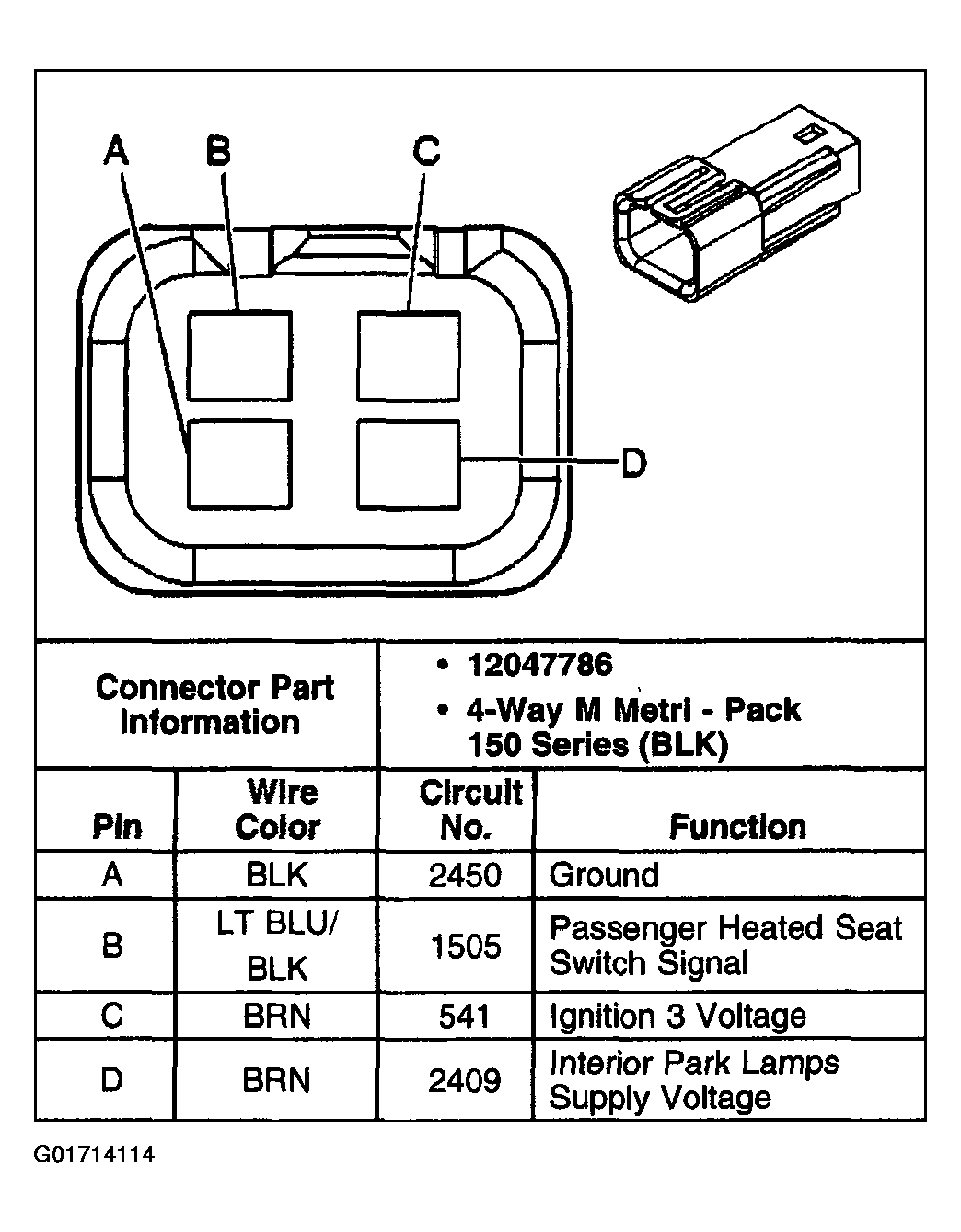

Fig 1: Identifying Heated Seat Switch - Front Passenger Connector Terminals

G01714114

Courtesy of GENERAL MOTORS CORP.

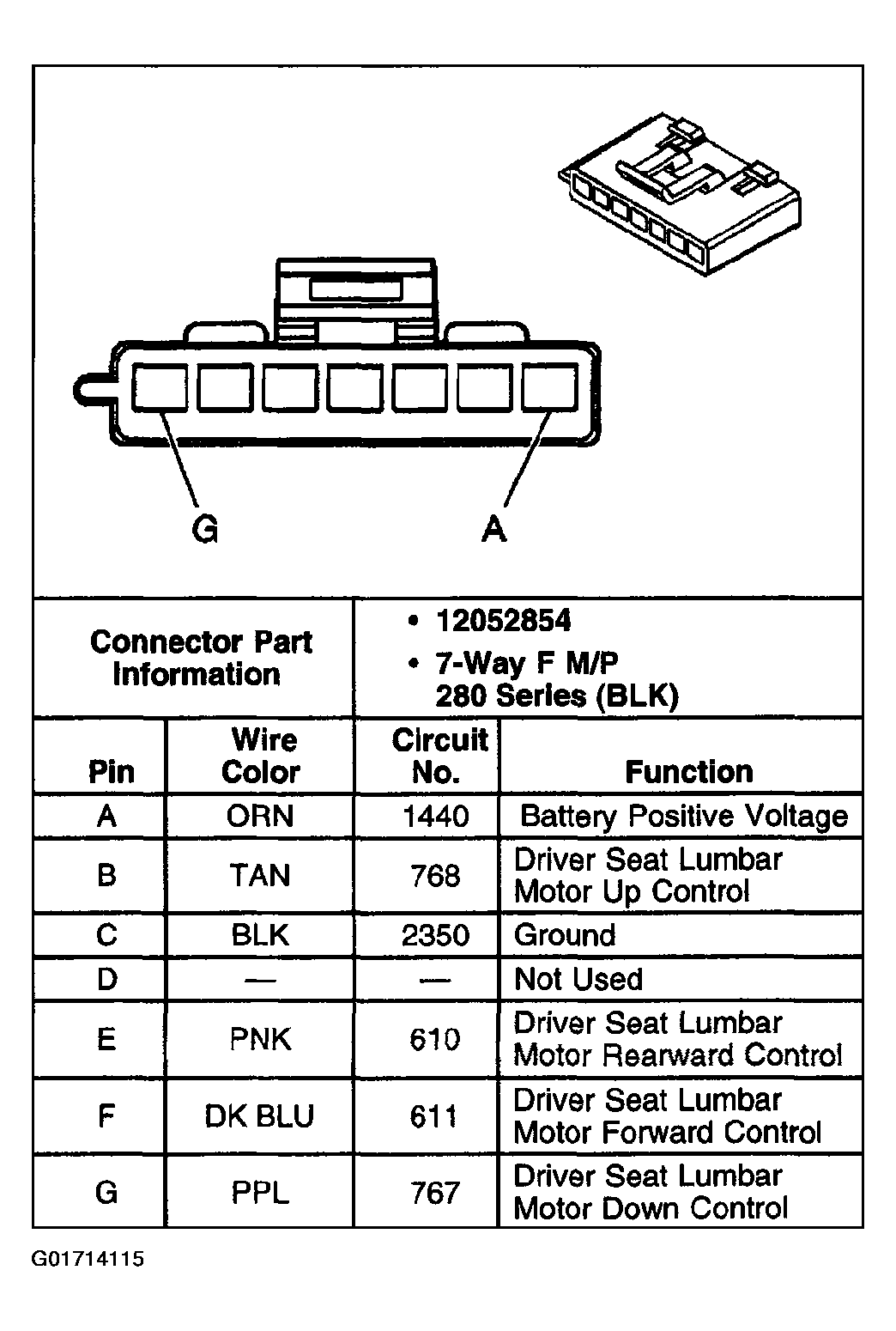

Fig 2: Identifying Lumbar/Bolster Switch - Driver Connector Terminals

G01714115

Courtesy of GENERAL MOTORS CORP.

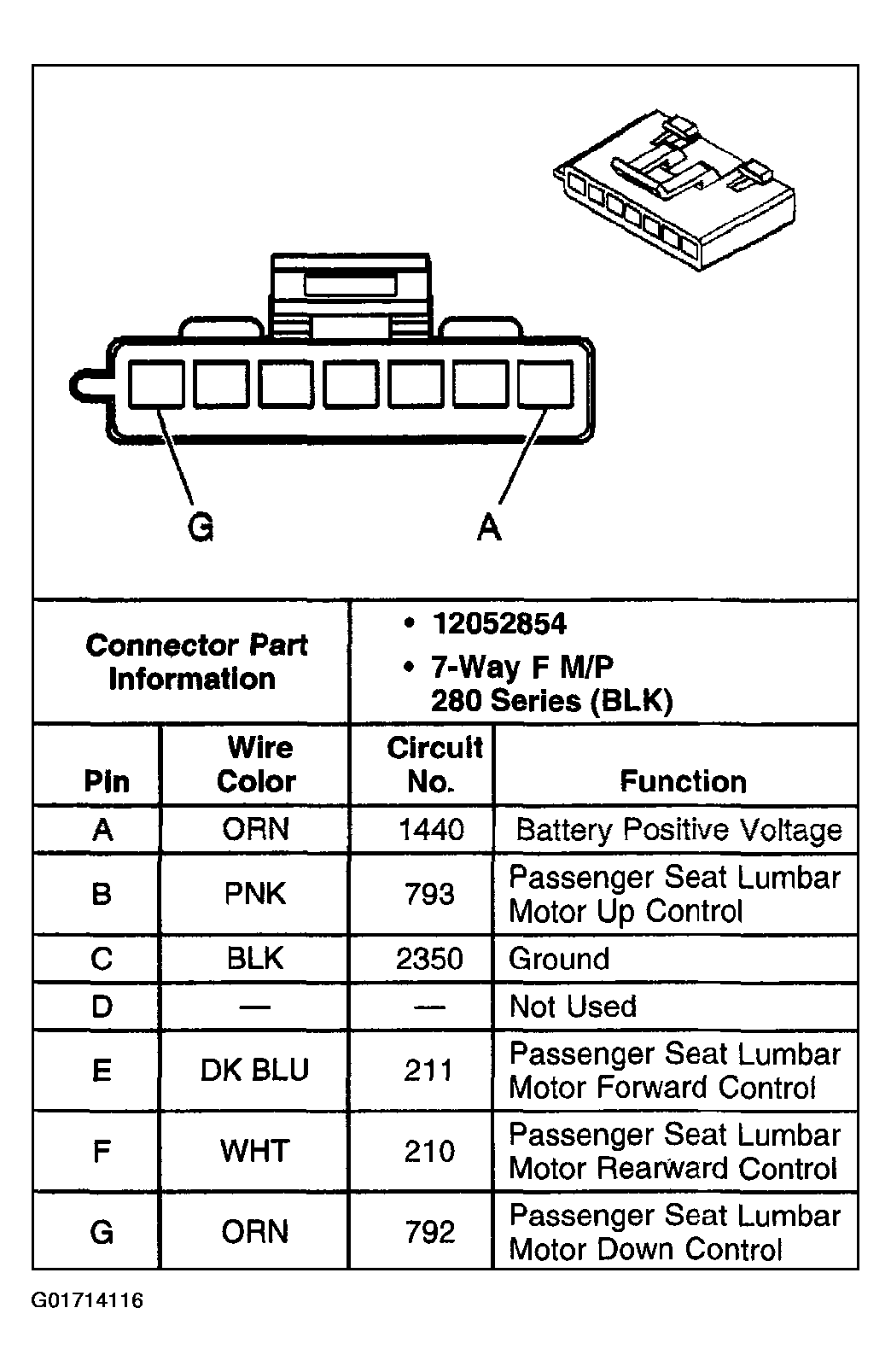

Fig 3: Identifying Lumbar/Bolster Switch - Front Passenger Connector Terminals

G01714116

Courtesy of GENERAL MOTORS CORP.

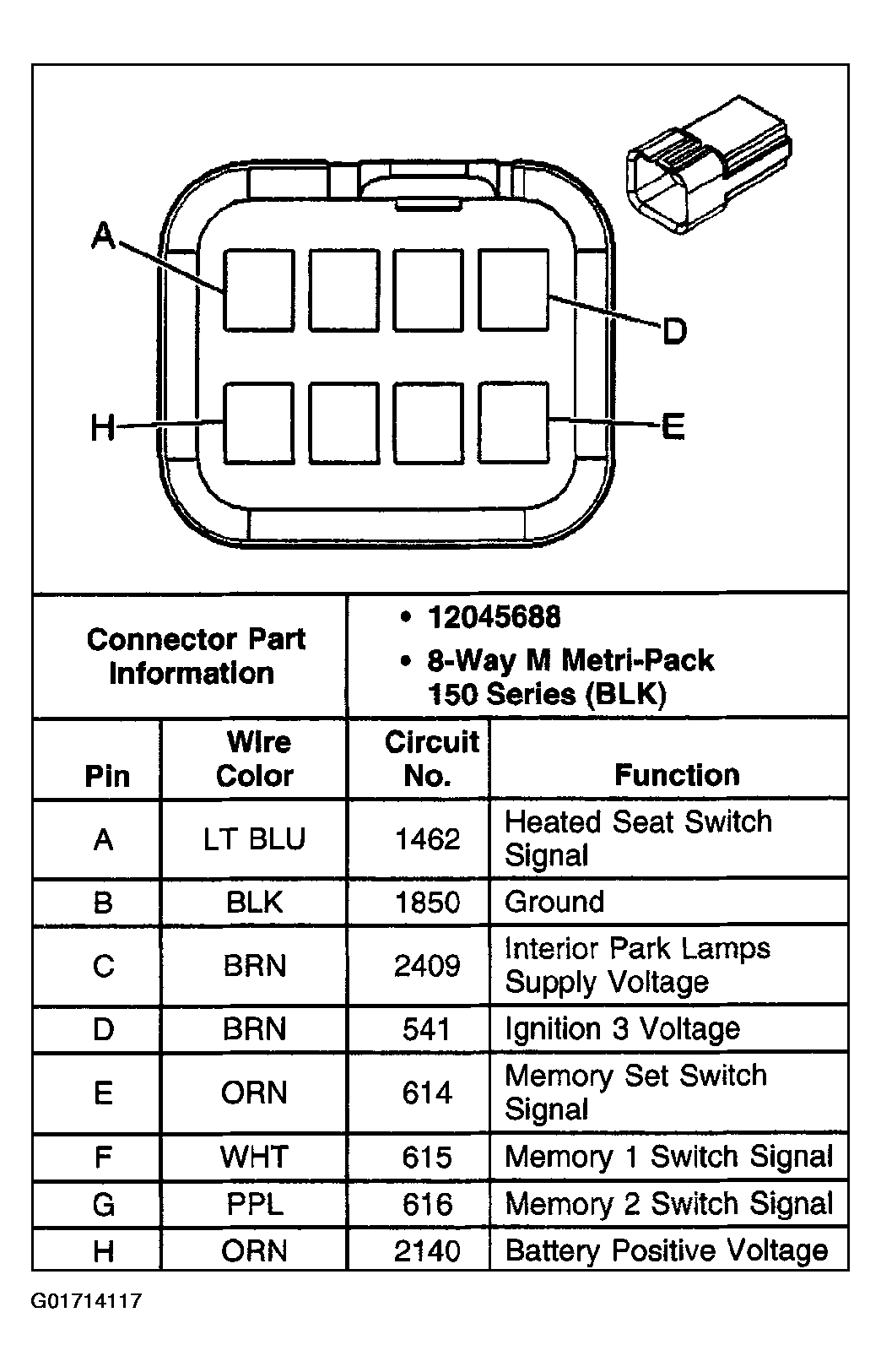

Fig 4: Identifying Memory/Heated Seat Switch - Driver, w/AN3 RPO Code Connector Terminals

G01714117

Courtesy of GENERAL MOTORS CORP.

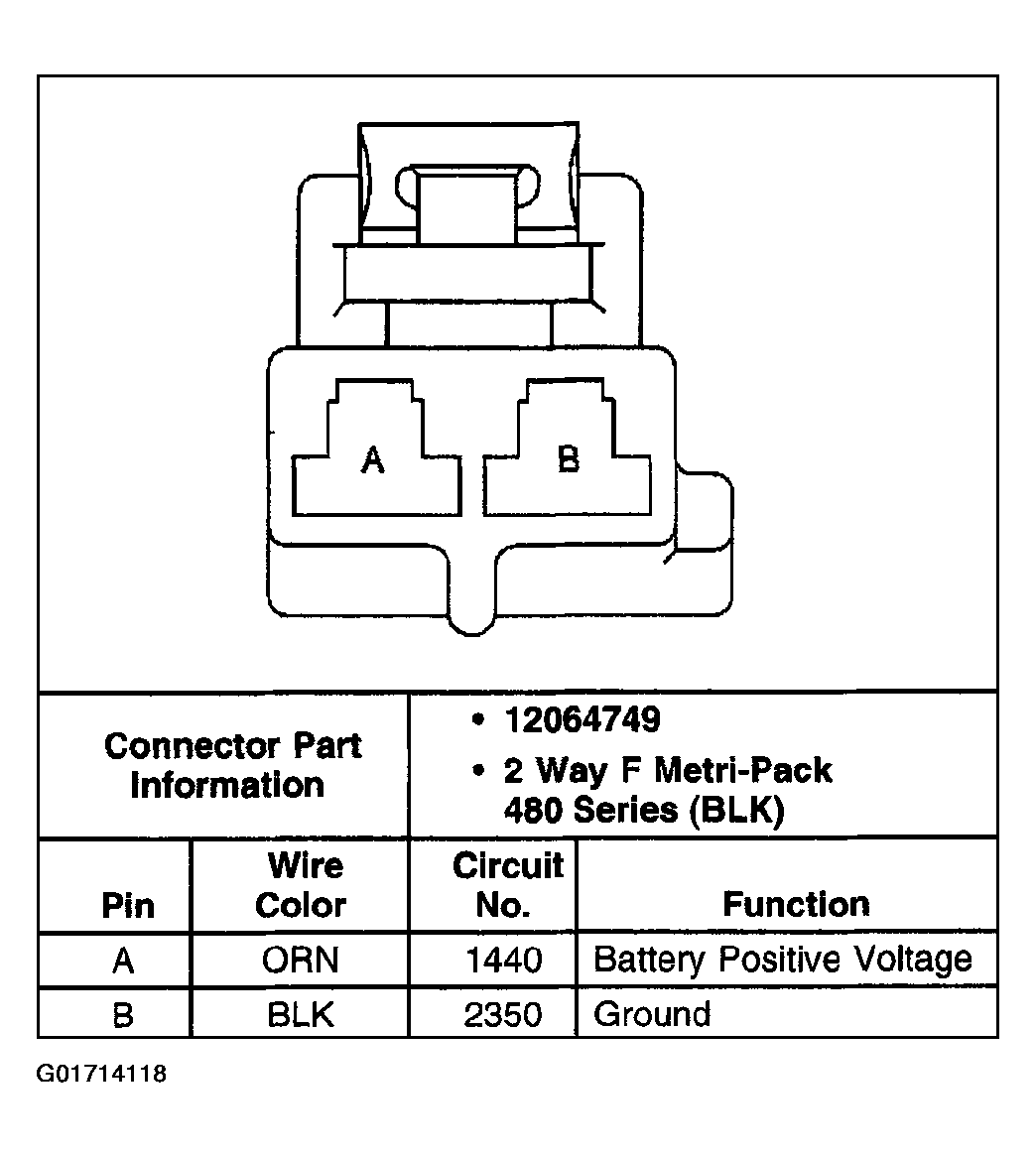

Fig 5: Identifying Memory Seat Module C1 Connector Terminals

G01714118

Courtesy of GENERAL MOTORS CORP.

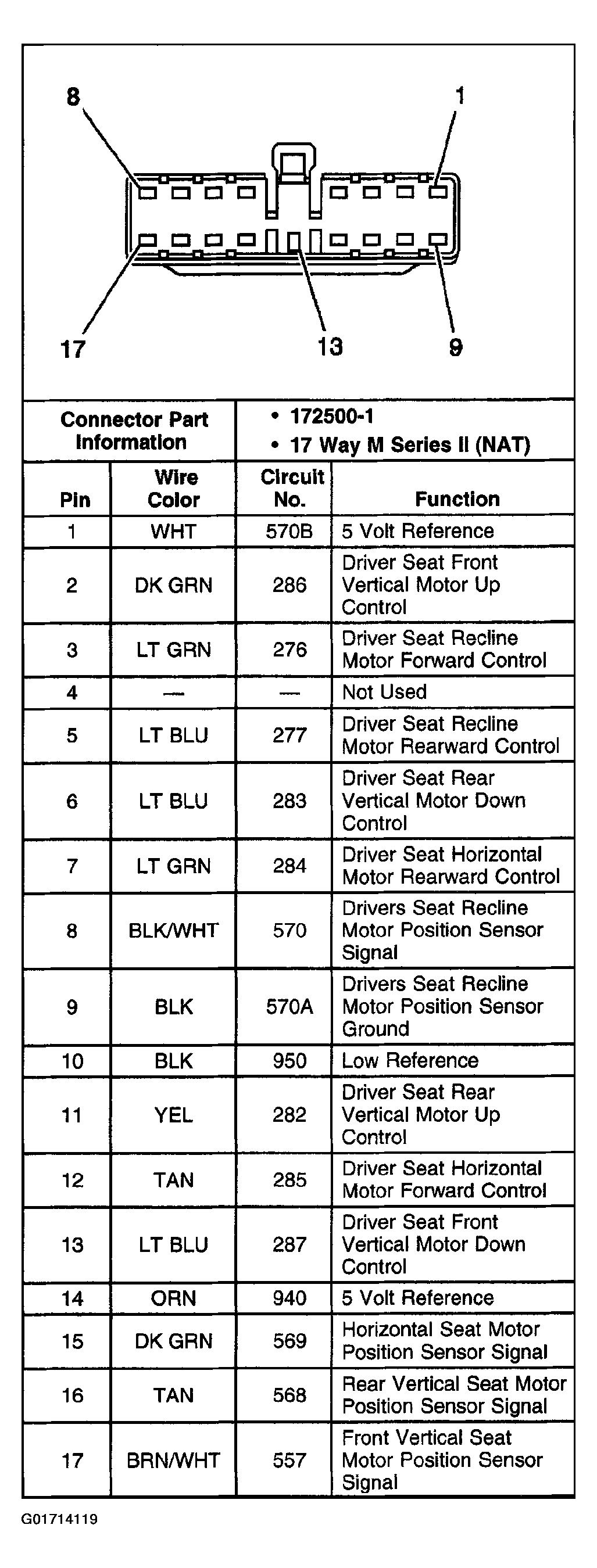

Fig 6: Identifying Memory Seat Module C2 Connector Terminals

G01714119

Courtesy of GENERAL MOTORS CORP.

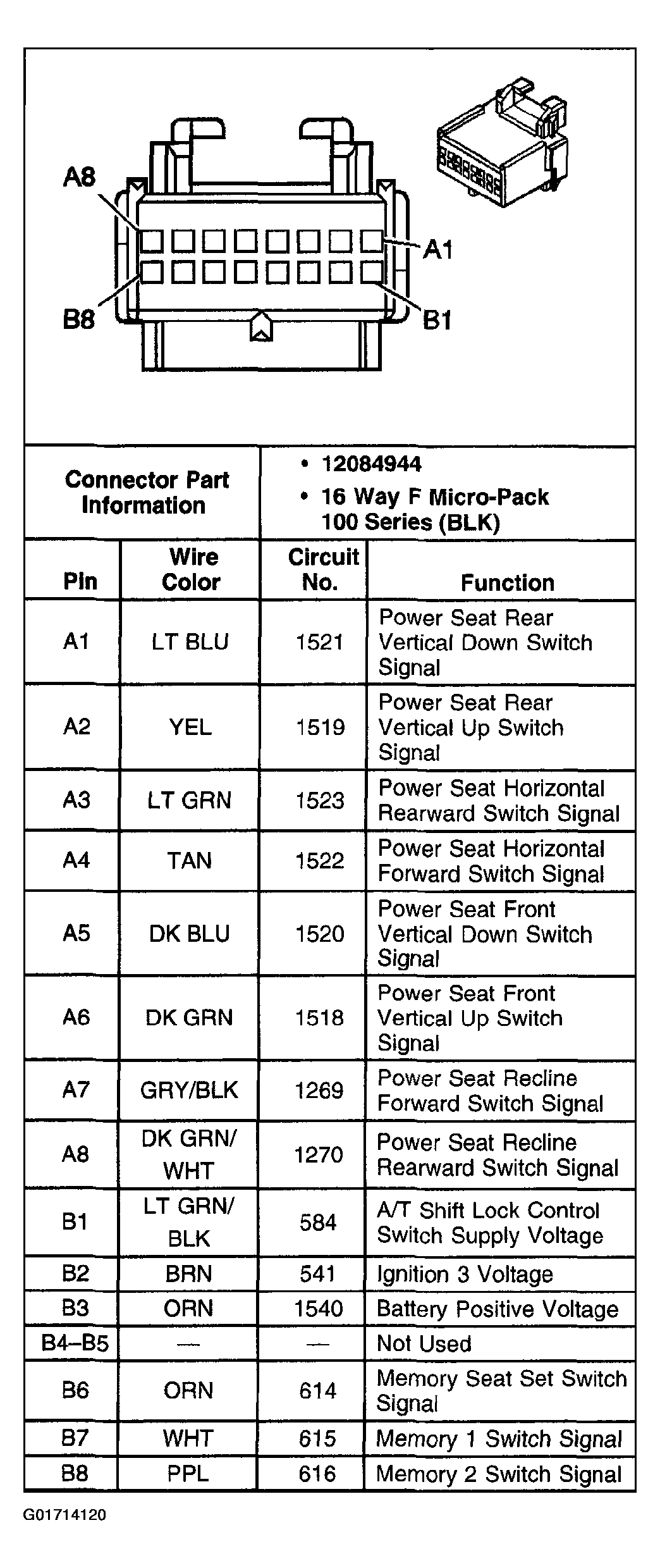

Fig 7: Identifying Memory Seat Module C3 Connector Terminals

G01714120

Courtesy of GENERAL MOTORS CORP.

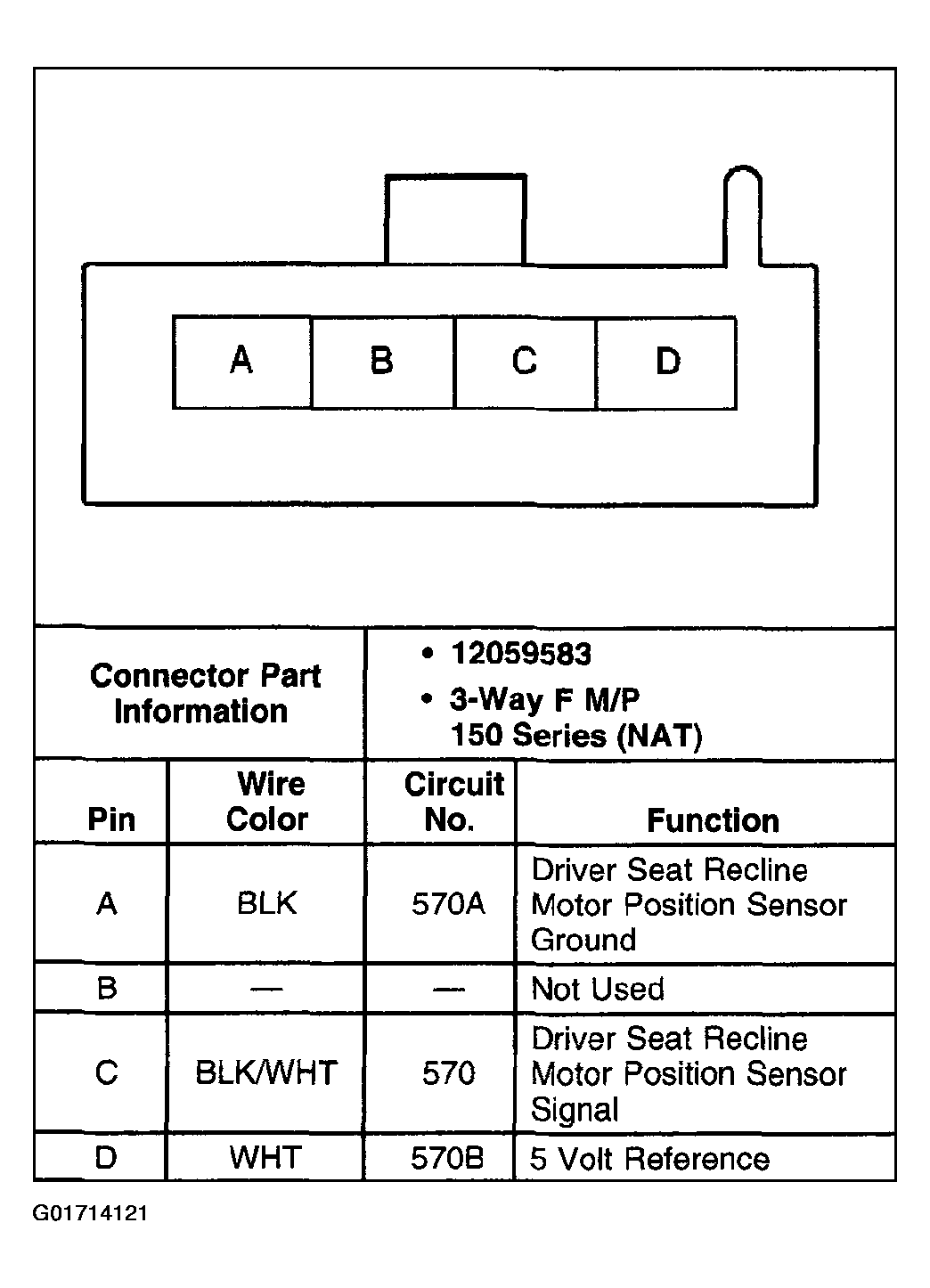

Fig 8: Identifying Seat Recliner Motor Position Sensor - Driver Connector Terminals

G01714121

Courtesy of GENERAL MOTORS CORP.

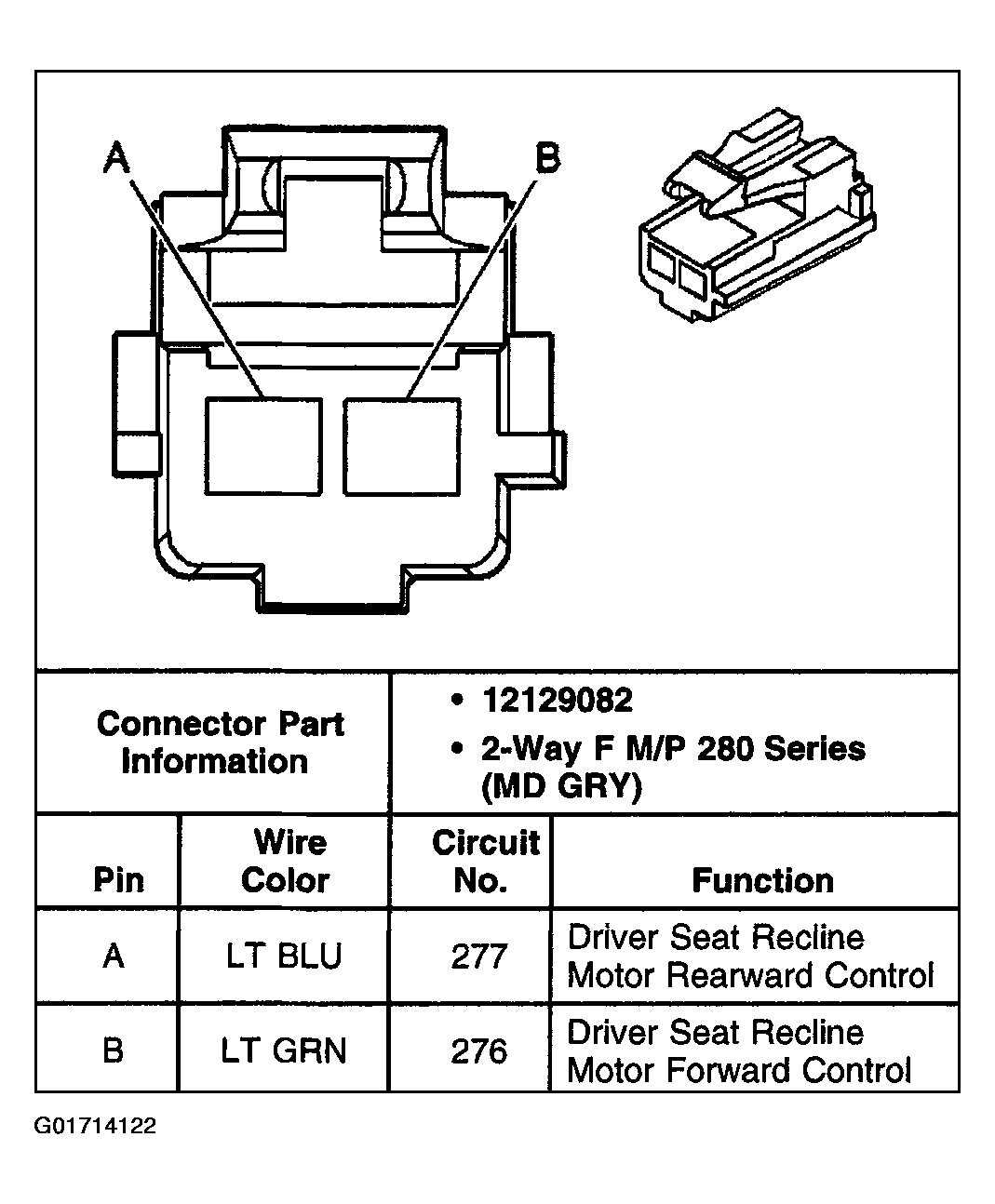

Fig 9: Identifying Seat Recliner Motor - Driver Connector Terminals

G01714122

Courtesy of GENERAL MOTORS CORP.

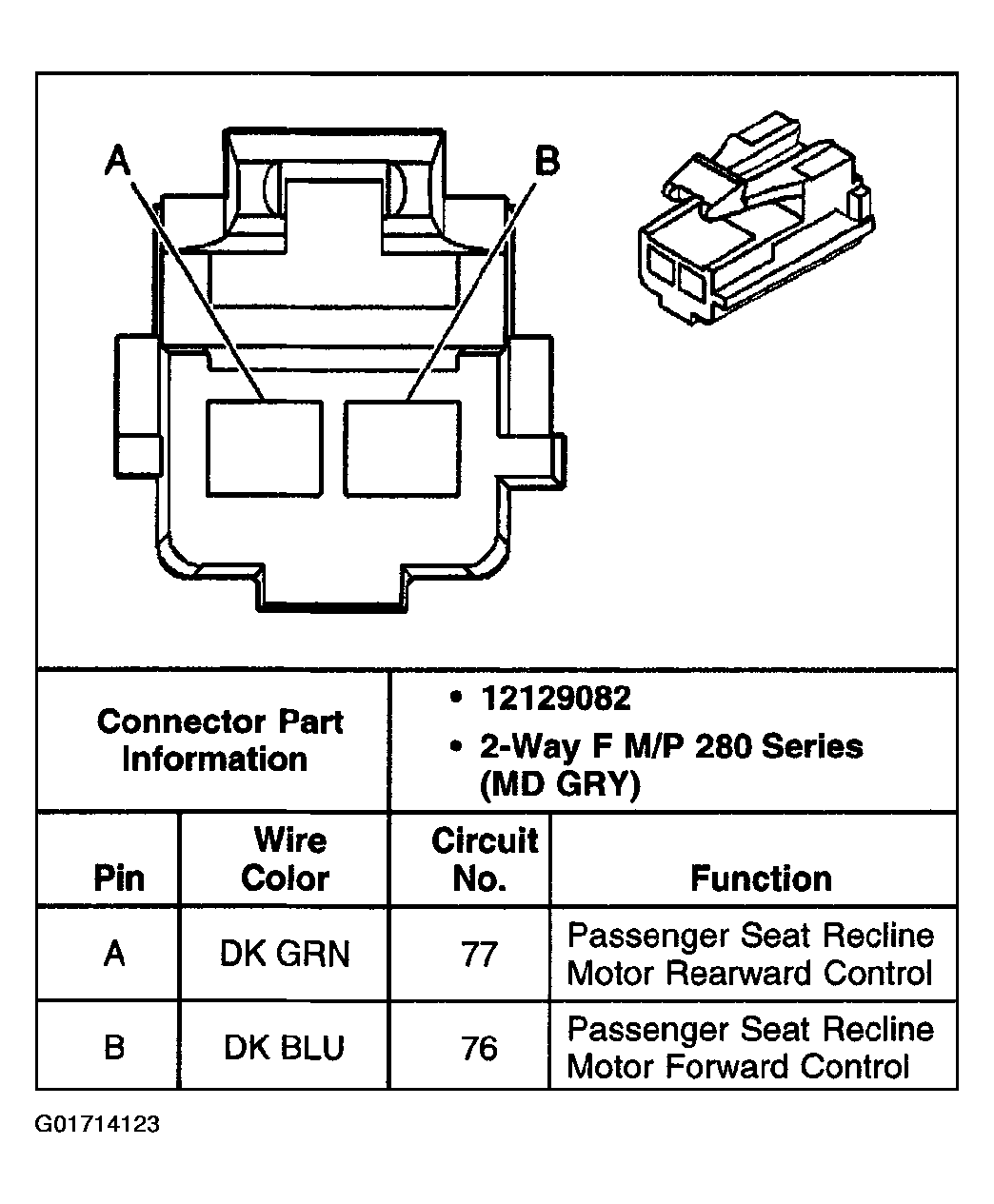

Fig 10: Identifying Seat Recliner Motor - Front Passenger Connector Terminals

G01714123

Courtesy of GENERAL MOTORS CORP.

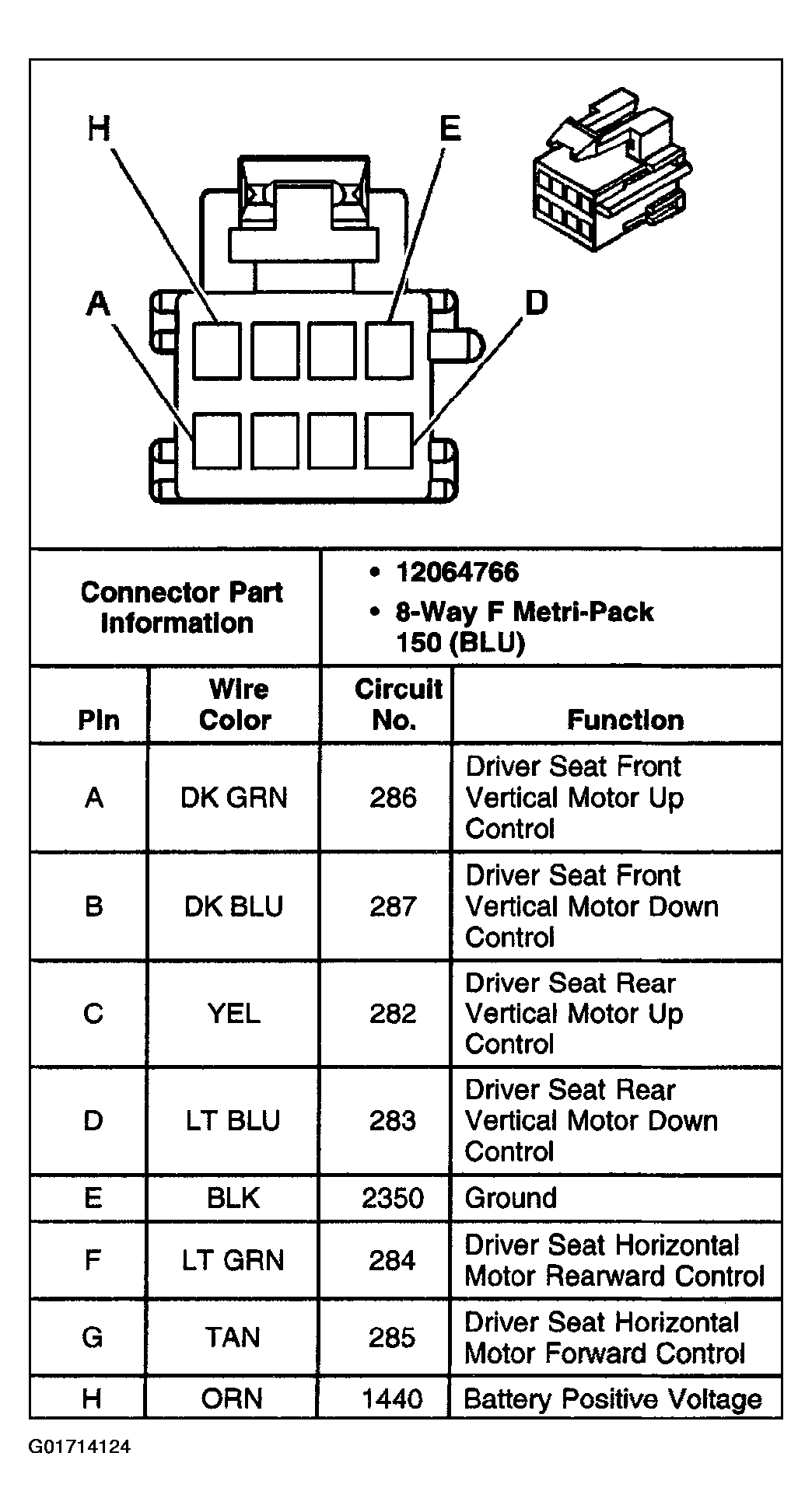

Fig 11: Identifying Seat Adjuster Switch - Driver Connector Terminals

G01714124

Courtesy of GENERAL MOTORS CORP.

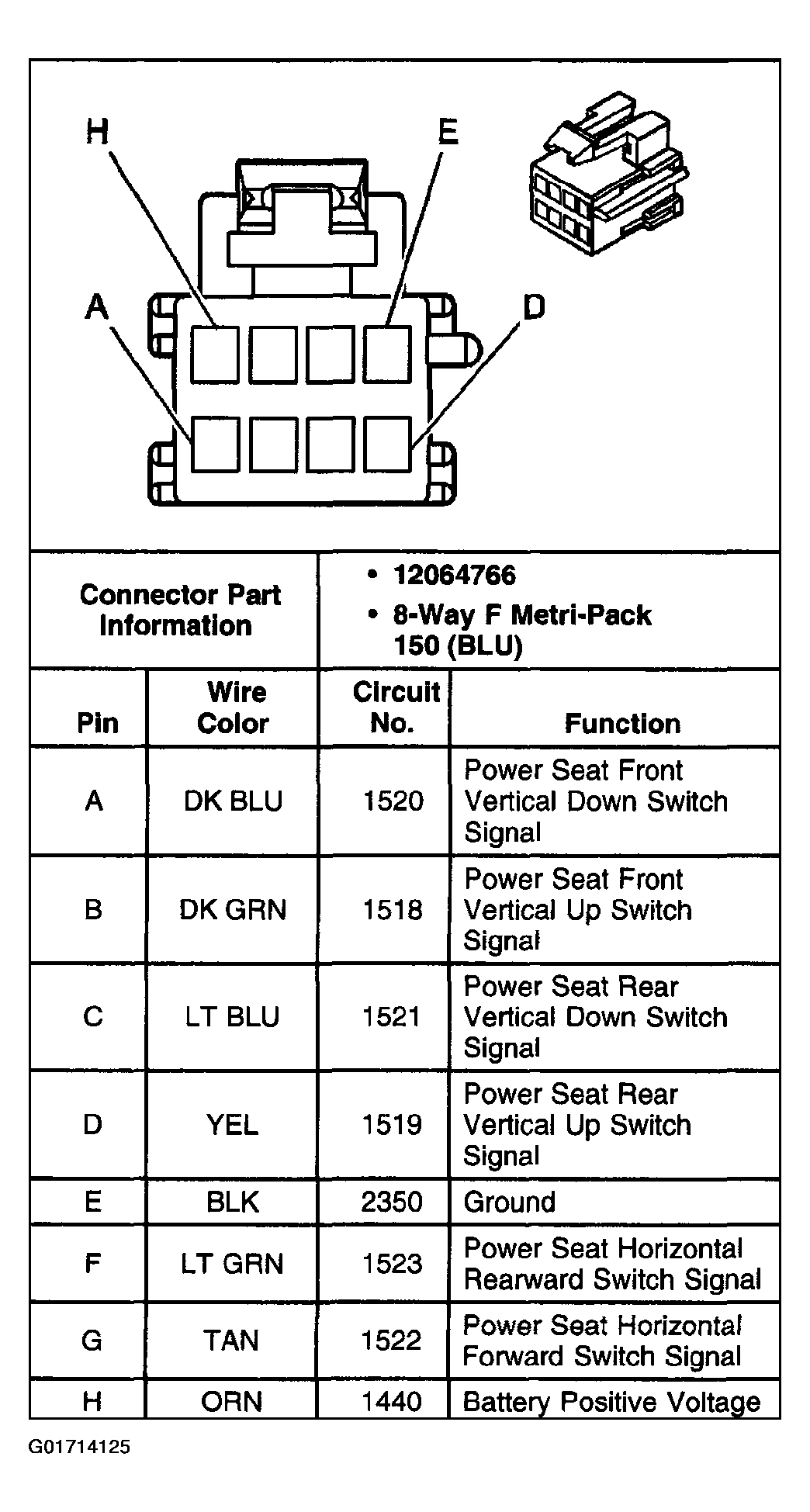

Fig 12: Identifying Seat Adjuster Switch - Front Passenger Connector Terminals

G01714125

Courtesy of GENERAL MOTORS CORP.

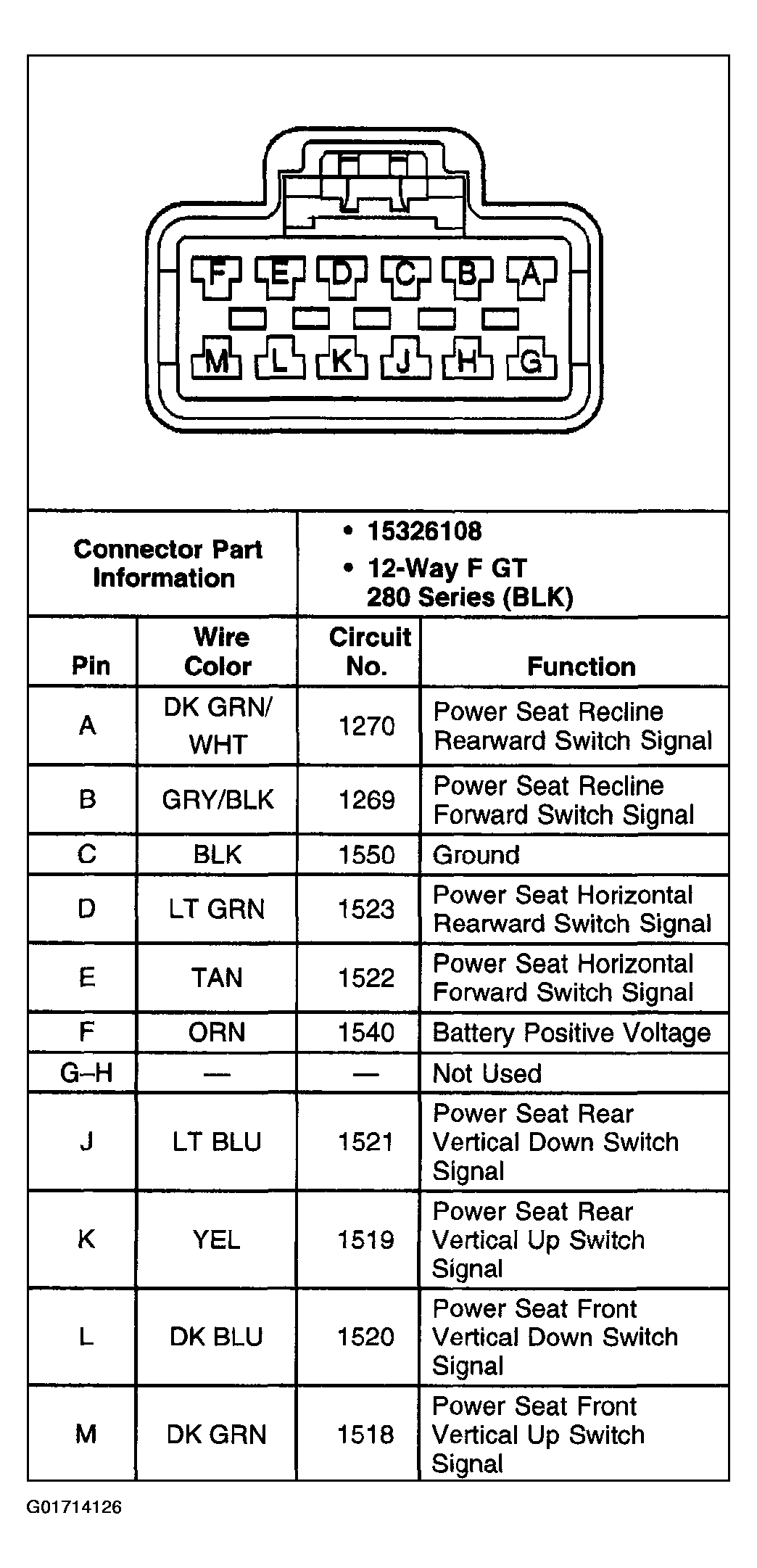

Fig 13: Identifying Seat Adjuster Switch - Driver - w/AN3 Connector Terminals

G01714126

Courtesy of GENERAL MOTORS CORP.

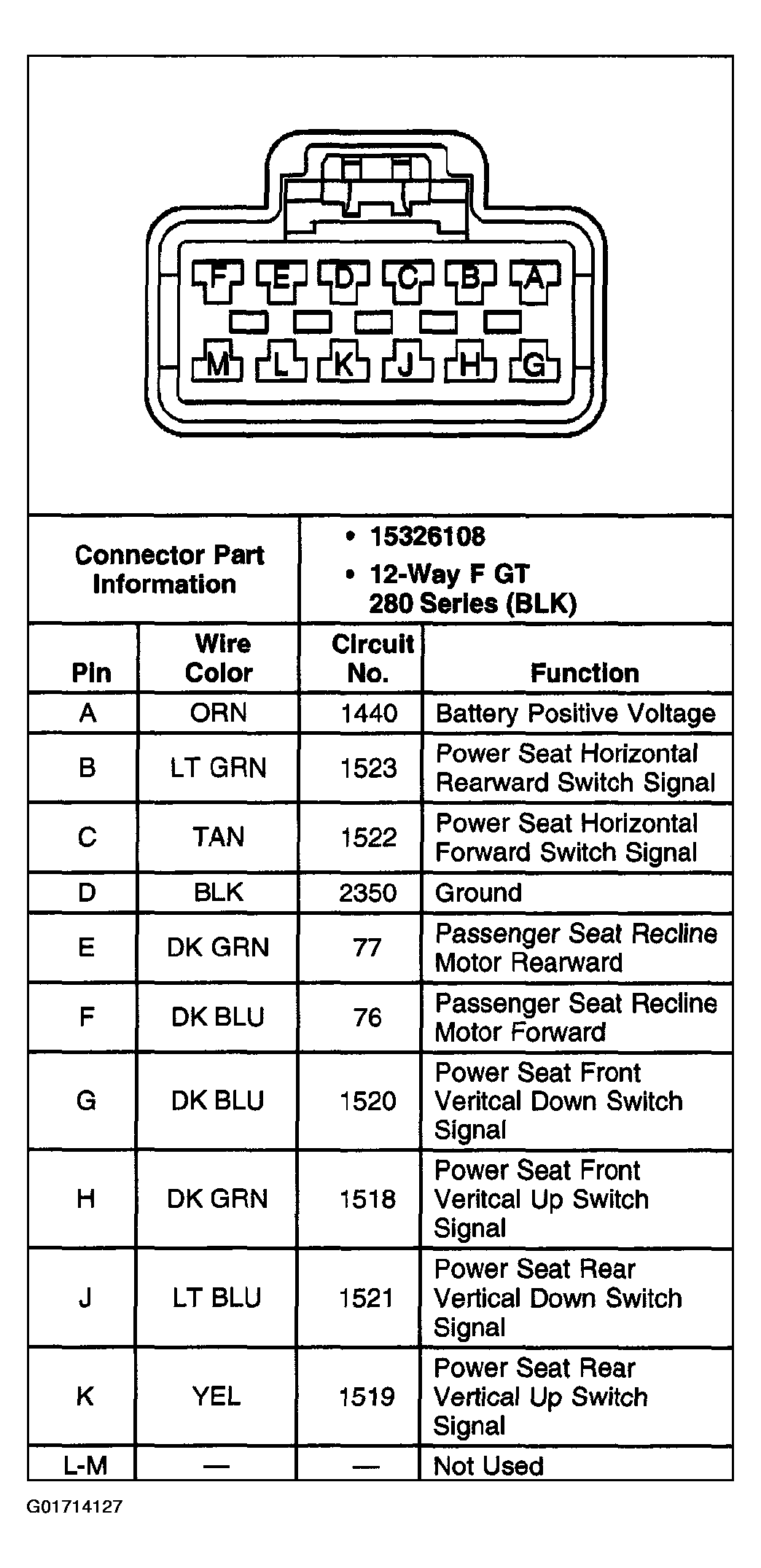

Fig 14: Identifying Seat Adjuster Switch - Front Passenger - w/AN3 RPO Code Connector Terminals

G01714127

Courtesy of GENERAL MOTORS CORP.

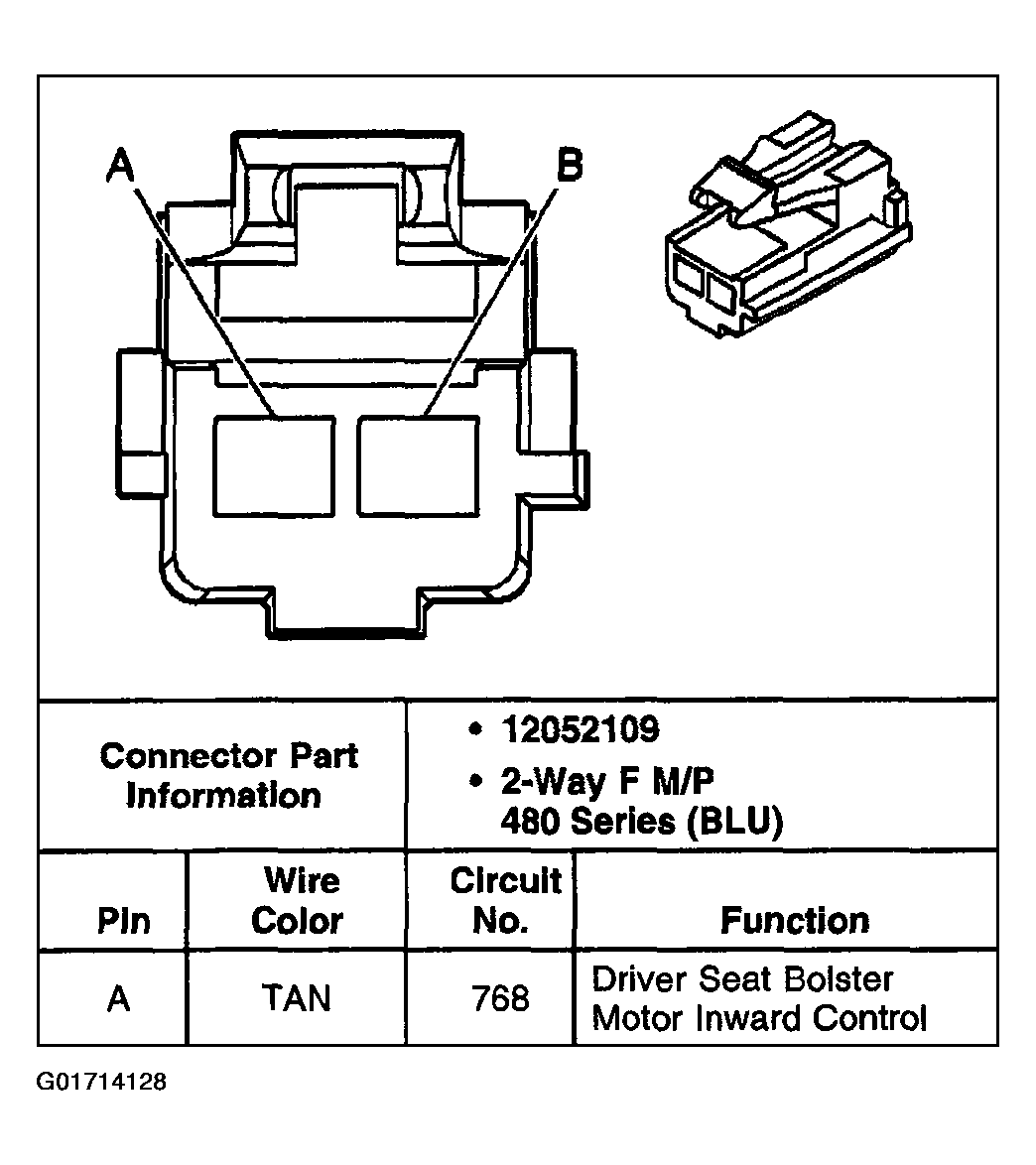

Fig 15: Identifying Seat Bolster Motor - Driver Connector Terminals

G01714128

Courtesy of GENERAL MOTORS CORP.

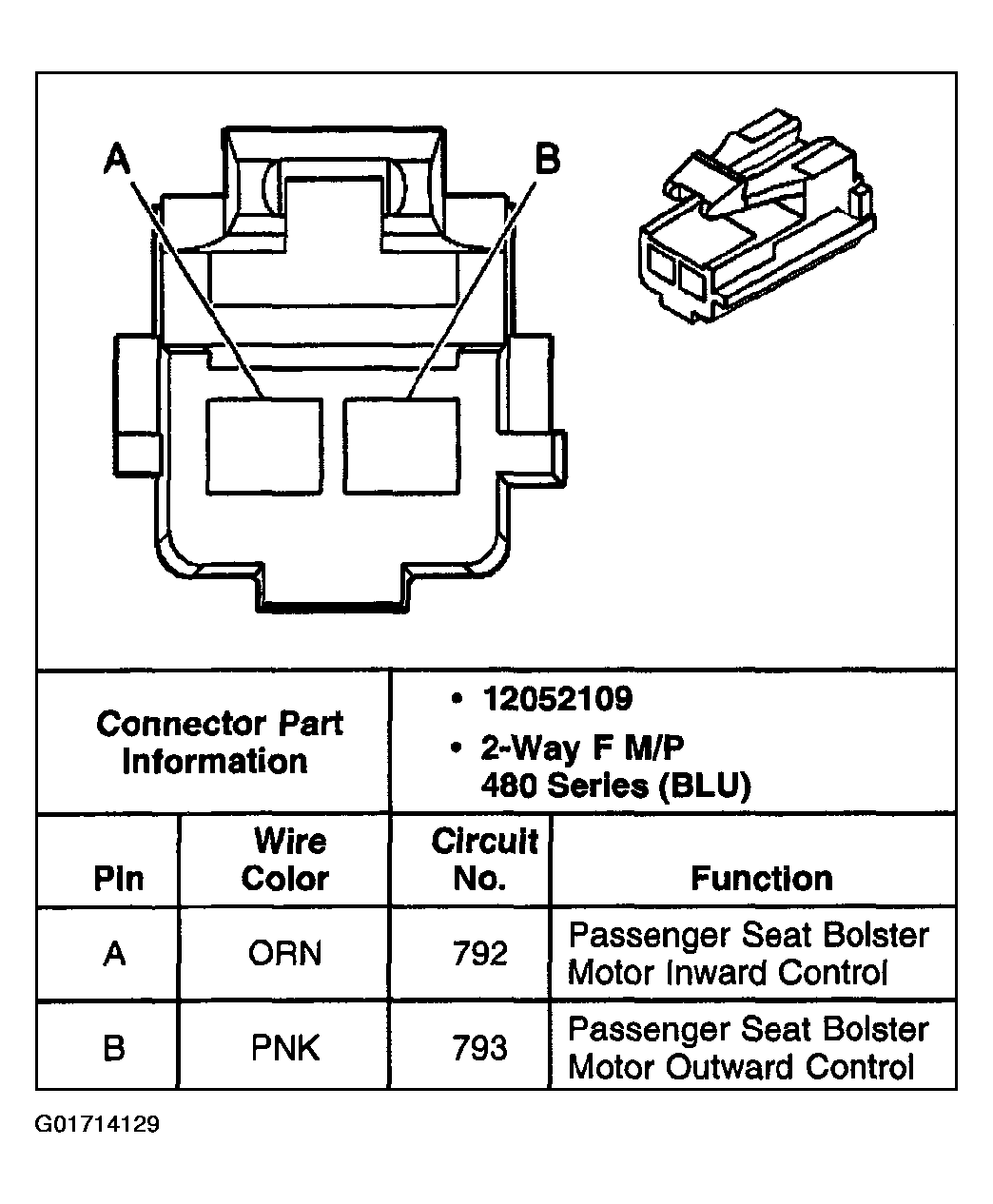

Fig 16: Identifying Seat Bolster Motor - Front Passenger Connector Terminals

G01714129

Courtesy of GENERAL MOTORS CORP.

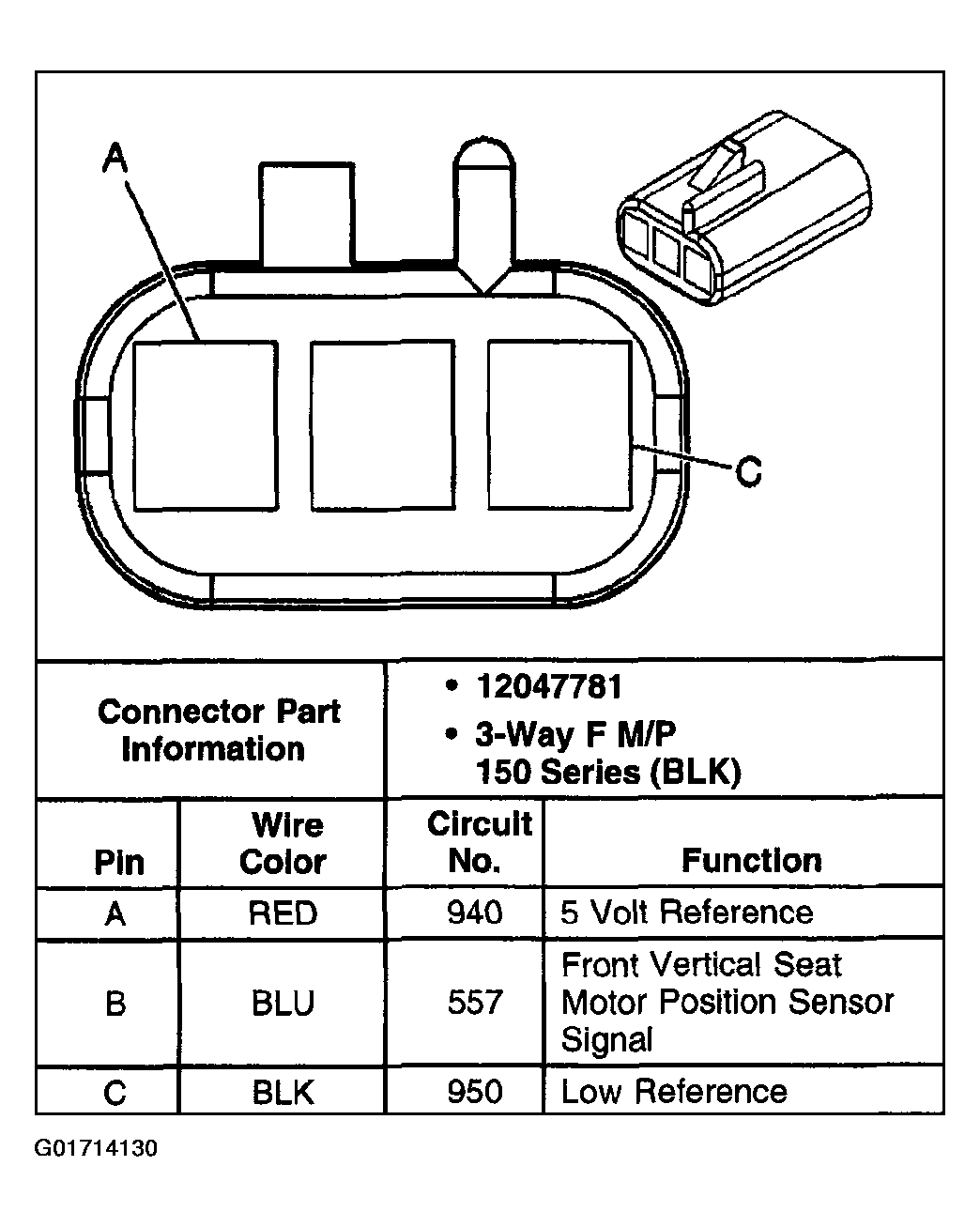

Fig 17: Identifying Seat Front Vertical Position Sensor - Driver Connector Terminals

G01714130

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Seat Front Vertical Motor - Driver Connector Terminals

G01714131

Courtesy of GENERAL MOTORS CORP.

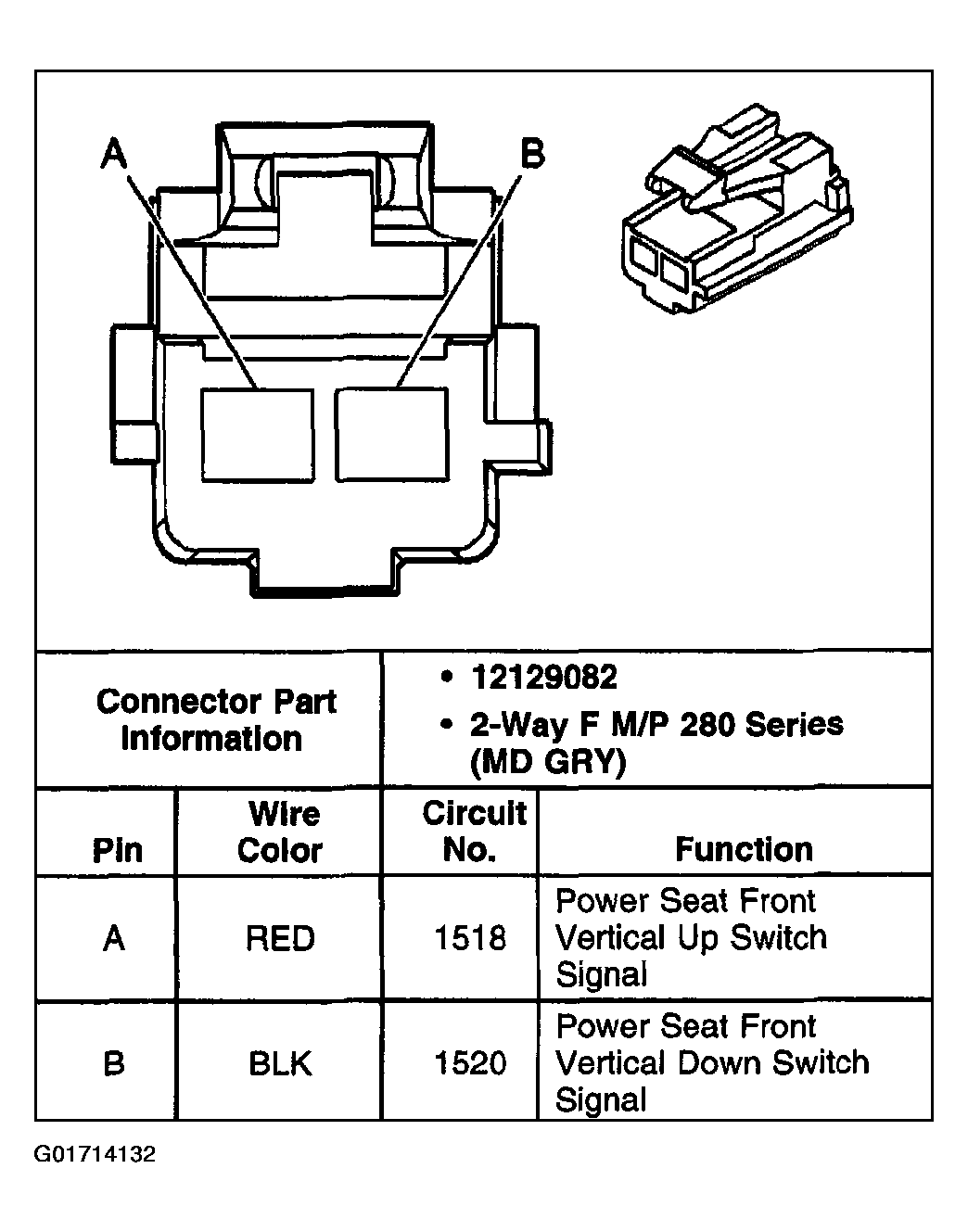

Fig 19: Identifying Seat Front Vertical Motor - Front Passenger Connector Terminals

G01714132

Courtesy of GENERAL MOTORS CORP.

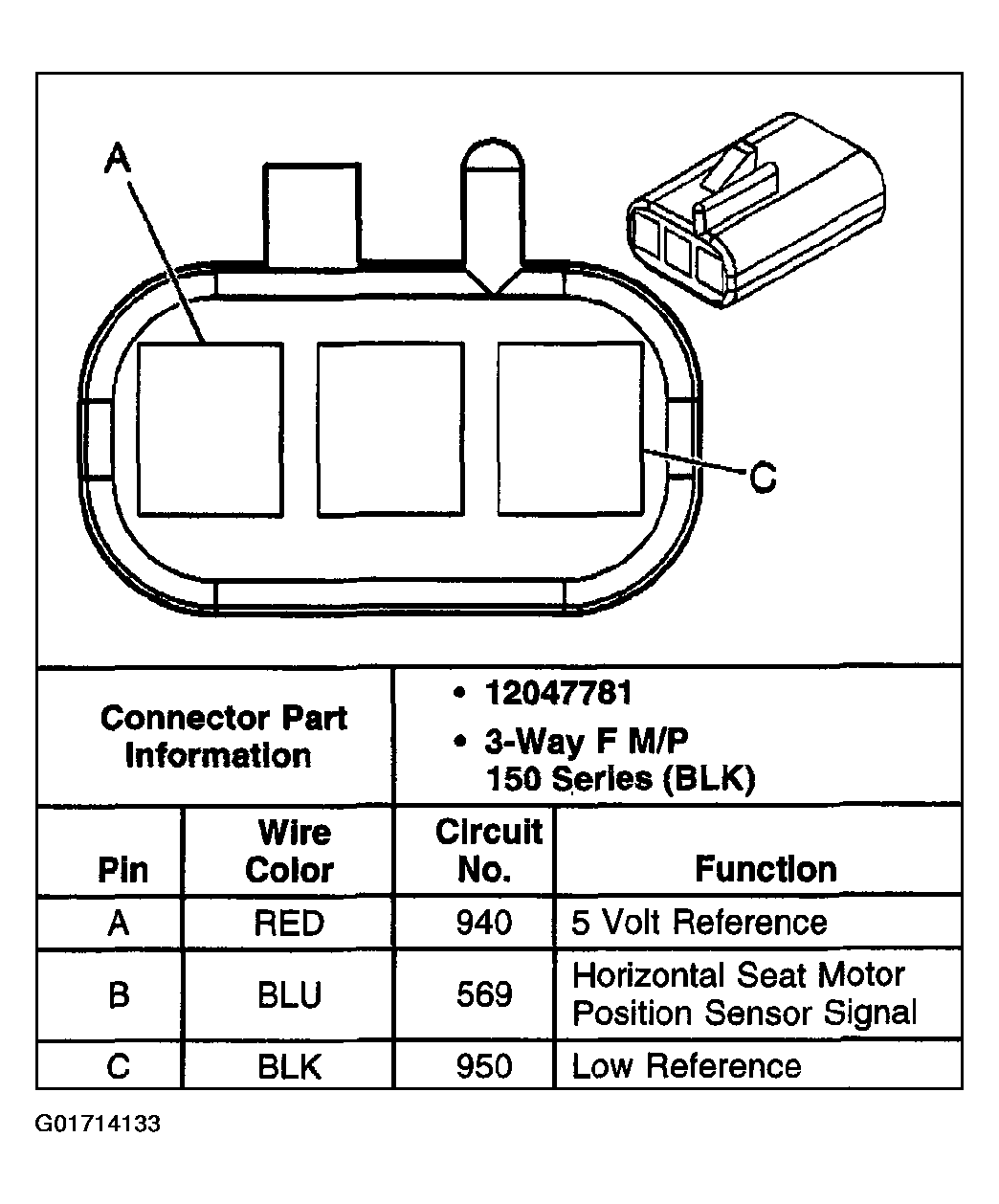

Fig 20: Identifying Seat Horizontal Position Sensor - Driver Connector Terminals

G01714133

Courtesy of GENERAL MOTORS CORP.

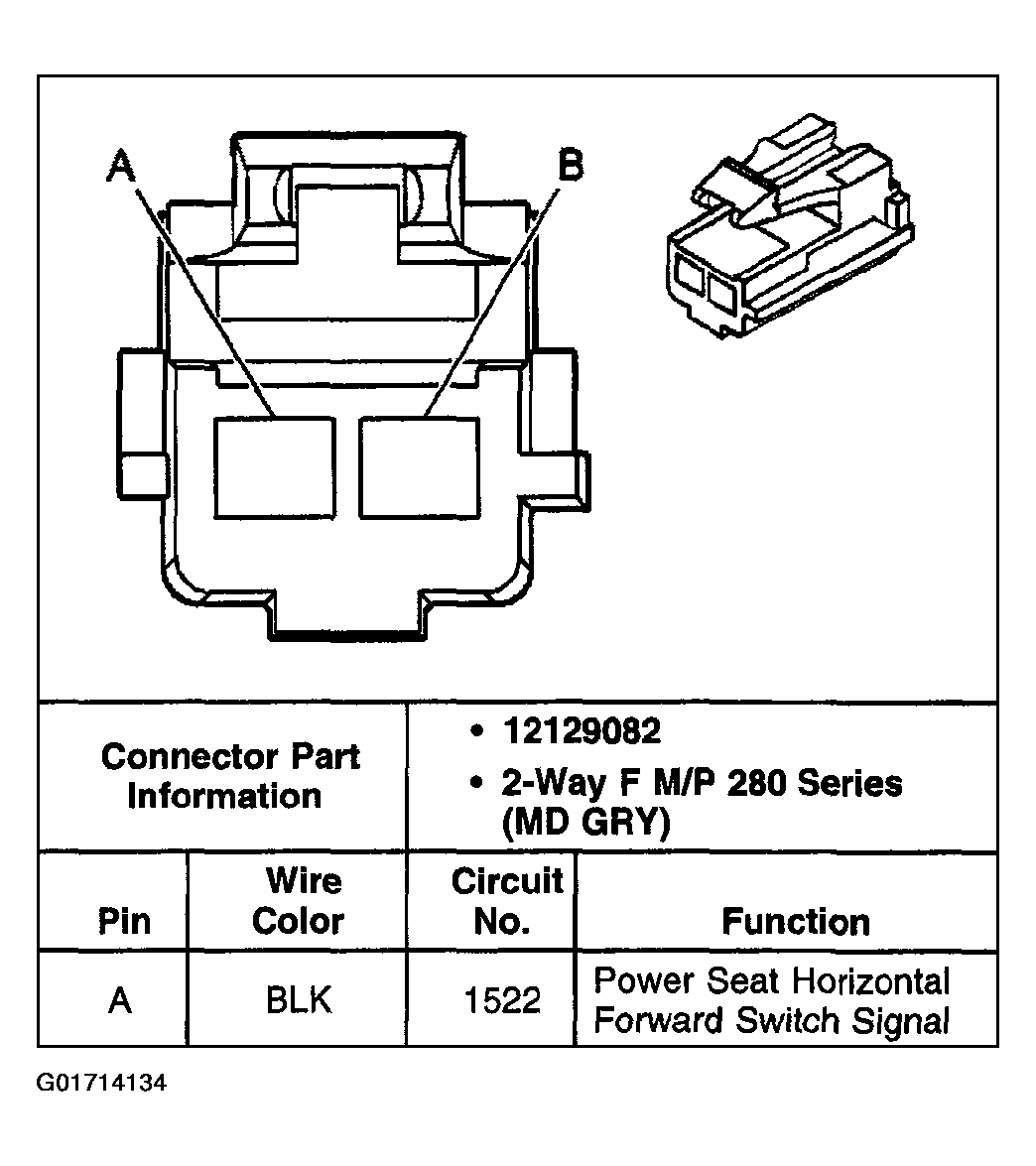

Fig 21: Identifying Seat Horizontal Motor - Front Passenger Connector Terminals

G01714134

Courtesy of GENERAL MOTORS CORP.

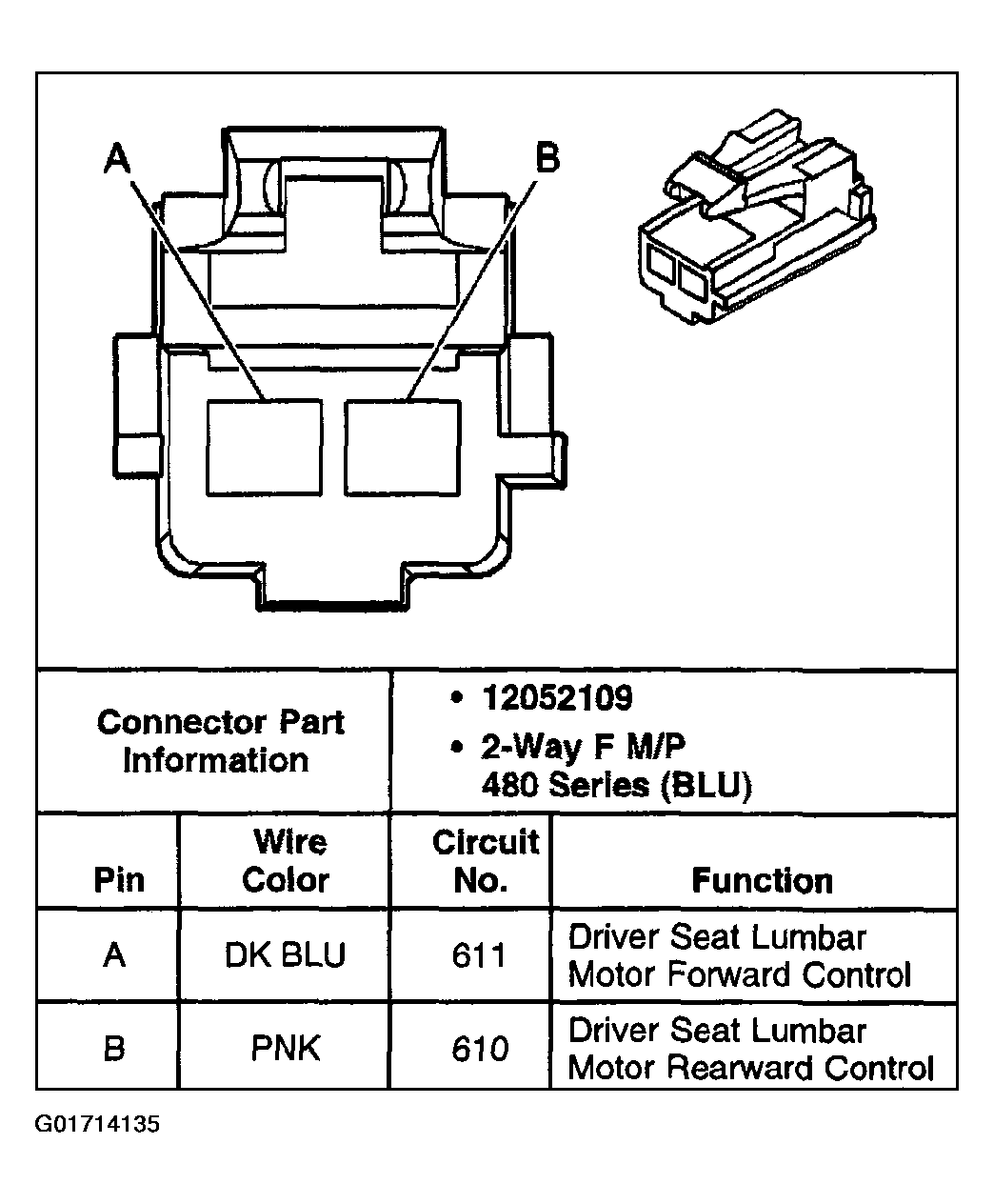

Fig 22: Identifying Seat Lumbar Motor - Driver Connector Terminals

G01714135

Courtesy of GENERAL MOTORS CORP.

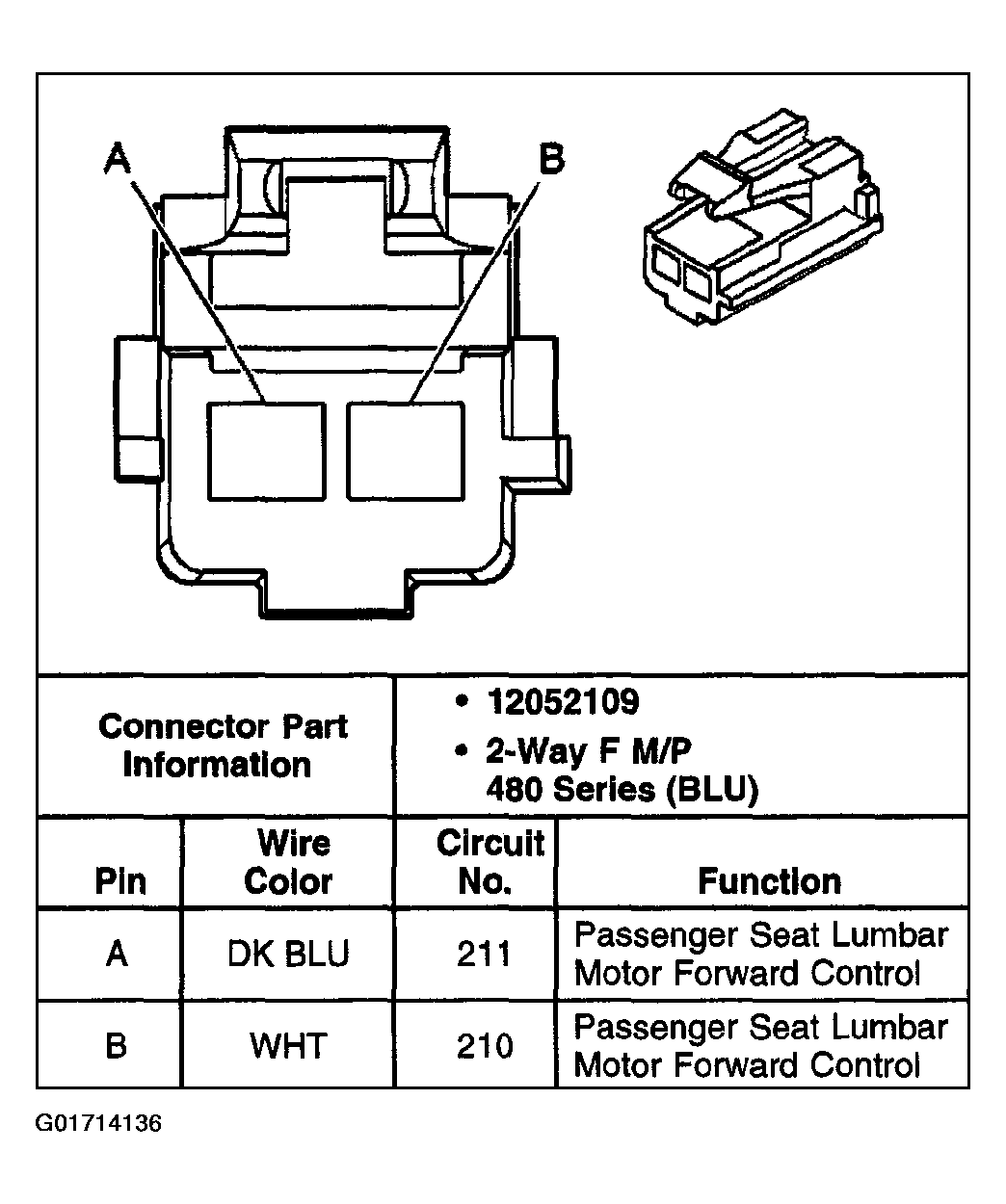

Fig 23: Identifying Seat Lumber Motor - Front Passenger Connector Terminals

G01714136

Courtesy of GENERAL MOTORS CORP.

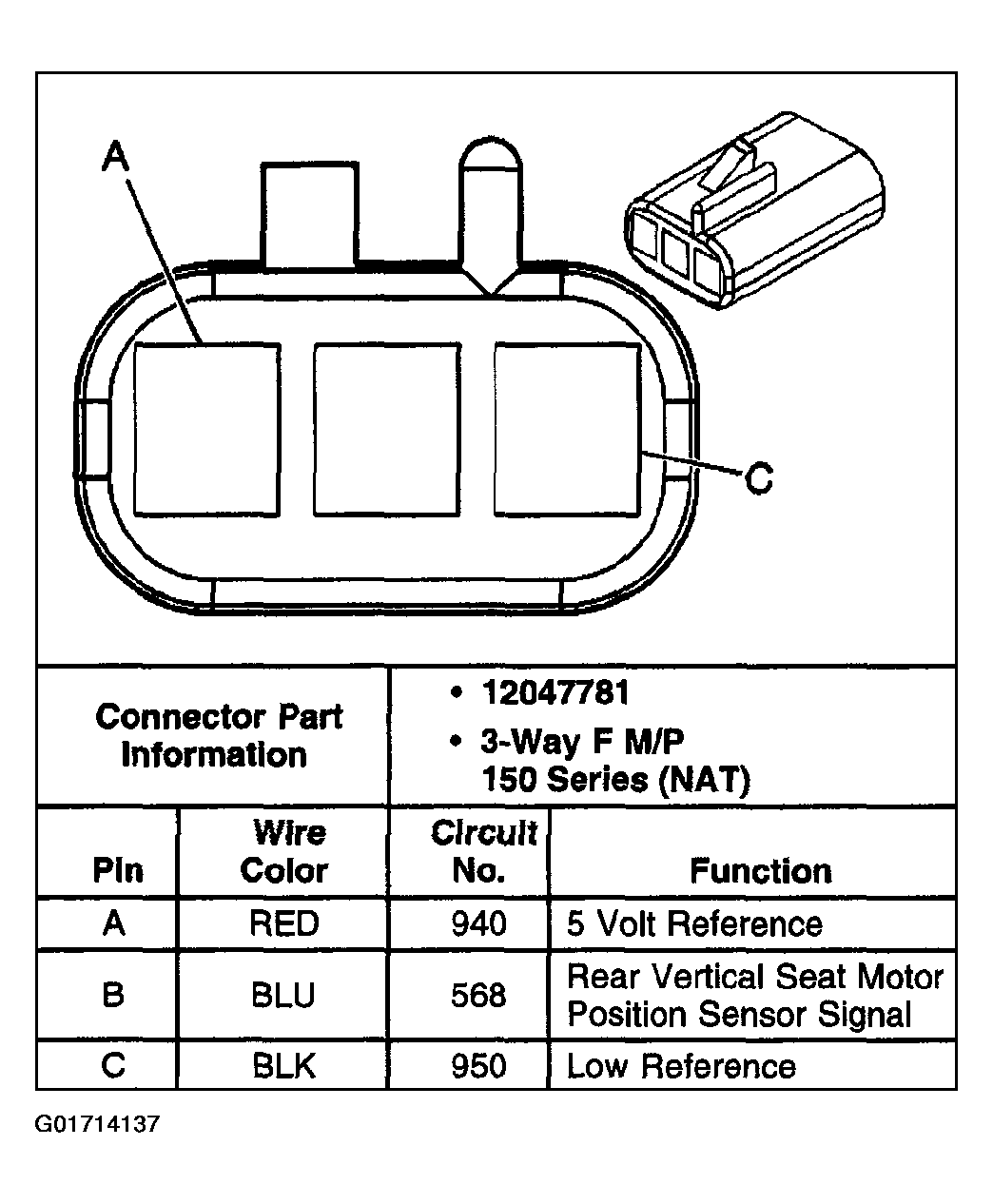

Fig 24: Identifying Seat Rear Vertical Position Sensor - Driver Connector Terminals

G01714137

Courtesy of GENERAL MOTORS CORP.

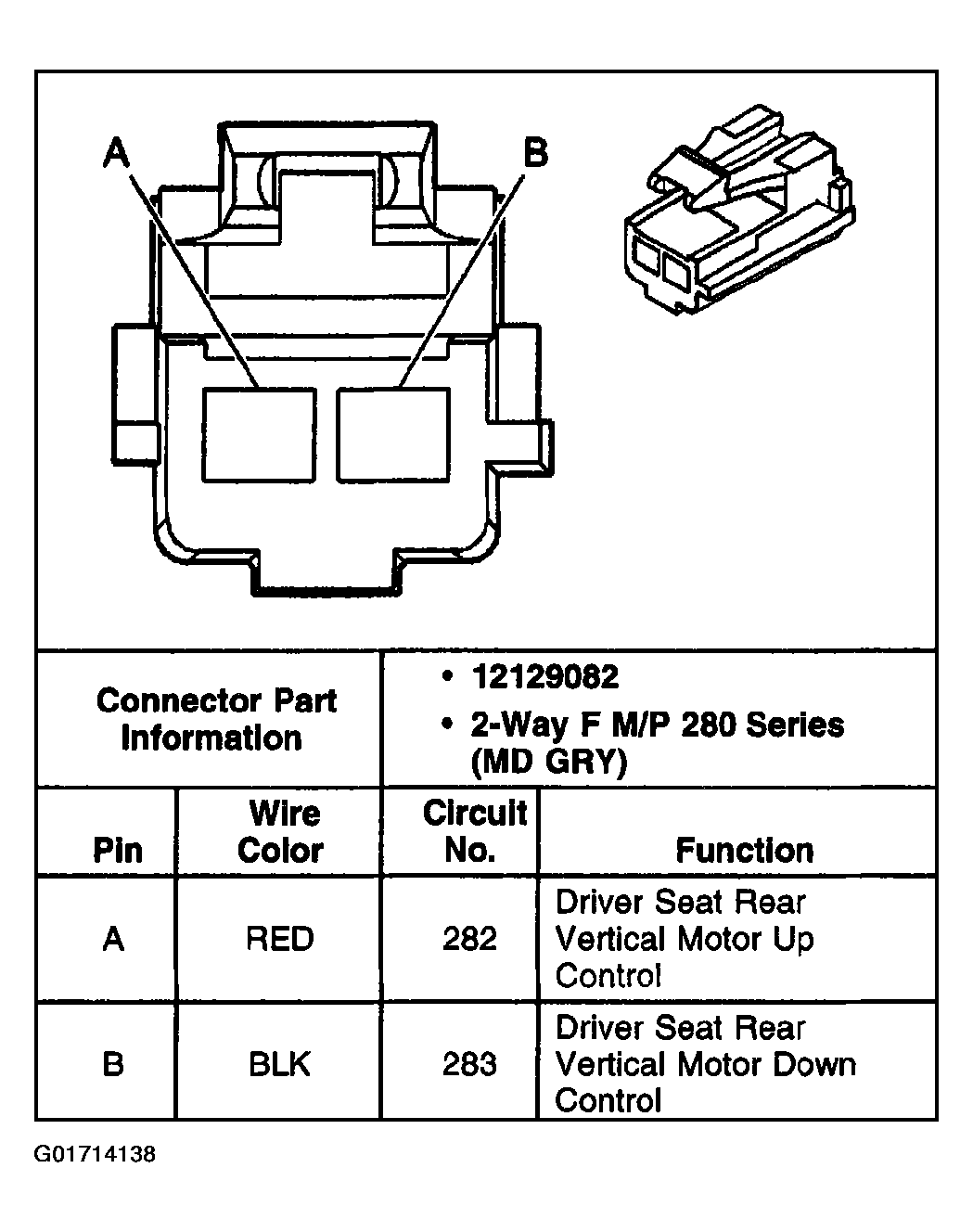

Fig 25: Identifying Seat Rear Vertical Motor - Driver Connector Terminals

G01714138

Courtesy of GENERAL MOTORS CORP.

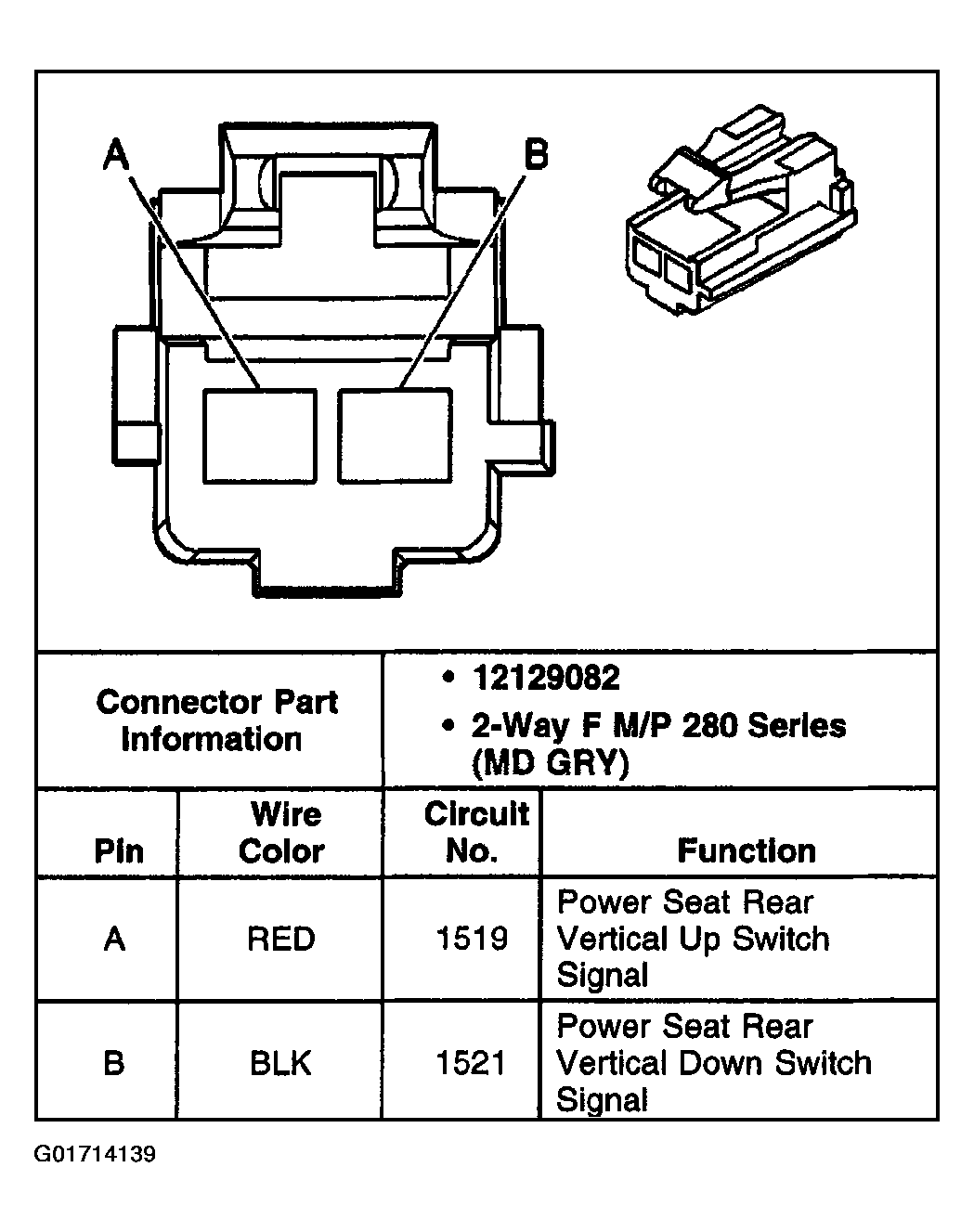

Fig 26: Identifying Seat Rear Vertical Motor - Front Passenger Connector Terminals

G01714139

Courtesy of GENERAL MOTORS CORP.
