ABS Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

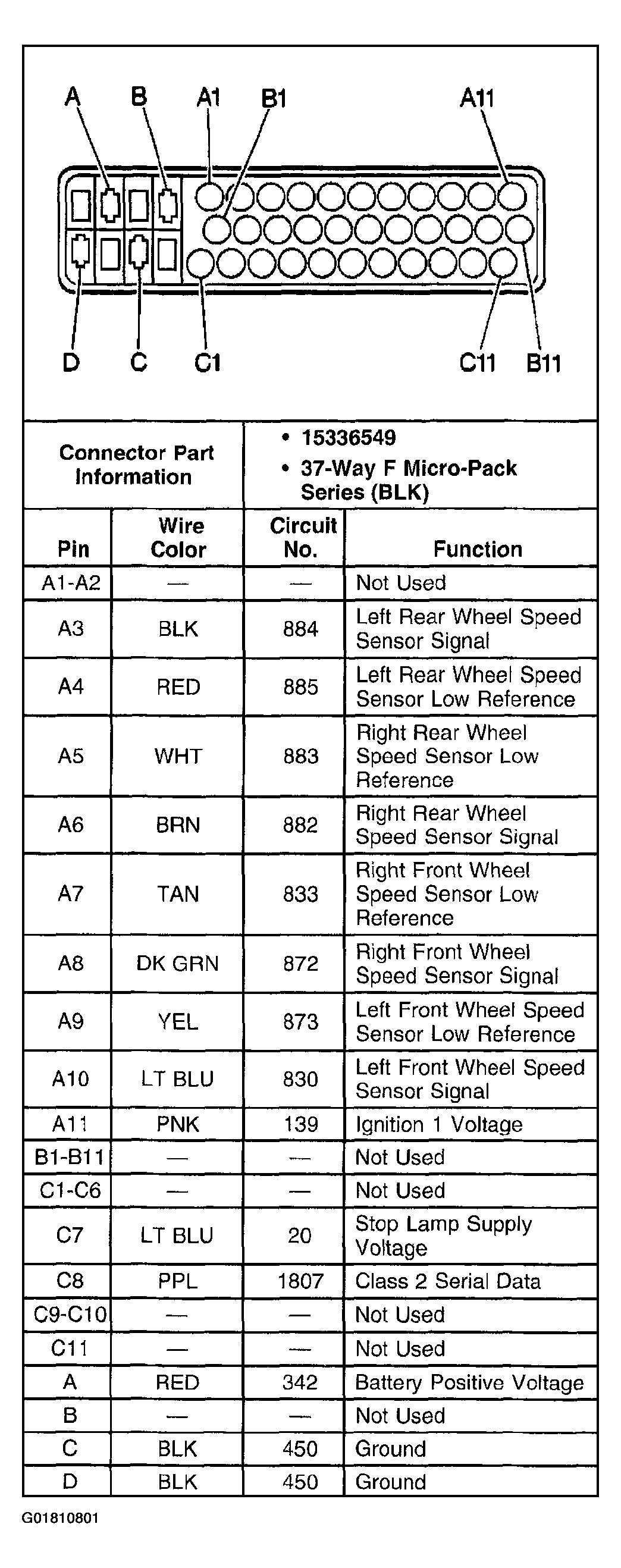

Fig 1: Electronic Brake Control Module (EBCM)
G01810801Courtesy of GENERAL MOTORS CORP.

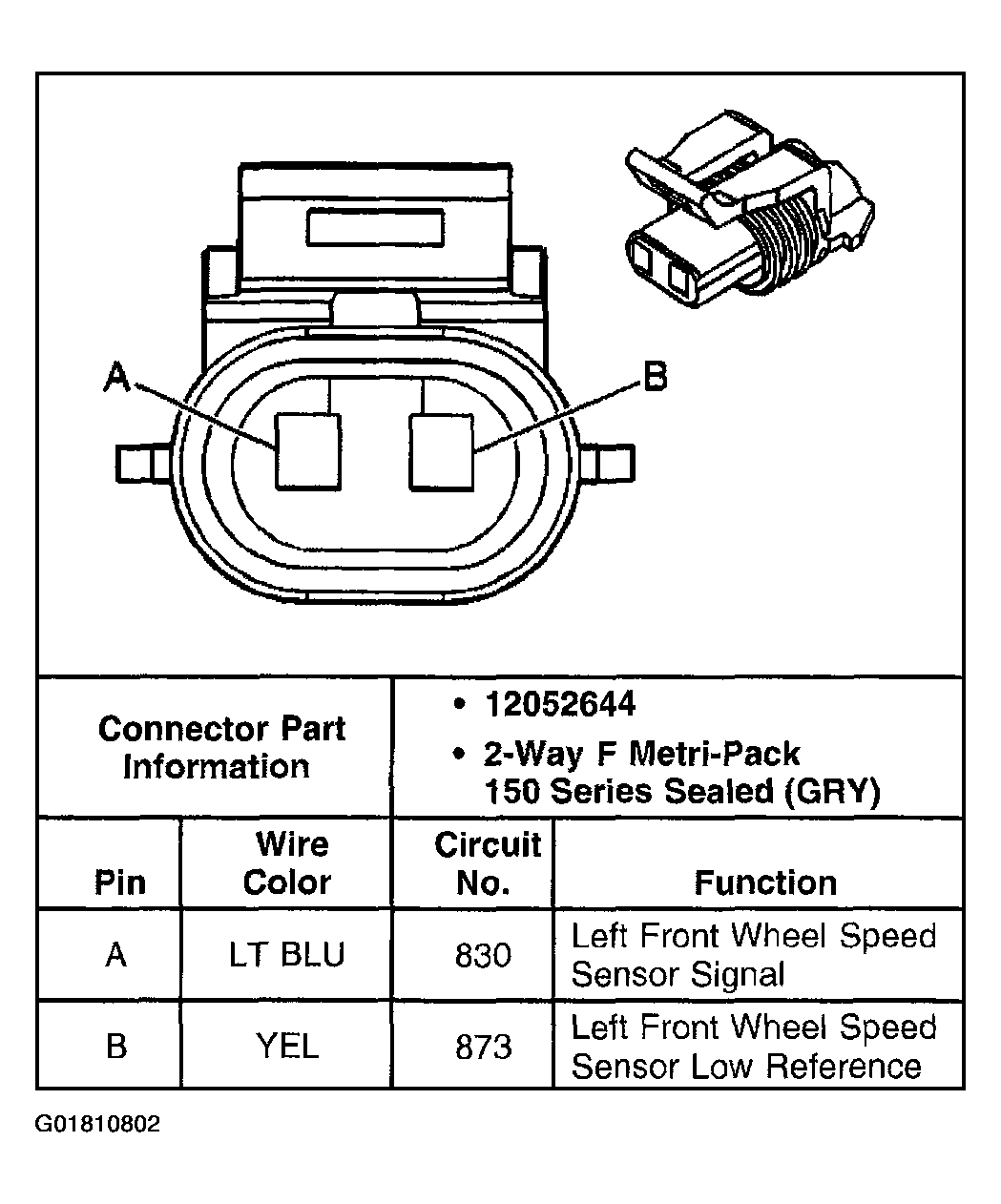

Fig 2: Wheel Speed Sensor (WSS) - LF
G01810802Courtesy of GENERAL MOTORS CORP.

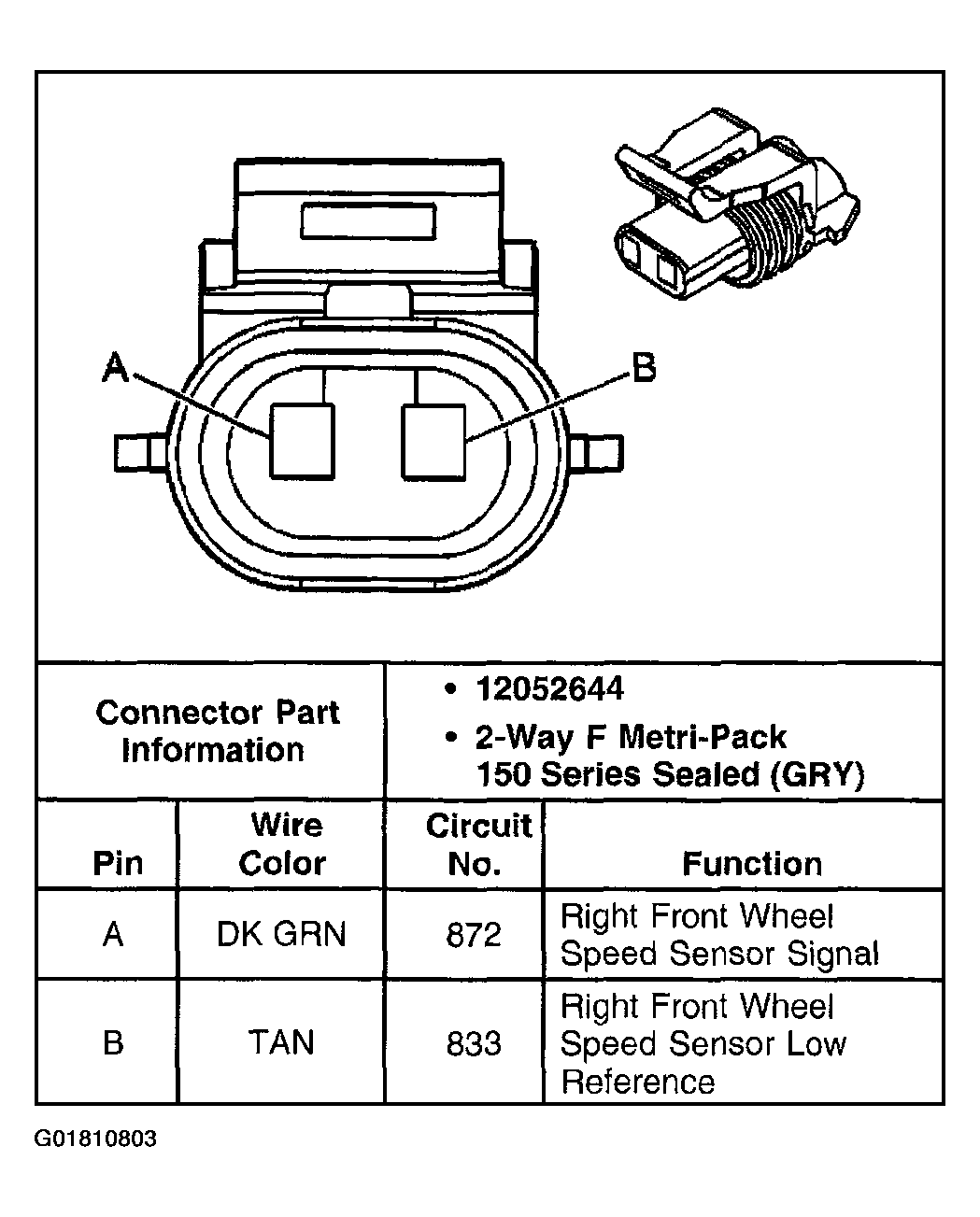

Fig 3: Wheel Speed Sensor (WSS) - RF
G01810803Courtesy of GENERAL MOTORS CORP.

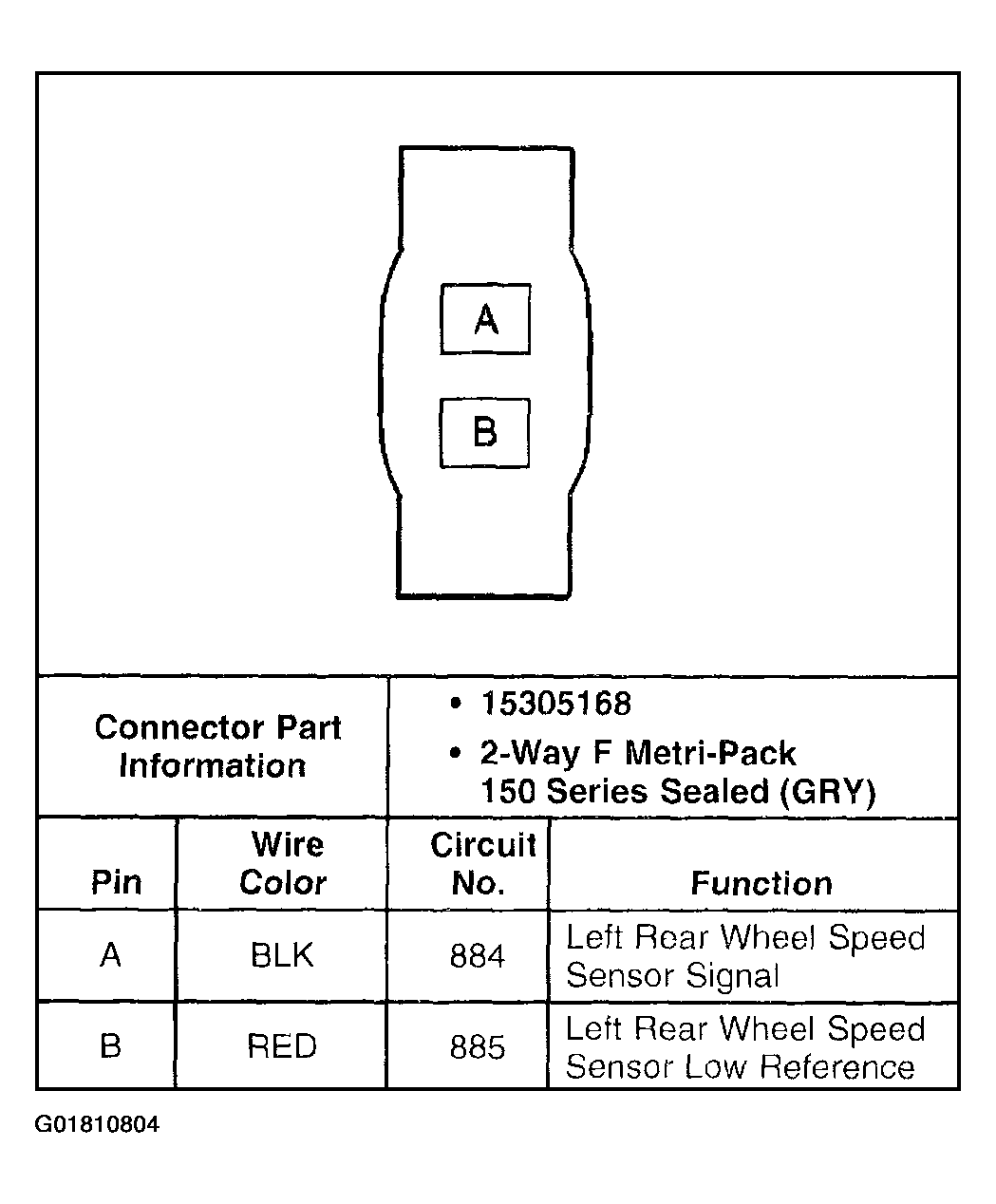

Fig 4: Wheel Speed Sensor (WSS) - LR
G01810804Courtesy of GENERAL MOTORS CORP.

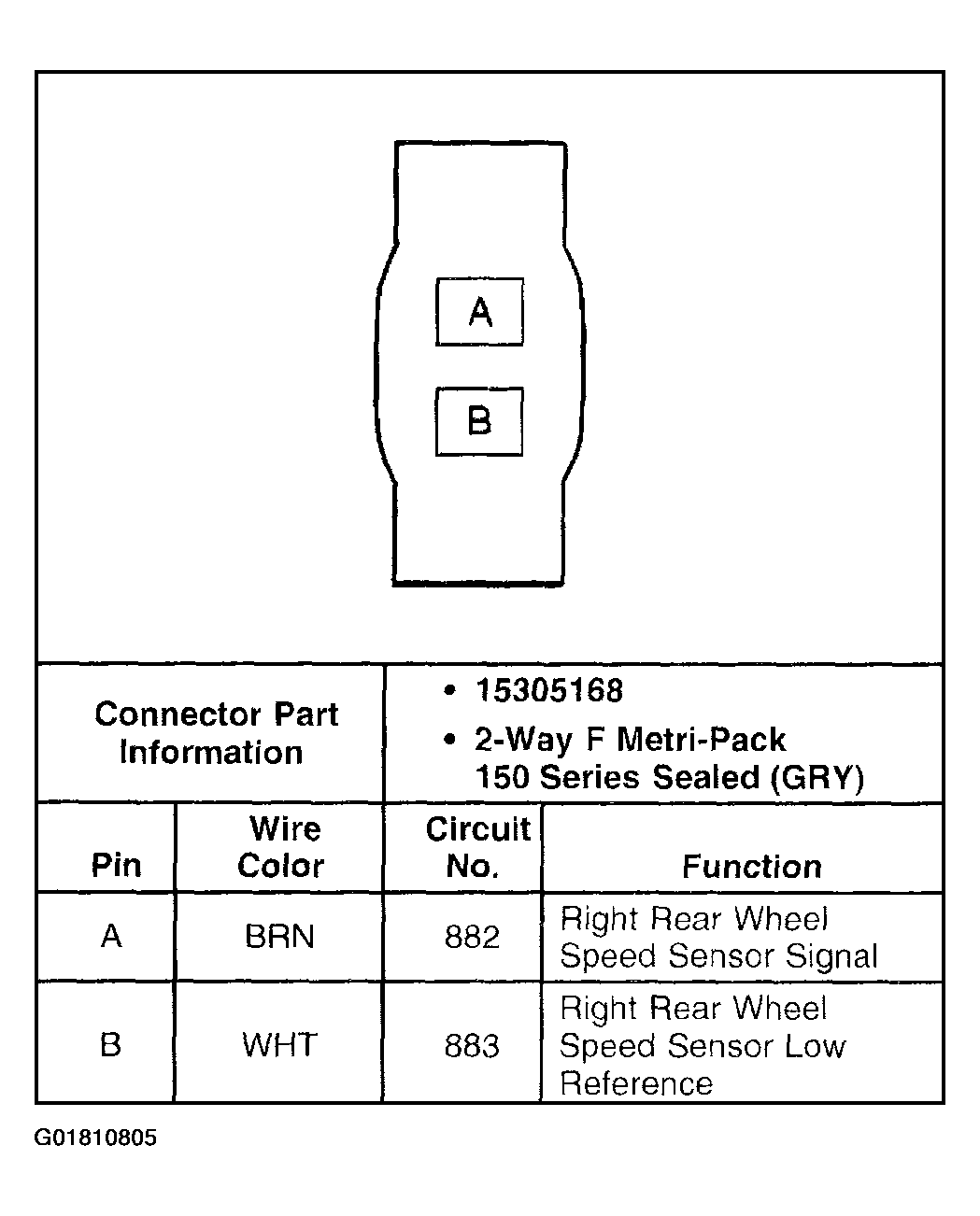

Fig 5: Wheel Speed Sensor (WSS) - RR
G01810805Courtesy of GENERAL MOTORS CORP.
