Lighting Systems Connector End Views
WARNING:
This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

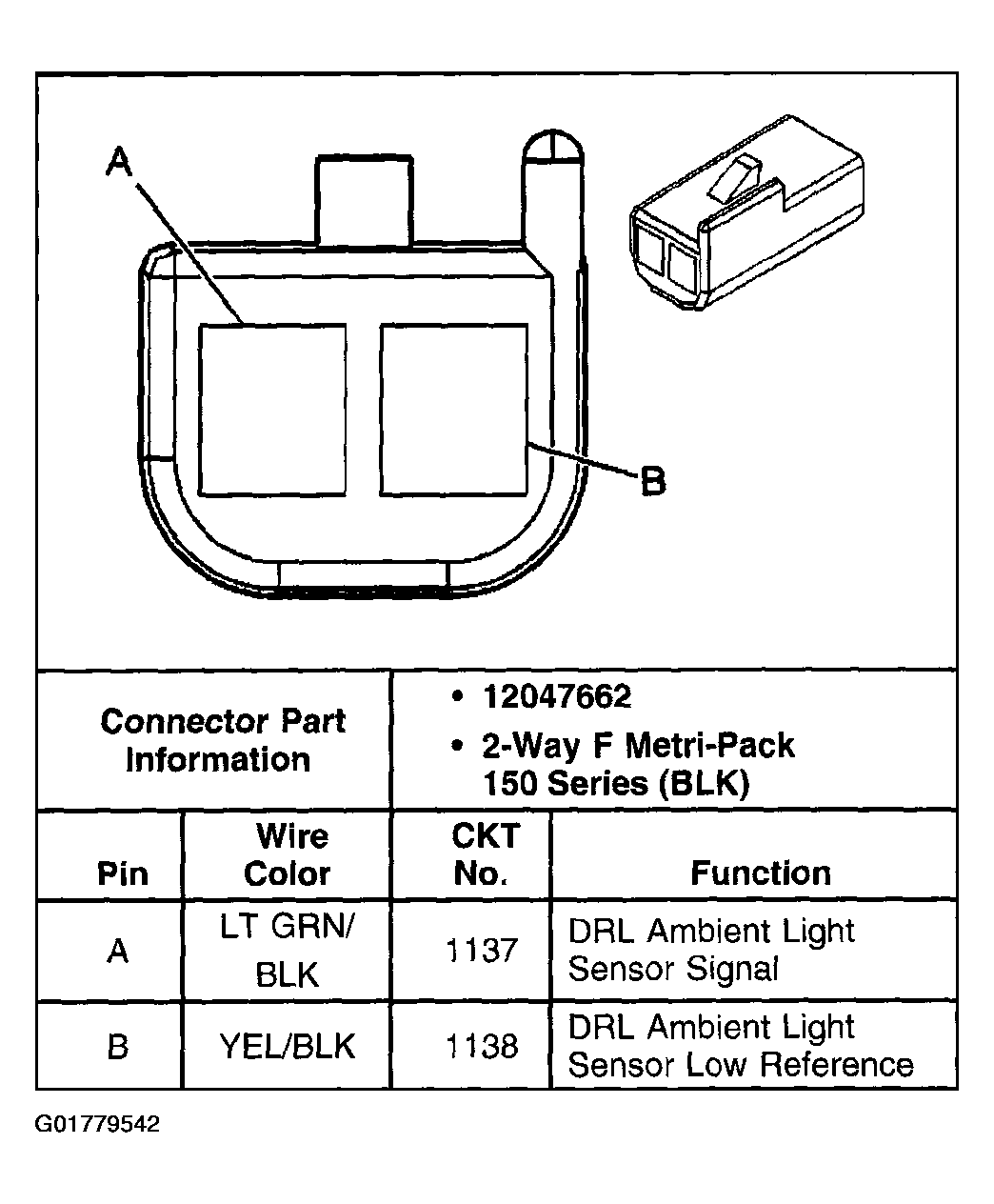

Fig 1: Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.

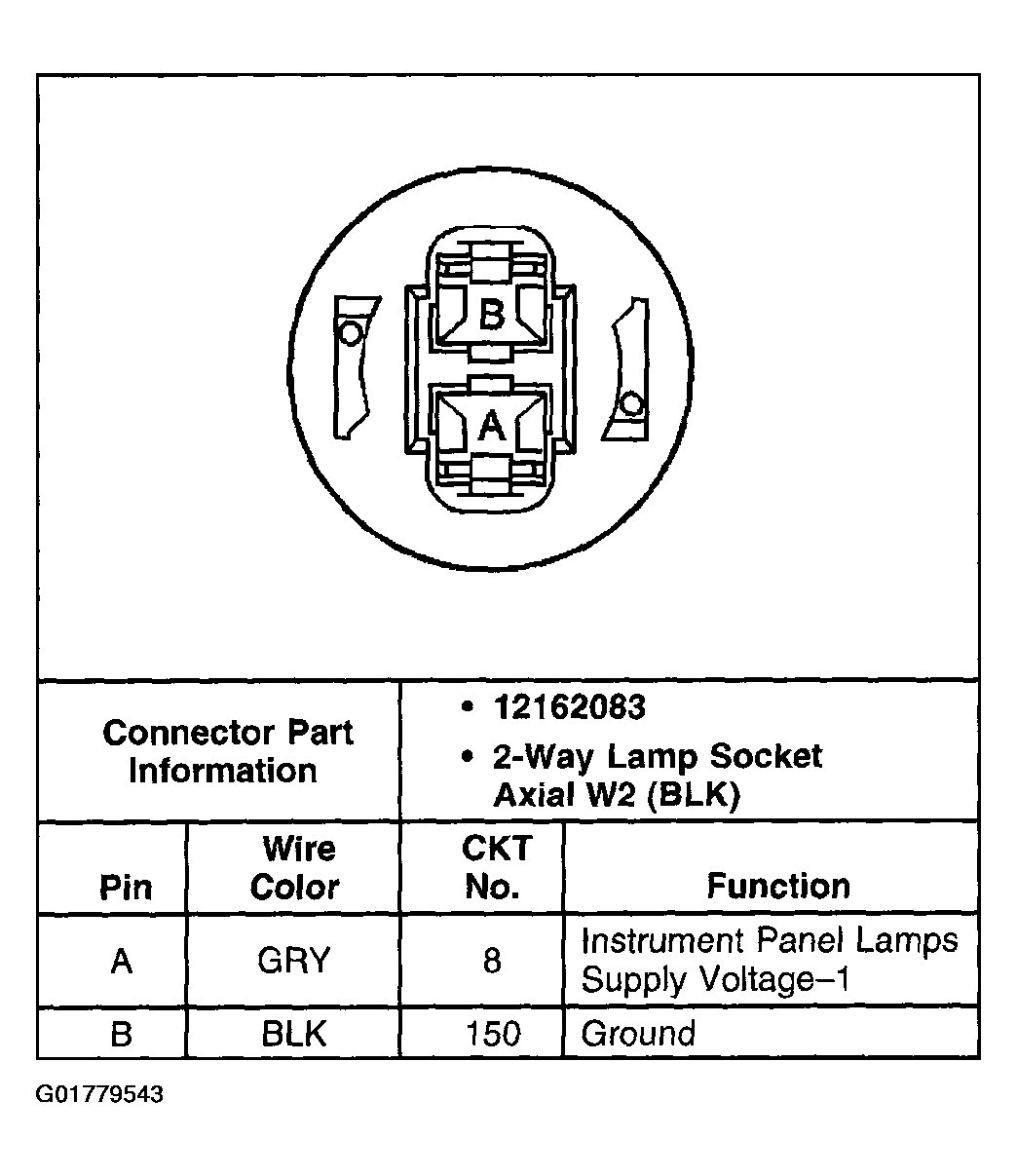

Fig 2: Automatic Transmission (A/T) Shift Indicator Lamp
Courtesy of GENERAL MOTORS CORP.

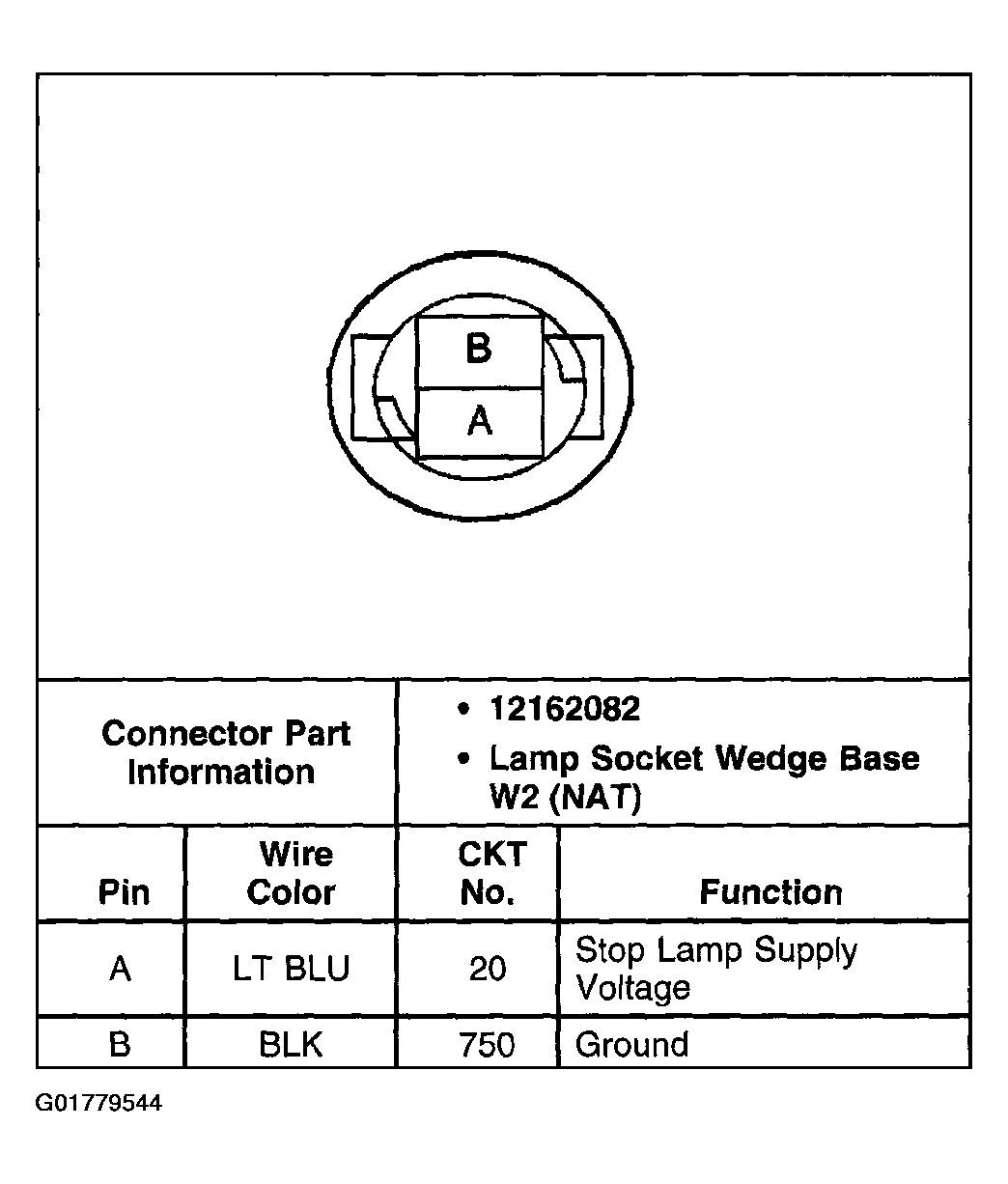

Fig 3: Center High Mounted Stop Lamp C1
Courtesy of GENERAL MOTORS CORP.
Fig 4: Center High Mounted Stop Lamp C2
Courtesy of GENERAL MOTORS CORP.

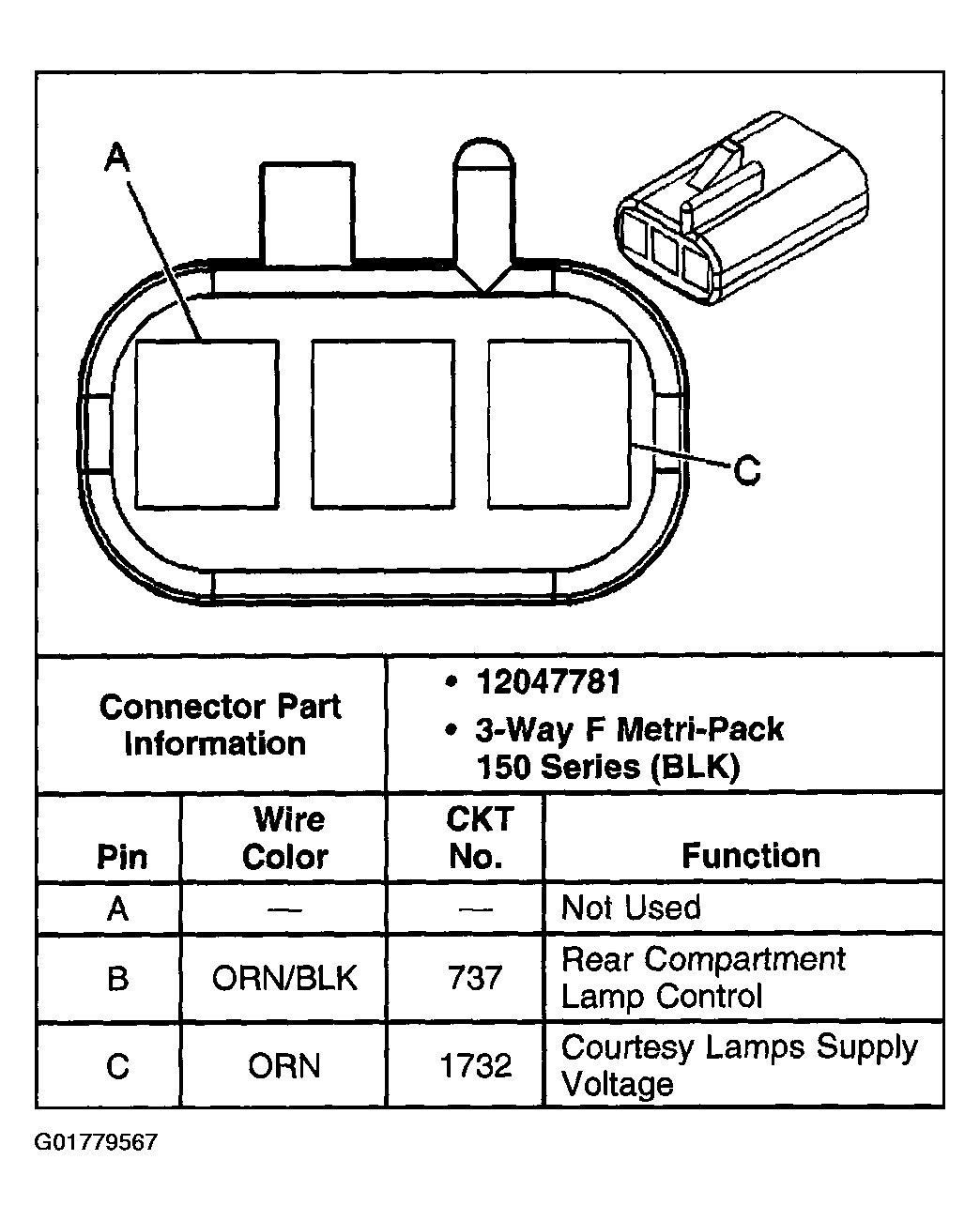

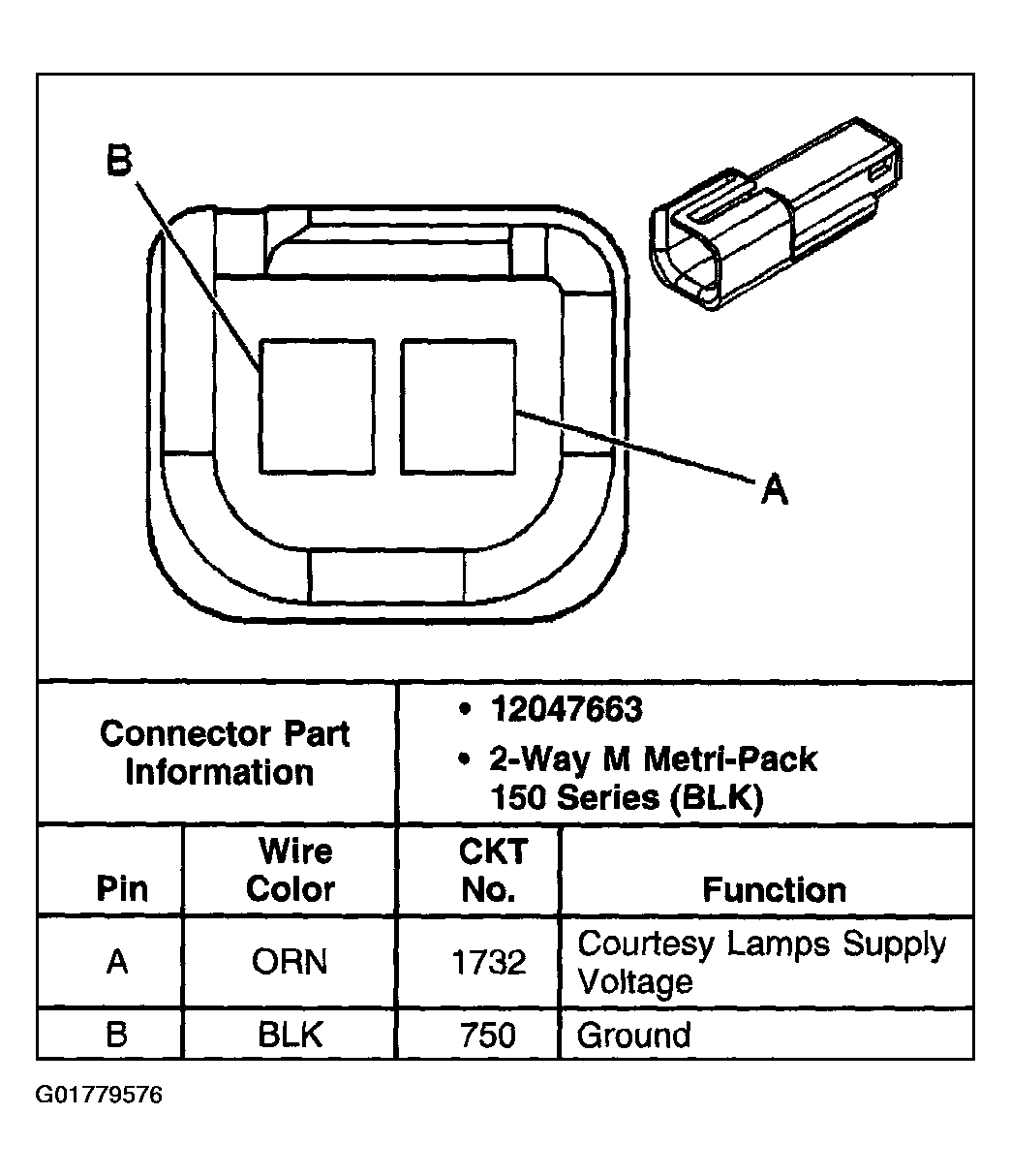

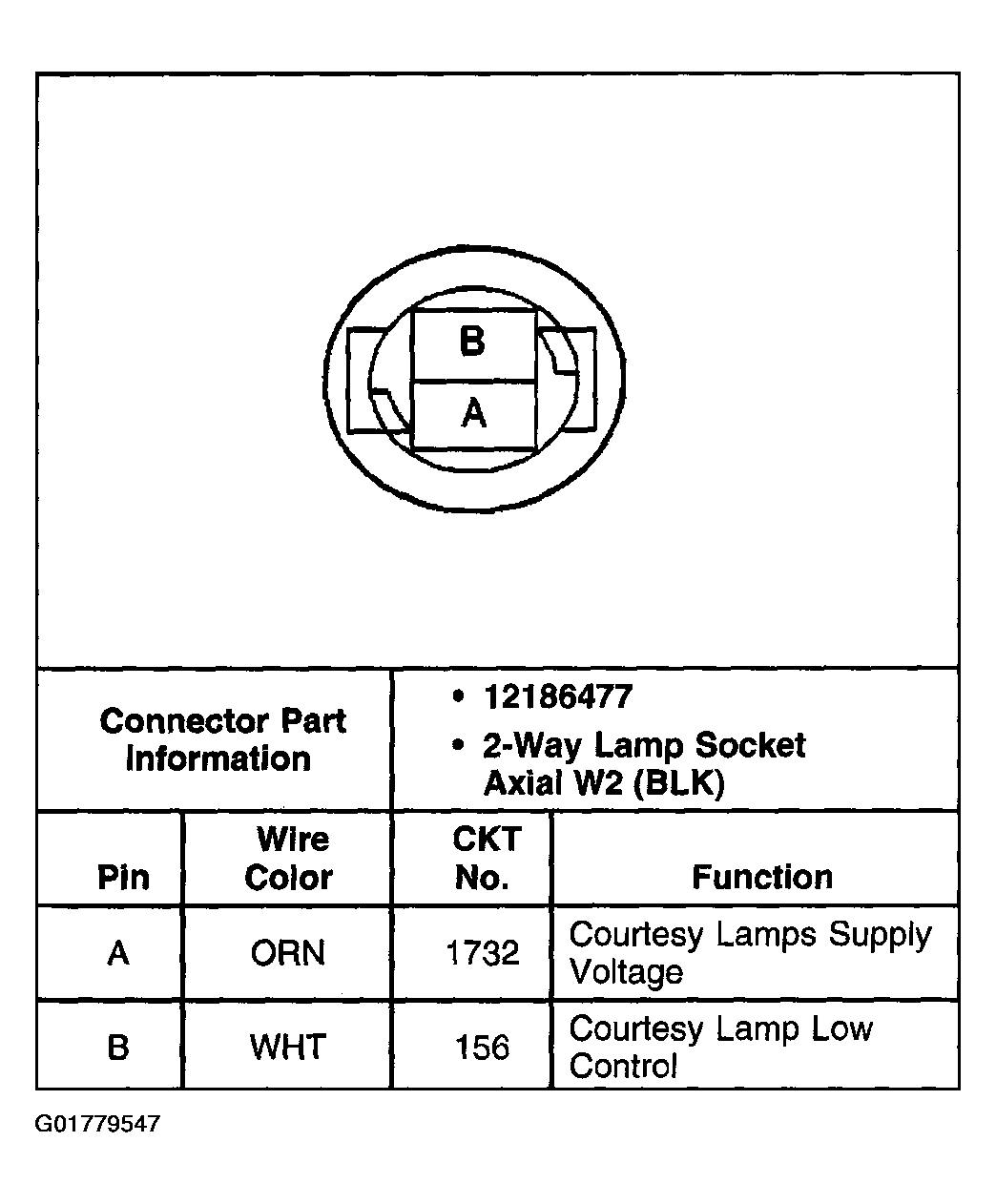

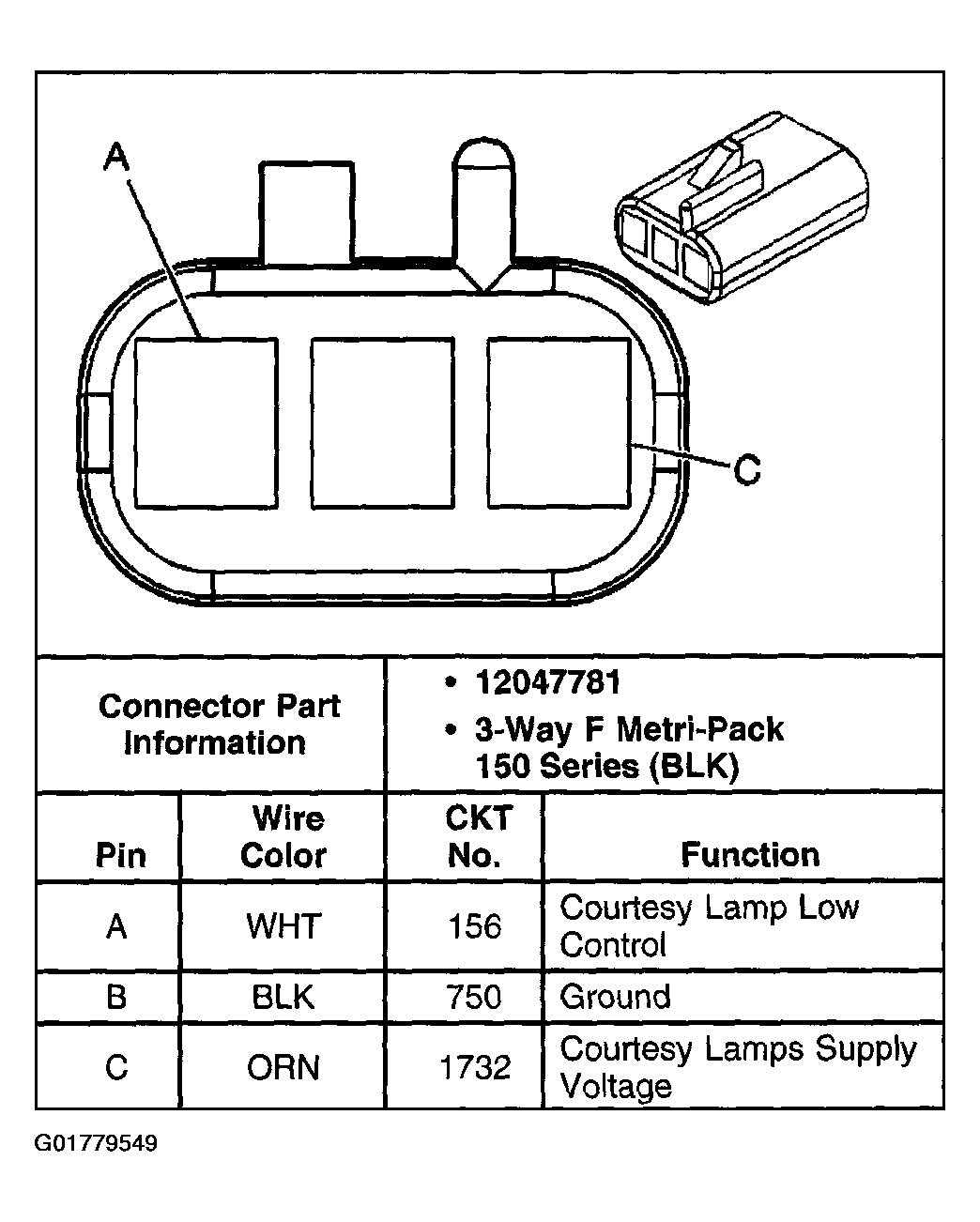

Fig 5: Courtesy Lamp - Left
Courtesy of GENERAL MOTORS CORP.
Fig 6: Courtesy Lamp - Right
Courtesy of GENERAL MOTORS CORP.

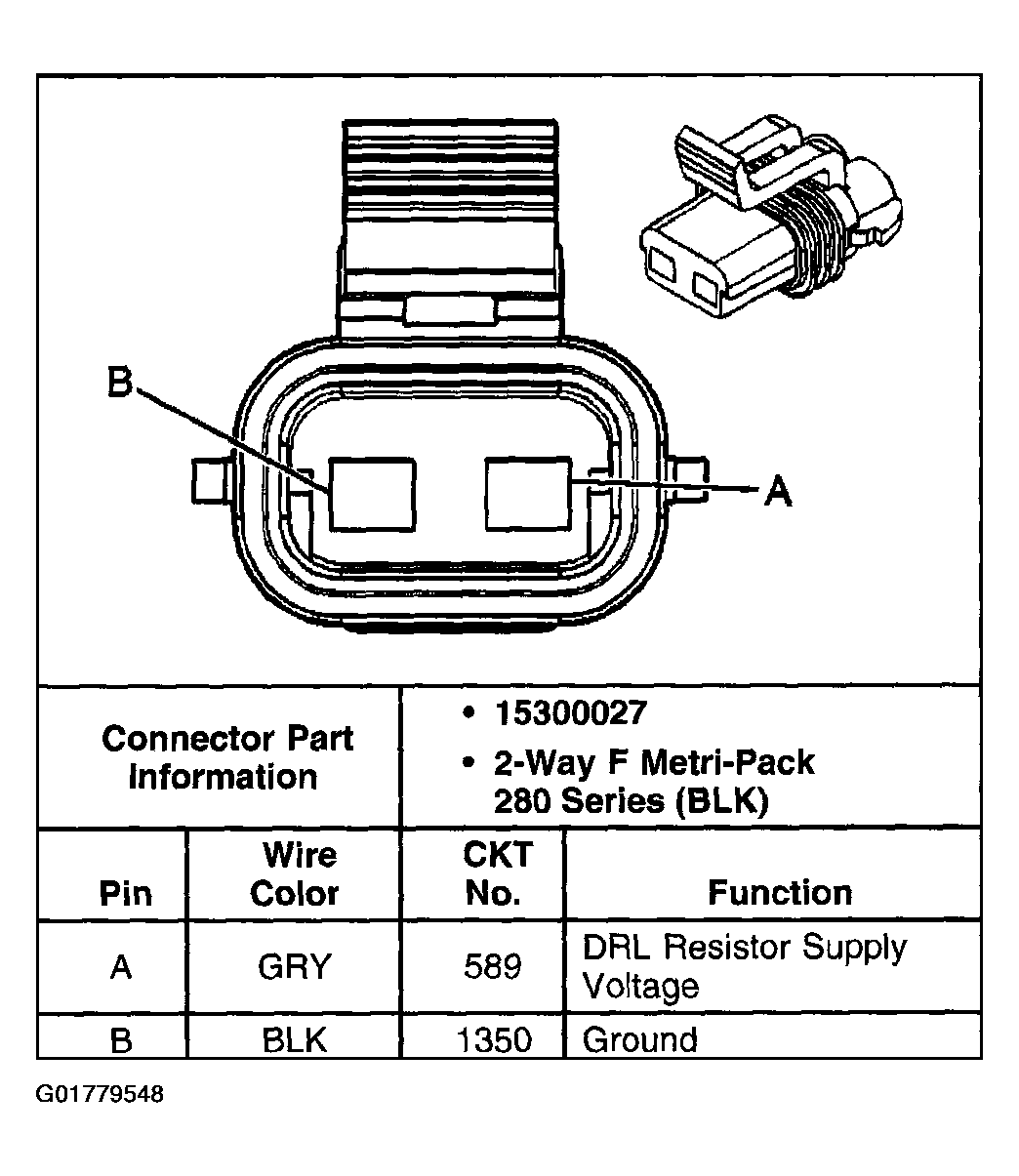

Fig 7: Daytime Running Lamps (DRL) Resistor
Courtesy of GENERAL MOTORS CORP.

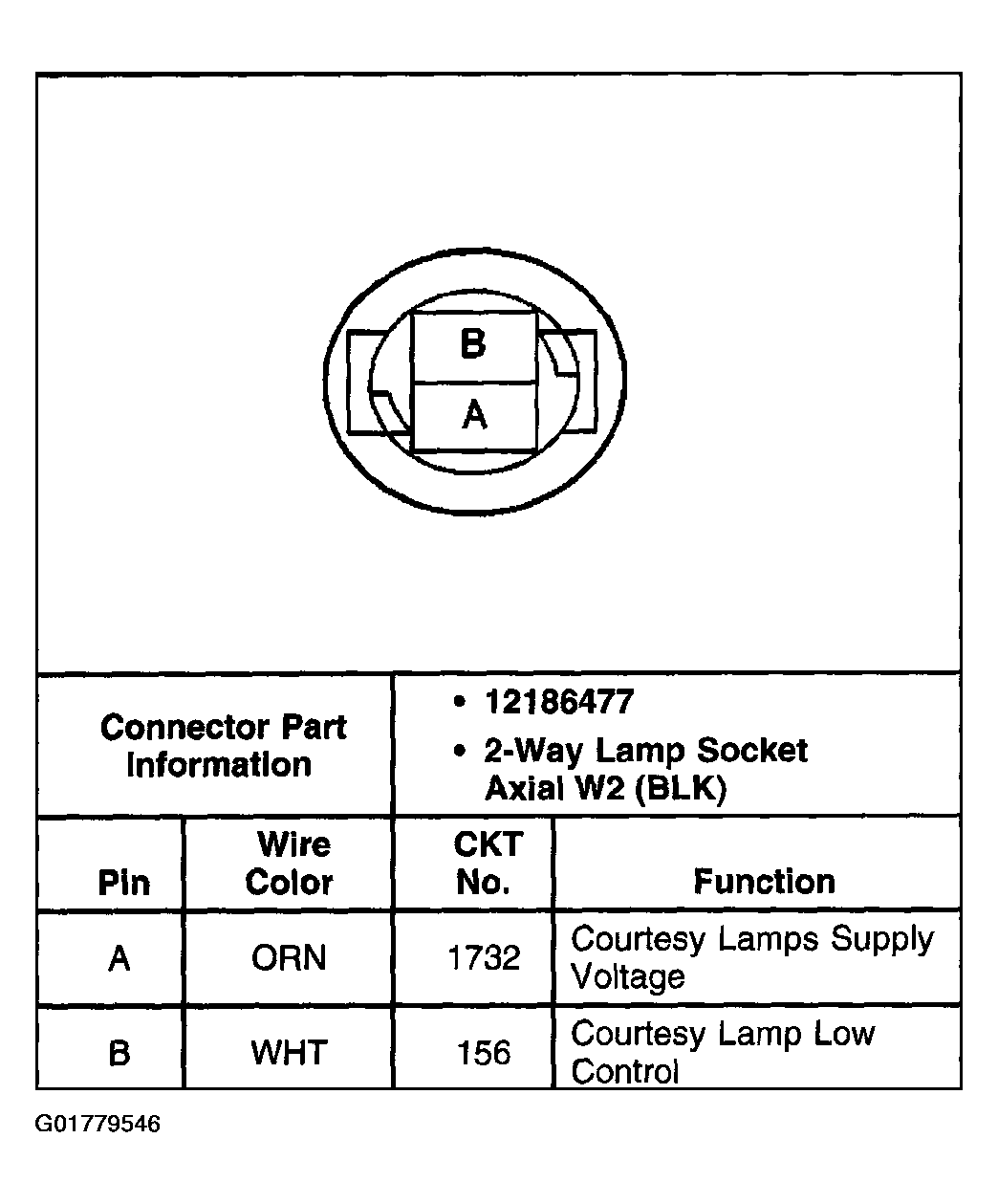

Fig 8: Dome Lamp
Courtesy of GENERAL MOTORS CORP.

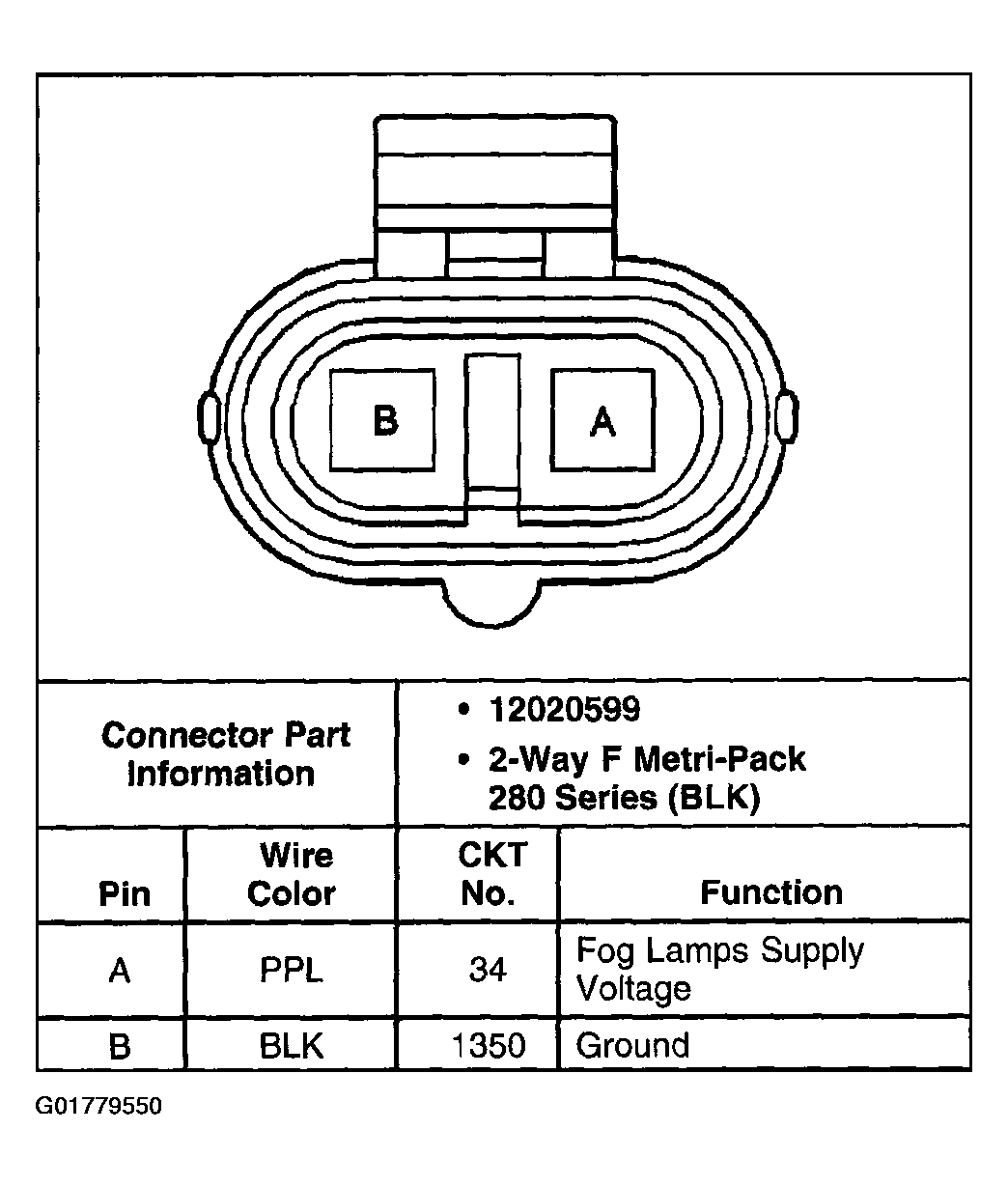

Fig 9: Fog Lamp - LF
Courtesy of GENERAL MOTORS CORP.
Fig 10: Fog Lamp - RF
Courtesy of GENERAL MOTORS CORP.

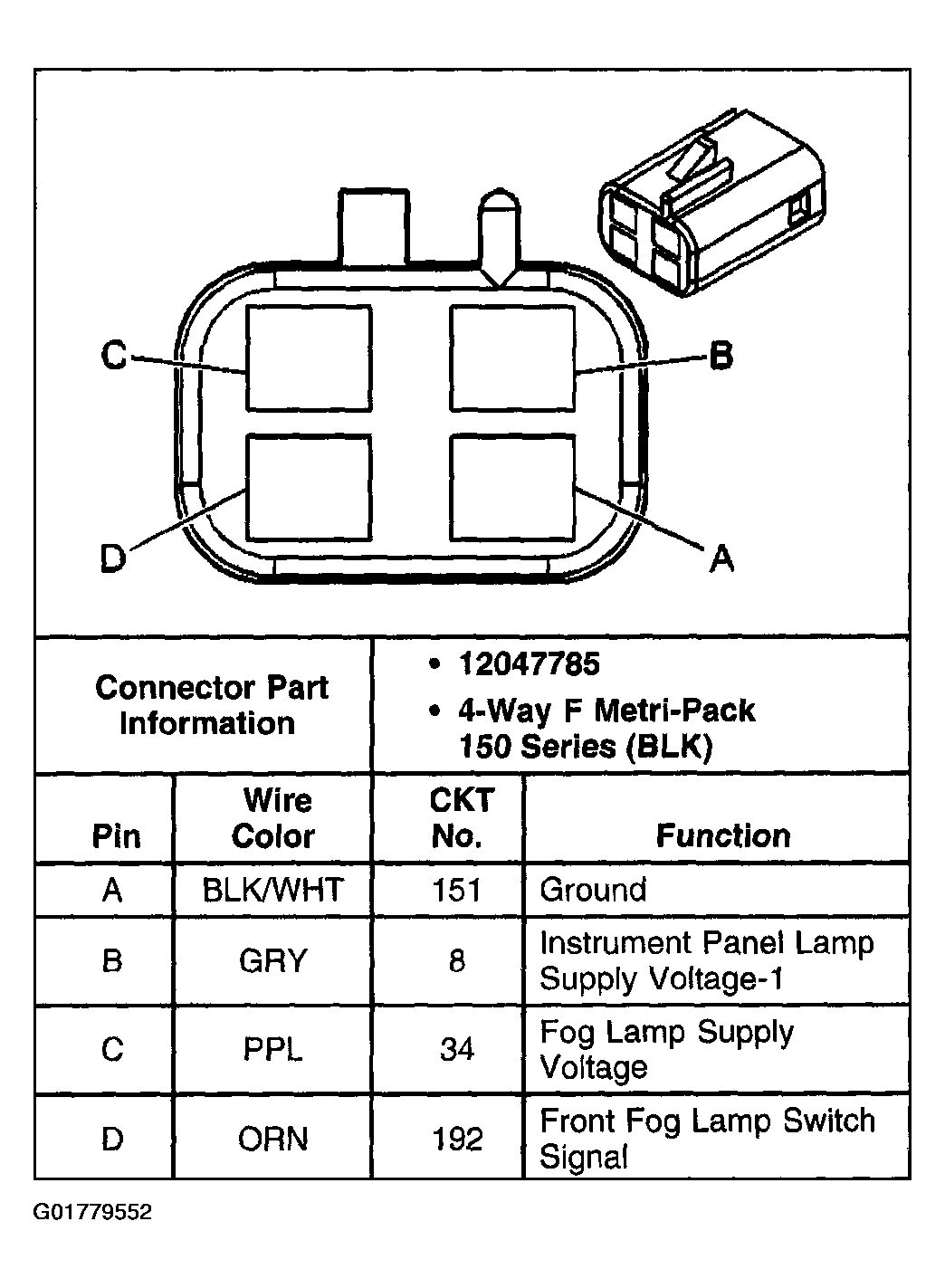

Fig 11: Fog Lamp Switch
Courtesy of GENERAL MOTORS CORP.

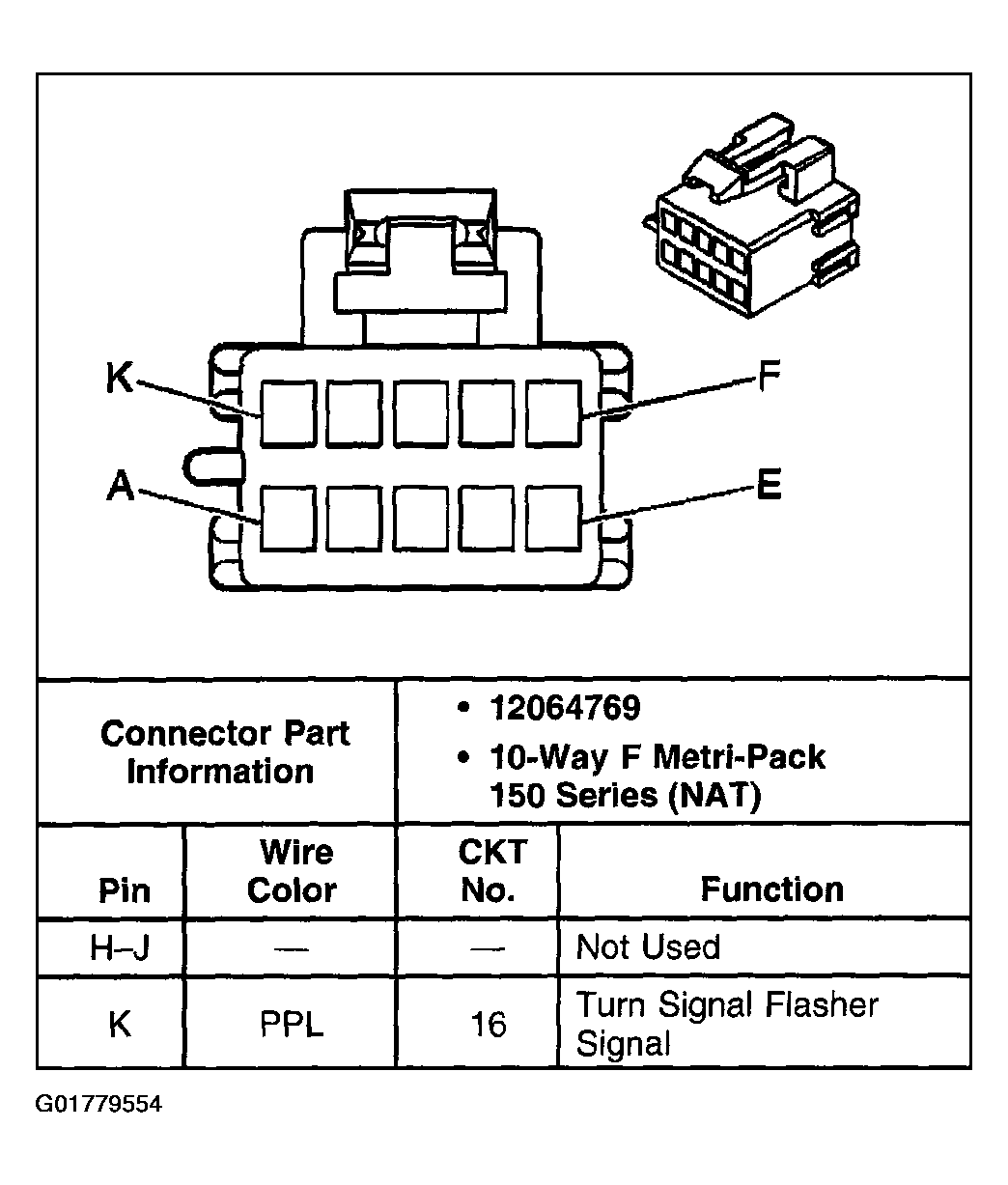

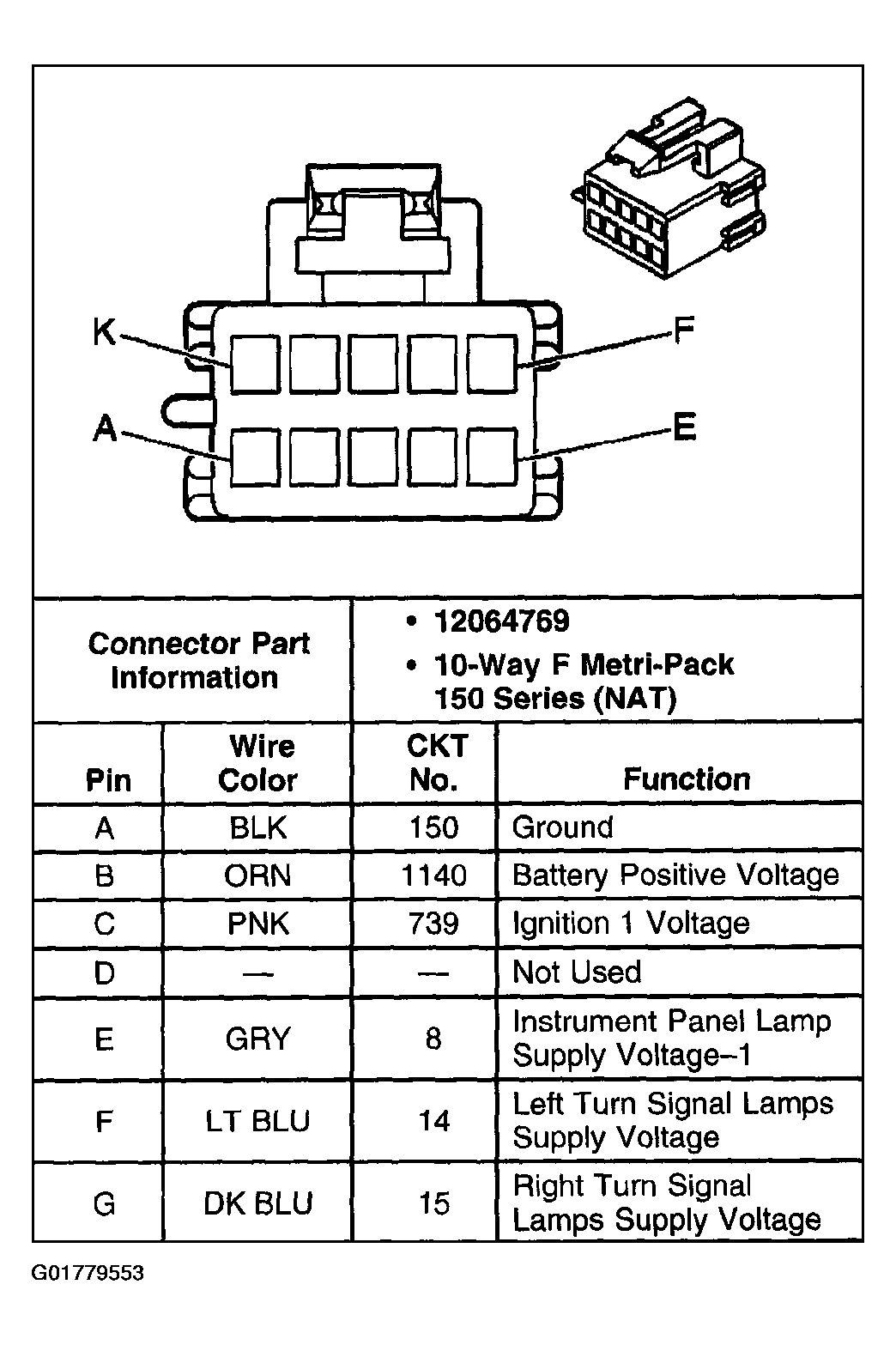

Fig 12: Hazard Switch (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Hazard Switch (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

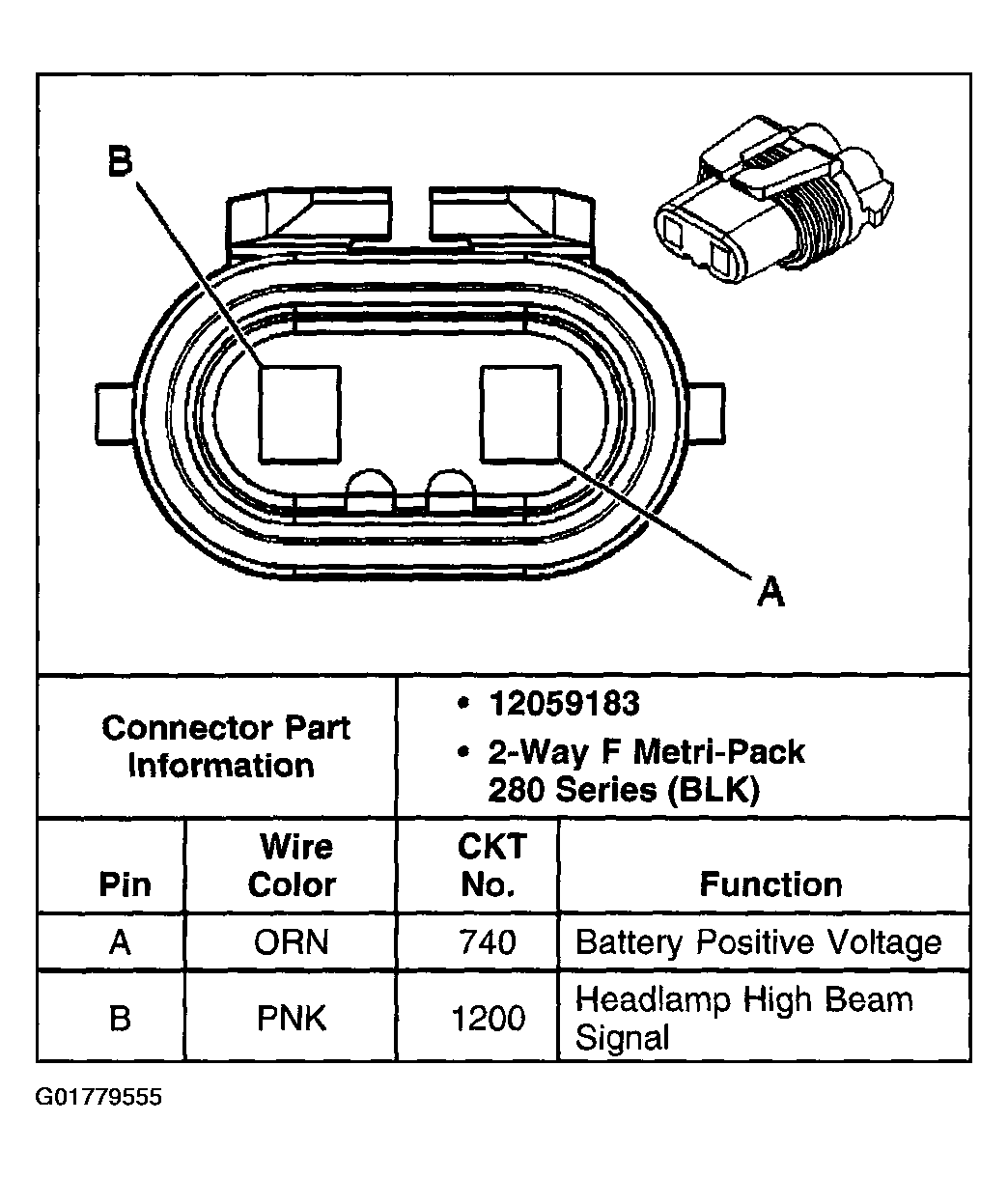

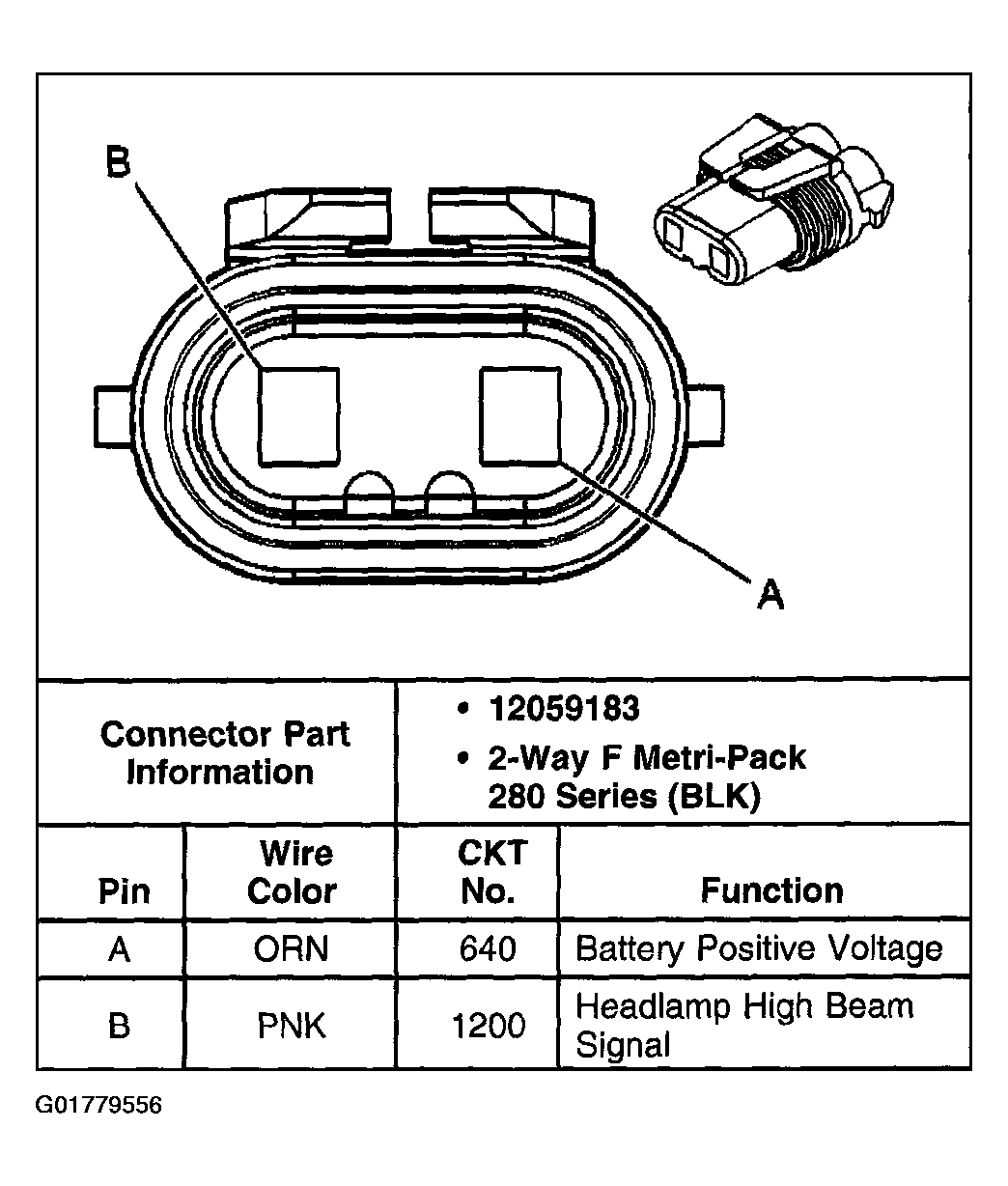

Fig 14: Headlamp - High Beam (Left)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Headlamp - High Beam (Right)
Courtesy of GENERAL MOTORS CORP.

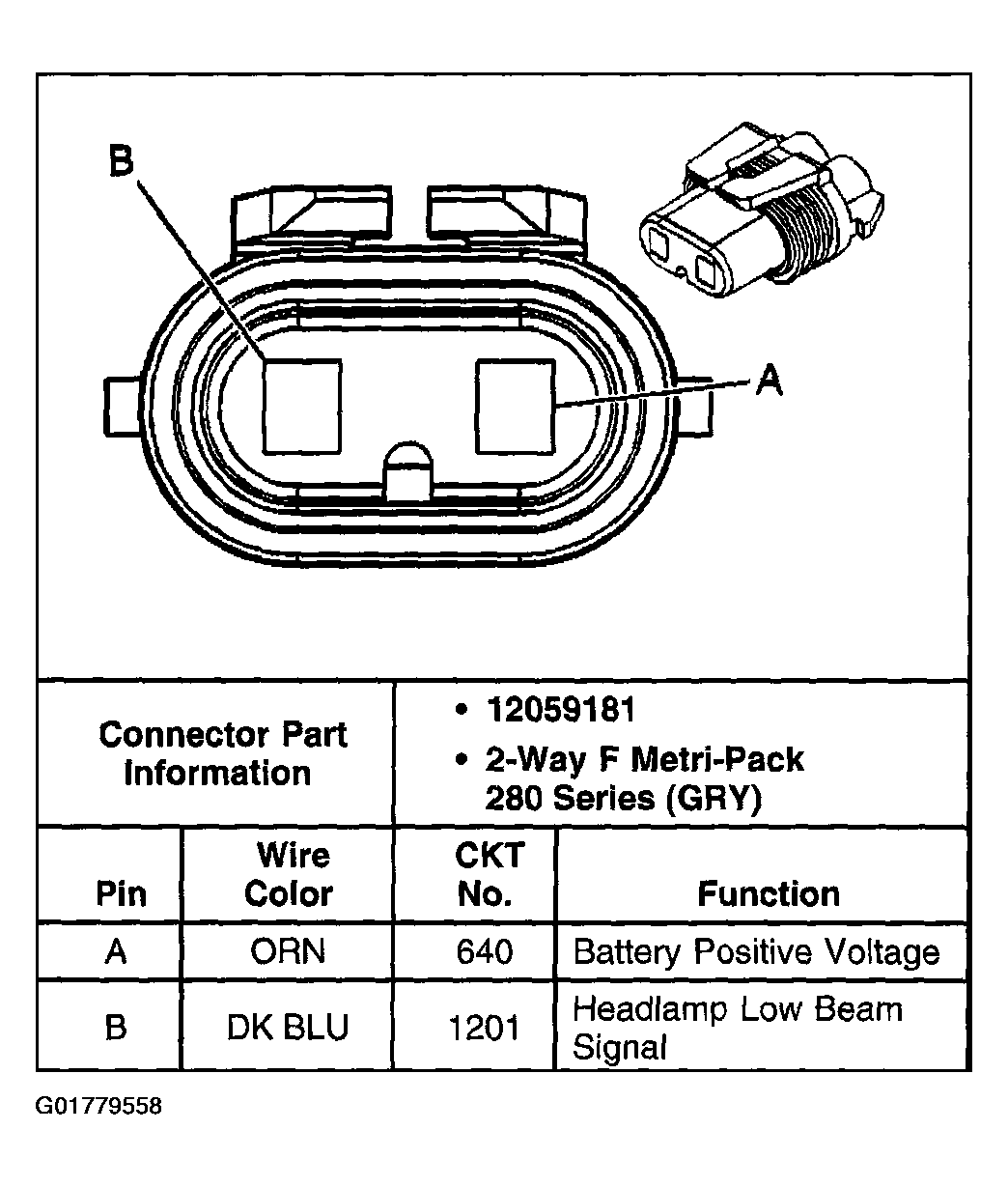

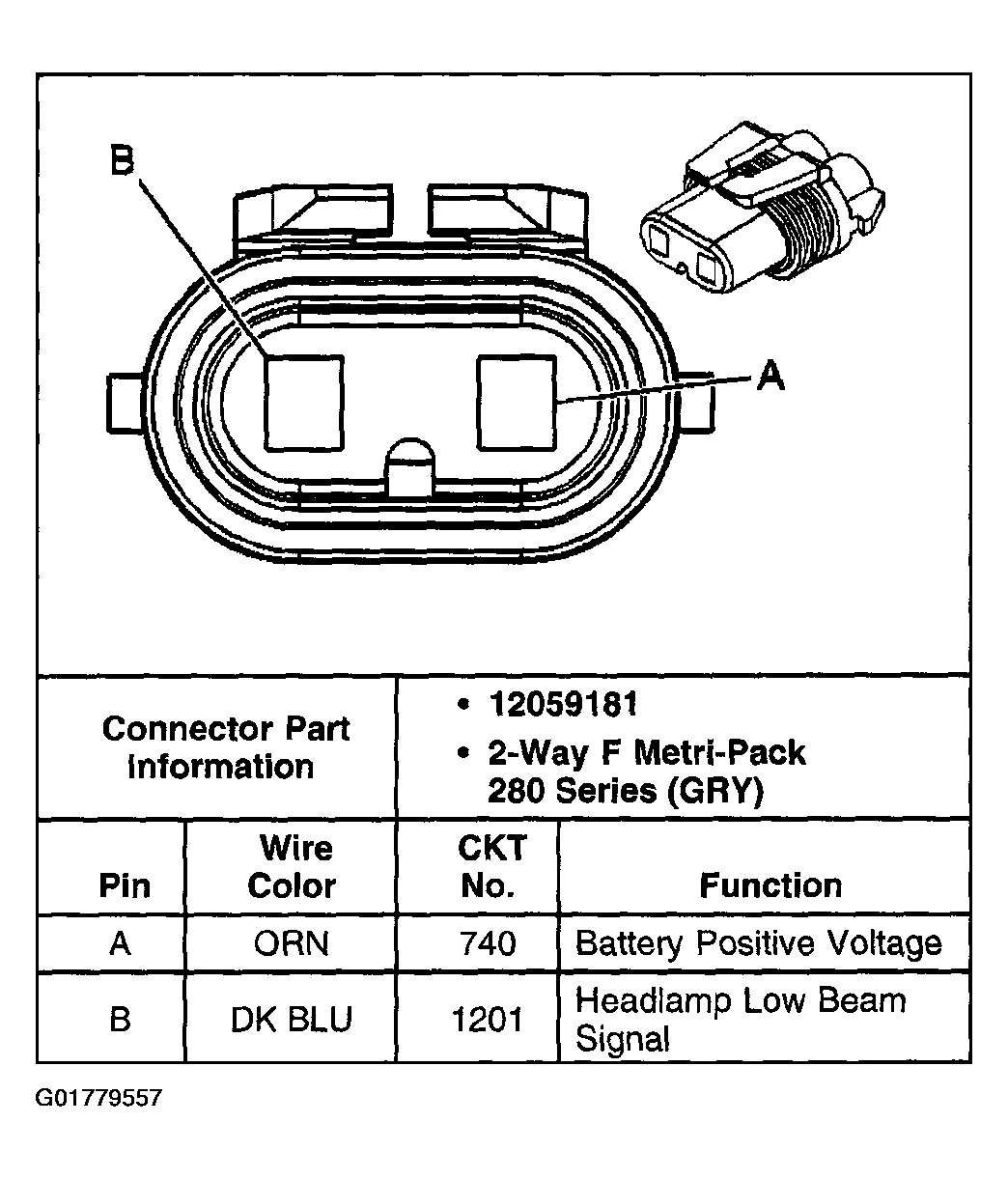

Fig 16: Headlamp - Low Beam (Left)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Headlamp - Low Beam (Right)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Instrument Panel Compartment Lamp/Switch
Courtesy of GENERAL MOTORS CORP.

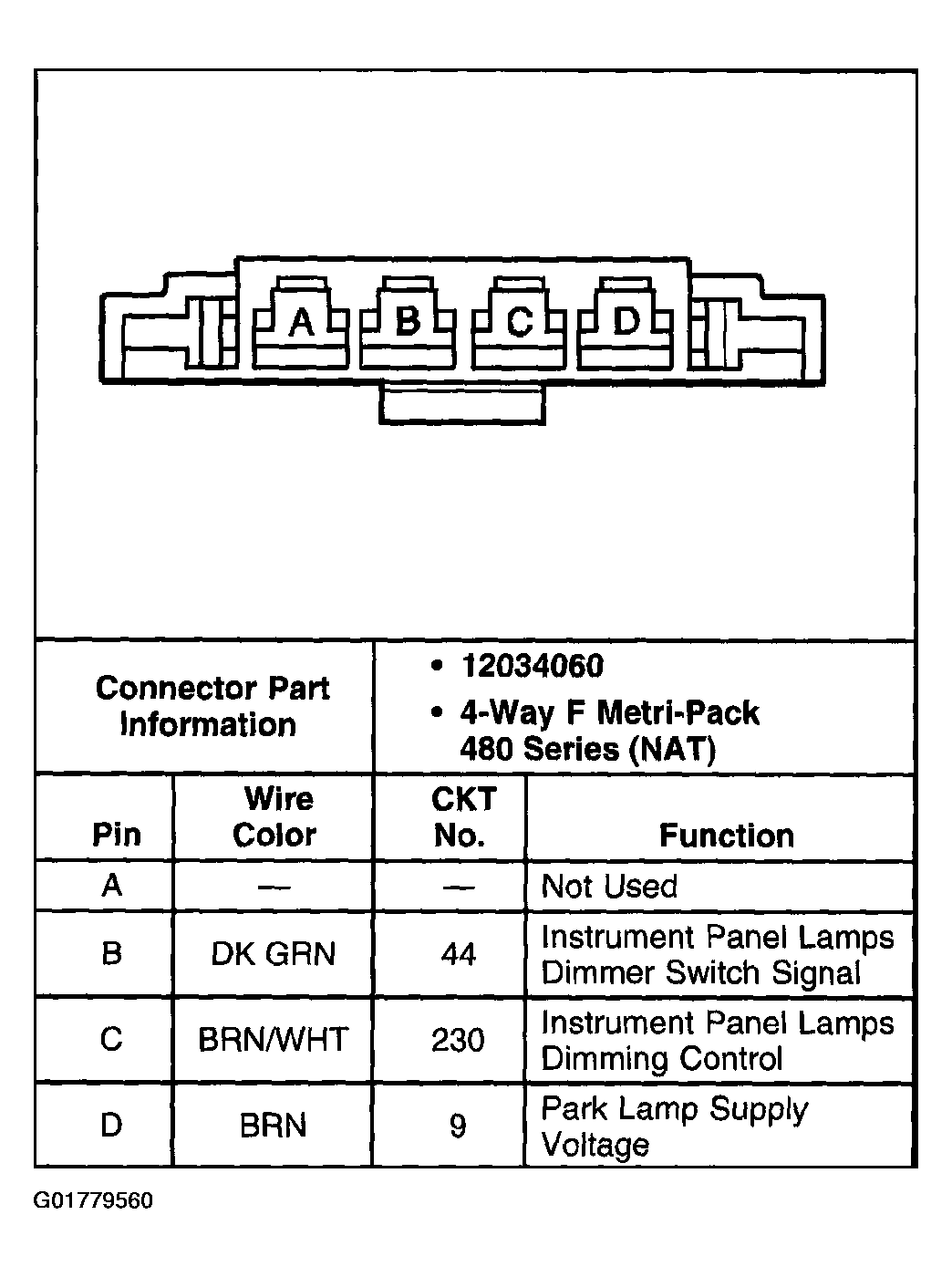

Fig 19: IP Dimming Module
Courtesy of GENERAL MOTORS CORP.

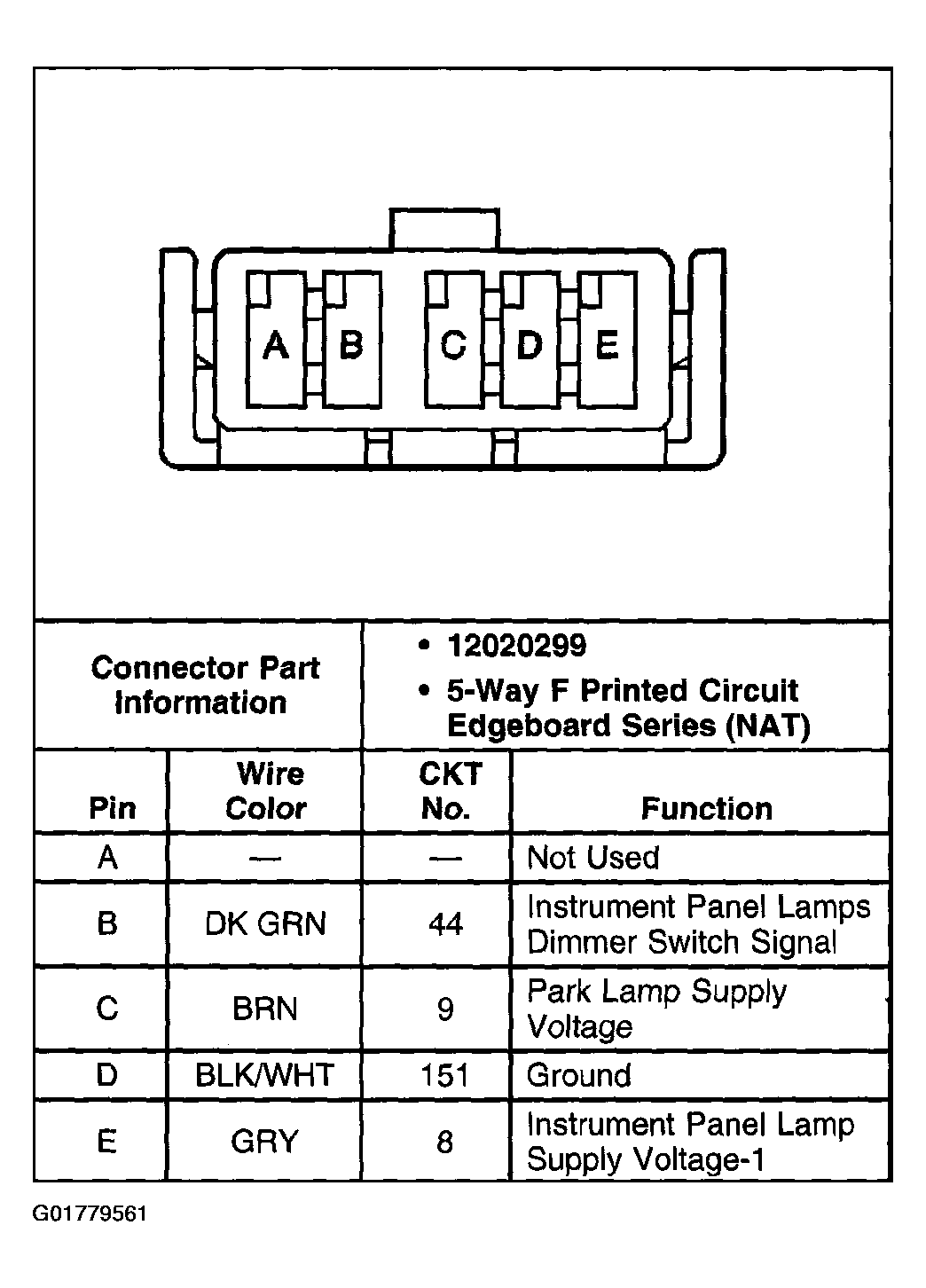

Fig 20: IP Dimmer Switch
Courtesy of GENERAL MOTORS CORP.
Fig 21: License Lamp
Courtesy of GENERAL MOTORS CORP.

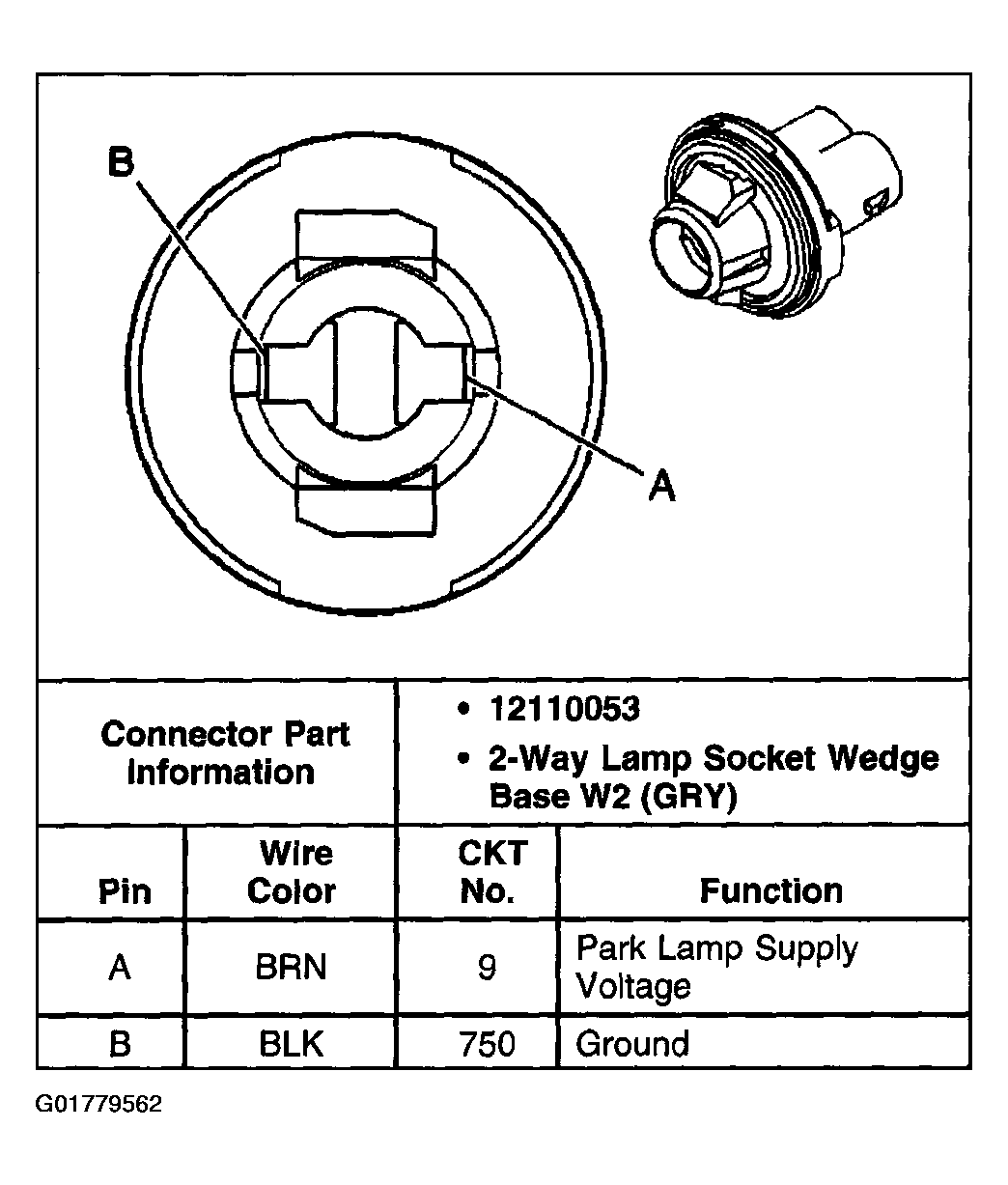

Fig 22: Marker Lamp - LF
Courtesy of GENERAL MOTORS CORP.
Fig 23: Marker Lamp - RF
Courtesy of GENERAL MOTORS CORP.

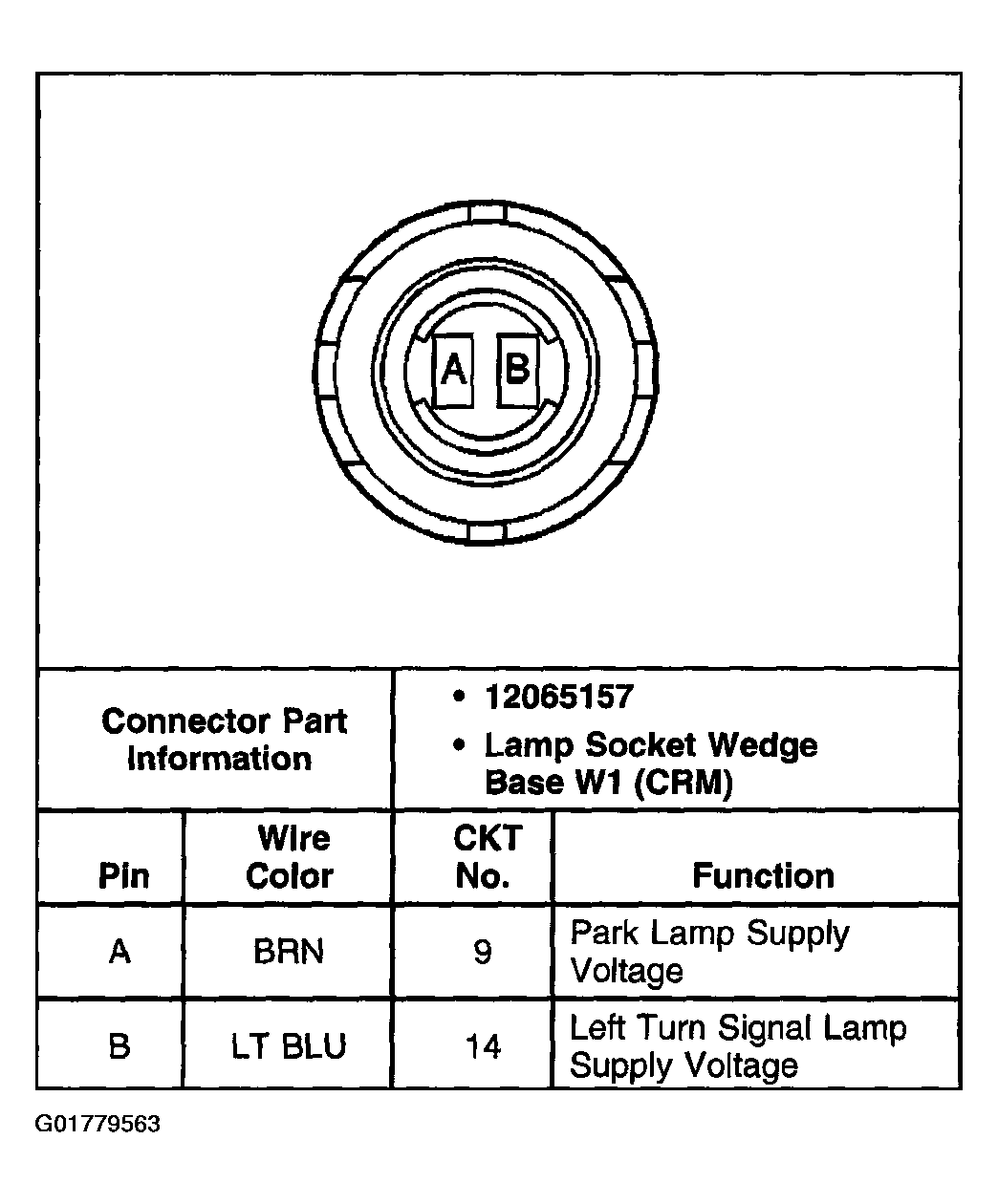

Fig 24: Park/Turn Signal Lamp - LF
Courtesy of GENERAL MOTORS CORP.

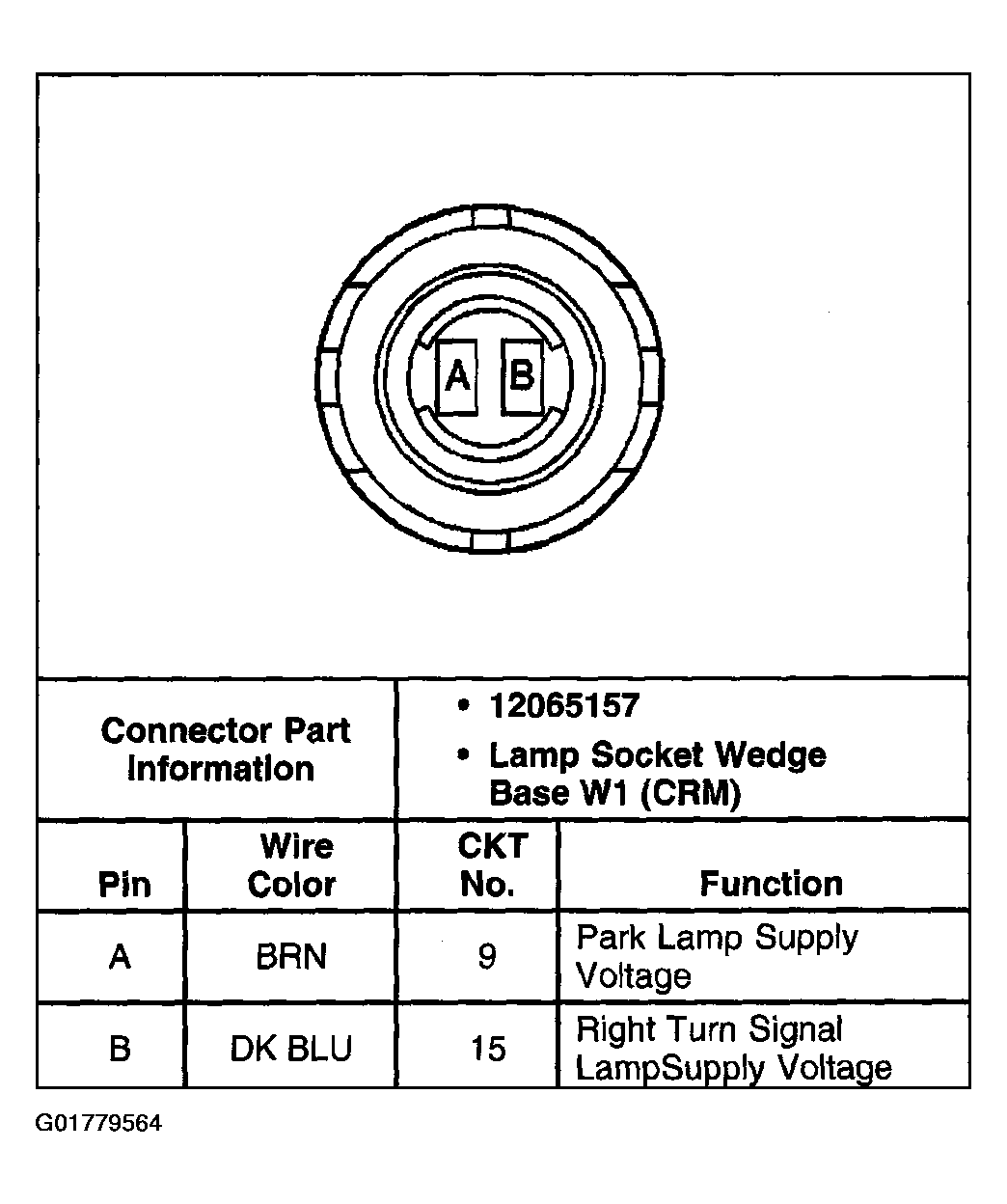

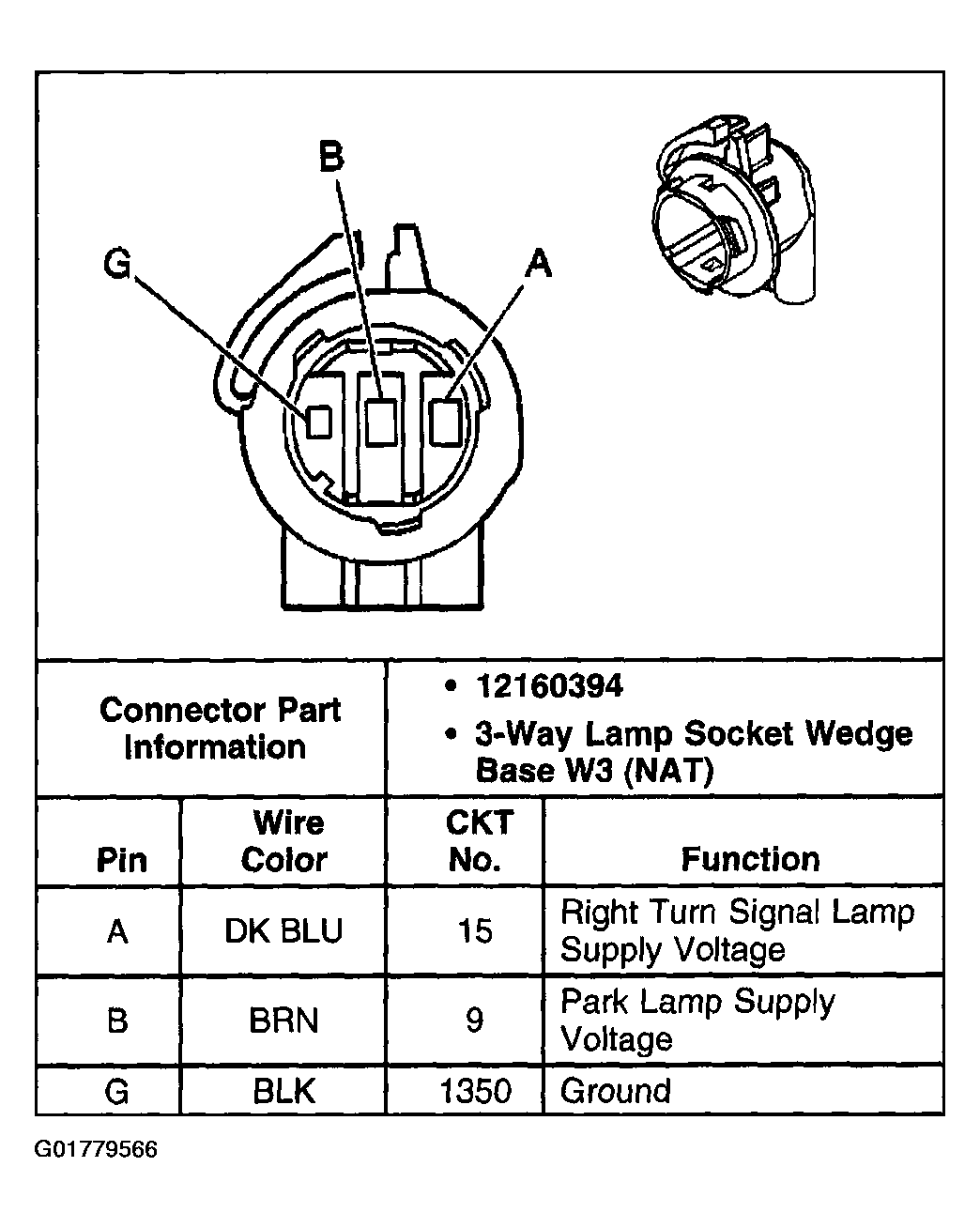

Fig 25: Park/Turn Signal Lamp - RF
Courtesy of GENERAL MOTORS CORP.

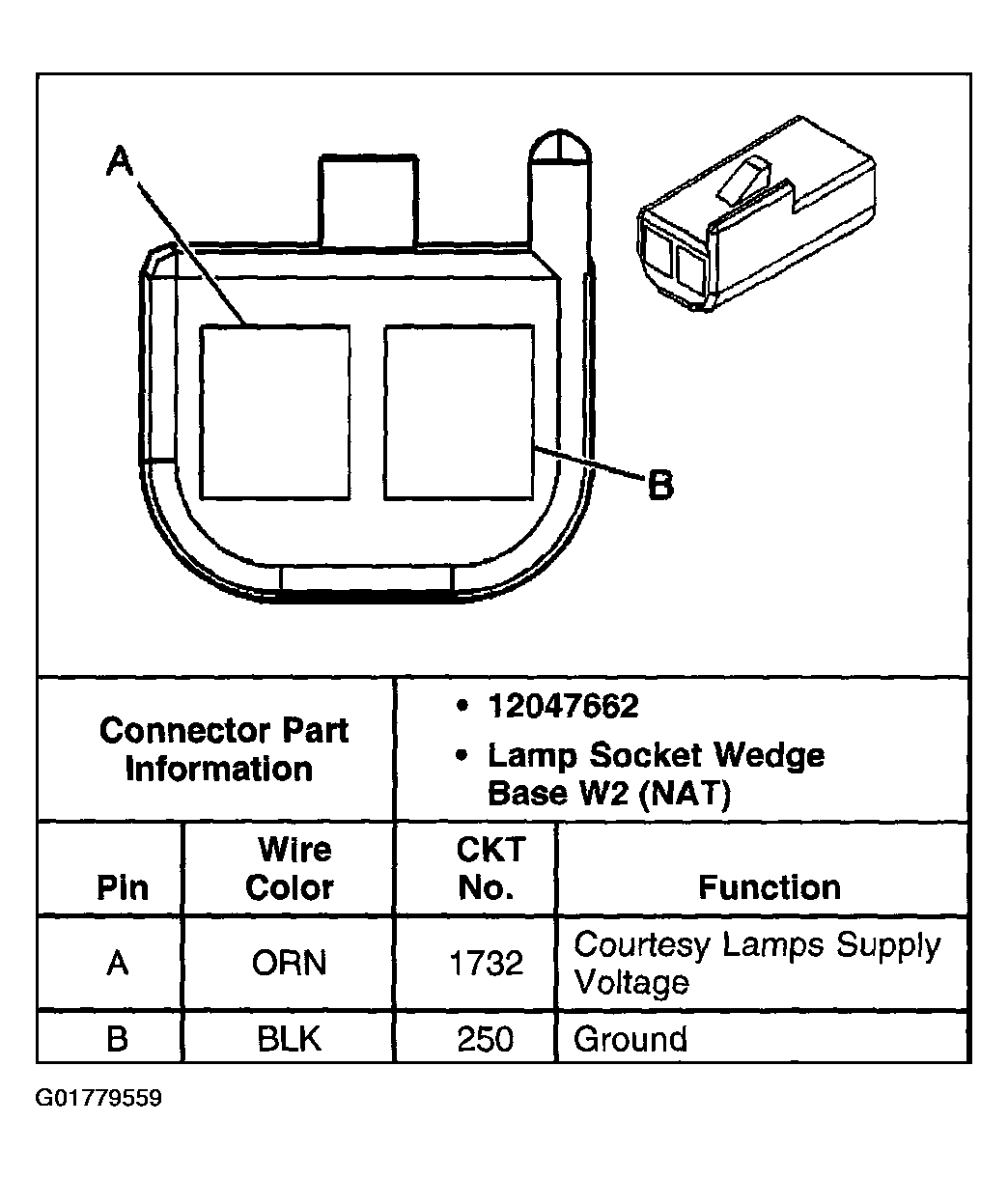

Fig 26: Rear Compartment Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

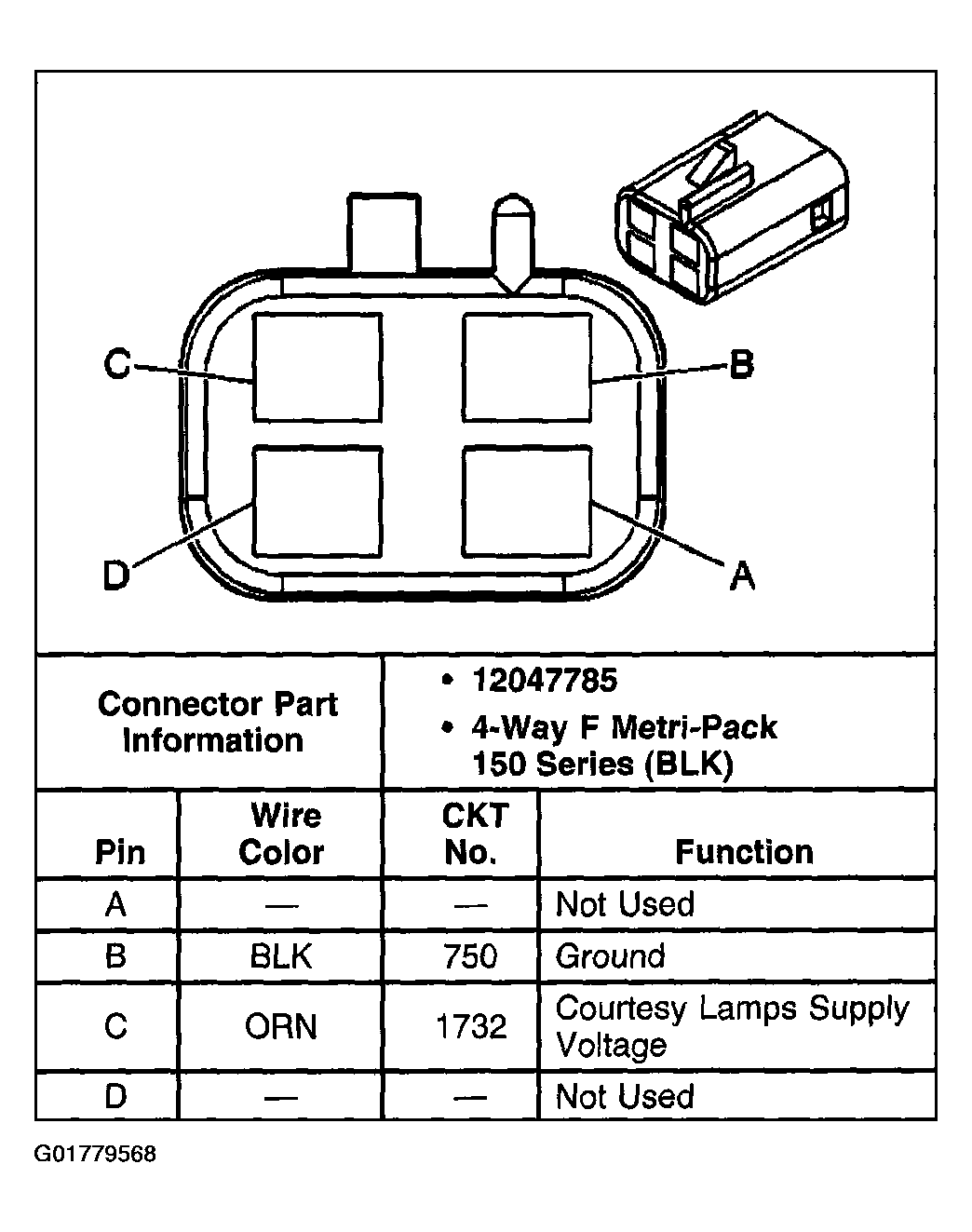

Fig 27: Rear View Mirror Reading Lamps
Courtesy of GENERAL MOTORS CORP.

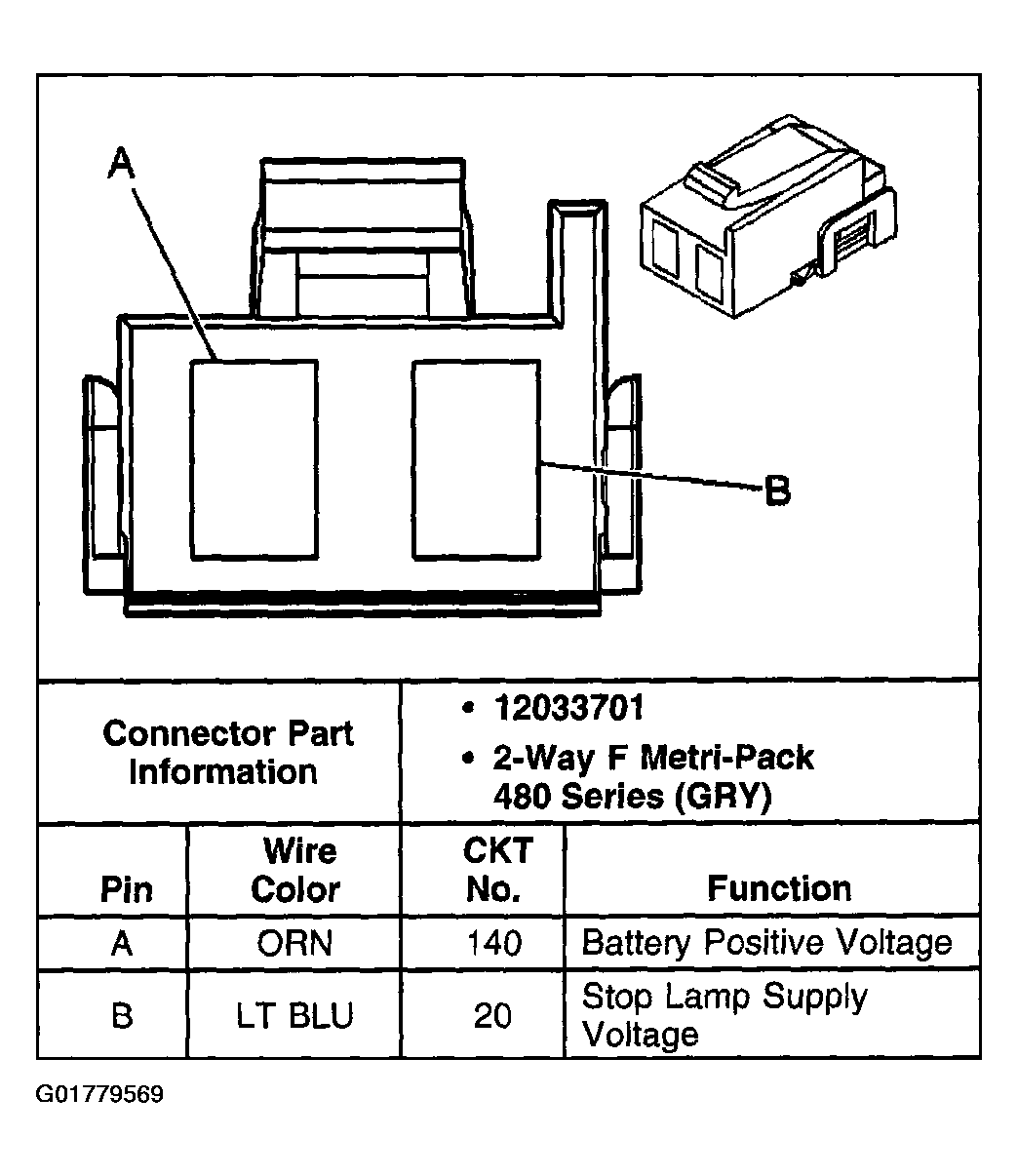

Fig 28: Stop Lamp Switch C1
Courtesy of GENERAL MOTORS CORP.

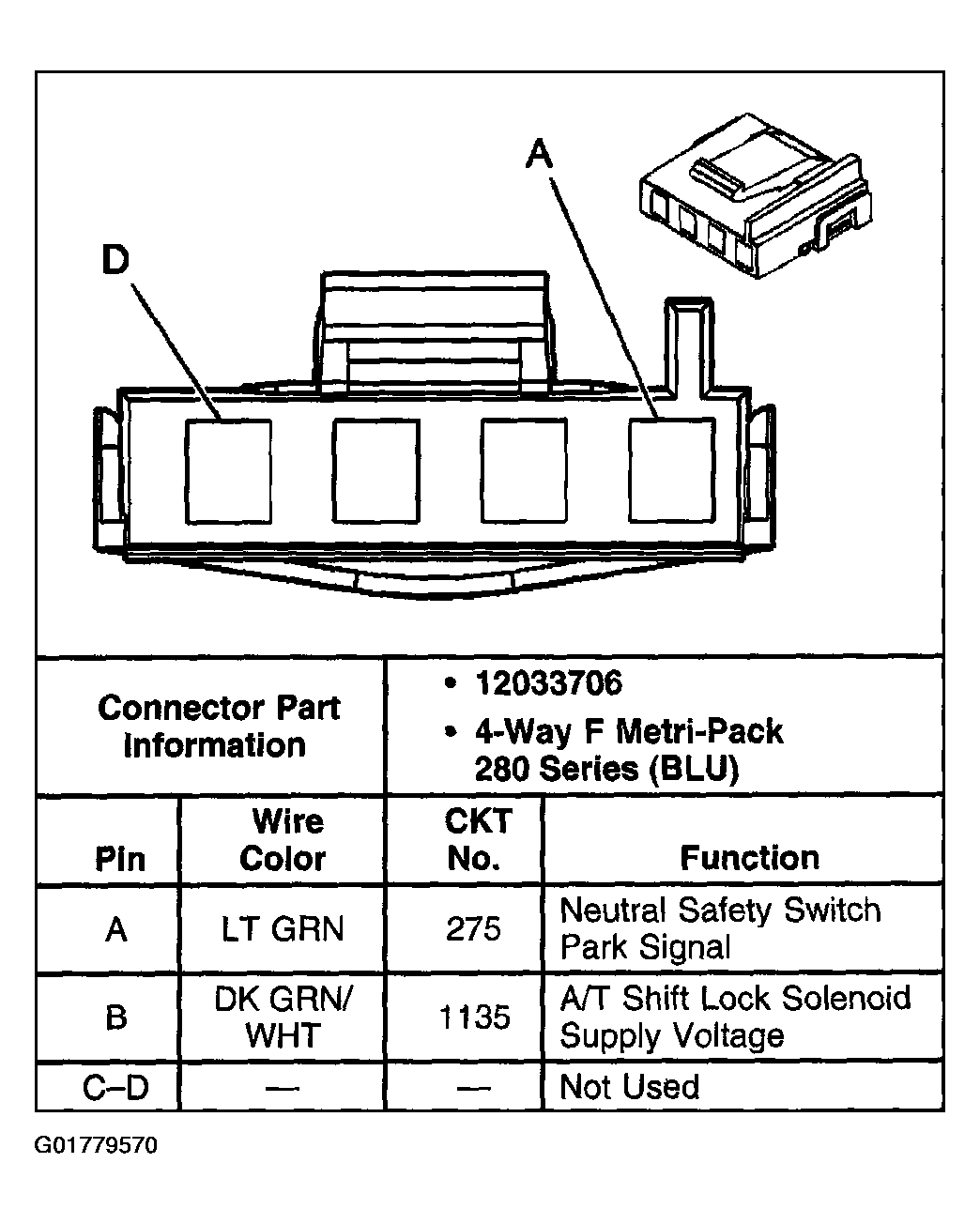

Fig 29: Stop Lamp Switch C2
Courtesy of GENERAL MOTORS CORP.

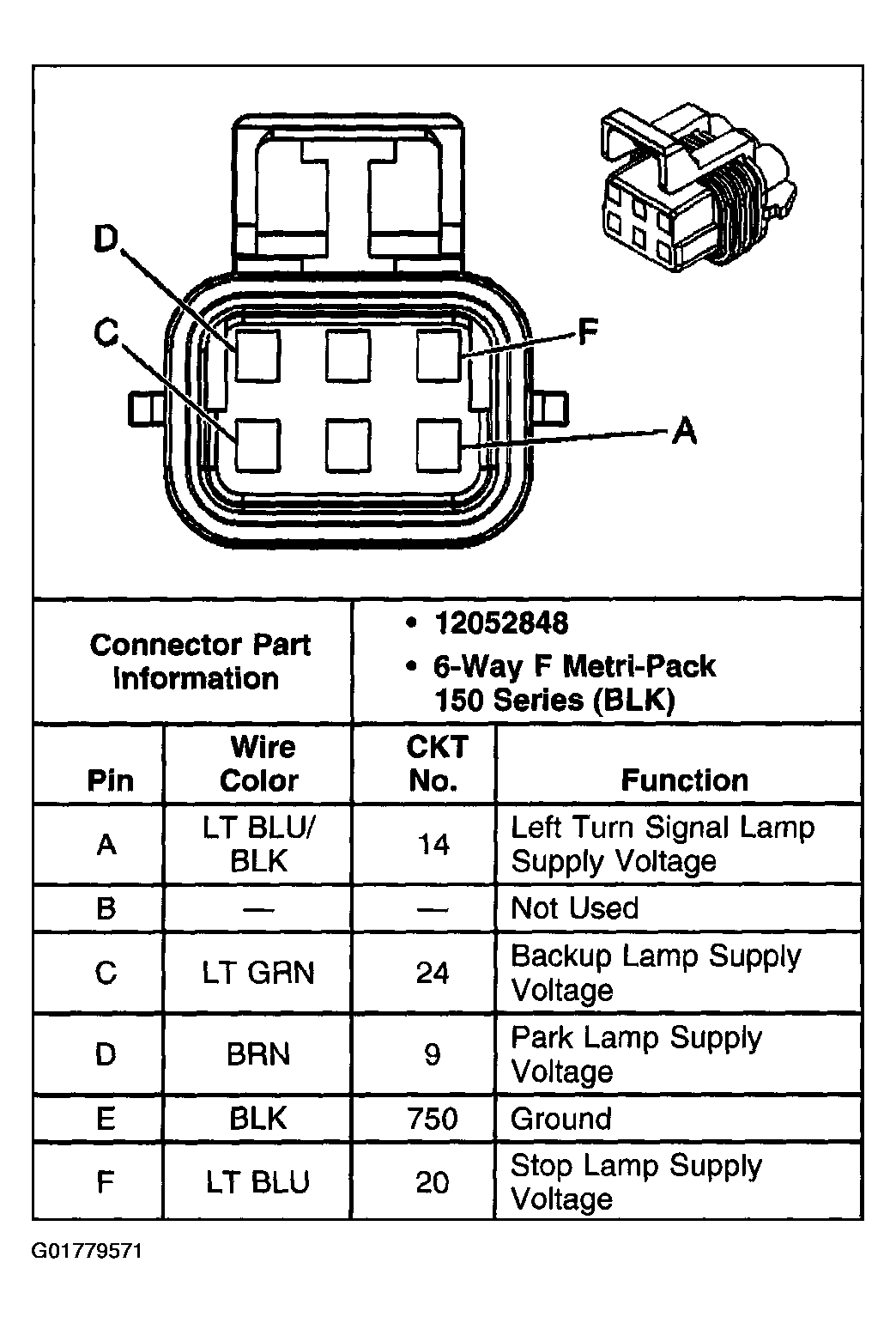

Fig 30: Tail/Stop and Turn Signal Lamp - Left
Courtesy of GENERAL MOTORS CORP.

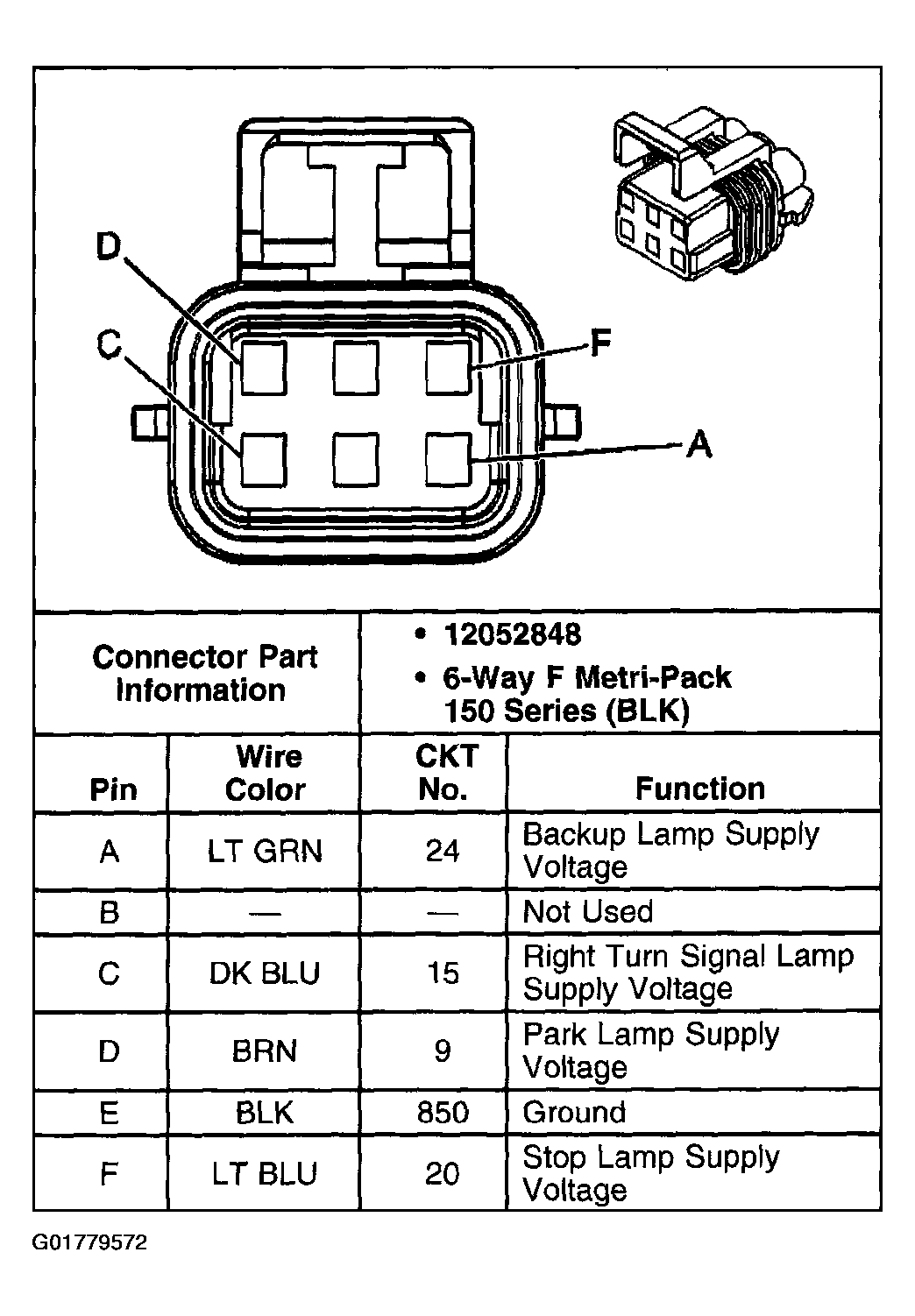

Fig 31: Tail/Stop and Turn Signal Lamp - Right
Courtesy of GENERAL MOTORS CORP.

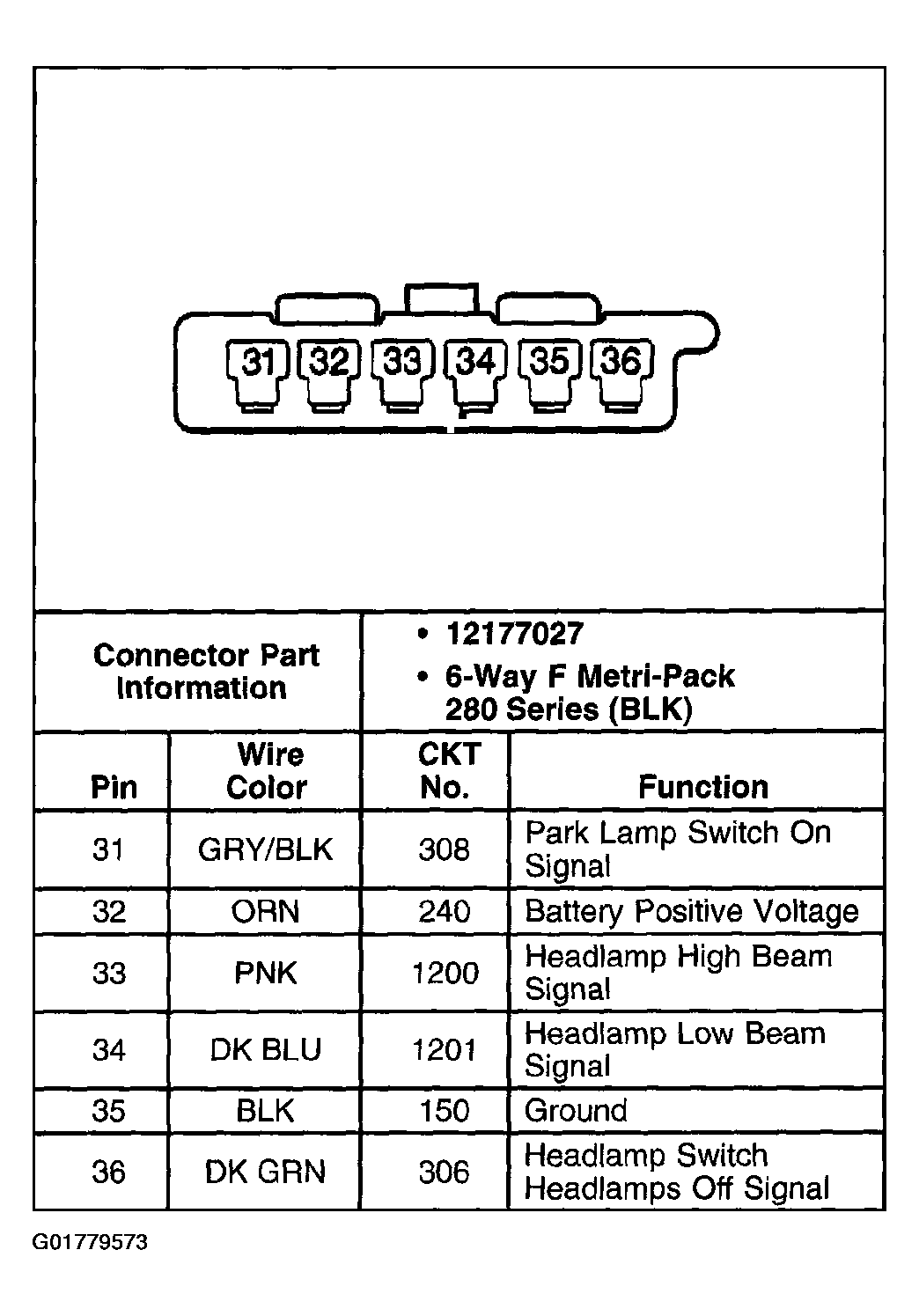

Fig 32: Turn Signal/Multifunction Switch C1
Courtesy of GENERAL MOTORS CORP.

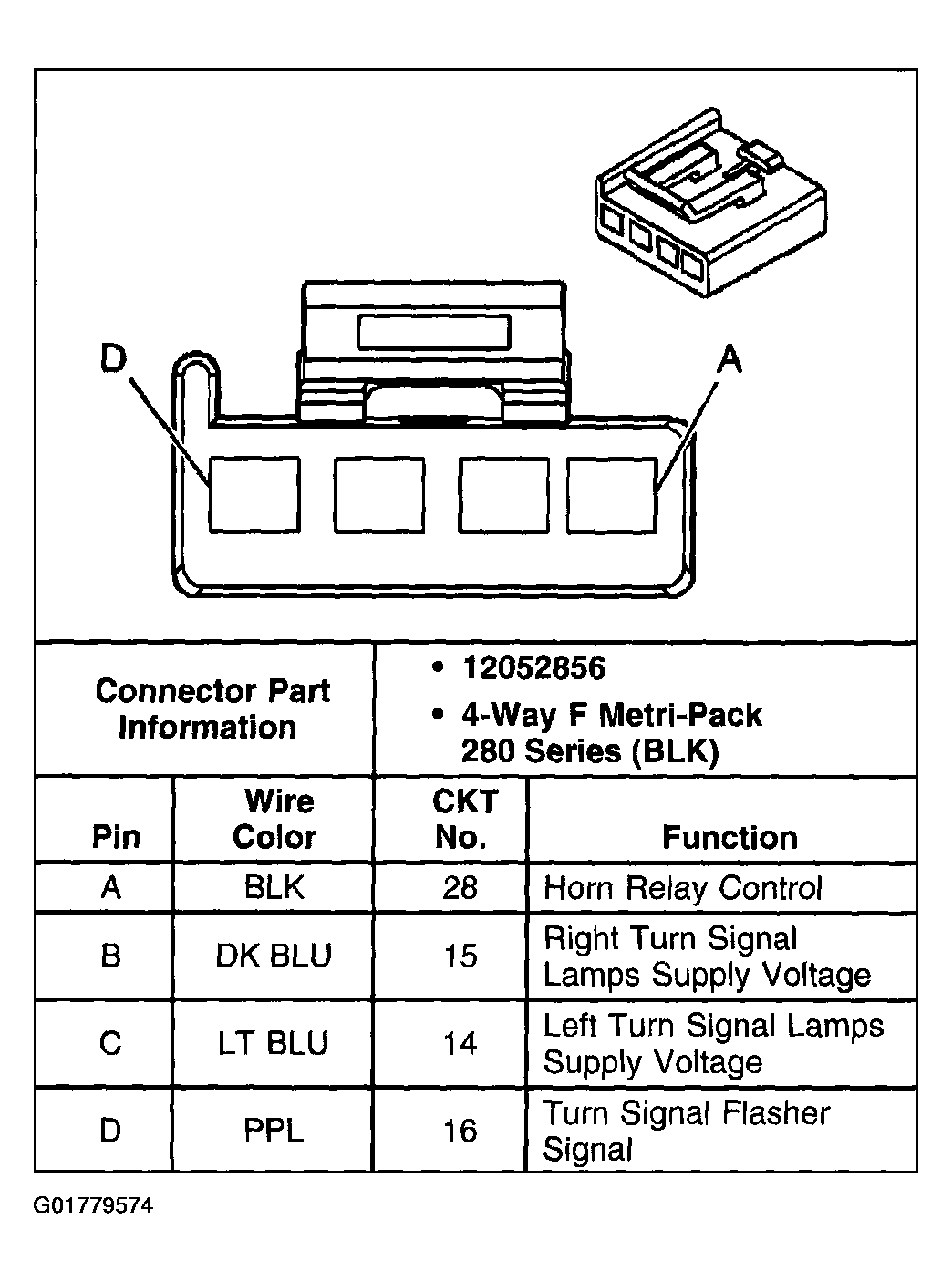

Fig 33: Turn Signal/Multifunction Switch C2
Courtesy of GENERAL MOTORS CORP.

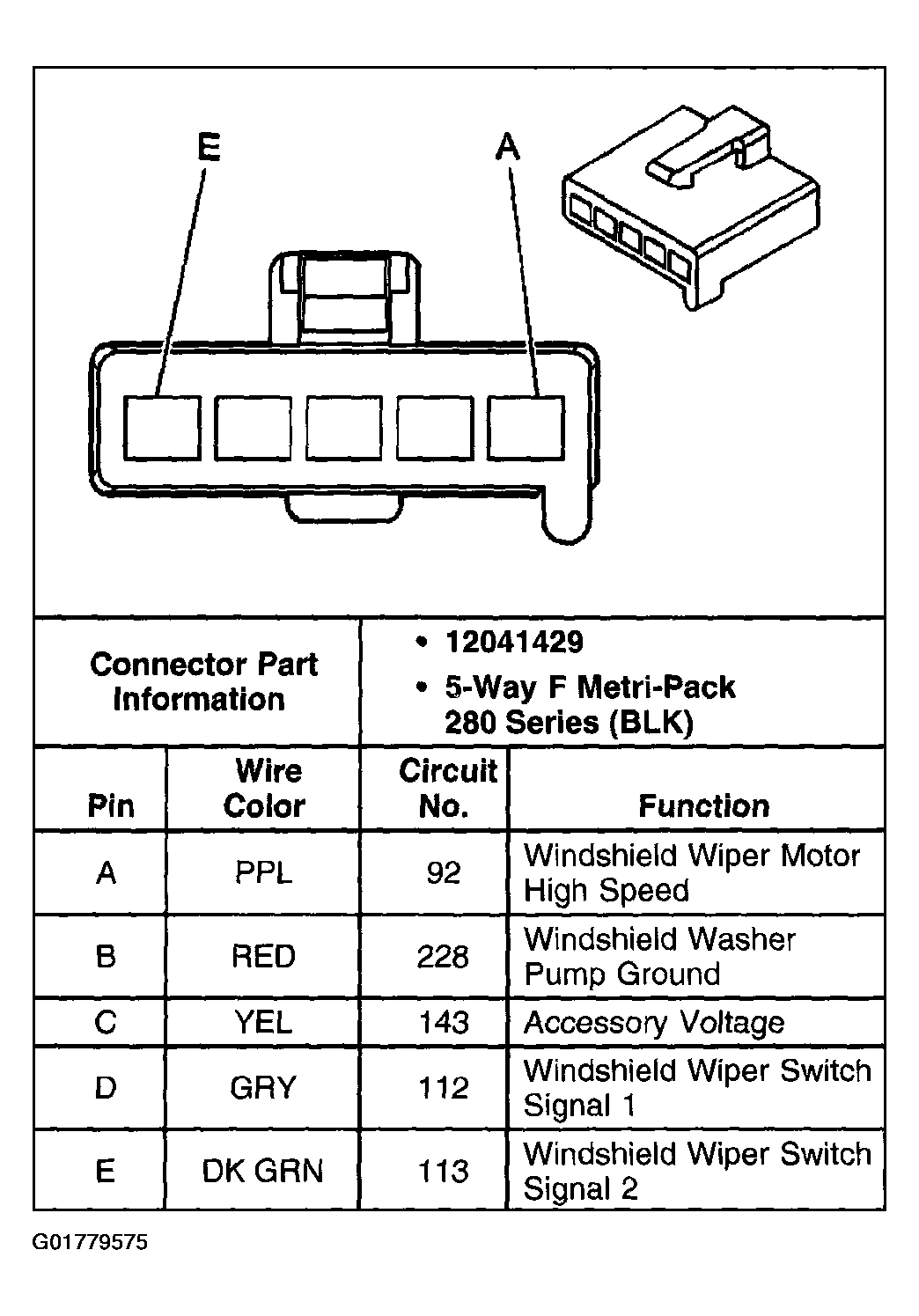

Fig 34: Turn Signal/Multifunction Switch C3
Courtesy of GENERAL MOTORS CORP.
Fig 35: Vanity Mirror Lamp - Right
Courtesy of GENERAL MOTORS CORP.
