Power Door Systems Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

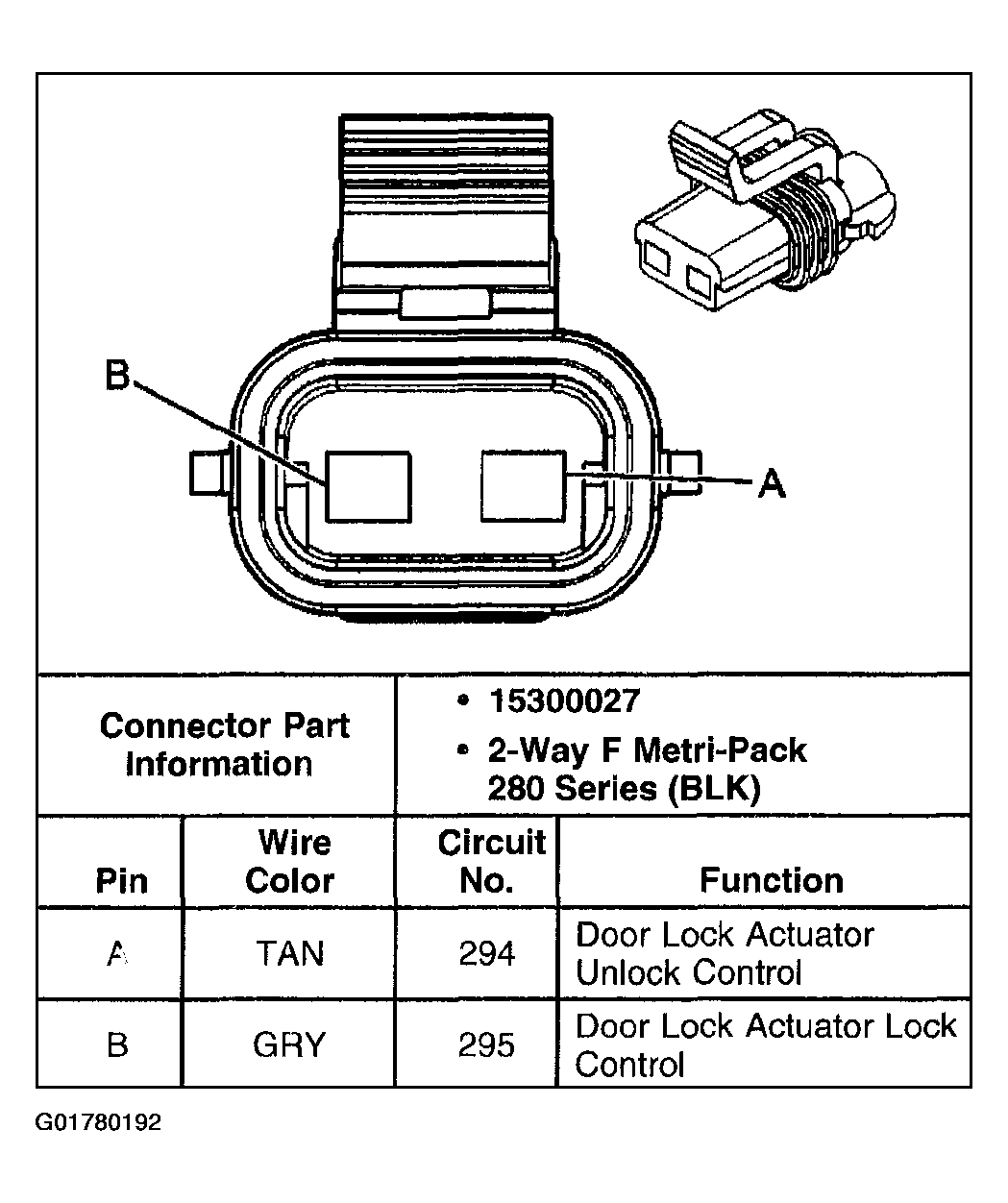

Fig 1: Identifying Door Lock Actuator - Driver

Courtesy of GENERAL MOTORS CORP.

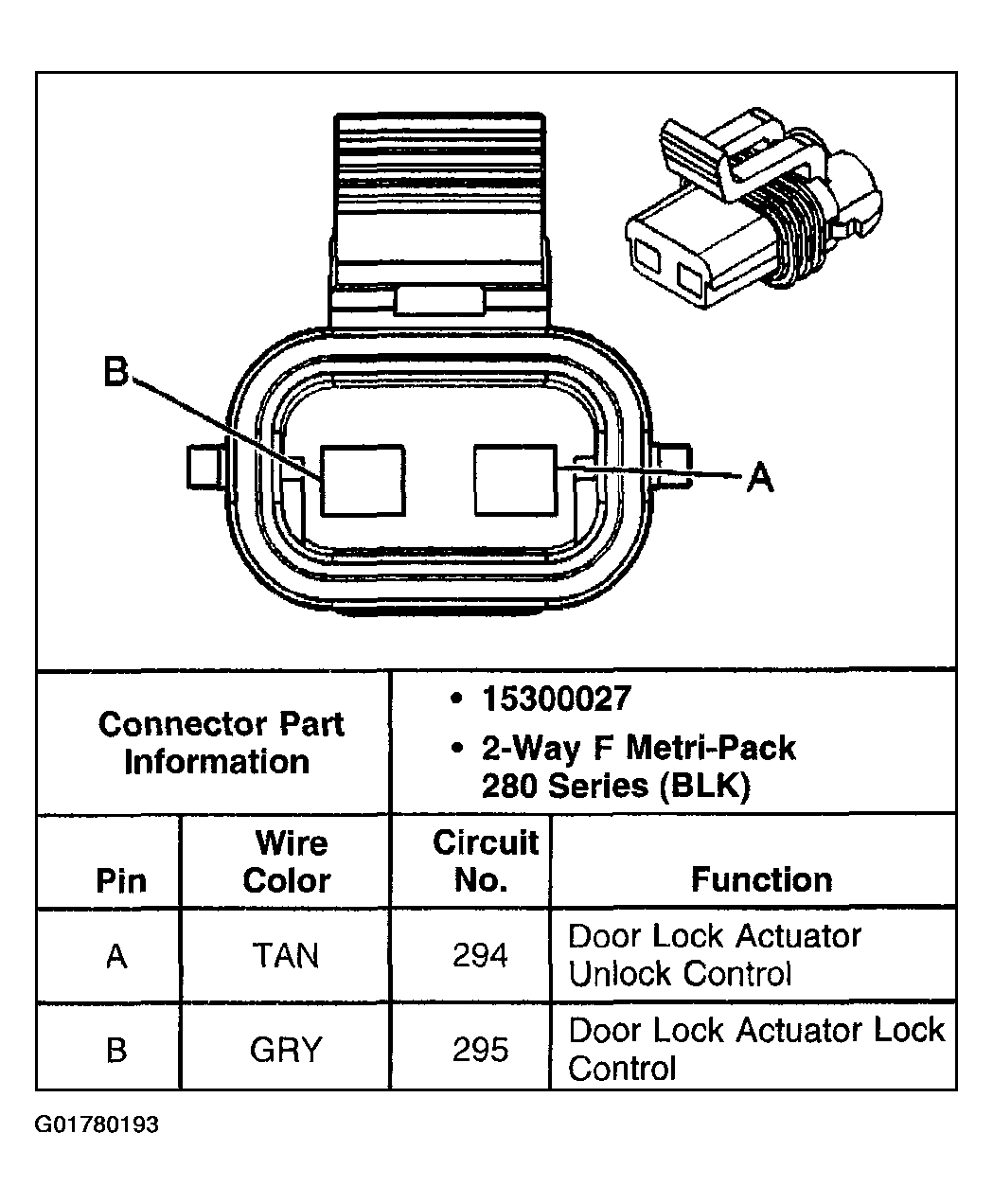

Fig 2: Identifying Door Lock Actuator - Front Passenger

Courtesy of GENERAL MOTORS CORP.

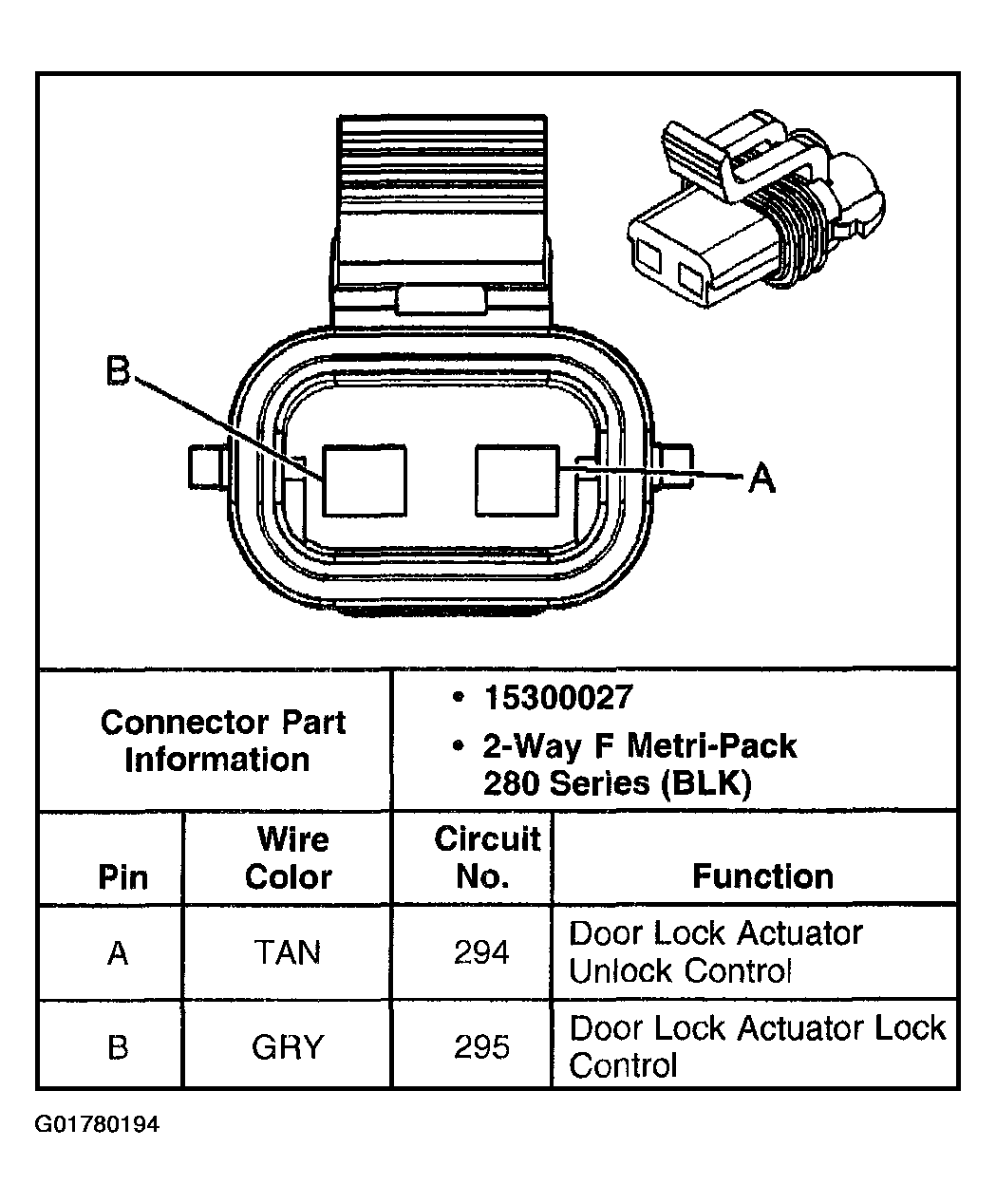

Fig 3: Identifying Door Lock Actuator - LR

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Door Lock Actuator - RR

Courtesy of GENERAL MOTORS CORP.

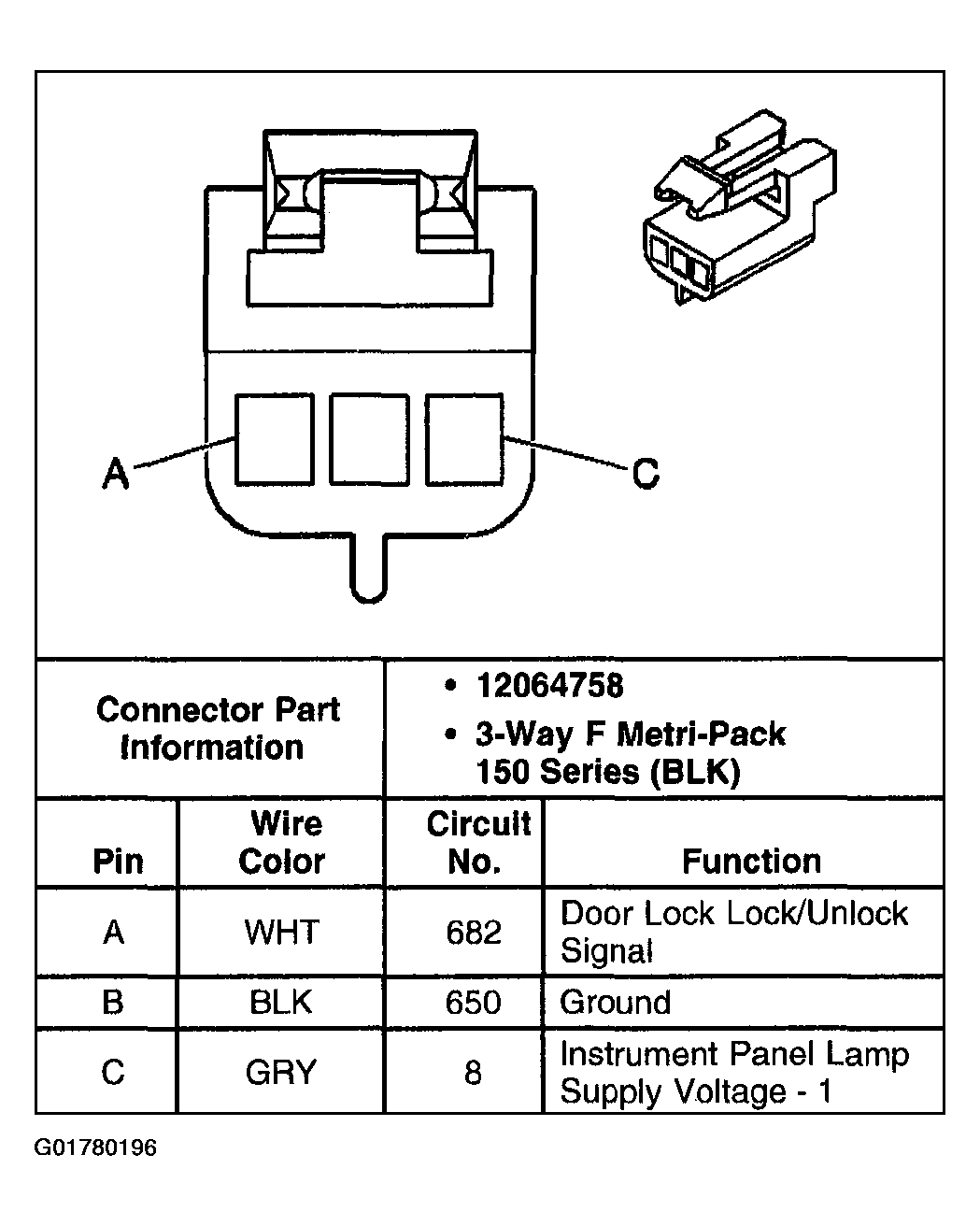

Fig 5: Identifying Door Lock Switch - Driver

Courtesy of GENERAL MOTORS CORP.

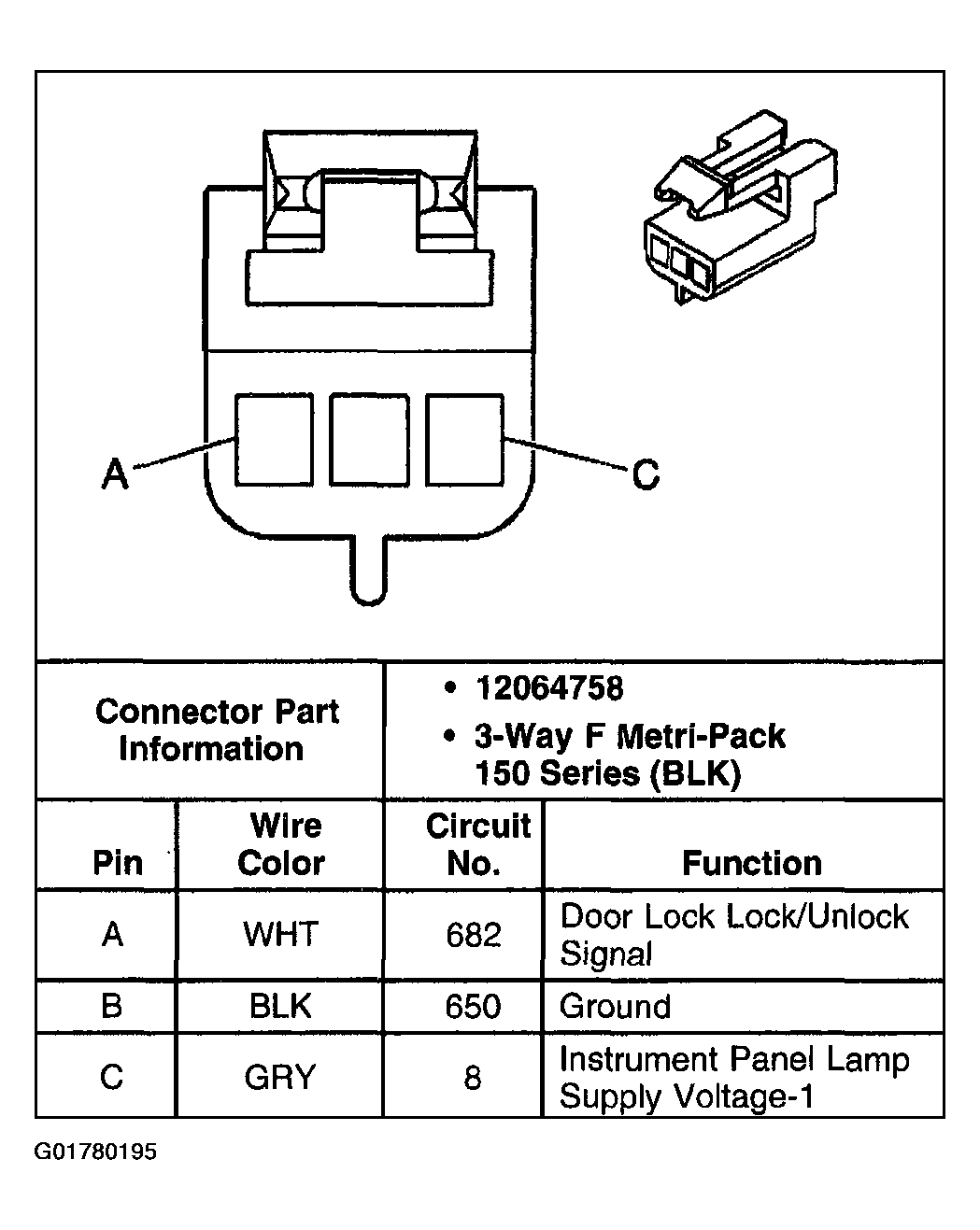

Fig 6: Identifying Door Lock Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Outside Rearview Mirror - Driver

Courtesy of GENERAL MOTORS CORP.

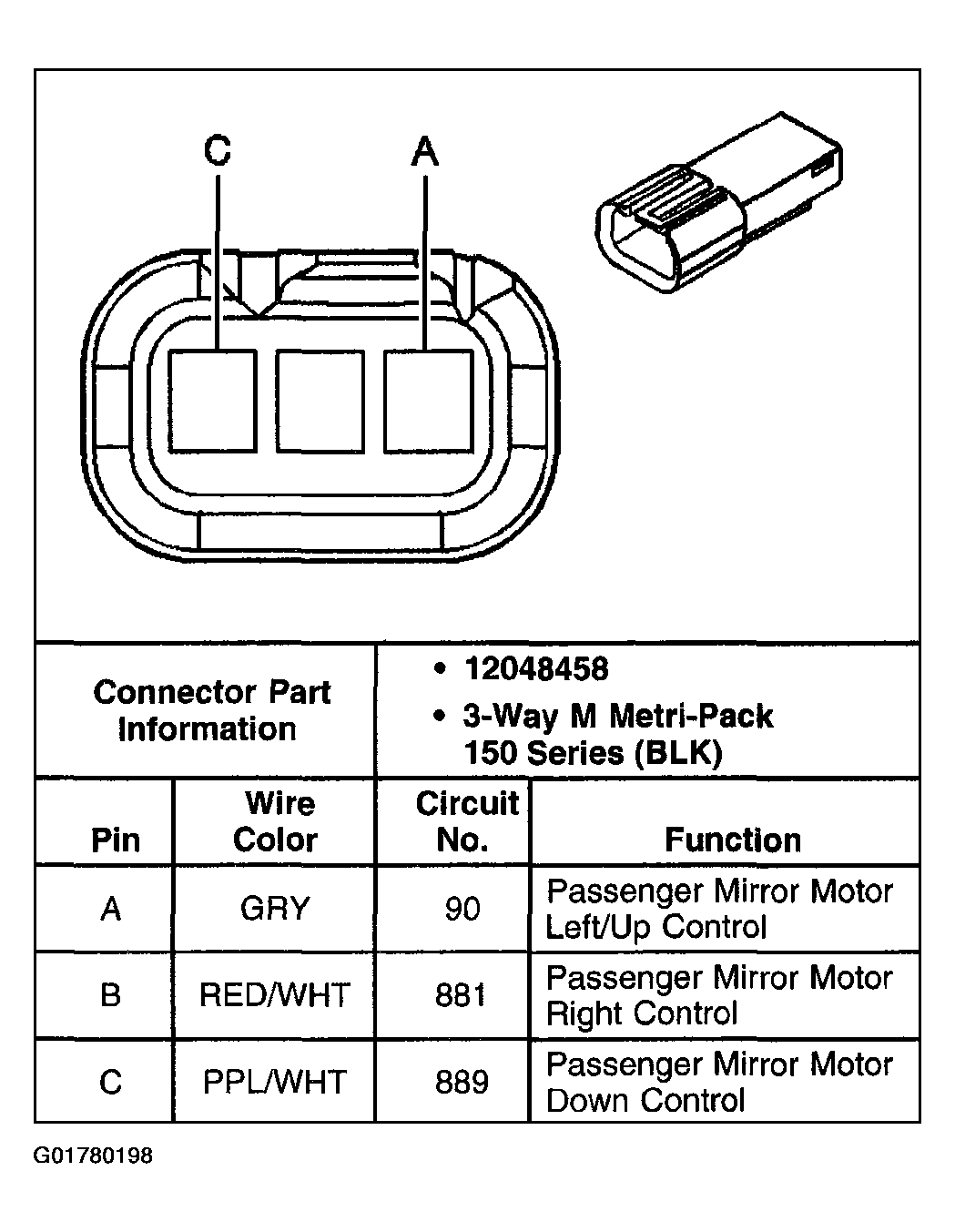

Fig 8: Identifying Outside Rearview Mirror - Passenger

Courtesy of GENERAL MOTORS CORP.

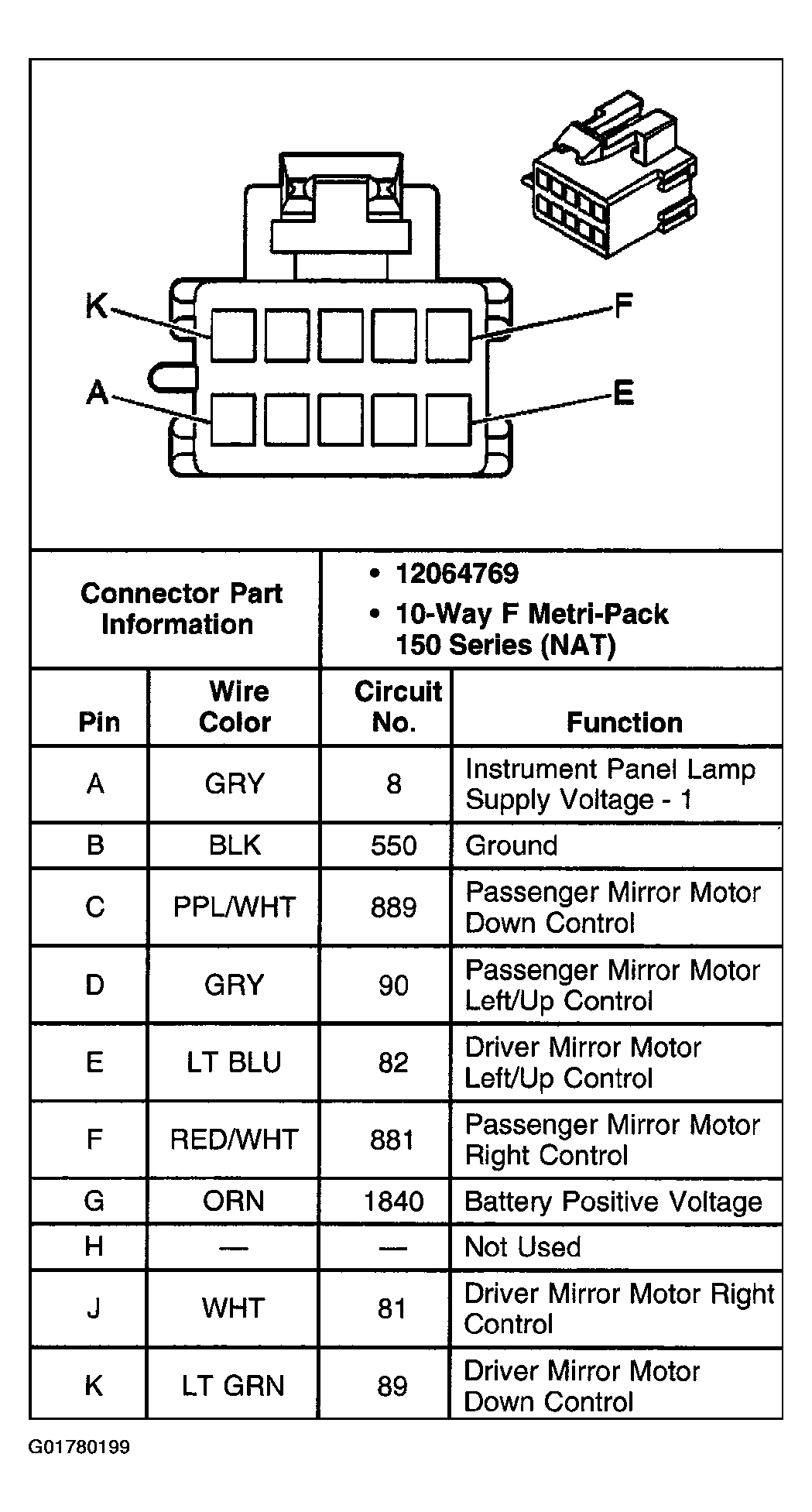

Fig 9: Identifying Outside Rearview Mirror Switch

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Window Motor - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Window Motor - Front Passenger

Courtesy of GENERAL MOTORS CORP.

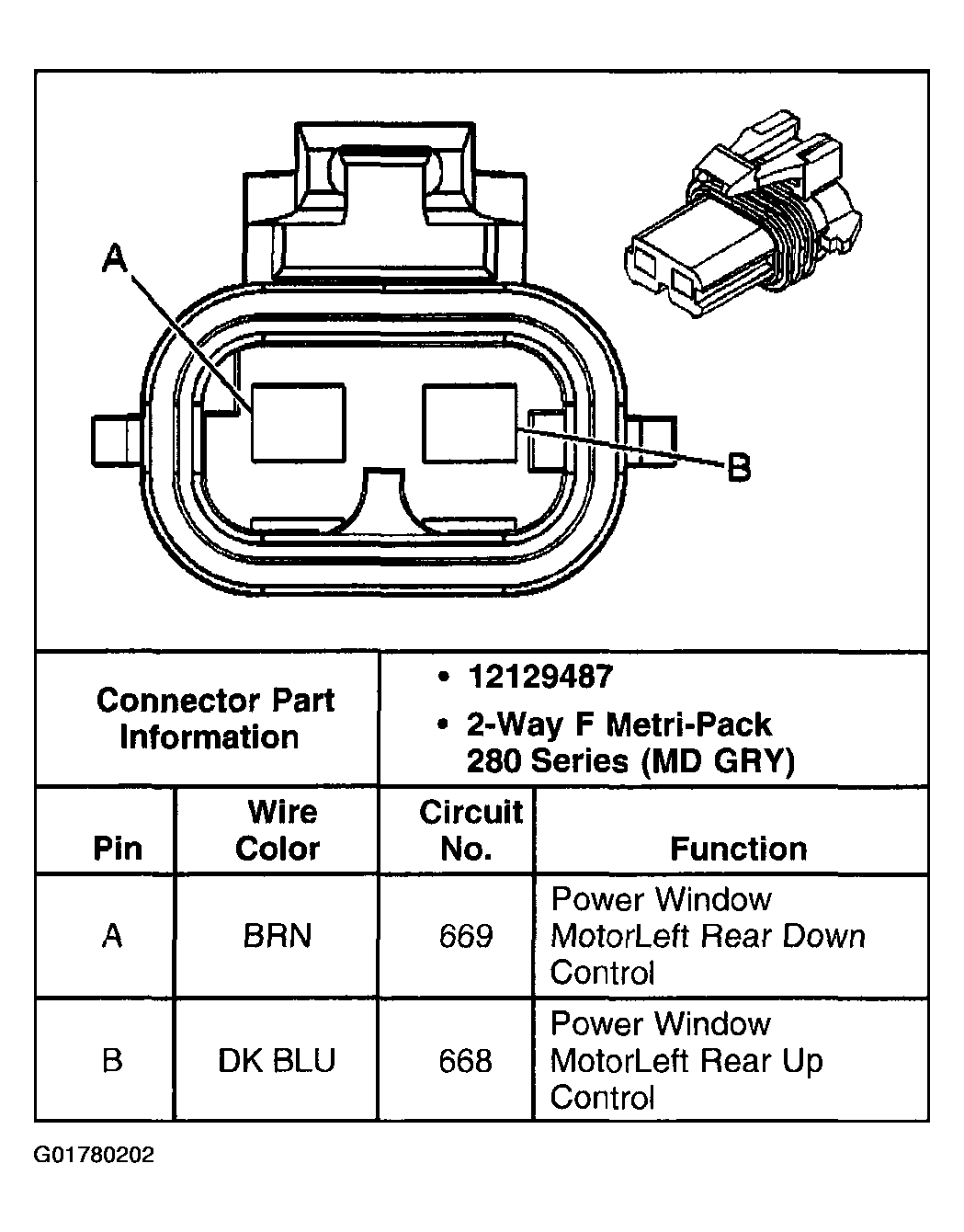

Fig 12: Identifying Window Motor - LR

Courtesy of GENERAL MOTORS CORP.

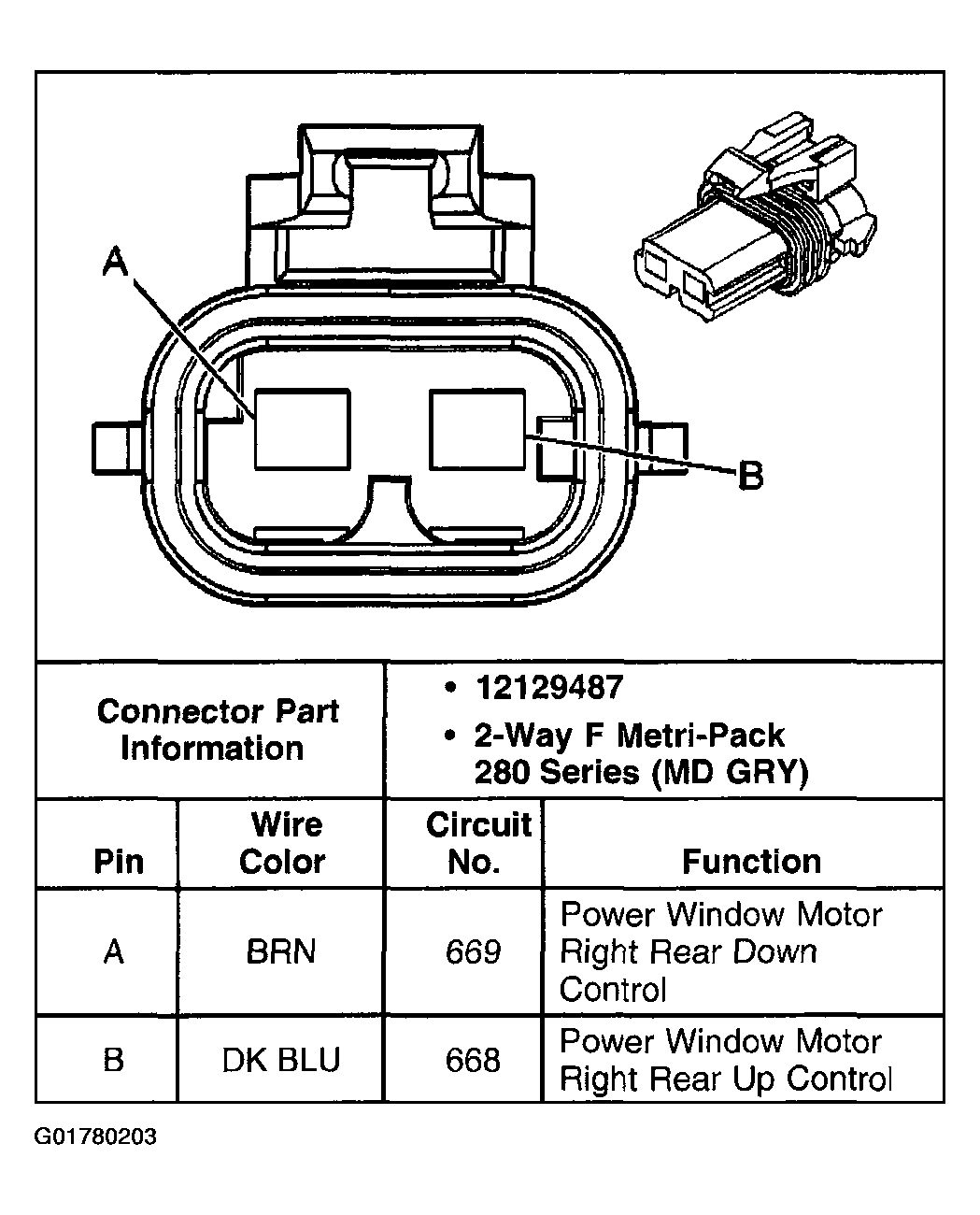

Fig 13: Identifying Window Motor - RR

Courtesy of GENERAL MOTORS CORP.

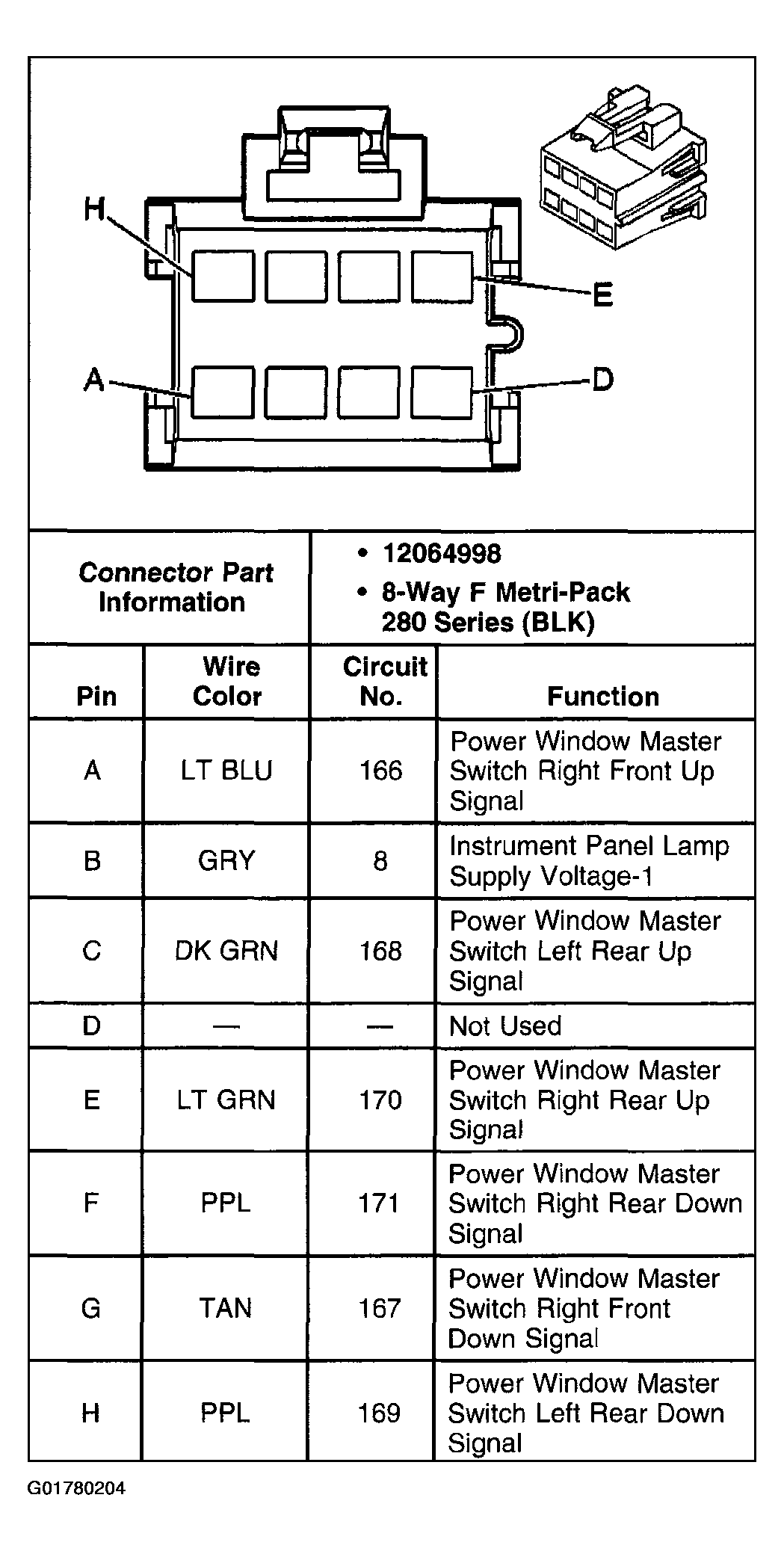

Fig 14: Identifying Window Switch - Driver, C1

Courtesy of GENERAL MOTORS CORP.

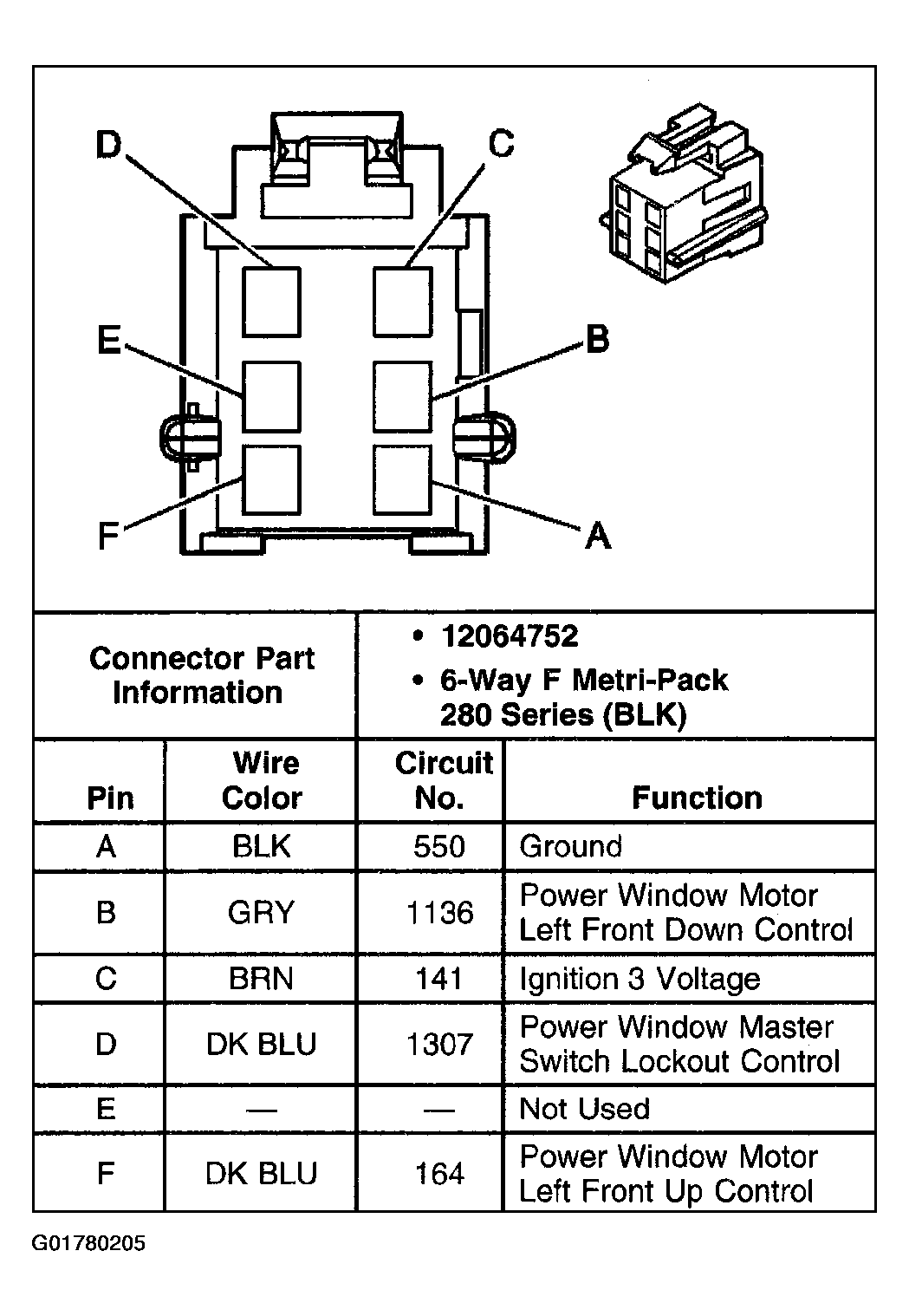

Fig 15: Identifying Window Switch - Driver, C2

Courtesy of GENERAL MOTORS CORP.

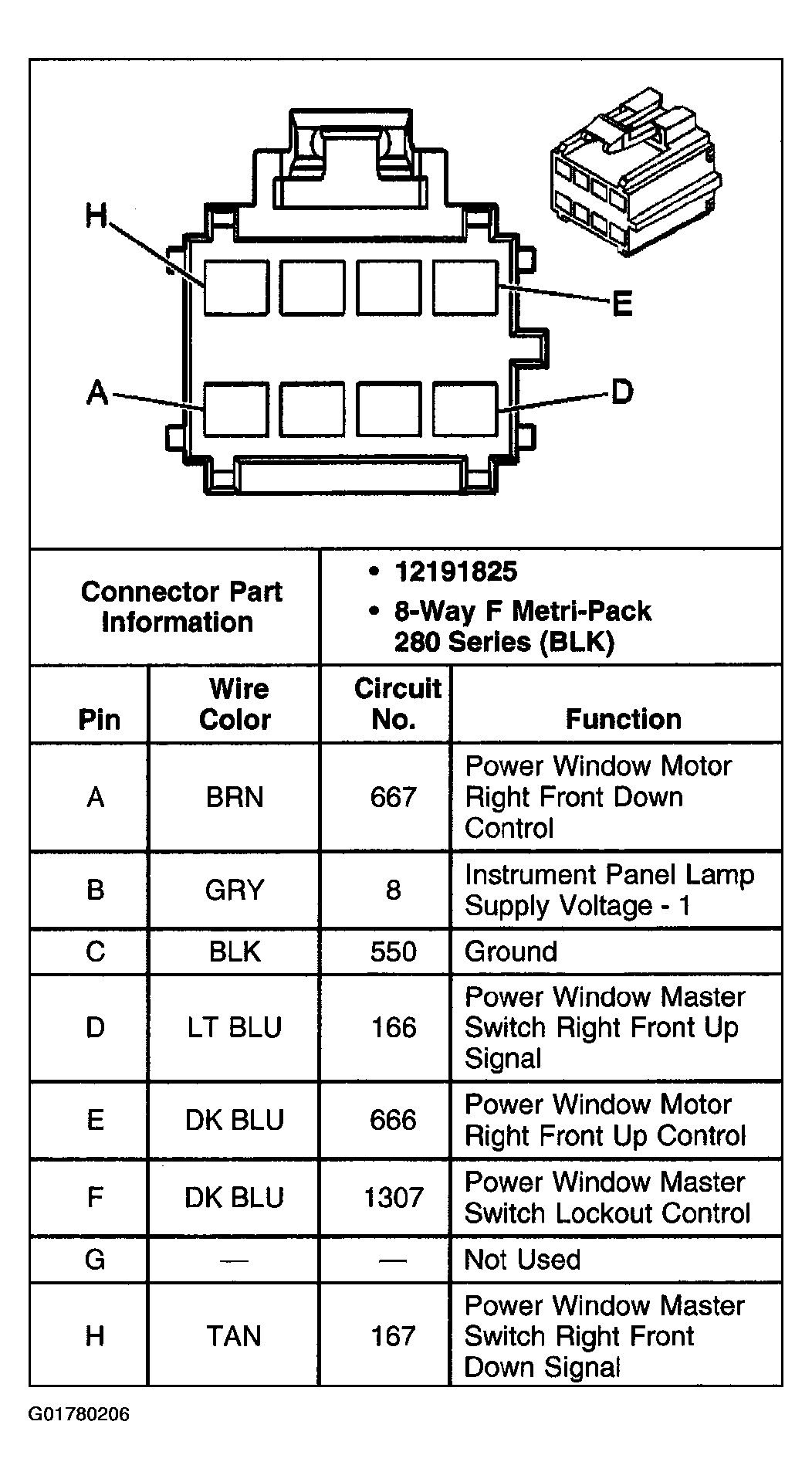

Fig 16: Identifying Window Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.

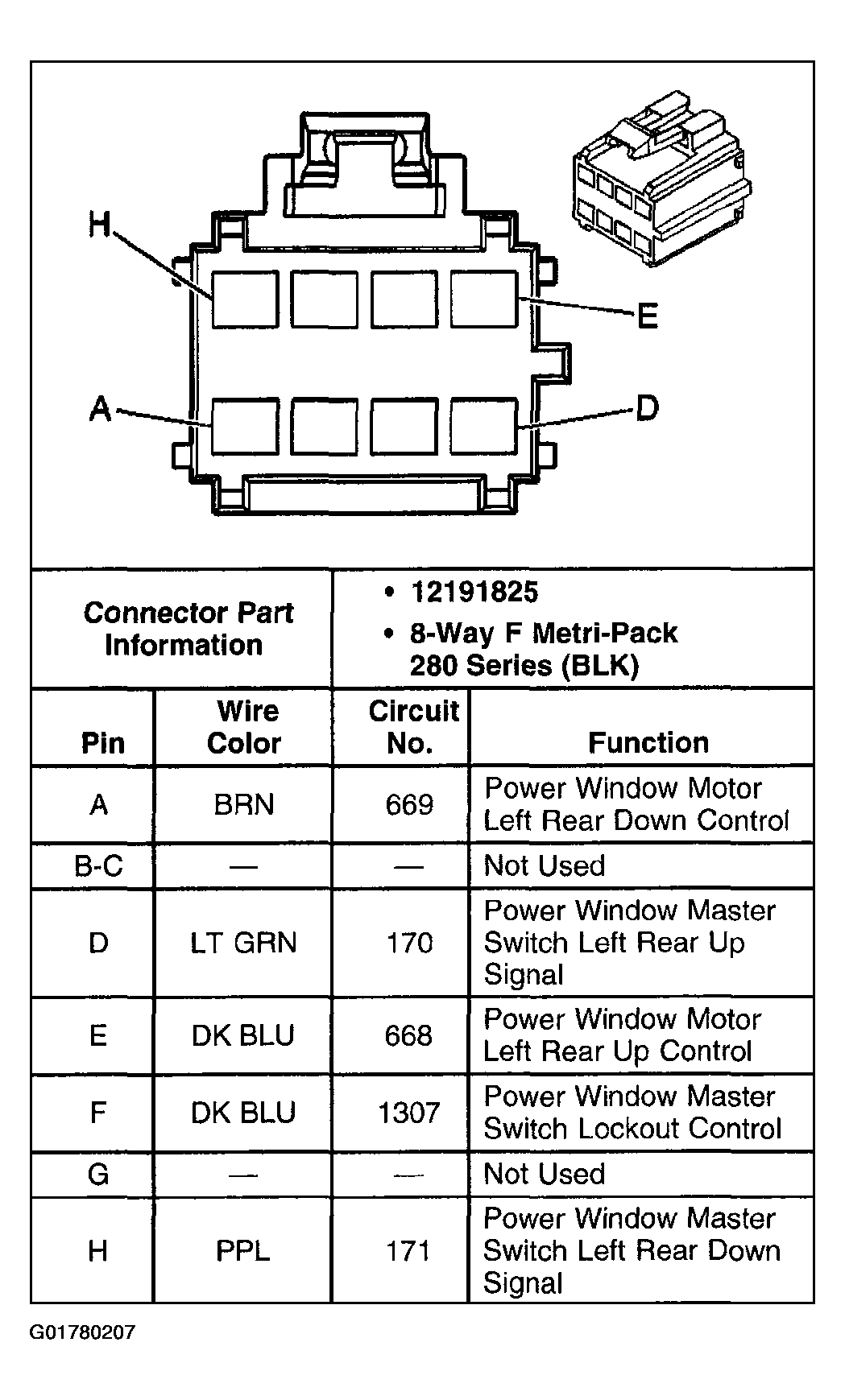

Fig 17: Identifying Window Switch - LR

Courtesy of GENERAL MOTORS CORP.

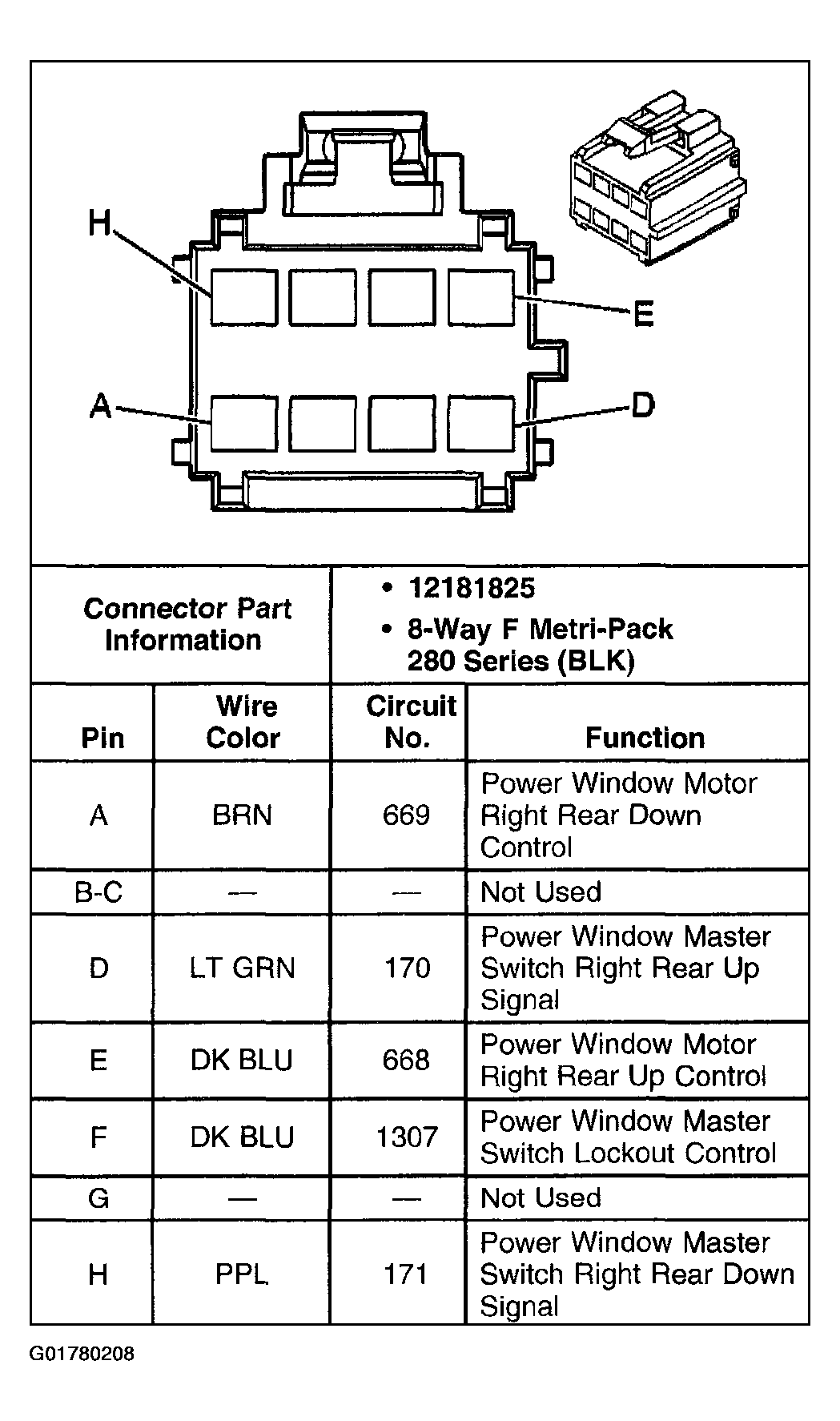

Fig 18: Identifying Window Switch - RR

Courtesy of GENERAL MOTORS CORP.
