Cooling System Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

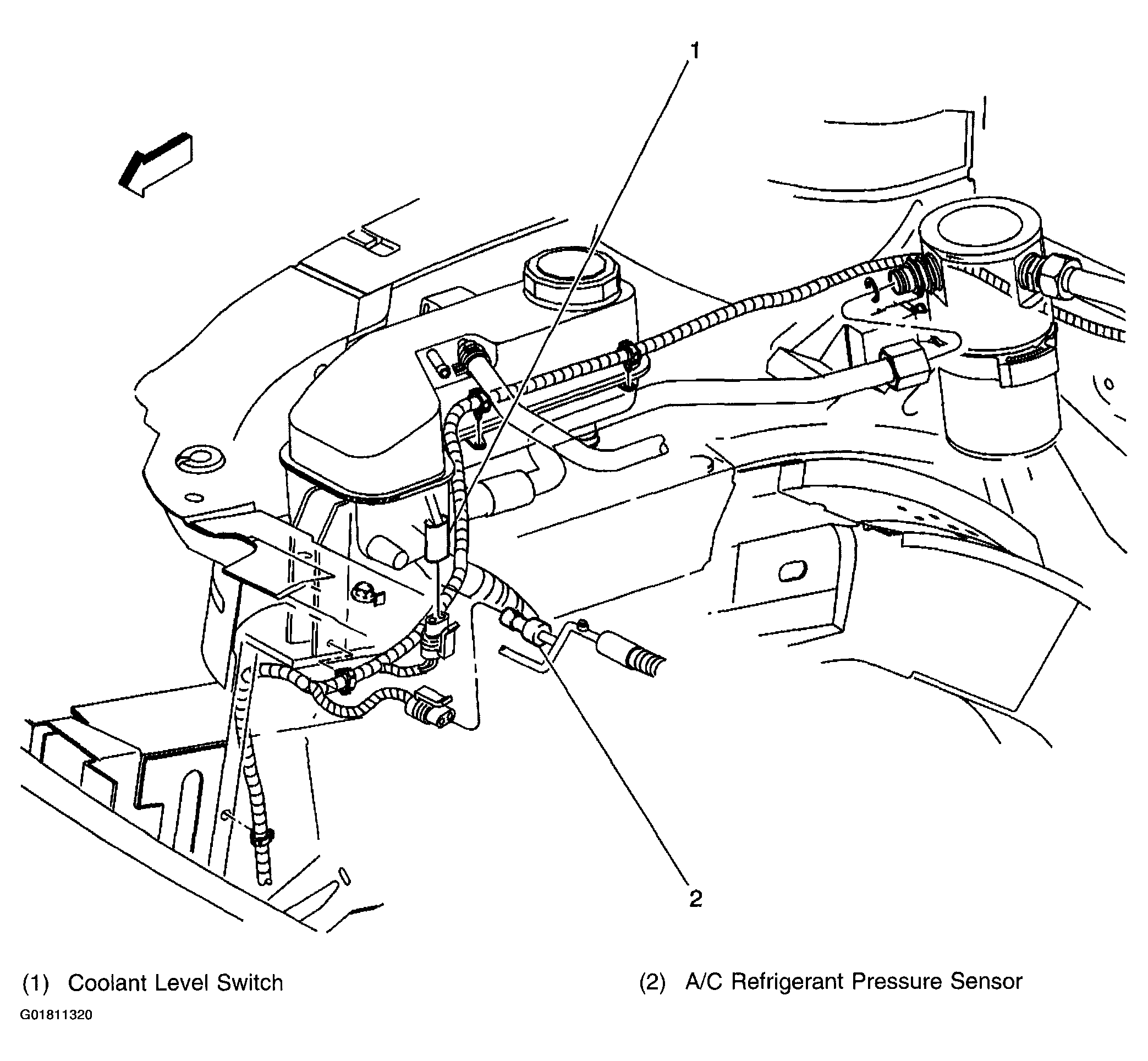

Fig 1: Identifying Coolant Level Switch & A/C Refrigerant Pressure Sensor Component View
G01811320Courtesy of GENERAL MOTORS CORP.

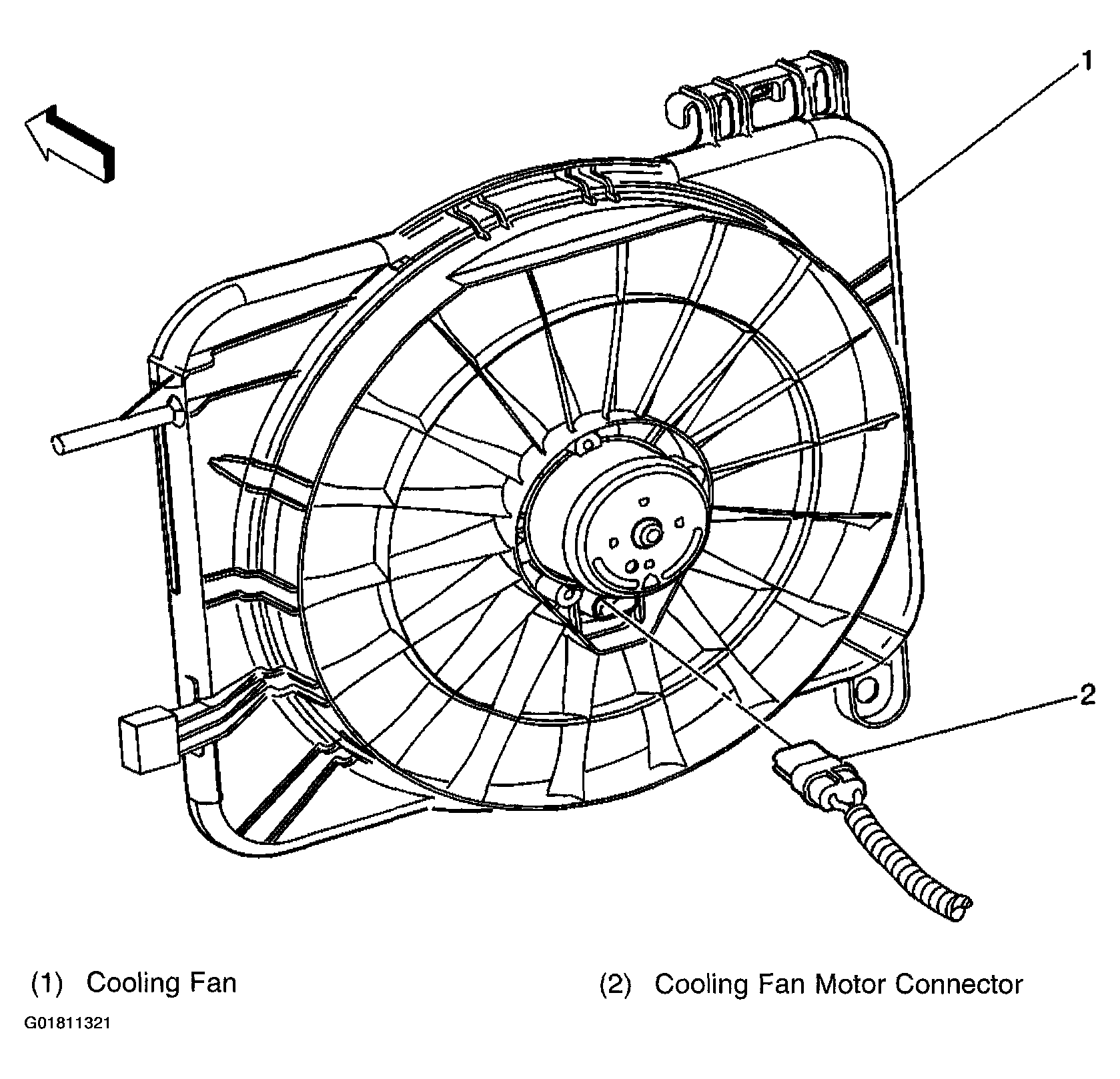

Fig 2: Identifying Cooling Fan Component View
G01811321Courtesy of GENERAL MOTORS CORP.
