Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

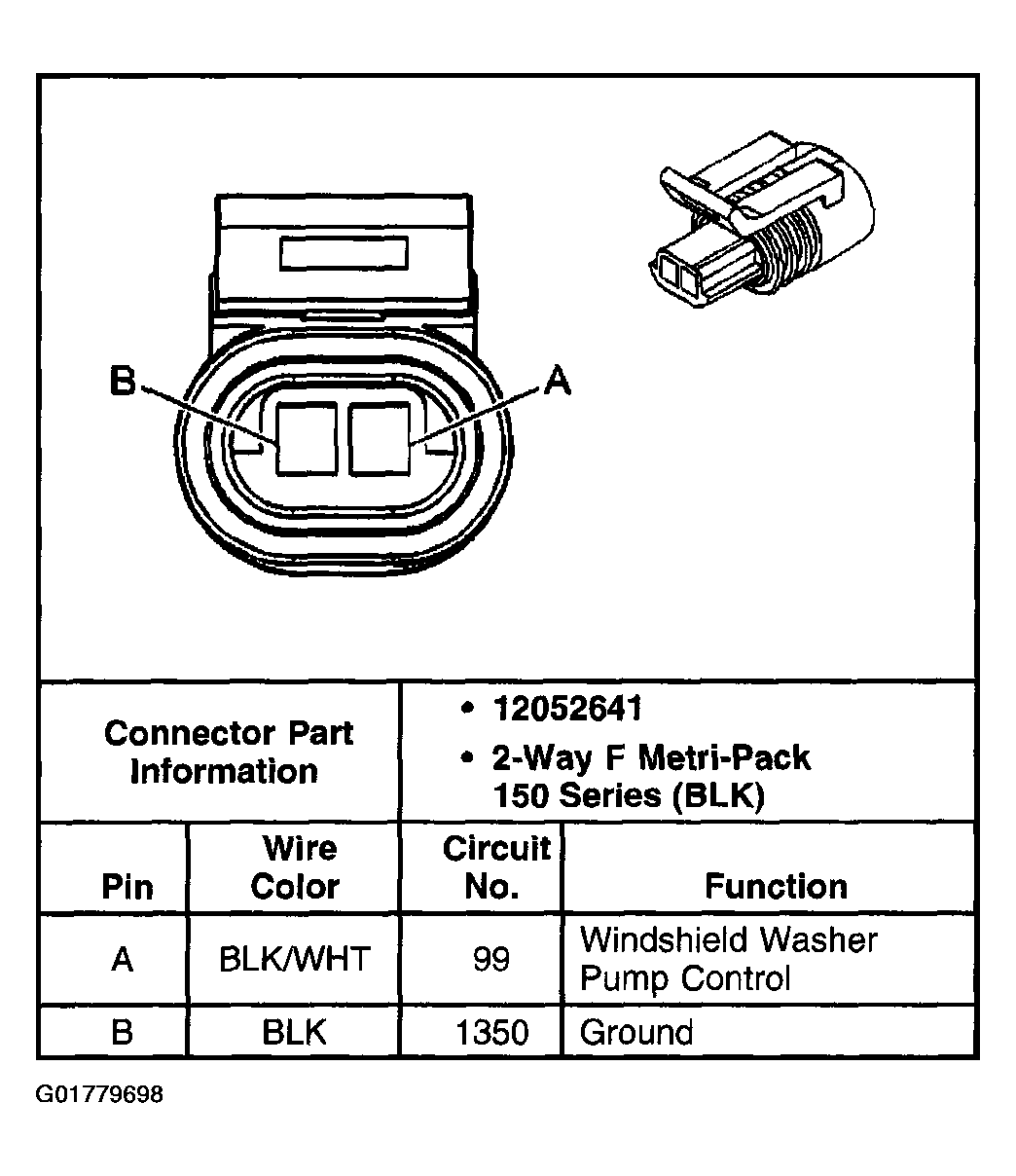

Fig 1: Identifying Windshield Washer Fluid Level Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.

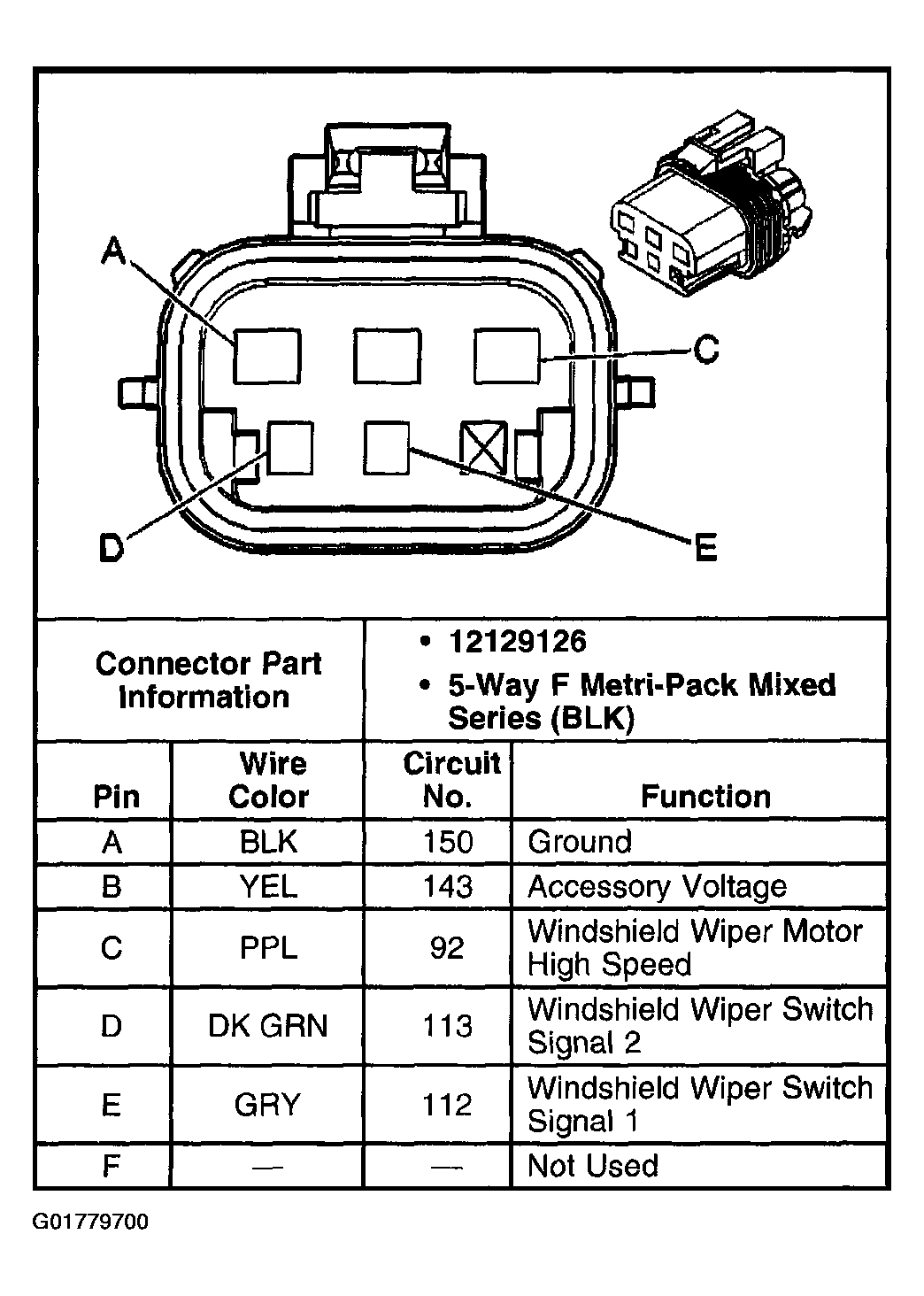

Fig 2: Identifying Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.

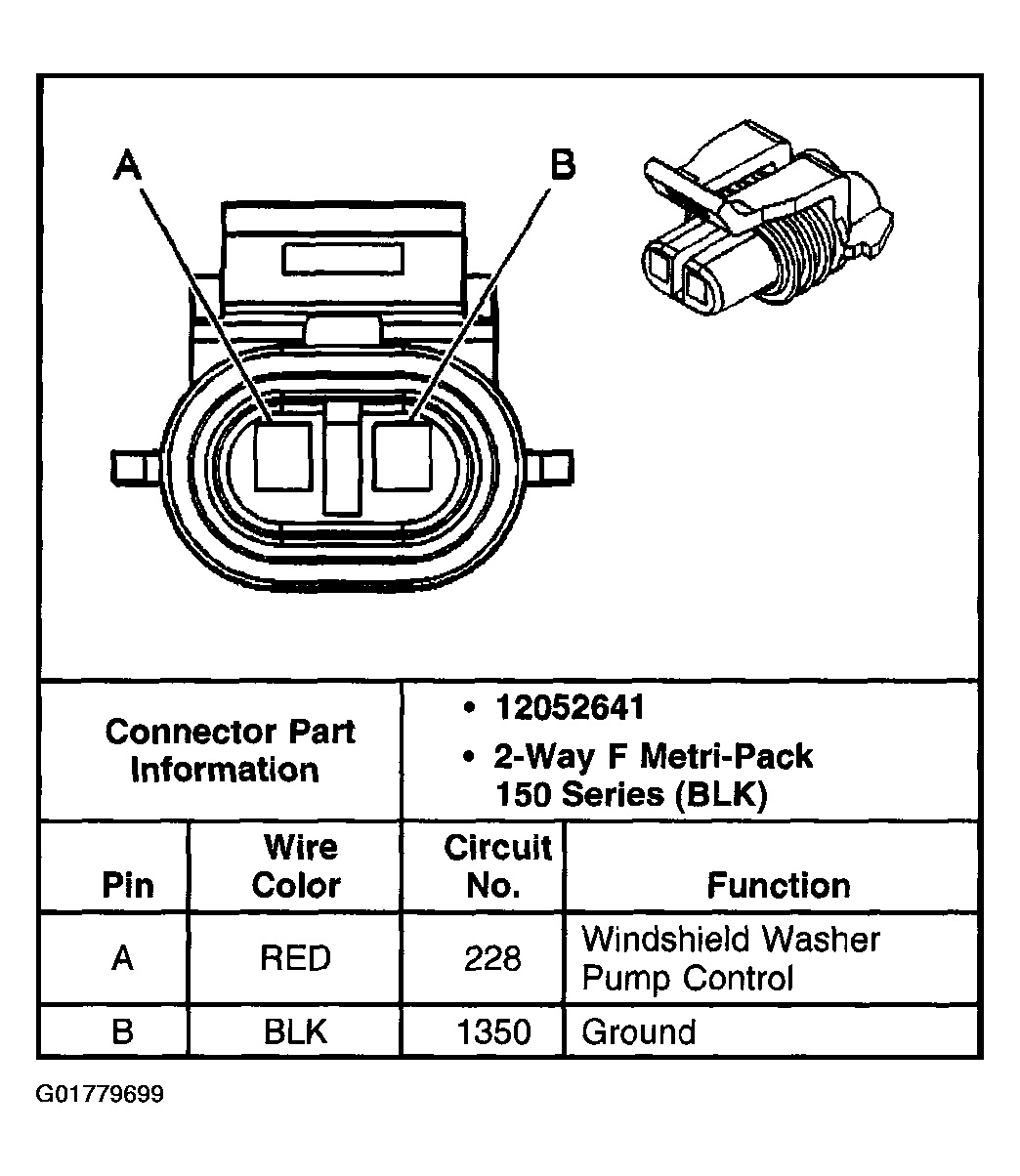

Fig 3: Identifying Windshield Wiper Motor Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

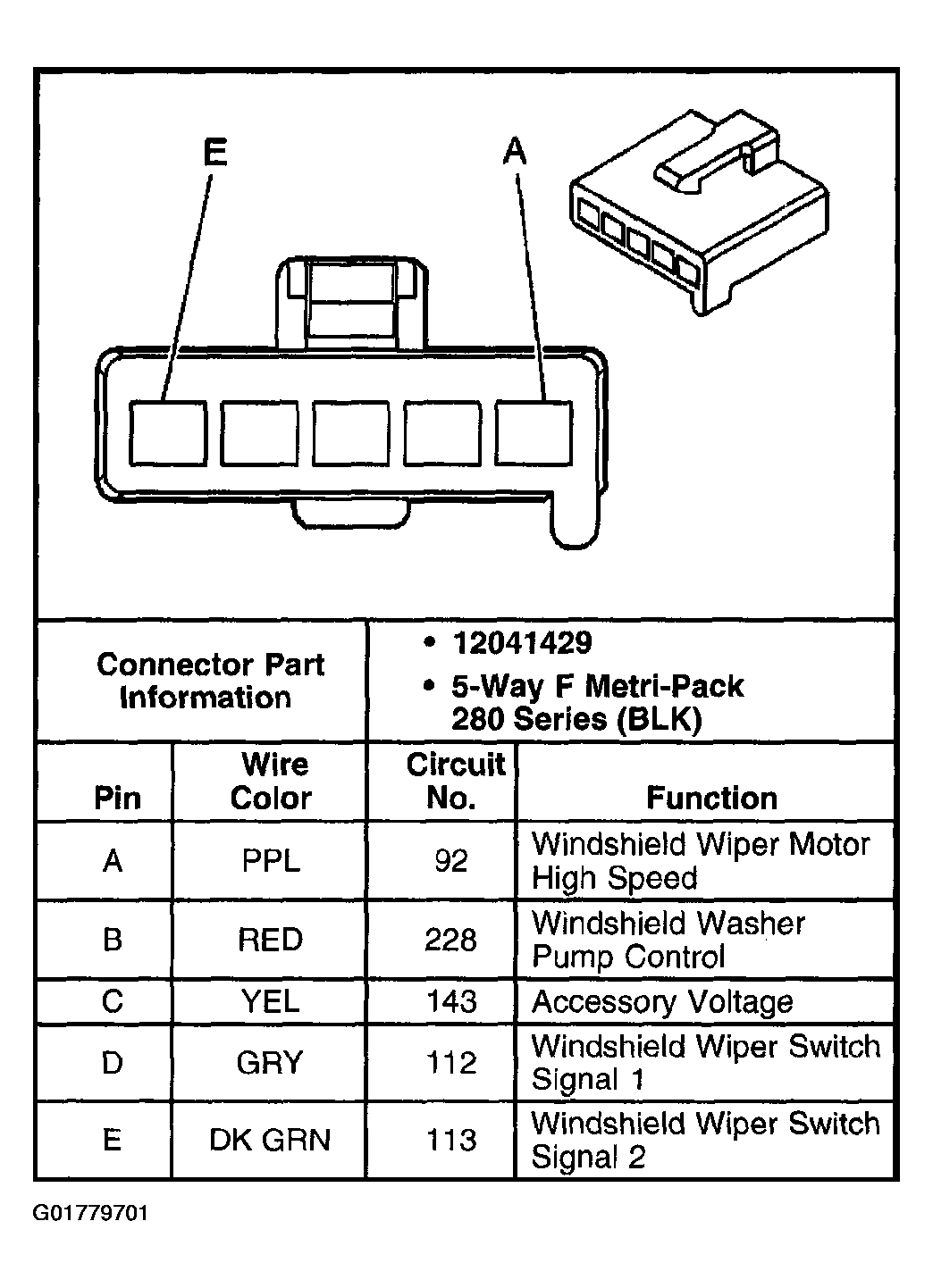

Fig 4: Identifying Turn Signal/Multifunction Switch C3 Connector End View

Courtesy of GENERAL MOTORS CORP.
