Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container pressing in until fully seated.
  2. Position the washer solvent container level sensor to the washer solvent container pressing in until fully seated.

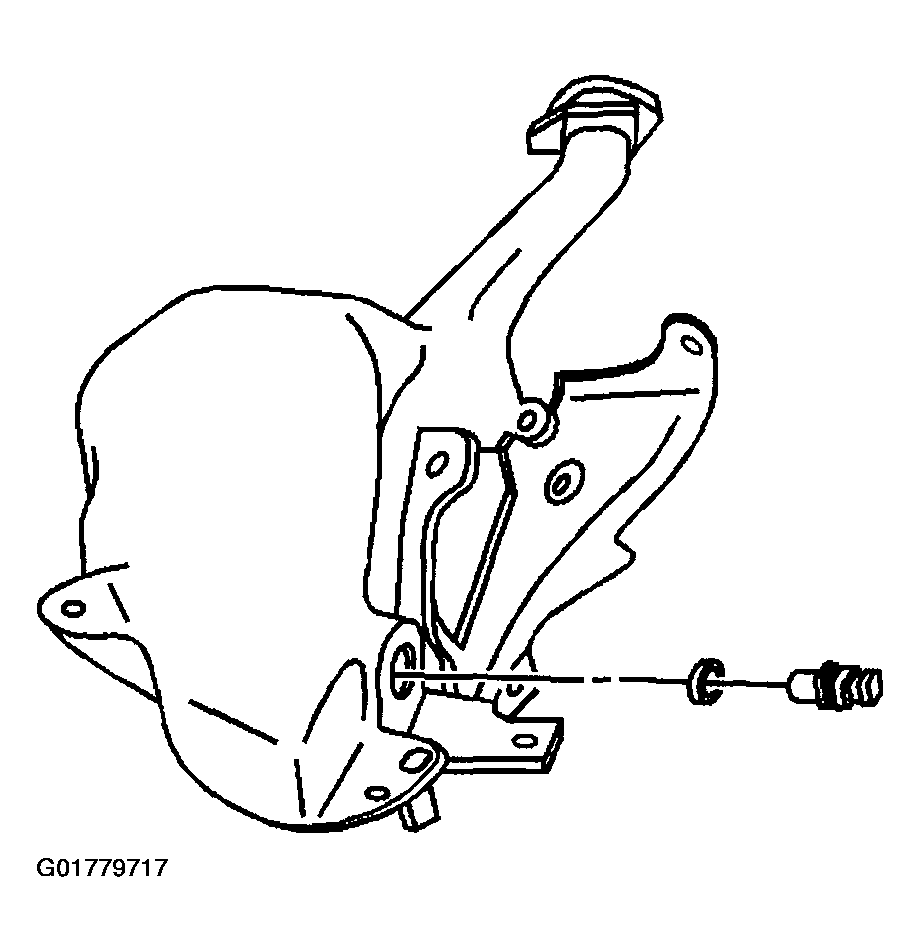

    Fig 1: Installing Washer Solvent Container Level Sensor
    G01779717Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent container level sensor electrical connector.
  4. install the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  5. Fill the washer solvent container with washer solvent.

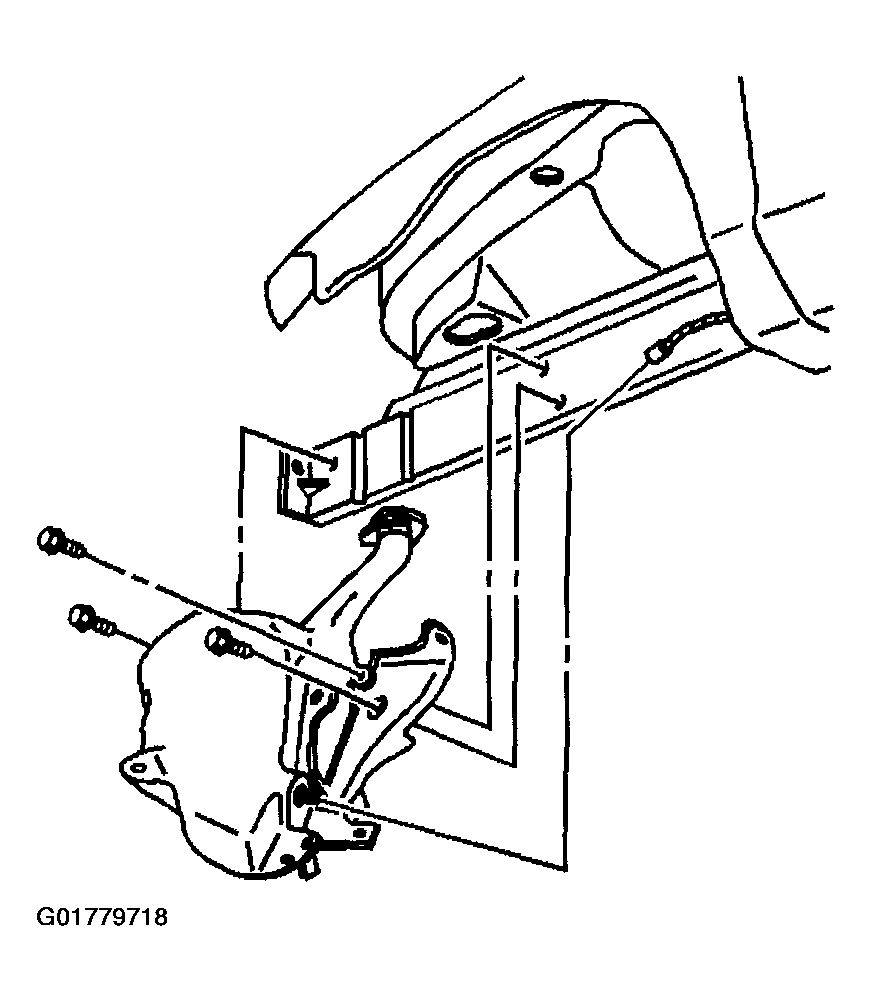

    Fig 2: Connecting Washer Solvent Container Level Sensor Electrical Connector
    G01779718Courtesy of GENERAL MOTORS CORP.
